South Bay International SBKD2 User manual

ADJUSTABLE BASE
USER MANUAL
Please read and keep for future reference.
This manual contains important safety information.
SERIAL NUMBER:
MODEL: SBKD2

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 3
..............................................4
..........................5
...............................................................................6
....................................................................7
.................................................................8
.................9
.........................................................................10
...........................................11
................ 12
.................................13
.........14
....................................................15
.........................................................................................16
........................................................17
..................................................................18
.......................................................19
KD2 HEADBOARD FOOTBOARD BRACKET INSTALLATION
REMOTE ASSEMBLY AND FREQUENCY SET UP
REMOTE CONTROL SYNCHRONIZING TWO ADJUSTABLE BASES
REMOTE CONTROL FEATURES
FAQ
TROUBLESHOOTING GUIDE
COMPONENT GUIDE
10 YEAR LIMITED WARRANTY
TABLE OF CONTENTS
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION
WEIGHT RESTRICTIONS AND EMERGENCY BACKUP
FEATURES
GETTING STARTED
POWER CORD SETUP
JOINING TWO ADJUSTABLE BASES (CONNECTING STRAP)
LEG ASSEMBLY
MATTRESS RETAINER BAR ASSEMBLY

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 4
PLEASE READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY
BEFORE USE AND ASSEMBLY
SAFETY INFORMATION
Only use the adjustable bed base for its intended use as described in this manual.
Follow the guidelines below for your safety, the safety of others and to avoid risk of
electrical shock, re, burns or injury:
• Avoid ngers in pinch-points.
• Two or more adults is strongly recommended for moving and assembling of the
adjustable bed base.
• Plug adjustable bed base into a surge protector (not included) or directly into a
suitable wall outlet.
• If the plug does not t your outlet, contact a qualied electrician to install a
suitable outlet. Unauthorized modication or failure to use a proper power
source or surge protector will void the electrical portion of your warranty.
• Keep power cords away from heated surfaces.
• To safely disconnect, ensure the base is in a at position with all motors off,
and unplug from power source.
• Always unplug the base from the electrical outlet before cleaning or servicing.
• Discontinue use of the bed base and contact a qualied service center if: it has
a damaged cord or plug, is not working properly, or has been dropped into water.
• Do not place the adjustable bed base or any of its components near or in water.
• Do not drop or insert objects into any opening. Never operate the base when
there is an obstruction between the moving parts of the adjustable base and
the metal frame.
• Replacing parts on the adjustable base is allowed to be done by consumer,
however tampering with internal components will void the warranty.
• Do not use accessories/attachments that are not recommended by the manufacturer.
• Exceeding this weight restriction could damage the bed and/or cause injury
and will void the warranty.
• Do not operate the adjustable bed base when a person or animal is underneath
the adjustable bed base.
• Mattresses may move or shift on bases – use caution.
• All 6 legs must be installed and resting evenly on the oor. The legs must be
a minimum of 6” to maintain articulating clearance and must not exceed 12”;
anything taller is considered unstable.
VIOLATING ANY OF THE SAFETY INFORMATION WILL VOID THE
WARRANTY AND MAY RESULT IN INJURY OR DAMAGE TO FLOOR
TIPPING WARNING
Placing weight at the edge may cause base to tip.
IN-HOME USE
The adjustable base is designed solely for in-home use. This base was not designed
as a hospital bed and is not designed to meet hospital standards. Do not use this
base with tent type oxygen therapy equipment or near explosive gases.
OPERATION AND SUPERVISION
Close supervision is required when the bed base is used by or near children,
animals, convalescents or disabled persons. Immediately dispose of all packing
materials as they may pose a risk to small children and pets. To avoid injury,
do not allow children or small pets to play on or under the adjustable bed base.
PACEMAKERS
As with any product that produces a vibrating motion, it is possible that some
pacemakers may interpret this motion as a false sense of movement and/or
exercise. This may or may not affect your pacemaker. If you have any concerns,
please consult your physician.
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 5
WEIGHT RESTRICTIONS
The recommended weight restriction for the adjustable base is 750 pounds,
which is calculated to include the weight of the mattress. To calculate the
weight limit, subtract the weight of the mattress from 750 pounds. The bed
will support the recommended weight limits if distributed evenly across the
base. This product is not designed to support or lift the total maximum weight
limit by the head or the foot section only. Consumers should not enter or
exit the bed with any portion of the adjustable base in the raised position;
always return the bed to a at position prior. If the weight limit is exceeded
on the head or foot mechanism, the master controller will stop all functions.
Exceeding the recommended weight limit restrictions could damage the bed
and void the warranty.
EMERGENCY BACKUP
In case of a power failure, the adjustable base features an emergency backup that
allows you to return the bed to the at position without power.
Step 1: Unplug the adjustable base.
Step 2: Locate the Emergency Battery Backup Box that is attached to the
power cord.
Step 3: Insert four 9-volt alkaline batteries (not included) into the battery box.
Step 4: Press and hold the reset button on the body of the control box to
atten the bed. (Reset button is inset. This step can only be completed
with a pen-tip or an object with a similar shape).
Step 5: Immediately remove the four 9-volt batteries after the base is returned
to the at position. The four 9-volt batteries must be removed before
power is restored to the adjustable bed base.
Warning: Leaving in the 9-volt batteries in the Emergency Battery Backup Box
after power has been restored will cause the electrical components to short out
and damage the master controller.
WEIGHT RESTRICTIONS AND EMERGENCY BACKUP

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 6
• Head and foot up/down positions
• 5 button wireless remote control
• Pre-programmed at position
• Six legs with customizable heights
• Undercarriage is made with reinforced steel components for strength and
durability
• Emergency backup battery box
• Mattress foot retainer bar
CONTACT OUR COMFORT CONCIERGE TO PURCHASE ACCESSORIES
• Head and footboard brackets
Note: This base is designed to t within a standard bedframe.
FEATURES
FEATURES

(6x) Four-Piece
Adjustable Legs
NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 7

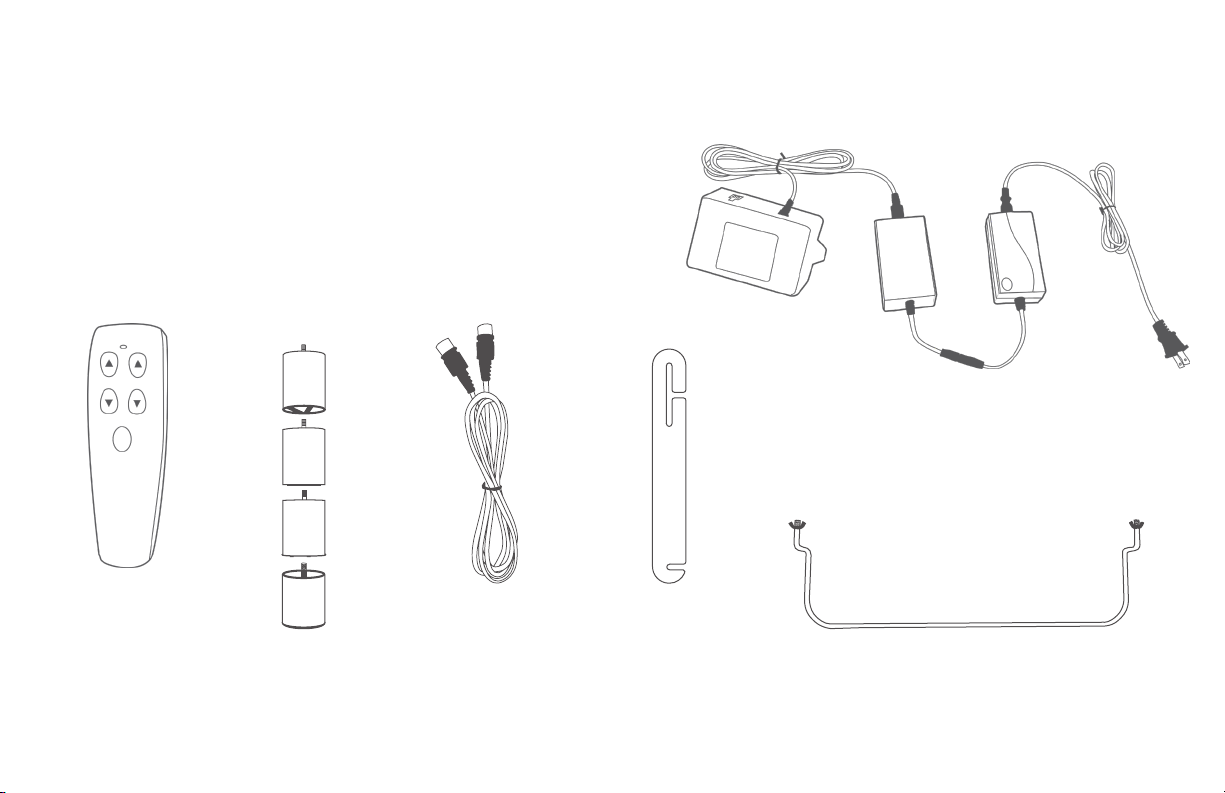

GETTING STARTED
NO TOOLS REQUIRED FOR ASSEMBLY.
Use caution at pinch points and unfolding the base
as parts may have shifted during shipping.
(1x) Wireless Remote
(3x) AAA Batteries
Included per Base

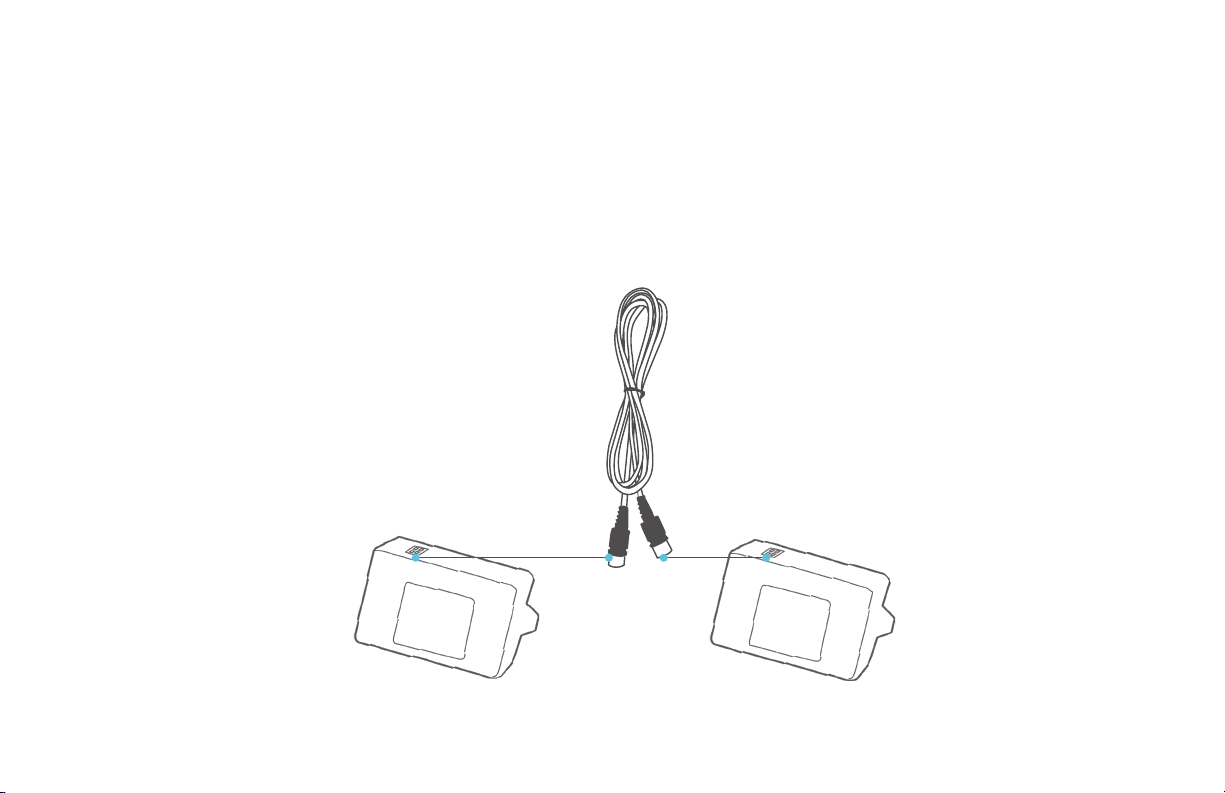

(1x) Simultaneous
Synchronization Cable
(Only included with
Twin XL/CKS bases)
(1x) Foot Retainer bar
(2x) Wing-nuts per Base
(1x) Split Adj Base Sets
Connecting Strap
(Only included with
Twin XL/CKS bases)
GETTING STARTED
(1x) Back-Up
Battery pack
(1x) AC/DC Power
Adapter per Base
(1x) Master Control Box
(Already installed under base)
(1x) Power Cord
Input voltage
100-240V per base

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 8

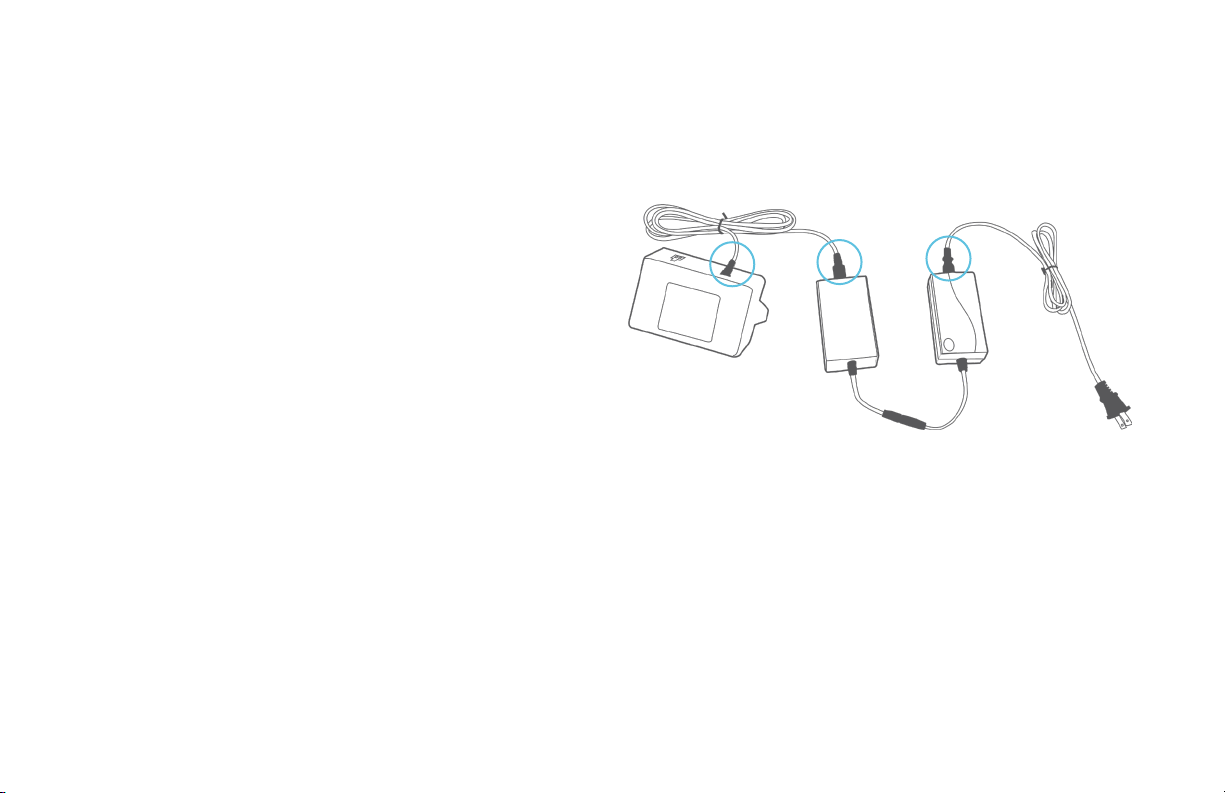

POWER CORD SETUP
CAREFULLY open the adjustable bed base into an
L position on its side or lay at with the bottom
facing up. This step may require two adults for safety.
Ensure all power cord connections circled to the
right are completely plugged-in.
Installation of the Backup Battery Pack is optional.
Only put batteries into the Backup Battery Pack
during an electrical outage and after the power cord
is unplugged from a power source.
POWER CORD SETUP
(1x) Back-Up
Battery pack
(1x) AC/DC Power
Adapter per Base
(1x) Master Control Box
(Already installed under base)
(1x) Power Cord
Input voltage
100-240V per base

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 9
JOINING TWO ADJUSTABLE BASES
If any split setup is being installed, plastic
connecting straps are provided (one per base) to
secure the bases together. Use both straps to secure
the head and foot portions together.
With the bases in their desired location, slightly
loosen both legs to allow the strap to t on the leg
bolt, between the leg washer and frame.
(A)
(B)
JOINING TWO ADJUSTABLE BASES

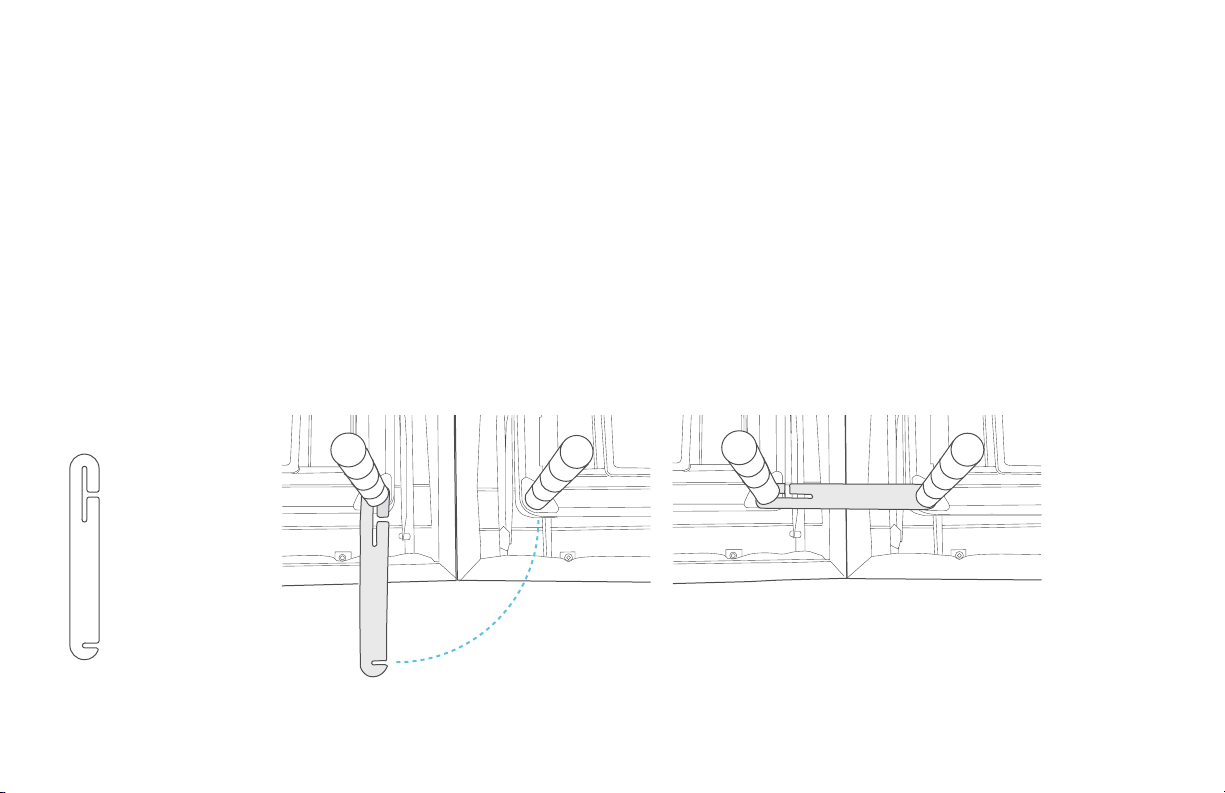

Slide side (A) of the connecting strap onto leg bolt.
Swing the strap and connect side (B) to the leg bolt.
Secure the strap by shifting to the left.
Re-tighten legs. Do not over tighten. Use the
remaining strap and repeat on other end of the base.

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 10
The legs must be a minimum of 6” to maintain
articulating clearance and must not exceed 12”;
anything taller is considered unstable.
VIOLATING ANY OF THE SAFETY GUIDELINES MAY RESULT IN
DAMAGE OR INJURY, VOID THE WARRANTY FOR IMPROPER USE
AND MAY CAUSE DAMAGE TO THE FLOOR.
LEG ASSEMBLY
Locate the legs and choose one of the heights.
Make sure the leg with the solid end is touching the
oor. Screw six legs into the pre-drilled holes by
hand. All legs must be installed and resting evenly
on the oor. The base will not operate properly
without the legs.
LEG ASSEMBLY

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 11
MATTRESS RETAINER BAR ASSEMBLY
MATTRESS RETAINER BAR ASSEMBLY

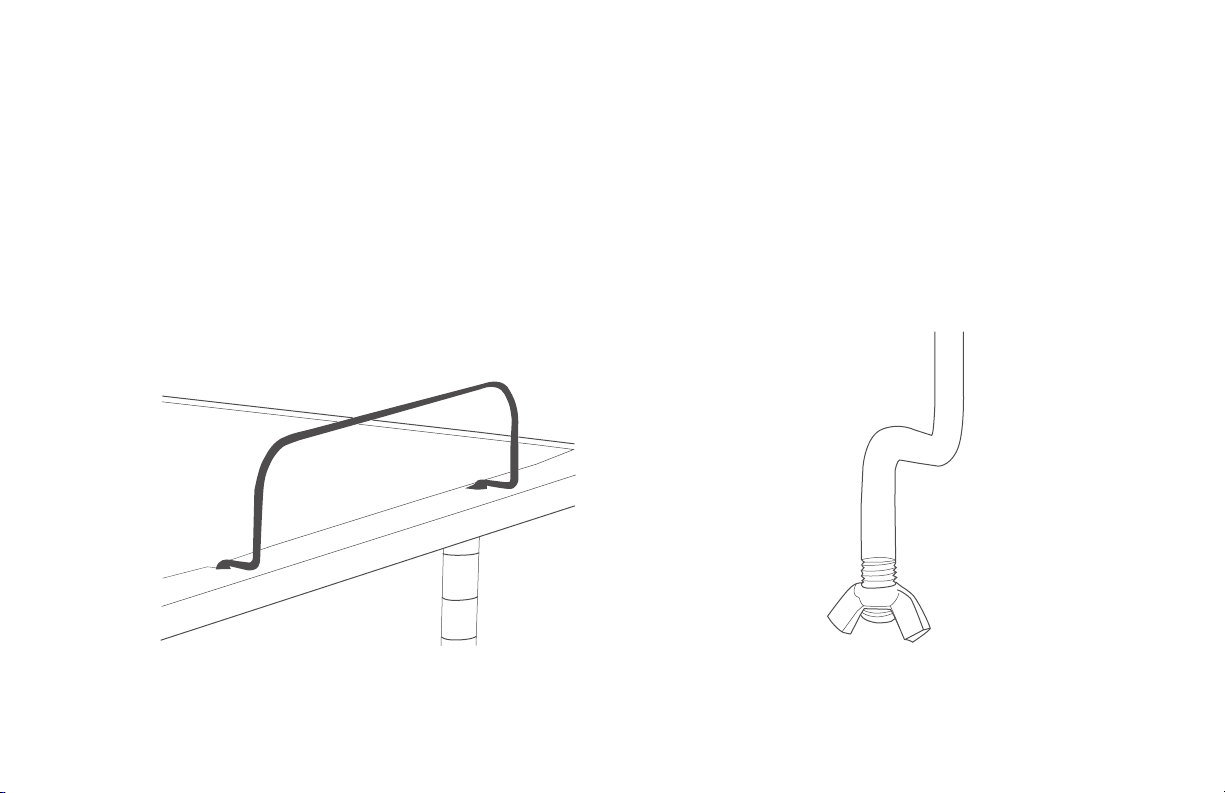

Figure 2Figure 1
Locate the mattress retainer bar in the packaging.
At the foot of the base, there are two openings to
insert the mattress retainer bar. Slide the large retainer
bar into the opening at the foot of the bed.
Secure the retainer bar (Figure 1) with the included
wing-nuts (Figure 2). This will hold the mattress
retainer bar in place.

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 12
Hardware: (2x) Long Bolts, (2x) Nuts,
(2x) Washers, (1x) Side bracket
Locate the two holes on the frame at the
corner of the adjustable base, by the leg.
Find the side bracket with the correct angle
(see Figure 2A). Align bracket with base
holes and attach using (2x) Long Bolts,
(2x) Nuts and (2x) Washers. Repeat this
step for all sides.
KD2 HEADBOARD &
FOOTBOARD BRACKET
HEADBOARD & FOOTBOARD BRACKET
2
Recommended Tools
• Socket Wrench
• Crescent Wrench
Included
(8x) Nut (8x) Washer (8x) Long Bolt (8x) Short Bolt (2x) Side Bracket 1 (2x) Side Bracket 2(4x) T-Connector
Hardware: (2x) Short Bolts, (2x) Nuts,
(2x) Washers, (2x) T-connector’s
Carefully place the base near its desired
location. Attach each T-Connector with
(2x) Short Bolts, (2x) Nuts and (2x) Washers.
Find the correct height and width for the
headboards/footboards and attach using the
extra bolts or the bolts provided with your
existing furniture. Check that all brackets and
furniture are secured prior to use.
3
Carefully place the base at (Figure 1A) or in
a side L position (Figure 1B).
1
Figure 1A Figure 1B
Figure 2A
*Optional Accessory

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 13
REMOTE ASSEMBLY AND
FREQUENCY SET UP
REMOTE ASSEBLY AND FREQUENCY SET UP
Locate the wireless remote control and insert (3x) AAA batteries (included). The
remote control is pre-programmed to work with the adjustable bed base. If you
have more than one adjustable bed base, each remote control and adjustable
bed base set should be pre-programmed to work separately.
If the remote control is not communicating with the bed (the base is not
responding by moving when the remote control is activated), please follow
the below steps:
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
To comply with the FCC RF exposure compliance requirements, no change
to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements and
void user’s authority to operate the device.
Radio Frequency: 2.4 GHz
Step 1: Unplug the power cord from the outlet. Wait about 5 seconds, then
plug it back into the outlet. Perform Step 2 within 10 seconds of doing Step 1.
Step 2: On the back of the remote press and hold the PAIR button. The PAIR
button will illuminate blue and start ashing. When the PAIR button stops
ashing, the LED light on the control box will go out. Release the PAIR button.
The remote is now paired to the adjustable base.

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 14 REMOTE CONTROL SYNCHRONIZING TWO ADJUSTABLE BASES
REMOTE CONTROL SYNCHRONIZING
TWO ADJUSTABLE BASES
Sync Cord
Master Control Box Master Control Box
Step 1: Unplug base from power source.
Step 2: Connect the male end of the simultaneous synchronization cable to
each control box, only one sync cord is required.
Step 3: Plug base back into the power source.
Step 4: Check to ensure all cords are securely attached. Both remotes will now
operate both bases simultaneously.

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 15
REMOTE
CONTROL
FEATURES
REMOTE CONTROL FEATURES
Head Up
Head Down
Foot Up
Foot Down
Flat Position

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 16
FAQ
FAQ
Will the adjustable base t inside my current
bed frame?
Yes, we designed the adjustable base width and
length to be ½” shorter than standard bed sizes to
ensure the base ts within most* bed frames. Even if
you have a headboard and footboard with side rails
and slats, our adjustable base will t right in place.
*Some bed frames, such as sleigh bed frames, do not provide enough clearance
for the mattress when the adjustable base is articulated.
What size of sheets do I buy for a King Split or Cal
King Split adjustable base?
Eastern Split King (EKS): Eastern King Split sheet
set OR (2) Twin XL sheets
Adjustable base dimensions
Twin XL: 37.5”W x 79.5”L x 15”H
Full: 53.5”W x 73.5”L x 15”H
Queen: 59.5”W x 79.5”L x 15”H
Split King: (x2) 37.5”W x 79.5”L x 15”H
Cal King Split: (x2) 35.5”W x 83.5”L x 15”H
EASTERN KING SPLIT (EKS)CALIFORNIA KING SPLIT (CKS)
California
King Split
Twin XL or
Twin Long
California
King Split
Twin XL or
Twin Long VS.
Also known as “Split King,” each half of the EKS is a Twin XL/Twin Long size.
Overall sleeping surface area is the same in the EKS and CKS.
The EKS is wider by 4” and the CKS is longer by 4”.
71”
75”
35.5”
83.5”79.5”
37.5” 37.5”
35.5”

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 17
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
If one or more functions on the base have stopped operating:
• Check under the bed base to verify that the wired connections are secure and
that there are no cords or bedding obstructing the movement of the base.
• Check that the power cord is assembled properly and that the connections
are secure.
• Check if green LED is on (power supply).
If the lights on your remote control no longer illuminate and will not operate
your adjustable bed base:
• Make sure the batteries are installed correctly.
• Install (3x) new AAA batteries in the remote control.
If all of the remote control buttons illuminate, however nothing on your
adjustable bed base will operate:
• Unplug the base for 5 minutes to reset the electronic components.
• Plug the adjustable base into a different electrical outlet, or test current
outlet with another working appliance (a grounded, electrical surge
protector is recommended).
• Complete the “Remote Assembly and Frequency Set Up” as the
frequency on the bed may have been lost.
If the head or foot mechanisms will elevate but will not return to the at position:
• Check the undercarriage for obstructions. Remove any obstructions away
from the head and foot mechanisms and return the base to its at position.
If you have any questions regarding this product
or if you need assistance with
set up or troubleshooting, please call
our Comfort Concierge at 1-877-622-6550.

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 18 TROUBLESHOOTING COMPONENT GUIDE
COMPONENT GUIDE
Head Actuator
Foot Actuator
Master Control Box

NEED ASSISTANCE? CALL US AT 1-877-622-6550 FROM 8:00AM TO 5:00PM PDT MONDAY-FRIDAY
PAGE 19
FULL 1-YEAR WARRANTY The Adjustable Base is warranted against defects in
materials or workmanship for a period of one year from the date of purchase to
the original purchaser. During the rst year, manufacturer will repair or replace, at
no cost to the original purchaser, any defective part. This includes all authorized
labor and transportation costs incurred with the repair or replacement of any parts
found to be defective.
2 YEAR MOTOR WARRANTY The Adjustable Base has a two year, full
replacement warranty, parts, labor and transportation; on the motor should
the motor(s) fail during the rst two years of this warranty from the original
purchase date.
5 YEAR WARRANTY During year 2 through year 5, from the original purchase
date, manufacturer will replace any bed part, to the original purchaser, found to
be defective. The part must be returned within fourteen (14) days of receipt of
the replacement part(s) or purchaser may be subject to charges for said part(s) to
include, but not limited to freight charges. Liability of manufacturer is limited to
the replacement of the defective part or parts ONLY with purchaser responsible
for all service, installation and transportation costs of said part(s).
10 YEAR LIMITED WARRANTY During year 6 through year 10 from the original
purchase date, manufacturer will replace, per the terms and conditions set
forth in this paragraph, any bed part found to be defective. Purchaser shall pay
1/180 of the current replacement cost of the defective part multiplied by the
number of months, after the fth (5th) year, from the original purchase date.
This warranty applies only to replacement part(s). Purchaser may be subject to
charges for said part(s) to include, but not limited to, freight charges. Liability
of manufacturer shall be limited to the replacement of the defective part(s) only
with purchaser responsible for all service, installation and freight costs of said
part(s).
10 YEAR LIMITED WARRANTY
ADDITIONAL TERMS AND CONDITIONS Warranty does not include
reimbursement for inconvenience, removal, installation, set up, loss of use, shipping,
or any other costs or expenses not expressly covered in this warranty.
This warranty does not apply:
• To damage resulting from misuse or abuse caused by the purchaser.
• To damage caused by the repairs or parts replacement by an authorized person.
• If the Adjustable Base has been mishandled (including during shipping),
subject to physical abuse or an improper power supply, or otherwise operated
in a manner inconsistent with procedures outlined in the owner manual and warranty.
• To damage to mattresses, bedding, cables, electrical cords, or accessories
supplied by dealers.
• To modication of the Adjustable Base without prior written consent
by manufacturer.
• To costs for unauthorized service calls for the purpose of educating the
consumer about the Adjustable Base or locating properly functioning
power outlets.
• If the recommended weight restrictions are exceeded.
• If used in any environment or a commercial setting for which it was not intended.
Some states do not allow the exclusion of incidental or consequential damages;
therefore the above limitation or exclusion may not apply. This warranty gives
the purchaser specic legal rights. The Purchaser may have the other rights,
which may vary from state to state. This warranty is valid in the 48 continuous states.
WORKING WEIGHT LIMITS Although your Adjustable Base has been rigorously
tested within the recommended limits in this publication, to maintain the highest
quality standards, exceeding the recommended weight limits may void your
warranty. The recommended weight restriction is 750lbs, and is calculated to
include the weight of the mattress.
WARRANTY
