Southbend Marathoner Gold ES/20SC User manual

MANUAL 1181958
$18.00
ELECTRIC CONVECTION OVENS
MANUAL SECTION CO
OPERATOR’S MANUAL
Marathoner Gold & SilverStar
ELECTRIC CONVECTION OVENS
SilverStar Models Marathoner Gold Models
SLEB/10CCH
SLEB/10SC
SLEB/20CCH
SLEB/20SC
SLES/10CCH
SLES/10SC
SLES/20CCH
SLES/20SC
EB/10CCH
EB/10PC
EB/10RT
EB/10SC
EB/20CCH
EB/20PC
EB/20RT
EB/20SC
ES/10CCH
ES/10PC
ES/10RT
ES/10SC
ES/20CCH
ES/20PC
ES/20RT
ES/20SC
Model SLES/10SC Model ES/10SC
!WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
www.southbendnc.com
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________

ELECTRIC CONVECTION OVENS
PAGE 2 OPERATOR’S MANUAL 1181958
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained
and aware of precautions. Accidents and problems can be caused by failure to follow fundamental rules
and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the
operator, service personnel, or to the equipment.
!DANGER This symbol warns of immediate hazards which will result in severe injury or
death.
!WARNING This symbol refers to a potential hazard or unsafe practice which could result in
injury or death.
!CAUTION This symbol refers to a potential hazard or unsafe practice which could result in
injury, product damage, or property damage.
NOTICE This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
!WARNING
FIRE HAZARD
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Keep area around appliances free and clear of combustibles.
Purchaser of equipment must post in a prominent location detailed instructions to be followed in the
event the operator smells gas. Obtain the instructions from the local gas supplier.
NOTICE
Be sure this Operator’s Manual and important papers are given to the proper authority to retain for
future reference.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.

ELECTRIC CONVECTION OVENS TABLE OF CONTENTS
OPERATOR’S MANUAL 1181958 PAGE 3
Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking
equipment on the market.
You will find that your new equipment, like all Southbend equipment, has been designed and manufactured
to meet the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered
and designs are verified through laboratory tests and field installations. With proper care and field
maintenance, you will experience years of reliable, trouble-free operation. For best results, read this
manual carefully.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Specifications ......................................................................................................................... 4
Installation .............................................................................................................................. 8
Operation..............................................................................................................................21
Cooking Hints .......................................................................................................................32
Cleaning ...............................................................................................................................35
Adjustments..........................................................................................................................37
Troubleshooting....................................................................................................................41
Parts .....................................................................................................................................56
Read these instructions carefully before attempting installation. Installation and initial startup should be
performed by a qualified installer. Unless the installation instructions for this product are followed by a
qualified service technician (a person experienced in and knowledgeable with the installation of commercial
gas an/or electric cooking equipment) then the terms and conditions on the Manufacturer’s Limited
Warranty will be rendered void and no warranty of any kind shall apply.
In the event you have questions concerning the installation, use, care, or service of the product, write to:
Southbend
1100 Old Honeycutt Road
Fuquay-Varina, North Carolina 27526 USA

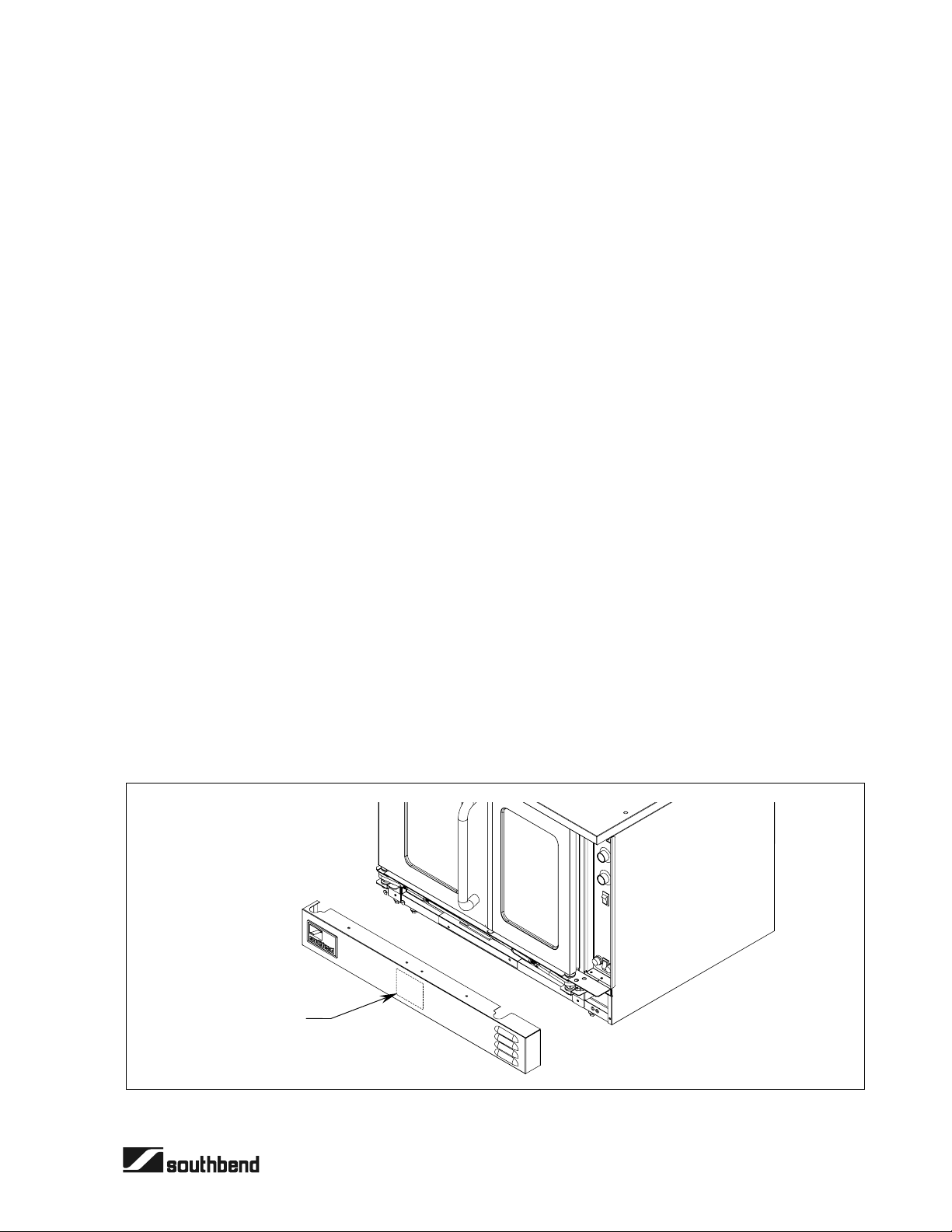

The serial plate is located on the interior side of the lower front panel, as shown below.
Serial Plate
(inside panel)

SPECIFICATIONS ELECTRIC CONVECTION OVENS
PAGE 4 OPERATOR’S MANUAL 1181958
SPECIFICATIONS
SPECIFICATIONS
NOTICE
The appliance, when installed, must be electrically grounded and comply with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.2, as applicable.
Southbend reserves the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, additions, or replacements for previously
purchased equipment.
This product is intended for commercial use only, not for household use.
ELECTRICITY SUPPLY
The following table lists the electricity supply requirements PER OVEN (double for dual-oven models).
Nominal Amperes per Line-Wire
3-Phase Loading (kW/phase) 3-Phase
Minimum Supply
Wire (AWG) Size
Supply
Voltage Oven Component Total kW L1-L2 L2-L3 L1-L3 L1 L2 L3
1-Phase
Total 3-Phase 1-Phase
Heating Elements 11.00 3.67 3.67 3.67 13.2 13.2 13.2 22.9
480 Motor & Controls 0.90 0.00 0.00 0.00 2.2 0.0 2.2 2.2 12 10
Heating Elements 11.00 3.67 3.67 3.67 15.3 15.3 15.3 45.9
415 Motor & Controls 0.90 0.00 L3-N 0.90 0.0 0.0 3.8 3.8 12 6
Heating Elements 11.00 3.67 3.67 3.67 16.7 16.7 16.7 28.9
380 Motor & Controls 0.90 0.00 L3-N 0.90 0.0 0.0 4.1 4.1 12 8
Heating Elements 11.00 3.67 3.67 3.67 26.4 26.4 26.4 45.8
240 Motor & Controls 0.90 0.00 0.00 0.90 3.8 0.0 3.8 3.8 8 6
Heating Elements 9.25 3.10 3.10 3.10 24.2 24.2 24.2 42.0
220
(50Hz) Motor & Controls 0.90 0.00 0.00 0.90 4.1 0.0 4.1 4.1 8 6
Heating Elements 11.00 3.67 3.67 3.67 30.5 30.5 30.5 52.9
208 Motor & Controls 0.90 0.00 0.00 0.90 4.3 0.0 4.3 4.3 8 4
An electrical diagram is located on the side of the control panel assembly (see drawing on page 42).
Electrical diagrams can also be found in this manual beginning on page 43.
The electrical connections are made directly to the terminals of the heating-element contactor, which is
located inside the control-panel compartment on the right side of the oven. A circular opening sized for a
strain-relief fitting is located on the back of the oven near the right side (right as seen from the front of the
oven, see illustration on page 19). Models with two stacked ovens have a separate electrical connection for
each oven.
Use 167°F (75°C) wire for all supply lines.
Ovens are shipped wired for either single-phase or three-phase operation, depending on which was
specified on the factory order. If necessary, an oven can be field-converted to use either single-phase or
three-phase power (see page 39).

ELECTRIC CONVECTION OVENS SPECIFICATIONS
OPERATOR’S MANUAL 1181958 PAGE 5
SPECIFICATIONS
DIMENSIONS
Single-Deck Ovens
RIGHT SIDE
TOP
8.5"
(216)
18.6" (473)
1.0" (25)
2.0" (51)
B
A
38.0"
(965)
13.1"
(333)
1.6" (41)
13.5" (343)
FRONT
55.0"
(1397)
29.0"
(737)
26.0"
(660)
Depth Oven Interior Rack Clearance Shipping Crate
Model
Number A B width depth height width depth width depth height volume weight
ES/1…
SLES/1…
38.8"
(984)
30.0"
(762)
29.0"
(737)
22.5"
(572)
20.0"
(508)
28.2"
(717)
22.0"
(559)
55.0"
(1397)
45.5"
(1156)
45.0"
(1143)
65.2 cu. ft.
1.85 cu. m
620 lbs
281 kg
EB1…
SLEB/1…
45.2"
(1146)
36.4"
(924)
29.0"
(737)
28.0"
(711)
20.0"
(508)
28.2"
(717)
27.2"
(691)
55.0"
(1397)
45.5"
(1156)
45.0"
(1143)
65.2 cu. ft.
1.85 cu. m
690 lbs
313 kg
