Sovereign HS-CS 37 User manual

Quick Start Guide
Petrol 37CC Chainsaw
HS-CS 37
Your Safety is most important. Please read these safety rules before you use this machine
General Safety Rules
Read the user manual before using the machine
On all jobs performed with the saw you must always wear safety goggles to guard your eyes from flying materials/objects
and a sound-proof helmet, ear plugs or the like to protect your hearing. Wear a safety helmet if there is a risk of objects
falling on you from above.
Wear gloves to protect your hands
Wear safety shoes to protect your feet
Protect yourself from saw kickback. Hold the chain saw securely with both hands during use.
Push brake lever forward to stop the chain. Make sure that the chain brake is released.
Pull back the handle/chain brake before operating.
Noise emission complies with Directive 2000/14/EC!
Warning! Danger!
Note - This quick start guide is intended for experienced
users who have already assembled the tool, please refer
to the manual for further details

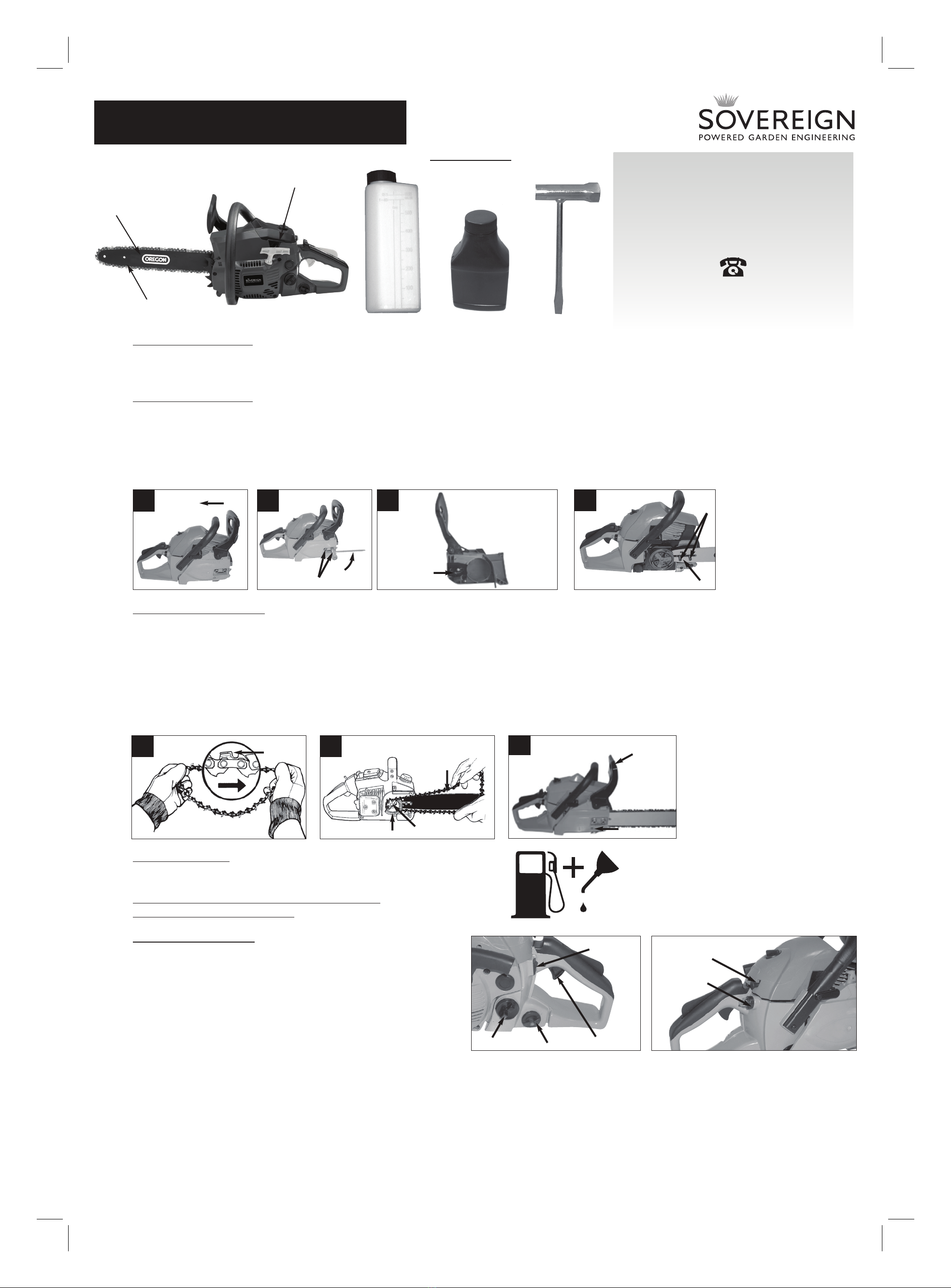

Quick Start Guide
1Unpack the Chainsaw
a) Open carton carefully and remove all parts
b) Ensure you have all items (see above) before you discard the packaging
2Guide Bar installation
a) Make sure the chain lever is pulled back into the designated Position (a firm click should be felt and heard when in position) (Fig. 3A)
b) Remove the 2 fastening nuts (B) (Fig. 3B) then ease off the chain cover including the chain brake handle (C) (Fig. 3B)
c) Using a screwdriver, turn the adjustment screw (D) (Fig. 4C) anti clockwise until the TANG (E) (Fig. 3C) (projecting prong) is to the end
of the clutch drum and the sprocket
d) Place the slotted end of the guide bar over the bar bolts (F) (Fig. 3D)
3Installing the saw Chain
a) Spread chain out in a loop with cutting edges (A) Pointing CLOCKWISE around the loop
b) Slip the chain around the sprocket (B) behind the clutch (C), make sure the links fit between the sprocket teeth (Fig. 4B)
c) Guide the drive links into the groove and around the edge of the bar (D) (Fig. 4B)
d) Pull the chain bar forward until the chain is closely seated, checking that the TANG (Projecting prong is still located in position.
e) Fit the Chain brake lever/front handle guard by aligning the TANG (Fig. 3C/Item E) with the slot in the chain bar (Fig. 3D/Item G).
Fit the two nuts and tighten them by hand. Adjust the chain tension before fully tightening the two nuts.
f) Before you start to use the saw you must tension the chain by adjusting the tension screw D clockwise until the chain fits snugly all the
way around, but can still be moved easily. There should be 2 - 3 mm of play between the bar and the chain.
Items Included
Saw Chain (not
attached to chain
bar
Chain Bar
Chain Saw Unit
B
3B3A
F
G
3C 3D
A
B
C
4A 4B 4C Chain Brake
4Fuel / Lubrication
a) Mix the fuel in the mixer bottle provided
b) Shake the container gently to ensure that it is properly mixed.
N.B Failure to use the correct oil/fuel mixture
will cause the engine to seize
Fuel Mixture is 40:1 (40 parts Fuel
to 1 part 2 stroke oil)
Use regular grade unleaded
petrol and quality 2 stroke oil
5Starting the Chainsaw
a) Add the fuel and Chain oil to the saw
b) Switch ignition to “0” (OFF)
c) Take Brake off by pushing the lever back
j) Let the engine run for 10 seconds to warm up. Press the Throttle Lever briefly. The engine will go to "idling" speed.
d) Pull the choke fully out until it locks, then push back half way
e) Push primer bubble 10 times
f) Place saw on a firm, flat surface & hold the saw firmly.
Pull starter cord rapidly 4 times
h) Switch ignition to “I” (ON)
i) Pull the starter cord up to 10 more times
Ignition Switch
Mixed Fuel Chain Oil
Throttle Lever
Choke Lever
Primer Bubble
THE CHAINSAW WILL NOT START IF THE EMERGENCY STOP HANDLE IS PUSHED FORWARD.
IF YOU ARE UNSURE, ALWAYS REFER TO THE USER GUIDE.
NOTE: amount of choke will vary slightly Depending on the
external temperature (Warm = choke OFF, cold = Choke ON)
E
D
CBD
Do you have questions?
We can help
Call Customer Service
Mon – Thur 08:45 am – 5:00 pm
Friday 08:45 am – 3:15 pm
0151 649 1500
Spare Parts also available
g) Push in the choke as far as it will go.
Re-letter h) to j), as marked.
