SOYO SY-7IWB User manual

SY-7IWB
Motherboard
****************************************************
Socket 370 CeleronProcessor supported
FW82810 AGP/PCI/AMR
66/100 MHz Front Side Bus supported
Baby AT Form Factor
****************************************************
User's Manual

SOYO™SY-7IWB
ii
Copyright © 1999 by Soyo Computer Inc.
Trademarks:
Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the
properties of their owners.
Product Rights:
All names of the product and corporate mentioned in this publication are used for
identification purposes only. The registered trademarks and copyrights belong to
their respective companies.
Copyright Notice:
All rights reserved. This manual has been copyrighted by Soyo Computer Inc. No
part of this manual may be reproduced, transmitted, transcribed, translated into any
other language, or stored in a retrieval system, in any form or by any means, such
as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,
without permission in writing from Soyo Computer Inc.
Disclaimer:
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to amend the manual or revise the
specifications of the product described in it from time to time without obligation to
notify any person of such revision or amend. The information contained in this
manual is provided to our customers for general use. Customers should be aware
that the personal computer field is subject to many patents. All of our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties
and not to infringe upon or to cause others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at 252.277-7013.
About This Guide:
This Quick Start Guide can help system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully
checked for reliability; however, to the correctness of the contents there is no
guarantee given. The information in this document is subject to amend without
notice.
For further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
Edition: August 1999
Version 1.1
7IWB SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%

Table of Contents SY-7IWB
iii
Table of Contents
CHAPTER 1 MOTHERBOARD DESCRIPTION ...................................1
1-1 INTRODUCTION............................................................1
1-2 KEY FEATURES.............................................................1
1-3 HANDLING THE MOTHERBOARD..............................3
1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS .........3
1-5 SY-7IWB MOTHERBOARD LAYOUT...........................4
1-6 SY-7IWB MOTHERBOARD COMPONENTS ................5
1-7 CHIPSET.........................................................................7
1-8 I/O INTERFACE CONTROLLER..................................13
1-9 AUDIO SUBSYSTEM...................................................15
1-10 HARDWARE MONITOR...............................................15
1-11 WAKE ON LAN TECHNOLOGY..................................15
CHAPTER 2 HARDWARE INSTALLATION.......................................17
2-1 PREPARATIONS...........................................................17
2-2 UNPACKING THE MOTHERBOARD..........................18
2-3 INSTALLATION GUIDE...............................................19
2-3.1 CPU Installation............................................................. 20
2-3.2 SDRAM Memory Module Installation.............................. 22
2-3.3 Motherboard Connector.................................................. 24
2-3.4 Jumper Setting................................................................ 40
2-3.5 CMOS Clearing (JP5)..................................................... 43
2-3.6 Power On ....................................................................... 43
2-3.7 Quick BIOS Setup........................................................... 44
2-3.8 Troubleshooting at First Start.......................................... 46
2-3.9 Power Off....................................................................... 47
CHAPTER 3 BIOS SETUP UTILITY...................................................48
3-1 SOYO COMBO SETUP.................................................51
3-2 STANDARD CMOS SETUP..........................................55
3-3 ADVANCED BIOS FEATURES.....................................58

Table of Contents SY-7IWB
iv
3-4 ADVANCED CHIPSET FEATURES..............................62
3-5 INTEGRATED PERIPHERALS.....................................64
3-6 POWER MANAGEMENT SETUP ................................69
3-7 PNP/PCI CONFIGURATION SETUP.............................72
3-8 PC HEALTH STATUS....................................................75
3-9 LOAD OPTIMIZED DEFAULTS...................................77
3-10 LOAD FAIL-SAFE DEFAULTS.....................................78
3-11 SUPERVISOR PASSWORD...........................................79
3-12 USER PASSWORD........................................................80
3-13 IDE HDD AUTO DETECTION .....................................81
CHAPTER 4 DRIVERS INSTALLATION ............................................82
CHAPTER 5 CRYSTAL AUDIO DRIVER INSTALLATION................87

Motherboard Description SY-7IWB
1
Chapter 1
MOTHEBOARD DESCRIPTION
1-1 INTRODUCTION
The SY-7IWB AGP/PCI/AMR Motherboard is a high-performance
Socket 370 processor supported Baby AT form-factor system board. SY-
7IWB uses the FW82810 Chipset technology and supports Socket 370
processors. This Motherboard is fully compatible with industry standards
and adds many technical enhancements.
1-2 KEY FEATURES
ØSupports Intel Celeron™
processors (300A-500MHz)
ØSupports 100 & 66 MHz Front Side Bus Frequency
ØAuto detect CPU bus Frequency (66/100)
ØAuto-detect CPU voltage
ØAdjustable CPU Core Voltage (Normal, 5%)
ØChipset integrated 3D AGP Accelerator
ØEasy CPU settings in BIOS with the “SOYO COMBO Setup”
ØSoftware Audio AC97 Version 2.1 Compliant
ØPC98, ACPI, Ultra DMA33
ØSupports Wake-On-LAN (WOL) when use ATX-Power supply
ØSupports ACPI Suspend Indicator
ØPower-on by modem, alarm, PS/2 Keyboard, Mouse and USB
Win98 Keyboard

Motherboard Description SY-7IWB
2
ØPower failure resume
ØSupports onboard hardware monitoring and includes Hardware
Doctor™utility
ØFan speed control
ØBattery Low voltage Detect
ØSupport 7 sets of voltage monitoring
ØSupports multiple-boot function
ØY2K Compliant
ØSupports Audio Modem Riser slot (AMR 1.0 compliant) *
Ø3 x 32-bit bus mastering PCI slots
Ø2 x USB ports onboard
Ø1 x IrDA port
ØAT power connector
ØATX power connector
ØHardware Random Number Generator (RNG) for enabling enhanced
platform security
ØRTC hardware to handle Y2K Century Rollover
* If the user wants to use a Modem Riser card (MR) make sure to use a Secondary mode
MR, PRIMARY mode MRs are NOT Supported.

Motherboard Description SY-7IWB
3
1-3 HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules while
unpacking:
ØBefore handling the Motherboard, ground yourself by grasping an
unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold the
Motherboard by the edges and avoid touching its components.
ØCheck the Motherboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your dealer
immediately.
1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precautions when handling
the Motherboard in dry or air-conditioned environment.
To protect your equipment from electrostatic discharge, take the following
precautions:
ØDo not remove the anti-static packaging until you are ready to install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, grasp the expansion
slot covers or other unpainted portions of the computer chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.

Motherboard Description SY-7IWB
4

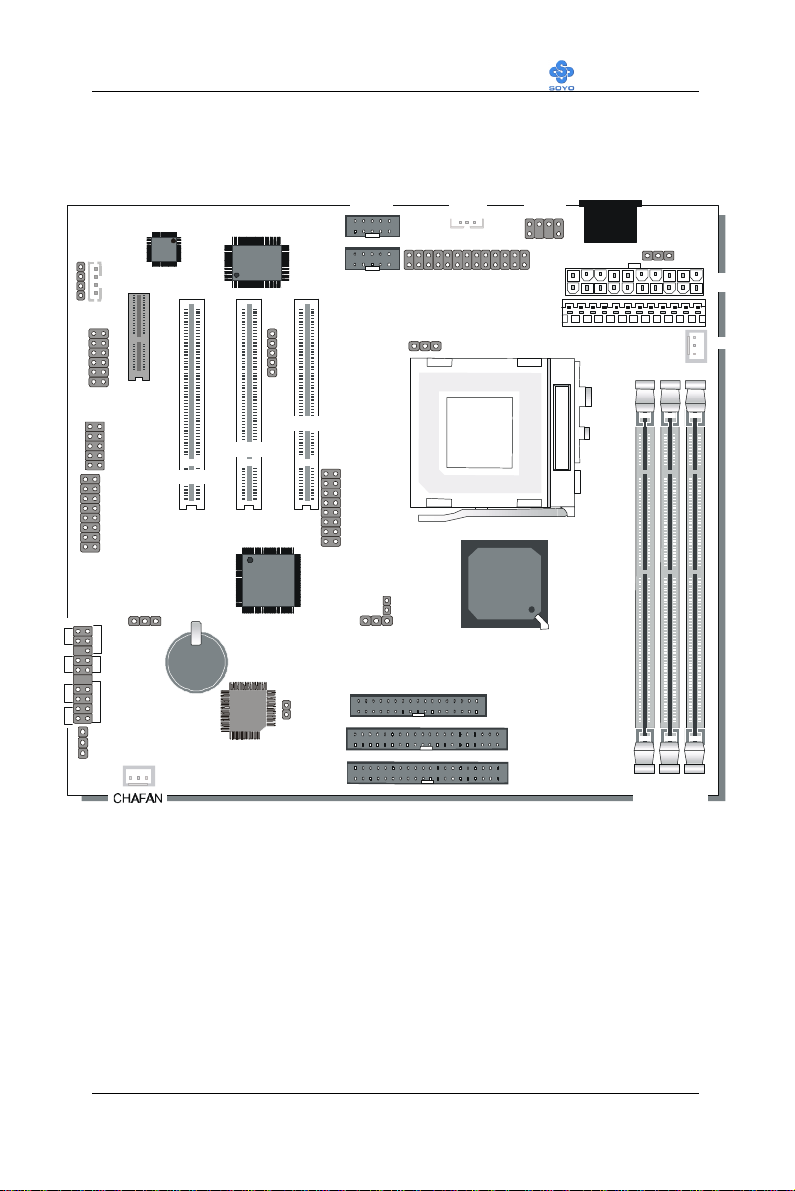

1-5 SY-7IWB MOTHERBOARD LAYOUT
SY-7IWB Platform
AT Power
3V
Lithium
Battery
Intel
FW82810
PCI Slot #2
PCI Slot #1
PCI Slot #3
USB1
*
Socket 370
DIMM 2
DIMM 1
DIMM 3
2
2
Intel
FW82801AB
Ac97
Codec
Speaker
Keylock
Power
LED
ACPI
LED
HDD
LED _
+
_
+
_
+
_
+
Reset
PWRBT
JP5
1 3 JP2
J6
1 3
CMOS Clear
Jumper
JP10
1
3
FDC
1
IDE 1
1
IDE 2
1
J10
J11
11
1
1
1
1
44
JP44
WOL
Header
PRT 1
KB
Connector
PS/2 Mouse
Connector
ATX Power
1
COM 2
1
COM 1
1
CPU FAN
JP1
JP15
1 3
1
3
3
1
Intel
82802AB
4MB
1
3
AMR1
IR1
1
5
Winbond
W83627HF
-AW
Audiuo Port
GAME Port
VGA Port
JP9
AU8810

Motherboard Description SY-7IWB
5

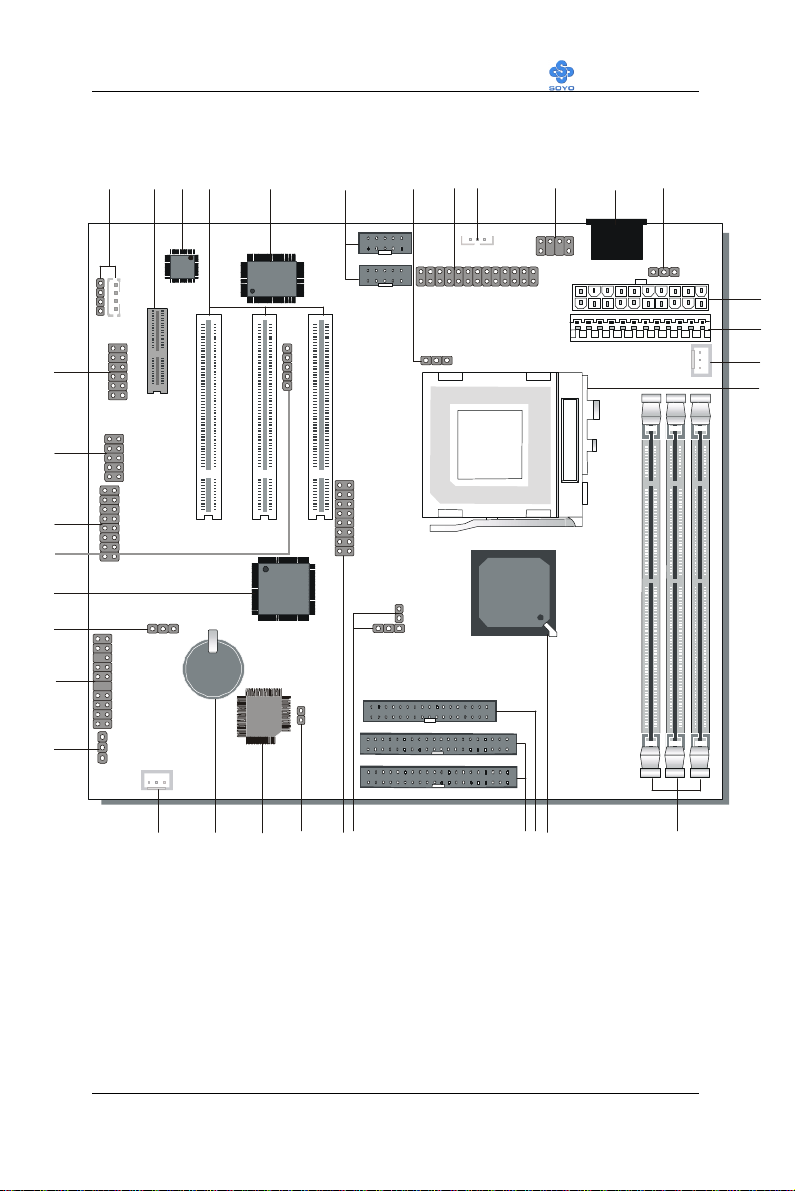

1-6 SY-7IWB MOTHERBOARD COMPONENTS
2
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
RTUS VWXY
Z
AA
AB
AC
AD
AE
AF
AG
AH

Motherboard Description SY-7IWB
6
ACD-IN Connectors
BAudio Modem Riser Slot
CAC97 Codec Chip
D32-bit PCI Mastering Slots
EWinbond W83627HF-AW LPC I/O Chip
FCOM1/COM2 Connectors
GCPU Core Voltage Adjust Jumper
HParallel Printer Port
IWake-On-LAN(WOL) Header
JPS/2 Mouse Connector
KKeyboard Connector
LPower-On by Keyboard Jumper
MATX power Supply Connector
NAT Power Supply Connector
OCPU Cooling Fan Connector
PPGA370 Socket
QDIMM Bank
RIntel FW82810 GMCH (Graphic Memory Control Hub) Chip
SFloppy Disk Drive (FDD) Port
TBus Mastering E-IDE/ATAPI Ports
UCPU FSB Configuration Jumpers
VVGA Port
WThe FWH Boot Block Write-Protect Jumper
XIntel 82802AB 4MB FWH (FirmWare Hub) Chip
Y3V Lithium Battery
ZChassis Cooling Fan Connector
AA PC speaker redirection Jumper
AB Front panel connectors
AC CMOS Clear Jumper
AD Intel FW82801 ICH (I/O Control Hub) Chip
AE Serial Infrared (IrDA) Device Header
AF Game Port
AG Universal Serial Bus Port
AH Audio Port

Motherboard Description SY-7IWB
7
1-7 CHIPSET
To compliment the Intel® Celeron processor, the Intel® 810 chipsets
delivers a balanced platform solution for value computing. The 810
chipset is a highly-integrated three-chip solution consisting of a Graphics
& Memory Controller (Intel 82810), an I/O Controller (Intel82801), and a
Firmware Hub (Intel 82802).
The ICH is a highly integrated multifunctional I/O Controller Hub that
provides the interface to the PCI Bus and integrates many of the functions
needed in todayPC platforms. The ICH communicates with the host
controller over a dedicated hub interface. There are two versions of the
ICH (82801AA: ICH and 82801AB: ICH0). These devices are pin
compatible and are in 241-pin packages.
The Intel® 82802 Firmware Hub (FWH) component is part of the Intel®
810 chipset. The FWH is key to enabling future security and
manageabilily infrastructures for the PC platform.
Intel has developed technology that enhances the performance and
exceptional value of the Intel® Celeron™processor-powered PC. Built on
the strong foundation of Intel® 440BX AGPset technology, the Intel® 810
chipset has re-engineered the Value PC, providing next generation features
and great graphics performance at a lower cost.
Richer, more robust 2D and 3D graphics are optimized thanks to an
integrated chipset design that utilizes second-generation graphics
technology. This integrated chipset offers innovative features with
compelling performance while lowering overall system costs.
A new design with big benefits
At the core of the 810 chipset is a memory controller with built-in graphics

Motherboard Description SY-7IWB
8
technology. The 82810 chip optimizes system memory arbitration, similar
to AGP technology, resulting in a more responsive and cost-effective
system.
The 82810 Graphics Memory Controller Hub (GMCH) features Intel®
graphics technology and software drivers, using Direct AGP (integrated
AGP) to create vivid 2D and 3D effects and images. The 82810 chip
features integrated Hardware Motion Compensation to improve soft DVD
video quality and a digital video out port that enables connection to
traditional TVs or the new space-saving digital flat panel displays.
Intel® Dynamic Video Memory Technology (D.V.M.T.) is an architecture
that offers breakthrough performance for the Value PC segment through
efficient memory utilization and Direct AGP. The system OS uses the Intel
software drivers and intelligent memory arbiter to support richer graphics
applications.
The System Manageability Bus allows networking equipment to monitor
the 810 chipset platform. Using ACPI specifications, the system
manageability function enables low-power sleep mode and conserves
energy when the system is idle.
The 82801 I/O Controller Hub (ICH) employs the Intel® Accelerated Hub
Architecture to make a direct connection from the graphics and memory to
the integrated AC97 controller, the IDE controllers, dual USB ports, and
PCI add-in cards.
The Accelerated Hub Architecture provides twice the bandwidth of the
PCI bus at 266 MB per second. This allows a wider flow of rich
information from the I/O controller to the memory controller, with
optimized arbitration rules allowing more functions to run concurrently,
enabling more life-like audio and video.

Motherboard Description SY-7IWB
9
The Integrated Audio-Codec 97 controller enables software audio and
modem by using the processor to run sound and modem software. By
reusing existing system resources, this feature adds flexibility, and
improves sound quality.
The 82802 Firmware Hub (FWH) stores system BIOS and video BIOS,
eliminating a redundant nonvolatile memory component. In addition, the
82802 contains a hardware Random Number Generator (RNG). The
Intel® RNG provides truly random numbers to enable fundamental
security building blocks supporting stronger encryption, digital signing,
and security protocols.
Intel810 chipset re-engineers the Value PC by providing a platform
that will bring next generation features and great graphics performance to
Value PC while reducing overall platform cost.
PRODUCT HIGHLIGHTS
ØEnhances performance and exceptional value of the Intel® Celeron™
processor-powered PC
ØBuilt on strong foundation of Intel® 440Bx technology
ØProvides next generation features
ØProvides great graphics performance at a lower cost
ØOptimizes 2D and 3D graphics through integrated chipset design
utilizing second-generation graphics technology
ØInnovative features with compelling performance while lowering
system costs
FEATURES BENEFITS
ØIntel® Accelerated Hub Architecture Increased I/O performance
allows better concurrency for richer multimedia applications
ØIntegrated graphics/AC97 controller, more flexibility and better audio
quality

Motherboard Description SY-7IWB
10
ØIntel® 3D graphics with Direct AGP Vivid 2D and 3D graphics,
efficient use of system memory for graphics, O/S and applications
ØOptional 4MB of dedicated display cache video memory Enables
SKU differentiation with increased 3D graphics performance
improvement over Direct AGP
ØLow-power sleep modes Energy Savings
ØOne software driver code base More stable platform, higher quality
graphics, reduced OEM support costs
ØIntel® Random Number Generator (RNG) Enables ISV's to
strengthen security products
ØDigital Video Out port Allows connection of traditional TV or new
digital flat panel displays; compatible with DVI specification
ØSoft DVD MPEG 2 playback with Hardware Motion Compensation
Life-like video and audio
Ø100-MHz System Bus capable Flexibility for performance
headroom
Ø2 USB ports Plug and Play
ØMultiple Intel® 810 chipset SKUs for Value PC price points Lower
platform and manufacturing costs with single motherboard design
Product Package
Ø82810 Graphics Memory Controller Hub 421 Ball Grid Array
(BGA)
Ø82801 Integrated Controller Hub 241 Ball Grid Array (BGA)
Ø82802 Firmware Hub 32-pin PLCC or 40-pin TSOP
1-7.1 Accelerated Graphics Port (A.G.P.)
A.G.P. is a high-performance bus for graphics-intensive applications, such
as 3D applications. A.G.P., while based on the PCI Local Bus
Specifications, Rev 2.1, is independent of the PCI bus and is intended for
exclusive use with graphical display devices. A.G.P. overcomes certain
limitations of the PCI bus related to handling a large amount of graphics
data with the following features:
lPipelined memory read and write operations that hide memory access

Motherboard Description SY-7IWB
11
latency
lDemultiplexing of address and data on the bus for near 100 percent
bus efficiency
lAC timing for 133 MHz data transfer rates, allowing real data
throughput in excess of 500 MB/sec
1-7.2 Universal Serial Bus (USB)
The motherboard has two USB ports; one USB peripheral can be
connected to each port. For more than two USB devices, an external hub
can be connected to either port. The motherboard fully supports the
universal host controller interface (UHCI) and used UHCI-compatible
software drivers.
Specification USB features include:
lSelf-identifying peripherals that can be plugged in while the
computer is running
lAutomatic mapping of function to driver and configuration
lSupport for isochronous and asynchronous transfer types over the
same set of wires
lSupport for up to 127 physical devices
lGuaranteed bandwidth and low latencies appropriate for telephony,
audio, and other applications
lError-handling and fault-recovery mechanisms built into the protocol
¿ Note
Computer systems that have an unshielded cable attached to a USB port
may not meet FCC Class B requirements, even if no device or a low-speed
USB device is attached to the cable. Use shielded cable that meets the
requirements for a full-speed USB device.

Motherboard Description SY-7IWB
12
1-7.3 IDE Support
The motherboard has two independent bus-mastering PCI IDE interfaces.
These interfaces support PIO Mode3, PIO Mode 4, ATAPI devices (e.g.,
CD-ROM), and Ultra DMA/33 synchronous-DMA mode transfers. The
BIOS supports logical block addressing (LBA) and extended cylinder head
sector (ECHS) translation modes. The BIOS automatically detects the IDE
device transfer rate and translation mode.
Programmed I/O operations usually require a substantial amount of
processor bandwidth. However, in multitasking operating systems, the
bandwidth freed by bus mastering IDE can be devoted to other tasks while
disk transfers are occurring.
The motherboard also supports laser servo (LS-120) drives. LS-120
technology allows the user to perform read/write operations to LS-120
(120MB) and conventional 1.44MB and 720KB diskettes. An optical
servo system is used to precisely position a dual-gap head to access the
diskett’s 2,490 tracks per inch (tpi) containing up to 120 MB of data
storage. A conventional diskette uses 135 tpi for 1.44 MB of data storage.
LS-120 drivers are ATAPI-compatible and connect to the motherboard’s
IDE interface. (LS-120 drives are also available with SCJSI and parallel
port interfaces.) Some versions of Windows 95 and Windows NT
operating systems recognize the LS-120 drive as a bootable device in both
120 MB and 1.44 MB mode.
Connection of an LS-120 drive and a standard 3.5-inch diskette drive is
allowed. The LS-120 drive can be configured as a boot device if selected
as Drive A in the BIOS setup program.
¿ Note
If you connect at LS-120 drive to an IDE connector and configure it as
the :boot: drive and configure a standard 3.5-inch diskette drive as a “B”
drive, the standard diskette drive is not seen by the operating system.
When the LS-120 drive is configured as the “boot: device, the system will
recognize it as both the A and B drive

Motherboard Description SY-7IWB
13
1-7.4 Real-Time Clock, CMOS SRAM, and Battery
The real-time clock is compatible with DS1287 and MC146818
components. The clock provides a time-of-day clock and a multicentury
calendar with alarm features and century rollover. The real-time clock
supports 256 bytes of battery-backed CMOS SRAM in two banks that are
reserved for BIOS use.
The time, date, and CMOS values can be specified in the Setup program.
The CMOS values can be returned to their defaults by using the Setup
program.
1-8 I/O INTERFACE CONTROLLER
The motherboard uses the Winbond W83627HF-AW I/O controller which
features:
lSingle diskette drive interface
lTwo serial ports
lFIFO supports on both serial and diskette interfaces
lOne parallel port with Extended Capabilities Port (ECP) and
Enhanced Parallel Port (EPP) support
lPS/2 style mouse and keyboard interfaces
lPCI PME interface
lIntelligent auto power management, including:
ØShadowed write-only registers for ACPI compliance
ØProgrammable wake-up event interface
The Setup program provides configuration option for the I/O controller.
1-8.1 Serial Ports
The NS16C5450-compatible UARTs support data transfers at speeds up to
115.2 Kbits/sec with BIOS support.
1-8.2 Parallel Port
In the Setup program, there are four options for parallel port operation:
lCompatible (standard mode)
lBi-directional (PS/2 compatible)
lBi-directional EPP. A driver from the peripheral manufacturer is

Motherboard Description SY-7IWB
14
required for operation. See Section 6.2 for EPP compatibility.
lBi-directional high-speed ECP
1-8.3 Diskette Drive Controller
The I/O controller is software compatible with the 82077 diskette drive
controller and supports both PC-AT and PS/2 modes. In the Setup
program, the diskette drive interface can be configured for the following
diskette drive capacities and sizes.
l360 KB, 5.25-inch
l1.2 MB, 5.25-inch
l720 KB, 3.5-inch
l1.2 MB. 3.5-inch (driver required)
l1.25-1.44 MB, 3.5-inch
l2.88 MB, 3.5-inch
1-8.4 Keyboard and Mouse Interface
The +5 V lines to keyboard and mouse connectors are protected with a
fuse that prevents motherboard components from being damaged when an
over-current condition occurs.
The keyboard controller contains code, which provides the traditional
keyboard and mouse control functions, and also supports Power On/Reset
password protection. Power On/Reset password can be specified in the
BIOS Setup program.
The keyboard controller also supports the hot-key sequence
<Ctrl><Alt><Del>, software reset. This key sequence resets the
computer’s software by jumping to the beginning of the BIOS code and
running the Power On Self Test (POST).
1-8.5 Infrared Support
The IR connection can be used to transfer files to or from portable devices
like laptops, PDAs, and printers.

Motherboard Description SY-7IWB
15
1-9 AUDIO SUBSYSTEM
1-9.1 Audio Connector
The audio connectors include the following:
lBack panel connectors: stereo line-level output (Line Out), stereo
line-level input (Line In), and Mic In
lCD Line - in
1-10HARDWARE MONITOR
The optional hardware monitor subsystem provides low-cost
instrumentation capabilities. The features of the hardware monitor
subsystem include:
ØAn integrated ambient temperature sensor
ØFan speed sensors, which monitor the fan 1 and fan 2 connectors
ØPower supply voltage monitoring to detect levels above or below
acceptable values
When suggested ratings for temperature, fan speed, or voltage are
exceeded, an interrupt is activated. The hardware monitor component
connects to the SMBus.
1-11WAKE ON LAN TECHNOLOGY
Wake on LAN technology enables remote wakeup of the computer
through a network. Wake on LAN technology requires a PCI add-in
network interface card (NIC) with remote wakeup capabilities. The remote
wakeup connector on the NIC must be connected to the onboard Wake on
LAN technology connector. The NIC monitors network traffic at the MII
interface; upon detecting a Magic Packet, the NIC asserts a wakeup signal
that powers up the computer. To access this feature uses the Wake on LAN
technology connector.

Motherboard Description SY-7IWB
16
* CAUTION
For Wake on LAN, the 5-V standby line for the power supply must be
capable of delivering +5V ±5 % at 720 mA. Failure to provide adequate
standby current when implementing Wake on LAN can damage the power
supply.
