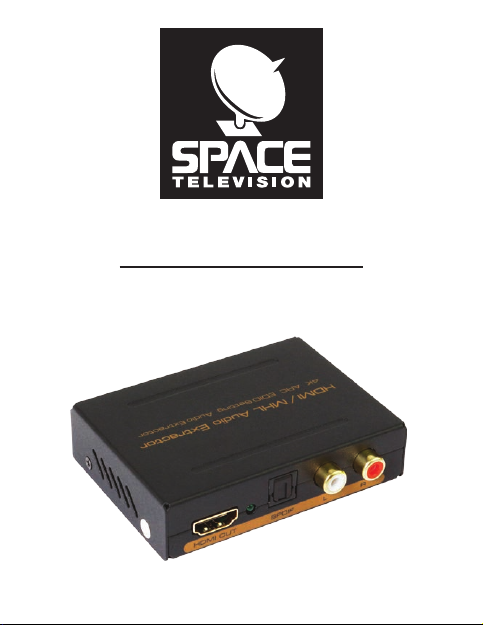

Space Television HD/MH-HD+A User manual

HD/MH-HD+A
HDMI /MHL AuDIo (SPDIF+R/L) ExtRActoR
(4K / ARC / EDID SEttIng AuDIo ExtRACtoR)
HELPLINE 0861 40 41 42 • www.spacetv.co.za

HELPLINE 0861 40 41 42 • www.spacetv.co.za2
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Our series of HDMI converters, switches, extenders, matrixes and splitters are designed to make your A/V
device use more convenient, more comfortable, more productive and more cost-ecient.
The audio extractor is one device that can support 3D, 4KX2K, ARC and it allows the one HDMI or one
MHL source input and one HDMI output connected to one HD Display (like TV or Projector) and extract
the audio to one SPDIF audio out+One LR Stereo audio out. Also the device supports ARC function.
Our devices oer solutions for noise, space and security concerns, data center control, information
distribution, conference room presentation, school and corporate training environments.
• One HDMI or One MHL input converter to one HDMI+ One SPDF+ One LR Audio Out
• Output audio support: SPDIF+R/L analog Audio Output
• Support Full HD 1080P, Full 3D,4K*2K resolution
• Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV
Amplier by HDMI Cable connection with HD TV while the HD TV receive the audio and video
content.
• HDMI/ MHL working in dual mode, can reduce the number of ports
• HDMI to achieve the synchronization of audio signal separation. There are ADV / 2.0CH / 5.1CH three
kinds of audio mode options
• LED indication: when source or sink is working, LED relative to is light.
• No loss of quality
• Installs in minutes
• Need DC5V/1A power supply
1. 5V power adapter 1pcs
2. User manual 1pcs
3. MHL-HDMI cable 1pcs (Optional)
INTRODUCTION:
FEATURES:
ACCESSORIES INCLUDED:

HELPLINE 0861 40 41 42 • www.spacetv.co.za 3
Figure 1.0 Front Panel:
DC5V: 5V DC-DC Power Interface
PWR: Power Led Status Light
HDMI/MHL IN: HDMI/MHL dual mode input ports
GREEN LED: ARC Led Status Light
ARC: ARC Function On/O Key
SWITCH: Switch button for Audio output mode, it can choose 5.1CH,2.0CH, ADV [Advance Audio]
three kinds of audio output mode by circulate switching(When switch to 5.1CH audio
mode output, the Digital audio signal receiving terminal must can support DTS/
DOLBY-AC3 decode, or the input D audio signal receiving terminal will have no sound
output; If need the audio signal receiving terminal can output the audio, pls switch to
2CH audio mode. When audio output switch to the ADV [Advance Audio] mode, the audio
output format will be decided by the audio signal receiving machine audio decode ability.
The splitter will output 7.1 channel audio signal while the output end connects the AV
amplier with HDMI port that support 7.1 channel audio decode.(the HD Source signal
itself is 7.1 channel)
Figure 1.1 rear panel :
HDMI OUT: HDMI output interface
GREEN LED: HDMI output led status light
SPDIF: SPDIF optical Output
L/R: Analog Sound Track(L/R) Output
PHYSICAL CONNECTION:

HELPLINE 0861 40 41 42 • www.spacetv.co.za4
1. To use the HDMI cable to connect the HD Source with the HDMI input port of the converter or to use
one MHL TO HDMI Cable to connect the MHL device with the HDMI input port of the extractor
2. To use one HDMI Cable to connect the extractor HDMI output port with the HD Display.
3. To use one audio cable to connect the extractor R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To press the ARC switch key to on/o the ARC function.
6. To connect the extractor with 5V DC power adaptor.
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and
oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut o from the socket.
5. Pls turn the power o when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
OPERATING AND CONNECTING:
NOTES:

HELPLINE 0861 40 41 42 • www.spacetv.co.za 5
Before power on, pls check the connection line carefully. Make sure that all interfaces are normally
connected. The common trouble shooting way shows below:
FAULT FINDING:
Trouble Description Cause and Ways to deal with
Non-Power-Connected
1. Check if the power adaptor head is truly and correctly inserted
the power socket.
2. Check the power switch if it is in on status.
No Picture
1. Pls to make sure that the TV is on and has been connected with
the machine.
2. To check if the signal source is on and well connected.
3. Check the system connection quality.
4. Check if the line is all good quality.
5. Check the cable quality
Obscure Picture
1. To try again to connect the cable to be free from the
unsuccessful connection.
2. HDMI Cable Quality
No sound 1. Please conrm the setting position of audio mode switch

HELPLINE 0861 40 41 42 • www.spacetv.co.za6
SPECIFICATIONS:
Model No HD/MH-HD+A
HDMI resolution 24/50/60fs/1080p/1080i/720p/576p/57
6i/480p/480i
Support video color format 24bit/deep color 30bit, 36bit
Audio output L/R+SPDIF
Max bandwidth 300MHz
Max baud rate 9.0Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p (TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Input cable distance ≤15m AWG26 HDMI standard cable
Output cable distance ≤20m AWG26 HDMI standard cable
Max working current 500mA
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range -10 to +55°C
Storage Temperature range -20 to +60°C
Operating Humidity range 10 to 90%RH (No Condensation)
Storage Humidity range 5 to 95%RH (No Condensation)
Dimension (L x W x H) 84.5 x 61.8 x 21 mm
Weight 135g
