Spartan Tool Explorer M130 User manual

PRODUCT MANUAL
Explorer
Video Inspection System
© 2023 Spartan Tool LLC
Spartan Tool LLC |1618 Terminal Road |Niles, MI 49120
order by phone [phone] order online SpartanTool.com

2
WARNINGS ............................................................................................................ 4
FEATURES .............................................................................................................5
REEL OPTIONS .........................................................................................................6
KEYBOARD LAYOUT ....................................................................................................8
PHYSICAL COMPONENTS ...............................................................................................9
POWER AND GROUNDING .............................................................................................11
OPERATING INSTRUCTIONS ...........................................................................................13
How to Connect the Camera and Charger to Power Supply..................................................................... 13
OPERATING TIPS ......................................................................................................19
MAINTENANCE .......................................................................................................20
SURVEY OVERLAYS....................................................................................................21
Text .......................................................................................................................... 21
Graphics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Date and Time ................................................................................................................ 21
Counter ...................................................................................................................... 21
REPORT VIEWER (FILE MANAGER)......................................................................................22
SETTINGS.............................................................................................................23
Coiler ........................................................................................................................ 23
Text and Graphics............................................................................................................. 23
General Settings .............................................................................................................. 23
Time and Date................................................................................................................ 23
Wi .......................................................................................................................... 23
Cloud ........................................................................................................................ 23
WinCan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Status ........................................................................................................................ 24
WARRANTY ...........................................................................................................25
Contents

3

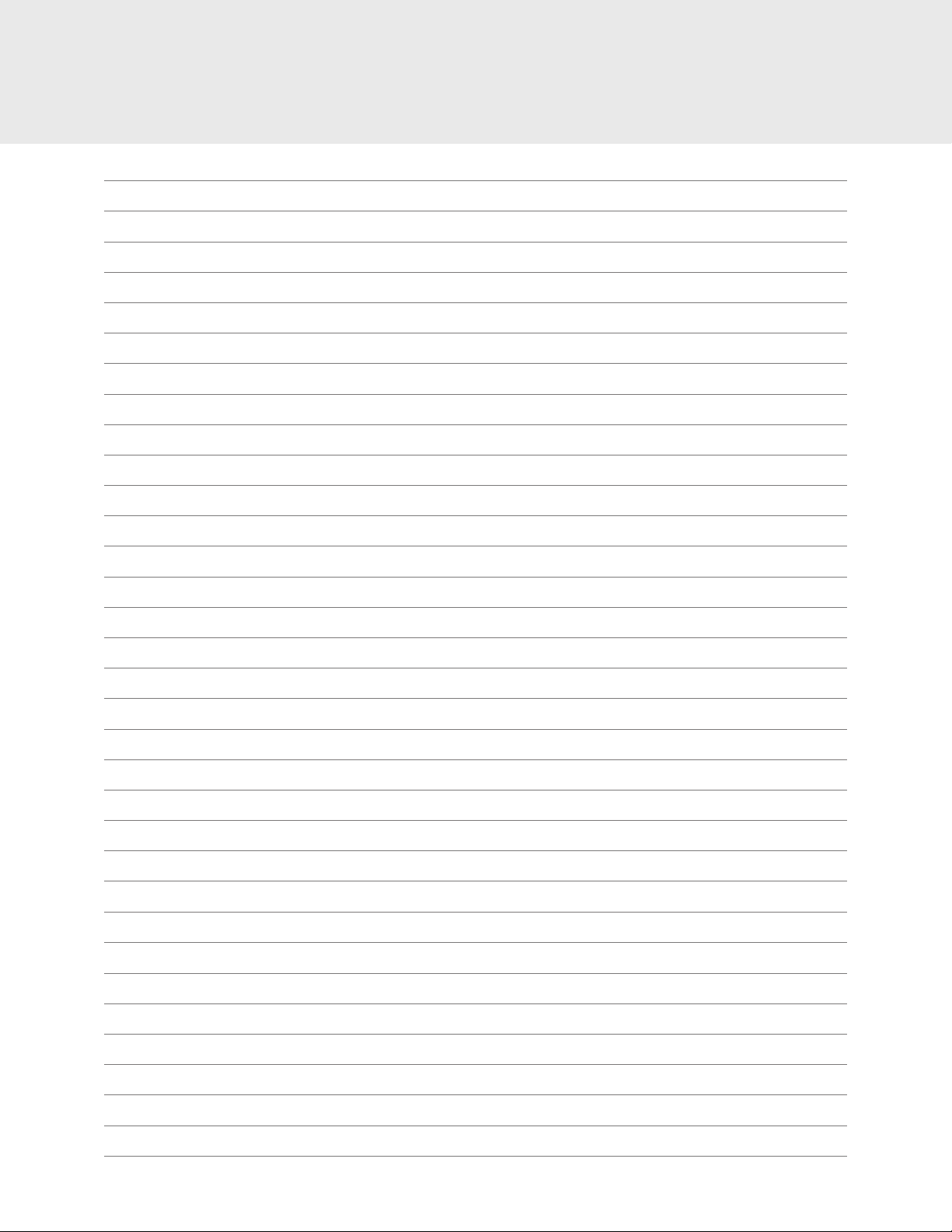

Notes

4
Warnings
Spartan Tool has taken care to provide all necessary information in this manual for the safe operation, maintenance and disposal of the
equipment. However, a risk assessment should be performed prior to commencing work as it may highlight additional safety issues
specic to the application.
• WARNING: Do not use a power supply cord except the one supplied with this unit for use with the power supply.
• WARNING: The coiler and camera assembly used with the Explorer unit are heavy. Observe safe lifting procedures
when lifting or moving any components of the system.
• WARNING: If the system or any auxiliary components are connected to the power supply, then the external
equipment must be grounded in accordance with the manufacturer's instructions. Failure to comply with this may
cause a risk of electrocution.
• WARNING: The line power adapter supplied with the unit is not intended for use in wet or outdoor environments. Do
not attempt to charge or operate the unit from the line supply in wet areas or outdoors locations.
• NOTE: The unit will operate from its internal battery for up to 6 hours in normal use. A 12V adapter cable is provided
for charging from a vehicle auxiliary system when in remote or wet locations. There should be no requirement to
charge or operate from line power while outdoors.
• WARNING: Foul sewer systems and other watercourses can be a source of biological hazards. Always use appropriate
PPE and take suitable precautions to prevent infection when using the Explorer camera system and coiler.
• WARNING: This unit is not designed or approved for use where potentially explosive gases, vapors, liquids or solids
may be present. Always carry out a risk assessment of the site where the equipment is to be used.
• CAUTION: Take care that video or power cables do not become entangled in the coiler reel.
• WARNING: Only use the line power adapter and 12V adapter cable supplied with the unit. Use of any other power
supply or adapter may cause a safety hazard or damage to the unit and will void any warranty.
• WARNING: Power equipment is inspected and factory tested for electrical safety. Routine inspection of cables and
connections is recommended (and may be required by law) to maintain protection from electric shock. If you are
unsure, contact your local safety authority for advice.
• WARNING: The camera LEDs are very bright. Do not look directly are the LEDs or point them at other people when
turned on.
• CAUTION: Exposing the battery to temperatures above 140°F may activate safety systems and cause a permanent
battery failure.
• CAUTION: Do not attempt to operate or charge the unit outside its recommended temperature specication. The
unit will not charge outside the recommended temperature range of the battery. Attempting to charge it outside this
range may damage the battery or reduce its life.

5
Features
SCREEN AND SOFTWARE
• 10.4" super-bright sunlight readable LCD display with auto brightness
• Embedded industry standard WinCan software included—no more double inputting, saving you time and money
• Other reporting software includes basic text overlay
• Future-proof—software updates via the internet
• Freeze-frame snapshot capability at any time
• System health status
WATERPROOF DESIGN
• All-weather waterproof construction—IP Rated: IP64 Open & Closed
• Can be washed down after use
• Tough, waterproof and ergonomic QWERTY keypad
HARDWARE CAPABILITIES
• Rechargeable Li-ion battery with up to 9 hours running time
• Control box is interchangeable with all reel and push-rod congurations
• 130', 200', 330', and 400' reels available
• 5mm, 12mm, and 14mm diameter push-rods available
• Innovative easy-mount camera head to reel interface
• Two interchangeable camera heads available
• CCD color camera
• Super-bright LED illumination
• Super low LUX sensitivity
• Stainless steel camera head
• Built-in 512Hz sonde locator (44mm camera head)*
• Meterage counter
• Open reel design for easy cleaning
*Sonde locator not included with model L130.

6
Reel Options
ALL REELS
• 800 x 600 resolution
• Innovative easy-mount camera head to reel interface
• CCD color camera
• Super-bright LED illumination
• Super-low LUX sensitivity
• Built-in 512 Hz sonde locator (Not included with model L130)
• Open reel design for easy cleaning
M130 SEWER CAMERA REEL
• 130' reel length
• 23mm camera head included
L130 SEWER CAMERA REEL
• 130' reel length
• 44mm camera head included
Note: The L130 camera head does NOT include a sonde

7
Reel Options
L200 SEWER CAMERA REEL
• 200' reel length
• 44mm camera head included
L330 SEWER CAMERA REEL
• 330' reel length
• 44mm camera head included
XL400 SEWER CAMERA REEL
• 400' reel length
• 44mm camera head included

8
1. Help key
2. Mina Survey key
3. WinCan Survey key
4. Overlay key
5. Overlay Style key
6. Overlay Size key
7. Meterage Placement key
8. File Manager key
9. Settings key
10.
11. Lamp O key
12. Power button
13. Lamp - key
14. Lamp + key
15. Video Control key
16. Snapshot key
17. Meterage reset/Footage Zero key
18. Arrow keys
19. Wi-Fi Shortcut key
Keyboard Layout

9
Screen
Physical Components
Input/Output
Port (covered)
Keyboard
Connection Cord
Covered
INPUT/OUTPUT PORT
Uncovered
Audio Out
Audio In
USB Ports

10
Physical Components
7 Pin XLR Camera Socket 4 Pin XLR Camera Socket
VGA Port
(15-way D-Sub Type)
Indicator LED
Explorer Handle

11
Power and Grounding
WARNING: The line power adapter supplied with the unit is not intended for use in wet or
outdoor environments. Do not attempt to charge or operate the unit from the line supply in wet
areas or outdoor locations.
GROUNDING INSTRUCTIONS
Before charing your Spartan Explorer, make sure it is properly grounded, using a three-hole electrical outlet. If this is not available, as
in some older homes, use a three-prong adapter and connect the green pigtail (or grounding lug) to a known ground such as a cold
water pipe. Never cut o the grounding prong for use in a two-hole outlet receptacle. By doing so, you have cut o your protection from
shock.
The Explorer must be grounded while charging or operating using the 110V power cord to protect the operator from electrical shock.
The Explorer comes with a three-conductor cord and three-prong grounding type plug to t the properly grounded receptacle. An
adapter (see Figures B and C) is available for connecting Figure A type plugs to a two-prong receptacle, except in Canada.
The green-colored rigid ear (or lug), extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box.
Don't assume that all three-hole outlets are properly installed. Check the outlet and also the adapter with an outlet testing
device, which quickly indicates if a ground is connected. Correct a faulty test indication before proceeding. The use of a Ground Fault
Interruptor is the safest way to ensure protection against ground faults.
WARNING: Read the product manual thoroughly before using any Spartan Tool product. Sewer
and drain cleaning can be dangerous if proper procedures ae not followed. Know the proper
operation, correct applications, and the limitations of all Spartan Tool products before use.

12
Power and Grounding
EXTENSION CORDS
Plug the power cord attached to the Explorer directly into an inspected outlet. If an extension cord must be used, it must be of an
approved three-wire type in good condition, equipped with a three-prong plug. Never cut o the grounding prong for use in a two-
hole outlet receptacle. By doing so you have cut o your protection from shock.
OUTDOOR EXTENSION CORDS
When Spartan Tool equipment is used outdoors, use an extension cord intended for use outdoors and so marked.
AVOID ELECTRICAL CORD ABUSE
• Never move or lift Spartan Tool equipment by the cord.
• Do not yank cord at one end to disconnect it from the receptacle.
• Keep cord away from heat, oil, and sharp edges to avoid damage.
• Always replace or repair damaged cords.
• ALWAYS WEAR RUBBER BOOTS IN WET AREAS FOR ADDED PROTECTION.
WARNING: Spartan Tool products must never be operated in an explosive environment.
CAUTION: Avoid eye or skin contact with acids or caustic substances while inspection sewers
and drains.
Always wear safety goggles when inspecting drains and sewers to avoid eye injury.
Before beginning work, ask the customer if either acids or caustic substances are present in the
pipe. If in doubt, litmus paper used in the opening of the pipe may give an indication of the type of
substance in the line.
Exposure to acids or caustic substances can cause the push cable to become brittle. Continued
exposure may cause the push cables to break or become brittle in the drum, in the pipe, or when
placing the cable back into the drum.
CAUTION: Drains and sewers carry bacteria and exposure carries the risk of infectious disease.
Always wear safety goggles and rubber gloves inside Spartan Tool riveted gloves to minimize
exposure to infection from bacteria in pipes.
Avoid contact of pipe contents with ears, eyes, and mouth to lower the risk of infection.
Avoid exposing any cuts to drains and sewers and sewer inspection equipment.
DO NOT SMOKE near open pipes.

13
Operating Instructions
HOW TO CONNECT THE CAMERA AND CHARGER TO POWER SUPPLY
1. Plug the 7-pin XLR connector cable into the camera socket on the back of the unit. Plug the other end of the camera cable into the
socket on the coiler axle.
2. For line power operation or charging, plug the 4-pin XLR connector from the power adapter into the power socket on the back of
the unit. Connect the power adapter to a suitable power supply (100V-240V AC 50-60Hz).
3. For 12V operation or charging, plug the 4-pin XLR connector from the 12V adapter cable into a 12V auxiliary socket (lighter socket)
on your vehicle.
CAUTION: Only use the power supply and connecting cords supplied with this system.
Using any other power supply or connecting cord may cause damage to the unit and will void
any warranty.
CAUTION: The power adapter is not rated for outdoor use or use in wet conditions. Only charge
or operate the unit from line power when used in a dry, indoor environment. A 12V adapter cable is
provided for use outdoors, e.g. by charging from a vehicle auxiliary supply.
4. When charging, the LED on the rear of the unit should glow red. When the unit is fully charged, the LED will turn green. If no power
supply is present, the LED will be o.
CAUTION: Ensure the vehicle can supply 12V at 5A from the auxiliary socket. Do not use
adapters or splitters between the socket and the Explorer unit as this may overload the vehicle or
adapter wiring and cause it to overheat.
Indicator LED VGA Port
(15-Way D-Sub Type)
7-Pin XLR
Camera Socket
4-Pin XLR
Power Socket

14
Operating Instructions
POWERING ON
1. Unlatch and open unit.
2. Press and hold the power button for 2 seconds. The unit will start and progress will be shown on the screen.
3. When the unit is ready, press the enter key to start the video display.
POWERING OFF
1. Before powering o, ensure that all video recording is completed and the les have been saved.
2. Press the power button for more than 2 seconds to shut the unit down. The power button light will ash until the unit has nished
shutting down.
3. Battery life is rated at up to 9 hours running time. If the battery is low, the unit will beep once per second. If the unit is left running, it
will shut down automatically after about 10 minutes of low battery warning.
HOW TO CONNECT THE CAMERA TO THE PUSH ROD
1. Be sure to align the connector correctly using the key way pin and the connector terminals male to female and vice versa.
2. When you are happy with the alignment, push the male and female connectors together.
3. Screw the outer shell over both parts.
4. Hold the rod connector and camera still, so ONLY the outer shell can rotate.
5. Using the camera spanners, screw the outer shell over the rod connector until tight.

15
Operating Instructions
HOW TO USE THE COILER
1. To set the position of the footage readout on screen, press the footage counter key.
2. Use the arrow keys to move the footage eadout to the required position on screen. Hold shift and use the arrow keys to make ne
adjustments.
3. Press the OK button to x the position.
4. Turn the coiler until the camera head is in the start position and then press the footage zero button.
5. The footage on screen will return to zero. Hold for 2 seconds.
6. The footage readout is reset to zero when the unit is turned on.
7. The footage will not be accurate unless the coiler type matched the one selected in the settings menu. To change the coiler type, go
to the settings menu, select coiler and select the coiler type or add a manual calibration number (feet per turn). Select Save Settings
and press OK.
CAUTION: The coiler and camera assembly used with the Explorer unit are heavy. Observe safe
lifting procedures when lifting or moving any components of this system.

16
Operating Instructions
HOW TO ACTIVATE THE SONDE
• Press the Sonde on/o button at the hub of the coiler.
• When the button is illuminated, the sonde is on.
NOTE: The M130 coiler does not have an on/o for the sonde; it is always activated.
OFF
ON

17
Operating Instructions
HOW TO ADJUST THE CAMERA LIGHT
WARNING: The camera LEDs are very bright. Do not look directly at LEDs or point them at other
people when turned on.
1. To make the light the brighter, press the Lamp + button.
2. To make the light dimmer, press the Lamp - button.
3. There are 21 levels of brightness (including o).
4. The lamp o button will switch the lamp o.
NOTE: The lights on the M130 coiler are not adjustable.
HOW TO RECORD A BASIC SURVEY
1. Make sure the unit logo is displayed in the top right corner of the home screen.
2. To begin the basic survey, press the record button.
3. In basic survey mode, only the page of text overlay are available.
4. Pressing a number 1-9 displays that page of text onto the screen. Pressing 0 hides the pages. The currently displayed page number
will be shows on the right side about the storage symbol and time.
5. To edit a page of text, press the number of the page followed by the text overlay button at the top of the keyboard.
6. When editing a page, use the arrow keys to move the cursor through the text for editing. Hold Shift and use the arrow keys to move
the whole block of text around the screen.
7. The size and style of text can be edited as well. See page 22, Survey Overlays for detailed instructions.
8. When editing is complete, press OK to accept or Esc to cancel.
9. When recording, pressing the snapshot button at any time will store an image of the screen (jpeg).
10. When survey is complete, press the Stop button to send the survey.

18
HOW TO RECORD A MINASURVEY
1. Press the Mina key and select New Project (providing an empty site info form) or Existing Project (providing the last set of site info
pre-loaded).
2. Enter the necessary information concerning the survey site which will later be displayed on the video recording and pdf survey
report. Press the Mina key to save and move onto the next page or Esc to escape.
3. Enter the information about the current run. When this is complete, press the Mina key to save or Esc to cancel the changes and
start again.
4. On completing this, Run Info can be edited by pressing the Mina key.
5. To begin capture, press the red circle button. The Run Info can no longer be edited once recording begins.
6. Select the start node or entry point where the survey will begin. The remarks section can be left blank or include descriptors like
"manhole cover damage". It will ask for a snapshot of this point.
7. When recording, pressing the Snapshot button at any time will store a jpeg screen capture.
8. Text and graphics can also be overlaid into the video using the text overlay button. See page 22, Survey Overlays for detailed
instructions on this.
9. When the survey is complete, press the Stop button to end the survey.
10. Choose end node type. Conrm the end node type and the pipe serviceability (one being completely blocked and ve being
completely clear).
11. A prompt will ask for a closing snapshot. The next display will tell you once the survey has been saved.
12. Pressing the Survey key again will allow a new section under the same project to be started or the project can be closed.
13. With the project open, the project can be exported to provide a Survey Report by pressing the Survey key and selecting "Export
Project."
HOW TO RECORD A WINCAN SURVEY
(Only available with WinCan Activation.)
1. Press the WinCan button at the top of the keyboard and select "New Project."
2. Enter the project name and press the WinCan key to conrm.
3. Press the WinCan key again and select "New Section." Once all the required section information is entered (use page up/down to
move between screens), press the WinCan key to conrm.
4. Press the Record button to start recording. Press the Snapshot button at any point to store a still image (jpeg).
5. When the survey is complete, press the Stop button or press the WinCan key and select "End Section" to stop recording and store
the survey les.
6. With the project open, the project can be exported to provide a WinCan Report in the MiracullX format by pressing the WinCan key
and selecting "Export Project."
7. When the survey is complete, press the Stop button to end the survey.
Operating Instructions

19
Operating Instructions
HOW TO ADD OBSERVATIONS TO A WINCAN SURVEY
1. While recording a WinCan survey, observations can be added.
2. Pressing the Snapshot button will automatically add a "General Photograph" observation to the survey.
3. If the observation code is known, press the WinCan key and select "Add by Code" and then enter the desired code. On a valid code
being entered, the entry parameter entry menu will open.
4. If the code isn't known, press the WinCan key and select "Add Observation." Follow the on-screen prompts to nd the code. Upon
completion, the parameter entry menu will open.
5. One the parameter entry screen, any elds marked with (M) are mandatory and the menu will not display the "OK to Conrm" or
allow the observation to be added until these elds contain valid data.
6. If data is entered in non-mandatory elds, it must be valid (i.e., clock points are numerical values from 1-12) or the "OK to Conrm"
option will not be visible and the observation cannot be added until all entered data is valid.
7. The parameter entry can be cancelled by pressing the Esc key. This will cancel the observation.
8. Once parameter entry is complete and all data is valid, press OK to conrm. The option to add a Snapshot will then be displayed
before completion.
9. If an observation is set as a Continuous Defect, it will be listed with its defect number and observation code in the Continuous
Defects menu. To close a continuous defect, press the WinCan key from the main recording screen and select "Continuous Defects."
Select the defect to close from the list of open defects. The defect will then be closed. On pressing stop or ending the section, all
open Continuous Defects will be erased.
HOW TO CONNECT AN EXTERNAL DISPLAY
1. The video display must be enabled in the Settings menu. Go to the Settings menu and select General. Enable or disable the external
screen. Select Save Settings and press OK.
2. Connect a VGA cable (15-way D-sub type) to the socket on the back of the unit.
3. Connect the other end of the cable to a suitable video display monitor.
4. Connect the monitor power supply and turn on the monitor. The monitor should now display a copy of the screen contents of
the unit.
CAUTION: Video display monitors are not generally rated for outdoor use or use in wet
conditions. Only connect an external display monitor to the unit when used in a dry, indoor
environment.
VGA Port
(15-Way D-Sub Type)

20
Operating Tips
• If you get stuck in a line, try to rotate the push-cable by hand, rst clockwise, then counter-clockwise.
• The use of a lubricating agent on the push-cable itself can often increase the distance you are able to push the unit. Be certain to
abide by all regulations regarding the use of oils (such as vegetable or mineral oils) or other lubricating additives down drain lines.
Also, if a lubricating agent is being used, be sure to clean the push-cable before it is loaded back into the system.
• Consider using a water repellant (such as Rain-X®) on the camera lens if you are experiencing fogging or water spotting on the
camera lens in wet lines.
• If glare appears in the pipe, reduce the light intensity.
