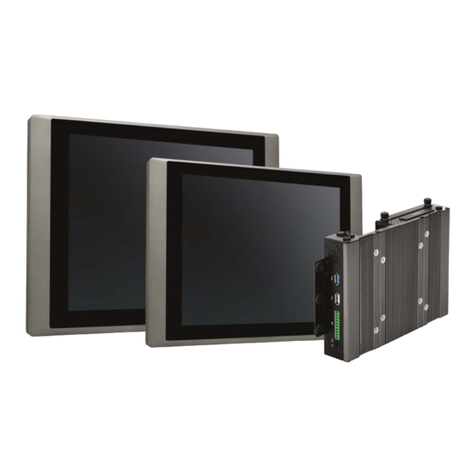

Spectra PowerTwin M08R User manual

SPECTRAPowerTwin
Monitorwith standard
Displays

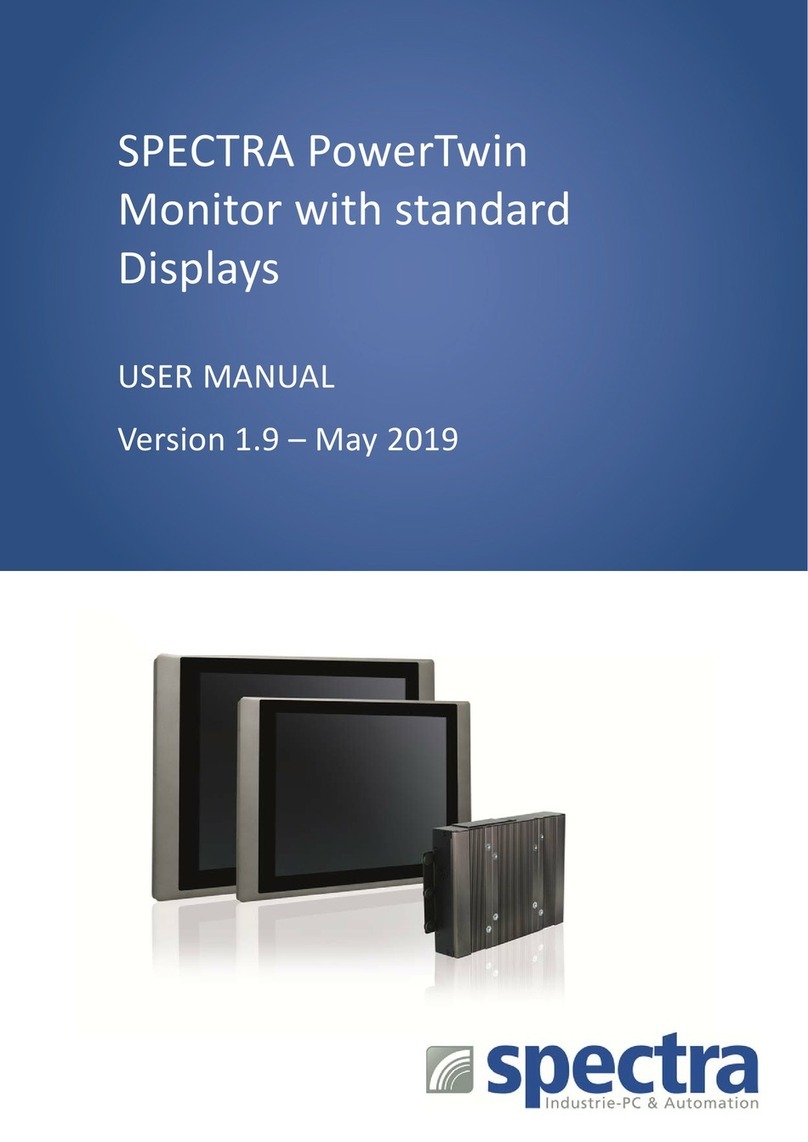

USERMANUAL
Version1.9–May2019

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 2
Contents
Preface
Revision …………………………………………………..……………….……….. 03
Copyright Notice …………………………………………………………………… 03
Acknowledgement ……………………………………………………................... 03
Disclaimer ………………………………………………………….……………….. 03
Declaration of Conformity ……………………………………….………………… 03
Product Warranty Statement ……………………………………….…………….. 04
Technical Support and Assistance ………………………………….……………. 05
Conventions Used in this Manual …………………………………….………….. 05
Safety Precaution …..…………………………………….…………….………….. 06
Package Contents ……………………………………………….……….………… 07
Optional Accessories …………...……………………………………...................... 07
Ordering Information …………………………………………….……….………… 08
Chapter 1 Product Introductions
1.1 Overview ………………………………..………………......………...... 11
1.1.1 PowerTwin M08 ………………………………..…………….......12
1.1.2 PowerTwin M10 ………………………………..…………….......14
1.1.3 PowerTwin MH10 ……………………………..……………..... 16
1.1.4 PowerTwin M12 ………………………………..…………….......18
1.1.5 PowerTwin MH12 ……………………………..……………....... 20
1.1.6 PowerTwin M15 ………………………………..…………….......22
1.1.7 PowerTwin MW15 ……………………………..…………….......24
1.1.8 PowerTwin M17 ………………………………..…………….......26
1.1.9 PowerTwin M19 ………………………………..…………….......28
1.1.10 PowerTwin MW21 ……………………………..……………......30
1.1.11 PowerTwin MW24 ……………………………..……………......32
1.2 System I/O ……………………………………………………………… 34
1.2.1 Front ……………………………………………………………… 34
1.2.2 Rear ………….………………………………….………………... 34
1.2.3 Side (Left) ………………………………….….………………... 35
1.2.4 Side (Right) ………………………………..….………………... 35
1.2.5 Top ………………………………..….………………………….. 36
Chapter 2 OSD Operation
2.1 Function Description of OSD …..…………………………………..... 38
Chapter 3 System Setup
3.1 Connecting with PowerTwin Display Module ….…….…………….... 40
Appendix Panel Mount Procedures
A.1 Mounting Solution Guide For Panel Mount ………………….............. 43

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 3
Revision
Copyright Notice
© 2019 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied,
modified, or reproduced in any form or by any means for commercial use without the prior written
permission of Spectra GmbH & Co. KG. All information and specification provided in this manual are
for reference only and remain subject to change without prior notice.
Acknowledgement
All registered trademarks and product names mentioned herein are used for identification purposes
only and may be trademarks and/or registered trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to change
without notice. It does not represent a commitment on the part of Spectra. This product might include
unintentional technical or typographical errors. Changes are periodically made to the information
herein to correct such errors, and these changes are incorporated into new editions of the publication.
Declaration of Conformity
Preface
FCC
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all application European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires proper
cable and cabling techniques.
Revision Description Date
1.00 Manual Released 2015/01/06
1.10 Power Input Revision 2015/07/17
1.20 MH10 and MH12 Product Info and Mechanical Dimensions Added 2015/12/10
1.30 MW21 Product Info and Mechanical Dimensions Added 2016/10/24
1.40 Revised Manual Description 2016/12/22
1.50 Added New Series Products Information 2018/09/07
1.60 Corrections Made 2018/10/17
1.70 MW24 Product Info and Mechanical Dimensions Added 2019/01/14
1.80 M08C Product Info and Mechanical Dimensions Added 2019/02/15
1.90 MW24 Product Info and Mechanical Dimensions Added 2019/05/10

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 4
Product Warranty Statement
Warranty
Spectra products are warranted by Spectra GmbH & Co. KG to be free from defect in materials and
workmanship starting from the date of purchase by the original purchaser. The actual warranty period
of Spectraproducts vary with product categories. During the warranty period, we shall, at our option,
either repair or replace any product that proves to be defective under normal operation.
Defects, malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric disturbances,
other external forces such as power line disturbances, plugging the board in under power, or incorrect
cabling, and damage caused by misuse, abuse, and unauthorized alteration or repair, and the product
in question is either software, or an expendable item (such as a fuse, battery, etc.), are not warranted
RMA
Before sending your product in, you will need to fill in a Spectra RMARequest Form and obtain a
RMA number from us. Please go to www.spectra.de/RMA to fill in this form. Our staff is available at
any time to provide you with the most friendly and immediate service.
RMA Instruction
Customers must fill in Spectra Return MerchandiseAuthorization (RMA) Request Form and
obtain a RMA number prior to returning a defective product to Spectra for service.
Customers must collect all the information about the problems encountered and note anything
abnormal and describe the problems on the “Spectra Service Form” for the RMAnumber apply
process.
Charges may be incurred for certain repairs. Spectra will charge for repairs to products whose
warranty period has expired. Spectra will also charge for repairs to products if the damage
resulted from acts of God, environmental or atmospheric disturbances, or other external forces
through misuse, abuse, or unauthorized alteration or repair. If charges will be incurred for a
repair, Spectra lists all charges, and will wait for customer’s approval before performing the
repair.
Customers agree to insure the product or assume the risk of loss or damage during transit, to
prepay shipping charges, and to use the original shipping container or equivalent.
Customers can be send back the faulty products with or without accessories (manuals, cable,
etc.) and any components from the system. If the components were suspected as part of the
problems, please note clearly which components are included. Otherwise, Spectra is not
responsible for the devices/parts.
Repaired items will be shipped along with a "Repair Report" detailing the findings and actions
taken.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 5
This indication alerts operators to an operation that, if not strictly
observed, may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE
Technical Support and Assistance
1. Visit our website at www.spectra.de where you can find the latest information about the product.
2. Contact our technical support team or sales representative for technical support if you need
additional assistance. Please have following information ready before you call:
Product name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 6
Safety Precautions
Before installing and using this device, please note the following precautions:
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be
easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current rating
of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10.All cautions and warnings on the equipment should be noted.
11.If the equipment is not used for a long time, disconnect it from the power source to avoid damage
by transient overvoltage.
12.Never pour any liquid into an opening. This may cause fire or electrical shock.
13.Never open the equipment. For safety reasons, the equipment should be opened only by qualified
service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it work according to the user's manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer.

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Note: Notify your sales representative if any of the above items are missing or damaged.
Optional Accessories
Item Description Q’ty
1TouchMonitor 1
2PanelMountingKit 1
3 UtilityDVDDriver 1
4PowerTerm inalBlockConnector1
5USBCable 1
6VGACable 1
7ScrewPack 1
ModelNo. Description
PowerAdapter,60W/12V,
3pin
AdapterAC/DC12V5A60W,GST60A12‐CIN1,widetemp(‐30°C~+70°C),Level
VI
DVI‐DCable DVI‐DmaletoDVI‐DmaleCable1.8M
UniversalMountKitfor
PowerTwin19" Universal19"RackMountKitforIndustrialPanelPC&IndustrialMonitor

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 8
Ordering Information
Touch Monitor with Resistive 5-wire Touch
ModelNo. ProductDescription
SpectraPowerTwin
M08R
8.4"TFTSVGA4:3MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M10R
10.4"TFTSVGA4:3MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MH10R
10.4"TFTXGA4:3Monitor withResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M12R
12.1"TFTSVGA4:3MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MH12R
12.1"TFTXGA4:3MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M015R
15"TFTXGA4:3MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW15R
15.6"TFTWXGA16:9MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M17R
17"TFTSXGA5:4MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M19R
19"TFTSXGA5:4MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW21R
21.5"TFTFullHD16:9MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW24R
24"TFTFull‐HD16:9MonitorwithResistive5‐wireTouch,1xUSB,1xCOM,1x
VGA,1xDVI‐Dand1xDisplayPort

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 9
Touch Monitor with Projected Capacitive Touch
ModelNo. ProductDescription
SpectraPowerTwin
M08C
8.4"TFTSVGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M10C
10.4"TFTSVGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MH10C
10.4"TFTXGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M12C
12.1"TFTSVGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MH12C
12.1"TFTXGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M15C
15"TFTXGA4:3MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW15C
15.6"TFTWXGA16:9MonitorwithProjectedCapacitiveTouch,1xUSB,1x
COM,1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M17C
17"TFTSXGA5:4MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
M19C
19"TFTSXGA5:4MonitorwithProjectedCapacitiveTouch,1xUSB,1xCOM,
1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW21C
21.5"TFTFullHD16:9MonitorwithProjectedCapacitiveTouch,1xUSB,1x
COM,1xVGA,1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW24C
24"TFTFull‐HD16:9MonitorwithProjectedCapacitiveTouch,1xUSB,1x
COM,1xVGA,1xDVI‐Dand1xDisplayPort
Monitor without Touch
ModelNo. ProductDescription
SpectraPowerTwin M17 17"TFTSXGA5:4MonitorwithoutTouch,w/1xUSB,1xCOM,1xVGA,1x
DVI‐Dand1xDisplayPort
SpectraPowerTwin M19 19"TFTSXGA5:4MonitorwithoutTouch,w/1xUSB,1xCOM,1xVGA,1x
DVI‐Dand1xDisplayPort
SpectraPowerTwin
MW21
21.5"TFTFullHD16:9MonitorwithoutTouch,w/1xUSB,1xCOM,1xVGA,
1xDVI‐Dand1xDisplayPort
SpectraPowerTwin
MW24
24"TFTFullHD16:9MonitorwithoutTouch,w/1xUSB,1xCOM,1xVGA,1x
DVI‐Dand1xDisplayPort
Upon Request 10”, 12” & W15” without touch also available

Product Introductions
Chapter 1

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 11
Front Rear
The Spectra PowerTwin M series provides 8.4” ~ 24” monitor with resistive 5-wire touch/
projected capacitive touch or glass only (available on selected models) features flat surface
and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front
frame, it is rugged and reliable for industrial environment. Spectra PowerTwin M series
supports CDS Technology (Convertible Display System) which allows to configure, upgrade
and maintain your touch monitor easily.
Spectra PowerTwin M series supports both digital and analog signal input via three types of
display interface: VGA, DVI-D and DisplayPort. Touch screen can be connected with USB or
COM port. It has OSD function for adjusting the viewing options of display. With the support
of wide range power input from 9~48VDC, Spectra PowerTwin M series is designed as an
ideal solution for industrial application.
1.1 Overview

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 12
1.1.1 PowerTwin M08
Key Features
• 8.4" TFT SVGA 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
• Designed with Aluminum Die-Casting Front Frame
• 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
• IP 65 Compliant Front Panel
• Support Panel / VESA Mounting / *Rack Mounting (*with optional mounting kit)
• Convertible Display System (CDS) Supported
• Built-in Two 5W Internal Speakers
Hardware Specification
Display
• LCD Size: 8.4" (4:3)
• Max. Resolution: 800 x 600
• Brightness (cd/m2): 400
• Contrast Ratio: 600 : 1
• LCD Color: 262K
• Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
• Viewing Angle (H-V): 150 / 130
• Backlight MTBF: 30000 hrs (LED Backlight)
Touch
• Resistive 5-wire Touch for PowerTwin M08R Only
• Projected Capacitive Touch for PowerTwin M08C
Only
I/O Ports
•1xVGA
•1xDVI-D
• 1x DisplayPort
• 1x Audio Input
• 1x USB 2.0
• 1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to
enable touch usage only)
Other Features
• Audio: AMP 5W + 5W (Internal Speaker)
• OSD Function: LCD On/Off, Auto, Menu, Up and
Down
• Multi-language OSD Function
Power
• 1x 3-pin Terminal Block Connector with Power Input
9~48VDC
• 1x Optional AC/DC 12V/5A, 60W Power Adapter
Environment
• Operating Temperature: Ambient with Air Flow:
PowerTwin M08R: -5°C to 60°C
PowerTwin M08C: -5°C to 60°C
(with Industrial Grade Peripherals)
• Storage Temperature:
PowerTwin M08R: -20°C to 75°C
PowerTwin M08C: -20°C to 75°C
• Relative humidity:
PowerTwin M08R: 80% RH @ 60°C (non-condensing)
PowerTwin M08C: 85% RH @ 60°C (non-condensing)
• IP Level: IP 65 Compliant Front Panel
Physical
• Dimension (WxHxD, mm): 262 x 186 x 66 mm
• Weight:
PowerTwin M08R: 2.74 kg
PowerTwin M08C: 2.7 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA Mounting / *Rack Mounting
(*with optional mounting kit)
Certification
•CE
• FCC Class A

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 13
Dimension
Unit: mm
PowerTwin M08

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 14
1.1.2 PowerTwin M10
Key Features
• 10.4" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
• Designed with Aluminum Die-Casting Front Frame
• 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
• IP 65 Compliant Front Panel
• Support Panel / VESA Mounting / *Rack Mounting (*with optional mounting kit)
• Convertible Display System (CDS) Supported
• Built-in Two 5W Internal Speakers
Hardware Specification
Display
• LCD Size: 10.4" (4:3)
• Max. Resolution: 800 x 600
• Brightness (cd/m2): 400
• Contrast Ratio: 700 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
• Viewing Angle (H-V): 160 / 130
• Backlight MTBF: 70000 hrs (LED Backlight)
Touch
• Resistive 5-wire Touch for PowerTwin M10R Only
• Projected Capacitive Touch for PowerTwin M10C
Only
I/O Ports
•1xVGA
•1xDVI-D
• 1x DisplayPort
• 1x Audio Input
• 1x USB 2.0
• 1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to
enable touch usage only)
Other Features
• Audio: AMP 5W + 5W (Internal Speaker)
• OSD Function: LCD On/Off, Auto, Menu, Up and
Down
• Multi-language OSD Function
Power
• 1x 3-pin Terminal Block Connector with Power Input
9~48VDC
• 1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
• Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
• Storage Temperature: -20°C to 75°C
• Relative humidity: 80% RH @ 40°C
(non-condensing)
• IP Level: IP 65 Compliant Front Panel
Physical
• Dimension (WxHxD, mm): 295 x 227.3 x 66 mm
• Weight: 3.36 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA Mounting / *Rack Mounting
(*with optional mounting kit)
Certification
•CE
• FCC Class A

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 15
Dimension
Unit: mm
PowerTwin M10

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 16
1.1.3 PowerTwin MH10
Key Features
• 10.4" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
• Designed with Aluminum Die-Casting Front Frame
• 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
• IP 65 Compliant Front Panel
• Support Panel / VESA Mounting / *Rack Mounting (*with optional mounting kit)
• Convertible Display System (CDS) Supported
• Built-in Two 5W Internal Speakers
Hardware Specification
Display
• LCD Size: 10.4" (4:3)
• Max. Resolution: 1024x 768
• Brightness (cd/m2): 400
• Contrast Ratio: 1400 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.2055 (H) x 0.2055 (V)
• Viewing Angle (H-V): 178 / 178
• Backlight MTBF: 50000 hrs (LED Backlight)
Touch
• Resistive 5-wire Touch for PowerTwin MH10R Only
• Projected Capacitive Touch for PowerTwin MH10C
Only
I/O Ports
•1xVGA
•1xDVI-D
• 1x DisplayPort
• 1x Audio Input
• 1x USB 2.0
• 1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to
enable touch usage only)
Other Features
• Audio: AMP 5W + 5W (Internal Speaker)
• OSD Function: LCD On/Off, Auto, Menu, Up and
Down
• Multi-language OSD Function
Power
• 1x 3-pin Terminal Block Connector with Power Input
9~48VDC
• 1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
• Operating Temperature:Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
• Storage Temperature: -20°C to 75°C
• Relative Humidity: 80% RH @ 40°C
(non-condensing)
• IP Level: IP 65 Compliant Front Panel
Physical
• Dimension (WxHxD, mm): 295 x 227.3 x 66 mm
• Weight: 3.36 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA Mounting / *Rack Mounting
(*with optional mounting kit)
Certification
•CE
• FCC Class A

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 17
Dimension
Unit: mm
PowerTwin MH10

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 18
1.1.4 PowerTwin M12
Key Features
• 12.1" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
• Designed with Aluminum Die-Casting Front Frame
• 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
• IP 65 Compliant Front Panel
• Support Panel / VESA Mounting / *Rack Mounting (*with optional mounting kit)
• Convertible Display System (CDS) Supported
• Built-in Two 5W Internal Speakers
Hardware Specification
Display
• LCD Size: 12.1" (4:3)
• Max. Resolution: 800 x 600
• Brightness (cd/m2): 450
• Contrast Ratio: 800 : 1
• LCD Color: 262K
• Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
• Viewing Angle (H-V): 160 / 140
• Backlight MTBF: 50000 hrs (LED Backlight)
Touch
• Resistive 5-wire Touch for PowerTwin M12R Only
• Projected Capacitive Touch for PowerTwin M12C
Only
I/O Ports
•1xVGA
•1xDVI-D
• 1x DisplayPort
• 1x Audio Input
• 1x USB 2.0
• 1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to
enable touch usage only)
Other Features
• Audio: AMP 5W + 5W (Internal Speaker)
• OSD Function: LCD On/Off, Auto, Menu, Up and
Down
• Multi-language OSD Function
Power
• 1x 3-pin Terminal Block Connector with Power Input
9~48VDC
• 1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
• Operating Temperature: Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
• Storage Temperature: -20°C to 75°C
• Relative humidity: 80% RH @ 40°C
(non-condensing)
• IP Level: IP 65 Compliant Front Panel
Physical
• Dimension (WxHxD, mm): 345 x 265.3 x 66.5 mm
• Weight: 4.28 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA Mounting / *Rack Mounting
(*with optional mounting kit)
Certification
•CE
• FCC Class A

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 19
Dimension
Unit: mm
PowerTwin M12

SpectraGmbH&Co.KG
[email protected]
UserManual
SpectraPowerTwinMonitor+standard Displays 20
1.1.5 PowerTwin MH12
Key Features
• 12.1" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
• Designed with Aluminum Die-Casting Front Frame
• 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
• IP 65 Compliant Front Panel
• Support Panel / VESA Mounting / *Rack Mounting (*with optional mounting kit)
• Convertible Display System (CDS) Supported
• Built-in Two 5W Internal Speakers
Hardware Specification
Display
• LCD Size: 12.1" (4:3)
• Max. Resolution: 1024x 768
• Brightness (cd/m2): 500
• Contrast Ratio: 700 : 1
• LCD Color: 16.2M
• Pixel Pitch (mm): 0.24 (H) x 0.24 (V)
• Viewing Angle (H-V): 160 / 160
• Backlight MTBF: 30000 hrs (LED Backlight)
Touch
• Resistive 5-wire Touch for PowerTwin MH12R Only
• Projected Capacitive Touch for PowerTwin MH12C
Only
I/O Ports
•1xVGA
•1xDVI-D
• 1x DisplayPort
• 1x Audio Input
• 1x USB 2.0
• 1x COM Port (Resistive Touch Only)
(USB & COM Port are reserved for the connection to
enable touch usage only)
Other Features
• Audio: AMP 5W + 5W (Internal Speaker)
• OSD Function: LCD On/Off, Auto, Menu, Up and
Down
• Multi-language OSD Function
Power
• 1x 3-pin Terminal Block Connector with Power Input
9~48VDC
• 1x Optional Power Adapter AC/DC 12V/5A, 60W
Environment
• Operating Temperature:Ambient with Air Flow:
-5°C to 60°C (with Industrial Grade Peripherals)
• Storage Temperature: -20°C to 75°C
• Relative Humidity: 80% RH @ 40°C
(non-condensing)
• IP Level: IP 65 Compliant Front Panel
Physical
• Dimension (WxHxD, mm): 345 x 265.3 x 66.5 mm
• Weight: 4.28 kg
• Mechanical Construction: Rugged Aluminum Die-
casting Front Bezel and Heavy Duty Metal Chassis
• Mounting: Panel / VESA Mounting / *Rack Mounting
(*with optional mounting kit)
Certification
•CE
• FCC Class A
