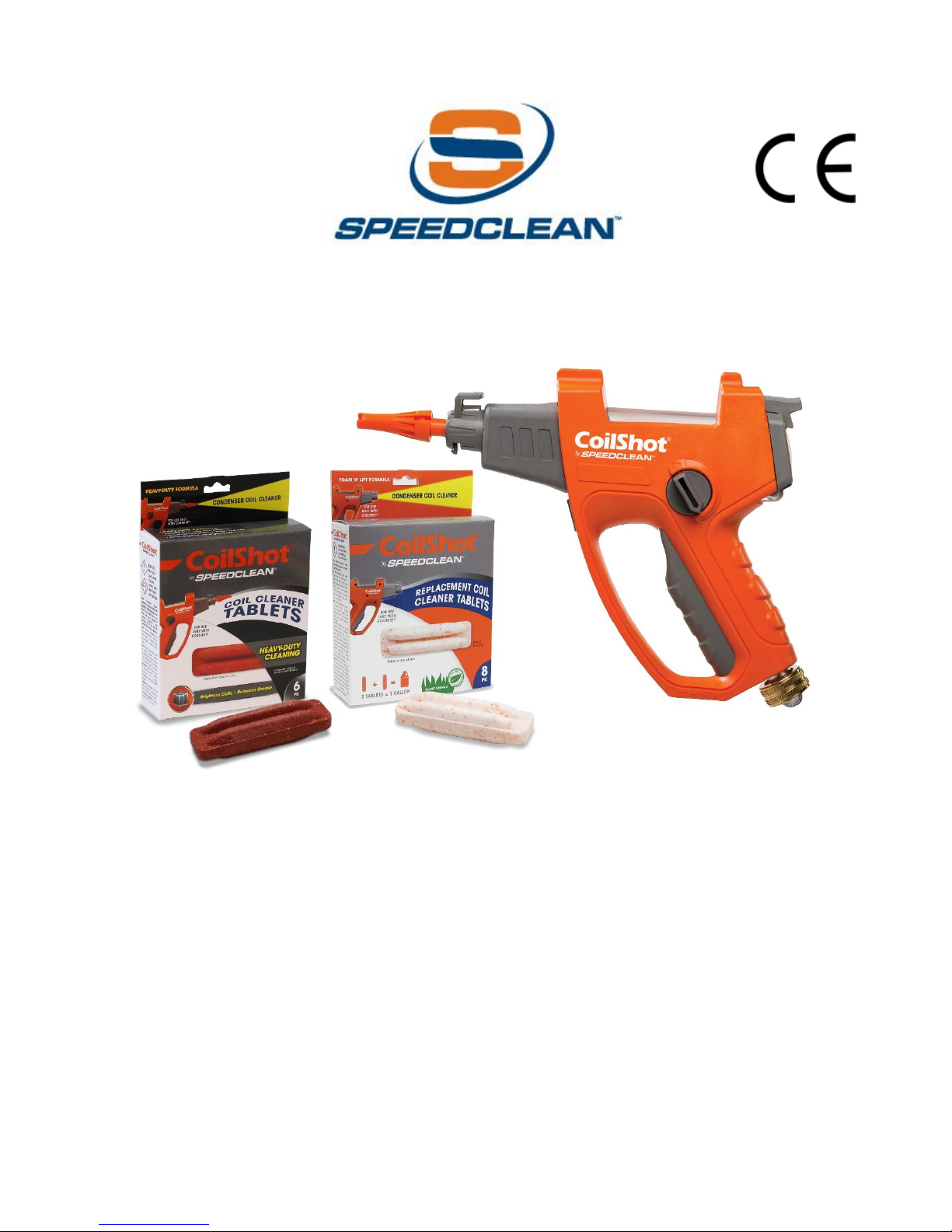

Speed Clean COILSHOT SC-CS-100 User manual

COILSHOT®
Patent: D750,333
Others Patents Pending
Condenser Coil Cleaning Tool
P.O. Box 110301
Stamford, CT 06911-0301
[phone]
[phone]
www.speedclean.com
COILSHOT® is a registered trademark of Crossford International, LLC

SC-CS-100 MAY 10, 2017
1
Warranty
This unit has been carefully tested and inspected at the factory and is warranted
to be free from defects in material or workmanship. The company will, under this
warranty, repair or replace any parts which prove, upon examination, to be
defective. This warranty is valid 90 days from date of purchase by original
purchaser.
This warranty excludes accessories, unusual wear, abuse, damage resulting from
accident, or unreasonable use of this machine. It is recommended that any repair
be done by SpeedClean as improperly performed repairs will void the warranty.
For repairs or warranty information DO NOT contact the place of purchase. Call
SpeedClean directly at the phone number on the cover page.
This warranty gives you specific legal rights and you may have other rights which
vary from state to state.
To obtain warranty service, a proof of purchase is required and the unit must be
returned freight prepaid. For repair or warranty information, contact SpeedClean
Customer Service.
Important Safety Instructions
Read and understand all instructions before using the unit. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious personal
injury.
SAVE THESE INSTRUCTIONS!!
Disconnect power from the unit being cleaned.
Always check the unit, hoses, fittings, etc. before each use.
Stay alert, watch what you are doing and use common sense when operating
this unit.
Keep bystanders, children, and visitors away while operating this unit.

SC-CS-100 MAY 10, 2017
2
Turn water source off and relieve pressure in the hose when done.
Do not use while tired or under the influence of drugs, alcohol, or medication.
Do not overreach or stand on unstable support. Keep proper footing and
balance at all times.
Wear rubber gloves, rubber boots, goggles or face-shield, etc. Detergents and
chemicals may cause injuries to the eyes and skin. Protect yourself from direct
skin contact with the chemicals and debris found in the coil cleaning
environment.
This unit is designed only for use with CoilShot and CoilShot HD Tablets. Do not
use with any other chemicals.
Do not use the unit if it does not operate properly or has been damaged. Do
not try to service the unit yourself - call SpeedClean for assistance. Service
must be performed only by qualified repair personnel. Service performed by
unqualified personnel could result in a risk of injury and voids the warranty.
Never point the spray gun at anyone. Do not direct stream at eyes or mouth.
Do not allow the unit to freeze or leave in freezing temperatures.
Do not use water with a temperature of more than 100°F (38°C) or greater
than 70 psi.
For optimum performance, use a water source with 40-70 psi and 2.0-2.5
GPM.
Use only approved accessories and replacement parts.
Follow maintenance procedures outlined in this manual.
Review the CoilShot and CoilShot-HD SDS before usage.
Features
Introducing the future of coil cleaning! The new CoilShot® Condenser cleaner tool
is ergonomically designed for easy use, deep cleaning of coils and simple, quick
attachment to a standard garden hose. CoilShot uses a revolutionary tablet-based
system that saves time and helps complete tasks faster and more efficiently than
bulky, heavy coil cleaners on the market today. Simply attach to garden hose,
insert tablet, then dial in your custom foaming level to blast dirt and debris better
than ever before!

SC-CS-100 MAY 10, 2017
3
Pre-Operation Checklist
Check spray nozzles and make sure orifice is not blocked or worn to excess.
Check water hose for leaks or kinks
Check all connections, fittings, screws and fasteners.
Check that there are enough tablets to completely clean all coils.
Operating Instructions
Normal Coil Cleaning Operation
CAUTION: Turn off electrical power to unit being cleaned and wear appropriate
P.P.E. (Review the CoilShot and CoilShot-HD SDS before usage)
1. Connect a standard garden hose to the connection at the base of the gun.
Note: Water Pressure must be less than 70 psi and less than 100oF.
2. Install the nozzle at the tip of the gun, turn on the water source, squeeze the
trigger and pre-rinse the coil to be cleaned. Confirm that all of the connections
are tight and that there are no leaks.
3. Turn the water source off.
4. Insert the CoilShot or CoilShot HD cleaning tablet into the back of the gun.
Make sure that the latch secures the door.
Note: If using a new tablet from a sealed bag, make sure to reseal the bag to
ensure no moisture gets to unused tablets.
5. Adjust mixing valve to desired amount of chemical to be applied (see chart on
next page)
6. Turn the water source back on. Confirm that all of the connections are still
tight and that there are no leaks.
7. Squeeze the trigger and spray the coil.
8. Turn off the water supply.
9. Allow chemical to dwell on the coil for 3-5 minutes.

SC-CS-100 MAY 10, 2017
4
10. Turn the water supply on.
11. Use tablet completely before rinsing.
12. Rinse the coil until the cleaner is removed.
13. Turn the water supply off and squeeze the trigger to release the pressure.

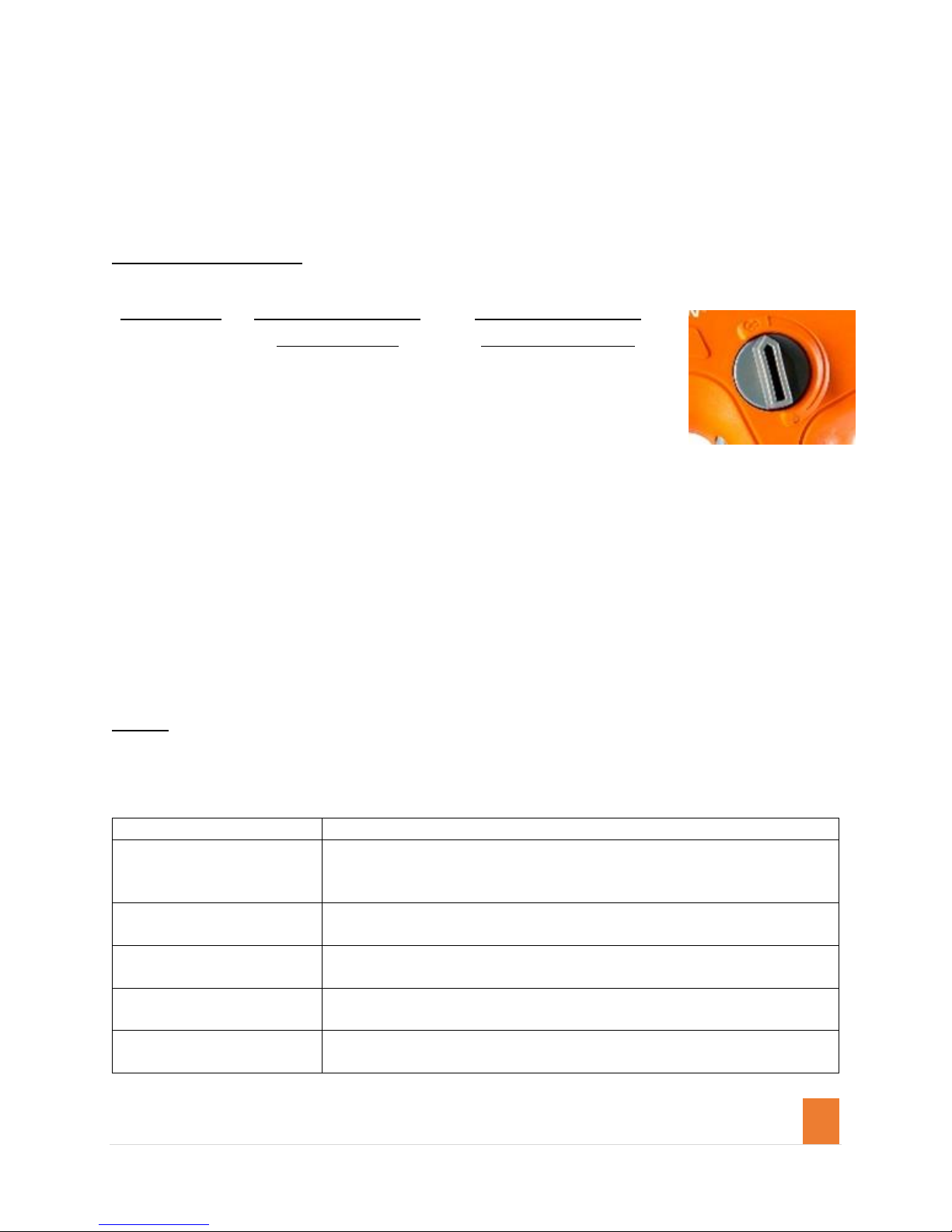

Mixing Valve Chart
Dial Setting
Estimated Dissolve
Time CoilShot
Estimated Dissolve
Time CoilShot HD
Full Open
7 minutes
9 minutes
¾
10 minutes
30 minutes
½
14 minutes
45+ minutes
¼
28 minutes
60+ minutes
Note, once the tablet comes in contact with the water, it will start to dissolve.
General Maintenance and Storage
1. When done using the unit, run clean water through it to remove any chemical
residue.
2. Protect unit from freezing temperatures. Do not store unit outdoors.
3. Before storing, remove all water from inside the gun. Do this by disconnecting
the water source, squeezing the trigger, and shaking the water out of it.
NOTE: When storing after use with CoilShot HD, rinse the gun with clean water
for at least 2 minutes before storing.
Troubleshooting
Issue
Probable Cause
Water is not coming out
Make sure the garden hose is connected and water is turned on
and flows freely from the hose.
Trigger is damaged and will not activate.
Water is leaking from the
back of the gun
O-ring in the door is broken or missing and needs to be replaced.
Latch is broken or worn.
Water leaks from the
nozzle
The O-ring in the tip of the gun is broken and should be replaced.
The trigger valve O-ring is damaged.
Nozzle will not secure to
the tip of the gun
The quick disconnect is worn and needs to be replaced.
Chemical is not coming out
The mixing valve is closed and needs to be opened
The tablet has dissolved completely and needs to be replaced.
Full Chemical
1/2
3/4
1/4

SC-CS-100 MAY 10, 2017
5
Water leaks at the hose
connection
The hose connector is damaged
The water seal is damaged
Specifications
Dimensions: 10” x 8” x 2.25”
Weight: 1 lb.
Maximum Input Pressure: Up to 70 PSI @ 3.0 GPM
Hose Type: Garden Hose

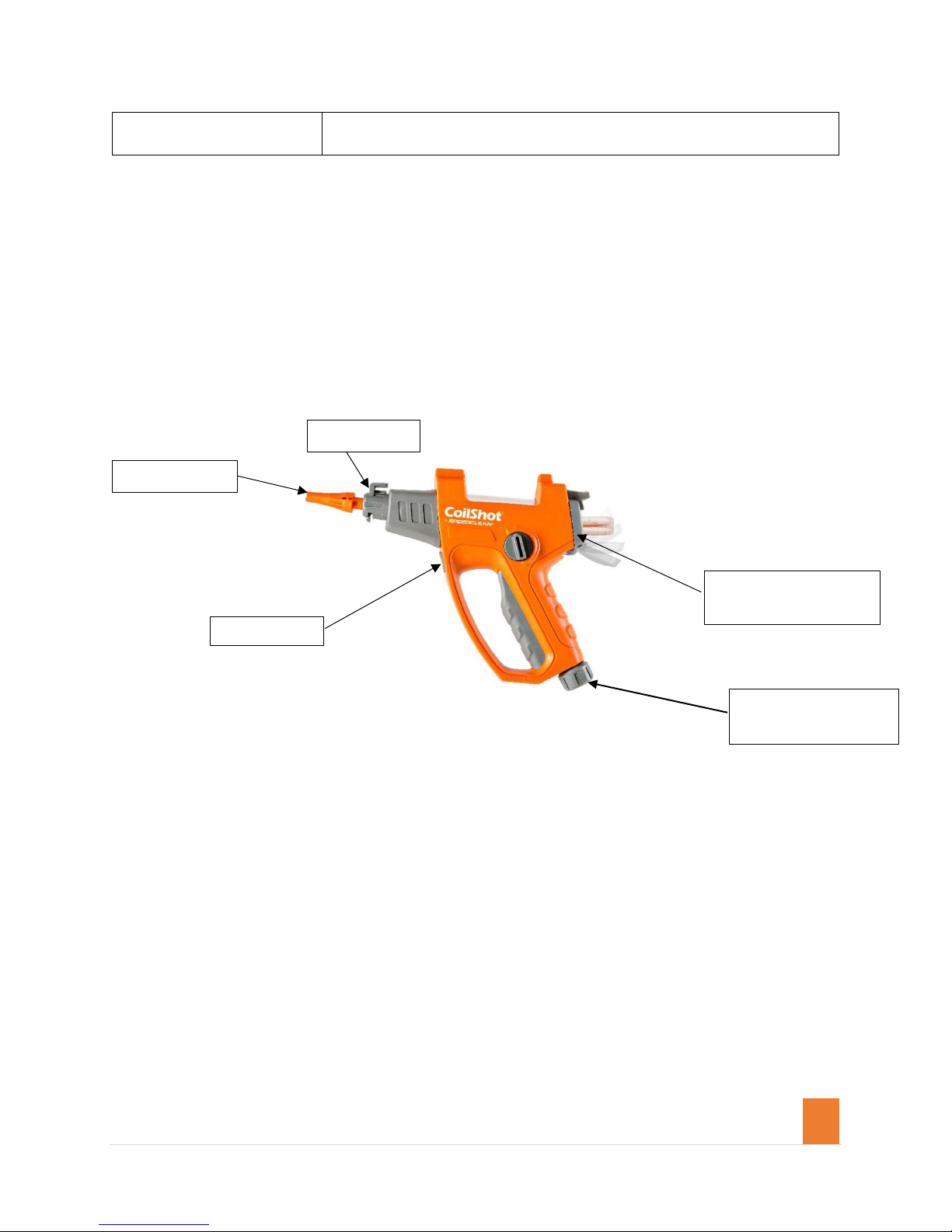

Spare Parts
SC-CS-DOOR
SC-CS-OR-DR (O-ring)
SC-CS-GH-NUT
803 (Screen Washer)
SC-CS-GRMT
SC-CS-NOZZLE
SC-CS-LATCH

SC-CS-100 MAY 10, 2017
6
Accessories
Optional 3’ wand for CoilShot® increases cleaning
performance.
P/N: SC-CS-WAND
3 ft. wand is specially designed to quickly connect to CoilShot cleaning tool and clean coils
from inside to outside. The wand features a slim profile that fits between the grate so you
don’t have to remove the top fan and housing.
CoilShot® Coil Cleaner Tablets, package of 8
P/N: SC-CS-TABS
One tablet is equivalent to approximately a ½ gallon of coil cleaner.
CoilShot-HD® Heavy Duty Coil Cleaner Tablets, package of 6
P/N: SC-CS-TABS-HD
Cuts grease and shines coils. Goggles and gloves are mandatory for use of
this product. After use of complete tabled, rinse gun for at least 2 minutes.

SC-CS-100 MAY 10, 2017
7
P.O. Box 110301
Stamford, CT 06911-0301
[phone]
www.speedclean.com
