Earlex CombiSpray WDACC18 User manual

HVLP
SSppray Guun
( High Volume Low Pressure)
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex HVLP Spray Gun. This can only
be used with an Earlex Combivac or Combi Power Vac so if you don’t
have one of these please do not proceed with using the gun. This is a
highly versatile spray gun and can be used on a variety of
applications.
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS.
Please retain for future reference
final.qxd 22/02/00 11:05 Page 1

SAFETY OPERATING INSTRUCTIONS
2
PLEASE READ BEFORE USE
NEVER under any
circumstances aim the nozzle
at another person or animal. In the
event of injury occuring seek expert
medical advice immediately.
The spray gun must only be used
with paints and solvents that have a
suitable flash point for spraying. If in
doubt consult paint or solvent manu-
facturer’s data.
Always ensure there is adequate
ventilation when spraying.
NEVER spray near a naked flame,
including appliance pilot flame.
NEVER smoke whilst spraying.
NEVER allow children to operate or
play with the spray gun.
Always read the paint manufacturers
thinning instructions before using.
Always disconnect Combivac from
mains supply when refilling the paint
container.
Before cleaning, always disconnect
Combivac from the mains supply.
Always wear the correct protective
mask mask when spraying. We would
also recommend the use of gloves
and goggles.
After every use ensure that you clean
your spray gun thoroughly and
grease the packing piece.
WARNING: The substances used with
this spray gun (paint, thinner etc)
may contain hazardous, harmful,
explosive or corrosive materials.
ALWAYS COMPLY WITH THE SAFETY
INSTRUCTIONS ISSUED WITH THIS
PRODUCT AND THE MATERIAL
!
INTRODUCTION
HVLP stands for High Volume, Low Pressure. This is a type of spraying that
allows you to spray extremely accurately but without all the overspray that occurs
with the high pressure tank type equipment. In fact, in some parts of the world
the high pressure systems are banned by law on environmental grounds and
HVLP type systems are the only alternative for professional type spraying. This
gun is extremely easy to use, very safe and reduces the amount of paint used .
PLEASE NOTE
We have done all we can to ensure that used correctly and according to these
instructions, this spray gun will give long and trouble free life. We accept no
responsibility for damage caused by the use of incorrect or unsuitable
substances, paints or fluids which have not been thinned correctly or are
unsuitable for the surfaces to which they are applied, health hazards arising from
lack of ventilation when working in confined spaces or failure of the equipment
due to inadequate cleaning of the components after use.
If in doubt, always test a small inconspicuous area first. Always read the paint
manufacturer’s instructions first.
Neither our guarantee nor the above statement affects your statutory rights.
final.qxd 22/02/00 11:05 Page 2

3

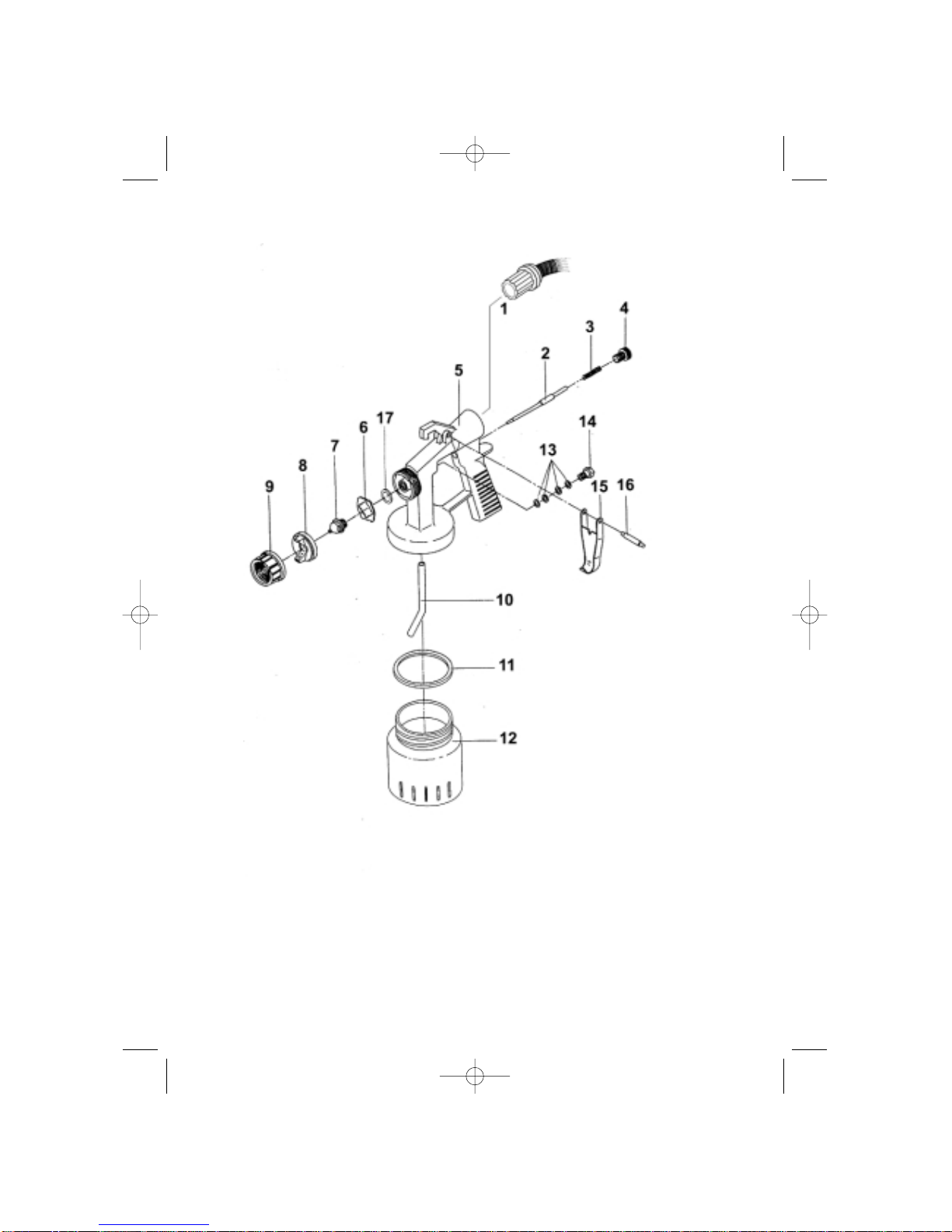

PARTS LIST
Key Discription Part No.
No.
01. Hose Connector WD0194
02. Fluid Needle Assembly WD0198
03. Spring WD0199
04. Fluid Adjusting Screw WD0200
05. Gun Body WD0201
06. Air Flow Plate WD0202
07. Fluid Tip WD0203
08. Nozzle WD0204
09. Adjustment Ring WD0205
10. Fluid Tube WD0206
11. Container Gasket WD0207
12. Container WD0208
13. Fluid Needle Packing WD0209
14. Needle Packing Screw WD0210
15. Trigger WD0211
16. Trigger Pin WD0212
17. Nozzle Washer WD0213
final.qxd 22/02/00 11:05 Page 3

IMPORTANT – SELECTING PAINT
This is a highly versatile spray gun that
can be used with several different spray
mediums including varnishes, wood
preservatives, enamels, oil and water
based paints and cellulose. However
some materials cannot be sprayed so
please check the manufacturer’s recom-
mendation before buying the paint. If a
material refers to brush application only
then it cannot be sprayed.
THIS CANNOT BE USED FOR TEX-
TURED EXTERIOR WALLPAINTS OR
INTERIOR COATINGS. USE OF
THESE MATERIALS WILL CAUSE
PREMATURE WEAR, WHICH WILL
VOID THE GUARANTEE.
TO OBTAIN THE BEST RESULTS
FROM YOUR SPRAY GUN PLEASE
READ THE INSTRUCTIONS CARE-
FULLY BEFORE USE.
PREPARATION
Preparation of the surface and thinning
of the paint are the two most important
areas to be concerned with to obtain
the best results from your spray gun.
Ensure all surfaces are free from dust,
dirt, rust and grease. If necessary rub
down with sandpaper, or similar.
Masking of areas is important to ensure
you do not spray those areas you wish
to remain untouched.
THINNING
Your spray gun is supplied with a vis-
cosity cup. Viscosity is a technical term
used to indicate if a product is very liq-
uid or very thick. If liquid, the viscosity
is said to be low, while if very thick the
viscosity is said to be high.
Viscosity is measured in seconds. In
order to spray some materials they
need to be “thinned”.
Thinning is very important when spray-
ing. Most paints etc are supplied ready
for brush application and may need to be
thinned (diluted) for spraying purposes.
Follow the manufacturer’s guide for thin-
ning in conjunction with a spray gun. If in
doubt please contact the manufacturer’s
of the paint. The viscosity cup supplied
will help you determine the correct thick-
ness of the paint. Paint is “thinned” by
adding the substance which the paint is
based upon. If a water based paint then
water is added, if oil based then white
spirit, if cellulose then a cellulose thinner
is added.
As some paints, wood preservatives
and other sprayable materials contain
particles that have differing qualities,
please ensure that when filling the paint
container of the spray gun, that the
paint is filtered through either a funnel
with a filter on it or through nylon tights
or stockings. This will ensure that no
large particles enter the paint container,
so preventing blockages and provide
you with trouble free spraying. Ensure
that a face mask, gloves and goggles
are worn at all times when spraying.
IDEAL VISCOCITY
Water based paints 45 - 60 seconds
Oil based paints 45 - 50 seconds
Wood preservatives No dilution
Primers 45 - 50 seconds
Varnishes No dilution
Aluminium paints No dilution
Wood stains No dilution
Cellulose Manufacturers ratio
This gun can be used having products
with a viscosity ranging from 10 to a
maximum of 60 seconds.
4
final.qxd 22/02/00 11:05 Page 4

Dip the viscosity cup into the material
and fill up. Time how long it takes for
the viscosity cup to empty (Fig 1).
Using the above chart (or manufactur-
er’s instructions) as a guide determine
if the material requires further thinning,
if so then thin accordingly.
OPERATION
Fill the paint container with the material
to be sprayed. DO NOT OVERFILL.
Screw the container onto the body tight-
ly.
The spray gun is supplied with a hose.
This is designed to fit into the hose
supplied with the Combivac to give you
sufficient length of hose to be able to
spray most objects without limiting the
spraying action.
The Combivac hose needs to be fitted
to the “Blower” outlet (Fig.2) – this is
the outlet at the top of the machine.
Connect the additional hose, supplied
with the Spray Gun into the end of the
Combivac hose and the other end into
the back of the Spray Gun.
ALWAYS KEEP THE COMBIVAC UNIT
AS FAR AWAY FROM THE SPRAYING
AREA AS POSSIBLE TO PREVENT
PAINT CONTAMINATING THE
MOTOR.
MASK ANY AREA YOU DO NOT WISH
TO BE SPRAYED
Once you have set up ready to spray,
switch on the Combivac. No paint will
be sprayed from the gun until the trig-
ger on the Spray Gun is pulled. Before
starting any work on spraying actual
objects we suggest you spend a small
amount of time practicing on cardboard
or newspaper until you have got used
to how the gun works.
Position the fluid tube in the paint con-
tainer to provide the best angle to pick
up all the paint in the container
SPRAY PATTERNS
The gun has both adjustable volume
control and 3 different spray patterns –
Horizontal, Vertical and Round (Fig.3)
The horizontal and vertical are recom-
mended for large surfaces. The round
spray is used for small objects or for
areas - such as corners – that are diffi-
cult to reach.
To adjust the spray pattern, loosen the
adjustment ring (9), adjust the position
of the nozzle (8) to obtain either a verti-
cal, horizontal or round pattern then re-
tighten the adjustment ring.
5
Fig.1
Fig.2
Fig.3
Vertical Jet Round JetHorizontal Jet
final.qxd 22/02/00 11:05 Page 5

6
PAINT VOLUME
The volume of paint sprayed is easily
adjustable.(Fig.4)
Completely close adjustment screw (4)
by turning this clockwise as far as it will
go. Whilst pulling the trigger, begin turn-
ing the adjustment screw anti-clockwise
until the volume of paint you require is
obtained.
If the paint spray is too wide or contains
too much paint turn the adjustment
screw clockwise again. Once the cor-
rect spray pattern is obtained you are
able to commence spraying.

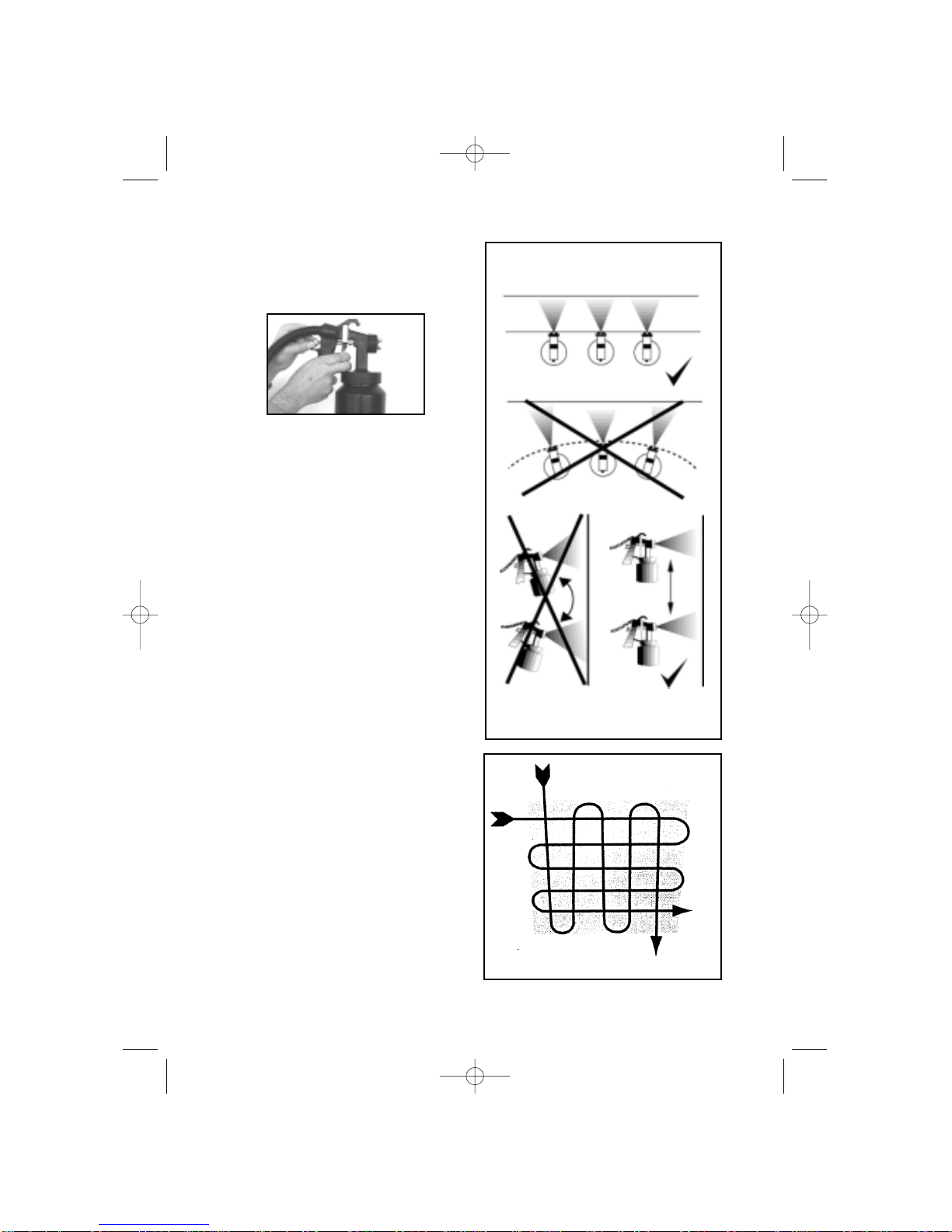

SPRAYING TECHNIQUE
1.To obtain the best results always keep
your spray gun level and spray equally from
side to side or up or down 25-30cm (10”-12”)
from the surface. Avoid spraying at an angle
as this will lead to runs on the surface (fig.5).
2. Let your arm control the left to right
movement rather than your wrist as this will
aid even paint distribution over the whole
area (fig.5).
3. Do not tip the sprayer to more than 45o
angle.
HELPFUL HINTS
1. Evenly control the speed of movement of
the spray gun. A fast speed will give a thin
coat and a slow speed will give a heavy
coat.
2. Only apply one coat at a time. If a further
coat is required follow the paint
manufacturer’s instructions for drying times.
3. If spraying small areas or objects keep the
output setting low as this will avoid
excessive use of paints and will minimise
overspray.
Fig.5
Fig.4
Fig.6
final.qxd 22/02/00 11:05 Page 6

4. When spraying large areas or objects, it is
best to use a criss-cross pattern, either from
left to right then up or down or vice-versa.
This will ensure maximum coverage (Fig. 6).
5. Avoid stopping and starting when spraying
as this can lead to too much or not enough
material on a surface.
6. To ensure edges are covered, commence
spraying just to the side of area being
sprayed
7. CLEAN SPRAYER AFTER EVERY USE
(SEE CLEANING INSTRUCTIONS)
CLEANING INSTRUCTIONS
THE SPRAY GUN MUST BE
THOROUGHLY CLEANED
IMMEDIATELY AFTER USE.
IF THE PAINT DRIES INSIDE THE
GUN, CLEANING WILL BECOME
MUCH MORE DIFFICULT AND
MAY RENDER THE GUN INOPER-
ABLE. THIS IS NOT COVERED BY
GUARANTEE.
The spray gun is the same as a paint-
brush, if it is not cleaned it will go hard
and can become useless. You must
therefore clean this out after use.
GUN
!Disassemble the gun container
!Pour any residual material into its con-
+tainer so that it can be used for the
future.
!Pour a quantity of the respective thin
ner into container, shake the gun
lightly, reassemble the gun, then spray
this liquid through the gun. Repeat this
until the thinner being sprayed is com
ing through with no traces of paint.
!Clean any traces of paint off the out
side of the gun
!Clean the gasket (11) inside the gun
body
NOZZLE AND NEEDLE
!Unscrew Adjustment Ring (9)
!Remove the Nozzle (8)
!Completely remove Adjustment
Screw (4)
!Remove the Spring (3)
!Push out the Needle (2) – do not use
tools for this
!Remove the Fluid Tip (7)
!Remove Air Flow Plate (6)
!Remove Nozzle Washer (17)
!Place all of these items into a
container and clean them using a
brush and clean thinners
!Clean the inside of the gun
!Thoroughly dry these parts before
reassembling
!Grease the Fluid Needle Packing (13)
!Reassemble parts in reverse order. It
is recommended fitting the fluid tip (7)
prior to the needle
NEVER DISPOSE OF PAINTS OR
SOLVENTS INTO DRAINS.
CONTACT YOUR LOCAL COUN-
CIL TO ARRANGE COLLECTION
OR FOR DETAILS OF NEAREST
REGISTERED DISPOSAL SITE.
7
final.qxd 22/02/00 11:05 Page 7

8
TROUBLE SHOOTING
PROBLEM CAUSE ACTION REQUIRED
The paint drips onto item Paint too diluted Add undiluted material
being painted Fluid adjustment screw Reduce the paint flow by
adjusting screw (4)
Moving too slowly Increase speed of application
Gun trigger being held Release trigger earlier
for too long
Gun too close Increase the distance
between the gun and work
piece
Paint is thin or irregular Paint too diluted Add thinner
Fluid adjustment screw Increase the paint flow by
adjusting screw (4)
Moving too fast Reduce speed of application
Gun clogged Clean the gun
Gun too far away Reduce the distance
between gun and work
No paint being produced Paint too thick Add thinner
Gun clogged Clean the gun
Pick up pipe clogged Clean pick up pipe
Air hose split Replace air hose
Grainy paint Filter the paint
Container almost empty Refill container
Gun at an Angle Ensure Fluid Tube (10) is
angled towards paint
GUARANTEE
This product is guaranteed for a period of 12 months against faulty manufacture
and materials. It is not guaranteed for industrial or hire purposes. The guarantee
does not affect your statutory rights. In the event of any problem occurring please
contact us on our Helpline No during the hours of 8.30 a.m. and 5 p.m. Monday
to Thursday and 8.30 am - 4.30pm Friday or visit our Website on www.earlex.co.uk
final.qxd 22/02/00 11:05 Page 8

9
OTHER PRODUCTS FROM EARLEX
COMBIVAC ACCESSORIES
WDACC2 - Deluxe Floor Head with hard floor, brush and squeegee attachments. Wider head for
greater coverage, suitable for carpets and faster pickup of debris and spills.
WDACC10 - Pack of three spare foam filters.
WDACC11 - Pack of three spare paper filters.
WDACC12 - Power Tool Adapter.
WDACC13 - Combined Wet & Dry Filter no need for foam filter or paper filter and no need to
changebetween filters for dry or wet pickup.
WDACC14 - Wide Bore Tool Kit for larger debris such as rubble and leaves.
WDACC15 - Mini Cleaning Set - ideal for cleaning/blowing computers, video recorders, air vents in
cars.
WDACC16 - Sink Deblocker - clears blockages from sinks, baths and showers.
Earlex also manufacture a wide range of steam wallpaper strippers and other decorative power
tools to help in your DIY efforts.
STEAM WALLPAPER STRIPPERS
Designed to remove all types of wallpaper, multi-layered painted papers and Artex.
SS100 Super Steamer - 2300W 4.5 ltr steam wallpaper stripper.
SS50 Warrior - 2000W 4.5 ltr steam wallpaper stripper.
A range of steam cleaning accessories is also available to be used in conjunction with the steam
wallpaper strippers. The accessories can be used to clean and rejuvenate carpets, floor tiles,
unblock sinks or waste outlets, clean work surfaces, defrost fridges and freezers, clean windows
and tiles, remove soiling from upholstery and curtains.
Alternatively the Combi-Steam combines the versatility of the steam wallpaper stripper with a
selected range of accessories providing you with a complete steam cleaning kit and wallpaper
stripper. SC165 - 1500W 4.5 ltr steam cleaning kit, including carpet cleaner, window/tile cleaner, jet
nozzle cleaner, upholstery cleaner/small steam plate, large wallpaper stripping plate.
PR9 Autofeed Cordless Painting System - Portable battery operated paint rolling system. It has
a 3 litre paint reservoir and 23cm (9”) roller and automatically feeds paint to the roller head.
Easy to use the PR9 provides enough capacity to apply one coat to a 3.6m x 2.7m (12’ x 9’) room
without having to refill.
PRA1 1.4m Extension Pole - Used in conjunction with the PR9 the PRA1 allows you to paint ceil-
ings and high areas without the use of step ladders or having to move furniture.
HG1600K - Heat Gun Kit. The Earlex Heat Gun Kit offers a 1600 Watt heat gun in a strong carry
case and includes a range of useful accessories. With two heat settings the heat gun can be set at
4000C or 5900C. It is provided with a selection of four nozzles, three shavehooks and a scraper to
suit different tasks and it all stores away conveniently in the carry case.
final.qxd 22/02/00 11:05 Page 9

10 WD0215 02/00
Earlex Ltd., Earlex House,
Moorfield Road, Slyfield Industrial Estate,
Guildford, Surrey, GU1 1RU.
Tel: 01483 - 454666.
Fax: 01483 - 454548
E.mail: [email protected]
Website: www.earlex.co.uk
final.qxd 22/02/00 11:05 Page 10
