Breaker Finder™

Circuit Breaker Locator

• Read this owners manual thoroughly before use and save.

SPERRY

INSTRUMENTS

The CS61200 Breaker Finder is used to quickly and easily locate the breaker or fuse

protecting a specific electrical circuit. It uses a plug-in transmitting device and receiver to

trace outlets, switches and lighting fixtures. The plug-in transmitter also includes an

integrated outlet tester to assure the circuit is wired properly. The transmitter and receiver

snap together for compact storage.

SPECIFICATIONS

• Operating Range: Plug in receptacle tester: 120 VAC 60 Hz

• Indicators: Audible and Visual

• Operating environment:

32°- 104°F (0°- 40°C) 80% RH max., 50% RH above 30°C

Altitude up to 2000 meters. Indoor use.

Pollution degree 2. Accordance with IED-664

• Battery: Receiver operates from one 9 Volt

• Cleaning: Remove grease and grime with clean, dry cloth

READ FIRST: IMPORTANT SAFETY INFORMATION

READ ALL OPERATING INSTRUCTIONS BEFORE USE. Use extreme caution

when checking electrical circuits to avoid injury due to electrical shock. Sperry

Instruments assumes basic knowledge of electricity on the part of the user and is not

responsible for any injury or damages due to improper use of this tester.

OBSERVE and follow all standard industry safety rules and local electrical codes. When

necessary call a qualified electrician to troubleshoot and repair the defective electrical circuit.

SAFETY SYMBOLS

Refer to this manual before using this tester.

The tester is protected throughout by double insulation or reinforced insulation.

SAFETY WARNINGS

This instrument has been designed, manufactured and tested according to IEC61010: Safety

requirements for Electronic Measuring apparatus, and delivered in the best condition after

passing inspection. This instruction manual contains warnings and safety rules which must

be observed by the user to ensure safe operation of the instrument and retain it in safe

condition. Therefore, read through these operating instructions before using the instrument.

is reserved for conditions and actions that are likely to cause serious or fatal injury.

is reserved for conditions and actions that can cause serious or fatal injury.

is reserved for conditions and actions that can cause injury or instrument damage.

• Read through and understand the instructions contained in this manual before

using the instrument.

• Keep the manual at hand to enable quick reference whenever necessary.

• The instrument is to be used only in its intended applications.

• Understand and follow all the safety instructions contained in the manual.

• Failure to follow the above instructions may cause injury, instrument damage and/or

damage to equipment under test.

• Never attempt to make measurement if any abnormal conditions, such as broken case and

exposed metal parts are found on the instrument.

• Do not install substitute parts or make any modification to the instrument.

• Verify proper operation on a known source before use or taking action as a result of the

indication of the instrument.

• Do not attempt to make measurement in the presence of flammable gasses. Otherwise, the

use of the instrument may cause sparking, which can lead to an explosion.

• Never attempt to use the instrument if its surface or your hand is wet.

• Never open the battery cover during a measurement.

• The instrument is to be used only in its intended applications or conditions. Otherwise,

safety functions equipped with the instrument do not work, and instrument damage or

serious personal injury may be caused.

• Do not expose the instrument to direct sun, high temperature and humidity or dewfall.

• Altitude 2000 m or less. Appropriate operating temperature is within 0 °C and 40 °C.

• This instrument isn’t dust and water proofed. Keep away from dust and water.

• Be sure to power off the instrument after use. When the instrument will not be in use for

a long period, place it in storage after removing the batteries.

• Cleaning: Use a cloth dipped in water or neutral detergent for cleaning the instrument.

Do not use abrasives or solvents otherwise instrument may get damaged, deformed

or discolored.

The Symbol indicated on the instrument means that the user must refer to the related

parts in the manual for safe operation of the instrument. It is essential to read the

instructions wherever the symbol appears in the manual.

Marks listed in the table below are used on this instrument.

DANGER

WARNING

DANGER

User must refer to the manual.

Instrument with double or reinforced insulation.

OPERATION

Using the plug-in transmitter and hand-held receiver, quickly and safely detect the proper

breaker or fuse protecting a specific outlet, wall switch or lighting fixture.

Note: A separate

accessory, CS61200AS, is required to trace switches and lighting fixtures.

Locating Electrical Outlets

1. Detach transmitter from receiver housing and plug

into outlet.

2. Verify transmitter is sending a signal by viewing the

Green “Transmit” L.E.D. on the top of the unit.

3. The transmitter also includes an outlet wiring tester.

For operation of this feature please review and follow

the directions at the end of the manual.

4. Verify receiver has a fresh 9-volt battery and

operating properly by viewing the L.E.D.(s) on

the front of the receiver.

5. Using the “wand” on the receiver, as shown in Fig. 1, trace the breakers or fuses to

detect the transmitting signal. The orientation of the wand is critical in order to pick up

the transmitting signal. Place the wand as shown for proper operation.

Note: Due to the proximity of other electrical wiring it is possible for the receiver to

indicate a signal on multiple breakers. To locate the proper breaker it may be necessary

to listen for the loudest beeping and watch for the highest L.E.D. indication to identify the

proper breaker.

6. Once the proper breaker is located, continue to hold the receiver wand against the

breaker and switch the breaker off. This will remove power to the remote transmitter and

the receiver will stop producing a response. As an additional precaution verify the power

is off by viewing the status of the green L.E.D. on the transmitter. It will not be illuminated

if the power is off.

Locating Lighting Fixture Circuits

(requires accessory part #

CS61200AS)

1. Remove light bulb and insert the

yellow screw in receptacle. (Fig. 3)

2. Plug the transmitter into the adapter

and verify power is on by viewing

the green L.E.D. on the transmitter.

Note: Power must be on for the

transmitter to work.

(Fig. 3)

3. Go to breaker panel and locate the circuit using the receiver (Fig. 2)

as discussed in the previous "Operation"

section.

Locating Switches and Other Wiring (requires accessory part # CS61200AS)

1. Attach the black alligator clip to the hot (black) wire and the white alligator clip to the

neutral wire (white). If a neutral wire is not present clip the white lead to a ground wire

or metal box.

2. Screw in the yellow receptacle adapter and plug in the transmitter. Verify the power is

on by viewing the green L.E.D. on the transmitter. (Fig. 4)

3. Go to the breaker panel and locate the circuit using the receiver (Fig. 2)

as discussed in the previous "Operation"

section.

OUTLET TESTER

1. Detach the outlet tester from the

receiver housing.

2. Plug the unit into any 120 VAC 3-wire outlet.

(Fig. 5)

3. Observe the L.E.D.s and match with the

status chart located on the housing. (Fig. 6)

4. Rewire outlet (if necessary) until the tester

indicates a correct wiring status.

GFCI Test Function

Operation:

1. Plug the tester into any 120 Volt standard or GFCI outlet.

2. View the indicators on the tester and match with the chart on the tester.

3. If the tester indicates a wiring problem then turn off all power to the outlet and repair wiring.

4. Restore power to the outlet and repeat steps 1-3.

To Test GFCI Protected Outlets:

1. Consult the GFCI manufacturer’s installation instructions to determine

that the GFCI is installed in accordance with the manufacturer’s

specifications.

2. Check for correct wiring of receptacle and all remotely connected

receptacles on the branch circuit.

3. Operate the test button on the GFCI installed in the circuit. The GFCI

must trip. If it does not — do not use the circuit — consult an

electrician. If the GFCI does trip, reset the GFCI. Then, insert the

GFCI tester into the receptacle to be tested.

4. Activate the test button on the GFCI tester for a minimum of 6 seconds when testing the

GFCI condition (Fig. 7). Visible indication on the GFCI tester must cease when tripped.

5. If the tester fails to trip the GFCI, it suggests:

a) a wiring problem with a totally operable GFCI, or

b) proper wiring with a faulty GFCI.

Consult with an electrician to check the condition of the wiring and GFCI.

When testing GFCIs installed in 2- wire systems (no ground wire available), the

tester may give a false indication that the GFCI is not functioning properly. If this occurs,

recheck the operation of the GFCI using the test and reset buttons. The GFCI button test

function will demonstrate proper operation.

Note:

1. All appliances or equipment on the circuit being tested should be unplugged to help

avoid erroneous readings.

2. Not a comprehensive diagnostic instrument but a simple instrument to detect nearly

all probable common improper wiring conditions.

3. Refer all indicated problems to a qualified electrician.

4. Will not indicate quality of ground.

5. Will not detect two hot wires in a circuit.

6. Will not detect a combination of defects.

7. Will not indicate a reversal of grounded and grounding conductors.

REPLACING THE BATTERIES

The receiver unit operates from a standard 9 Volt battery. To replace, remove the battery

door cover located on the back, with a small screwdriver. Replace with new battery and

then shut the battery door.

1. On-OFF Button

2. 10 Visual

Indication L.E.D.s

3. Over-Molded

Soft Grips

•Patented

Sensing Probe

•Magnetic back

•Snap Together

Edges

•Operates from

9 Volt Battery

(included)

1. 3-Prong Outlet

Tester

2. Color-Coded

Wiring Status

3. GFCI Test Button.

4. Transmit on L.E.D.

Transmitter

Milwaukee, WI 53209

1-800-645-5398

www.sperryinstruments.com

CS61200

1234

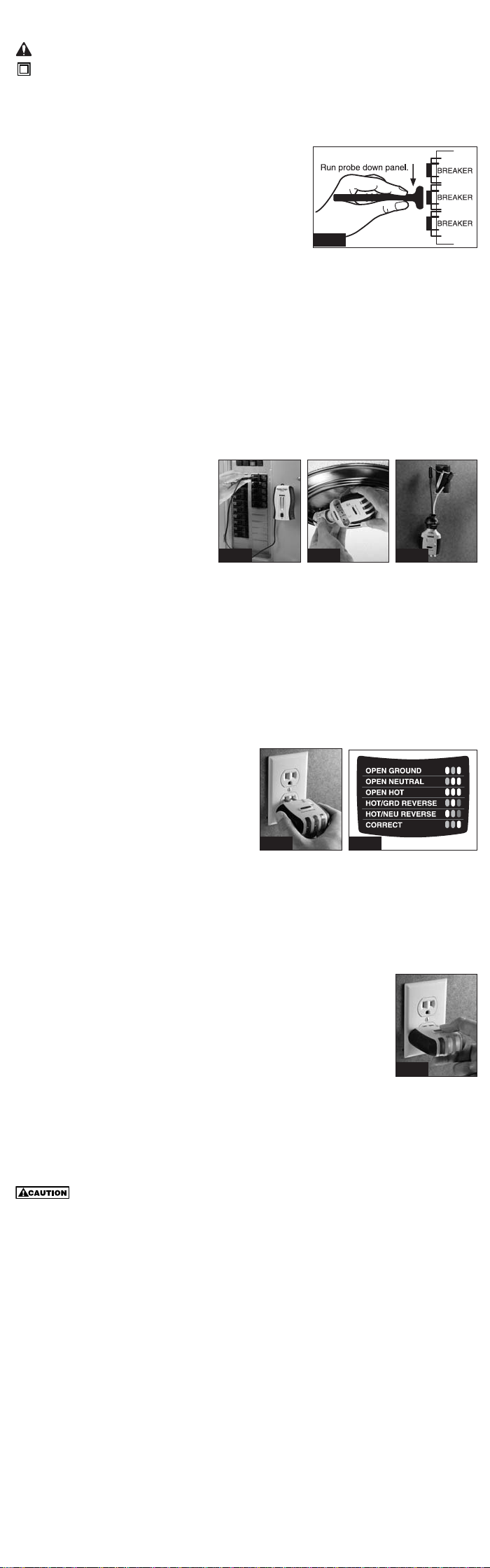

Fig. 1

Fig. 2 Fig. 3 Fig. 4

Fig. 5 Fig. 6

Fig. 7

Receiver
