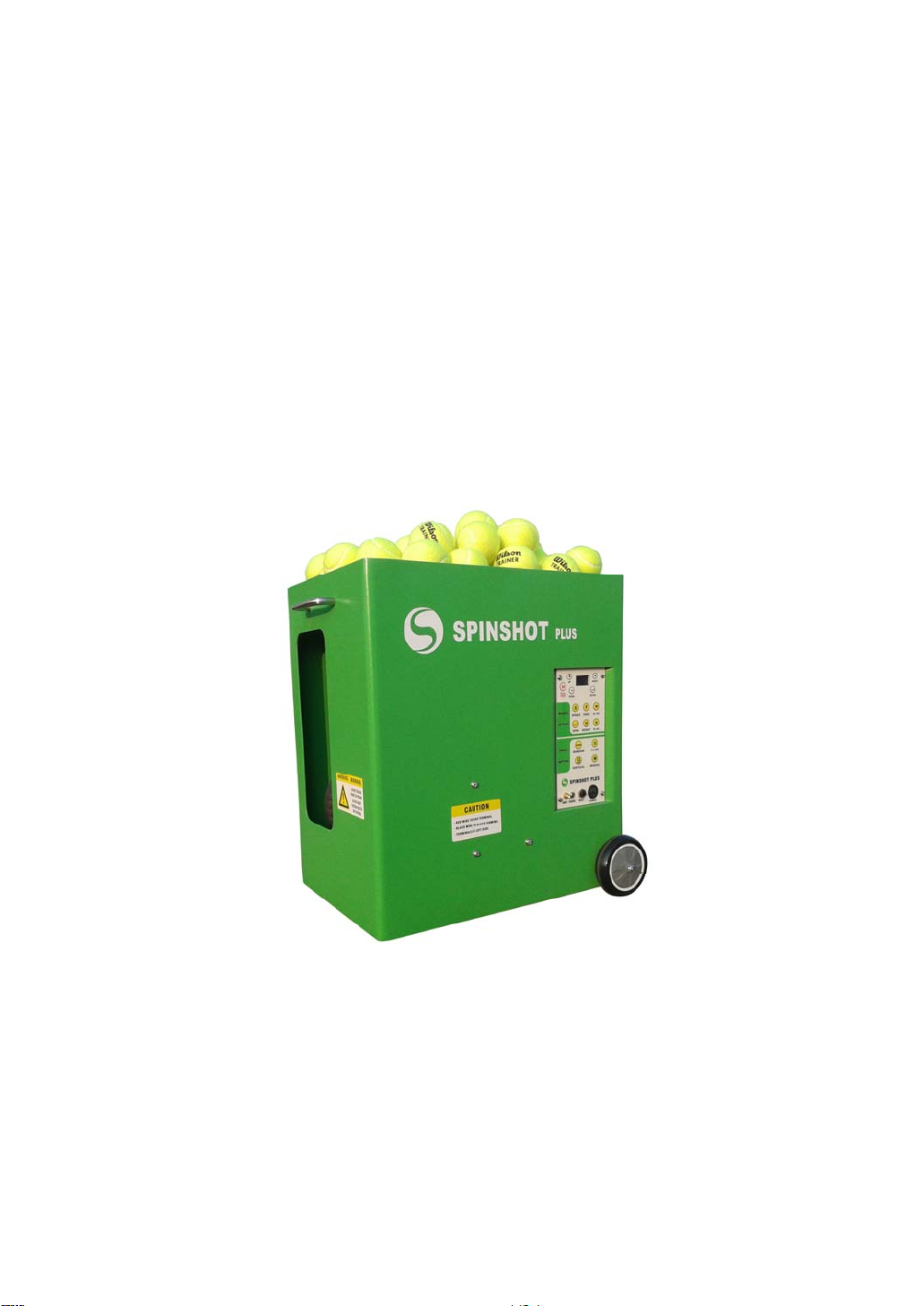

Spinshot SPINSHOT plus User manual

SPINSHOT plus
USER MANUAL

Section-1: Before Using Machine
Introduction
Thank you for purchasing a SPINSHOT tennis ball machine. This
manual contains important information concerning the proper use and
care of your ball machine. Please read owner’s manual completely
before operating your machine.
Tennis Balls To Be Used
Please take note that brand new tennis balls are not recommended to
be used especially during first ten hours of break-in period. The ink and
waxy coating on brand new tennis balls can leave a slick coating on the
new ball throwing wheels, resulting in inconsistent ball throws. It is best
to use balls that are slightly used to reduce the potential for developing
the slick coating on the wheels.
The consistency of ball throws will depend on the consistency of the
tennis balls being used. A mixture of new and old balls will produce
inconsistent throws. Inconsistent ball throws may also be caused by
excess dirt and ink build up on throwing wheels. Cleaning the ball
throwing wheels as described in the section “Maintenance and
Cleaning” will restore consistent performance.
Important Warnings
WARNING: Do not reach or look into the ball exit hole without turning
the main power off and only after both wheels come to a complete stop.
WARNING: Do not stand closer than 10 meters in front of the ball
machine when the power is on.
WARNING: Do not place balls or foreign objects into the ball hopper
while the power is on. It could cause jam and damage the feeder motor.
WARNING: The overloading of balls into the ball hopper may result in a
jam of the feeder. It is suggested that no more than 120 balls be put
inside the ball hopper.
WARNING: Do not use machine while it is raining or in water. Do not
use wet tennis balls.

Section-2: Operating Machine

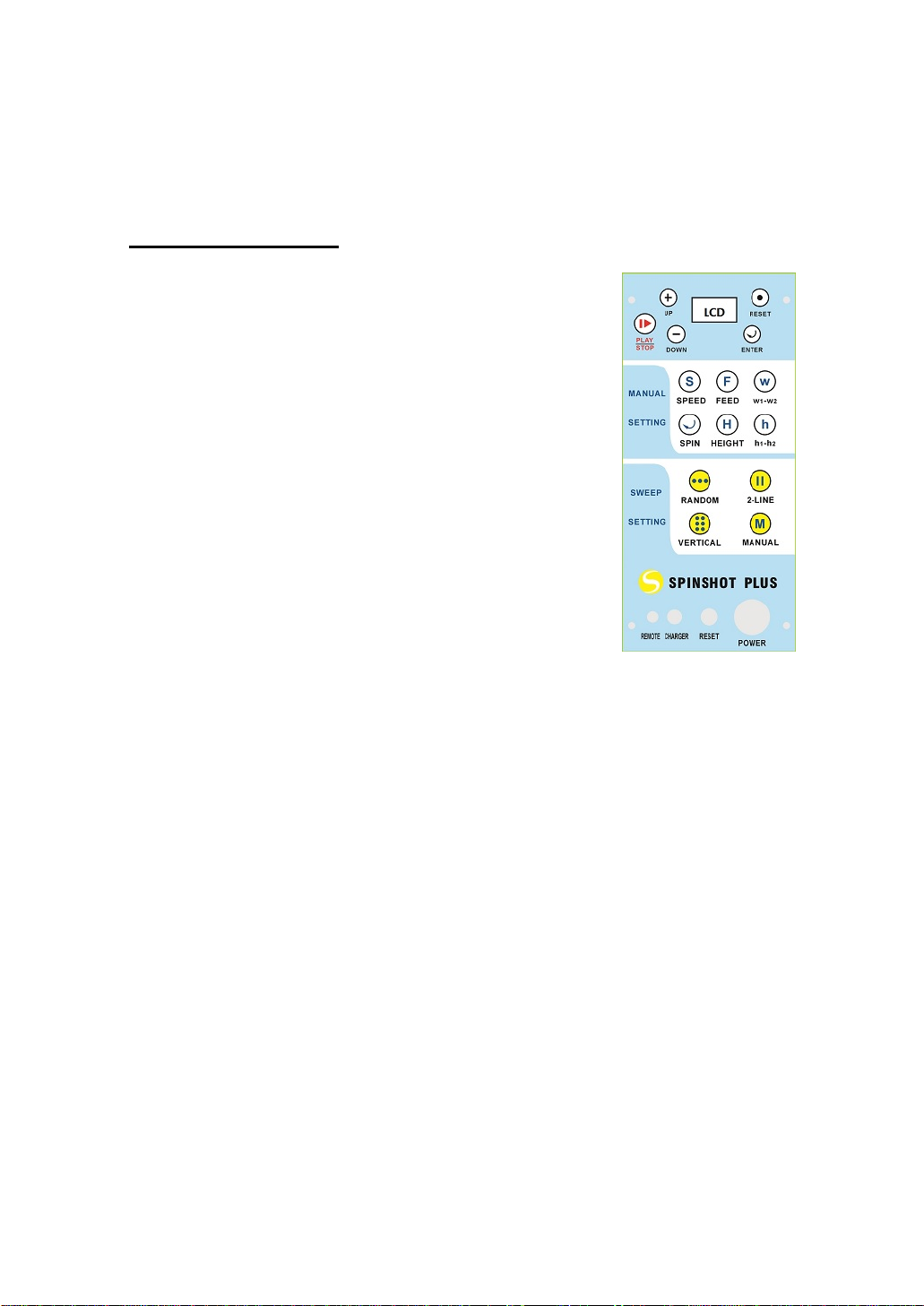

Control Panel
POWER: The power switch is used to turn on or off
the machine. After you turn on the power, the
machine will show its battery voltage on the LCD.
Both horizontal and vertical motors will perform a
functional initialization for proper function of the
machine. Then user needs to put the machine at
the centre of the baseline and in proper direction,
which will make machine sweep the balls evenly
across the court.
Powering on the machine will not make machine
start to propel balls. The user needs to select the
settings and then push the “PLAY/STOP” button.
After switching the power on, the machine will be
default to work on manual mode without
oscillation.
the
r working of the machine is caused by low
attery voltage.
t
as
n “Maintenance and Cleaning” will restore
roper performance.
he other end into
power outlet to start the charging of your machine.
e
If at anytime the machine functions improperly, the user can turn
off the power button to reset machine’s control logic. Most of
time, the imprope
b
RESET: The white reset switch protects the electronics and motors.
When activated, this switch pops out approximately 6mm. In the even
when the reset is activated, turn off the main power, press the reset
switch, check for any balls jammed inside machine and then turn on the
main power to normal operation status. The “reset” can be caused by
excessively dirty or slick ball throwing wheels which prevent the wheels
from properly grabbing the ball. Cleaning the ball throwing wheels
described in the sectio
p
CHARGER JACK: Plug the charger into the jack and t
a
REMOTE JACK: It is reserved port but not used for Plus model. Befor

use remote controller to control the machine, user needs to start up
machine first. The FEED button will stop or start the feeding of th
into the machine. T e ball he SWEEP button will stop or start the 2-line
scillation mode.
ote
ation code from
ttp://www.spinshot.co.uk/Android-Remote.html
o
The operation to Android-Phone based remote is similar to operations
on the front panel. The real time setting values will be shown on control
panel. User need to turn on the ball machine first before turn on rem
application. First time when use remote, it need to be paired with
password of 1234. User can download the install
h
anual Setting ButtonsM
l the balls. Machine will not take any
etting changes durin this time.
eeds
ase find sections below for more details about different
etting types.
ESET:Reserved button.
he
as to be pressed after the user points the machine in proper direction.
er
n the machine is in
nning mode and will take effective immediately.
PLAY/STOP: The button will trigger the machine to start or stop. Every
time when you press this button to start the machine, the machine will
hold for 10 seconds before it prope
s g
UP(+)/DOWN(-): The UP(+)/DOWN(-) button are used to adjust the
manual setting parameters. Before clicking the button, the user n
to choose the type of setting to be adjusted. The types of setting
include ball SPEED, ball HEIGHT, FEED frequency, SPIN level, h1-h2
and w1-w2. Ple
s
R
ENTER:If the user needs to change the ball height when the machine
is running, the ENTER button needs to be pressed after inputting t
height value. The machine will not shoot any balls until the height
adjustment is completed. At the initialization stage, the ENTER button
h
SPEED: The SPEED button needs to be pressed first when the us
adjusts the ball speed. Then the user can press the UP or DOWN
buttons to adjust the speed level (shown as RATE in LCD screen). Its
value can be shown on LED with maximum level at 20 and minimum
level at 1. The SPEED value can be adjusted whe
ru
