SportsArt Fitness S715 User manual

S715 LED Stair Climber
Owner’s Manual

S715 OWNER’S MANUAL CONTENTS
1. INTRODUCTION .............................................................................. 2
2. SAFETY PRECAUTIONS ................................................................ 3
3. LIST OF PARTS ............................................................................... 7
4. ASSEMBLE THE PRODUCT ........................................................... 9

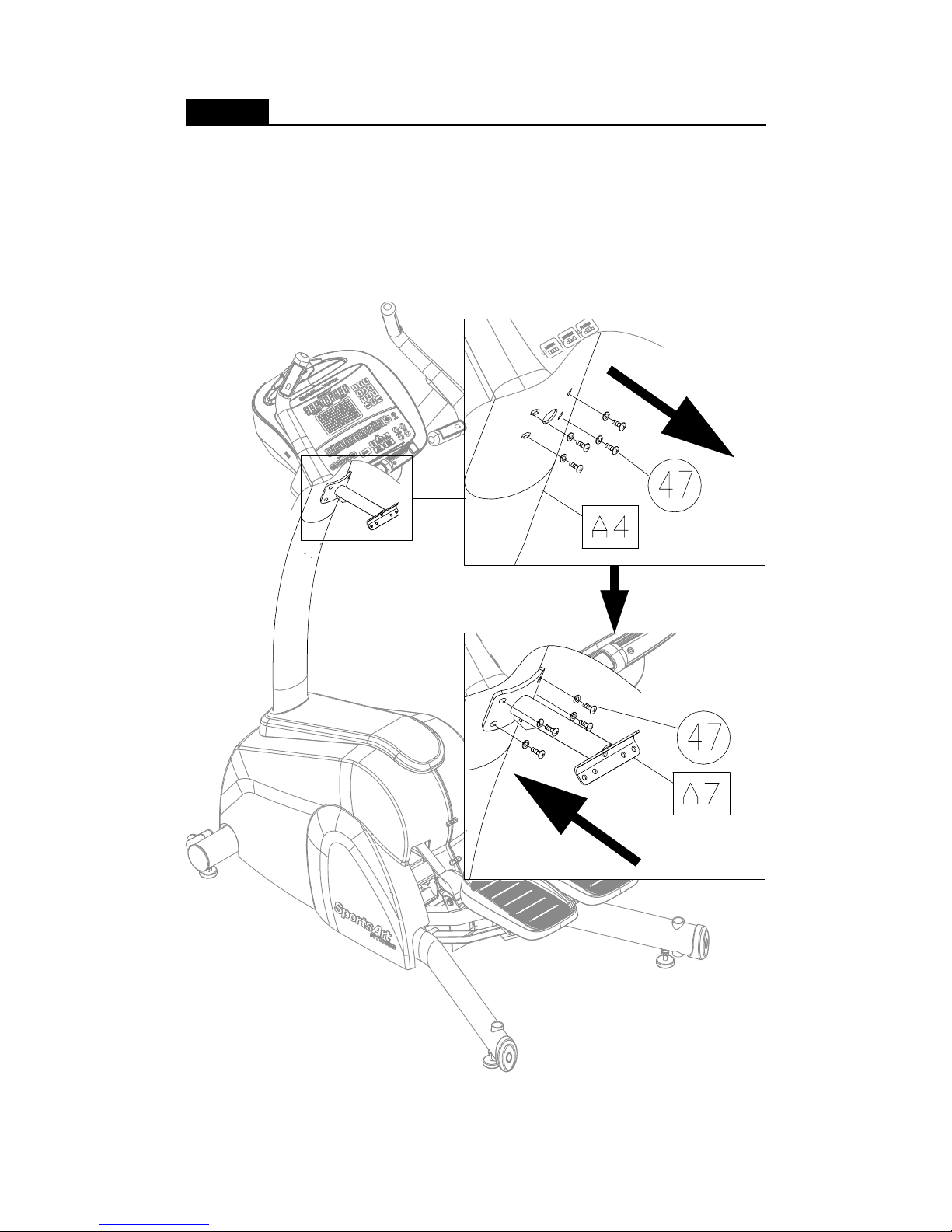

STEP 1 Install the Display and Pedestal Assembly ............................. 9
STEP 2 Install the Main Frame and the Pedestal Assembly ................ 12
STEP 3 Install the Handrail Connector ................................................. 13

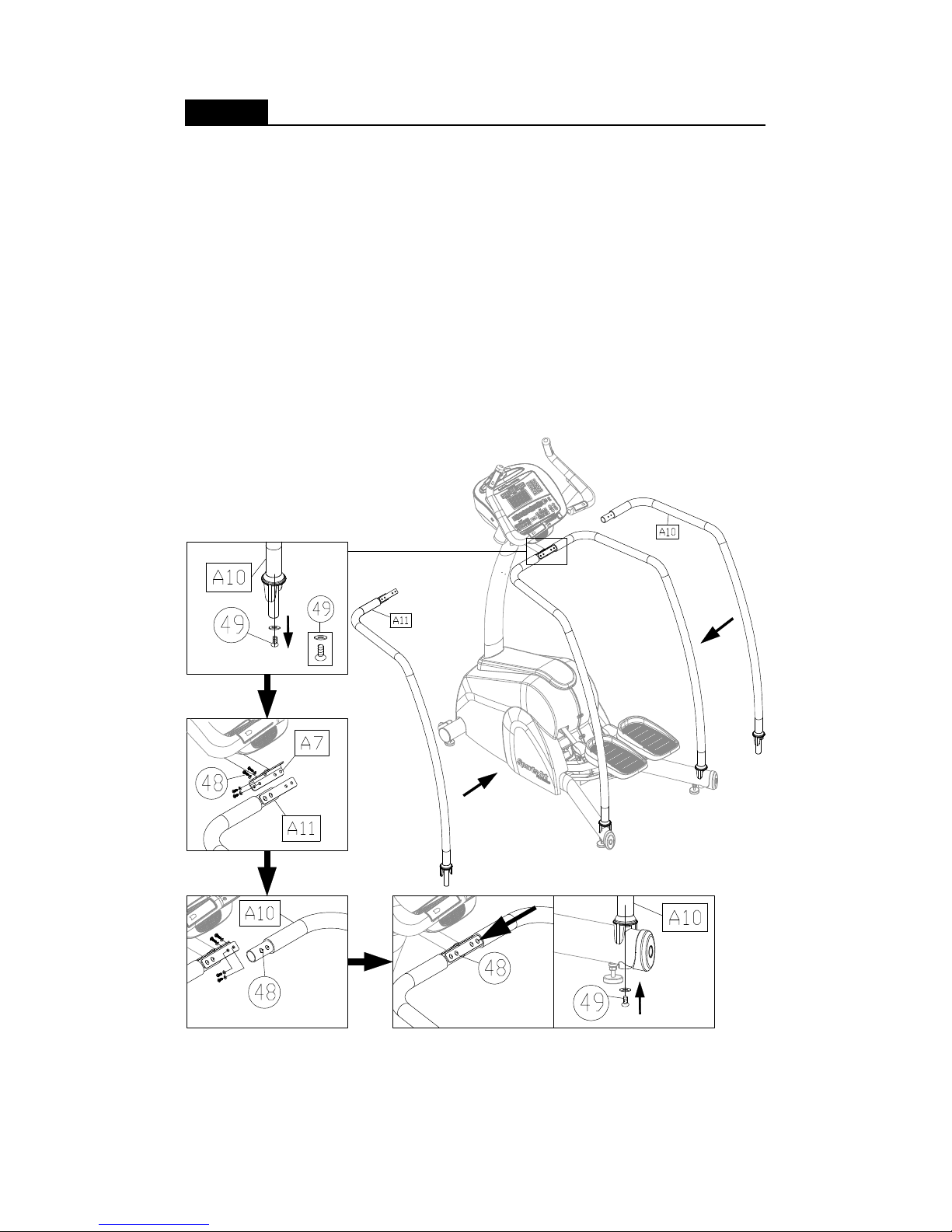

STEP 4 Install the Right/Left Lower Handrail ....................................... 14
STEP 5 Install Handrail Upper/Lower cover & Storage Tray ................ 15
STEP 6 Moving the Unit ....................................................................... 16
STEP 7 Leveling the Unit ..................................................................... 17

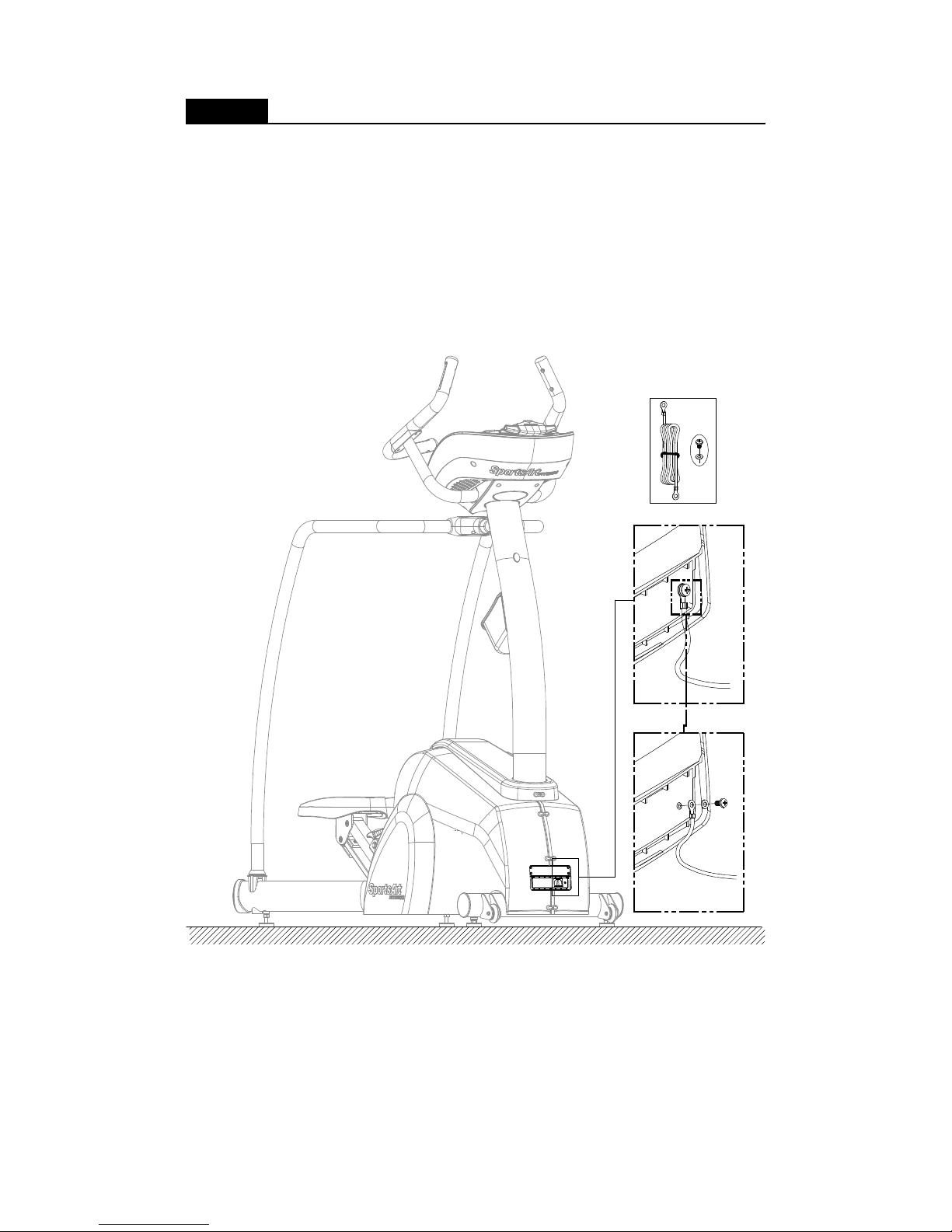

STEP 8 How To Connect The Ground Wire ......................................... 18
STEP 9 Unit Inspection ........................................................................... 19
5. UNDERSTAND THE S715 DISPLAY ............................................... 20
DISPLAY Overview .............................................................................. 20
DISPLAY Specications ....................................................................... 21
DISPLAY Windows ............................................................................... 21
DISPLAY Keys ...................................................................................... 21
6. OPERATE THE PRODUCT ............................................................. 23
OPERATION Quick Start ..................................................................... 23
OPERATION Start a Workout Program ............................................... 23
OPERATION Display ........................................................................... 24
OPERATION Cool Down ..................................................................... 25
OPERATION Workout Programs ......................................................... 25
OPERATION User Preferences and Component Versions................... 28
7. ABOUT HEART RATE DETECTION ................................................ 29
HEART RATE Telemetry ...................................................................... 29
HEART RATE Contact ......................................................................... 29
8. GUIDELINES FOR EXERCISE ....................................................... 30
9. ACCESSORIES ............................................................................... 31
ACCESSORIES Entertainment Cap .................................................... 32
ACCESSORIES MYE Wireless TV Audio_Channel Receivers ........... 33
10. MAINTENANCE ............................................................................. 35
MAINTENANCE Messages .................................................................. 35
MAINTENANCE Inspect Wear Items ................................................... 36
MAINTENANCE Schedule ................................................................... 37
MAINTENANCE Task List (Stair Climber) ....................................... 38
MAINTENANCE One-Year Maintenance Log ...................................... 39
MAINTENANCE Electronics Block Diagram ........................................ 40

2
1. INTRODUCTION
Congratulations on your purchase of one of the nest exercise products on the
market today, the SportsArt S715 stair climber. Constructed of high quality materials
and designed for years of reliable usage, this product was made to become an
integral part of your commercial tness venue.
Before this product is assembled or operated, we recommend that you familiarize
yourself with this manual. Understanding the correct assembly and operation of
this product will help ensure that exercisers obtain their tness goals safely and
successfully.
LR

3
2. SAFETY PRECAUTIONS
Your SportsArt stair climber was designed and built for optimum safety. However
certain precautions apply whenever you use your stair climber.
Please read the entire manual before assembly and operation. Also, please note the
following safety precautions:
●Please read the instructions carefully and install the stair climber as instructed.
●Assemble and operate the stair climber on a solid, level surface. DO NOT use
outdoors or near water.
●Never allow children on or near the stair climber.
●Check the stair climber before every use. Make sure all parts are assembled, and
all fasteners are tightened. DO NOT use the stair climber if the unit is disassembled
in any way.
●Keep your hands away from moving parts.
●Wear proper workout clothing; DO NOT wear loose clothing. DO NOT wear
shoes with leather soles or high heels. Tie all long hair back. DO NOT go barefoot
on this product.
●Be careful when mounting and dismounting the unit.
●The stair climber may or may not stop immediately if an object becomes caught
or impedes normal motion.
●DO NOT use any accessories that are not specically recommended by the
manufacturer. Such parts might cause injuries or cause the unit to fail.
●Close supervision is necessary when this stair climber is used by, on, or near
children, invalids, or disabled persons.
●Use this stair climber only for its intended use as described in this manual.
●Never operate this stair climber if it has been damaged in any way. If it is not
working properly, or has been dropped or damaged, contact your dealer.
●Keep all air ventilation areas free of blockage.
●Never drop or insert any object into any opening.
●DO NOT operate where aerosol (spray) products are being used or where oxygen
is being administered.
●The general user weight limit for this stair climber is 225kg (500lb). Note that at
resistance level 40 this product meets standards for users of up to 150kg (330lb).
●This stair climber is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of this stair climber by a person responsible for their safety.
●Children should be supervised to ensure that they do not play with the
stair climber.

4
2. SAFETY PRECAUTIONS (CONTINUED)
Caution
If you feel any pain or abnormal sensation, STOP YOUR WORKOUT and
consult your physician immediately. Work within your recommended exer-
cise level. DO NOT work to exhaustion.
Before beginning any exercise program, you should consult with your doc-
tor. It is recommended that you undergo a complete physical examination.
DO NOT step onto the highest footplate rst. While holding onto supports
for stability, step onto the lowest footplate.
Note: This equipment has been tested and found to comply with the limits
for a digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If the user desires to correct such interference, it is at the
user’s own expense.
Warning
Heart rate monitoring systems may be inaccurate. Over exercise may
result in serious injury or death. If you feel faint, stop exercise immediately
and consult a medical physician.

5
2. CONSIGNES DE SÉCURITÉ IMPORTANTES
• Votre stepper SportsArt a été conçu et fabriqué an d’assurer une sé-
curité optimale. Cependant certaines précautions s’appliquent chaque fois
que vous utilisez votre stepper de course.
• Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez
aussi noter les consignes de sécurité suivantes:
• Veuillez lire attentivement les instructions et installer le stepper de
course selon les instructions.
• Assemblez et faites fonctionner le stepper sur une surface solide et
plane; NE PAS l’utiliser à l’extérieur ou près de l’eau.
• En aucun cas, ne laissez des enfants à proximité ou sur le stepper.
• Vériez le stepper de course avant chaque utilisation. Assurez-vous que
toutes les pièces sont assemblées, et que tous les éléments de xation
sont serrés. NE PAS utiliser le stepper de course si l’appareil est démonté
de quelque façon.
• Gardez vos mains loin des pièces mobiles.
• Portez des vêtements d’entraînement appropriés; NE PORTEZ PAS de
vêtements amples. NE PORTEZ PAS de chaussures à semelles en cuir
ou à talons hauts. Attachez les cheveux longs. Ne marchez pas pieds nus
sur l’appareil.
• Soyez prudent lors du montage et démontage de l’appareil.
• Le stepper peut s’arrêter ou ne s’arrêter pas immédiatement si quelque
chose obstacle le mouvement.
• NE PAS utiliser d’accessoire non spéciquement recommandé par le
fabricant. Car cela pourraient provoquer des blessures ou entraîner une
panne de l’appareil.
• Une surveillance étroite est nécessaire quand le stepper est utilisé par
ou à proximité d’enfants, de malades ou de personnes handicapées.
• Utilisez le stepper de course uniquement pour l’usage prévu dans ce
manuel.
• N’utilisez jamais le stepper de course s’il a été endommagé de quelque
façon que ce soit. S’il ne fonctionne pas correctement, ou s’il est tombé ou
endommagé, contactez votre vendeur.
• Veillez à ce qu’aucun orice de ventilation ne soit obstrué.
• Ne faites jamais tomber ou n’insérez jamais d’objet dans les orices.
• NE PAS l’utiliser là où des produits aérosols (vaporisés) sont utilisés ou
lorsque de l’oxygène est administré.
• La limite de poids de l’utilisateur pour cet stepper est de 225 Kgs (500
lbs). Remarquez que la résistance de 40 convient jusqu’à 150kgs (330
lbs).
• NE PAS transporter le stepper de course par le cordon d’alimentation et
n’utilisez pas le cordon comme poignée.
• Maintenez le cordon éloigné de toute surface chaude.
• Débranchez l’appareil de la prise avant l’entretien ou la suppression de
toute pièce.
• Pour diminuer le risque de choc électrique, débranchez toujours ce
stepper de course de la prise de courant, immédiatement après utilisation
et avant le nettoyage.

6
2. CONSIGNES DE SÉCURITÉ (SUITE)
Ce stepper n’est pas destiné à être utilisé par des personnes (y compris des
enfants) dont les capacités physiques, sensorielles ou mentales sont réduites ou
qui ne disposent pas de l’expérience ou du savoir nécessaires, sauf si celles-ci ont
au préalable été formées eu égard à l’utilisation de ce stepper par une personne
responsable de leur sécurité. Les enfants doivent être encadrés an d’empêcher
qu’ils ne jouent avec le stepper.
ATTENTION
Si vous ressentez une douleur ou si vous avez une sensation anormale,
ARRÊTEZ VOTRE ENTRAÎNEMENT et consultez immédiatement votre médecin.
Entraînez-vous à votre niveau d’exercice recommandé. NE PAS s’entraîner jusqu’à
l’épuisement.
Avant de commencer un programme d’exercice, vous devriez consulter votre
médecin. Il est recommandé de faire un examen physique complet.
Remarque: Ce matériel a été testé et déclaré conforme aux normes des appareils
digitaux de Classe B, conformément à la partie 15 du Règlement de la FCC. Ces
limites sont conçues pour offrir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet appareil génère, utilise, et peut
diffuser des signaux radioélectriques, et, s’il n’est pas installé et utilisé conformément
aux instructions, peut provoquer des interférences nuisibles aux communications
radio. Cependant, il n’y a aucune garantie que des interférences ne se produiront
pas dans une installation particulière.
Si l’utilisateur désire corriger les interférences, ces corrections seront à la charge de
l’utilisateur.
Dans ce manuel, les mots “gauche” et “droit” sont utilisés en référence aux pièces et
au produit. Comme tels, les mots “gauche” et “droit” font respectivement référence
aux côtés gauche et droit de l’exerciseur. De même pour plus de concision, le
mot est utilisé dans certains cas où des rondelles, des vis et autres matériels sont
associés.
ATTENTION!
Les systèmes de surveillance de la fréquence cardiaque peuvent s’avérer imprécis.
Un entraînement excessif risque de nuire sérieusement à la santé ou d’entraîner la
mort. En cas d’étourdissement, arrêtez immédiatement l’entraînement.
• Un branchement incorrect du connecteur de mise à la terre de
l’équipement risque d’entraîner un choc électrique. En cas de doute sur la
mise à la terre correcte de stepper, faites appel à un technicien ou un élec-
tricien qualié. NE PAS modier la che fournie avec l’elliptique, si elle ne
correspond pas à la prise, faites installer une prise adéquate par un tech-
nicien qualié.
• Les enfants doivent être encadrés an d’empêcher qu’ils ne jouent avec
le stepper.

7
3. LIST OF PARTS
Assembly Parts
No. Name Qty. No. Name Qty.
A1 Display assembly 1 A7 Handrail connector 1
A2 Right upper handrail 1 A8 Storage tray 1
A3 Left upper handrail 1 A9 Main frame 1
A4 Pedestal assembly 1 A10 Right lower handrail 1
A5 Handrail upper cover 1 A11 Right lower handrail 1
A6 Handrail lower cover 1

8
Components in the Hardware Kit
No. Name Qty. Specication Notes
31 Screw cover A 2
Screw cover B 2
32 Mushroom top Phillips screw 4 M4*L14
PVC vacuum pack 1
Hardware kit carboard 1
L shaped Allen wrench 1 M5
L shaped Allen wrench 1 M6
L shaped Allen wrench 1 M4
Screwdriver shank 1 Phillips and at
Screwdriver handle 1 Black
Double open-end wrench 1 (13*17)
Ground wire 1 Yellow/Green L1500
Components on the Product
No. Name Specication Notes
41 Mushroom top Phillips screw M4*L16
42 Fan cover
43 Mushroom top Phillips screw M4*L25
44
Sping washer M8
Serrated washer D18*d8.5*t2.0*19
Mushroom top inner hex screw M8*P1.25*L15
45 Serrated washer D18*d8.5*t2.0*19T
Inner hex screw M8*P1.25*L25
46 Upper cover
47 Flat washer D17*d8.3*t2
Mushroom top inner hex screw M8*P1.25*L20
48 Flat washer D16*d6.3*t2
Mushroom top inner hex screw M6*P1.0*L12
49 Washer D30*d19.2*t0.5
Inner hex screw M8*P1.25*L15
50 Mushroom top Phillips screw M4*L12
51 Phillips screw M5*P0.8*L12
52 Water guard

9
4. ASSEMBLE THE PRODUCT
Follow instructions below to assemble this product. Note that in this manual
the words “left” and “right” are used to refer to the product and its parts. As
such, these designations correspond to the “left” and “right” sides of a person
in position to exercise on this product. Also, for brevity, the word “screws” is
used where screws, washers, and other hardware may be involved.
STEP 1 Install the Display and Pedestal Assembly

10
STEP 1 Install the Display and Pedestal Assembly
Please follow instructions (a) through (g) to install the display and pedestal
assembly.
(a) First, remove the fan cover (42) and screws (41) from the display assembly
(A1).
(b) Insert two cables from the display assembly (A1) into the hole B1 on the
pedestal assembly (A4) and then tread the long cable through the
pedestal and out of the bottom of pedestal as shown. (Do not tread the
short cable through the pedestal.)
(c) Secure the display assembly (A1) to the pedestal assembly (A4) with
screws (43).
(a)
(b)
B1
(c)

11
STEP 1 Install the Display and Pedestal Assembly (Cont.)
(d) Tread the short cables into the right/left handrail as indicated by arrows
and then pull the cables out of the top of the right/left handrail as shown.
(e) Connect the cable (M1) from the display assembly (A1) and the cable
(M2) from the right upper handrail (A2) as shown and then tuck all the
cables back into the hole of display for safely. (Note: Follow the same
instructions to connect the cables from the left upper handrail.)
(f) Secure the right/left upper handrail (A2) (A3) to the display assembly
with screws (44).
(g) Insert the fan cover (42) into place on the pedestal assembly tube and
secure it to the display assembly (A1) with screws (41), and then slide the
water guard (52) upward as shown.
M2
M1
M1
M2
(e)
(d)
(f)
(g)

12
STEP 2 Install the Main Frame and the Pedestal Assembly
Please follow instructions (a) through (c) to install the main frame and the
pedestal assembly.
(a) First, remove the upper cover (46) from the main frame (A9) and insert it
into place on the pedestal assembly tube, and then remove screws (45)
from the main frame (A9).
(b) Connect the cable from the pedestal assembly (A4) to the connector of
the main frame (A9) as shown.
(c) Insert the pedestal assembly (A4) into the main frame (A9) and secure
them with screws (45), and then click the upper cover (46) back into the
place on the main frame (A9). (Note: Hold the upper cover (46) to avoid
pinching to cause injury.)
(d) Click the screw cover B into the unit and secure the screws in the
right hole, and then click the screw cover A into the screw cover B.
(b)
(a)
45
(c)
(d)

13
STEP 3 Install the Handrail Connector
Please follow instructions (a) through (b) to install the handrail connector.
(a) Remove screws (47) from the pedestal assembly (A4).
(b) Secure the handrail connector (A7) to the pedestal assembly with screws
(47) as shown.
(b)
(a)

14
STEP 4 Install the Right/Left Lower Handrail
Please follow instructions (a) through (d) to secure the left and right lower
handrail.
(a) Remove screws (49) from the right lower handrail (A10).
(b) Use screws (48) to loosely secure the left lower handrail (A11) into place
on the handrail connector (A7). Do not fully tighten screws yet.
(There are a total of six screws.)
(c) Follow the same instructions to install the right lower handrail (A10).
(d) Finally, fully tighten screws on the right/left lower handrail (A10) (A11)
(There are a total of twelve screws.) and screws (49) in the bottom of the
right lower handrail (A10).
Note: Left and right lower handrail are installed in the same way.
(a)
(b)
(c) (d)

15
STEP 5 Install Handrail Upper/Lower cover & Storage Tray
Please follow instructions (a) through (b) to install the handrail upper and
lower cover and the storage tray.
(a) Use screws (50) to secure the handrail upper and lower cover (A5) (A6)
to the unit as shown.
(b) Use screws (51) to secure the storage tray (A8) to the unit as shown.
(a)
(b)

16
STEP 6 Moving the Unit
Instructions for one person:
Stand in the center behind the unit. Grip the bottom of the left/right lower
handrail at area A with both hands. Lift the bottom of the left/right lower
handrail at area A and roll the unit into position.
Instructions for two people:
Stand on the left and right sides, behind the unit. Grip the bottom of the left/
right lower handrail at area B with both hands. Simultaneously lift the unit
and roll it into place.

17
STEP 7 Leveling the Unit
(a) To function properly, the unit must be level on the floor.
(b) Rotate the leveler feet at area A downward until it touches the floor.
(c) Rotate the leveler nut upward, against the frame of the unit, to secure this
position.

18
STEP 8 How To Connect The Ground Wire
Note: The installation of a ground wire is required by European safety
standards. The ground wire is not required by North American safety
standards.
Ground wire installation: Use a screw to secure one end of the ground wire
to the product frame as shown. Secure the other end of the ground wire to
the building ground connection.

19
STEP 9 Unit Inspection
Please follow instructions (a) through (b) to inspect operation and confirm
that the unit is working properly after all parts are assembled.
(a) Inspect the unit is stable without moving.
(b) Pull the left and right footplates to confirm the working is properly and
then have someone to exercise on the unit to double check the working
is properly.
(a)
