Spotlight Sintesi AR 05 User manual

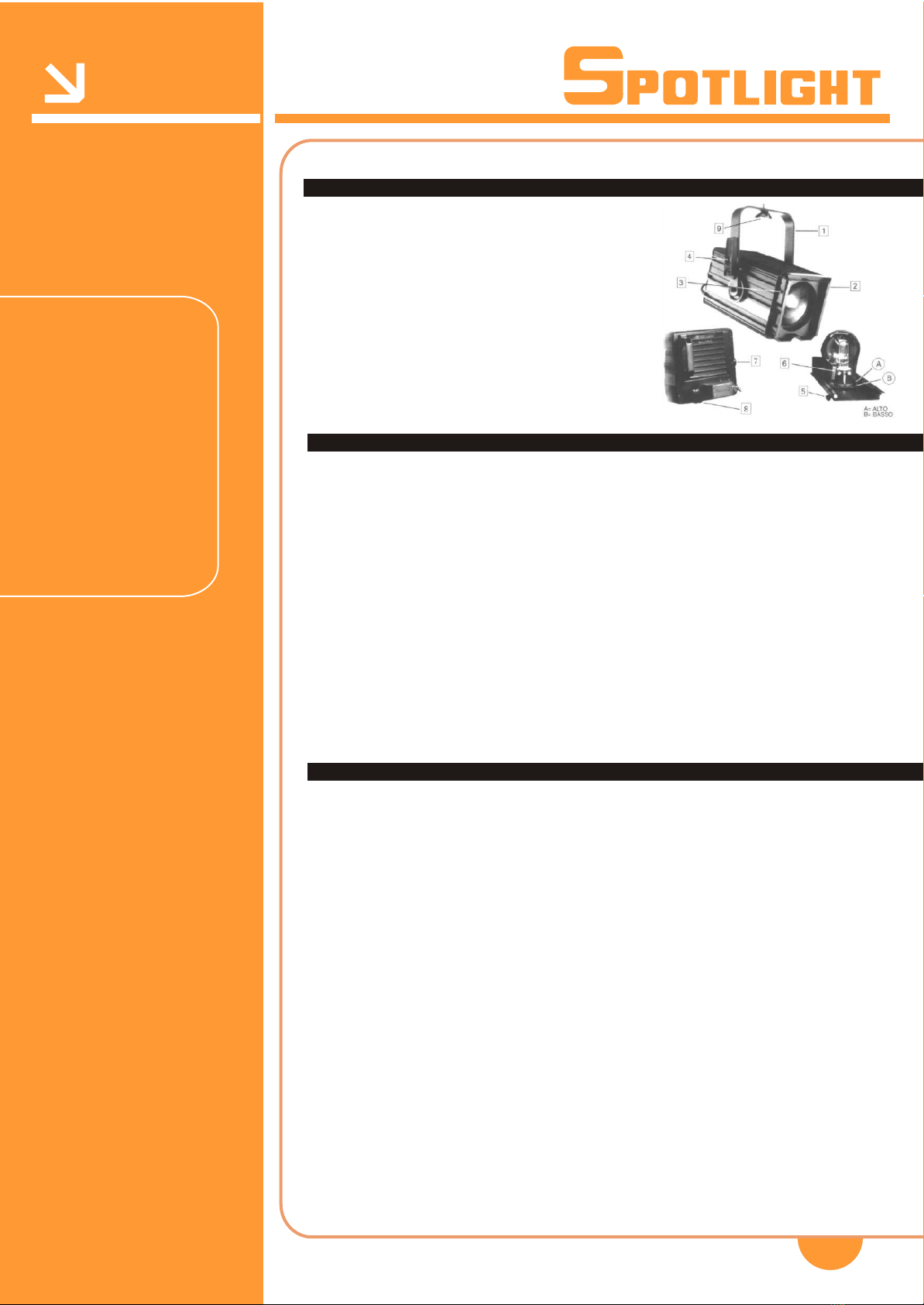

I - DESCRIPTION OF THE PROJECTOR
II - GENERAL
1
III - INSTALLATION
WARNING!
ALWAYS
CONNECT THE
PROJECTOR TO A
MAIN WHICH IS
PROTECTED BY A
SUITABLE
ELECTRIC FUSE
SELECTED
ACCORDING TO
THE
INSTRUCTIONS
1.Suspension clamp
2. Accessory guides with retaining clip
3. Spring-loaded latch lock
4. Lever handle for adjusting projector inclination
5. Lamp holder tray access knob
6. Retaining spring for lamp holder pan
7. Hook for anchorage of safety chain
8. Lamp position adjustment knob
9. Wing nut for locking and adjusting projector focus
The projector you have bought satisfies directives 73/23/EEC
as it complies with standards EN 60598-1 and EN 60598-2-17.
!model
!maximum supply voltage in V
!maximum power of the projector in W
!the index of protection IP
!maximum temperature of the environment admitted in °C
!maximum temperature of the projector body in °C
!minimum distance from any inflammable surface
!information to find the position 0 of the projector: when
the tip of the arrow points upwards
!maximum angle of inclination upwards and downwards.
These limits, imposed by the lamp manufacturer,
should not be exceeded as they would reduce the
projector’s useful life or lead to its deterioration.
The projector can be either suspended or mounted on a stand.
WARNING!
DO NOT INSTALL THE PROJECTOR ON SURFACES WHICH
ARE USUALLY INFLAMMABLE.
The minimum distance at which the projector must be kept from
easily inflammable surfaces is indicated on the label.
The safety norms estimate that a metal wire screen be mounted
on the front of the projector to prevent any large glass fragments
from falling if the projector breaks.
WARNING!
REPLACE THE LAMP AND/OR LENS IF VISIBLY DAMAGED.
For safety reasons always use the safety chain between the
projector and the suspension truss.
3.1 - Accessories
The accessories estimated for this projector are listed in the
price list and can be mounted by inserting into guides 2.
3.1.1. - Colour changer
Insert the flange of the colour changer into its guide so that the
latch remains closed and the retaining spring is released.
Connect the safety cable to the special hook of the projector.
3.1.2. - Lens flaps
Mount them in the same way as the colour changer.
Sintesi Line
Mod.AR 05- Ar12 -AR 25
Mod.VA 05- Va12 - VA 25

V - ELECTRICAL CONNECTIONS
2
Using the side handle 4 it is possible to loosen the
projector when it is locked in a certain position and thus
change its inclination. In the same way, the projector is
rotated with respect to its vertical axis by loosening the
wing nut 9. By turning knob 8, the lamp carriage is shifted
forward or backward to widen or narrow the beam of light
respectively.
For utmost projector performance, both the lens and the
reflector must be kept as clean as possible. To do so, after
disconnecting the projector from the mains, open it and
clean both the lens and reflector with a soft cloth
dampened with alcohol.
VI - FOCUS AND REGULATIONS
VIII - MAINTENANCE
The projector must be serviced at least once a year to
check the integrity of its electrical and mechanical parts.
VII - CLEANING
For safety reasons always disconnect the projector from
the mains before opening it to change the lamp.
Open the projector lamp holder tray by means of knob 5.
Insert the lamp into the socket taking care not to touch the
glass. Please note that it is not necessary to change the
position of the lamp carriage and as a consequence the
optical adjustment of the projector remains unchanged.
WARNING!
TO MOUNT A 1200 W LAMP (WITH A HIGHER CENTRE
OF LIGHT) IN LIEU OF A 1000 W LAMP, THE PAN
FITTED WITH THE LAMP HOLDER MUST BE SHIFTED
FROM THE HIGH POSITION TO THE LOW POSITION
(SEE DIAGRAM) AFTER ROTATING THE RETAINING
SPRING 6. RE-POSITION THE SPRING AT THE END
OF THE OPERATION. .
IV - CHANGING THE LAMP
Your projector has been designed for a maximum voltage
of 240 V.
The power cable complies with standards CEI 20-35.
However one must make sure that the ground is always
connected.
Sintesi Line
Mod.AR 05- Ar12 -AR 25
Mod.VA 05- Va12 - VA 25
