SPT SD-9239SS User manual

®
SD-9239SS-Stainless Steel
SD-9293W-White
Dishwasher Features ................ 1
Safety Information ...................... 2
Operating Instructions
Control Panel .............................. 3
Dishwasher Features ...................... 3
Wash Cycle Table .......................... 4
Detergent ................................ 5
Rinse Aid ................................ 5
All-in- 1 Program .......................... 6
Loading the Dishwasher Rack ............... 7
Silverware Basket .......................... 8
Turning On the Appliance ................... 8
Filtering System .......................... 9
Caring for the Dishwasher .................. 9
Electrical Connection ....................... 10
Troubleshooting Tips
Before calling for service ................ 11,12
Warranty ................................ 13
O

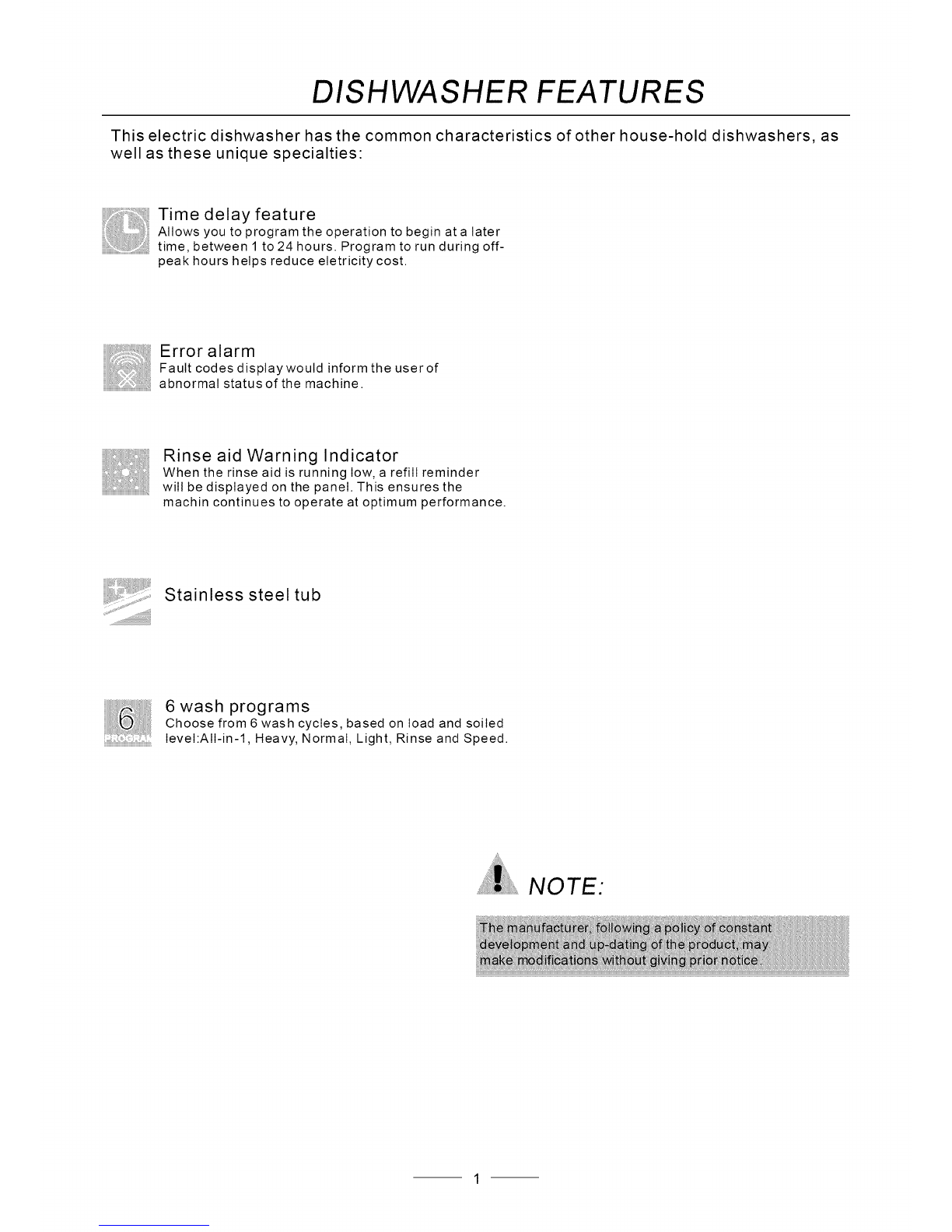

DISHWASHER FEATURES
This electric dishwasher has the common characteristics of other house-hold dishwashers, as
well as these unique specialties:
Time delay feature
Allows you to program the operation to begin at a later
time, between 1 to 24 hours. Program to run during off-
peak hours helps reduce etetricity cost.
Error alarm
Fault codes display would inform the userof
abnormal status of the machine.
Rinse aid Warning Indicator
When the rinse aid is running low, a refill reminder
will be displayed on the panel. This ensures the
machin continues to operate at optimum performance.
Stainless steel tub
_6i;i_ 6 wash programs
Choose from 6 wash cycles, based on load and soiled
IeveI:AtI-in-1, Heavy, Normal, Light, Rinse and Speed.
...........................................................NOTE:

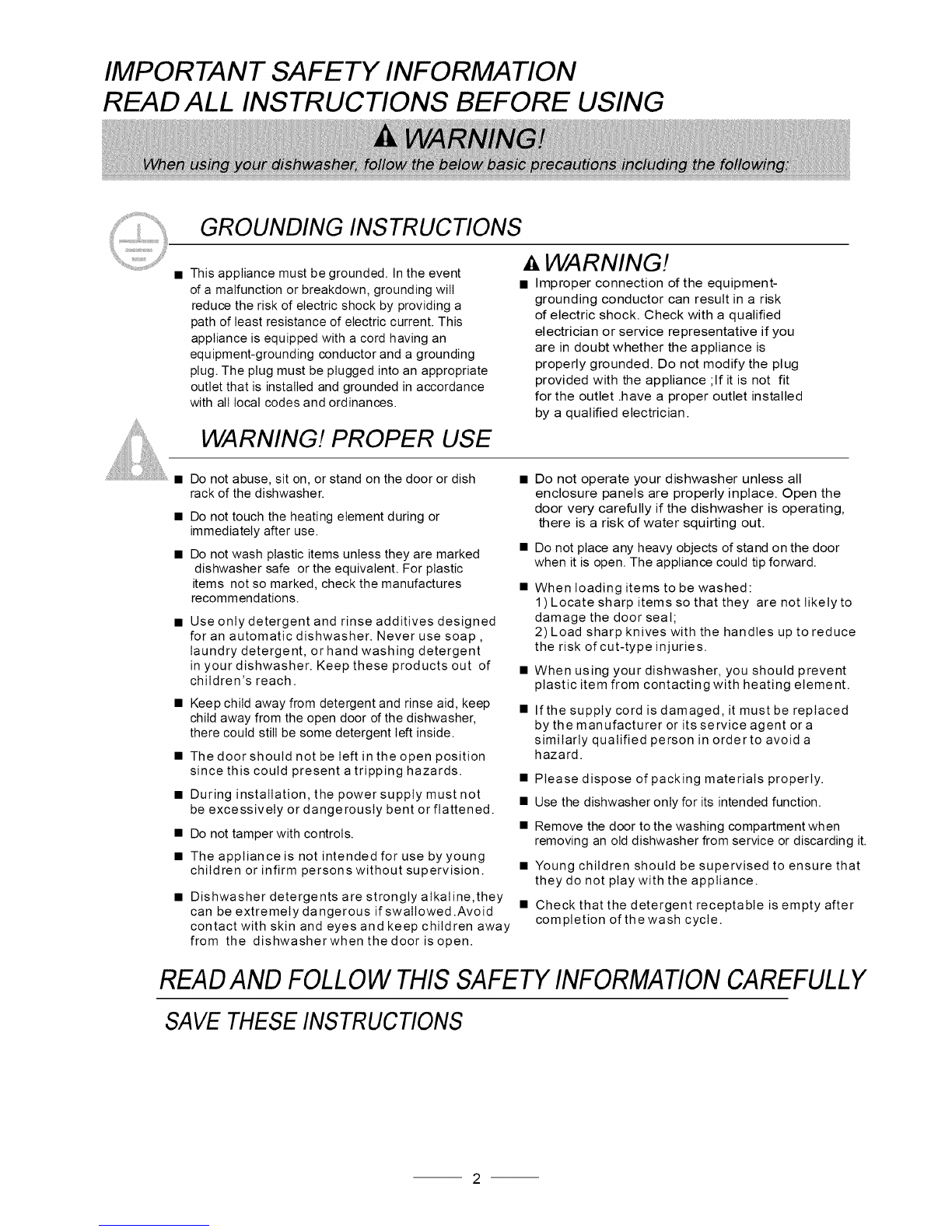

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
ZkWARNING!
•Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance ;If it is not fit
for the outlet .have a proper outlet installed
by a qualified electrician.
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufactures
recommendations.
Use only detergent and rinse additives designed
for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
children's reach.
Keep child away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
The door should not be left in the open position
since this could present a tripping hazards.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is not intended for use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swalIowed.Avoid
contact with skin and eyes and keep children away
from the dishwasherwhen the door is open.
Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.
When using your dishwasher, you should prevent
plastic item from contacting with heating element.
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
•Please dispose of packing materials properly.
•Use the dishwasher only for its intended function.
•Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
•Young children should be supervised to ensure that
they do not play with the appliance.
•Check that the detergent receptabte is empty after
completion ofthewash cycle.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
2

Control Panel
0
0 0 ;;
LI Display Program remaining time,
window:
delay time, running indicator, fault codes
and etc.
[] Delay Button Press to program delay start.
I_1 rogram indicator lights: Indicates the
selected wash cycle.
_1 Wash Program Selector: Press to select one
of the six programs.
l_ Rinse aid Iowwarning light.
D Power indicator light.
D Power switch: To turn on/off the power supply.
D tart/Pause button: To start the selected
washing program or pause the washing program
when the machine is working.
Dishwasher Features
J
Front View
(Door Open)
......................._ 9
10 ,i ,_ JJ
_°_ 12
Back View
1 Upper Basket
2 SprayArms
3 Lower Basket
4 Main Filter
5 Detergent Dispenser
6 Cup Shelf
7 Silverware Basket
8 Coarse Filter
9 RinseAid Dispenser
10 Portable FaucetAdapterAssembty
11 Power Cord
12 Caster

WASH CYCLE TABLE
All in 1
Normal
(AHAM)
Rinse
For all soiled loads, such as
pots,pans,casserole dishes
and dishes that have been
sitting with dried food on
for a while.
For normally soiled loads,
such as pots, pIates,gtasse.,
and lightly soiled pans.
standard daily cycle.
For dishes that just need a
quick rinse.
Pre-wash
Pre-wash
wash (136°F)
Rinse (154°F)
Drying.
Pre-wash
Wash (136°F)
Rinse
Rinse (149°F)
Drying
Pre-Wash
Pre-Wash
All in1
18g
130
115
25
0.545
0.05
3.65
ERROR CODES
When un/Z experiences ma/funct/on, the app//ance wi// d/sp/ay error codes
Codes Meanh_gs Possible Causes
Faucets is not opened, or water intake is restricted,
E1 Long inlet time. or water pressure is too low.
Long heating time,
E3 unit not reaching the required temperature Malfunction of temperature sensor or of heating element.
4

DETERGENT DISPENSER
TO PREVENT FORMATION OF DEPOSITS, DO NOTADD TOO MUCH DETERGENT. THIS DISHWASHER HAS
SPECIALLY-DESIGNED WATER SOFTENERS.
The dispenser must be refilled before the start of each wash cycle Refer to instructions under the Wash Cycle Table
on page 4. This unit uses less detergent and rinse aid than most conventional dishwashers. In general, only one
tablespoon or detergent is needed fora nomral wash load. Add more detergent as needed for heavily soiled loads.
Always add detergent just before starting the dishwasher, othervise it could get damp and not dissolve properly.
Amount of Detergent to Use
The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in
you r area, contact your local water utility or area water softening company. The harder the water, the more detergent
you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the
correct amount.
Removing Hard Water Spots
To remove hard water spots, try the following:
Run dishes through a normal wash program.
Remove all metal dishware, such as cutlery, pans, etc.,
from the dishwasher.
Do not add detergent.
Pour two cups of vinegar into a bowl and set the bowl face
up on the lower rack of the dishwasher.
Run the dishes through a normal wash program.
If this doesn't work, try the same process with 1/4 cup of
citric acid crystals instead of vinegar.
WARNING!
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
Proper Use of Detergent
Use only detergent specifically made for use in dishwashers.
Keep your detergent fresh and dry. Don't put powder detergent
into the dispenser until You're ready to wash dishes.
RINSE AID DISPENSER
Dispenser cat_--_-I
Indicator
II
Adjustable setting
,To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aid into the dispenser, being careful
not to overfill.
,To replace, align cap with "open" arrow and turn
clockwise to close
,The rinse aid is released during the final rinse to prevent
water from forming droplets on your dishes that can leave
spots and streaks. It also improves drying by allowing
water to "sheet" off the dishes.
,Your dishwashers are designed to use liquid rinse aids.
The rinse aid dispenser is located inside the door next to
the detergent dispenser. To fill the dispenser, open the
cap and pour the rinse aid into the dispenser until the level
indicator turns completely black. The dispenser holds
about 100 mt of liquid rinse aid.
Be careful not to overfitt the dispenser, because this could
cause oversudsing. Wipe away any spills with a damp cloth.
Don't forget to replace the cap before you close the
dishwasher door.
If you have soft water, you may not need rinse aid for it may
cause awhite film to develop on your dishes,
Adjusting Rinse Aid Dispenser
Adjustable setting
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount
of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much
rinse aid can result in lather of foaming and cause cloudiness or steaks on your dishes. If the
water in your area is very soft, you may not need rinse aid. If you do,you can dilute the rinse aid
with an equal amount of water.
The rinse aid dispenser has four settings. Always start with the dispenser set on " 2". If spots and
poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser
lid and rotating the dial to "3". If the dishes still are not drying properly or are spotted, adjust the
dial to"4".. Refill when the Rinse Aid Warning Light illuminates.

Yourdishwasherhasa"All-in-1program"whichneedsnorinseaidbuta"ll-in-1"tablet".
NOTE_ Only the All in 1 program can be used with All in 1 tablets. If you use All in1 tablets with other programs,
The appliance will not achieve a good performance.

Loading the Dishwasher Racks.
How to use the Upper Rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and
saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
The upper rack can be adjusted for height by putting wheels of different height into the rails.
ICups
2Saucer
3Glasses
How to use the Lower Rack
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids,
serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
4 Serving bowl
5Fruit bowl
6 Bread and butter plates
7Serving plate
8Dinner plates
9Silverware basket

SILVERWARE BASKET
2 4 5
4 5
2 4 5
2 4 5
4 5
2 4 5
2 4 5
3 5
2 3 3
2 3 3
3 3
2 3 6
1
1
1
1
1
4
7
1
1
6
1Salad Forks
2 Teaspoons
3 soupspoons
4Serving fork
Knife
6Serving spoon
7Dinner forks
WARNING!
Do not let any item extend through bottom.
Turning on the Appliance
Starting a wash cycle...
1Make sure that the plug Of the appliance is inserted into the wall socket.
2Make sure that the water supply is turned on to full pressure.
3Load the dishwasher(see the section entitled, " Loading the Dishwasher" ).
4Pour in the detergent(see the section entitled, "Detergent and RinseAid " ).
5 Close the door, press the ON/OFF button,and the ON/OFF light will turn on.
6Press the "prog button" to select the "Wash cycle".(see the section entitled."Wash Cycle Table".)
7Press the start button, the washing will start after ten seconds.
Canceling or modifying a wash cycle setting...
Premise: A cycle that is underway can only be modified ifi t has only been running for a short time. Otherwise,
the detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the paragraph entitled " Loading the Detergent" ).
Open the door, Press the "Prog key-press" more than three second, then you can change the program to the desired
cycle setting (see the section entitled, "Starting a wash cycle..." ). Then, close the door.
At the End of the Wash Cycle
When the washing cycle has finished, the buzzer of dishwasher will buzz for eight second, then stop. Turn off the
appliance using the ON/OFF button, open the door of the dishwasher. Wait a few minutes before unloading the
dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage.
They will also dry better.
Forget to Add a Dish ?
A forgotten dish can be added any time before the detergent cup opens.
1Open the door a little to pause the cycle. 3Add forgotten dishes.
2After the spray arms stop working,you can open the door 4Close the door, the dishwasher will work after ten second.
completely.
zLWARNING!
It is dangerous to open the doorwhen washing,because the hot water may be scalded to you.

Filtering System
Main filter
Food and soil particles trapped by this filter are pulverized by a special jet on
the lower spray arm and washed down the drain.
Coarse filter
Larger items, such as pieces of bone or glass, that could clog the drain are trapped
in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs
on top of this filter and lift it out.
Fine filter
This filter holds soil and food residue in the sump area and prevents it from being
redeposited on the dishes during a cycle.
Caring for the Dishwasher
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
2Turn off the water supply and disconnect the water
inlet pipe from the water valve.
3Drain water from the inlet pipe and water valve.
(Use a pan to catch the water.)
4Reconnect the water inlet pipe to the
water valve.
5 Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals wilt clog the spray arm jets and bearings.
To remove the spray arm, screwoffthe nut to take out the washer on top of the spray arm and remove the arm.
Wash the arms in soapy and warm water and use a soft brush to clean the jets.
Replace them after rinsing them thoroughly.
Cleaning the Filters
23
' Open
Step 1: Turn the filter in anti-clockwise direction,
then lift it up.
Step 2: lift the Main filterup
Step 3: lift the Fine filter up
When followinq this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.

User-Maintenance Instructions

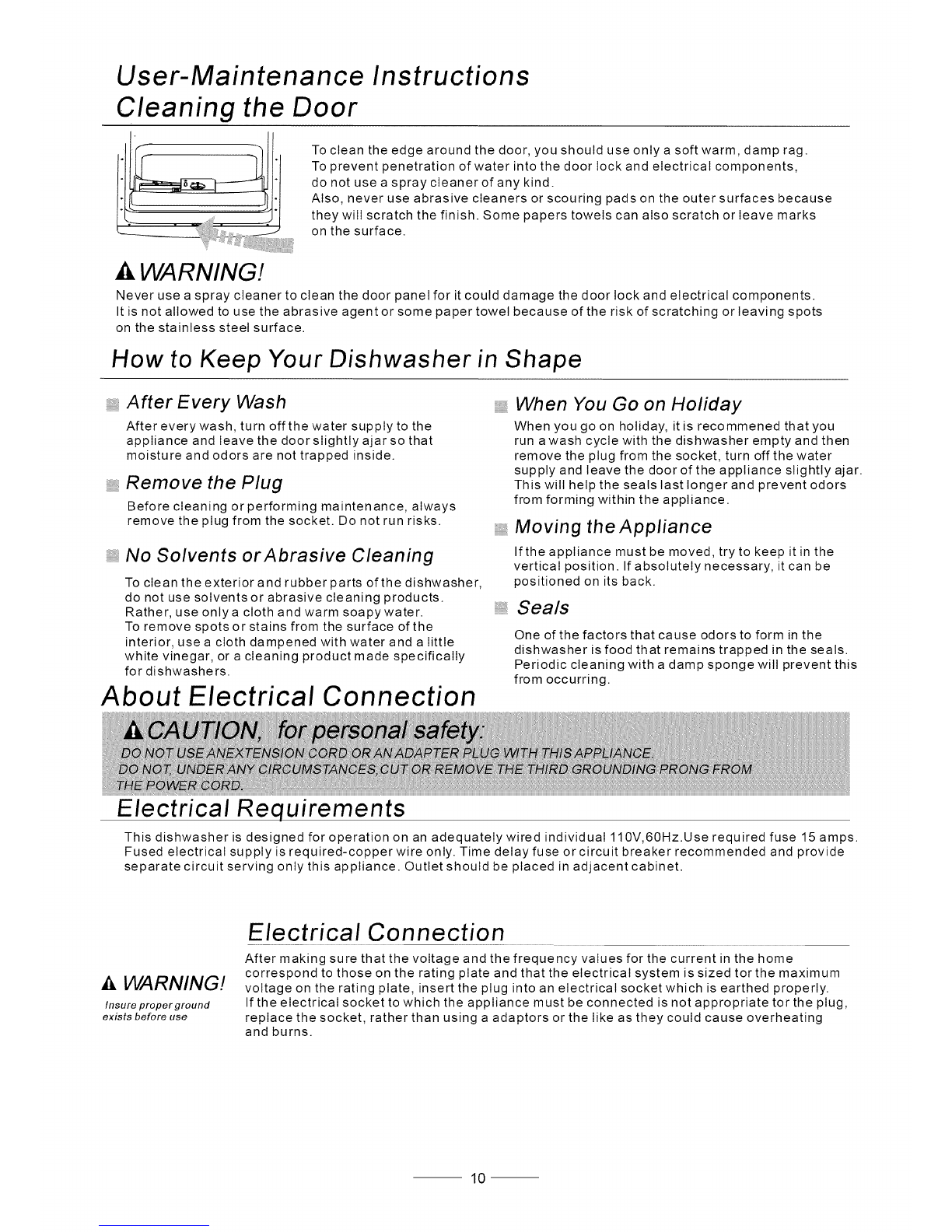

Cleaning the Door
!i_i To cIean the edge around the door, you shouId use onIy a soft warm, damp rag.
To prevent penetration of water into the door lock and electrical components,
,& WARNING!
do not use a spray cleaner of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because
they will scratch the finish. Some papers towels can also scratch or leave marks
on the surface.
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components.
It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots
on the stainless steel surface.
How to Keep Your Dishwasher in Shape
Aft er Eve ry Was h
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odors are not trapped inside.
Rem o ve the Plug
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not run risks.
No Solvents orAbrasive Cleaning
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather, use onlya cloth and warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
white vinegar, or a cleaning product made specifically
for dishwashers.
About Electrical Connection
Electrical Requirements
H!!!!!_!!i!!!!
H!!!!!_!!i!!!!
H!!!!!_!!i!!!!
When You Go on Holiday
When you go on holiday, it is recommened that you
run awash cycle with the dishwasher empty and then
remove the plug from the socket, turn offthe water
supply and leave the door of the appliance slightly ajar.
This wilt help the seals last longer and prevent odors
from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
This dishwasher is designed for operation on an adequately wired individual 110V,60Hz.Use required fuse 15 amps.
Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended and provide
separate circuit serving only this appliance. Outlet should be placed in adjacent cabinet.
Zl WARNING!
Insure proper ground
exists before use
Electrical Connection
After making sure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical system is sized tor the maximum
voltage on the rating plate, insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate tor the plug,
replace the socket, rather than using a adaptors or the like as they could cause overheating
and burns.
10 m

User-Maintenance Instructions
Before Calling for service.
Problem
': Dishwasher doe_n t
run
Possible Causes
Fuse blown, or the
circuit breaker acted
Power supply is not
turned on
What To Do
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Noise
Water pressure is low Check that the water supply is connected properly and
the water is turned on.
Some audible sounds are
normal Sound from soft food shredding action and detergent cup
open ing.
Suds in the tub
Utensils are not secure
in the baskets or something
small has dropped into
the basket
To ensure everything is secured in the dishwasher.
Motor hums Dishwasher has not been used regularly. Ifyou do not use it
often, remember to set it to fill and pump out every week,
which will help keep the seal moist.
Improper detergent Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the wash
cycle to drain out the water. Repeat if necessary.
Stained tub interior
Dishes are not dried
Dishes and flatware
not clean
Spilled rinse agent Always wipe up rinse agent
spills immediately.
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Improper rack loading
Rinse agent dispenser Make sure that the rinse agent dispense is filled.
is empty
Improper program Select stronger program
Make sure that the action of the detergent dispenser and
spray arms are not blocked by large dishware.
Spots and filming
on glasses and
flatware
1Extremely hard water
2Low inlet
temperature
3Overloading the
dishwasher
4Improper loading
5Old or damp powder
detergent
6Empty rinse agent
dispenser
7Incorrect dosage of
detergent
To remove spots from glassware:
1Take out all metal utensils out of the dishwasher.
2Do not add detergent.
3Choose the longest cycle.
4Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
mll

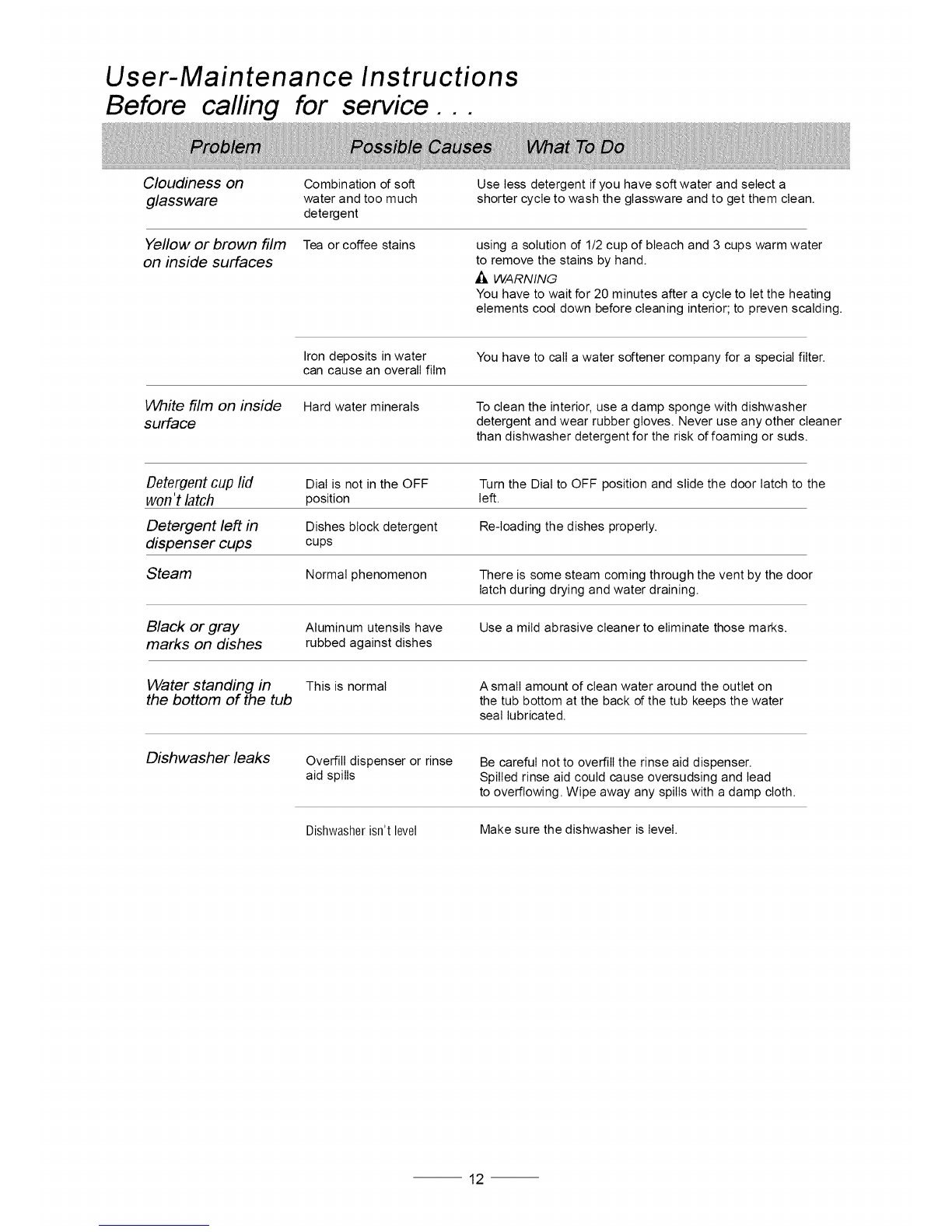

User-Maintenance Instructions
Before calling for service..
Cloudiness on
glassware
Yellow or brown film
on inside surfaces
Combination of soft
water and too much
detergent
Tea or coffee stains
Use less detergent if you have soft water and select a
shorter cycle to wash the glassware and to get them clean.
using a solution of 1/2 cup of bleach and 3 cups warm water
to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the heating
elements coot down before cleaning interior; to preven scalding.
Iron deposits in water
can cause an overall film You have to call a water softener company for a special filter.
White film on inside Hard water minerals
surface To clean the interior, use a damp sponge with dishwasher
detergent and wear rubber gloves. Never use any other cleaner
than dishwasher detergent for the risk of foaming or suds.
Detergent cup lid Dial is not in the OFF
won't latch position
Detergent left in
dispenser cups Dishes block detergent
cups
Steam Normal phenomenon
Turn the Dial to OFF position and slide the door latch to the
left.
Black or gray
marks on dishes
Re-loading the dishes properly.
There is some steam coming through the vent by the door
latch during drying and water draining.
Aluminum utensils have
rubbed against dishes Use a mild abrasive cleaner to eliminate those marks.
Water standing in This is normal
the bottom of the tub AsmalI amount of clean water around the outlet on
the tub bottom at the back of the tub keeps the water
seal lubricated.
Dishwasher leaks Overfill dispenser or rinse
aid spills Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Dishwasherisn't level Make sure the dishwasher is level.
m 12 m

Your Guarantee
If this product is found to be faulty as a result of faulty materials or workmanship within one year
from date of purchase, it will be repaired free of charge.
This guarantee is subject to the following terms:
• Sunpentown must be notified of the fault.
• Proof of purchase must be presented to Sunpentownnominated representative.
• The warranty will be void if the product if modified, misused or repaired by an
unauthorized person.
• The warranty after repair will not be extended beyond the original one-year period.
" All replacement parts will be new or reconditioned.
• Parts, which are replaced, become the property of Sunpentown.
• The warranty applies for the use of the product inthe USA only.
What is NOT COVERED:
Warranty does not include freight charges.
Incidental or consequential damage caused by possible defects with this product.
Damage to product caused by improper power supply voltage, accident, fire, floods or
acts of nature.
Failure of product resulting from unauthorized modifications to the product.
Improper installation or failure to perform the necessary maintenance.
This GUARANTEE is in addition to your Statutory Rights
SUNPENTOWN INTERNATIONAL INC.
14625 Clark Ave. City of Industry, CA 91745
Tel: [phone]
service @sunpentown .corn
www.sun pen town.c om
m13m
