SPT SD-9239SS User manual

ControlPanel..............................3
DishwasherFeatures.................. .... 3
WashCycleTable..........................4
Detergent............................ .... 5
RinseAid.................. .......... .... 5
All-in-1Program
LoadingtheDishwasherRack.......... .....7
SilverwareBasket..........................8
TurningOntheAppliance.............. .....8
CaringfortheDishwasher........ .. ........9
Electrical Connection
.................. .... .... 6
FilteringSystem...................... .... 9
.......................10
......................2
................1

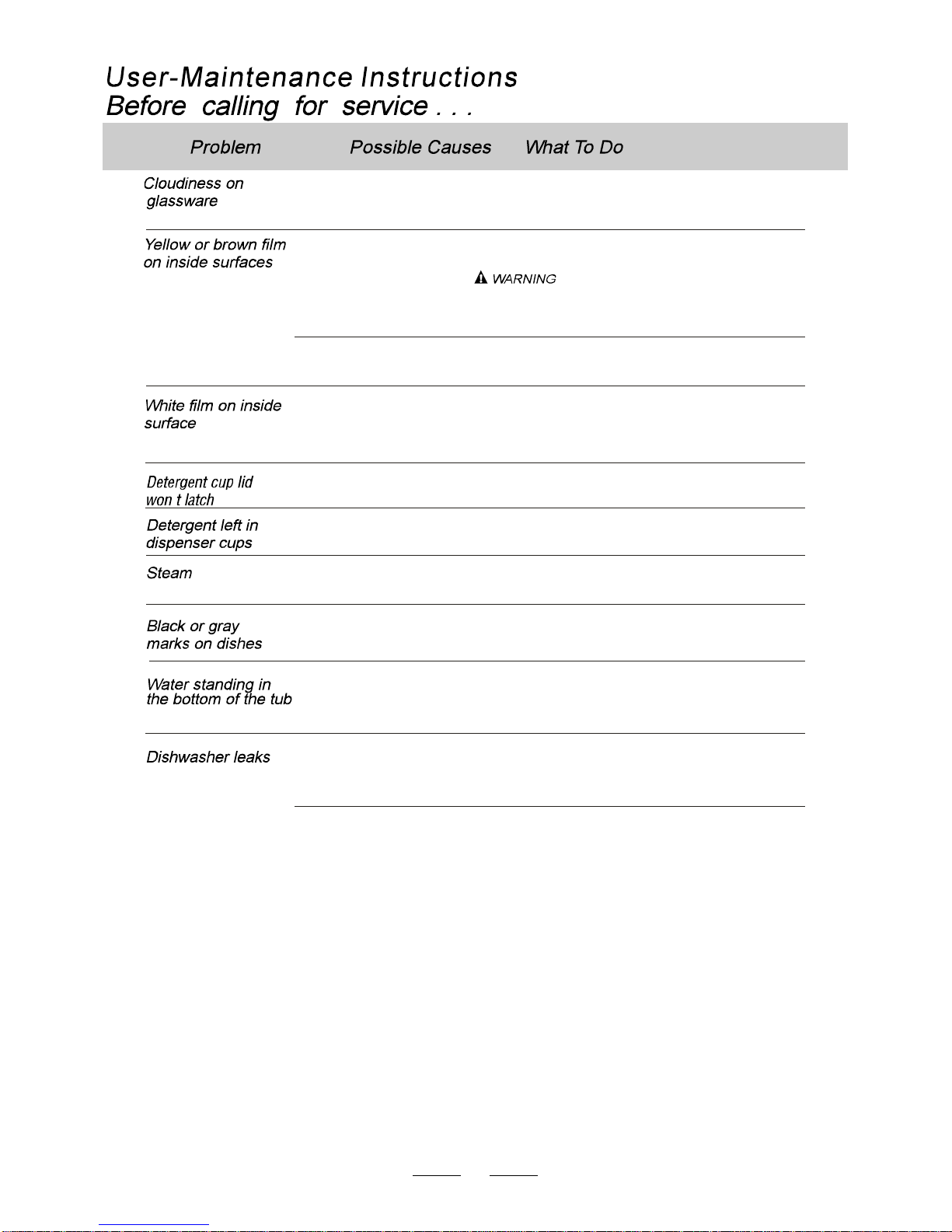

Beforecallingforservice.......... 11,12
Warranty
......
.................. .......... ....13
SD-9239SS-Stainless Steel
SD-9293W-White

This electric dishwasher has the commoncharacteristics of other house-hold dishwashers, as
well as these unique specialties:
Error alarm
Fault codes display would inform the user of
abnormal statusof the machine.
6washprograms
Choose from 6 washcycles, based on load and soiled
level:All-in-1, Heavy, Normal, Light, Rinse and Speed.
Stainless steel tub
Rinse aid Warning Indicator
When the rinse aid is running low, a refill reminder
will be displayed on the panel. This ensures the
machin continues to operateat optimum performance.
Timedelay feature
Allows you toprogram the operation to begin at a later
time,between1 to24 hours. Program to run during off-
peak hours helps reduce eletricity cost.
1
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.

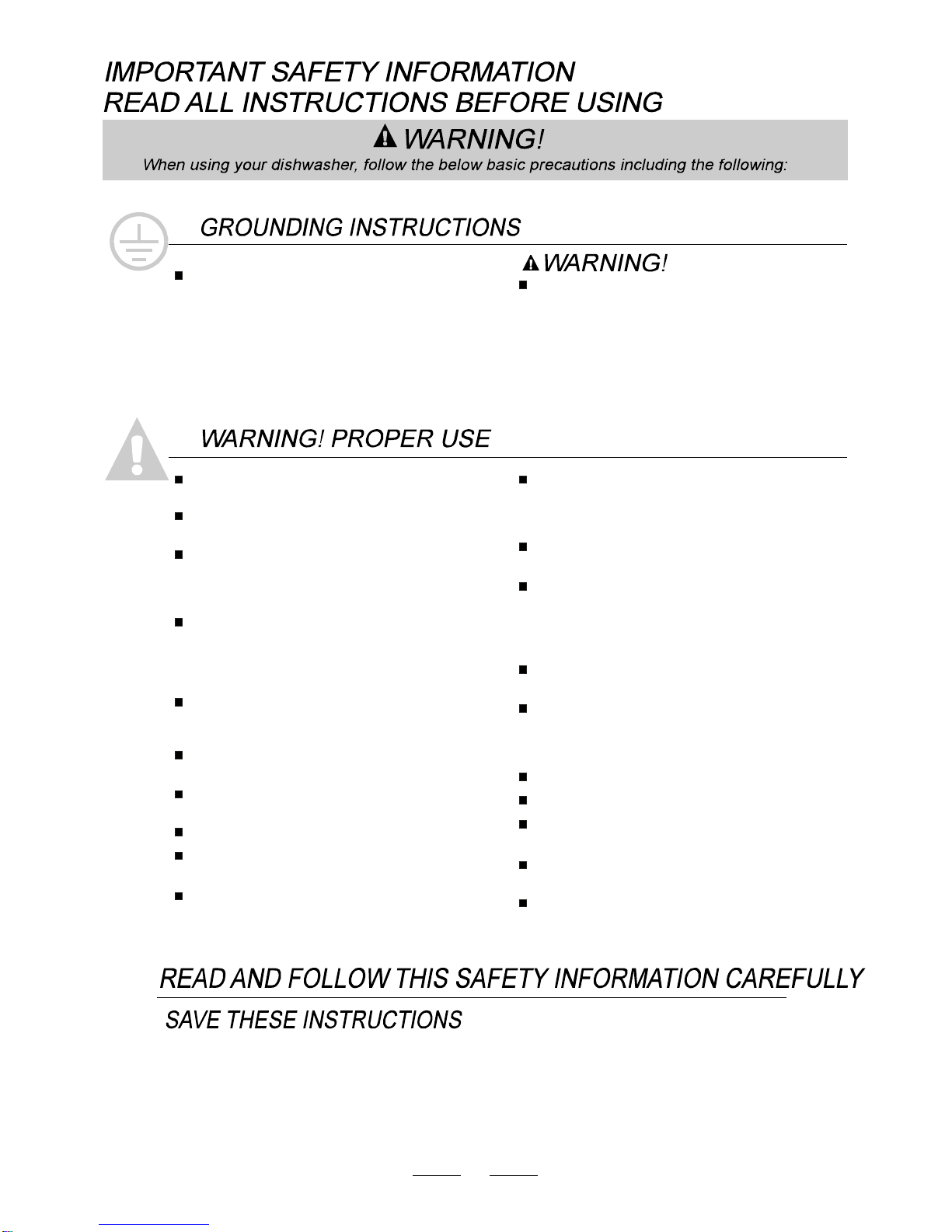

This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug.The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether theappliance is
properly grounded. Do not modify the plug
provided with the appliance ;If it is not fit
for the outlet .have a proper outlet installed
by a qualified electrician.
2
Keep child away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufactures
recommendations.
Useonlydetergentandrinseadditivesdesigned
for an automatic dishwasher. Never use soap ,
laundry detergent, or hand washing detergent
inyour dishwasher.Keeptheseproducts out of
children s reach.’
During installation,the powersupply mustnot
be excessively ordangerously bent or flattened.
The door should not be left in the open position
sincethiscould present atrippinghazards.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
When loading items tobe washed:
1)Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up to reduce
the risk ofcut-typeinjuries.
Whenusing your dishwasher, you shouldprevent
plastic item from contactingwith heating element.
If the supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent ora
similarly qualifiedperson in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The applianceis not intendedfor use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasherwhenthedoor isopen.
Young children should be supervised to ensure that
they do not play with the appliance.
Check that the detergent receptable isempty after
completionofthewashcycle.

Toget the best performance from yourdishwasher, read all operating instructions beforeusing
itfor the first time.
3
1
11
2
6
4
35
7
8
2
3
4
Powerindicatorlight.
Start /Pause button: Tostart the selected
washing program or pausethewashingprogram
whenthemachineis working.
Rinseaid lowwarninglight.
Power switch:To turn on/offthe power supply.
5
Wash ProgramSelector: Pressto selectone
ofthe six programs.
7
8
6
Program indicator lights: Indicates the
selected wash cycle.
Delay Button : Press to program delay start.
Display window: Program remaining time,
delay time, running indicator, fault codes
and etc.
Upper Basket
Spray Arms
Lower Basket
Detergent Dispenser Silverware Basket
MainFilter
Cup Shelf
5
6
7
8
RinseAid Dispenser
Coarse Filter
9
10
12
11
3
2
14
Portable FaucetAdapterAssembly
Power Cord
Caster
Front View
(DoorOpen) Back View
1
2
3
4
5
6
7
8
9
10 11
12

WASH CYCLE TABLE
4
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
Light
ProgramProgram
Heavy
Normal
Running
time(min)
Running
time(min) Water
(gal)
Water
(gal)
Energy
(Kwh)
Energy
(Kwh)
Rinse
Aid
Rinse
Aid
18g
18g
18g
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
For the heaviest soiled
loads, such as pots, pans,
casserole dishes and dishes
that have been sitting with
dried food on them for a
while.
A shorter wash for lightly
soiled loads .
Speed
Pre-wash
Pre-wash (122 )
Wash (136 )
Rinse
Rinse (149 )
Drying
°F
°F
°F
Pre-wash
Wash (136 )
Rinse
Rinse (149 )
Drying
°F
°F
Pre-wash
Wash (122°F)
Rinse
Rinse (140°F)
Drying
Pre-Wash
Wash (122°F)
Rinse (131°F)
Drying
18g.
115
100
130
65
4.6
3.65
3.67
2.75
Description
of Cycle
Description
of Cycle
For dishes that just need a
quick rinse.
25 1.9
3.7
135
All in 1
Rinse
For all soiled loads, such as
pots,pans,casserole dishes
and dishes that have been
sitting with dried food on them
for a while.
Pre-wash
Pre-wash
wash 136°F
Rinse 154°F
Drying.
Codes Meanings Possible Causes
Long inlet time.
Faucets is not opened, or water intake is restricted,
or water pressure is too low.
E1
Malfunction of temperature sensor or of heating element.
Long heating time,
unit not reaching the required temperature
E3
ERROR CODES
When unit experiences malfunction, the appliance will display error codes
(AHAM)
Pre-Wash
Pre-Wash

5

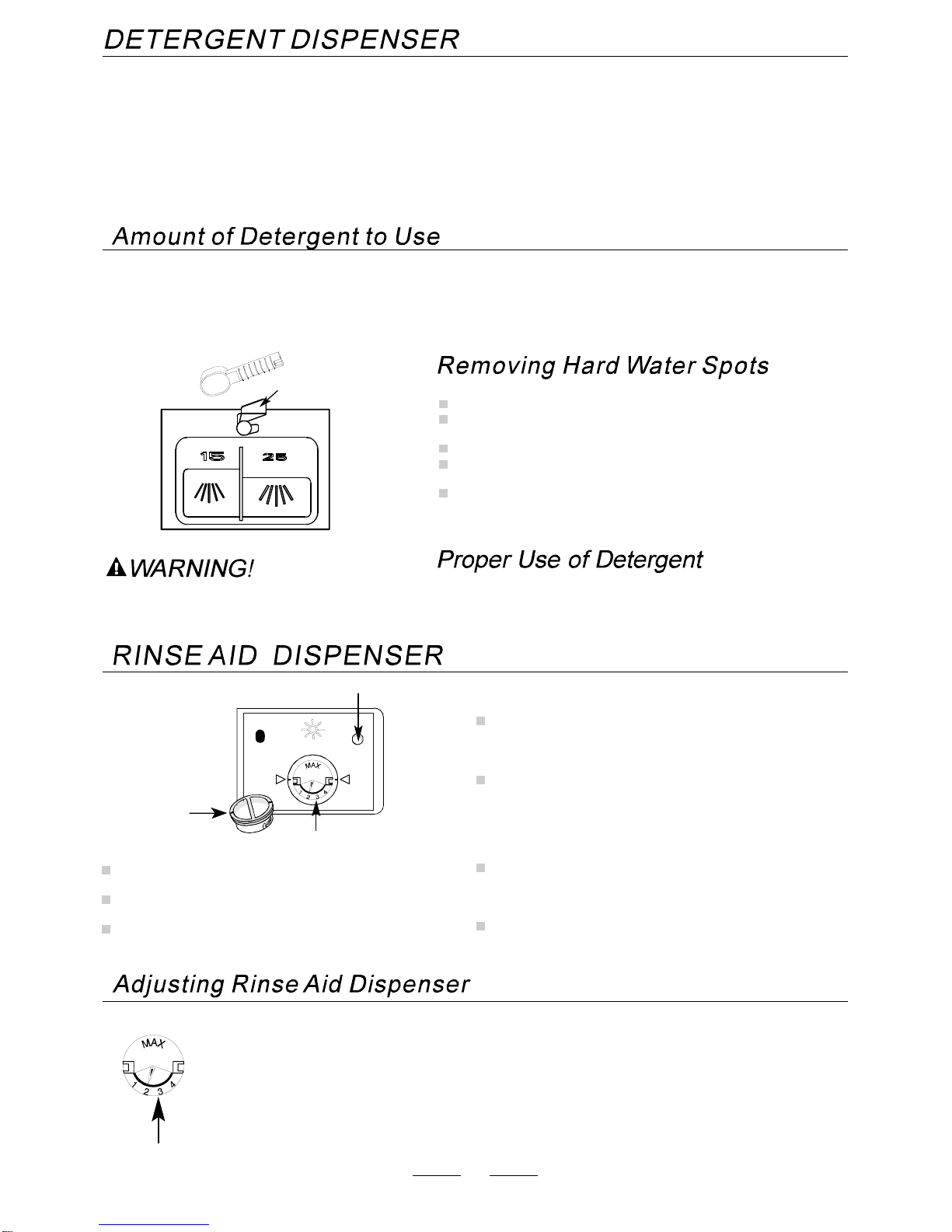

Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
The amount of detergent needed can vary due to differences in waterhardness. To determine thewater hardness in
your area,contact yourlocal waterutility orareawater softening company. The harder thewater, the more detergent
you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the
correct amount.
To remove hard water spots, try the following:
Run dishes througha normalwash program.
Remove allmetal dishware,such ascutlery,pans, etc.,
from the dishwasher.
Do notadd detergent.
Pour two cups of vinegar into a bowl and set the bowl face
up on the lowerrackof the dishwasher.
Runthedishes throughanormalwash program.
If this doesn't work,try the same process with 1 / 4 cup of
citric acid crystals instead of vinegar.
Useonly detergent specifically madefor use in dishwashers.
Keep yourdetergentfresh and dry.Don'tputpowderdetergent
into thedispenser untilYou're readyto washdishes.
Therinse aid is releasedduring the final rinse to prevent
water from forming droplets on your dishes thatcanleave
spots and streaks. Italso improves drying by allowing
water to"sheet"offthe dishes.
Your dishwashers aredesigned touseliquid rinse aids.
Therinse aid dispenser islocatedinside the door next to
thedetergent dispenser. To fill the dispenser,openthe
capandpour therinse aidintothedispenser until the level
indicator turns completely black.The dispenser holds
about 100 mlof liquid rinse aid.
Be careful not tooverfill the dispenser, because this could
causeoversudsing.Wipeawayanyspillswithadampcloth.
Don't forget to replace the cap before you close the
dishwasherdoor.
If you havesoftwater, you may not need rinseaid for itmay
cause a white film to develop on your dishes.
TO PREVENT FORMATION OF DEPOSITS, DO NOTADD TOO MUCH DETERGENT. THIS DISHWASHER HAS
SPECIALLY-DESIGNED WATER SOFTENERS.
The dispenser must be refilled before the startof each wash cycle Referto instructions under the Wash CycleTable
on page 4.This unit uses less detergent and rinse aid than most conventional dishwashers. In general, only one
tablespoon or detergent is needed fora nomral wash load.Addmore detergent as needed for heavily soiled loads.
Always add detergent just before starting the dishwasher, othervise it could get damp and not dissolve properly.
To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pourtherinse aid into the dispenser, being careful
not to overfill.
To replace, align cap with open arrow and turn
clockwise toclose “”
Ameasuredamountof rinse aid isreleased during the finalrinse.Aswith detergent, theamount
of rinse aid needed for your dishes depends on thehardness of the water inyour area. Too much
rinseaidcanresult inlather of foamingandcausecloudiness or steakson yourdishes. Ifthe
waterinyourareaisverysoft,youmaynotneedrinseaid.Ifyoudo,youcandilutetherinseaid
withan equal amountof water.
The rinse aiddispenser has four settings.Always start with the dispenser set on" 2 ". If spotsand
poordrying areproblems, increase theamount ofrinseaiddispensed by removingthe dispenser
lid and rotating the dial to"3".If the dishes still are not drying properly orarespotted,adjust the
dial to"4".. Refill whentheRinse Aid Warning Light illuminates.
Button
Indicator
Dispenser cap
Adjustable setting
Adjustable setting

6
The appliance will not achieve a good performance.
Only the All in1 program can be used with All in1 tablets. If you use All in1 tablets in other programs,
Your dishwasher has a "Allin1 program " which needs no salt and rinse aid but a"Allin1tablet"
1. The figure below shows how to hang the Allin1 tablet container on the upperbasket.
2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not
obstructed by the All in 1 tablet container. Refer to the figure below for reference.
3. Put the All in1 tablet into the container ,then start the All in1 program.
How To Use The All in1 Program
.

The upper rack is designed to holdmore delicate and lighter dishware such as glasses, coffee and tea cup and
saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).
Positionthe dishes andcookwareso thatthey do not get movedby the spray ofwater.
The upperrack can beadjusted forheight by putting wheelsof different height into therails.
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids,
serving dishes and bowls,as shown in the figure below.
Itis preferableto placeservingdishes and lids on the side of theracks inorder toavoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep potsshouldbeslantedto allowwater toflowout.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
1
Cups
2
Serving bowl
3
4
Glasses
Fruit bowl
8
Saucer
7
9
Dinner plates
Silverware basket
6
Bread and butter plates
Serving plate
11
3
2
44
6
6
6
5
5
7
8
9
7

8
When the washing cycle has finished, the buzzer of dishwasher will buzz for eight second, then stop. Turn off the
appliance using the ON/OFF button, open the door of the dishwasher. Wait a few minutes before unloading the
dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage.
They will also dry better.
A forgotten dish can be added any time before the detergent cup opens.
Open the door a little to pause the cycle.
After the spray arms stop working,you can open the door
completely.
Add forgotten dishes.
Close the door, the dishwasher will work after ten second.
4
3
2
1
Make sure that the plug0f the applianceis inserted into the wall socket.
Make sure that the water supply is turned onto full pressure.
Load the dishwasher(see the section entitled, " Loading the Dishwasher " ).
Pour in the detergent(see the section entitled, " Salt, Detergent and RinseAid " ).
Close the door,press the ON/OFF button,and the ON/OFF light will turn on.
Press the "prog " to select the "Wash cycle".(see the section entitled."WashCycle Table".)button
2
3
4
5
6
Premise :A cycle thatis underwaycanonly be modified if it hasonly been running for a short time. Otherwise,
the detergent may havealreadybeen released, and the appliance may have already drained the washwater.
If this is the case, the detergent dispenser must be refilled (see the paragraph entitled " Loading the Detergent " ).
Open the door, Press the "Progkey-press" more than three second, thenyoucanchange theprogram to the desired
cycle setting (see the section entitled, " Startinga wash cycle. . . " ). Then, close the door.
1
7
Press the start button ,t hewashing will start after ten seconds.
It is dangerous to open the door when washing,because the hot water may be scalded toyou.
Silverware should be placed inthe silverware basket with handlesat the bottom: If the rack has side baskets,
the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed
in the horizontal position at thefront of the upper rack.
Do not let any item extend through bottom.
1
1
1
1
1
4
7
1
1
1
6
4
4
4
4
4
4
4
3
3
3
3
3
5
5
5
5
5
5
5
5
3
3
3
6
2
2
2
2
2
2
2
2
Teaspoons
4
Soup spoons
2
Salad Forks
1
Serving fork
Serving spoon
6
Knife
5
3
Dinner forks
7

9

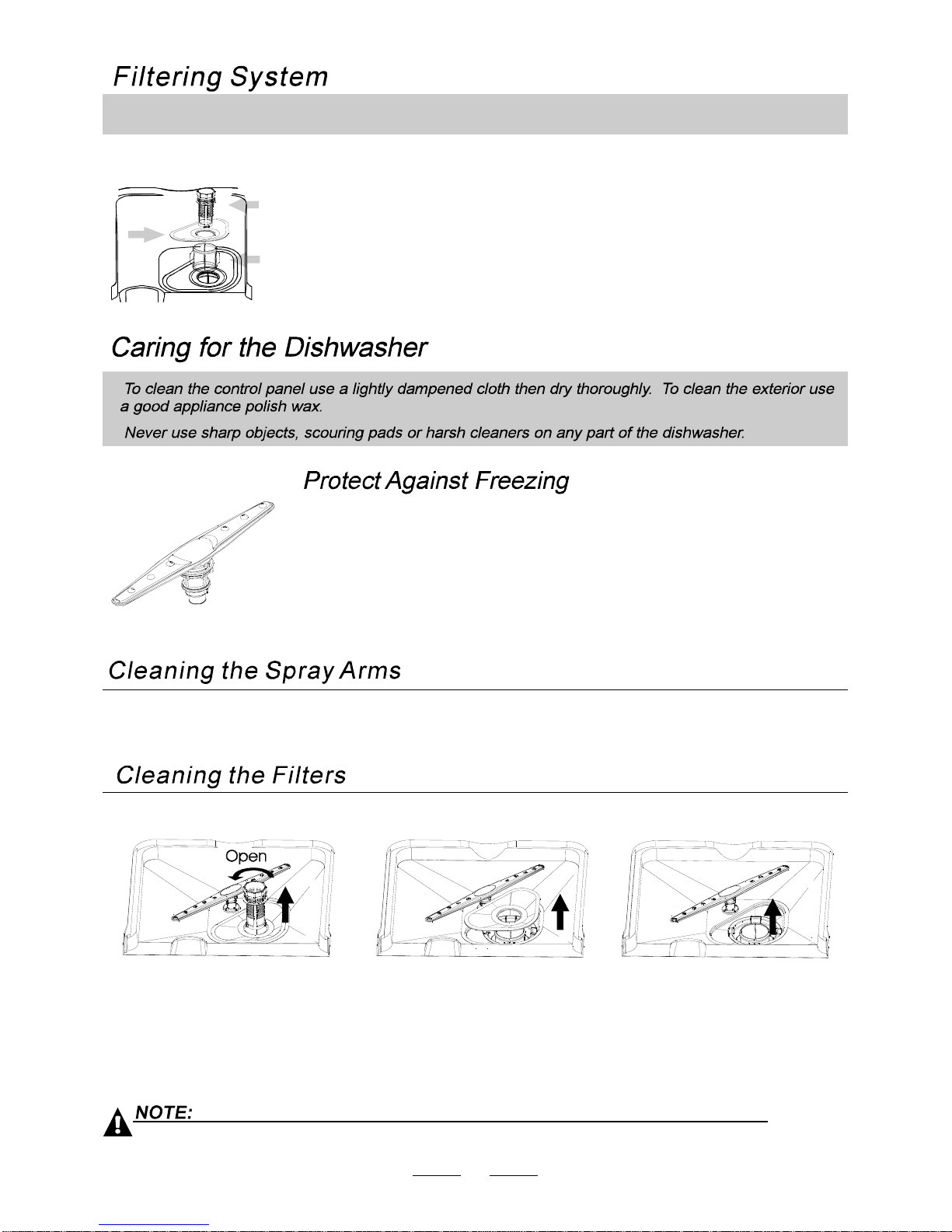

Coarse filter
Larger items, such aspieces of bone or glass, that could clog the drain are trapped
in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs
on top of this filter and lift it out.
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub.
There are threecomponentsof the filtering system: the mainfilter, the coarsefilter, and the fine filter.
2
2
Fine filter
This filter holds soil and food residue in the sump area and prevents it from being
redeposited on the dishes during a cycle.
Mainfilter
Food and soil particles trapped bythisfilterare pulverized by a specialjet on
the lower spray arm and washed down the drain.
1
3
3
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet and water valve.pipe
(Useapantocatchthewater.)
Reconnect the water inlet to the
water valve. pipe
Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
5
4
3
2
1
It is necessary to clean the spray arms regularly for hard water chemicalswill clog the spray arm jets and bearings.
Toremovethesprayarm, screwoffthenut to take out the washeron top of thespray arm and removethe arm.
Wash the arms in soapy andwarm waterandusea soft brushto cleanthe jets.
Replace them after rinsing them thoroughly.
1
Step Turnthe filter in anti-clockwisedirection,
then lift it up.
：
1
Step liftthe Mainfilterup：
2
Step lift the Finefilter up：
3
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
2
13

10
Never use a spray cleaner to clean the door panel for it could damage thedoor lock and electrical components.
It is not allowed to use the abrasive agentor some paper towel becauseof the risk of scratching or leaving spots
on the stainless steel surface.
To clean theedge around the door, you shoulduse only a soft warm, damp rag.
To prevent penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfacesbecause
they will scratch the finish. Some papers towels can also scratch or leave marks
onthe surface.
Afterevery wash, turn offthe water supply to the
appliance and leave the doorslightly ajar so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove theplug from the socket.Do notrunrisks.
Tocleantheexteriorandrubberparts ofthedishwasher,
do not use solvents or abrasive cleaning products.
Rather,use onlya cloth and warm soapy water.
To remove spotsor stains from the surface ofthe
interior, use a cloth dampened with water and a little
white vinegar, or acleaning productmade specifically
for dishwashers.
Whenyougo on holiday, itis recommened thatyou
runawashcyclewiththedishwasheremptyandthen
remove the plug from the socket, turn off the water
supply andleave the door of the appliance slightly ajar.
This will help the seals lastlonger and prevent odors
from forming within theappliance.
Iftheappliance must be moved,tryto keepit in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of thefactors thatcause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
This dishwasher is designed for operation on an adequately wired individual 110V,60Hz.Use required fuse 15 amps.
Fused electrical supply isrequired-copper wire only. Time delay fuse or circuit breaker recommended and provide
separatecircuit serving only this appliance. Outlet should be placed in adjacent cabinet.
After making sure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical systemissized tor the maximum
voltage on therating plate, insert theplug intoan electrical socketwhich is earthed properly.
If the electricalsocket to which the appliance must be connected isnotappropriate tor the plug,
replace the socket, rather than using a adaptors or the like as they could cause overheating
and burns.

Fuse blown, or the
circuit breaker acted Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
Sound from soft food shredding action and detergent cup
opening.
Utensils are not secure
in the baskets or something
small has dropped into
the basket
To ensure everything is secured in the dishwasher.
Motor hums Dishwasher has not been used regularly. If you do not use it
often, remember to set it to fill and pump out every week,
which will help keep the seal moist.
Improper detergent
Spilled rinse agent Always wipe up rinse agent
spills immediately.
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Rinse agent dispenser
is empty Make sure that the rinse agent dispense is filled.
Improper program
Improper rack loading Make sure that the action of the detergent dispenser and
spray arms are not blocked by large dishware.
Extremely hard water
Low inlet
temperature
Overloading the
dishwasher
Improper loading
Old or damp powder
detergent
Empty rinse agent
dispenser
Incorrect dosage of
detergent
• To remove spots from glassware:
Take out all metal utensils out of the dishwasher.
Do not add detergent.
Choose the longest cycle.
Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Some audible sounds are
normal
'
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Water pressure is low
Select stronger program
•
11
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the wash
cycle to drain out the water . Repeat if necessary.

Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shorter cycle to wash the glassware and to get them clean.
Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water
to remove the stains by hand.
You have to wait for 20 minutes after a cycle to let the heating
elements cool down before cleaning interior; to preven scalding.
Iron deposits in water
can cause an overall film You have to call a water softener company for a special filter.
Hard water minerals To clean the interior, use a damp sponge with dishwasher
detergent and wear rubber gloves. Never use any other cleaner
than dishwasher detergent for the risk of foaming or suds.
Dial is not in the
position
OFF
Turn the Dial to
OFF position and slide the door latch to the
left.
Dishes block detergent
cups Re-loading the dishes properly.
Normal phenomenon There is some steam coming through the vent by the door
latchduringdryingandwaterdraining.
Aluminum utensils have
rubbed against dishes Use a mild abrasive cleaner to eliminate those marks.
'
This is normal Asmall amount of clean water around the outlet on
the tub bottom at the back of the tub keeps the water
seal lubricated.
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Make sure the dishwasher is level.
Overfill dispenser or rinse
aid spills
Dishwasher isn t level
'
12

Your Guarantee
ThisGUARANTEEisinadditiontoyourStatutoryRights
SUNPENTOWN INTERNATIONAL INC.
14625 Clark Ave. City of Industry, CA 91745
Tel: [phone]
[e-mail]
www.sunpentown.com
13
If this product isfound to befaulty as aresultof faultymaterials or workmanship within one year
from date of purchase, it will be repaired free ofcharge.
This guarantee is subject to the following terms:
Sunpentown must be notified of the fault.
The warranty will be void if the product if modified, misused or repaired by an
unauthorized person.
The warranty after repair will not be extended beyondtheoriginalone-year period.
All replacementparts will be new or reconditioned.
Parts, which are replaced, become the property of Sunpentown.
The warranty applies for the use of the product inthe USAonly.
What is NOT COVERED:
Warranty does not include freight charges.
Incidental or consequential damage caused by possible defects with this product.
Damageto product caused byimproper power supply voltage, accident, fire, floods or
acts of nature.
Failure of product resulting from unauthorized modifications to the product.
Improper installation or failure to perform the necessary maintenance.
Proof of purchase must be presented to Sunpentownnominated representative.
