SPT SD-2201W User manual

SD-2201W
SD-2201S

.... Read this Manua/
Dear Customer,
Please read this manual thoroughly before use.
Understanding the unit will help you use and maintain
the dishwasher properly.
Please keep in a safe place for future reference.
Pass it on to any subsequent owner of the appliance.
For your safety, the information detailed in this manual
should be followed. Improper use/handling can cause
serious damage to the appliance and/or to the user,
including but not limited to fire, explosion, electric shock,
resulting in personal injury or death.
for Service
Review the section on Troubleshooting Tips =it may
help you solve some common issues.
If you can not resolve the troubles by yourself,
please ask for the help of professional technicians.
....._!!!!!!!!!!!_:::_:_:_:_:_:_:_:_:_:_:_:_...... NOTE"
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Safety information
Grounding Instruction ............................ 1
Safety Instructions ................................. 1
Parts ldentificatien
Front & Back View ................................. 2
Accessories ........................................... 2
Unpacking ............................................. 3
Positioning ............................................. 3
Electrical Requirements ........................ 3
Connecting the Dishwasher ............... 4=5
Disconnecting the Dishwasher .............. 5
Operating lnstruetiens

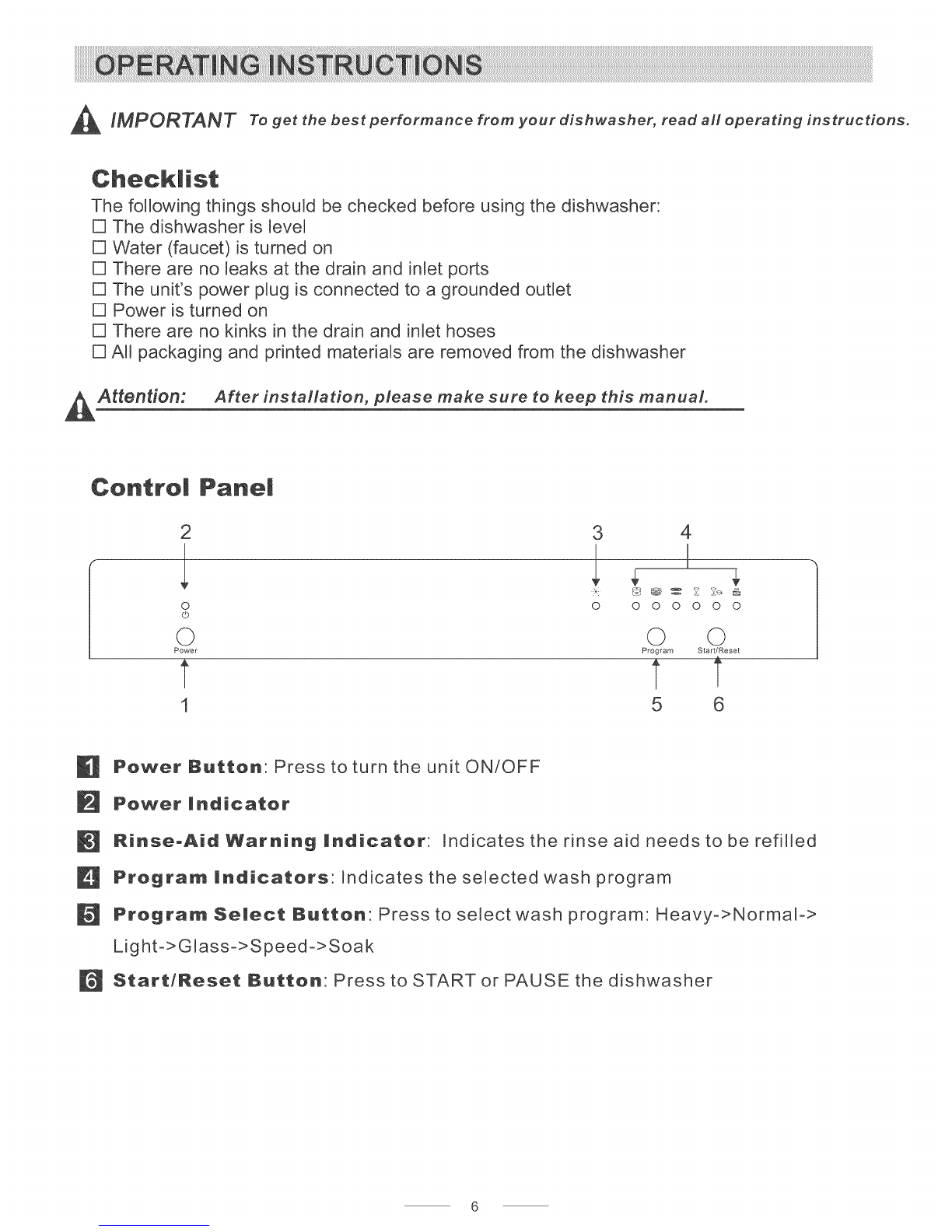

Checklist ................................................ 6
Control Panel ......................................... 6
Loading the Dishwasher ........................ 7

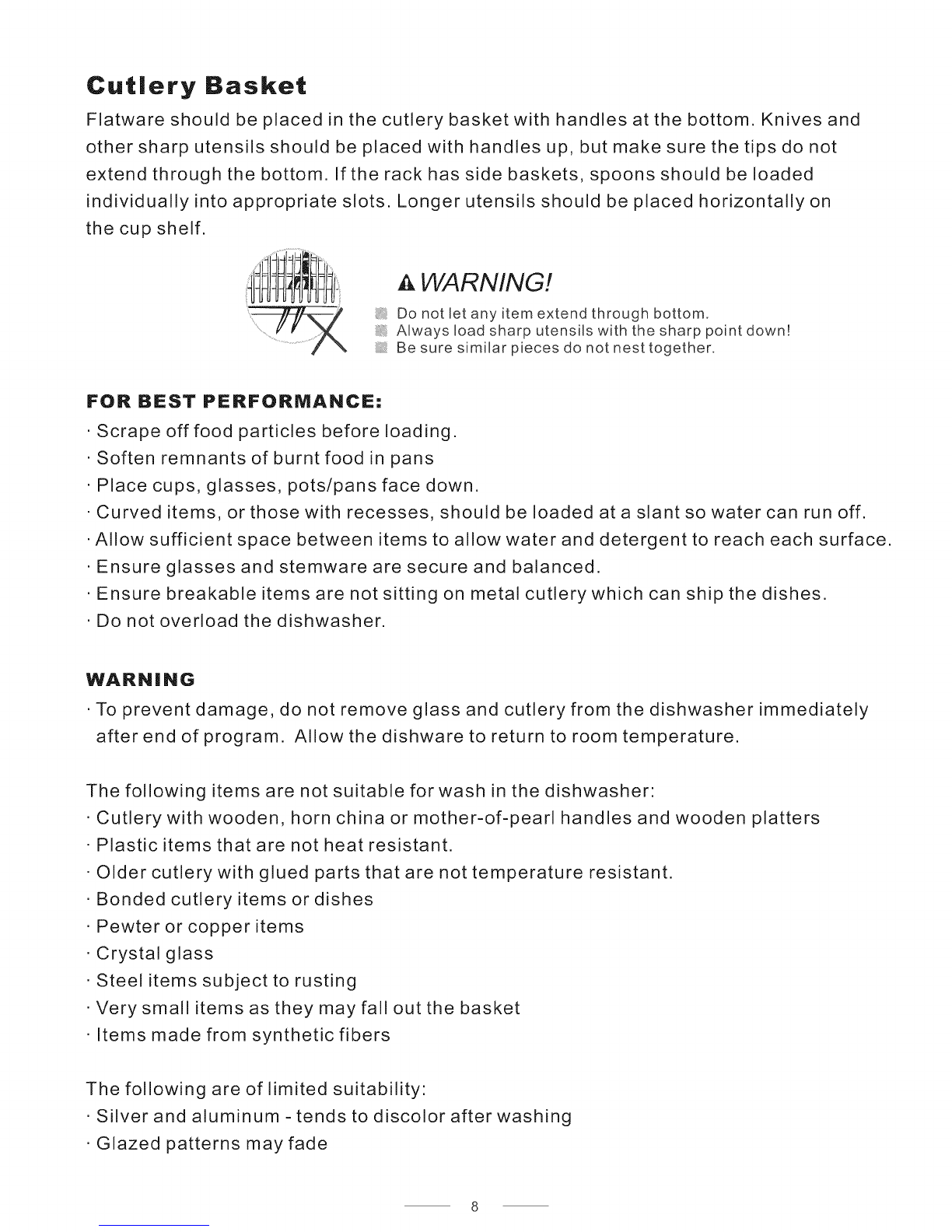

Cutlery Basket ....................................... 8
Detergent Dispenser .............................. 9

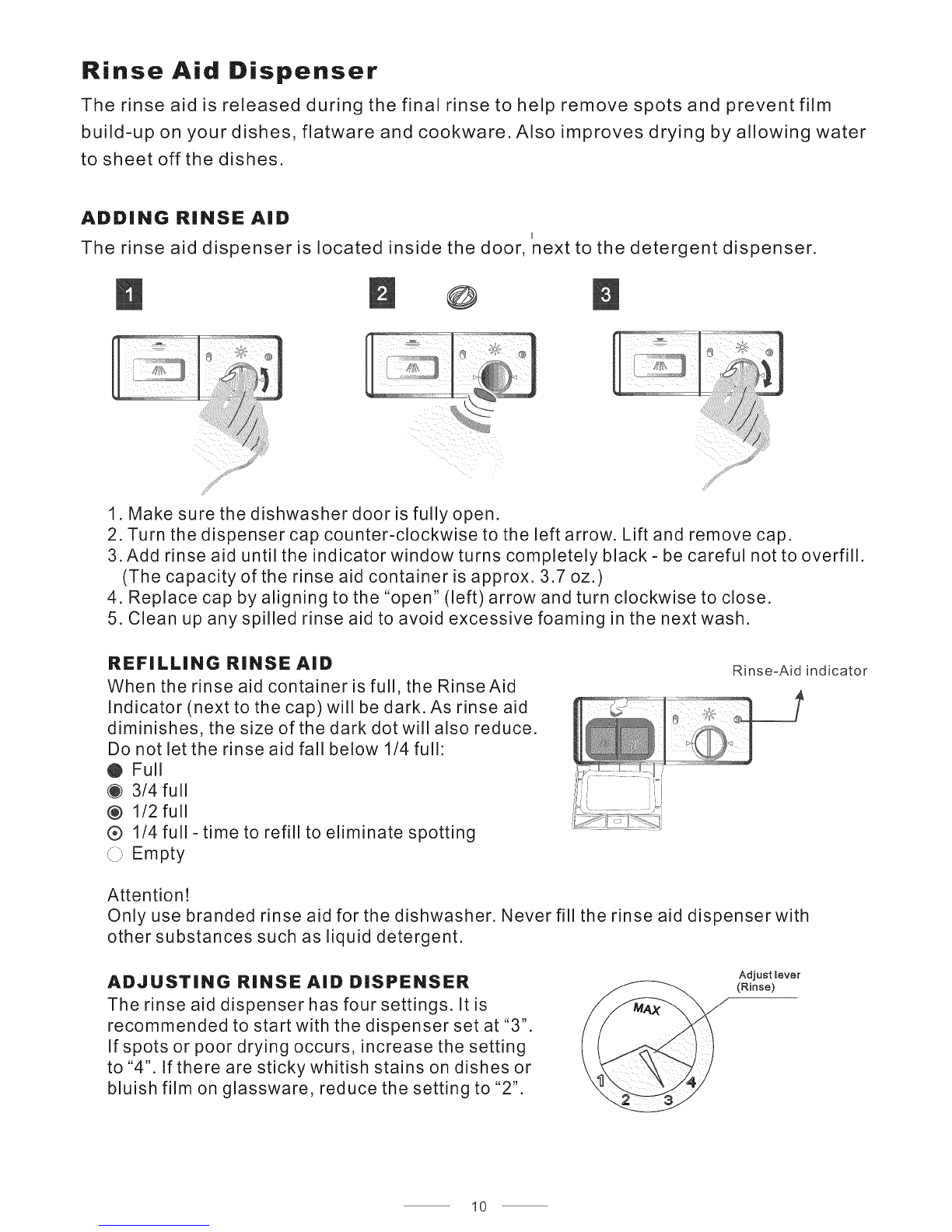

Rinse Aid Dispenser ............................ 10
Wash Cycle Table ................................ 11
Starting a Wash Cycle ......................... 11

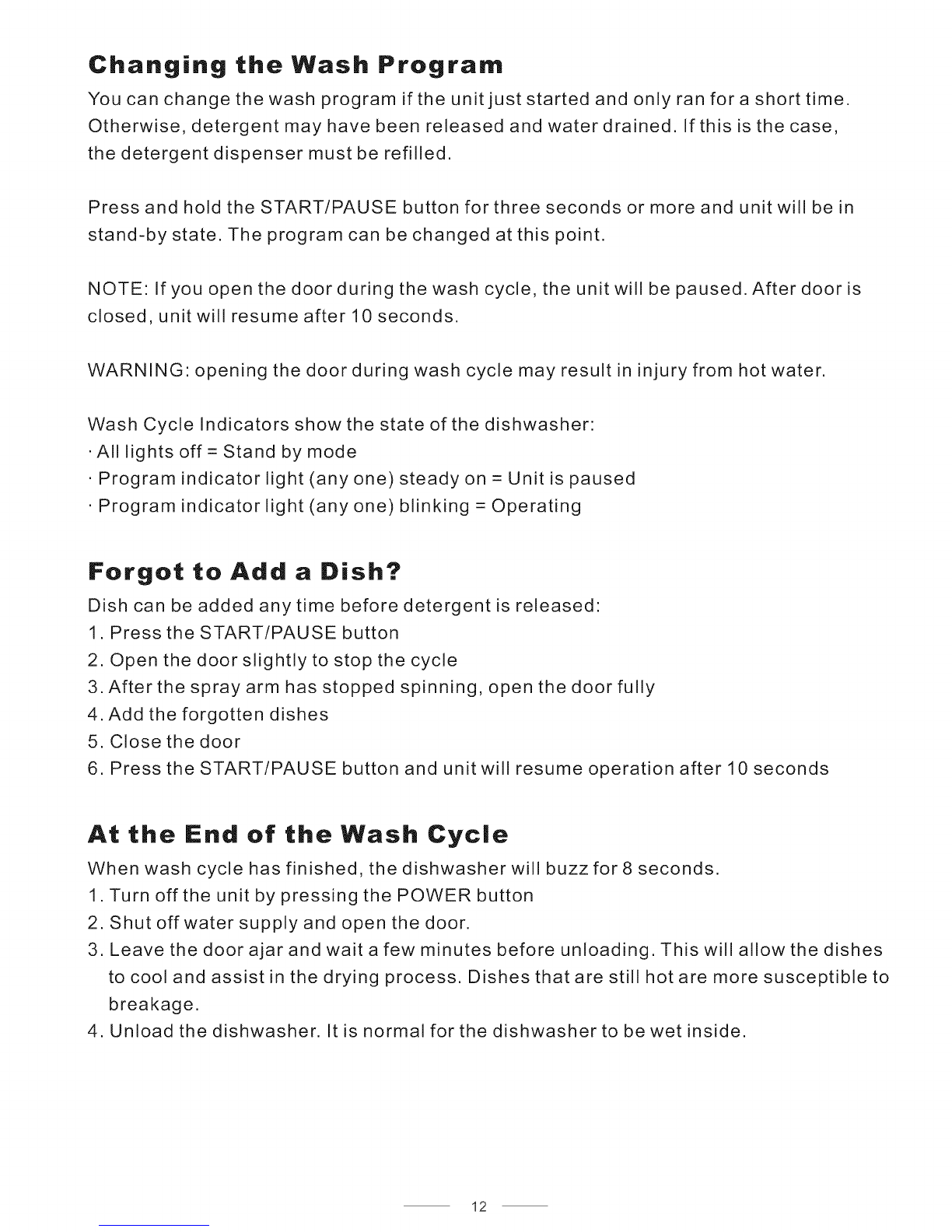

Changing the Wash Program .............. 12
Forgot to Add a Dish? .......................... 12
At the End of the Wash Cycle .............. 12
Filter System ....................................... 13
Filter Assembly .................................... 13
Cleaning the Filters ............................. 13
Cleaning the Dishwasher .................... 14
Cleaning the Door ............................... 14
Cleaning the Spray Arm ...................... 14
Protect Against Freezing ..................... 14
Keeping Your Dishwasher in Shape .... 15
Trou bJesh ootin g ....................... 16=17
Error lndieatiens ........................... 17
Technical lnfermatien ................. 18

GROUNDING INSTRUCTIONS
[] This appliance must be grounded. In the event of a
malfunction or breakdown, grounding wilt reduce
the risk of electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
[] The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
WARNING!
[] Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
[] Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit the
outlet. Have a proper outlet installed by a qualified
electrician.
WARNING! PROPER USE
[] Use this appliance only for its intended purpose
as described in this manual.
[] This appliance is not intended for use by children.
[] Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
[] Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visibal heating element.)
[] Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
[] Do not place any heavy objects or stand on the
door when it is open. The appliance could tip
forward.
[] When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
[] Check that the detergent receptible is empty
after completion of the wash cycle.
[] Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not marked as dishwasher safe, refer to the
manufacturer's recommendations.
[] Use only detergent and rinse additives
designed for an automatic dishwasher.
[] Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
[] Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
[] This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
[] Children should be supervised to ensure that they do
not play with the appliance.
[] Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
[] The door should not be left in the open position
since this could present a tripping hazard.
[] If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
[] Remove the door before discarding an old dishwasher.
[] Please dispose of packing materials properly.
[] Use the dishwasher only for its intended function.
[] During installation, the power supply must not
be excessively or dangerously bent or flattened_
Do not tamper with controls.
[] Use new set of hoses to connect this appliance to the
water mains. Do not reuse old hose sets.
[] The maximum number of place settings to be
washed is 6.
[] The maximum permissible inlet water pressure is
1Mpa.
[] The minimum permissible inlet water pressure is
0.04Mpa.

FRONT VIEW BACK VIEW
Cup Shelf Cutlery Basket Main Basket
_ ,F I :i"°•
.1 _ M-
Detergent Rinse Aid
Dispenser Dispenser
Spray Arm 10 O
Drain Port / Inlet Port
Power Cord
ACCESSORIES
iii_i!ii!i_
All-in-1 (Detergent) Tablet Basket
d)
Drain Hose:
1. Drain port connection
2. Quick connect connection
Inlet Hose:
3. Inlet port connection
4. Quick connect connection
Faucet Adapter:
5. Faucet Adapter
6. Faucet washer
Quick Connect:
7. Pressure relief valve
8. Faucet adapter connection
9. Locking collar
10. Inlet hose connection
11. Drain hose connection
Your dishwasher comes equipped with a 'quick connect' assembly (includes inlet and drain hose). The
faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is
included inside your dishwasher. The faucet adapter is compatible with faucets inclusive of either male
(outside) or female (inside) threaded faucet connections.
In order to avoid water pressure build up, please turn off the faucet after each use.

ttenfion:
The installation of the pipes
and electrical equipments
should be done by professionals,
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death
or electrical shock.
Unpacking
Have at least two people to move and install the dishwasher to prevent personal injuries.
Remove all packaging materials: shipping tape, foam pieces, etc. before use. Do not use
sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. Check and
make sure all parts necessary for installation are included. If parts are missing, please
contact Sunpentown at 1-800-330-0388. The dishwasher must be placed on a level and
flat surface that can support the weight when the dishwasher is fully loaded.
Positioning
This dishwasher is designed for countertop installation. The dishwasher is equipped
with water supply and drain hoses that can be positioned to the right or the left
to facilitate proper installation. Make sure water supply/faucet connection is within
reach of the inlet and drain hose assembly (5 ft).
E|ectrical Requirements
Read all safety precautions listed at the beginning of the manual. Make sure the
electrical outlet is within reach of the power supply cord (4.5 ft). It is recommended
to not use receptacles that can be turned on/off by a switch or pull chain.
Refer to the rating label and be sure the voltage and frequency corresponds to the
power supply. Use a dedicated circuit that is rated for l 0 amps.
The dishwasher is equipped with a power supply cord with a 3-prong grounding plug.
The cord must be plugged into a mating 3-pronged wall receptacle. If a mating wall
receptacle is not available, it is the personal responsibility of the customer to have a
properly grounded, 3-pring wall receptacle installed by a certified electrian.

Connecting the Dishwasher
Hose
FaucetAdapter&Washer
Quick Connect
Your dishwasher is equipped with a Faucet Adapter (installed on the Quick Connect),
Quick Connect, Drain and Inlet Hose. The faucet adapter must be installed on the
faucet before connecting the dishwasher.
Remove the Faucet Adatper by pulling back the locking collar
on the Quick Connect; while pulling the Faucet Adapter in the
opposite direction.
Locking Collar
The Faucet Adapter is compatible with either female
(inside) or male (outside) threaded faucet connections:
•If your faucet is "female" type, both rubber washers
must be installed inside the faucet adapter.
•If your faucet is "male" type, use only one rubber
washer. Remove the second rubber washer.
Installing Quick Connect to faucet
Inlet Hose
Drain Hose
Faucet Adapter
Locking Collar
Pressure Relief Valve
Quick Connect assembly

1. Screw the Faucet Adapter onto (or into) the faucet. Check for leaks (use Teflon or plumbers
tape to eliminate any leaks if necessary).
2. Connect the six-sided connection of the Drain Hose to the dishwasher's drain port, located
on back of the dishwasher cabinet. To avoid damage to threads, do not over-tighten.
3. Connect the star-shaped connection of the Inlet Hose to the dishwasher's inlet port, located
on the back of the dishwasher cabinet. Do not over-tighten.
4. Connect the circular connection of the Drain Hose to the longer (bottom) male connection
on the Quick Connect.
5. Connect the circular connection of the Inlet Hose to the shorter (top) male connection on the
Quick Connect.
6. Attach the Quick Connect assembly onto the Faucet Adapter - pull down on the locking collar,
while pushing the Quick Connect assembly upwards onto the Faucet Adapter.
7. Release the locking collar when the Quick Connect Assembly snaps onto the Faucet Adapter.
Verify connection is secure.
8. Slowly turn on the water line and check for any signs of water leak at all connections. If leaks
are located, immediately turn off the water supply and repair hose connections.
•Once you turn on the water supply (even if turned off immediately), the inlet hose will be pressurized.
•To relieve the water pressure (make sure water supply is turned off): press and hold the red
pressure relief button on the Quick Connect until the flow of water stops.
WARN|NG
FAILURE TO RELIEVE WATER PRESSURE, BEFORE DISCONNECTING THE QUICK-CONNECT
FROM THE FAUCET, WILL RESULT IN BACK-PRESSURE OVER-SPRAY. THE TEMPERATURE
OF INCOMING WATER CAN BE VERY HOT, AND BACK-PRESSURE OVER-SPRAY CAN CAUSE
SEVERE BURNS AND/OR SCALDING.
DO NOT LET CHILDREN DISCONNECT THE DISHWASHER; CLOSE SUPERVISION OF
CHILDREN IS ALWAYS IMPORTANT AROUND APPLIANCES.
NOTE:
Hard water conditions will adversely affect the washing performance of your dishwasher. Hard
water conditions will also contribute to 'lime' (white film substance) deposits and/or 'scaling' on the
stainless steel surface of the dishwasher tub and heater element, located in the sump underneath
the removable filter screen. To assist in minimizing these conditions, it is recommended to
periodically operate/rinse the inside of the dishwasher (empty) using 1 cup of white vinegar at least
once a week.
Disconnecting the Dishwasher
1. Turn off water supply at the faucet.
2. Disconnect the power supply cord.
3. Release water pressure inside the inlet hose. Press and hold the red Pressure Relief Valve until
the flow of water stops.
4. Disconnect the Quick Connect assembly by pulling down on the locking collar and release from
Faucet Adapter.

IMPORTANT To get the best performance from your dishwasher, read all operating instructions.
The following things should be checked before using the dishwasher:
rq The dishwasher is level
rq Water (faucet) is turned on
rq There are no leaks at the drain and inlet ports
rq The unit's power plug is connected to a grounded outlet
rq Power is turned on
E] There are no kinks in the drain and inlet hoses
rq All packaging and printed materials are removed from the dishwasher
After installation, please make sure to keep this manual.
2 3 4
O O OOOOOO
O
O O O
Power Program Start/Reset
t t t
1 5 6
Power Button: Press to turn the unit ON/OFF
Power indicator
Rinse-AidWatninglndicater: Indicates the rinse aid needs to be refilled
Program indicators: Indicates the selected wash program
Program 8e|ect Button: Press to select wash program: Heavy->Normal->
Light->Glass->Speed->Soak
Start/Reset Butten: Press to START or PAUSE the dishwasher

Loading the Dishwasher
A properly loaded dishwasher is key for optimal performance. Never overfill the dishwasher as
it can reduce the unit's efficiency. Improper placement of items can also affect the dishwasher's
performance. Position the dishes and utensils so they are secure during the wash cycle and will
not be moved by sprayed water.
This dishwasher is designed to hold 6 place settings:
6 cups 6 saucers 6 dinner plates
6 glasses 6 bowls 6 dessert plates
2 serving dish/bowls 1 large platter 6 sets of utensils
Cups (x6) Serving Dish/Bowl (x2)
Glasses (x6) Saucers (x6)
Bowls (x6) Large Platter (xl)
Dinner Plates (x6) Dessert Plates (x6)
Cutlery basket
Plate racks
The basket is fitted with plate racks which
can be stowed horizontal if required_

Cut|ery Basket
Flatware should be placed in the cutlery basket with handles at the bottom. Knives and
other sharp utensils should be placed with handles up, but make sure the tips do not
extend through the bottom. If the rack has side baskets, spoons should be loaded
individually into appropriate slots. Longer utensils should be placed horizontally on
the cup shelf.
AWARNING!
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
Be sure similar pieces do not nest together.
FOR BEST PERFORMANCE:
•Scrape off food particles before loading.
Soften remnants of burnt food in pans
Place cups, glasses, pots/pans face down.
Curved items, or those with recesses, should be loaded at a slant so water can run off.
Allow sufficient space between items to allow water and detergent to reach each surface.
Ensure glasses and stemware are secure and balanced.
Ensure breakable items are not sitting on metal cutlery which can ship the dishes.
Do not overload the dishwasher.
WARNING
•To prevent damage, do not remove glass and cutlery from the dishwasher immediately
after end of program. Allow the dishware to return to room temperature.
The following items are not suitable for wash in the dishwasher:
•Cutlery with wooden, horn china or mother-of-pearl handles and wooden platters
Plastic items that are not heat resistant.
Older cutlery with glued parts that are not temperature resistant.
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Very small items as they may fall out the basket
Items made from synthetic fibers
The following are of limited suitability:
•Silver and aluminum - tends to discolor after washing
•Glazed patterns may fade

Detergent Dispenser
Use only detergent specifically made for use with dishwashers. Keep detergent fresh and
dry. Do not put powder detergent into the dispenser until you are ready to wash dishes,
which can get damp and not dissolve properly.
The hardness of your water will affect the amount of detergent to use. With hard water,
extra detergent is need to remove deposits left by excessive minerals. Soft water requires
less detergent (too much detergent with soft water can cause permanent cloudiness of
glassware)
DETERGENT TABLETS {A|l-in-t tablets)
Detergent tablets of different brands dissolve at different speeds. For this reason, some
tablets cannot dissolve and develop their full cleaning power during short programs.
If using a detergent tablet, please select a long program to ensure complete removal of
detergent residuals.
Detergent tablets are to be placed in the Tablet Basket and the basket can be hung
anywhere on the top left- above the cup shelves.
ADDING DETERGENT
The dispenser must be filled before start of each wash cycle. Your dishwasher uses less
detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon
of detergent is needed for a normal wash load. After filling, close lid and press until it
locks in place.
A WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
ChamberAcan hold up to 0.5 oz (15g) of detergent
Chamber B can hold up to 0.88 oz (25g) of detergent
NOTE
•Please observe manufacturers dosing and storage
recommendations as stated on detergent packaging.
•NEVER USE HAND DISH DETERGENT!

Rinse Aid Dispenser
The rinse aid is released during the final rinse to help remove spots and prevent film
build-up on your dishes, flatware and cookware, Also improves drying by allowing water
to sheet off the dishes,
ADDING RINSE AID
The rinse aid dispenser is located inside the door, next to the detergent dispenser.
O
1 Make sure the dishwasher door is fully open.
2. Turn the dispenser cap counter-clockwise to the left arrow. Lift and remove cap.
3. Add rinse aid until the indicator window turns completely black - be careful not to overfill.
(The capacity of the rinse aid container is approx. 3.7 oz.)
4. Replace cap by aligning to the "open" (left) arrow and turn clockwise to close.
5. Clean up any spilled rinse aid to avoid excessive foaming in the next wash.
REFiLLiNG RINSE AiD
When the rinse aid container is full, the Rinse Aid
Indicator (next to the cap) will be dark. As rinse aid
diminishes, the size of the dark dot will also reduce.
Do not let the rinse aid fall below 1/4 full:
O Full
@ 3/4 full
@ 1/2 full
® 1/4 full
_ X_i Empty - time to refill to eliminate spotting
Rinse-Aid indicator
Attention!
Only use branded rinse aid for the dishwasher. Never fill the rinse aid dispenser with
other substances such as liquid detergent.
ADJUSTING RINSE AID DISPENSER
The rinse aid dispenser has four settings. It is
recommended to start with the dispenser set at "3".
If spots or poor drying occurs, increase the setting
to "4". If there are sticky whitish stains on dishes or
bluish film on glassware, reduce the setting to "2".
Adjust lever
(Rinse)
10

Wach Cycle Table HO TE: =Rinse-Aid required
Heavy
Normal
Light
Glass
Speed
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while_
Soak
Pre-wash
Pre-wash(122°F)
Wash (131°F)
Wash (122°F)
Rinse
Rinse (149°F)
Drying
18g 100 0A24 14_5
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans_
standard daily cycle_
Pre-wash
Pre-wash
Wash (131°F)
Rinse
Rinse (149°F)
Drying
18g 85 0361 12
For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans_
Pre=wash
Pre-wash (122°F)
Wash (122°F)
Rinse
Rinse (140°F)
Drying
18g 75 0,311 12
For lightly soiled loads, such
as glasses, crystal and
fine china_
Ashorter wash for lightly
soiled loads that do not
need drying_
Pre-wash
Wash(122°F)
Rinse 15g_ 70 0274 9_7
Rinse (140°F)
Drying
Pre-wash
Pre-wash(122°F)
Wash (122°F) 15g_ 45 0233 12
Rinse
Rinse(131°F)
06 To rinse dishes that you Pre-wash /10 0_01 2_5
plan to wash laten
Starting A Wash Cycle
Once the dishwasher is loaded, follow these instructions to start the wash cycle:
1. Ensure the dishwasher is properly connected to power supply.
2. Ensure the water supply is properly connected and is turned on to full pressure.
4. Add detergent and check Rinse Aid is full.
5. Close the door and press the POWER button to turn on the dishwasher.
6. Rotate the knob to desired program: Heavy-> Normal -> Light-> Glass-> Speed ->
Soak.
7. Press the START/PAUSE button to begin the wash cycle.
NOTE: When the START/PAUSE button is pressed during a wash cycle, unit's operation
is suspended and cycle indicator light will stop blinking. During the pause, the unit will beep
every minute until the START/PAUSE button is pressed again and unit resumes operation.
11

Changing the Wash Program
You can change the wash program if the unit just started and only ran for a short time.
Otherwise, detergent may have been released and water drained. If this is the case,
the detergent dispenser must be refilled.
Press and hold the START/PAUSE button for three seconds or more and unit will be in
stand-by state. The program can be changed at this point.
NOTE: If you open the door during the wash cycle, the unit will be paused. After door is
closed unit will resume after l0 seconds.
WARN NG opening the door during wash cycle may result in injury from hot water.
Wash Cycle Indicators show the state of the dishwasher:
•All lights off = Stand by mode
•Program indicator light (any one) steady on = Unit is paused
•Program indicator light (any one) blinking = Operating
Forgot to Add aDish?
Dish can be added any time before detergent is released:
1. Press the START/PAUSE button
2. Open the door slightly to stop the cycle
3. After the spray arm has stopped spinning, open the door fully
4. Add the forgotten dishes
5. Close the door
6. Press the START/PAUSE button and unit will resume operation after 10 seconds
At the End of the Wash Cyc|e
When wash cycle has finished, the dishwasher will buzz for 8 seconds.
1. Turn off the unit by pressing the POWER button
2. Shut off water supply and open the door.
3. Leave the door ajar and wait a few minutes before unloading. This will allow the dishes
to cool and assist in the drying process. Dishes that are still hot are more susceptible to
breakage.
4. Unload the dishwasher. It is normal for the dishwasher to be wet inside.
12

Fi|ter System
The filter system consists of a Coarse Filter, a Fine Filter and a Main Filter. The filter
system prevents large remnants of food or other objects from getting inside the pump.
1, Main Fimter
Food and soil particles trapped by this filter are pulverized by
a special jet on the spray arm and washed down the drain.
2, Fine Fimter
This filter holds soil and food residue in the cylindrical base
and prevents it from being redeposited on the dishes.
3, Coarse Fimter
Larger items, such as pieces of bone or glass, that could
block the drain are trapped in the coarse filter. To remove
items caught by this filter, gently squeeze the tap on the
top of the filter and lift out.
Filter Assembly
The filter efficiently removes food particles so the wash water can be recycled during a
wash cycle. For best performance and results, the filter assembly must be cleaned
regularly. It is recommended to remove the larger food particles trapped in the filter after
each use by rinsing the filter assembly under running water.
To remove filter assembly:
1. Turn the Fine Filter counter-clockwise.
2. Pull upwards
3. Lift the Main Filter up
Reassemble in reverse order = make sure the Fine Filter
is properly seated.
WARNING!
Inspect the filters after each use.
Never run the dishwasher without filter assembly in place.
Improper placement of the filter or damaged filter may reduce
the unit's performance and may cause damage to dishes
and/or utensils.
The entire filter assembly should be cleaned at least one a week.
C|eaning the Fi|ters
Use a soft cleaning brush or old toothbrush to clean the Coarse and Fine Filters.
When cleaning the filters, don't knock or bang them to remove residues, this could contort
the filters and reduce performance of the dishwasher.
13

Cleaning the Dishwasher
The control panel can be cleaned by using a slightly dampened cloth. Dry thoroughly
with a soft towel.
The exterior can be wiped with a towel and mild detergent solution. Wipe clean and
follow with a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Cleaning the Door
Use only a soft, damp cloth with warm water to clean the edge
around the door. To avoid penetration of water into the door lock
and electrical components, do not use spray cleaner of any kind.
Clear|ing the Spray Arm
The spray arm can be easily removed for periodic
cleaning of the nozzles to prevent possible clogging.
Remove the spray arm by grasping the middle
and pull upwards. Wash the spray arm under running
water and carefully reinstall making sure the rotary
movement is in no way impeded.
WARNING Abrasive agents and some paper towel may scratch or leave spots on the
stainless steel surface.
Protect Against Freezing
Please take frost protection measures during the winter months. Please follow these
procedures after each wash:
1. Turn off the dishwasher.
2. Turn off water supply and disconnect water inlet hose from the back of the unit.
3. Drain water from the inlet hose and inlet port- use a pan to catch the water.
4. Reconnect the water inlet hose to inlet port.
5. Remove the Filter System and use a sponge to absorb the water in the sump.
NOTE: if your dishwasher cannot operate due to ice, please contact professional service.
14

Keeping Your Dishwasher in Shape
After Every Wash
Turn off the water supply and leave the door slightly open so moisture and odors are
not trapped inside
No Solvents or Abrasive Cleaners
Never use abrasive cleaners or solvents to clean the dishwasher. Only use a dampened
soft towel with warm water. To remove spots or stains on the interior surface, you may
use a cloth dampened with water and a little white vinegar.
Clean the Door Seals
Food that gets trapped in the seals may cause odors to form. Periodic cleaning with a
damp sponge will prevent this from occuring.
Clean Filters Regularly
Clean the filters regularly to prevent clogs and odors.
Moving the Dishwasher
If the dishwasher must be moved, try to keep it in the upright position. Never position
the dishwasher on its side or upside down.
Preparation for Storage
It is recommended you run a wash cycle with the dishwasher empty. Disconnect from
power and turn off the water supply. Remove any water remaining in the sump area
with a sponge. Leave the door slightly open. this will help the door seals to last longer
and prevent odors from forming inside the dishwasher.
15

Review the troubleshooting guide below to resolve common issues:
ISSUE POSSIBLE CAUSE WHAT TO DO
Fuse is blown or circuit breaker is Replace fuse or reset drcuit breaker.
Remove any other appliances shanng
tripped the same circuit
Dishwasher does not
start Power supply is not turned on
Make sure dishwasher is turned on and
door is closed securely.
Make sure the power is properly
connected
Dishwasher door is not properly Close the door and make sure the door
closed latches
Kink in drain hose Check drain hose
Water not pumped Filter clogged Check and clean filters
from dishwasher
Ensure kitchen sink is draining well.
Kitchen sink clogged Contact a plumber if sink is not draining
Suds in tub
Stained tub intedor
White film on
dishwasher intedor
surface
Rust stains appear on
cutlery,
Knocking noise inside
the dishwasher
Rattling noise inside
the dishwasher
Improper detergent
Spilled rinse=aid
Detergent used contains colorant
Hard water minerals
Items are not non=corrosive
Spray arm is knocking against an
item in the basket
Items are not securely placed in
dish rack
This may be caused by on=site
installation or the cross=section of
the piping
Knocking noise in
water pipes
Use only specified detergent for
dishwasher use. If improper detergent
was used, open the dishwasher and
allow suds to evaporate. Add 1 gallon of
cold water to the tub. close door and
start the SOAK cycle to drain water.
Repeat if necessary'.
Always clean up rinse=aid spills
immediately.
Do not use any detergents with
colorants.
Clean the interior with a damp sponge
and dishwasher detergent and wear
rubber gloves. Never use any other
cleaner for risk of foaming or suds.
Do not place non=dishwasher safe items
in the dishwasher.
Pause the wash cycle and rearrange
items which are obstructing the spray
arm.
Pause the wash cycle to rearrange and
secure items.
Contact a plumber. This is not related to
the dishwasher.
16

ISSUE POSSIBLE CAUSE WHAT TO DO
Dishes were not properly loaded Reload dishes properly°
Selected wash cycle was not Select a more intensive wash cycle°
powerful enough
Dishes are not
cleaned Not enough detergent Use more or change brand of detergent°
Items are blocking the path of the Rearrange items so the spray arm can
spray arm fully rotate°
The filters are dirty/clogged or Clean the filter and/or check installation.
installed incorrectly
Combination of too much detergent Use less detergent and/or select the
Cloudiness on with soft water shortest wash cycle to clean glassware°
glassware The filters may be dirty or clogged Clean filters and/or check installation.
Black or gray marks Utensils may have rubbed against Use a mild abrasive cleaner to eliminate
on dishes dishes marks° Load more carefully°
Detergent left in Dishes blocked the detergent cup Re-load dishes properly°
dispenser cup
Improper loading Re-load dishes properly°
Not enough rinse-aid Refill the rinse aid.
Dishes are not dry Dishes were removed too soon Do not remove dishes from the
dishwasher immediately after wash°
Short cycles have lower cleaning
Wrong cycle selected performance° Choose a more intensive
cycle°
Dishes/cutlery have low-quality Water drainage is more difficult with
coating these items. Dishes/cutlery of this type
are not suitable in this dishwasher°
INDICATION
The Soak program indicator
light flickers rapidly
The Glass program Indicator
flickers rapidly
MEANINGS
Restricted water inlet
Overflow
POSSIBLE CAUSES
Water supply is not turned on or
restricted; or water pressure too low
Some element of dishwasher leaks°
If overflow occurs, turn off the main water supply before calling for service.
If there is water in the base pan due to an overfill or small leak, the water should be removed
before restarting the dishwasher.
17

Number of place settings 6
Maximum diameter of dishware 10.5 inches
Cycles 6
Max water temperature 140°F
Water pressure 0.04-1.0MPa
Water consumption (normal cycle) 3.8 gallons
Power supply see rating label
Noise level 55dB
18
