Squareled Hi-Precision 200W RGBW User manual

①
Squareled
Hi-Precision
200W RGBW
User Manual

②
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person. The device shall only be used
with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
CAUTION
Becareful with your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wires!
1
IMPORTANT
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.

③
Unpacking
Thank you for choosing SQUARELED Hi- Precision 200W RGBW. For your own safety, please
read this manual before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual well for future needs.
The SQUARELED Hi- Precision 200W RGBW is made of a new type of high temperature strength
of die cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly
following CE & RoHS standards, complying with international standard DMX512 protocol. It's
available independently controlled and linkable with each other for operation. And it is applicable
for large-scale live performances, theater, studio, nightclubs and discos.
The SQUARELED Hi- Precision 200W RGBW adopts 1PCS 200W COB LED (available for
RGBW) which features high brightness and stability. Please carefully unpack it when you receive
the fixture and check whether it is damaged during the transportation. And please check whether
the following items are included inside the box:
①
Plug standard: USA EURO UK
⑤
①Hi-Precision 200W
1PC
②DMX cable
1PC
③POWER cable
1PC
④POWER OUT
1PC
⑤User Manual
1PC
2
③
②
Optional
plug
③
④
①4眼观众灯
1PC
②信号线
1PC
③电源线
1PC
④电源输出接口
1PC
⑤说明书
1PC

④
FEATURES & SPECIFICATIONS
Feature：
*1*200W COB LED (RGBW)
*50,000 hours life time and low power consumption
*Color Rendering Index(CRI): Ra≥90
*Optimized high definition optical system for improved photometric performance and field uniformity
*Projector-quality, high contrast aspheric lens
*Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than
95% of visible light
*Beam Angle: 12°to 30° or 25°to 50°(Manual Zoom)
*Die casting aluminum housing design
*4 Metal spot cutting slots
*4 kinds of dimming curve
*Dimming Frequency: 500HZ - 25000HZ optional
*Strobe :1-25times/sec
*High-quality optical system , glass reflector
*4/7 DMX channels
*Control Protocol: RDM / DMX , Auto run and Master/Slave control system
*LCD with touch screen
*Low noise fan integrated with copper liquid cooling system
*IP20 protection rating

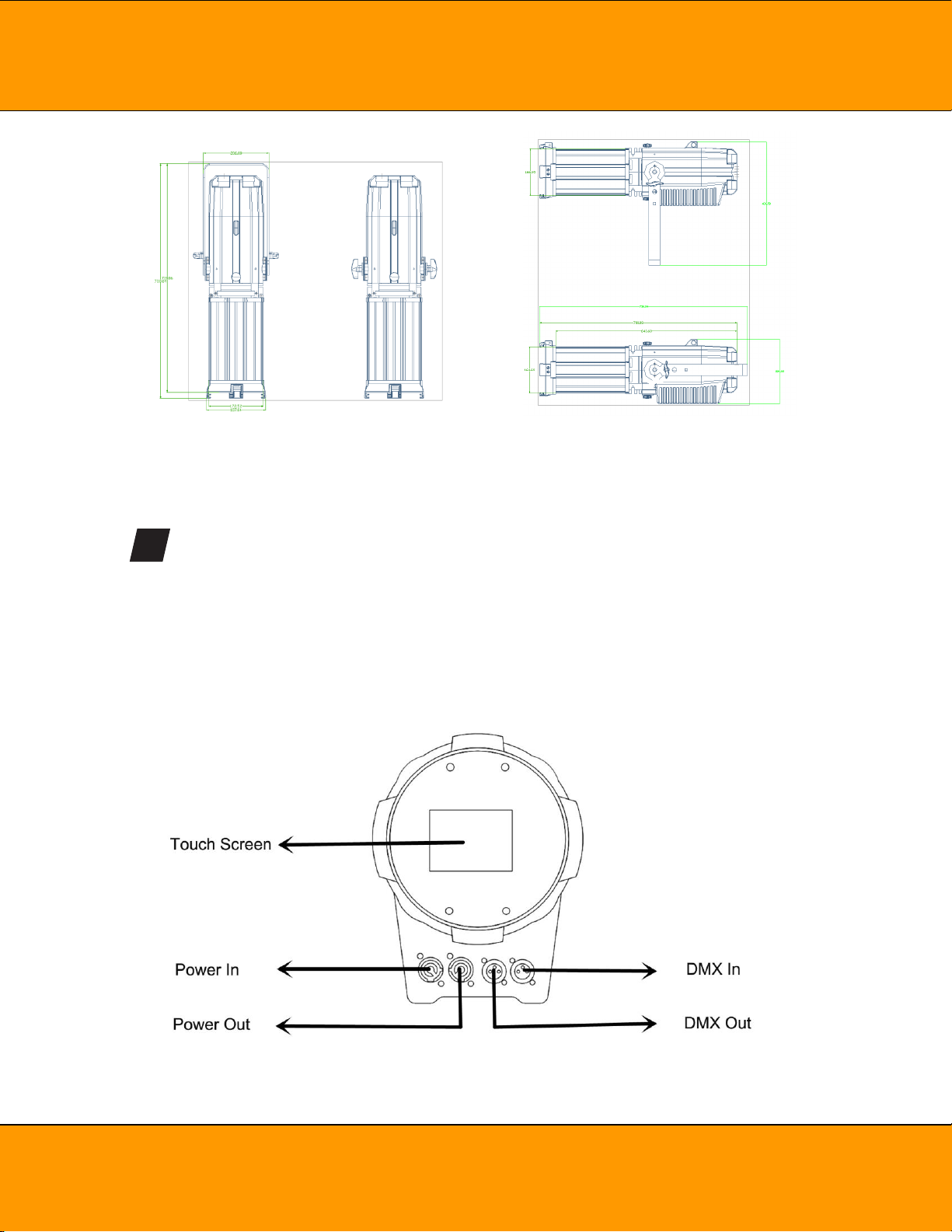

Specifications：
*Input Voltage:AC100-240V 50/60Hz
*Power Consumption:250W
*Dimensions: 738(D)*296(W)*166(H)mm
*Packing List: 980(D)*300(W)*310(H)mm
*Net Weight: 10.5kg
*Gross Weight: 12kg
3

⑤

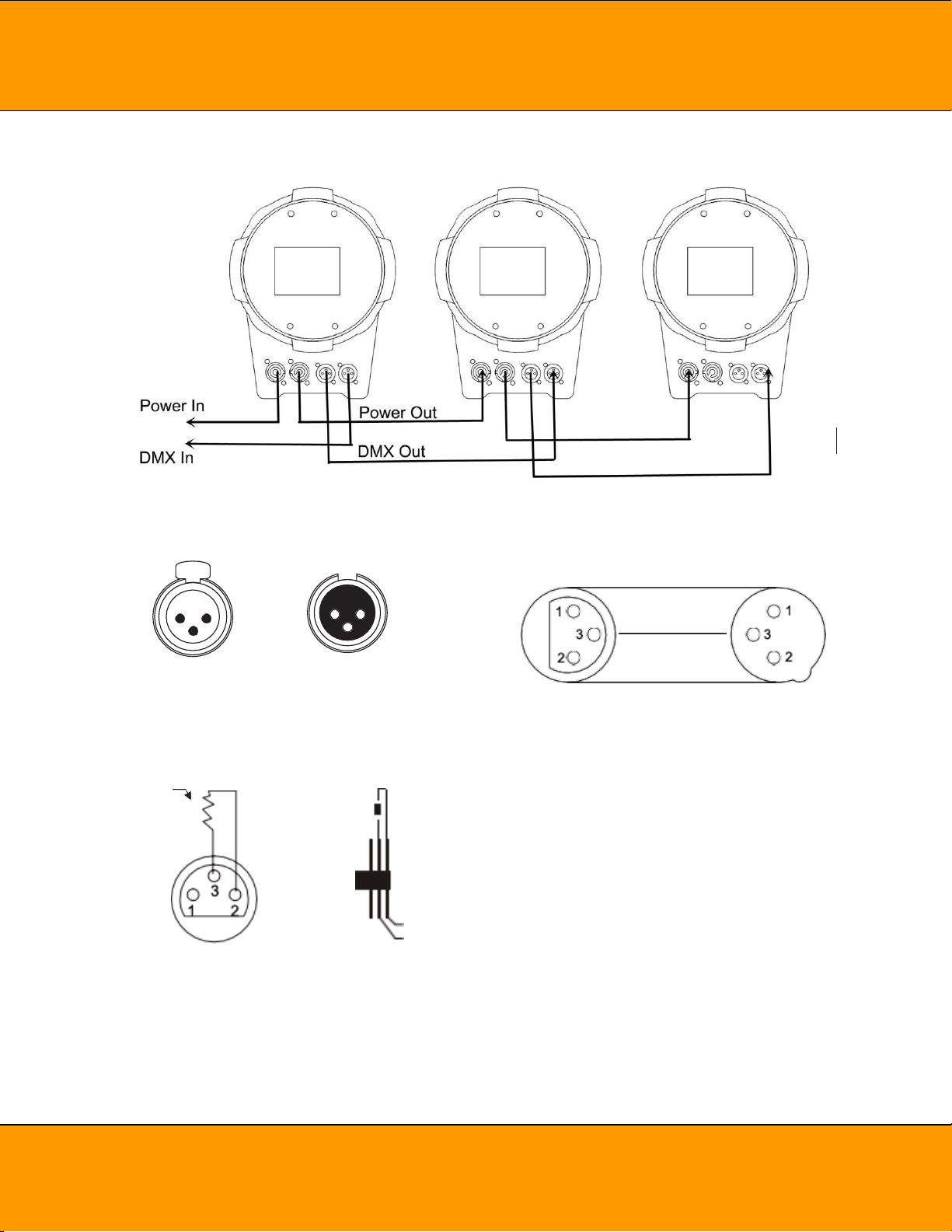

DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator
211
4

⑥
DMX Output DMX Input
3-Pin XLR 3-Pin XLR DMX512 Out DMX512 In
3-Pin XLR 3-Pin XLR
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps
in preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then
plugged into the output XLR socket of the last fixture in the chain. Please see illustrations
below.
2 1
3
1 2
3
1:Ground
2:Data(-)
3:Data(+)
COMMON
DMX+
DMX-
120Ω
Pin2
Pin3

⑦
Product Feature
2 kinds of running model
External control mode (Slave model)
DMX 512 controller control(2 kinds channel modes)
Master/salve model control (auto match the signal from controller and the Master
light, no need to set by menu)
static mode (Master model)
It can fix any color without the controller ,also work this color with strobe
Non-linear dimmer and linear dimmer
The speed of dimmer can be set under the controller control
Screen Protect
It will enter blank screen without any operate on the keyboard in 30 seconds . Press any
keys then it can quit screen protection.
Temperature Protection
It can be set to temperature protection mode
Speed of the Fan
The fan will start to work when the working temperature reach 40 degree, and the speed
will be changed according to the change of temperature.
Can be Reverse display
Multi-light working in the same time
When using controller to control multi lights to work in strobe, the controller just send the
channel data . The strobe effect will be depend on each light itself . And please take attention for
the follow situation:
1. There will be many situations make the lights are not synchronization in the beginning. (For
example: the different time of opening the light , or different time of them connect to the
controller) .In this case, you can change value of the controller( for example push 20 to 0, and
back to 20), then it can be synchronization.
2. Due to crystal frequency of different lights are not the same exactly, so it may not be
synchronization after long time.
3. If need to keep synchronization for long time, there are two ways to do so:
A. Using the controller to edit program make the strobe, auto run effect ,then they must be
synchronization.
B. Using the Maser/Slave model
5

⑧
Main Menu

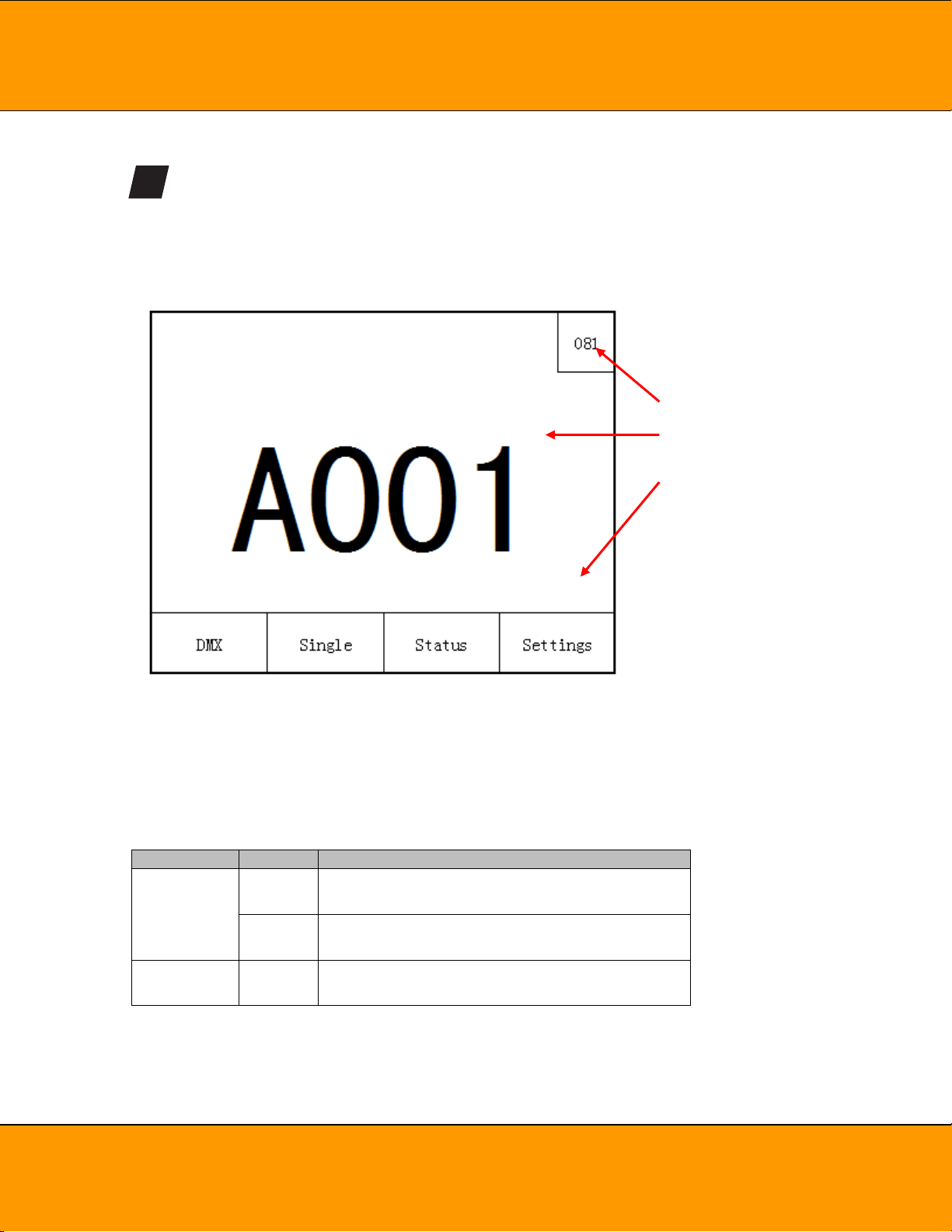

6.1 Main Menu
6.2 Operation Status
Mode
Display
Description
DMX Mode
Axxx
“A”stand for standard channel mode,，“xxx”stand
for ID address
Dxxx
“D”stand for basic channel mode，“xxx”stand for ID
address
Manual
Mode
S-MC
“S”stand for stand alone mode ，“MC”stand
for“Mixed Color”
3
1 2
6
Reverse Display
Running Status
Vice Menu Button

⑨
Vice Menu
DMX Settings
Menu
Operation
Option
Description
DMX Start Address
Press key of “OK” enter to
edit mode, press “UP”
and ”down” to edit the DMX
address
1~512
DMX Profile
Press key of “OK” change
the DMX channel mode
7CH
Standard Channel Mode
4CH
Basic Channel Mode
Single Mode Choice
Menu
Operation
Vice Menu description
White Point
Press Key of “OK” to choose mode
Choose color temperature
Quick Color
Same as before
Choose inner setting color
Mixed Color
Same as before
Choose the color and strobe setting
Status
Menu
Description
Software
Name of software
Version
Version
Temperature
Show the temperature of lighting fixture
DMX Status
With“OK”（Slave mode，with signal），“NONE”（Slave mode，no signal）、 “Alone”（
alone）
7

⑩
Settings
Menu
Operation
Option
Description
Touch Screen Calibration
Touch screen
adjust
Dimmer Frequency
Change the
dimmer
frequency
500HZ
……
Each 100HZ for increase
or decrease
25000HZ
Dimmer Curve
Change dimmer
curve
Standard
Incandescent
Linear
Quick
Over Temperature
Temperature
setting
45~95
Each 5 for increase or
decrease
Backlight
Adjust the display
brightness
10%~100%
Each 5% for increase or
decrease
Backlight Timeout
Screen protect
setting
No screen protect or black
screen from 0~ 60 second
Each 5 for increase or
decrease
Load Factory Settings
Reset

11
DMX CHANNELS
Standard channel mode(7CH)
channel
data
function
mark
1
0~255
dimmer
2
0~255
color 1
3
0~255
color 2
4
0~255
color 3
5
0~255
color 4
6
0~10
no effect
11~25
5
speed of strobe (255 is the
fastest)
7
0~9
Empty
10~19
Auto run
……
Auto run 2-7
each 10 data is a program
80-89
Auto run 8
90-19
9
Empty
200-2
19
sound control1
220-2
55
sound control2
Basic channel mode(4CH)
channel
data
function
1
0~255
Color 1 (red)
2
0~255
Color 2 (green)
3
0~255
Color 3 (blue)
4
0~255
Color 4 (white)
8

12
OPERATION & SPECIFICATIONS
·The SQUARELED Hi- Precision 200W RGBW is an LED wash light for on-site decoration
purpose.
·Don't turn on the fixture if it's been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
·This light should be keep away from strong shaking during any transportation or movement.
·Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
·Don't expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don't lay any power cables on the floor. Or it might cause electronic shock to the people.
·Make sure the installation place is in good safety condition before installing the fixture.
·Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
·Make sure the lens are in good condition. It's recommended to replace the units if there are any
damages or severe scratch.
·Make sure the fixture is operated by qualified personnel who knows the fixture before using.
·Keep the original packages if any second shipment is needed.
·Don't try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
·It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
INSTALLATIONS
For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas
were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device's weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.

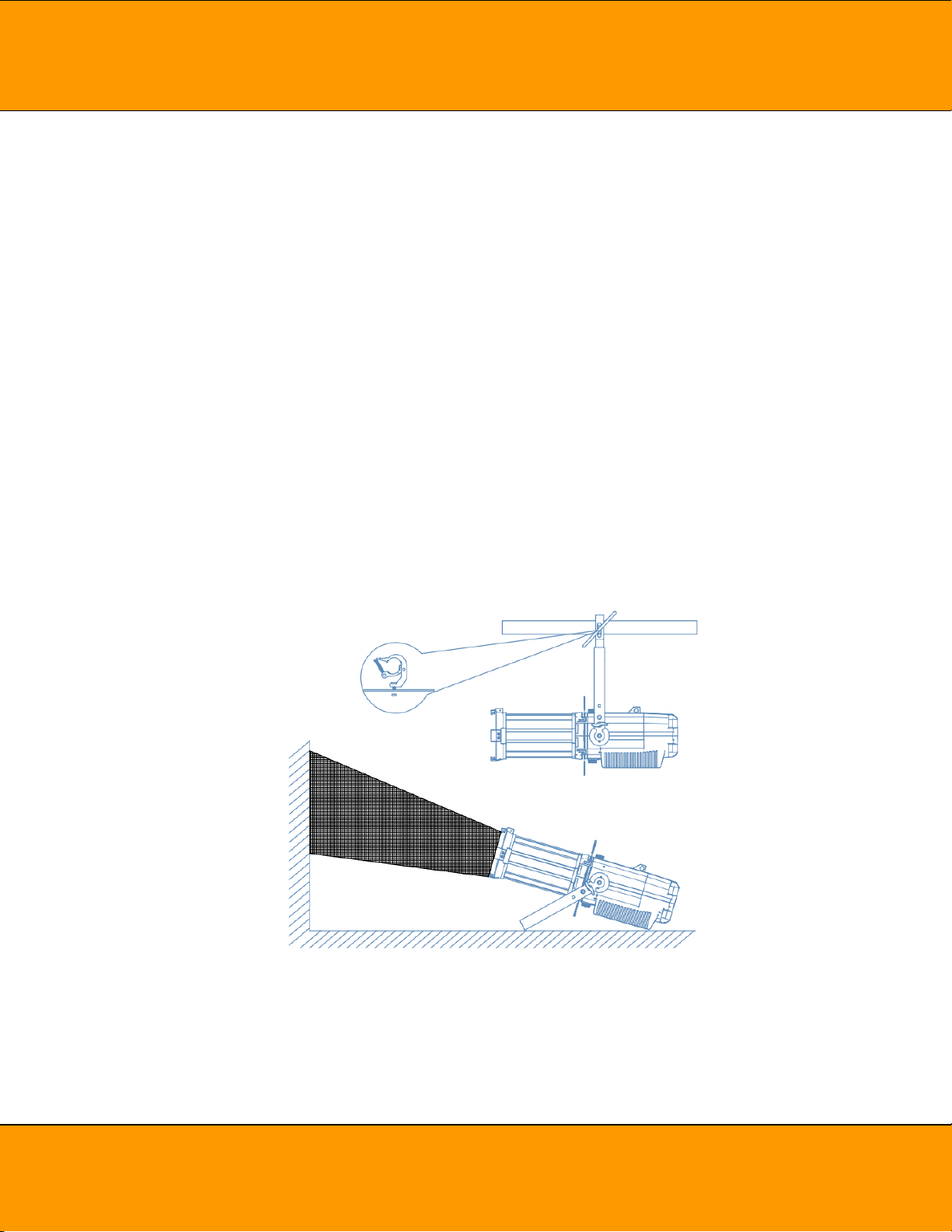

From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
9
10

13
Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half
cheeseboro. A safety chain or cable should also be used as a secondary point of holding the
fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable.
There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded
through and then hung from the secondary point. Make sure the Gel frame (Gel holder) is clipped
into position correctly and cannot come loose.
If you are not qualified or have any doubts about hanging the led profile spotlight then do NOT
hang it.
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
A secondary safety point is any point that will adequately hold the led profile spotlight if the "C"
clamp or half cheesboro fails.
Then the safety cable would be the backup and stop the fixture from falling to the ground. So do
NOT fix the safety cable to the same place that the "C"clamp is attached
Safety Clamp
Safety Cable
Floor Projection

14
Cleaning and maintenance
Now ignoring maintenance and cleaning is very good way of creating problems "down the road"
and many companies and installations do just that. However the net result is, no matter what the
fixture, premature failure!
Changing the oil in a car, most people do on a regular basis.
So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last.
So what is the maintenance for the fixture?
Clean the fans!
Turn off the led profile spotlight.
Using a small vacuum cleaner, suck the dust and “fur balls” out.
Do not use a can of co². That will just blast the dust and dirt everywhere!
The fans keep the LED cool and keep the electronics cool too.
Without the fan working efficiently and dust free, the fixtures will fail and that will be a lot more
costly than having someone
vacuum the fixtures on a regular basis.
How often should the fans be cleaned? It depends on where the fixtures are; in a very dusty
atmosphere once a week. So
check the fans on a regular basis, they may not need cleaned every week but a quick “visual
inspection” should be done.
The front lens should be cleaned so the light output is maintained.
The shutter blades sometimes require cleaning as well.
With the led profile spotlight turned off, use only a moist lint-free cloth. Never use alcohol or
solvents to clean the fixture.
Never spray anything onto the fixture at the front or in any place on the fixture.
11
