Squareled CW/WW User manual

User Manual: Squareled CW/WW 220W Led Video Softlight

1
IP20
SQUARELED
CW/WW 220W LED Video Softlight
User Manual

2
SAFETY INSTRUCTIONS
CAUTION
Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person. The device shall only be used
with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
1
IMPORTANT
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.

3
Unpacking
Thank you for choosing our 220W LED Video Panel Light. For your own safety, please read this
manual before installing the device. This manual covers the important information on installation
and applications. Please install and operate the fixture with following instructions. Meanwhile,
please keep this manual well for future needs.
The 220W LED Video Panel Light is made of a new type of high temperature strength of cast
aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE
standards, complying with international standard DMX512 protocol. It's available independently
controlled and linkable with each other for operation. And it is applicable for large-scale live
performances, theater, studio, nightclubs and discos.
Please carefully unpack it when you receive the fixture and check whether it is damaged during
the transportation. And please check whether the following items are included inside the box:
① 220W PANEL 1PC
②Signal Cable 1PC
③Power Cable 1PC
④User Manual 1PC
③
2

FEATURES & SPECIFICATIONS
Features
•1920PCS premium quality and high CRI LED (Cool White+Warm White)
•Accurate color temperatures tunable from 3000K to 6000K
•50,000 hours life span and low power consumption
•Color Rendering Index(CRI): Ra≥95
•Flat and even projection with soft edge
•High intensity, long throw and 180° wide field angle
•Housing made by rugged, die cast aluminum alloy
•Thermally insulated knobs and single aluminum handle for installing
•Barn door included
•Tripod stand as optional
•Superior free noise thermal cooling system
•0-100% Smooth and precise linear dimmer
•2 Individual dimmer knows to adjust color temperatures
•No noticeable color shift throughout the entire range
•Flicker-free at any frame rate or shutter angle
•25T/sec high speed shutter/strobe effect with variable speed
•Preset variable/random strobe and dimming pulse effect
•2DMX channels USITT DMX-512
•DMX, Auto run and Master/Slave
•LCD with touch screen
•3-Pin connectors IN/OUT
•-30-40°C Max ambient temperature
•IP20 protection rating
Specifications
M
D8.6*9.17cm
P14.5cm(1pc/carton)
N
G
3
Net Weight: 9.5kg

5

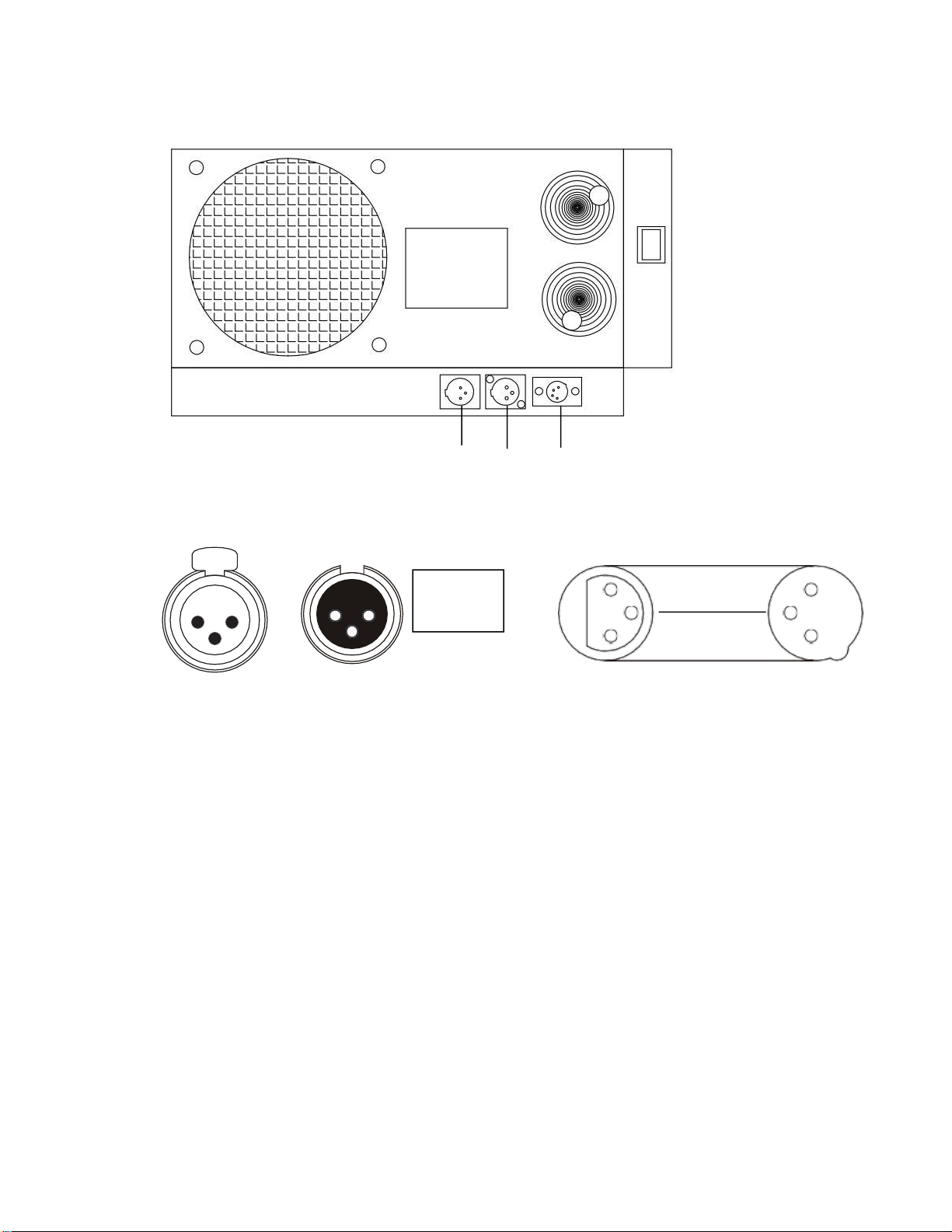

PRODUCT STRUCTURE:：
DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator
4
5

6
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
1 2
3
2 1
3
DMX OUT
3-Pin XLR Socket
DMX IN
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data
(
+
)
DMX+
DMX-
COMMON
DMX512 OUT
3-Pin XLR
DMX512 OUT
3-Pin XLR
DMX IN DMX OUT POWER IN

7
MENU OPERATIONS
1. Main Menu
1.1. Main Menu
1.2. Operation Status
Mode Display Description
DMX Mode Dxxx “D”stand for DMX mode
Temperature
Mode
M-WP “M”stand for stand Master, “WP”stand for“White
Point”
120 Ω
PIN3
PIN2
Reverse Display
Running Status
Vice Menu Button
6

8
2. DMX Menu & Channel data
3. DMX menu
Enter DMX mode:
1. If you are in DMX mode,the main menu will turn into DMX menu automatically after 5
seconds
2. Menu of DMX address (DMX mode) will turn into DMX menu automatically after 5
seconds
Quit DMX mode
1. Screw mode: Press knob 2.
2. Touch mode: Touch any area out of “DMX”in DMX menu (press “DMX”is enter
the menu for setting DMX address)
DMX Menu Operation:
1. DMX mode: When the DMX 512 signal is connected correctly and the data of channel
1 which is bigger than 0, use the received DMX data value for dimmer and temperature
control (See the channel data sheet). This moment knob 1 and knob 2 can not be used in
dimmer; knob 1 only use for menu operation. For example, Changing the DMX address:
press knob 1 to enter or exit the editing status. (Turn left or right for changing the dmx
address)
2. Screw mode: When disconnect DMX signal or the channel 1 data is 0, can use knob 1
for the dimmer, knob 2 for color temperature.

4.Vice Menu
e
nutateperation ity Dimmer（0~100%） Press knob 1 to enter or exit the editing of address
data. (Turn left or right for changing the data)
White Point Color temperature（3000~6000K）
enutateptionark creen Calibration Touch Screen
Calibration
Dimmer Frequency Choose the
dimmer frequency
500HZ
…… Increase or decrease
with data of 100HZ
25000HZ
Dimmer Curve Choose the
dimmer curve
Standard
Incandescent
Linear
Quick
Over Temperature Set the protect
temperature
45~95 Increase or decrease
with data of 5
Backlight Adjust the
Backlight
brightness
10%~100% Increase or decrease
with data of 5%
Backlight Timeout Set the screen
protect time
screen protect or screen
protect after 5~60 seconds
Increase or decrease
with data of 5
Load Factory Settings Reset

10
5.Operation
5.1 Screw operation
For example of “changing the brightness under the master mode”
1. In main menu, turn the knob 1 and choose “Master”, press knob 1 for enter.
2. In the menu of “white point”, turn the knob 1, choose the “Intensity”
3. Press knob 1 enter editing status.
4. Turn knob 1 for choosing the brightness (Long press for increase or decrease
continuously)
5. Press knob 1 exit edit status.
Channel data
hannelataunctionarkhannel2datamnemonic 0 Screw Mode Knob 1 is for dimmer
1~255 Dimmer
2 0~11 3000K Color temperature 1 8 = 1*8 Totally 31 kinds of color
temperature.
Quick color: If you need
the color of N, then take
the data value of N*8. For
example you need the
color 1: 1*8, to push the
channel data in 8.
12~19 3100K Each 8 data is for a
color temperature
16 = 2*8
20~235 3200K~5800K (V = N*8)
236~243 5900K 240 = 30*8
244~255 6000K Color temperature 31 248 = 31*8

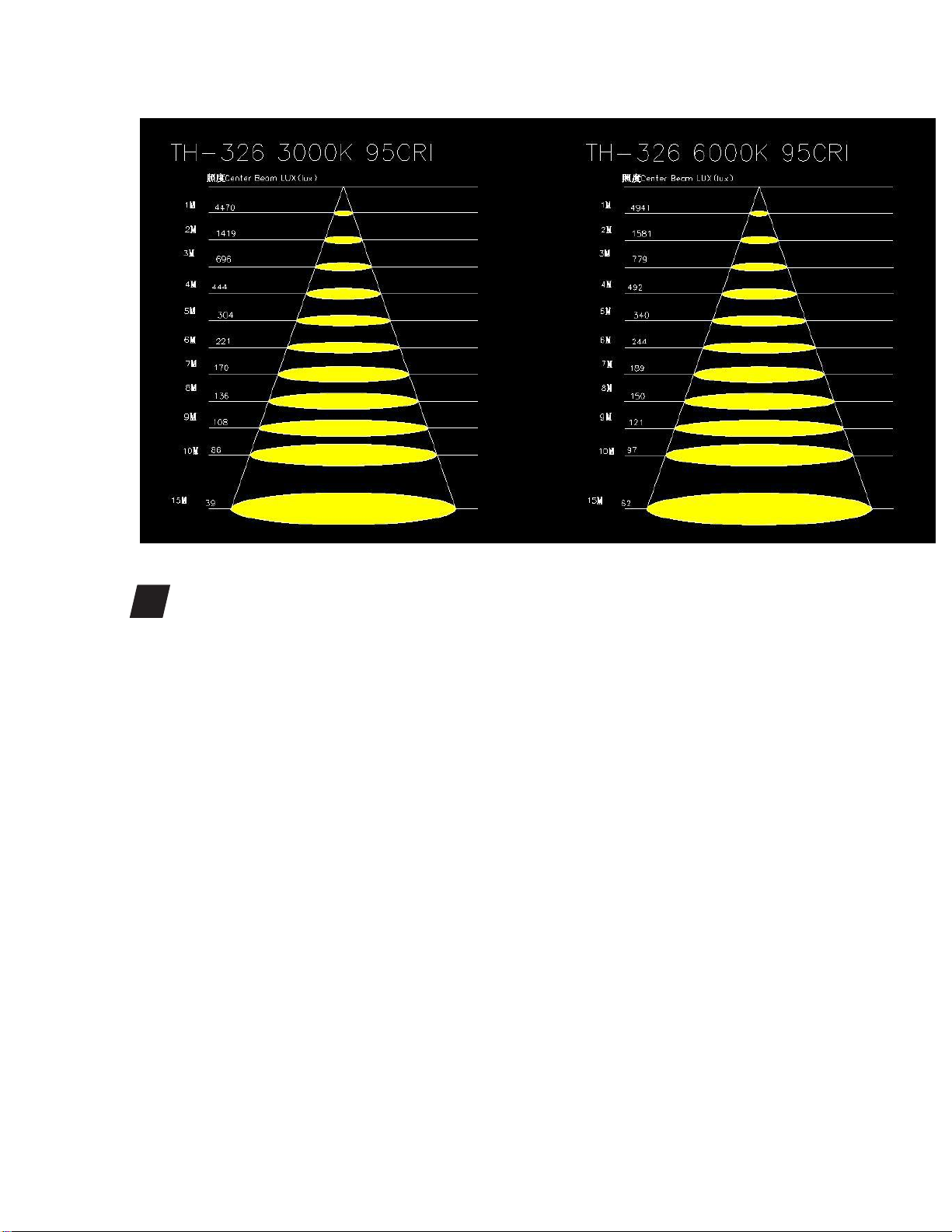

Photographic Chart
Ra
≥
7
8

11
OPERATION INSTRUCTION
·The 220W LED Video Panel Light is an LED light for on-site decoration purpose.
·Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
·This light should be keep away from strong shaking during any transportation or
movement.
·Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
·Don’t expose the fixture in overheat, moisture or environment with too much dust when
installing it. And don’t lay any power cables on the floor. Or it might cause electronic
shock to the people.
·Make sure the installation place is in good safety condition before installing the fixture.
·Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
·Make sure the lens are in good condition. It’s recommended to replace the units if there
are any damages or severe scratch.
·Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
9

12
·Keep the original packages if any second shipment is needed.
·Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
·It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp
broke, etc.
INSTALLATIONS
Cautions: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel. Before
mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as
an appropriate safety cable.

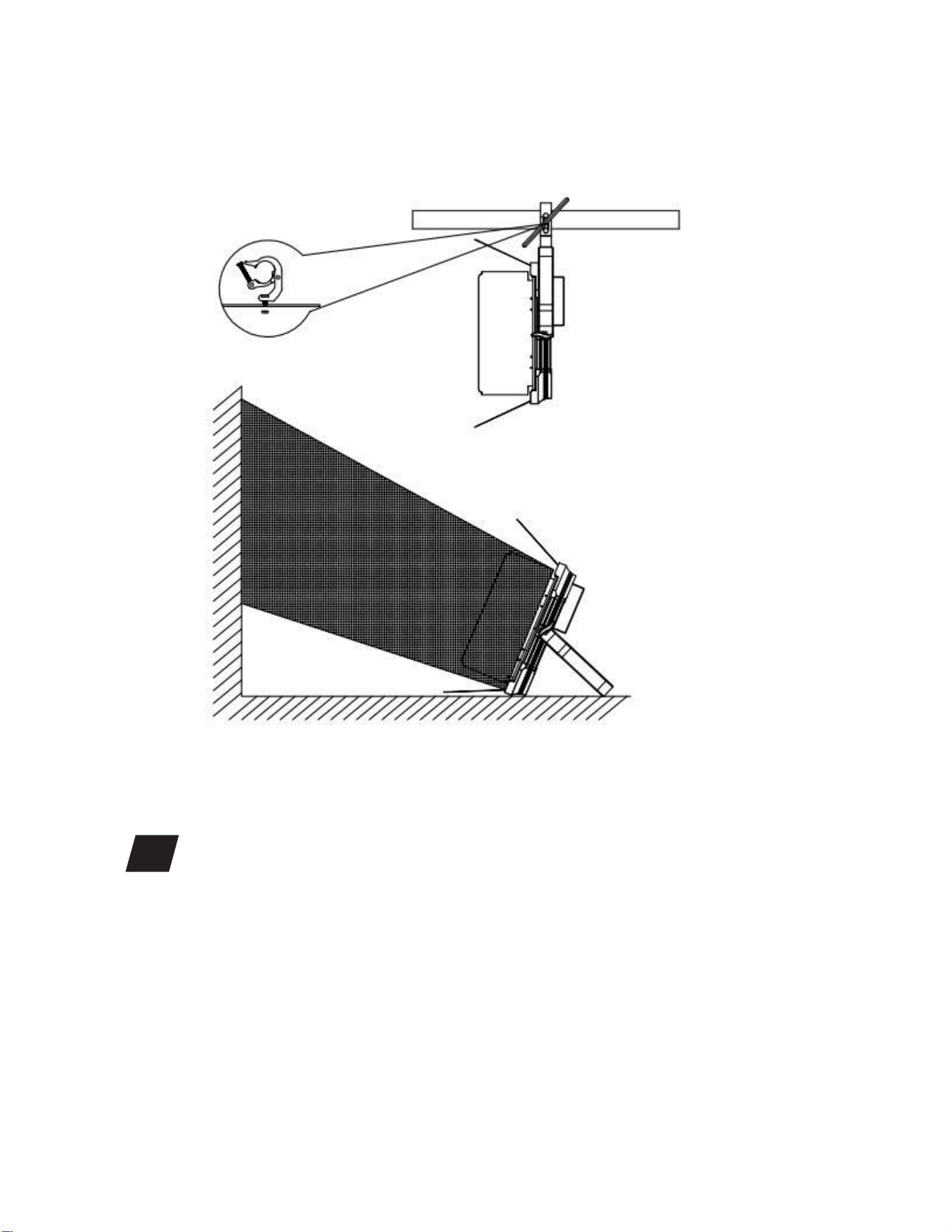

Never stand directly below the device when mounting, removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.). Always
use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including amongst
others calculating working load limits, a fine knowledge of the installation material being
used, and periodic safety inspection of all installation material and the fixture. If you lack
these qualifications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The 1920pcs * 0.2W LED Video Panel Light provides a unique mounting
bracket assembly, and the safety cable rigging point in one unit (see the illustration
below). When mounting this fixture to truss be sure to secure an appropriately rated
clamp to the handle using a M10 screw fitted through the center hole of the handle. As an
added safety measure be sure to attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point.
10

13
Cleaning and maintenance
Now ignoring maintenance and cleaning is very good way of creating problems "down the
road" and many companies and installations do just that. However the net result is, no
matter what the fixture, premature failure!
Changing the oil in a car, most people do on a regular basis.
So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures
to last.
So what is the maintenance for the fixture?
11

14
Clean the fans!
Turn off the led video panel light.
Using a small vacuum cleaner, suck the dust and “fur balls” out.
Do not use a can of co². That will just blast the dust and dirt everywhere!
The fans keep the LED cool and keep the electronics cool too.
Without the fan working efficiently and dust free, the fixtures will fail and that will be a lot
more costly than having someone
vacuum the fixtures on a regular basis.
How often should the fans be cleaned? It depends on where the fixtures are; in a very
dusty atmosphere once a week. So
check the fans on a regular basis, they may not need cleaned every week but a quick
“visual inspection” should be done.
The front lens should be cleaned so the light output is maintained.
The shutter blades sometimes require cleaning as well.
With the led video pane light turned off, use only a moist lint-free cloth. Never use alcohol
or solvents to clean the fixture.
Never spray anything onto the fixture at the front or in any place on the fixture.

Das Lichttechnikhaus Vertriebs GmbH
Rudolf-Diesel-Str. 3, D-89312 Günzburg
Telefon [phone]
Fax [phone]
E-Mail [email protected]
Web www.lth-gmbh.de
