Stage Right Party Wash FX 1-Watt x54 LED (RGB)
with Pie Control
P/N 612970
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Ensure that there are no flammable materials within about 3 feet of this device.
Ensure that there is at least 20 inches of ventilation space around this unit.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.

3
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Ensure that power is turned off and disconnected before making any electrical
connections.
Remove the battery from the controller if it will go unused for a lengthy period of
time.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
Avoid direct eye exposure to the light from this device.
Do not connect this light to a dimmer pack.
INTRODUCTION
Thank you for purchasing this Stage Right Party Wash light! This light uses fifty-four 3-watt
RGB 3-in-1 LEDs. It features DMX512 control using 4, 8, 11, or 23 channels, as well as several
built in automated color changing programs. The LEDs are arranged as a series of six pie-
shaped wedges, each of which can be addressed individually in the 11-channel and 23-
channel DMX modes.
FEATURES
Fifty-four 1-watt RGB 3-in-1 LEDs
DMX512 control using 4, 8, 11, or 23 channels
Six individually controllable, pie-shaped wedge sections composed of 9 LEDs each
Built in automated color changing programs, including sound activated and wedge
cycling with speed control and color selection

4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Stage Right Party Wash Light
1x User's Manual
CONTROLS AND MENU DISPLAY

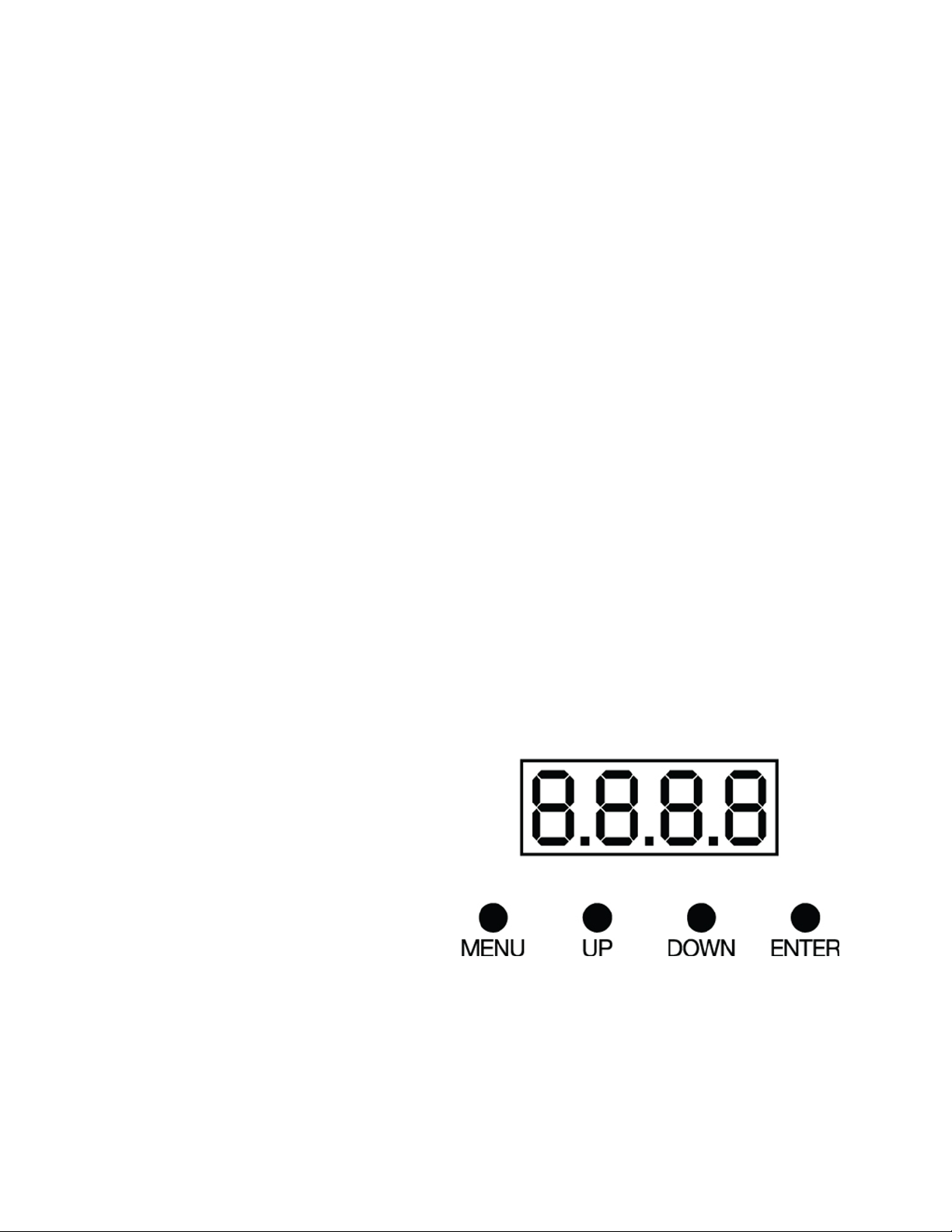

The 4-digit LED display indicates the mode and the value for the selected mode.
Press the MENU button to cycle
through the various modes and
functions. Any changes to the
displayed value for a particular
mode will be saved when the
MENU button is pressed.
Press the UP button to increase
the displayed value of the selected mode.
Press and hold the UP button to rapidly increase the displayed value. The list will
cycle back to the beginning after the maximum value is reached.
Press the DOWN button to decrease the displayed value of the selected mode.

5
Press and hold the DOWN button to rapidly decrease the displayed value. The list
will cycle back to the end after the minimum value is reached.
When in DMX mode, press the ENTER button to toggle between the starting
channel address and the number of number of channels to use.
When in Pie mode, press the ENTER button to toggle between the speed setting
and color selection.
MENU MODES
Menu Display
Values
Function
d.###
001-512
DMX starting channel*
d-##
04, 08, 11, 23
DMX channel selection*
SLAu
N/A
Slave mode
A1.##
01-15
Static color mode color selection
A2.##
01-32
Jumping color change mode speed (slow to fast)
A3.##
01-32
Gradual color change mode speed (slow to fast)
A4.##
01-09
Sound activated color change mode (less sensitive to
more sensitive)
A5.##
01-09
Sound strobe color change mode (less sensitive to
more sensitive)
A6.##
(## solid)
01-64
Pie mode color group selection**
A6.##
(## flashing)
01-32
Pie mode color change speed** (slow to fast)
* When d.### or d-## is displayed, press ENTER to toggle between the two.
** When A6.## (solid) or A6.## (flashing) is displayed, press ENTER to toggle between
the two.

6
DMX CONTROL
4-Channel Mode
CH #
Value Range
Function
1
0-255
Master dimming
2
0-255
Red dimming
3
0-255
Green dimming
4
0-255
Blue dimming
8-Channel Mode
CH #
Value Range
Function
1
0-255
Master dimming
2
0-255
Red dimming
3
0-255
Green dimming
4
0-255
Blue dimming
5
0-255
Strobe (slow to fast)
6
0-15
Manual dimming
16-127
Color macro function
128-189
Jumping color change mode (slow to fast)
190-249
Gradual color change mode (slow to fast)
250-255
Sound activated mode
7
0-3
No function
4-255
Built-in block water effect
8
0-255
Speed (slow to fast)

7
11-Channel Mode
CH #
Value Range
Function
1
0-255
Master dimming
2
0-255
Pie section 1 color macro function
3
0-255
Pie section 2 color macro function
4
0-255
Pie section 3 color macro function
5
0-255
Pie section 4 color macro function
6
0-255
Pie section 5 color macro function
7
0-255
Pie section 6 color macro function
8
0-255
Strobe (slow to fast)
9
0-15
Manual dimming
16-127
Color macro function
128-189
Jumping color change mode (slow to fast)
190-249
Gradual color change mode (slow to fast)
250-255
Sound activated mode
10
0-3
No function
4-255
Built-in block water effect
11
0-255
Speed (slow to fast)

8
23-Channel Mode
CH #
Value Range
Function
1
0-255
Master dimming
2
0-255
Pie section 1 red dimming
3
0-255
Pie section 1 green dimming
4
0-255
Pie section 1 blue dimming
5
0-255
Pie section 2 red dimming
6
0-255
Pie section 2 green dimming
7
0-255
Pie section 2 blue dimming
8
0-255
Pie section 3 red dimming
9
0-255
Pie section 3 green dimming
10
0-255
Pie section 3 blue dimming
11
0-255
Pie section 4 red dimming
12
0-255
Pie section 4 green dimming
13
0-255
Pie section 4 blue dimming
14
0-255
Pie section 5 red dimming
15
0-255
Pie section 5 green dimming
16
0-255
Pie section 5 blue dimming
17
0-255
Pie section 6 red dimming
18
0-255
Pie section 6 green dimming
19
0-255
Pie section 6 blue dimming
20
0-255
Strobe (slow to fast)

9
21
0-15
Manual dimming
16-127
Color macro function
128-189
Jumping color change mode (slow to fast)
190-249
Gradual color change mode (slow to fast)
250-255
Sound activated mode
22
0-3
No function
4-255
Built-in block water effect
23
0-255
Speed (slow to fast)
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]

10
SPECIFICATIONS
Model
612970
Input Voltage
90 ~ 240 VAC, 50/60 Hz
Lamp Type
54x 1-watt 3-in-1 RGB LEDs
Control Modes
Stand alone, sound activated, DMX512, slave
DMX Channels
4, 8, 11, or 23
Dimensions
ø8.1" x 8.3" (ø205 x 210 mm)
Weight
2.6 lbs. (1.2 kg)
