Squareled Blade 7 User manual

User Manual: Squareled Blade 7 1500W RGBW

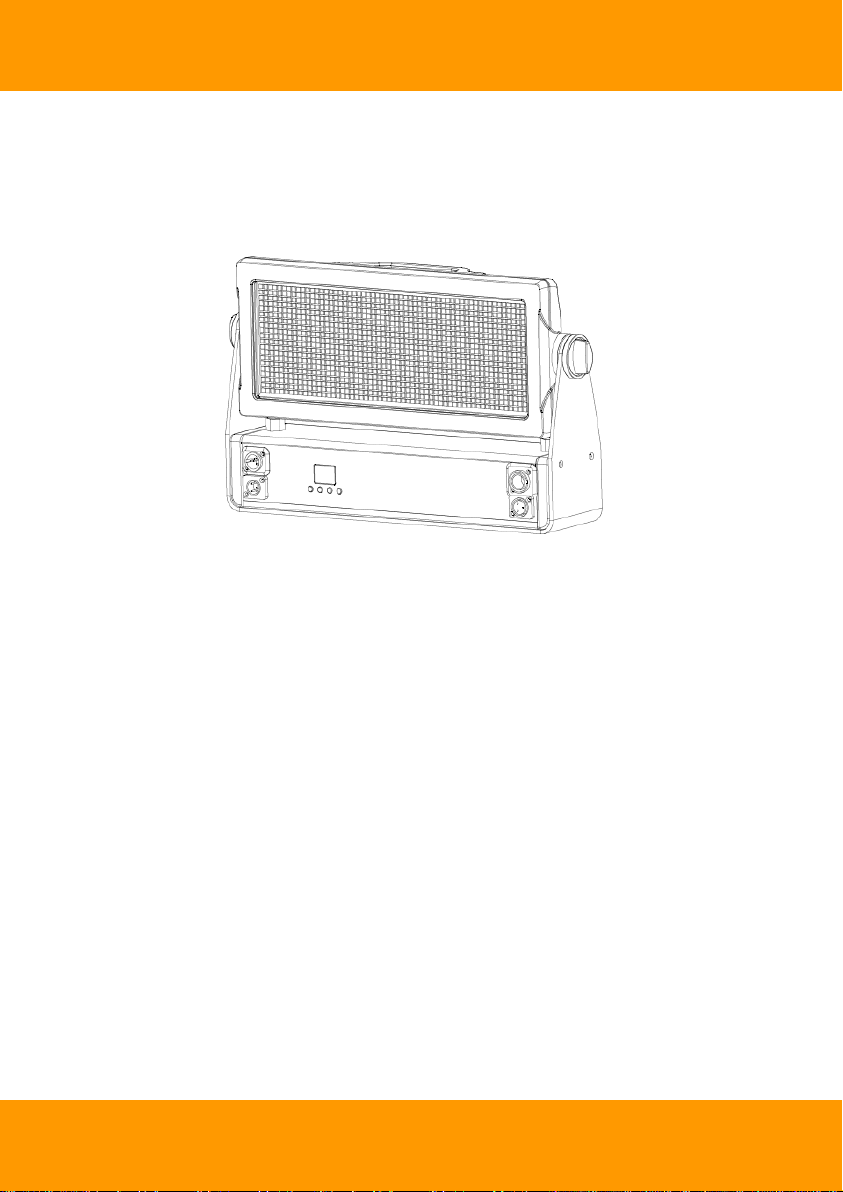

Blade 7
1500W RGBW
USER MANUAL

1
INTRODUCTION
Thank you for having chosen our LED lighting
Unpack the device, inside the box you should find:
The fixture device
One power cable
One XLR connection cable
This manual
Please check carefully that there is no damage caused by
transportation. Should there be any problems, consult your dealer and
don’t install this device.
DESCRIPTION
Features
600pcs 1W RGB LED, 600pcs 1.2W White LED，no ultraviolet
radiation.
More than 20,000 hours for the LED light source
200,000 lm for white version/ 70,000 lm for RGB version
120 degrees
1/4/7/11/12/24/48/55/70 DMX channels
16 Bit Dimmer
DMX Mode/Master-Slave mode/Pixel mode( can be used as a wash
with the output of 300W)
AC200-240V 50/60Hz 1500W
Diecasting heatsink with fans Control
With temperature sensor to extend the lamp's life
7000 Hz LED scan rate
L: 490 W: 313mm D: 123 mm
IP65
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to
maintain this condition and to ensure a safe operation, it is
absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
This device falls under protection-class I. Therefore it is essential that
the device should be earthed.

2
The electric connection must carry out by qualified person.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at the
end of this manual.
Make sure the power cord is never crimped or damaged by sharp
edges.
If this would be the case, replacement of the cable must be done by an
authorized dealer.
Always disconnect from the mains, when the device is not in use or
before cleaning it. Only handle the power cord by the plug. Never pull
out the plug by tugging the power cord.
Never look directly into the light source, as
sensitive persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not
subject to warranty. The dealer will not accept liability for any
resulting defects or problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors.
Screened cables in compliance with EIA RS-485 specifications and the
following characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is
in an electrically noisy environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing

3
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 OHM resistor connected
between pins 2 and 3, which is then plugged into the output XLR
socket of the last fixture in the chain.
Display Menu
Main menu
Sub-menu
Address
DMX Address Setting
Config Mode
channel mode
Channel 1 Ch
Channel 4 Ch
Channel 7 Ch
Channel 11 Ch
Channel 12 Ch
Channel 23 Ch
Channel 48 Ch
Channel 55 Ch
Channel 70 Ch
keep screen on
Disable/enable
keep DMX data
Disable/ enable
Fan speed
Standard/ High/ Low
Fast Dimmer
Disable/ enable
System Info
Temperature
Head
Body
LED load Default
False/True
LED All On
Auto Test
auto 1
auto 2
auto 3
LED Test
red
0-255
green
0-255
blue
0-255

4
white
0-255
Fan Test
Fan1
On/ Off
Main functions
1. Address: Current DMX address
A. Setting DMX address by button
press ENTER button when show the address menu, then adjust
the DMX address by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or press [ESC] to return to main menu.
B. Setting DMX address by controller
1.Set the DMX value of channel 5 to 10-15,channel 17 to 20-26,
channel 7 to 30-36,channel 8 to 40-46,then the devices
connected to the controller will enter to the setting address mode
2. Set the DMX value of channel 1 from 0-59,then you will see
the first number of the Address change to (channel 1 value)/10.
For example, when set the value of channel 1 to 20,the first DMX
address number will be 2(20/10=2),
3. Set the DMX value of channel 2 from 0-99,then you will see
the second number of the Address change to (channel 2
value)/10.
For example, when set the value of channel 2 to 30,the first DMX
address number will be 2(30/10=3),
4.Set the DMX value of channel 3 from 0-99,then you will see the
third number of the Address change to (channel 3 value)/10.
For example, when set the value of channel 1 to 40,the first DMX
address number will be 3(40/10=4),
And the DMX address you set by controller will be 234.
5. Set the DMX value of channel 4 to 255,then you will save the
DMX address settled by the controller.
Caution: It won’t save the address if the address number is
over 512
6. set the value of channel 5-8 out of the value range show on the
step 1,and the device will exit the setting address mode

5
2. Config.
Setting DMX mode
press ENTER button when show the channel menu, then select
the DMX mode by pressing [UP] or [DOWN] button
Key mode
press ENTER button when show the key mode menu, then
select lock or unlock by pressing [UP] or [DOWN] button
Show Temperature
press ENTER button when show the Temp Unit CS menu, select
the way of showing the fixture’s temperature in ℃or ℉by
pressing [UP] or [DOWN] button
3. System info
Temperature
press ENTER button when show the Temperature menu, then it
will show the temperature of the fixture
4. Color menu
press ENTER button when show the Color menu, press Enter
button to select the color mode, then adjust the color by pressing
[UP] or [DOWN] button
5. Auto test
press ENTER button when show the auto test menu, select test
mode by pressing [UP] or [DOWN] button
DMX functions and values
DMX Values In-Depth (1-Channel Mode)
Ch.
Function
Values
Description
1
Strobe
000 - 010
No function
011 - 255
From slow to fast
DMX Values In-Depth (4-Channel Mode)
Ch.
Function
Values
Description

6
1
All Red LED
000 - 255
0 - 100%
2
All Green LED
000 - 255
0 - 100%
3
All Blue LED
000 - 255
0 - 100%
4
All White LED
000 - 255
0 - 100%
DMX Values In-Depth (7-Channel Mode)
Ch.
Function
Values
Description
1
Master Dimmer
000 - 255
0 - 100%
2
All Red LED
000 - 255
0 - 100%
3
All Green LED
000 - 255
0 - 100%
4
All Blue LED
000 - 255
0 - 100%
5
All White LED
000 - 255
0 - 100%
6
Duration
000 - 255
0 - 100%
7
Strobe
000 - 010
No function
011 - 255
From slow to fast
DMX Values In-Depth (11-Channel Mode)
Ch.
Function
Values
Description
1
Master Dimmer
000 - 255
0 - 100%
2
Master Dimmer
fine
000 - 255
0 - 100%
3
All Red LED
000 - 255
0 - 100%
4
All Green LED
000 - 255
0 - 100%
5
All Blue LED
000 - 255
0 - 100%
6
All White LED
000 - 255
0 - 100%
7
Duration
000 - 255
0 - 100%
8
Strobe
000 - 010
No function
011 - 255
From slow to fast
9
Macro
000 - 035
No function
036 - 071
Effect 1
072 - 107
Effect 2

7
108 - 143
Effect 3
144 - 215
Effect 4
216 - 255
Effect 5
10
Flow Effect
0 - 50
No function
51 - 101
Effect 1
102 - 152
Effect 2
153 - 203
Effect 3
204 - 254
Effect 4
255
Effect 5
11
speed
000 - 254
Fast to slow
DMX Values In-Depth (12-Channel Mode)
Ch.
Function
Values
Description
1
Red Block1
000 - 255
0 - 100%
2
Green Block1
000 - 255
0 - 100%
3
Blue Block1
000 - 255
0 - 100%
4
White Block1
000 - 255
0 - 100%
5
Red Block2
000 - 255
0 - 100%
6
Green Block2
000 - 255
0 - 100%
7
Blue Block2
000 - 255
0 - 100%
8
White Block2
000 - 255
0 - 100%
9
Red Block3
000 - 255
0 - 100%
10
Green Block3
000 - 255
0 - 100%
11
Blue Block3
000 - 255
0 - 100%
12
White Block3
000 - 255
0 - 100%
DMX Values In-Depth (24-Channel Mode)
Ch.
Function
Values
Description
1
Master Dimmer
000 - 255
0 - 100%
2
Master Dimmer
fine
000 - 255
0 - 100%

8
3
All Red LED
000 - 255
0 - 100%
4
All Green LED
000 - 255
0 - 100%
5
All Blue LED
000 - 255
0 - 100%
6
All White LED
000 - 255
0 - 100%
7
Duration
000 - 255
0 - 100%
8
Strobe
000 - 010
No function
011 - 255
From slow to fast
9
Macro
000 - 035
No function
036 - 071
Effect 1
072 - 107
Effect 2
108 - 143
Effect 3
144 - 215
Effect 4
216 - 255
Effect 5
10
Flow Effect
0 - 50
No function
51 - 101
Effect 1
102 - 152
Effect 2
153 - 203
Effect 3
204 - 254
Effect 4
255
Effect 5
11
speed
000 - 254
Fast to slow
12
Red Block1
000 - 255
0 - 100%
13
Green Block1
000 - 255
0 - 100%
14
Blue Block1
000 - 255
0 - 100%
15
White Block1
000 - 255
0 - 100%
16
Red Block2
000 - 255
0 - 100%
17
Green Block2
000 - 255
0 - 100%
18
Blue Block2
000 - 255
0 - 100%
19
White Block2
000 - 255
0 - 100%
20
Red Block3
000 - 255
0 - 100%
21
Green Block3
000 - 255
0 - 100%
22
Blue Block3
000 - 255
0 - 100%

9
23
White Block3
000 - 255
0 - 100%
DMX Values In-Depth (48-Channel Mode)
Ch.
Function
Values
Description
1
Red 1
000 - 255
0 - 100%
2
Green 1
000 - 255
0 - 100%
3
Blue 1
000 - 255
0 - 100%
4
White 1
000 - 255
0 - 100%
5
Red 2
000 - 255
0 - 100%
6
Green 2
000 - 255
0 - 100%
7
Blue 2
000 - 255
0 - 100%
8
White 2
000 - 255
0 - 100%
9
Red 3
000 - 255
0 - 100%
10
Green 3
000 - 255
0 - 100%
11
Blue 3
000 - 255
0 - 100%
12
White 3
000 - 255
0 - 100%
13
Red 4
000 - 255
0 - 100%
14
Green 4
000 - 255
0 - 100%
15
Blue 4
000 - 255
0 - 100%
16
White 4
000 - 255
0 - 100%
17
Red 5
000 - 255
0 - 100%
18
Green 5
000 - 255
0 - 100%
19
Blue 5
000 - 255
0 - 100%
20
White 5
000 - 255
0 - 100%
21
Red 6
000 - 255
0 - 100%
22
Green 6
000 - 255
0 - 100%
23
Blue 6
000 - 255
0 - 100%
24
White 6
000 - 255
0 - 100%
25
Red 7
000 - 255
0 - 100%
26
Green 7
000 - 255
0 - 100%

10
27
Blue 7
000 - 255
0 - 100%
28
White 7
000 - 255
0 - 100%
29
Red 8
000 - 255
0 - 100%
30
Green 8
000 - 255
0 - 100%
31
Blue 8
000 - 255
0 - 100%
32
White 8
000 - 255
0 - 100%
33
Red 9
000 - 255
0 - 100%
34
Green 9
000 - 255
0 - 100%
35
Blue 9
000 - 255
0 - 100%
36
White 9
000 - 255
0 - 100%
37
Red 10
000 - 255
0 - 100%
38
Green 10
000 - 255
0 - 100%
39
Blue 10
000 - 255
0 - 100%
40
White 10
000 - 255
0 - 100%
41
Red 11
000 - 255
0 - 100%
42
Green 11
000 - 255
0 - 100%
43
Blue 11
000 - 255
0 - 100%
44
White 11
000 - 255
0 - 100%
45
Red 12
000 - 255
0 - 100%
46
Green 12
000 - 255
0 - 100%
47
Blue 12
000 - 255
0 - 100%
48
White 12
000 - 255
0 - 100%
DMX Values In-Depth (55-Channel Mode)
Ch.
Function
Values
Description
1
Master Dimmer
000 - 255
0 - 100%
2
Master Dimmer
fine
000 - 255
0 - 100%
3
Duration
000 - 255
0 - 100%
4
Strobe
000 - 010
No function
011 - 255
From slow to fast

11
5
Macro
000 - 035
No function
036 - 071
Effect 1
072 - 107
Effect 2
108 - 143
Effect 3
144 - 215
Effect 4
216 - 255
Effect 5
6
Flow Effect
0 - 50
No function
51 - 101
Effect 1
102 - 152
Effect 2
153 - 203
Effect 3
204 - 254
Effect 4
255
Effect 5
7
speed
000 - 254
Fast to slow
8
Red 1
000 - 255
0 - 100%
9
Green 1
000 - 255
0 - 100%
10
Blue 1
000 - 255
0 - 100%
11
White 1
000 - 255
0 - 100%
12
Red 2
000 - 255
0 - 100%
13
Green 2
000 - 255
0 - 100%
14
Blue 2
000 - 255
0 - 100%
15
White 2
000 - 255
0 - 100%
16
Red 3
000 - 255
0 - 100%
17
Green 3
000 - 255
0 - 100%
18
Blue 3
000 - 255
0 - 100%
19
White 3
000 - 255
0 - 100%
20
Red 4
000 - 255
0 - 100%
21
Green 4
000 - 255
0 - 100%
22
Blue 4
000 - 255
0 - 100%
23
White 4
000 - 255
0 - 100%
24
Red 5
000 - 255
0 - 100%
25
Green 5
000 - 255
0 - 100%

12
26
Blue 5
000 - 255
0 - 100%
27
White 5
000 - 255
0 - 100%
28
Red 6
000 - 255
0 - 100%
29
Green 6
000 - 255
0 - 100%
30
Blue 6
000 - 255
0 - 100%
31
White 6
000 - 255
0 - 100%
32
Red 7
000 - 255
0 - 100%
33
Green 7
000 - 255
0 - 100%
34
Blue 7
000 - 255
0 - 100%
35
White 7
000 - 255
0 - 100%
36
Red 8
000 - 255
0 - 100%
37
Green 8
000 - 255
0 - 100%
38
Blue 8
000 - 255
0 - 100%
39
White 8
000 - 255
0 - 100%
40
Red 9
000 - 255
0 - 100%
41
Green 9
000 - 255
0 - 100%
42
Blue 9
000 - 255
0 - 100%
43
White 9
000 - 255
0 - 100%
44
Red 10
000 - 255
0 - 100%
45
Green 10
000 - 255
0 - 100%
46
Blue 10
000 - 255
0 - 100%
47
White 10
000 - 255
0 - 100%
48
Red 11
000 - 255
0 - 100%
49
Green 11
000 - 255
0 - 100%
50
Blue 11
000 - 255
0 - 100%
51
White 11
000 - 255
0 - 100%
52
Red 12
000 - 255
0 - 100%
53
Green 12
000 - 255
0 - 100%
54
Blue 12
000 - 255
0 - 100%
55
White 12
000 - 255
0 - 100%

13
DMX Values In-Depth (70-Channel Mode)
Ch.
Function
Values
Description
1
Master Dimmer
000 - 255
0 - 100%
2
Master Dimmer
fine
000 - 255
0 - 100%
3
All Red LED
000 - 255
0 - 100%
4
All Green LED
000 - 255
0 - 100%
5
All Blue LED
000 - 255
0 - 100%
6
All White LED
000 - 255
0 - 100%
7
Duration
000 - 255
0 - 100%
8
Strobe
000 - 010
No function
011 - 255
From slow to fast
9
Flow Effect
0 - 50
No function
51 - 101
Effect 1
102 - 152
Effect 2
153 - 203
Effect 3
204 - 254
Effect 4
255
Effect 5
10
speed
000 - 254
Fast to slow
11
Red Block1
000 - 255
0 - 100%
12
Green Block1
000 - 255
0 - 100%
13
Blue Block1
000 - 255
0 - 100%
14
White Block1
000 - 255
0 - 100%
15
Red Block2
000 - 255
0 - 100%
16
Green Block2
000 - 255
0 - 100%
17
Blue Block2
000 - 255
0 - 100%
18
White Block2
000 - 255
0 - 100%
19
Red Block3
000 - 255
0 - 100%
20
Green Block3
000 - 255
0 - 100%
21
Blue Block3
000 - 255
0 - 100%
22
White Block3
000 - 255
0 - 100%

14
23
Red 1
000 - 255
0 - 100%
24
Green 1
000 - 255
0 - 100%
25
Blue 1
000 - 255
0 - 100%
26
White 1
000 - 255
0 - 100%
27
Red 2
000 - 255
0 - 100%
28
Green 2
000 - 255
0 - 100%
29
Blue 2
000 - 255
0 - 100%
30
White 2
000 - 255
0 - 100%
31
Red 3
000 - 255
0 - 100%
32
Green 3
000 - 255
0 - 100%
33
Blue 3
000 - 255
0 - 100%
34
White 3
000 - 255
0 - 100%
35
Red 4
000 - 255
0 - 100%
36
Green 4
000 - 255
0 - 100%
37
Blue 4
000 - 255
0 - 100%
38
White 4
000 - 255
0 - 100%
39
Red 5
000 - 255
0 - 100%
40
Green 5
000 - 255
0 - 100%
41
Blue 5
000 - 255
0 - 100%
42
White 5
000 - 255
0 - 100%
43
Red 6
000 - 255
0 - 100%
44
Green 6
000 - 255
0 - 100%
45
Blue 6
000 - 255
0 - 100%
46
White 6
000 - 255
0 - 100%
47
Red 7
000 - 255
0 - 100%
48
Green 7
000 - 255
0 - 100%
49
Blue 7
000 - 255
0 - 100%
50
White 7
000 - 255
0 - 100%
51
Red 8
000 - 255
0 - 100%
52
Green 8
000 - 255
0 - 100%
53
Blue 8
000 - 255
0 - 100%

15
54
White 8
000 - 255
0 - 100%
55
Red 9
000 - 255
0 - 100%
56
Green 9
000 - 255
0 - 100%
57
Blue 9
000 - 255
0 - 100%
58
White 9
000 - 255
0 - 100%
59
Red 10
000 - 255
0 - 100%
60
Green 10
000 - 255
0 - 100%
61
Blue 10
000 - 255
0 - 100%
62
White 10
000 - 255
0 - 100%
63
Red 11
000 - 255
0 - 100%
64
Green 11
000 - 255
0 - 100%
65
Blue 11
000 - 255
0 - 100%
66
White 11
000 - 255
0 - 100%
67
Red 12
000 - 255
0 - 100%
68
Green 12
000 - 255
0 - 100%
69
Blue 12
000 - 255
0 - 100%
70
White 12
000 - 255
0 - 100%
CLEANING AND MAINTENANCE
We recommend a frequent cleaning of the device. Please use a soft
lint-free and moistened cloth. Never use alcohol or solvents!
CAUTION!
Disconnect from mains before starting maintenance
operation.
There are no serviceable parts inside the device. Maintenance and
service operations are only to be carried out by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to
be replaced by authorized dealers only in order to avoid hazards.
If you have further questions, please contact your dealer.
INSTALLATION

16
The device must only be installed at a vibration-free, oscillation-free
and fire-resistant location.

Das Lichttechnikhaus Vertriebs GmbH
Rudolf-Diesel-Str. 3, D-89312 Günzburg
Telefon [phone]
Fax [phone]
E-Mail [email protected]
Web www.lth-gmbh.de
