Satellite Radio Compact Motorcycle Kit
Installaon Instrucons - SXMLCR72
Satellite Radio Superstore | [phone] | www.SatelliteRadioSuperstore.com | [e-mail]

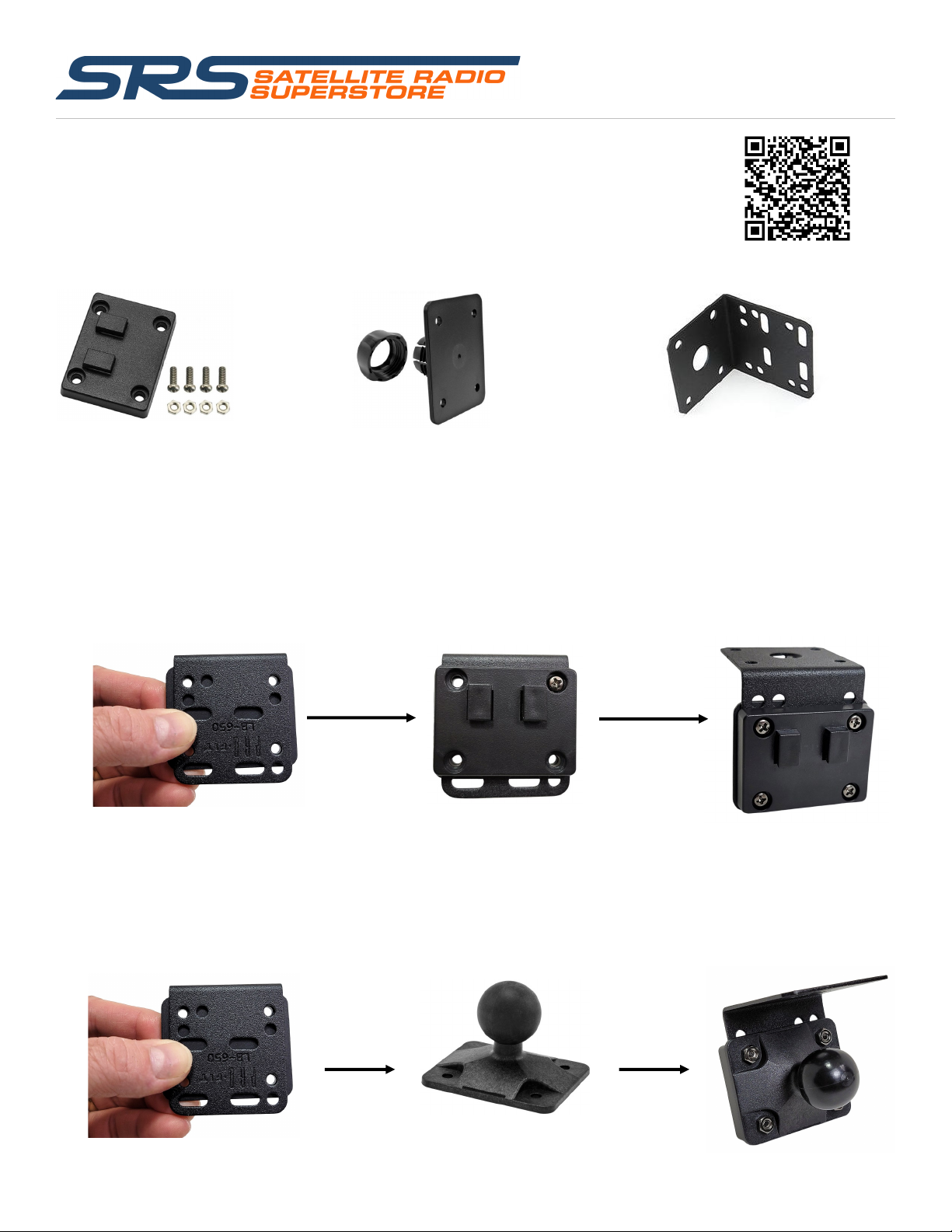

BACK PLATE ASSEMBLY
Step 1 - Locate the bag containing the parts shown below.
Step 2 - Place the parts as pictured below. Take the AMPS Socket Plate and place it on one side of the
L-bracket. Next place the Dual Male AMPS Plate on the opposite side as the AMPS Socket Plate and line up
the screw holes. Please note the posioning of the Dual Male AMPS Plate with the notches at the top. The
dual notches must be posioned at the top in order to properly seat into the back of the case. Use the sup-
plied screws and nuts to secure the plates to the L-bracket. Note: The mount can be assembled with the top
plate of the L-bracket facing forward or backwards to t your installaon needs.
Oponal - RAM Mount Assembly
To install the kit onto a RAM mount use the RAM Mount Adapter Plate. Locate the RAM Mount Adapter
Plate in the bag with the parts shown below. Screw the RAM Mount Adapter Plate to the L-bracket with
the Dual Male AMPS Plate on one side and the RAM Mount Adapter Plate on the other side.
Before geng started it is recommended to locate an installaon spot on your
motorcycle that will allow you to see the screen of the receiver and operate the unit
safely while driving. Scan the QR code to for addional resources and support.
AMPS Socket Plate with Lock Ring
Dual Male AMPS Plate Metal L-bracket
RAM Mount Adapter

[phone] | www.SatelliteRadioSuperstore.com | [e-mail]
Step 4 - Connect Mount to Back Plate and Mount Antenna
To connect the handlebar or strap mount to the back plate insert the ball joint into the AMPS Female Socket
Plate with the Lock Ring having the wide end facing towards the socket plate. Push the mount into the socket
unl it clicks. Once the ball joint is rmly in place screw the Lock Ring clockwise unl it ghtens all the way.
To change the angle of the case loosen the ring and pivot the case then reghten the Lock Ring to secure.
Do not over ghten the Lock Ring to avoid damaging it. Next, place the antenna on the metal L-bracket and
run the antenna wire through the boom of the case connecng it to the antenna port on the dock.
Step 3 - Install Mount & Aach to Base
To install the handlebar mount rst loosen the two
screws on the handlebar clamp mount all the way out
and separate it from the back side of the clamp
mount. Place the clamp mount on the handlebars and
line up the screw holes and ghten the screws to
mount the clamp. Use the supplied rubber strips to
increase the grip of the mount as desired.
Step 5 - Connecng Power & Audio
Included in the kit are several dierent power opons including
a USB power cable, CLA and a hardwired power adapter. Select
the power opon that works best for your installaon. It is
important to note that the USB power cable can be plugged
into any USB port (5V) for power but does not transmit any
audio to the sound system. The instrucons for the hardwired
power adapter are included in its package. Included in the kit is
an AUX cable for direct audio connecon to any sound system
with a 3.5mm auxiliary port. Be sure to run all the wires
through the hole in the boom of the protecve case.
Note: If installing a Bluetooth SiriusXM Dock only power and
antenna are required. The FM port on the dock is not used
unless installing the FMDA25 Direct Wire Audio Adapter.
To learn more on how to operate your specic Satellite Radio receiver refer to the SiriusXM
Radio user manual that came with the receiver.
Audio Port Antenna Port Power Port FM Port
