SSANGYONG KYRON 2008.07 User manual

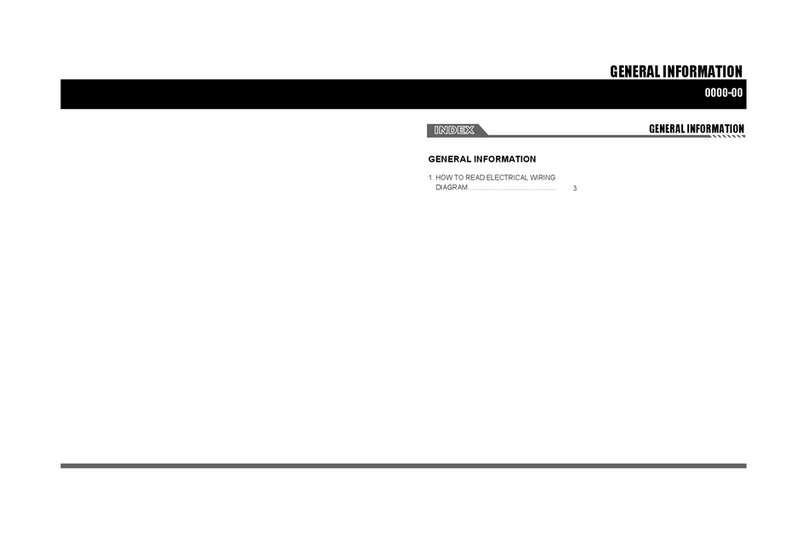

GENERAL INFORMATION
0000-00
GENERAL INFORMATION
GENERAL INFORMATION
1. HOW TO READ ELECTRICAL WIRING
DIAGRAM...............................................
2. 2. LAYOUT OF ELECTRICAL SYSTEM.
3
6

0-3
GENERAL INFORMATION
KYRON 2008.07
0000-00
GENERAL INFORMATION
1. HOW TO READ ELECTRICAL WIRING DIAGRAM
Position Explanation
A- Upper horizontal lines : Power supply lines
- Power supply lines : 30, 15, 15A, 15C, 58
B
- Ef20 or F2 : Fuse Number
·Ef20 : Fuse No #20 in engine room compartment
·F2 : Fuse No #2 in passenger room compartment
C
- Connector (C101 ~ C903)
·Connector No C203 terminal No1
·Refer to Major Connector Position (Section 2)
D- S201 : Splice pack (S201 ~ S207)
·Refer to Major Splice Pack Position (Section2)
E- Wiring Harness Color
·Refer to Wiring Harness Color Abbreviation
F- Internal circuit of component (Relay)
(Component Name and Terminal Number)
G- Internal circuit of component (Switch)
(Component Name, Terminal Number and Connecting Wiring Circuit)
H
- Lower horizontal line : Ground line
·Ground position (G101 ~ G402)
·B : Body Ground
·Refer to Major Ground Position (Section2)
1) HOW TO READ ELECTRICAL WIRING DIAGRAM
2) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

0-4
KYRON 2008.07
0000-00
GENERAL INFORMATION
3) CIRCUIT IDENTIFICATION SYMBOL
Identification Symbol Meaning
C Connector
D Diode
Ef Fuse in engine room fuse & relay box
F Fuse in passenger room fuse box
G Ground
S Splice pack (Junction connector)
5) WIRING HARNESS COLOR IDENTIFICATION
Abbreviation Color Abbreviation Color
Br Brown Sb Sky Blue
G Green R Red
V Violet L Blue
P Pink Y Yellow
W White Gr Gray
Gr Orange B Black
Lg Light Green
6) HOW TO CHECK TERMINAL NUMBER OF CONNECTOR
Terminal number is given based on Female Terminal Male Connector
▶
ex) Terminal Number 4 of C901 connection
-
Power supply No. Power supply condition
15 Battery Voltage (B+) supply in Ignition Switch “ON” and “ST” (IGN
1)
15A Battery Voltage (B+) supply in Ignition Switch “ON” (IGN 2)
15C Battery Voltage (B+) supply in Ignition Switch “ON” and “ACC”
30 Battery Voltage (B+) supply directly regardless of Ignition Switch
31 Ground connected to battery (-)
58 Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step
(Illumination circuit)
4) FUNCTION OF POWER SUPPLY LINE (NUMBER)

0-5
GENERAL INFORMATION
KYRON 2008.07
0000-00
7) PART LOCATION ACCORDING TO PART NUMBER
Ex.) C 1 0 2
▶
C : Symbol character for connector-
Symbol Character Description
C Connector (Connecting part that connects two wiring harness)
D Diode
G Ground
S Splice pack (Joint connector that connects various wiring harness)
1 : Part location number
-
Part number according to locating section-
Part Numbe Location
□ 1□□ Engine compartment
□ 2□□ Instrument panel
□ 3□□ Passenger compartment
□ 4□□ Tailgate
□ 5□□ Underbody
In the locating section, the assignment for part number startsfrom left bottom and
proceeds clockwise.
In the fuse and relay box or the instrument panel, the partnumber is assigned from
left top to light bottom.
-
-
8) ELECTRIC SYMBOLS

CONNECTOR/GROUND
8201-00/8210-00/8210-02/8210-03/8210-09/8210-10/8210-06/8210-07/8210-08
CONNECTOR/GROUND
WIRING HARNESS
0000-00 WIRING HARNESS,
COMPONENTS LOCATION.........
3

0-3
CONNECTOR/GROUND
KYRON 2008.07
0000-00
WIRING HARNESS
0000-00 WIRING HARNESS, COMPONENTS LOCATION
1) WIRING HARNESS 2) COMPONENTS LOCATION

0-4
KYRON 2008.07
0000-00
CONNECTOR/GROUND
3) CONNECTOR, GROUND & SPLICE PACK INFORMATION
CONNECTOR
▶

0-5
CONNECTOR/GROUND
KYRON 2008.07
0000-00
GROUND
▶
SPLICE PACK
▶
4) SPLICE PACK CIRCUIT
S101
▶
S201
▶
S202 (CAN)
▶

0-6
KYRON 2008.07
0000-00
CONNECTOR/GROUND
S203 (GND)
▶
S204 (ILL+)
▶
S205 (GND)
▶
S301 (CAN)
▶
S302
▶
S206
▶

0-7
CONNECTOR/GROUND
KYRON 2008.07
0000-00
WIRNING CONNECTOR
▶
MODE CONNECTOR
▶
5) CONNECTOR
WIRNING CONNECTOR
▶WIRNING CONNECTOR ▶

0-8
KYRON 2008.07
0000-00
CONNECTOR/GROUND
UNIT CONNECTOR
▶
SENSOR CONNECTOR
▶
LAMP CONNECTOR
▶
SWITCH CONNECTOR
▶

0-9
CONNECTOR/GROUND
KYRON 2008.07
0000-00
ETC.
▶

POWER DISTRIBUTION
8410-02/8410-04/8401-06
POWER DISTRIBUTION
FUSE/RELAY
8210-00 ENGINE ROOM FUSE /
RELAY BOX.................................
8410-00 I/P - LH FUSE / RELAY BOX......
8401-00 I/P - RH FUSE / RELAY BOX......
ELECTRICITY DIVIDE
8210-00 ENGINE ROOM FUSE /
RELAY BOX CIRCUIT..................
8410-00 I/P - LH FUSE /
RELAY BOX CIRCUIT..................
8410-00 I/P - RH FUSE /
RELAY BOX CIRCUIT..................
8410-00 ICM RELAY BOX CIRCUIT...........
3
5
6
7
12
16
18

0-3
POWER DISTRIBUTION
KYRON 2008.07
8210-00
FUSE / RELAY
8210-00 ENGINE ROOM FUSE / RELAY BOX
1) UPPER
2) LOW
3) ENGINE ROOM FUSE / RELAY BOX
4) ENGINE ROOM FUSE / RELAY BOX (RUSSIA)

0-4
KYRON 2008.07
8210-00
POWER DISTRIBUTION
5) USAGE OF FUSE IN ENGINE ROOM FUSE BOX 6) ENGINE ROOM FUSE BOX CONNECTOR NUMBER
