SSP MRP090 User manual

1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
DOUBLE INSULATION
IMPORTANT: Read Before Using.
Router
MRP090
011944

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model MRP090
Collet chuck capacity 6 mm, 1/4" and/or 8 mm
Plunge capacity 0 - 35 mm
No load speed (min-1) 27,000
Overall height 218 mm
Net weight 2.7 kg
Safety class /II
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END201-5
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
󻜎 Read instruction manual.
󻜎 DOUBLE INSULATION
󻜎 Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE010-1
Intended use
The tool is intended for flush trimming and profiling of
wood, plastic and similar materials.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
GEA005-3
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.

3
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
12. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
13. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
17. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
Power tool use and care
18. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
19. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
20. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
21. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
22. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
26. Follow instruction for lubricating and
changing accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB018-3
ROUTER SAFETY WARNINGS
1. Hold power tool by insulated gripping surfaces,
because the cutter may contact its own cord.
Cutting a "live" wire may make exposed metal parts
of the power tool "live" and shock the operator.
2. Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by your hand or against the body
leaves it unstable and may lead to loss of control.

4
3. Wear hearing protection during extended
period of operation.
4. Handle the bits very carefully.
5. Check the bit carefully for cracks or damage
before operation. Replace cracked or
damaged bit immediately.
6. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
7. Hold the tool firmly with both hands.
8. Keep hands away from rotating parts.
9. Make sure the bit is not contacting the
workpiece before the switch is turned on.
10. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate improperly
installed bit.
11. Be careful of the bit rotating direction and the
feed direction.
12. Do not leave the tool running. Operate the tool
only when hand-held.
13. Always switch off and wait for the bit to come
to a complete stop before removing the tool
from workpiece.
14. Do not touch the bit immediately after
operation; it may be extremely hot and could
burn your skin.
15. Do not smear the tool base carelessly with
thinner, gasoline, oil or the like. They may
cause cracks in the tool base.
16. Draw attention to the need to use cutters of the
correct shank diameter and which are suitable
for the speed of the tool.
17. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
18. Always use the correct dust mask/respirator
for the material and application you are
working with.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.

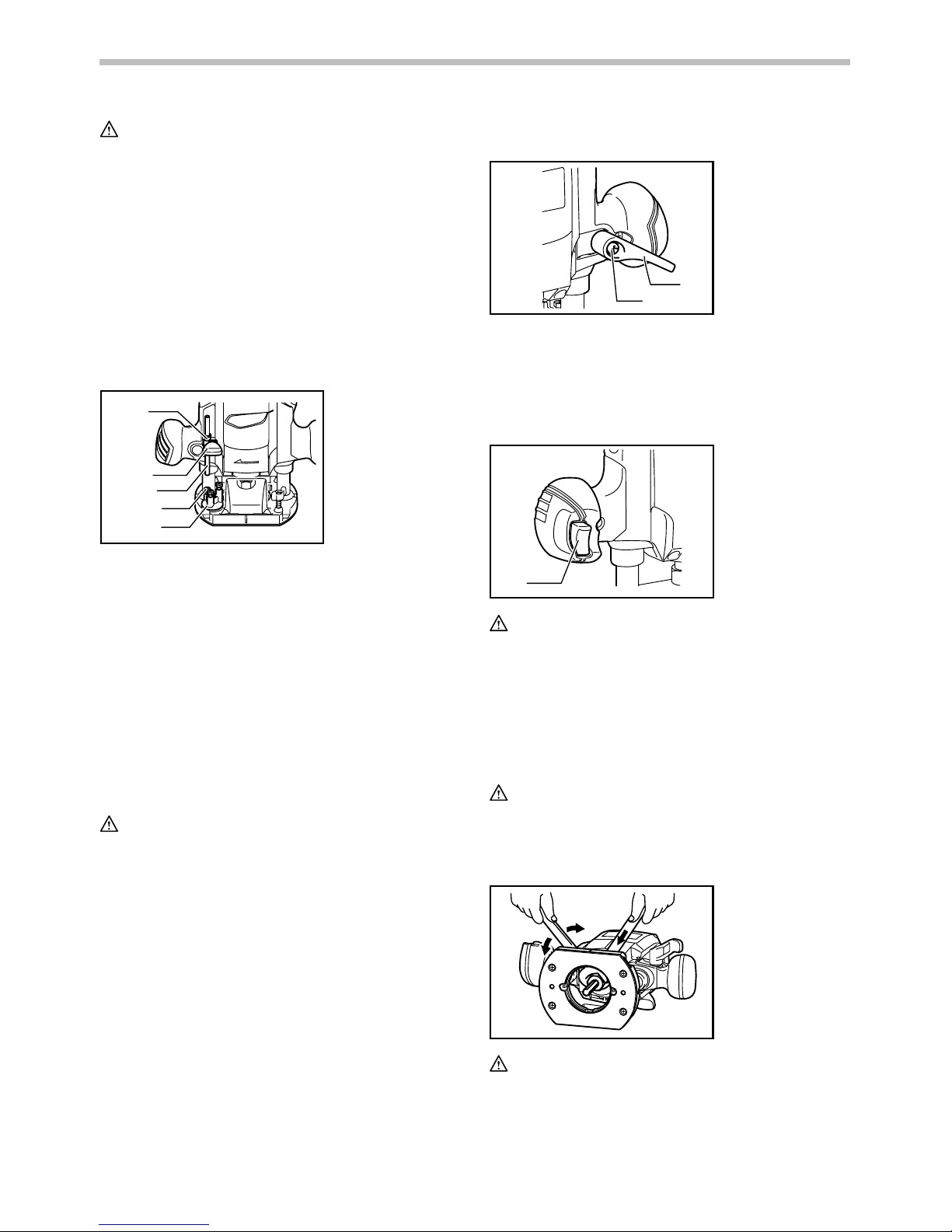

Adjusting the depth of cut
1
2
011945

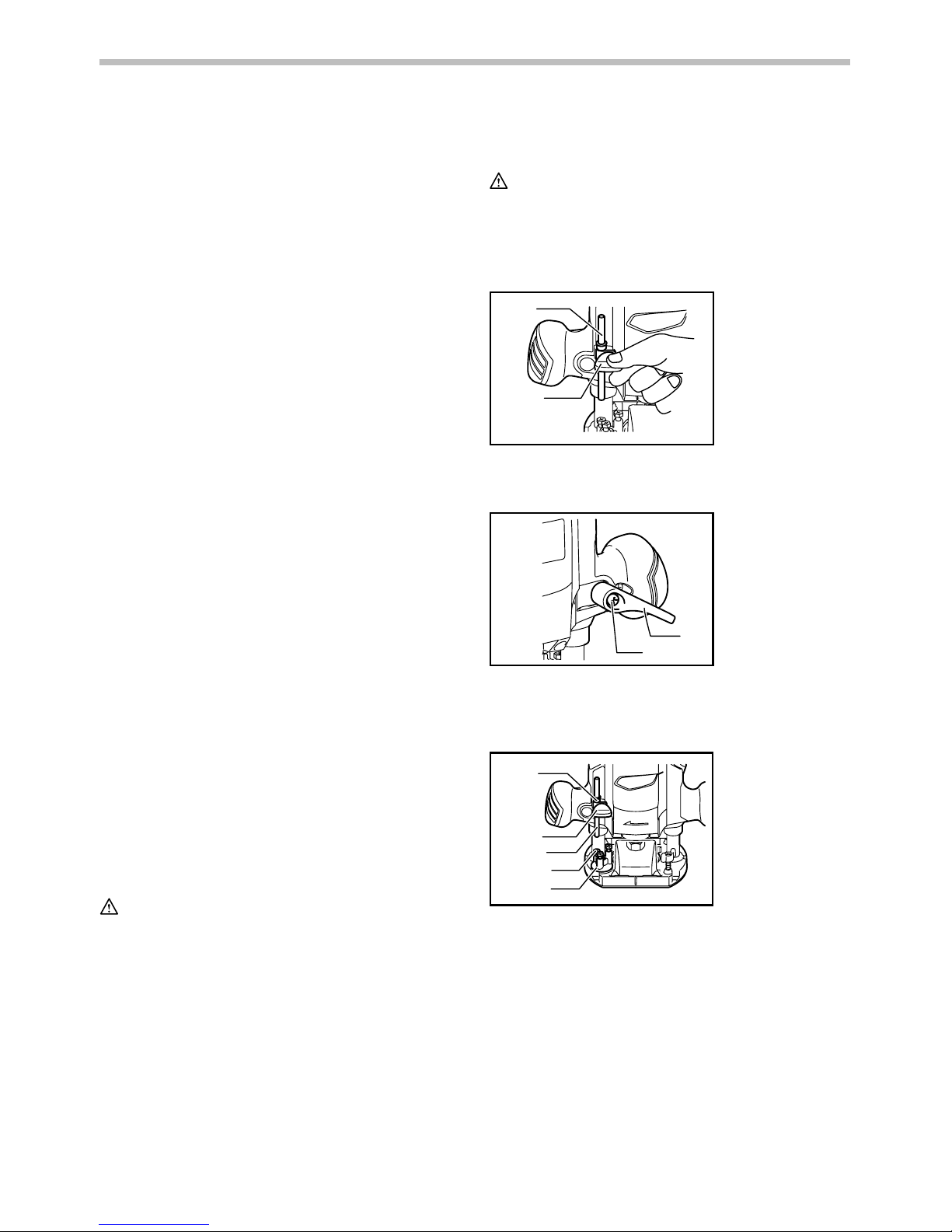

Place the tool on a flat surface. Loosen the screw
securing the stopper pole.
1
2
011946
Loosen the lock lever and lower the tool body until the bit
just touches the flat surface. Tighten the lock lever to
lock the tool body.
1
2
3
4
5
011947
Next, lower the stopper pole until it makes contact with
the adjusting hex bolt. Align the depth pointer with the
"0" graduation.
Raise the stopper pole until the desired depth of cut is
obtained. The depth of cut is indicated on the scale (1
mm per graduation) by the depth pointer. Then tighten
the screw to secure the stopper pole.
Now, your predetermined depth of cut can be obtained
by loosening the lock lever and then lowering the tool
body until the stopper pole makes contact with the
adjusting hex bolt.
1. Depth pointer
2. Screw
3. Stopper pole
4. Adjusting hex
bolt
5. Stopper block
1. Lock lever
2. Screw
1. Stopper pole
2. Screw

5
CAUTION:
• Since excessive cutting may cause overload of the
motor or difficulty in controlling the tool, the depth
of cut should not be more than 15 mm at a pass
when cutting grooves with an 8 mm diameter bit.
• When cutting grooves with a 20 mm diameter bit,
the depth of cut should not be more than 5 mm at a
pass.
When you wish to cut grooves more than 15 mm
deep with an 8 mm diameter bit or more than 5 mm
deep with a 20 mm diameter bit, make several
passes with progressively deeper bit settings.
Stopper block
1
2
3
4
5
011947
The stopper block has three adjusting hex bolts which
raise or lower 0.8 mm per turn. You can easily obtain
three different depths of cut using these adjusting hex
bolts without readjusting the stopper pole.
Adjust the lowest hex bolt to obtain the deepest depth of
cut, following the method of "Adjusting depth of cut".
Adjust the two remaining hex bolts to obtain shallower
depths of cut. The differences in height of these hex
bolts are equal to the differences in depths of cut.
To adjust the hex bolts, turn the hex bolts. The stopper
block is also convenient for making three passes with
progressively deeper bit settings when cutting deep
grooves.
CAUTION:
When using a bit having total length of 60 mm or more,
or edge length of 35 mm or more, the depth of cut
cannot be adjusted as previously mentioned. To adjust,
proceed as follows:
Loosen the lock lever and carefully adjust bit protrusion
below the tool base to the desired depth of cut by
moving the tool body up or down. Then retighten the lock
lever to lock the tool body at that depth of cut. Keep the
tool body locked at this position during use. Since the bit
always protrudes from the tool base, be careful when
handling the tool.
Adjusting the lock lever
1
2
011946
The locked position of the lock lever is adjustable. To
adjust it, remove the screw securing the lock lever. The
lock lever will come off. Set the lock lever at the desired
angle. After adjustment, tighten the lock lever clockwise.
Switch action
1
011948
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing the bit
011949
CAUTION:
• Install the bit securely. Always use only the
wrenches provided with the tool. A loose or
overtightened bit can be dangerous.
1. Switch trigger
1. Lock lever
2. Screw
1. Depth pointer
2. Screw
3. Stopper pole
4. Adjusting hex
bolt
5. Stopper block

6
• Do not tighten the collet nut without inserting a bit.
It can lead to breakage of the collet cone.
Insert the bit all the way into the collet cone and tighten
the collet nut securely with the two wrenches.
An 8 mm collet cone may be also provided as a standard
equipment (depending on the country) besides the 6 mm
or 1/4" collet cone that is factory installed on the tool.
Use the correct size collet cone for the bit which you
intend to use.
To remove the bit, follow the installation procedure in
reverse.
OPERATION
Set the tool base on the workpiece to be cut without the
bit making any contact. Then turn the tool on and wait
until the bit attains full speed. Lower the tool body and
move the tool forward over the workpiece surface,
keeping the tool base flush and advancing smoothly until
the cutting is complete.
12
3
44
2
001984
When doing edge cutting, the workpiece surface should
be on the left side of the bit in the feed direction.
NOTE:
• Moving the tool forward too fast may cause a poor
quality of cut, or damage to the bit or motor. Moving
the tool forward too slowly may burn and mar the cut.
The proper feed rate will depend on the bit size, the
kind of workpiece and depth of cut. Before
beginning the cut on the actual workpiece, it is
advisable to make a sample cut on a piece of scrap
lumber. This will show exactly how the cut will look
as well as enable you to check dimensions.
1
23
4
011977
NOTE:
• When using the straight guide, be sure to install it
on the right side in the feed direction. This will help
to keep it flush with the side of the workpiece.
Straight guide
011950
The straight guide is effectively used for straight cuts
when chamfering or grooving.
123
011951
To i n s tal l the s trai g h t gu i d e , inser t th e gu i d e bars into th e
holes in the tool base. Adjust the distance between the bit
and the straight guide. At the desired distance, tighten the
wing bolts to secure the straight guide in place.
When cutting, move the tool with the straight guide flush
with the side of the workpiece.
A
011952
If the distance (A) between the side of the workpiece and
the cutting position is too wide for the straight guide, or if
1. Feed direction
2. Bit revolving
direction
3. Workpiece
4. Straight guide
1. Guide bar
2. Clamp screw
3. Straight guide
1. Workpiece
2. Bit revolving direction
3. View from the top of the tool
4. Feed direction

7
the side of the workpiece is not straight, the straight guide
cannot be used. In this case, firmly clamp a straight board
to the workpiece and use it as a guide against the router
base. Feed the tool in the direction of the arrow.
Dust nozzle set (For European countries only)
1
2
011953

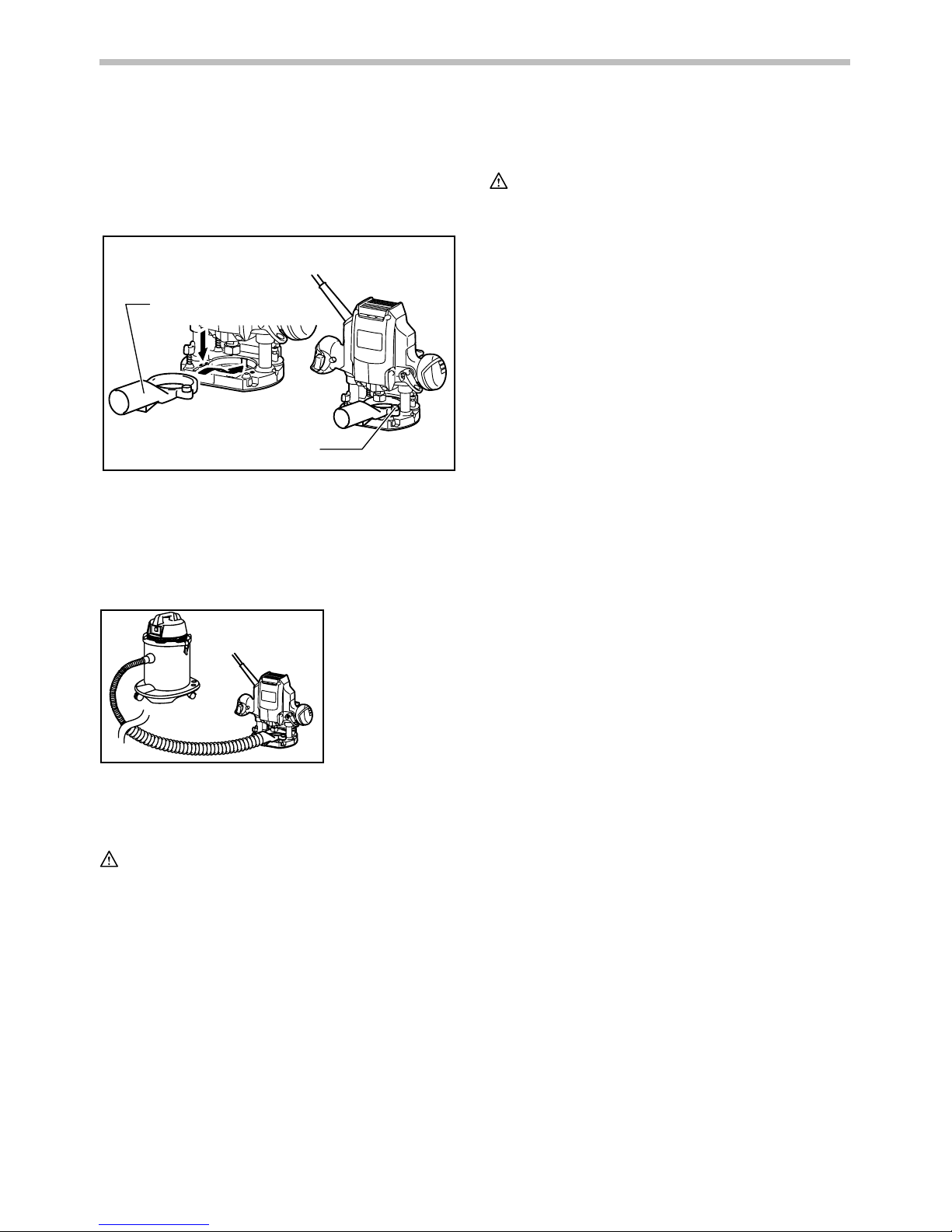

Use the dust nozzle for dust extraction. Install the dust
nozzle on the tool base using the thumb screw so that
protrusion on the dust nozzle fit to the notch in the tool
base.
011954
Then connect a vacuum cleaner to the dust nozzle.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
To ma i nta i n p r o duc t SA F E TY an d REL I A BI L I TY, re p a i rs ,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Straight & groove forming bits
• Edge forming bits
• Laminate trimming bits
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Dust nozzle
2. Thumb screw

8
Router bits
Straight bit
005116
mm
D A L 1 L 2
6
1/4"
8 8 60 25
6
1/4"
6
1/4"
650 18
85018
20 50 15
009802
"U"Grooving bit
R
005117
mm
D A L 1 L 2 R
6 6 50 18 3
009803
"V"Grooving bit
005118
90
mm
D A L 1 L 2
1/4" 20 50 15
009804
Drill point flush trimming bit
005120
D
8
6
A
6
8
L 1
60
60
L 2
18
20
L 3
28
35
mm
009806
Drill point double flush trimming bit
005121
D
8
6
A
6
8
L 1
70
80
L 2
40
55
L 3
12
20
L 4
14
25
mm
009807

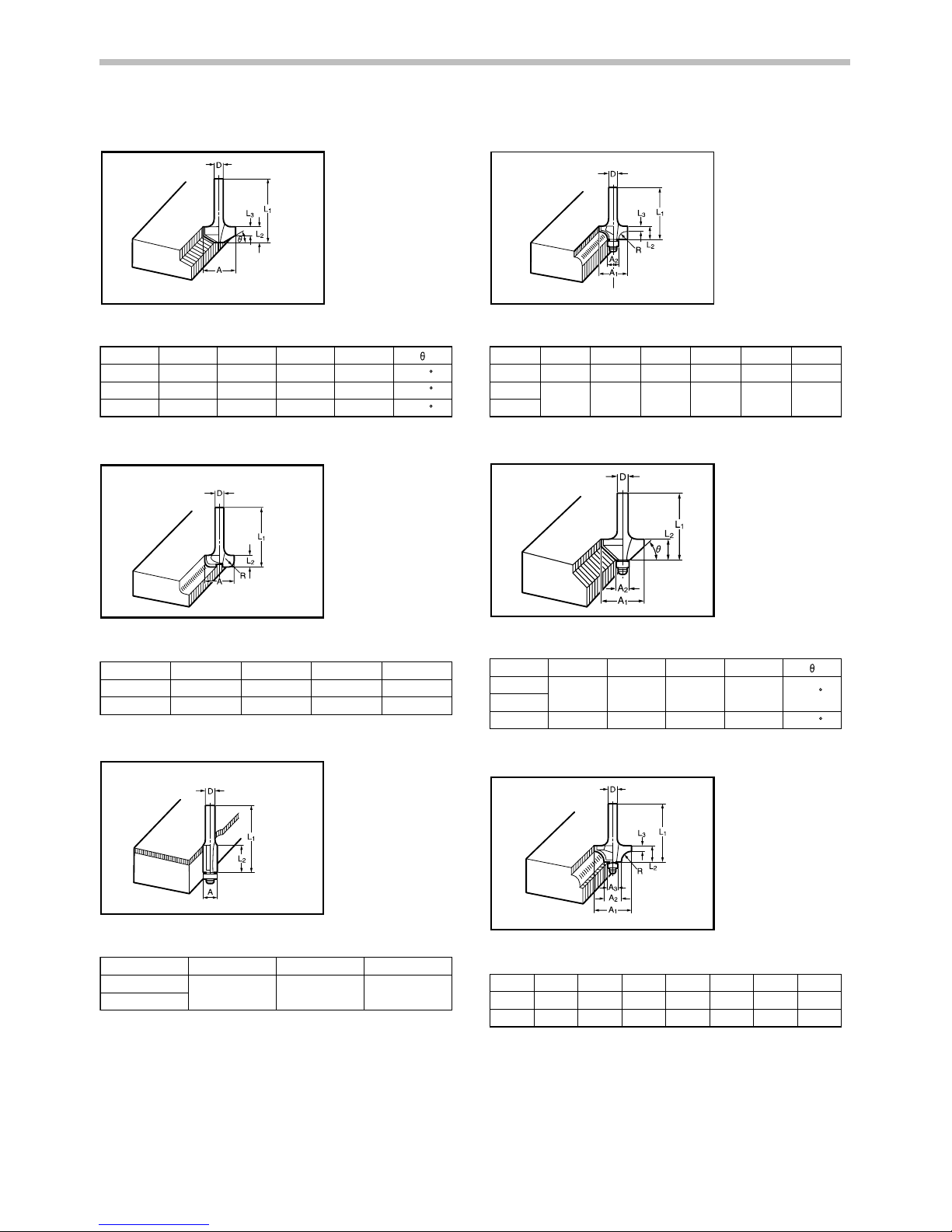

Corner rounding bit
005125
D
6
6
A 1
20
25
A 2
8
9
L 1
45
48
L 2
10
13
L 3
4
5
R
4
8
mm
009808

9
Chamfering bit
005126
30
45
60
D
6
6
A
20
23
L 1
50
46
L 2
13
11
L 3
5
6
620 49 14 2
mm
009809
Cove beading bit
005129
D
6
6
A
25
20
L 1
48
43
L 2
13
8
R
8
4
mm
009810
Ball bearing flush trimming bit
005130
mm
D A L 1 L 2
6
1/4"
10 50 20
009811
Ball bearing corner rounding bit
005131
D
6
6
1/4"
A 1
21
15
A 2
8
8
L 1
40
37
L 2
10
7
L 3
3.5
3.5
R
6
3
mm
009812
Ball bearing chamfering bit
005132
D
6
1/4"
6
A 1
20
26
A 2
8
8
L 1
41
42
L 2
11
12
mm
45
60
009813
Ball bearing beading bit
005133
mm
D A 1 A 2 A 3 L 1 L 2 L 3 R
6
6
5.5 4
4.5
10
12 726 12 8 42
20 12 8 40
009814

10

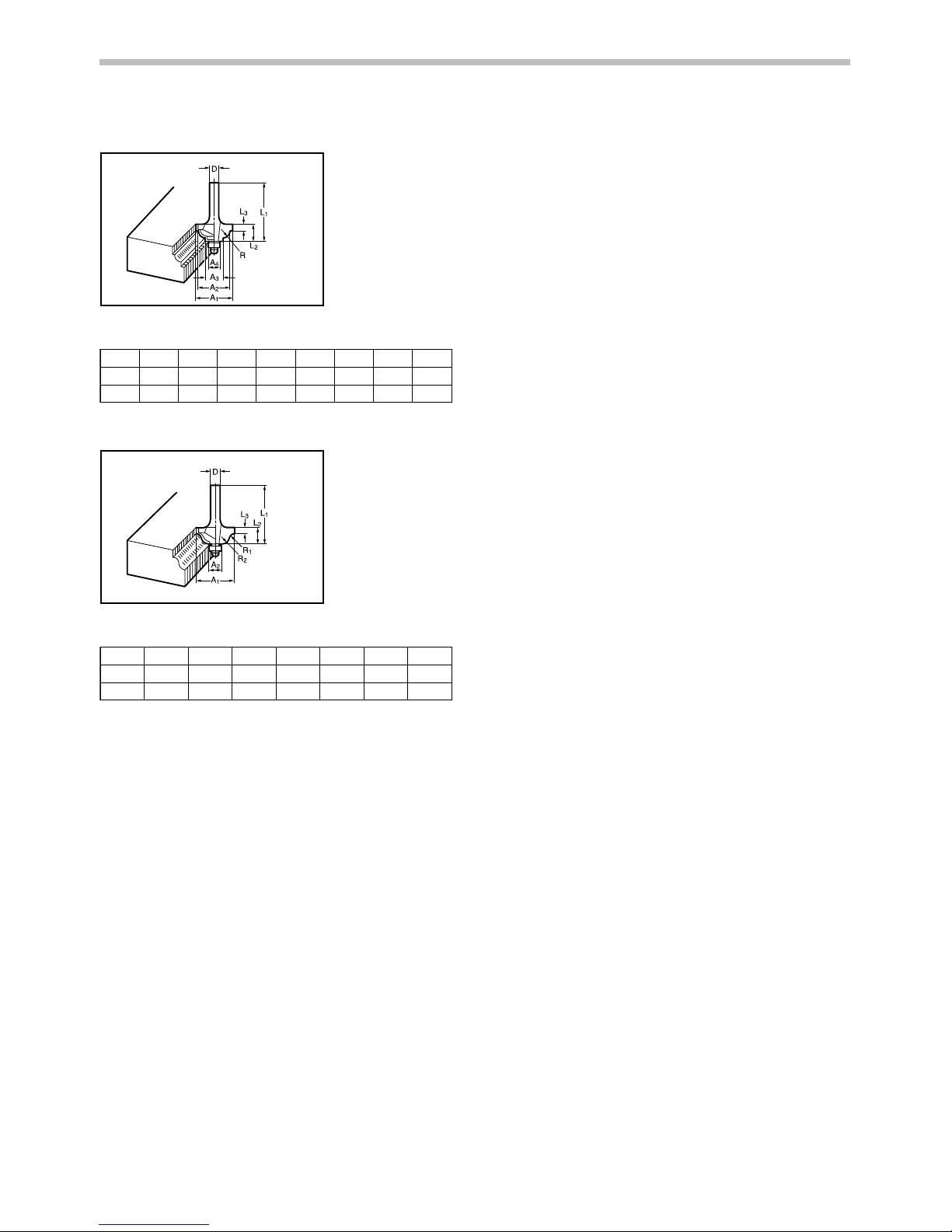

Ball bearing cove beading bit
005134
mm
D A 1 A 2 A 4 L 1 L 2 L 3 R
6
6
5.5 3
5
10
12 526 22 8 42
20 18 8
A 3
12
12 40
009815
Ball bearing roman ogee bit
005135
mm
D A 1 A 2 L 1 L 2 L 3 R 1 R 2
6
6
2.5 4.5
3
4.5
4.5 626 8 42 12
20 8 40 10
009816

11

12
Makita Corporation
Anjo, Aichi, Japan
www.makita.com
885033A939
