SSS Siedle DCSF 600-0 Installation manual

DoorCom
switching/remote
control interface
DCSF 600-0
Addition to the
programming
instructions
DCA 612-0/
DCA 650-0
Programming
instruction

Select language:
Deutsch
English
Francais
Italiano
Dansk
Nederlands
save
and return with
OK
OK
OK
Esc OK Esc OK Esc OK Esc
Esc
Esc
1
DCA 650-0 V 1.0
S. SIEDLE & SÖHNE
Sprache/Language
ändern/Change<OK
Enter PIN
0000 <OK>
System config.
change with <OK>
PIN setting
change with <OK>
Door parameters
change with <OK>
Publ. nwk. param.
change with <OK>
Concierge fct.
change with <OK>
Output config.
change with <OK> Service function
change with <OK>
Default status
change with <OK>
Function outp. 1
change with <OK>
Function outp. 2
change with <OK> Service receiver change with <OK>
Call btn assignm
Test with <OK>
Function outp. 3
change with <OK>
Input config.
change with <OK>
Input 1
change with <OK>
Input 2
change with <OK>
Input 3
change with <OK>
Sprache
Deutsch <OK>
General
DoorCom switching/remote
control interface DCSF 600-0
The DCSF 600-… is an interface
accessory which is integrated in the
DCA 612-… or DCA 650-… .
Programming takes place via the
DCA and refers to the menu points
“Input configuration” /
“Output configuration” change.
Both menu points are integrated
into the programming sequence
before the service functions.
Note!
Please observe the specifications in
the product information!

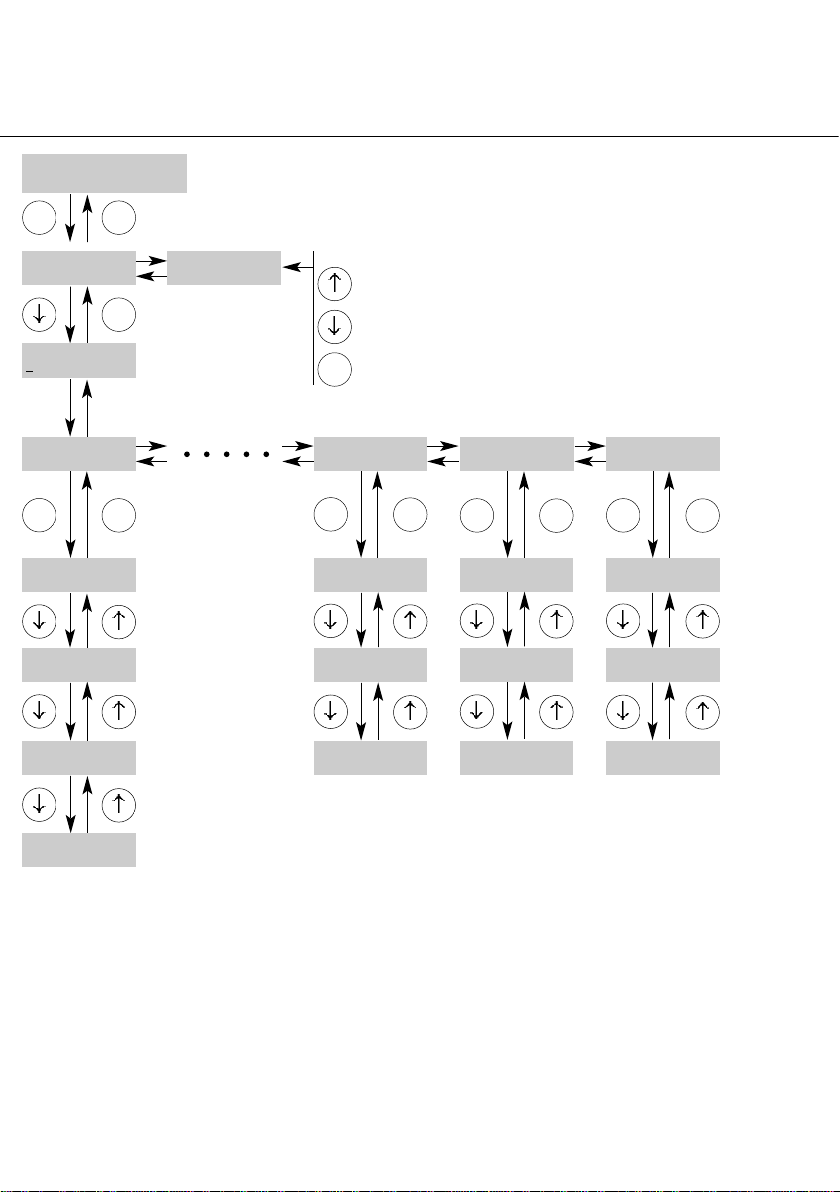

Programming stucture

2
Contents
Programming structure
General remarks
DCSF 600-… configuration
Changing the input
configuration 3-5
DCSF 600-… configuration
Changing the output
configuration 6-7

3
In the main menu Input
configuration, it is possible to
selectively define the function of
each of the three inputs.
Press the programming button to
reach the selection window for the
inputs.
Using the scroll buttons, select an
input.
Active call number
The call number entered here (max.
22 digits) is dialled when the input
changes from passive to active, i.e.
current flows, e.g. a switch
connected to input 1 is closed.
Press the programming button to
confirm your selection and move to
the setting possibilities display, for
example for input 1.
Press the programming button again
to reach the display for setting the
active call number.
Access the required numbers with
the scroll buttons and move on to
the next number with the aid of the
cursor buttons.
Press the programming button to
confirm the set call number and
scroll forward to the active function.
DCSF 600-… configuration
Changing the input configuration
Press the programming button
Display
Press the scroll button
Press the programming button
Display
Press the programming button
Display
Press the scroll / cursor button to
enter the call number
Press the programming button
Display
Press the scroll button
Input config.
change with <OK>
Input 1
change with <OK>
OK
OK
OK
OK
Act. call no. E1
change with <OK>
Act. call no. E1
- <OK>
Act. call no. E1
change with <OK>

4
DCSF 600-… configuration
Changing the input configuration
Active function
The function set here (see function
table) is selected when the input
changes from passive to active, i.e.
current flows, e.g. a switch
connected to input 1 is closed.
Press the programming button to
reach the display for setting the
active function.
Access the required numbers and
characters with the scroll buttons
and move on to the next number
/character with the aid of the cursor
button. It is also possible to define
several functions in sequence (e.g.
#50#61) Press the programming
button to confirm the set function
and
scroll on to the passive call number
Passive call number
The call number entered here (max.
22 digits) is dialled when the input
changes from active to passive; i.e.
no current flows, e.g. a switch
connected to input 1 is opened.
In order to change the passive call
number, press the programming
button.
Access the required numbers with
the scroll buttons and move on to
the next number with the aid of the
cursor button.
Press the programming button to
confirm the set call number and
scroll forward to the passive function
Display
Press the programming button
Display
Press the scroll / cursor button
to enter the function
Press the programming button
Display
Display
Press the programming button
Display
Press the scroll / cursor button
to enter the call number
Press the programming button
Display
Press the scroll button
Act. fct.: E1
change with <OK>
Act. fct.: E1
- <OK>
OK
OK
OK
OK
Act. fct.: E1
change with <OK>
Pass. call no. E1
change with <OK>
Pass. call no. E1
- <OK>
Pass call no. E1
change with <OK>

5
Passive function
The call number entered here (max.
22 digits) is dialled when the input
changes from active to passive; i.e.
no current flows, e.g. a switch
connected to input 1 is opened.
Press the programming button to
reach the display for setting the
passive function.
Access the required numbers and
characters with the scroll buttons
and move on to the next
number/character with the aid of the
cursor button. It is also possible to
define several functions in sequence
(e.g. #50#61)
Press the programming button to
confirm the set function.
For input 1 all the necessary
definitions have now been
performed.
Use the Escape button to return to
the Input selection.
It is now possible to define all the
inputs using the same procedure.
Press the Escape button again to
return to the main menu.
Display
Press the programming button
Display
Press the scroll button / cursor
button
to enter the function
Press the programming button
Display
Press the Escape button
Display
Press the Escape button
Display
DCSF 600-… configuration
Changing the input configuration
Passiv fct.: E1
change with <OK>
Passiv fct.: E1
- <OK>
OK
OK
Esc
Esc
Passiv fct.: E1
change with <OK>
Input 1
change with <OK>
Input config.
change with <OK>

6
In the main menu Output configu-
ration, it is possible to selectively
define the function for each of the
three outputs (relays).
Selection:
Switch, timer, door release, light,
monitor switch and NSC (secondary
signalling controller) function.
The functions door release and light
are actuated on a parallel basis to
the system-linked function.
In the case of the monitor switch/
NSC function, the relevant relay
contact automatically closes on a
door call to the assigned user. The
other functions can be triggered by
means of multiple frequency dialling.
If the DCSF is integrated in the
DCA 612-…, for each output it is
possible to selectively dial a door
loudspeaker by means of additional
wiring.
Press the programming button to
reach the display for output
selection.
Select an output using the scroll
button.
Press the programming button to
confirm the selected output and
move to the selection of functions,
for example for output 1.
Use the scroll button to select the
function.
Pressing the programming button
confirms the selected function and
automatically returns you to the
output selection display.
If one of the functions timer, door
release, light or NSC is selected, the
time can be defined between 0.4
and 90 secs. or between 2 and 19
mins. The default setting is
0.4 seconds.
Display
Press the programming button
Display
Press the scroll button
Press the programming button
Display
Press the scroll button
Press the programming button
Display
Configuration DCSF 600-…
Changing the output configuration
Output config.
change with <OK>
Function outp. 1
change with <OK>
Function outp. 1
switch <OK>
Function outp. 1
switch <OK>
OK
OK
OK

7
Pressing the scroll button brings you
to the above described time setting.
Pressing the programming button
allows you to change the time.
Press the scroll buttons to set the
required time.
Pressing the programming button
confirms the set time and returns
you to the time setting starting
point.
Use the scroll button to move to the
selection of outputs.
Press the Escape button to return to
the main menu output
configuration.
Press the Escape button once again
if applicable to terminate the
programming session.
Press the scroll button
Display
Press the programming button
Display
Press the scroll buttons until the
required time is set.
Press the programming button
Display
Press the programming button
Display
Press the Escape button
Display
Press the Escape button
Display
Configuration DCSF 600-…
Changing the output configuration
Time output 1
change with <OK>
OK
Esc
Esc
Time output 1
0,4s <OK>
Time output 1
change with <OK>
Function outp. 2
ändern mit <OK>
Output config.
change with <OK>
DCA 650-0 V 1.0
S. SIEDLE & SÖHNE
OK

© 2001/10.2001
Printed in Germany
Best. Nr. 0-1101/031777 GB
