SSS Siedle LAV-30 Installation and operation manual

LARGE AREA VACUUM
LAV-30
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For additional information refer to the Triple S website
www.triple-s.com or write to:
Triple S
2 Executive Park Drive
Billerica, MA 01862
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Triple S
reserves the right to make changes or improvements to its
machines without notice.
FOR YOUR CONVENIENCE, RECORD THIS
IMPORTANT INFORMATION:
MODEL_______________________________
SERIAL NUMBER______________________
PART NUMBER ________________________
DATE PURCHASED ____________________

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS IN THIS BOOK BEFORE
USING THIS MACHINE! If you do not understand, ask your supervisor.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. DO NOT USE THIS VACUUM FOR PICK UP OF WET DEBRIS.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. You must be trained to operate this machine. Operate this machine for its intended use only.
5. Do not operate this machine unless it is completely assembled. The dust bag and/or filters must be in
place. Use only manufacturer’s attachments.
6. Keep the machine and its electrical components dry. Do not subject to rain. Store the machine in a dry
building area. Clean the machine with a dry cloth only.
7. Machines can cause an explosion when near flammable materials and vapors. Do not use or store this
machine with or near fuels, grain dust, solvents, thinners, or other flammable materials. Do not use
flammables to clean this machine.
8. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
9. Maintenance and repairs must be done by a qualified or authorized service center.
10. If the machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
11. Connect to a properly grounded outlet only (See Grounding Instructions).
12. To prevent electric shock, always remove the electrical plug from the electrical outlet before doing any
repairs or maintenance and when leaving the machine unattended. Do not handle plug or vacuum with
wet hands.
13. Do not pull cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Keep cord away from heated surfaces. Do not use with damaged cord or plug.
14. Turn off all controls before unplugging.
15. Do not put objects into openings. Do not use with any opening blocked: keep free of dust, lint, hair
and anything that may reduce airflow.
16. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
17. Make sure all labels, decals, warnings, cautions and instructions are fastened to the machine.
2

This machine must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This machine is equipped with a cord having an
equipment-grounding conductor and grounding plug. The plug must be
inserted into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician
or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the machine - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded
plug that looks like the plug illustrated in figure A. A temporary adapter
that looks like the adapter illustrated in figures B and C may be used to
connect this plug to a 2-pole receptacle as shown in figure B if a properly
grounded outlet is not available. The temporary adapter should be used only
until a properly grounded outlet (figure A) can be installed by a qualified
electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held
in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSION CORDS
Use only three-wire 14/3 or larger gauge approved extension cords that have
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
When servicing, refer to authorized person only. Use only identical
replacement parts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
3
Vacuum
Motor
Vacuum
Motor
Brush
Motor
Cord Assembly
#908086
Vacuum Switch
#911089
Brush Switch
#911089
Jumper
#911211
#1 Wht
#3 Wht
#2 Wht Blk
Blk
Blk
Blk
Blk
Blk
Wht
Wht
Gr
Gr
Gr
Gr
Wire Conectors
(5 Locations)
#911179

OPERATING PROCEDURES
WARNING! For the safe operation of this machine
follow the instructions given in this booklet and the
training given by your supervisor. Failure to do so can
result in personal injury and/or damage to machine and
property!
DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!
NEVER USE THIS MACHINE TO PICK UP VOLATILE
OR EXPLOSIVE MATERIALS!
The model shown in this manual is intended for commercial
use.
PREPARATION
To prepare the machine for operation, make sure it is of
correct voltage and properly assembled. If in doubt, ask
your supervisor.
 If the vacuum is in its upright position (page 6), raise
the handle while supporting the vacuum, then slowly
lower the vacuum to the floor.
 Properly install the filter bag in the vacuum: Lift
the cover from the machine. The filter bag inlet is de-
signed with a rubber gasket that fits securely over the
bag adapter (page 7) in the cover. First push the filter
bag inlet over the adapter on the cover. Then from the
outside of the cover reach inside the adapter and push
the gasket on the rest of the way. Replace the filter bag
when full.
OPERATION
1. Plug the machine’s power cable into a properly
grounded outlet (see Grounding Instructions).
2. The foot pedal should be raised to the “BRUSH”
position (page 8) for wide area vacuuming.
3. Adjust the brush height with the lever located on
the rear of the machine near the floor (page 8).
4. Turn the vacuum switch ON (rocker switch on
operator’s right, page 7).
5. Turn the brush switch ON (rocker switch on operator’s
left, page 7) and begin vacuuming.
OPERATION WITH TOOLS
Three on-board tools are available for the vacuum: the
dusting tool, crevice tool and turbo tool (page 6). Twenty
(20) feet of hose is provided which allows access to rooms
without moving the machine.
1. The brush and vacuum switches should be turned
OFF.
2. Depress the foot pedal to the “ACCESSORY” posi-
tion.
3. Remove the rigid portion of the accessory hose from
its’ storage area in the handle and attach the tool of
choice.
4. Turn the vacuum switch ON and begin.
Note: The vacuum switch should be OFF when switching the
foot pedal between the accessory and the brush positions.
MAINTENANCE
ALWAYS turn the brush and vacuum motor switches
OFF and UNPLUG the power cord from the electrical
outlet before doing any clean-up or repairs, and when
the machine is left unattended.
AFTER EACH USE:
1. Vacuum filter bag: If the bag is full or damaged install
a new one.
Filter Bag, 10 Pack – Part Number 650602
Cloth Bag (optional) – Part Number 650601
2. Power cord and plug: Check for cuts or nicks; if
damaged, have the cord replaced at a factory authorized
service center.
3. Casters and Wheels: Remove any strings or debris
that may restrict the free movement of the casters.
4. Tools: Inspect the tools to ensure there is no obstruction
of airflow. Remove any debris found.
5. Brush: Remove any strings or debris. Replace if
becomes worn or damaged.
Storage: The handle may be folded down and the ma-
chine stored upright to reduce storage space requirements.
Store the machine in a clean dry area.
4

MAINTENANCE
WEEKLY:
1. Inspect and clean the two vacuum inlet filters. Re-
move the cover from the machine. The filters are now
accessible (see page 10). They are constructed of foam
attached to a plastic mounting ring. Slide the filters off
and clean by shaking or vacuuming. Replace if there
are any rips, tears or can’t be cleaned.
2. Inspect and clean the exhaust filter. It is located
under the handle on the top of the machine (see page
8). Remove the filter and clean by shaking, vacuuming
or washing with water. Replace if there are any rips,
tears or if it can’t be cleaned.
VACUUM MOTOR MAINTENANCE:
Have the vacuum motors inspected annually by a factory
authorized service technician. If the carbon brushes are
worn, they should be replaced. This service will prolong
the life of the motor.
5

SSS LARGE AREA VACUUM, MODEL LAV-30
6
Hose Assembly
#654101
Cuff (2)
#242402
Clamp with Screw
#S611A
Turbo Tool
#608844
LAV-30 Large Area Vacuum
#655404
Tool Storage Bag
#650603
Handle, Machine
#653901
Dusting Tool
#658801
Crevice Tool
#658802
Wand (2)
#659801
Cover
#652302
Body, Machine
#651301
Upright/Storage Position
Not Shown:
Label, RH
#655106
Label, LH
#655107

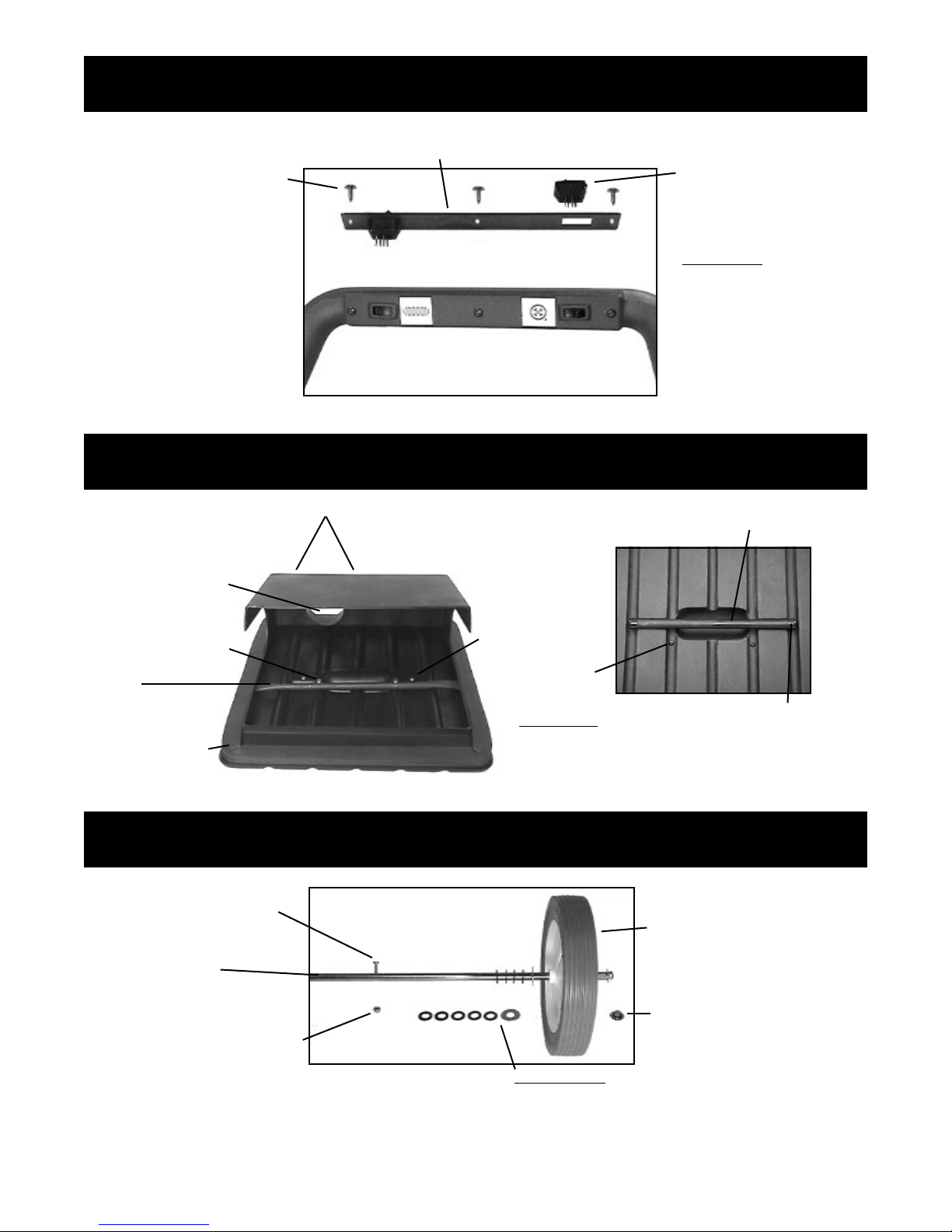

SWITCH ASSEMBLY
COVER ASSEMBLY
WHEEL ASSEMBLY
7
Not Shown:
Paper Vacuum Bags, 10 Pack
#650602
Optional Cloth Bag
#650601
Handle
#653902
Cap, Handle (2)
#651501
Screw, #8x1/2 THP SMS (3)
#W136D1
Switch, Rocker 20 Amp (2)
#911089
Plate, Switch
#656602
Not Shown:
Lead Assembly, Switch
#911211
Vacuum Switch
Brush Switch
Shaft, Wheel
#657703
Screw, 10-24x1 PHP
#W343D
Nut, 10-20 ESNA S/S
#920017
Two (2) Sets:
Washer, Fibre (5 one side, 6 other side)
#509820
Washer, 7/16 Flat
#W120D
Wheel, 10x1.75 Grey (2)
#229750
Snap Axle Cap (2)
#S482P
Cover
#652302
Gasket, Cover
#653402
Brace
#658505
Nut,10-20 ESNA S/S (2)
#920017
Screws, Handle (2)
#962119
Bag Adapter
Screws, Brace (2)
#W343D
Bag Clamp Assembly Not Seen: Screws (2)
#962029
Clamps (2)
#1394
Nuts (2)
#920017

HANDLE & EXHAUST FILTER COMPONENTS
BRUSH ADJUSTMENT & FOOT PEDAL
8
Jacknut
#920026
Clamp, Cable
#612001
Screw
#W343D
Cord Assembly, 75 Feet
#908103
Strain Relief
#508510
Nut, 1/2 Pipe Lock
#920619
Wiring Harness
#911210
Connectors (5)
#911179
Jacknut (2 each side)
#920025
Two (2) Sets:
Bracket, Handle
#657501
Screw (2)
#W516D
Label, Warning
#615102
Exhaust Filter
#653301
Screw, #8x1/2 THP (4)
#W136D
Screen, Filter
#658501
Sound Deadening
#658504
Handle
#653901
Exhaust Filter
#653301
Brush Height Adjustment
Assembly (detail on page 11)
#650903
Brush/Accessory Foot Pedal
#655101
Label, Brush Adjustment
#655108
Label, Brush Accessory
#655109
Not Shown
(at top of handle):
Clamp
#1394
Spring
#228331
Screw
#W343D

BRUSH ASSEMBLY
9
Shoe Brush
#657901
Shaft, Long
#657701
Screw, #8x1/2 THP (8)
#W136D
Two (2) Sets:
Bearing Housing
#654201
Screw, 8-32x3/8 Flat PH (2)
#962105
Bearing (2)
#902035
Brush
#650901
Shoe End
#657902
Screw (2)
#W136D
Guard, Belt
#653602
Screw (3)
#W136D
Pulley, Brush
#656901
Set Screw (2)
#W168D
Pulley, Motor
#656902
Set Screw (2)
#W168D
Belt, Drive
#903018
Support, Motor
#658503
Screws (4)
#962019
Brush Motor
#655201
Bracket, Brush Motor
#658503 Two (2) Sets:
Screw, 1/4-20x1/2 HH
#W169D
Washer, 1/4 Lock
#980002
Washer, 1/4 Flat
#W104D
Three (3) Sets:
Screw
#962010
Washer, 1/4 Lock
#980002
Jack Nut, 1/4-20 Zinc
#920028
Shaft, Short
#657702
Two (2) Sets,not shown:
Guard
#653601
Screw, #4x1/4 Type Z PH SMS(2)
#962144
Brush Assembly
#650902
Includes Brush
with Shafts
for Service

VACUUM MOTOR & FILTERS
BOTTOM VIEW
10
Vacuum Motor, 115V (2)
#655204
Vacuum Motor, 230V (2)
#655205
Vacuum Inlet Filters (2)
#633301
Gasket, Motor Mount
#633403
Not Shown:
Gasket, Hopper
#653403
Nut (4)
#W106D
Washer (4)
#W401D
(230V Only)
Screw, 10-32x1/2 Type F
#962030 (230V Only)
Not Shown:
Washer (1)
#W124D
Lead Assembly, Green (2)
#911212
Washer (1)
#W124D
Screw w/lock tight, Motor Mount (4)
#920618

FOOT PEDAL & VACUUM ADJUSTMENT ASSEMBLY
BRUSH ADJUSTMENT ASSEMBLY
11
Nut, 1/4-20 (2)
#920011
Foot Pedal (Lever for Door)
#655101
Rod, Vacuum Adjustment
#657402 Cotter Pin
#A13507
Plate
#652301
Gasket, Duct
#653401
Screws, #8x1/2 THP (4)
#W136D
Plate, Vacuum Door
#652701
Seal, Vacuum Door
#657601
Screws, 8-32x5/16 PHP MS(4)
#W500D
Plate, Not Shown, Below Seal
#657202
Plate, Adjustment
#656601
Label, Brush
#655108
Arm, Caster Adjustment
#655110
Arm, Support (2)
#650301
Rod
#657403
Support, Caster
#658502
Screw, #8x1/2 THP
#W136D
Spring
#658302
Bracket
#652001
Screw, #8x1/2 THP
#W136D
Screw, #8x1/2 THP (2)
#W136D
Two (2) Sets:
Screw
#962010
Washer, 1/4 Lock
#980002
Nut, 1/4-20 Zinc
#920025
Two (2) Sets:
Caster
#659701
Washer, 3/8 Lock
#980009
Nut, 3/8-16 Hex
#920002
Four (4) Sets:
Screw, 1/4-20x3/4 HH
#W169D
Washer, 1/4 Lock
#980002
Washer, 5/16 Fender Zinc
#W212D
Stop, Adjustment Rod (2)
#658506
Screw, 8-32x3/4 PHP (2)
#962066
Two (2) Sets:
Nut, 6-32 Hex w/Nyloc
#W144D
Screw, 6-32x3/8 FHP
#W152D
Screw
#962057
Nut, Connecting
#920618

8/04 655602
SSS LARGE AREA VACUUM, MODEL LAV-30
LIMITED WARRANTY
The SSS Large Area Vacuum, Model LAV-30 has been manufactured, tested and inspected in accordance with specific engineering require-
ments, and is WARRANTED by the manufacturer to be free from defects in workmanship and materials.
This warranty is, however, subject to the following qualifications, conditions and limitations which are set forth to provide you and all users of
the SSS Large Area Vacuum, Model LAV-30 with information concerning the duration, extent, availability and applicability of this Limited
Warranty, the procedure to be taken to obtain its performance and other information concerning the manufacturer’s warranty policy.
1. TO WHOM EXTENDED AND DURATION OF ITEMS COVERED
This warranty extends to the original consumer purchaser from the date it
was purchased and for the items and periods as follows:
Five (5) years parts, One (1) year labor - Rotational molded frame and
hopper.
One (1) year parts & labor - All other components unless excluded below.
2. PARTS NOT COVERED BY WARRANTY
Certain parts of the SSS Large Area Vacuum, Model Model LAV-30 require
replacement in the ordinary course of use due to normal wear by reason of
their characteristics. This warranty does not cover the following normal
wear items:
Part Number Part Name
650602 Paper Bag Filters
650601 Cloth Filter Bags
633301 Filter
653301 Exhaust Filter
650901 Brush
908103 Cord Assembly
654101 Hose Assembly
903018 Belt
3. EXCEPTIONS AND EXCLUSIONS FROM WARRANTY
The SSS Large Area Vacuum is required to be used on electric current as
indicated on the nameplate. Otherwise damage, defects, malfunctions or
other failures of the SSS Large Area Vacuum arising from use on electric
current not as indicated are excepted and excluded from this warranty.
Defects, malfunctions, failure or damage of the SSS Large Area Vacuum
caused by improper, unreasonable or negligent use or abuse while in the
possession of the consumer are likewise excluded from this warranty.
If repair is done on your SSS Large Area Vacuum by anyone other than
those below designated as authorized to perform such work without first
having obtained factory instructions, the manufacturer, at its sole option,
may determine that this warranty will not apply and that reimbursement
for such repair will not be made because of the failure to comply with such
factory specified instructions.
4. PROCEDURE TO BE TAKEN TO OBTAIN PERFORMANCE
OF WARRANTY
To secure repair of the SSS Large Area Vacuum or any warranted parts
under this warranty, the following procedure should be taken: The inopera-
tive SSS Large Area Vacuum or warranted parts, together with satisfactory
evidence of the purchase date, must be delivered with shipping and delivery
charges prepaid to the Dealer from whom purchased.
If you are unable to locate the Dealer, you may write or otherwise com-
municate with Triple S, 2 Executive Park Drive, Billerica, MA 01862
for instructions before repair service is performed by anyone else. In such
event Triple S will provide either the location of a closely available Triple
S distributor Service Department or other factory instructions.
Upon compliance with the above procedure, all warranted defects will
be repaired, at no additional charge or costs to the consumer, and the
repaired product returned to the consumer, with all shipping and delivery
charges prepaid.
In following the procedures above set forth PLEASE MAKE CERTAIN
to state the Triple S model, type and serial number as shown on the name
plate of the SSS Large Area Vacuum.
REPLACEMENT
In the event of the defect, malfunction or failure of your SSS Large Area
Vacuum or any warranted part to conform with this warranty, the manufac-
turer may at its sole option and own expense, replace the SSS Large Area
Vacuum or any warranted part with another new identical or reasonably
equivalent model or part in lieu of repairing the defect.
5. NO REFUND OF PURCHASE PRICE
Triple S will not, as a matter of its warranty policy, refund the consumer’s
purchase price.
6. WARRANTY REGISTRATION CARD FOR YOUR SSS LARGE
AREA VACUUM AND REQUESTS FOR INFORMATION
Please fill out the warranty registration card accompanying your SSS Large
Area Vacuum, giving complete information as requested on the card, and
return to Triple S.
This warranty is in lieu of all other expressed or implied warranties.
