St George BISG801 User manual

Cooktop
Appliance Operation Manual
INCLUDING INSTALLATION AND CLEANING
BISG801 - 800mm Induction Cooktop

WELCOME TO ST GEORGE
St George is a proud Australian
company with a heritage of
innovation and quality.
Our success extends to
domestic and overseas markets,
confirming our reputation at the
forefront of appliance excellence.
The elegant simplicity and high
performance features of
St George designs, will
remain contemporary in
many years to come.

2
In this Manual,
displays safety
instructions,
displays tips and hints
Safety Warnings.......................................................3
List of contents
We have designed this hob for domestic use only.
With a view to constantly improving our products, we reserve the right to make technical and
programming changes or modify the appearance.
This hob is designed solely for cooking food. No asbestos has been used in its manufacture.
We suggest that you should periodically check that there are no objects (glass, paper, etc.) that could
obstruct the air inlet under your induction hob (See fitting).
Using your hob in complete safety.............................4
Installing your hob in complete safety........................6
Containers...............................................................8
Using your hob in all simplicity..................................9- 10
reserving and maintaining your hob..........................11
Small problems and solutions...................................12
Cooking..................................................................13

SAFETY WARNINGS
§Only qualified installers are
authorised to carry out installation.
The installer is responsible for
commissioning the appliance in
accordance with the current
Australian standards and
requirements under law.
§The appliance is intended solely for
domestic use. The manufacturer
shall not be held responsible for any
accident that maybe caused
because of improper use.
§Switch off the power supply to the
equipment before starting the
installation.
§The rating plate is located
underneath the appliance. Prior to
connection check that the voltage
indicated on the rating plate is in line
with your home power supply.
§The electrical wiring should be
equipped with a circuit breaker able
to isolate the appliance from the
mains in all points, with the distance
between terminals of at least 3 mm
in open position. This may be done
by means of fuses, safety switches,
etc.
§Upon the completion of installation,
live wires and isolated cables must
be adequately protected against
accidental touching.
§Distance between the cooktop
surface and the rangehood must be
such as indicated in the instructions
for use of the rangehood and in
accordance with the current
Australian standards.
§In case any other appliances are
plugged in the electric mains close
to the cooktop, prevent the contact
of the plug cable with the cooking
zones.
§Before using the appliance we
recommend reading this manual and
all the warnings it contains
thoroughly.
§In the event of a malfunction, do not
attempt to repair the appliance.
Disconnect the appliance from the
mains and contact your nearest
Kleenmaid service centre on
1300 652 100.
§Never use a cracked or broken
ceramic-glass cooktop. If you notice
any visible cracks on the surface,
cut the power supply immediately.
§Never use the cooktop as a working
surface.
§Sharp objects may damage the
cooktopsurface.
§Do not place saucepan lids on the
cooktop surface. Extreme pressure
can build up and cause the ceramic
top to crack!
§Never keep any flammable or
temperature sensitive objects, like
cleaning agents, sprays, detergents,
etc., below the appliance.
§Preparation of food in aluminium or
plastic cookware is not allowed.
Never place any plastic objects or
aluminium foil upon the cooktop
surface.
§Warning! The appliance is not
intended for use by young children
or infirm persons without
supervision.
The manufacturer shall not be held responsible for any injury or damage that may becaused by failure
to fully comply with the instructions and recommendations in this manual, the tampering of any of
the appliance components or the use of non-original spares.
3

4
Using your hob in complete safety
Power consumed the heating zone
goes out automatically
after :
Between 1....9 8hours
Between 10....14 2 hours
Between 15....Boost 1 hour

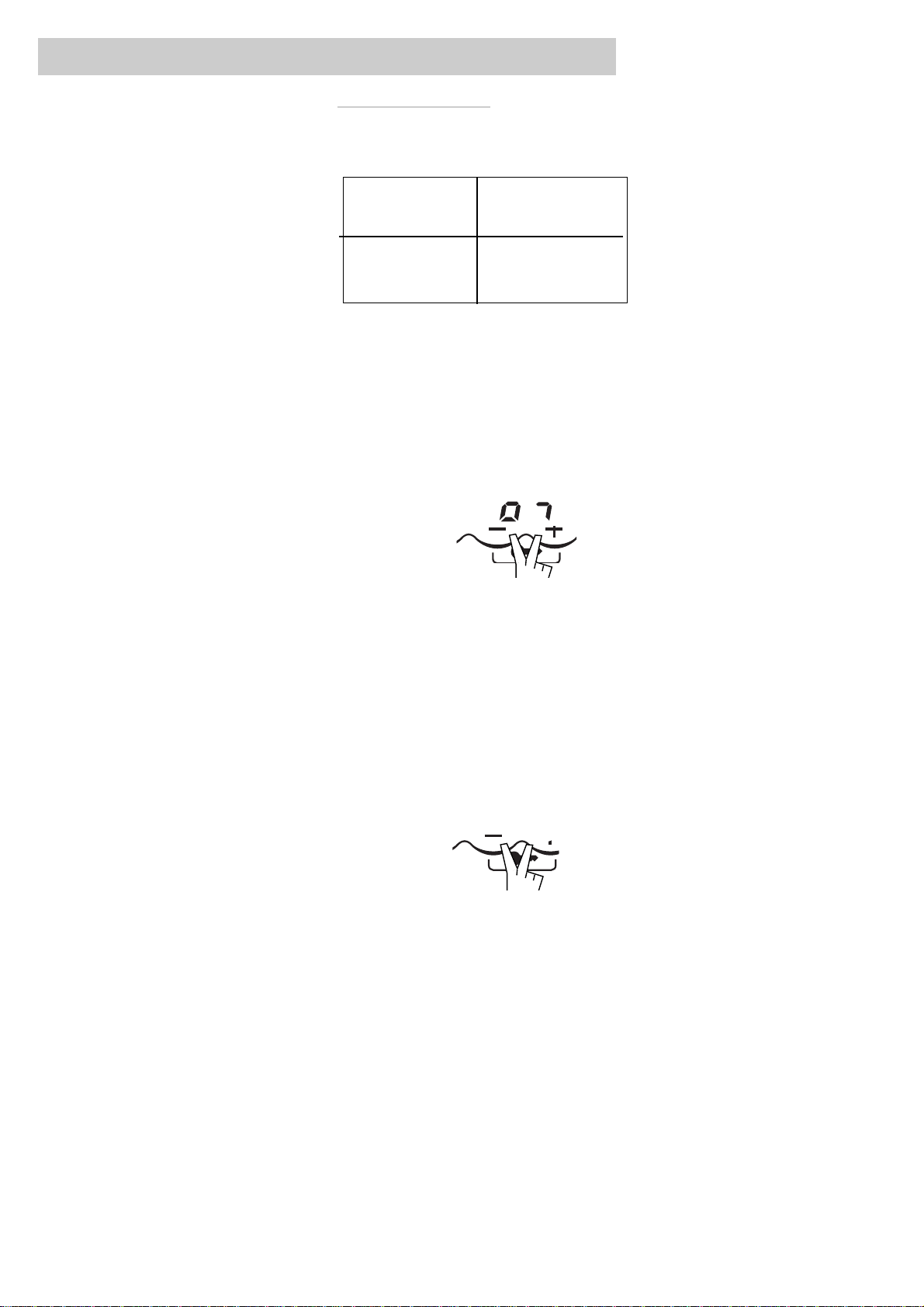

Locked
Controls can be locked :
- either when turned off for cleaning,
-or during use (the operations in progress
continue and the settings displayed stay active).
However,when in the locked position, the “STOP”
touch control has priority and cuts off the power
to the hob. The display turns off after a few
seconds. It can be reactivated by touching any
touch control.
The illuminated key goes out after a few
seconds. Touching the controls will cause the
illuminated 0to reappear.
Remember to switch back on again before
use.
3 , 4 s
bip
Unlocked
3 , 4 s
bip bip
The hob has been fitted with a child-safety
device that prevents its use when locked.
Automatic-Stop
Automatic-stop is a safety function for your hob. It
starts up automatically if ever you forget to turn
off after cooking :
The letter AS is displayed for the heating zone
concerned and the hob will beep for about 2 mi-
nutes. The AS will continue to be displayed until
any control of the zone in question is touched. The
hob will then beep twice to confirm your action.
HOB safety
•A sensor continuously monitors the
temperature of the components of your hob.
The power output by the hob will automatically
be reduced if this temperature becomes
excessive.
•You only have to remove the pan from the
hob to stop power instantaneously. Touch the
"Off" touch control to turn off the heating zone
completely.
SAUCEPAN safety
Each unit is equipped with a sensor that
continuously monitors the temperature of the
bottom of the pan, so that overheating is
impossible (empty saucepan, etc.).
METALLIC OBJECT safety
A small object such as a fork, spoon or a ring
placed on your induction hob by itself is not
detected as a pan. The display flashes and there
is no output power.
RESIDUAL HEAT INDICATOR
After intensive use, the cooking zone may remain
hot for several minutes.
The letter “
H”
H” is displayed during this period.
Do not touch the zones concerned
Child safety

5
Using your hob in complete safety
If a crack appears in the glass surface, disconnect the appliance immediately to avoid any risk of
electric shock.
For disconnecting, remove the fuses or use the cutout switch
Do not re-use your hob until the glass surface has been changed.
Y our hob must never be used as a storage space or cutting surface for any products whatsoever.
Never allow power cables for other electrical appliances to trail across the hob.
When cooking never use aluminium foil and never place products wrapped in aluminium foil or products
deep-frozen in aluminium packs on the hob. The aluminium will melt and damage your appliance
irreparably. Do not leave empty pans on your hob in case of residual heat or if the hob is turned on by
mistake.
If your hob is placed above your oven (see "Choice of Installation") thermal protectors prevent it being
used when the oven is being pyro-cleaned.
+
-
Induced currents
Electronic circuit
Induction coil
For the attention of wearers of pacemakers or other active
implants:
The hob complies with all current standards on electromagnetic interference.
Your induction hob is therefore perfectly manufactured in keeping with legal requirements (89/336/CEE
directives). It is designed not to create interference on any other electrical apparatus being used on
condition that the apparatus in question also complies with this legislation.
Your induction hob generates short-range magnetic fields.
To avoid any interference between your induction hob and a pacemaker, the latter must be designed to
comply with relevant regulations.
In this respect, we can only guarantee our own product conformity. Please consult the pacemaker
manufacturer or your doctor concerning its conformity or any possible incompatibility. L
The principles of induction
When your induction hob is switched on and a
heating power has been selected, the electronic
circuits produce induced currents that
instantaneously heat the bottom of the pan that
transfers this heat to the food.
Thus,cooking takes place with practically no
energy loss between the induction hob and the
food.

6
Installing your hob in complete safety

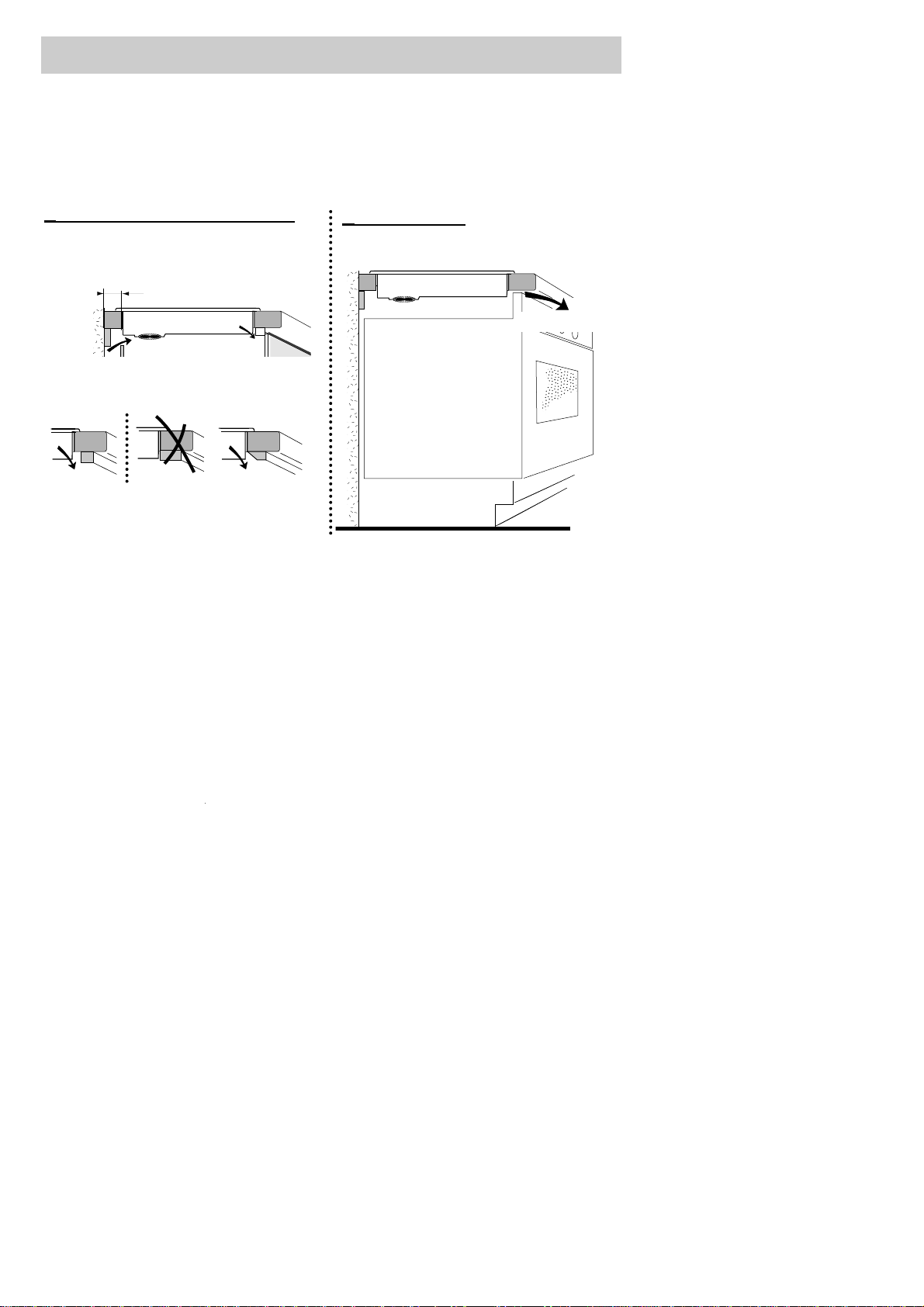

Above an oven
4 cm mini
Ensure that the unit crossbar does not block the air
passage, make a bevel if necessary.
Above a cupboard or drawer unit
Gap
When installing above a drawer the following ventilation requirements
must be observed.
MINI 4 mm
If the appliance underneath your hob produces excessive heat the following
ventilation requirements must be observed.
- Divider shelf separating the hob from the oven to be positioned at least 50mm below hob.
- Cooktop must be isolated from any oven cavity ie. under bench.
- Ventilation holes must be drilled into the side of adjoining cupboards to allow supply of fresh
Always ensure that the air vents beneath the hob are kept clear.
Your induction hob must always be adequately ventilated.
Incorrect installation may result in premature failure of the cooktop and will
void warranty!
- The connection cable must not be mechanically obstructed.
- Aerosols, spray canisters or any inflammable substances or materialsshould not be stored in
the drawer under the cooktop.
air to cooktop.

7
Installing your hob in complete safety
4 cm mini
26 ,5 /56 /75 cm
49 cm
4 cm mini
4 cm mini

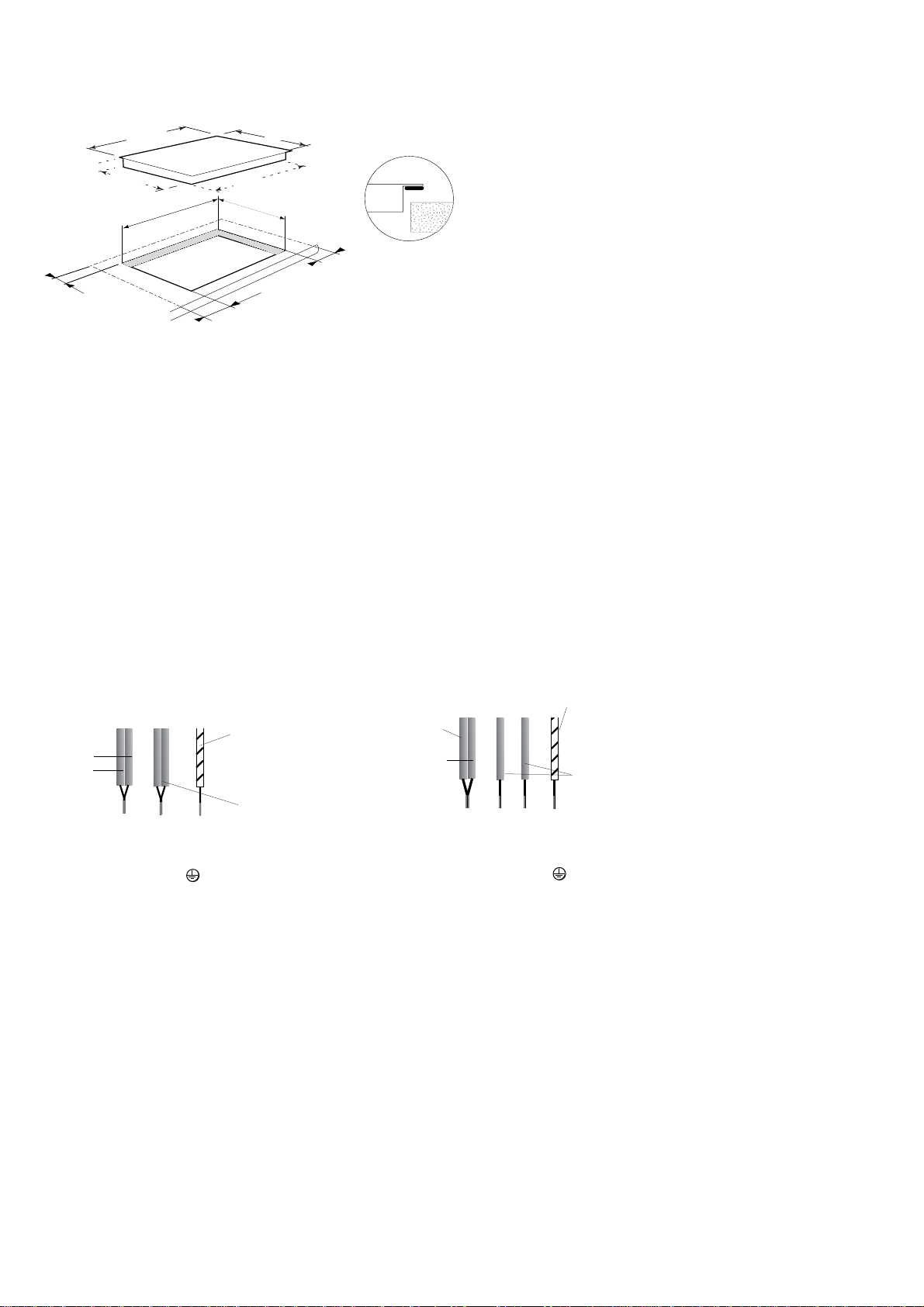

Fitting
A seal exists for preventing
any humidity getting under
the hob.
-Stick the seal under the rim
of the hob and lower the
hob into position on the
worktop.
-This seal is supplied in the
sachet; stick it in place
beneath the hob.
These hobs are delivered with type H 05 VVF power cable (1.5mm²) with 3/5 conductors (including a
green/yellow earth wire), which must be connected to the power supply via a plug that complies with
publication CEI 83 or an all-pole cut-out unit with contacts that open by at least 3mm.
If the cable is damaged, it must be replaced by an authorised St George Service Agent or similarly
qualified person for avoiding any possible risk of accident.
When the power is switched on, or after a long power failure, a light code appears on the control panel.
This disappears automatically after about 30 seconds or as soon as any touch control is touched on the
panel. This is normal, as the display is for use by the after-sales service when required. The user must not
take this into account under any circumstances. If the unit has a 3 phase 400 V2N connection, and is not
working correctly, check that the neutral wire is correctly connected. This precaution should also be taken
for all your other electronic apparatus.
The unit must be installed so that the mains plug is easily
accessible.
Connection
78,3 52
48,8 74,5
5,9
dimensions in cm
75
Neutral
Earth
Phase 2
Phase 1
NL1 L2
Separate the 2 phase
wires L1 and L2 before
connecting
Blue
Green/yellow
Black
- 400 V 2N three-phase
fuse : 16 Amp
brown
Neutral
Earth
Phase
NL
- 220-240 V monophase
fuse : 32 Amp
Green/yellow
Blue
Black
brown

8
Containers
You probably already have some suitable pans.
Your induction hob is able to recognise
most types of pans.
Pan test: Place your pan on a zone, for
example at position 4; you know that your pan
is compatible if the display does not flash, but
if it does flash then you cannot use this pan for
induction cooking. You can also test it with a
magnet: if the magnet "sticks" to the base of
the pan, then you can use it for induction
cooking.
Pans compatible with induction are:
• pans made of enamel coated steel with or
without a non-stick coating.
• cast iron pans with or without enamel coated
base.
An enamelled coated base will prevent the glass
top of your hob from getting scratched.
• stainless steel pans designed for induction
cooking.
Most stainless steel pans (saucepans, stewpans,
frying pans, deep frying pans, etc.) are suitable
for induction cooking if they pass the pan test.
• aluminium pans with special base.
pans which do not have a flat base may be
suitable, however,they must not be deformed
too badly.
• Note
Glass, ceramic, aluminium pans (without a
special base) and copper pans, and some non-
magnetic stainless steel pans are incompatible
with induction cooking. You will be informed by
the flashing display.
You should choose pans with a thick flat base for
uniform cooking (heat is better distributed).
Always use the most suitable induction-cooking ring (depending on model)
Ø12 ..... 26 cm
Ø 23 cm Ø 16 cm
Ø10 ..... 18 cm
Slow cooking (sauces, creams…).
Preparing small quantities or individual portions…
Multi-service zone For small pans

9
Using your hob in all simplicity
Ø 23 cm
50 W to 3200 W
Ø 16 cm
50 W to 2200 W
Ø 23 cm
50 W to 3200 W
Ø 16 cm
50 W to 2200 W

10
A beep and a flashing 0show that the zone
concerned has been turned on.
You can then choose the desired power.
If you do not set the power, the cooking zone
will turn itself off automatically.
0
1...15
Start/Stop
Setting power
Using your hob in all simplicity
If you use one of the rings at maximum
power on the induction side of the hob, the
other ring will automatically have its output
limited and the power displays will reflect this.
bip.
Low heat 7 = SIMMER
Moderate heat 11 = COOK
High heat 15 = BRING TO BOIL
Maximum power BOIL VIGOROUSLY
Operates when cooking zones concerned are
working. You can modify cooking times and any
time.
0....99min
Setting the timer
To stop the beep,touch any control key in the
cooking zone concerned. It will stop by default
after about 1 minute.
manual stopping
automatic stopping
0
bip bip
0
0

11
Preserving and maintaining your hob
●Avoid banging pots and pans down on the hob:
The glass surface is very tough but not unbrea-
kable
●Avoid rubbing with any abrasive cleaners or with
base of pans etc. as in time this will deteriorate
the marking on the top of your ceramic hob.
●Avoid putting your pans on the surround or rim
(depending on model)
●Avoid using pans with rough or dented
bases:
They may hold and transport matter liable to stain
or scratch the hob.
●Place your pan in the middle of the heating
zone.
●Do not leave an empty pan on a heating
zone.
Any such faults, which are not the cause of
breakdowns nor make the hob impossible
to use, are not included in the guarantee
conditions.
TYPE OF STAIN
Minor
Accumulated burnt-on
stains
Rings and traces of
limescale
Burnt-on stains following
sugar spillage, melted
aluminium or plastic.
Soak the area to be cleaned with hot water, then wipe it. Clean sponges
Soak the area to be cleaned with hot water, use a special
ceramic hob scraper to remove the worst, finish off with the
rough side of a cleaning sponge, then wipe it clean.
Clean sponges
special ceramic hob
scraper
Apply hot white spirit vinegar on the stain, leave to act
then wipe off with a soft cloth.- Use a commercial cleaner.
Special ceramic hob
cleaner.
- Apply a special ceramic hob cleaner on the surface,
preferably one which contains silicone (protective action).
Special ceramic hob
cleaner
WHAT TO DO ACCESSORIES
EMPLOYED
cream
ordinary sponge or special
sponge for delicate items
It is very easy to clean your hob, especially if you follow these few recommendations:
abrasive-backed sponge
powder
●Do not leave metal cooking utensils,
knives and forks, or metal objects on the hob.
They will get hot if left close to any heating zone
that is in use.
●Do not store
M AINTENANCE or I NFLAMMABLE
products in the cupboard under your hob.
●Do not heat up a closed can. It may
burst; this recommendation applies to all
methods of cooking.
●Preheat at maximum temperature when using
pans with non-stick inside surfaces. Use very
little or no fat at all.
The maximum heating position is for
boiling and frying only.

12
You have doubts about whether your hob is working correctly .... ...... this does not necessarily
mean there is a breakdown. Nevertheless, check the following points
Minor troubleshooting
WHAT SHOULD
YOU DO?
POSSIBLE
CAUSES
IF YOU REALIZE
THAT
Call the After Sales Service
Check the connection and make sure it
complies with requirements.
This is normal.
The electronic circuit is working badly.
Your hob is connected incorrectly
Your hob is connected incorrectly
The electronics are cooling down
See containers.
The saucepan you use is unsuitable for
induction cooking or its diameter is
under 12 cm. (10 cm on the 160 mm
zone).
Inspect the fuses and the cut-out
switch.
The apparatus is not under power.
There is a power or connection problem.
The hob does not work, another message comes
on
When you switch on, the fuse blows
When you switch on, only one side of the hob
works
The fan keeps going for a few minutes after the hob
has been switched off
After having turned on a heating zone, the keyboard
displays continue to flash.
Clean the hob or remove the object in
question and start cooking again.
- Something has overflowed and or an
object is touching the control panel.
The hob has stopped during use and is giving out a
beep every ten seconds and a (or F7 ) ap-
pears on the display.
The hob does not work. Displays on the key-
board do not come on
A series of little (or F7 ) appears Electronic circuits have overheated. See "Fitting your hob".
NOTHING: see chapter Remarks on
connections
The hob is working normallyWhen you switch on, the display lights up
If the slightest break or crack appears in the ceramic glass surface, disconnect the
unit immediately and contact your After Sales Service.
This comes from vibrations made by
energy going from the hob to the pan.
The pans make a noise during cooking
Under high power this phenomenon is
normal with certain types of pans. There
is no danger for the hob.
Use each heating zone for ½ hour
with a pan full of water.
A new apparatus
The hob gives off a smell when first used for
cooking

FRYING COOKING/BROWNING COOKING
DISHES BRINGING BACK TO THE BOI
BRINGING TO THE BOIL STEADY SIMMERING
SIMMERING
SOUPS
BROTH THICK SOUP
FISH
STOCK FROZEN
SAUCES
THICK, MADE WITH FLOUR MADE WITH BUTTER AND EGGS (BEARNAISE, HOLLANDAISE)
VEGETABLES
CHICORY, SPINACH PULSES BOILED POTATOES FRIED POTATOES SAUTE POTATOES DEFROSTING VEGETABLES
MEAT
THINLY SLICED MEAT FRYING STEAKS GRILLING (CAST IRON GRILL PAN)
DEEP FRYING
FROZEN CHIPS FRESH CHIPS
MISCELLANEOUS
PRESSURE COOKER (ONCE IT HISSES)
STEWED FRUIT
PANCAKES CUSTARD MELTING CHOCOLATE JAM MILK FRIED EGGS PASTA BABY FOOD IN JARS (BAIN MARIE)
STEWS
CREOLE RICE RICE PUDDING
10 7654 3 2 19 812-11
15-13
HEATING POWER
KEEPING WARM
MAX TOUCH*
*
*
*
*
*
*
*
add food
boil or fry
fast cooking
slow cooking
boil with cover
maximum power is reserved for frying and quick boiling.
MAX switch some models only for boiling
and frying
*

DOMESTIC WARRANTY - FULL FIVE YEAR WARRANTY
In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this
appliance, during the first five years of ownership as the original purchaser of this St George appliance, we
guarantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of
charge for parts and labour,provided that all service is performed during normal working hours by St George
or their designated Agents. Where the appliance is installed outside the normal servicing area of the above,
the Purchaser must pay for the cost of transporting the appliance to and from the Agent or the Agent’s
travelling cost to and from the Purchaser’s home.
COMMERCIAL WARRANTY - ONE YEAR WARRANTY
When this appliance is installed in a commercial application, you, the Consumer, have under the relevant
laws in respect of this appliance, during your first one year of ownership as the original purchaser of this
St George appliance, we guarantee that any fault caused by faulty material or workmanship becoming
apparent, will be rectified free of charge for parts and labour, provided that all service is performed during
normal working hours by St George or their designated Agents. Where the appliance is installed outside the
normal servicing area of the above, the Purchaser must pay for the cost of transporting the appliance to and
from the Agent or the Agent’s travelling cost to and from the Purchaser’s home.
WHAT THESE WARRANTIES DO NOT COVER
We are not responsiblefor any damage or malfunctionunless caused by a defect in material or workmanship.
This includes but is not limited to abuse, misuse, improper installation and transportation damage. We are
not responsible for any consequential damages from any malfunction.
WARRANTY DOES NOT COVER REPLACEMENT OF LIGHT
GLOBES OR GLASS BREAKAGE DUE TO IMPACT
In case of fractured glass do not use your appliance.
WARRANTY REGISTRATION
Please complete warranty details below. Please retain together with your proof of purchase document.
SERVICE ASSISTANCE
WARRANTY AND SERVICE
service.
These documents will need to be viewed by our Service Representative should you request in warranty
To assist you when phoning our After Sales Service number to arrange a service call please
complete the following details and have them ready when you call.
Model Number ________________________________________Date of purchase_____________________________
St George Store purchasedfrom__________________________Date of installation____________________________
ST GEORGE AFTER SALESSERVICE
1300 305 366
The Consumer, must make the appliance available for servicing and shall bear any costs incurred for
any de-installation and/or re-installation required to make the appliance available for servicing.
St George are not liable for any consequential damage incurred during de-installation or re-installation.

A Tradition of Excellence
1300 305 366
