PLUMBING POSITIONS
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specifcations without notice | Revised 06/2018
London 750
Product No: 1183, 1185
London 1500DB
Product No: 1195, 1197
London 900
Product No: 1187, 1189
London 1200
Product No: 1191, 1193
Hot & Cold Water Inlet
(830-950)
250
200
Finished Floor Level
Finished top surface
100
to waste
outlet
C
L
372
100
to waste
outlet
C
L
447
250
200
Finished Floor Level
Finished top surface
(830-950)
100
to waste
outlet
C
L
597
It is important to decide on
what height you want your
nished top surface from the
oor, this will determine where
your plumbing will be
positioned.
Finished Top Surface
Waste Outlet
Vanity Range
Basins
Please note that these plumbing positions are for top mounted tapware. If you are
installing wall mounted tapware please check the tapware manufacturers instructions
for plumbing positions and installation guides.
It is important to decide on
what height you want your
nished top surface from the
oor, this will determine where
your plumbing will be
positioned.
Finished Top Surface
100
to waste
outlet
C
L
900 297
297
100
to waste
outlet
C
L
We suggest that you install your Wall hung vanity between 830-950mm high
to the nished top surface.
For internal division positions - please refer to cabinet specications
Note: Waste outlet positioned for standard chrome bottletrap and pop up
basin waste.
Illustrations are representations and not to scale

St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
Vanity Range: London Basin: Dignity, Respect, Pride & Star
St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz

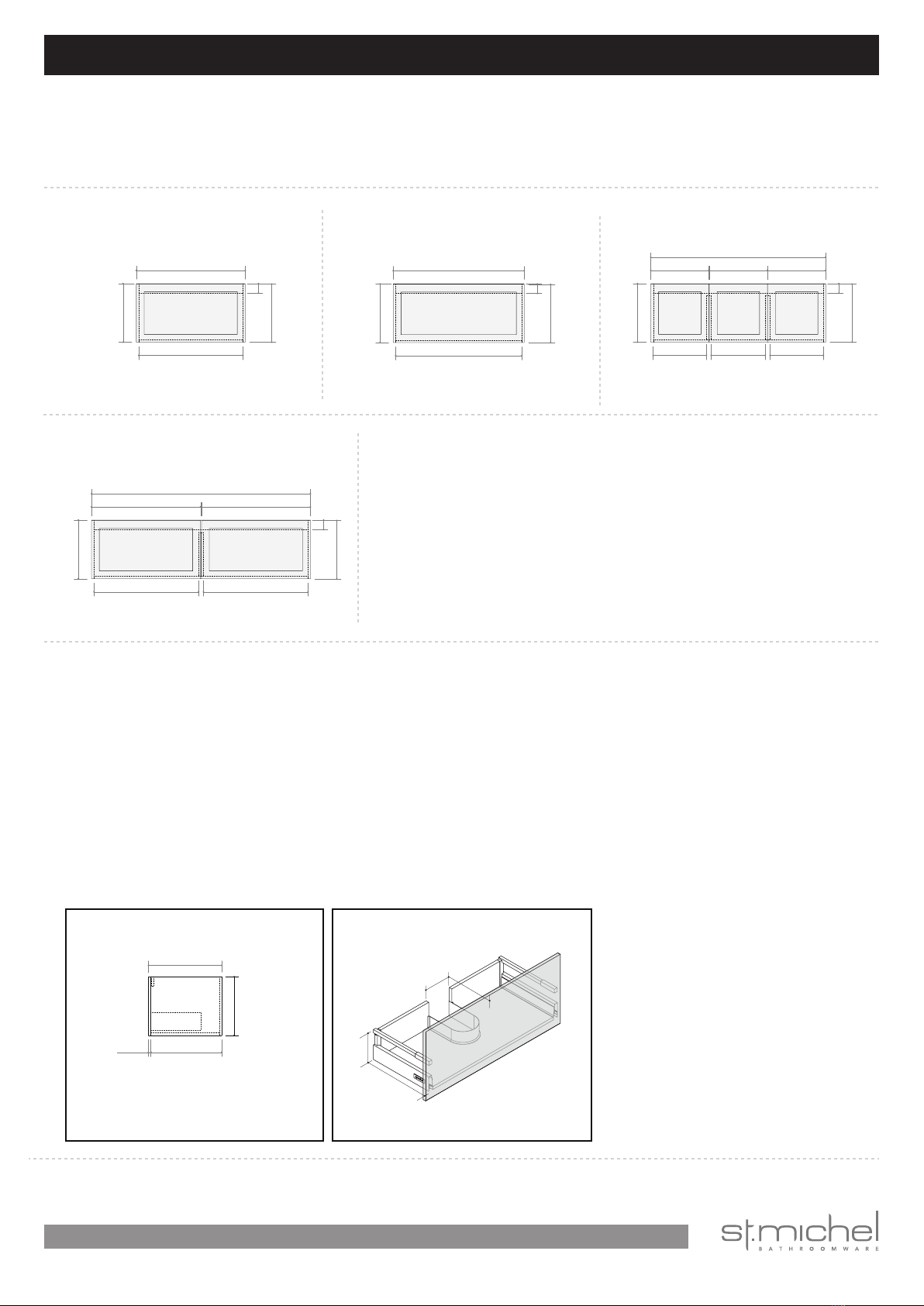

CABINET SPECIFICATIONS
London 750 Wall -1 Drawer London 900 Wall - 1 Drawer City 1200 Wall - 2 Drawer, 1 Door
London 1500 Wall - 2 Drawer
End View
Wall Hung
Drawer Detail
Drawer Type - A Type
& A Type (Push to Open)
Measurements are internal
Drawings depict cabinet only. Dotted lines indicate internal cabinet parts.
Gaps inbetween doors and drawers are 2mm. All measurements are in millimetres and are +/- 2mm.
Page 1/1
150
144
350
250
400
744
397
711
65
1194
400
65
397
396396396
363369363
1494
65
397
714714
744 744
400
894
400
397
861
65
48218
500
400

St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
Vanity Range: London Basins: Dignity, Respect, Pride & Star
St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
TOP SPECIFICATIONS
Page 1/1
The top must be sealed to the top sections of the vanity unit with an acetic cured
silicone sealant. Epoxy type sealants must not be used
Cararra Cherry Pie Only
All measurements are in millimetres and are +/- 3mm
Top specication drawings are of taphole centred behind basin (supplied drilled as standard).
All tops are 60mm thick. The Splashback is the width of the top x 250mm high x 20mm thick
For wall mounted tapware the basin is re-positioned back so the waste is centred on the top (255mm from back edge)
Fixing:
Colour:
Dimensions:
London 750
DIGNITY BASIN Product No: 1183, 1185
London 900
DIGNITY BASIN Product No: 1187, 1189
London 1200
DIGNITY BASIN Product No: 1191, 1193
London 1500
DIGNITY BASIN Product No: 1195, 1197
510
750
375
80220
300
1500
377.5 745 377.5
1200
600
900
450
London 750
RESPECT BASIN Product No: 1183, 1185
London 900
RESPECT BASIN Product No: 1187, 1189
London 1200
RESPECT BASIN Product No: 1191, 1193
London 1500
RESPECT BASIN Product No: 1195, 1197
510
750
375
73225
298
1500
377.5 745 377.5
1200
600
900
450
London 750
PRIDE BASIN Product No: 1183, 1185
London 900
PRIDE BASIN Product No: 1187, 1189
London 1200
PRIDE BASIN Product No: 1191, 1193
London 1500
PRIDE BASIN Product No: 1195, 1197
510
750
375
80220
300
1500
377.5 745 377.5
1200
600
900
450
London 750
STAR BASIN Product No: 1183, 1185
London 900
STAR BASIN Product No: 1187, 1189
London 1200
STAR BASIN Product No: 1191, 1193
London 1500
STAR BASIN Product No: 1195, 1197
510
750
375
140150
290
1500
377.5 745 377.5
1200
600
900
450
*
*
*
*
*

St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz

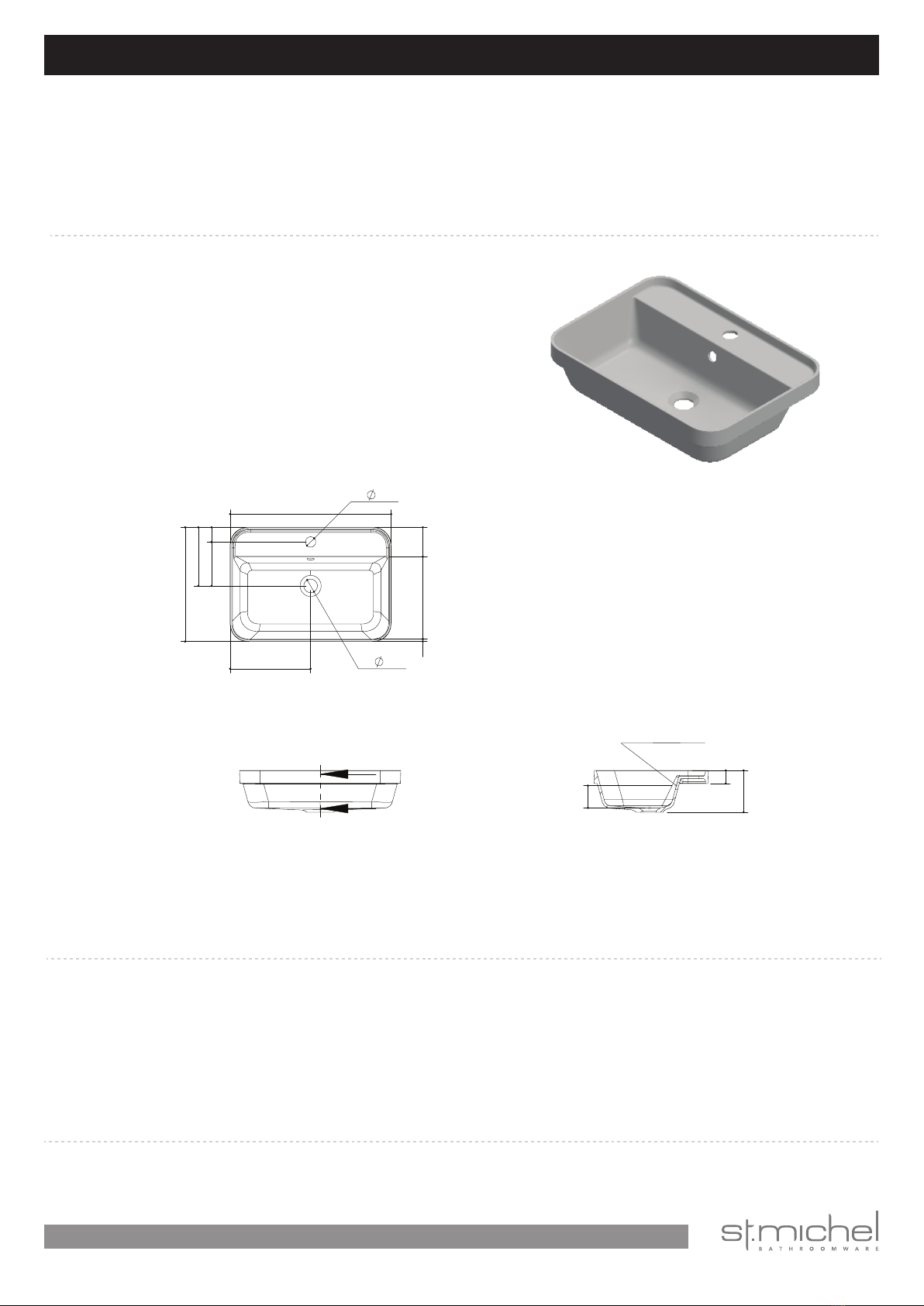

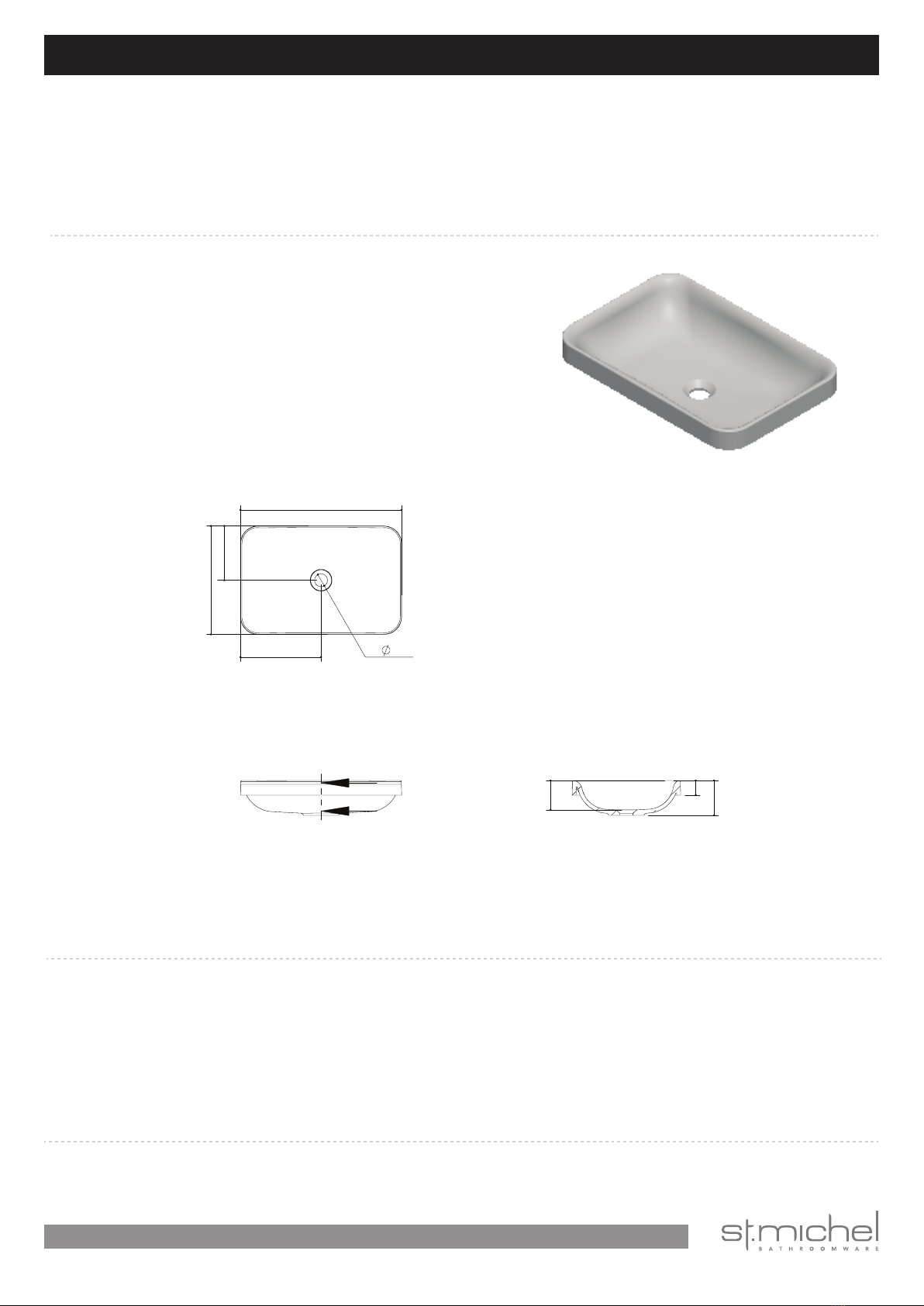

BASIN SPECIFICATIONS
Product Name
Product Description
Nominal Size
Dignity
Cherry Pie Matte Inset Basin
500w x 370d x 120h
8L
No overow
The basin must be sealed to the top with an acetic cured silicone sealant. Epoxy type
sealants must not be used
White matte only
All measurements are in millimetres and are +/- 2mm
Bowl Water Volume:
Overflow:
Fixing:
Colour:
Dimensions:
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
A
A
44
073
581
500
250
50
100
120
SECTION A-A

St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
BASIN SPECIFICATIONS
Product Name
Product Description
Nominal Size
Pride
Cherry Pie Matte Inset Basin
550w x 370d x 120h
10L
No overow
The basin must be sealed to the top with an acetic cured silicone sealant. Epoxy type
sealants must not be used
White matte only
All measurements are in millimetres and are +/- 2mm
Bowl Water Volume:
Overflow:
Fixing:
Colour:
Dimensions:
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
A
A
44
550
370
185
275
120
50
100
SECTION A-A

St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
BASIN SPECIFICATIONS
Product Name
Product Description
Nominal Size
Respect
Cherry Pie Matte Inset Basin
400w x 120h
7L
No overow
The basin must be sealed to the top with an acetic cured silicone sealant. Epoxy type
sealants must not be used
White matte only
All measurements are in millimetres and are +/- 2mm
Bowl Water Volume:
Overflow:
Fixing:
Colour:
Dimensions:
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
A
A
45
400
50
120 100
SECTION A-A

St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
BASIN SPECIFICATIONS
Product Name
Product Description
Nominal Size
Star
Cherry Pie Matte Inset Basin
550w x 390d x 143h
6L to overow
Overow provided. Designed for maximum tap ow rate of 15 litres/minute
The basin must be sealed to the top with an acetic cured silicone sealant. Epoxy type
sealants must not be used
White matte only
All measurements are in millimetres and are +/- 2mm
Bowl Water Volume:
Overflow:
Fixing:
Colour:
Dimensions:
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
550
390
101281
9
50
200
150
275 46
35
A
A
45
145
75
SECTION A-A
overow centre

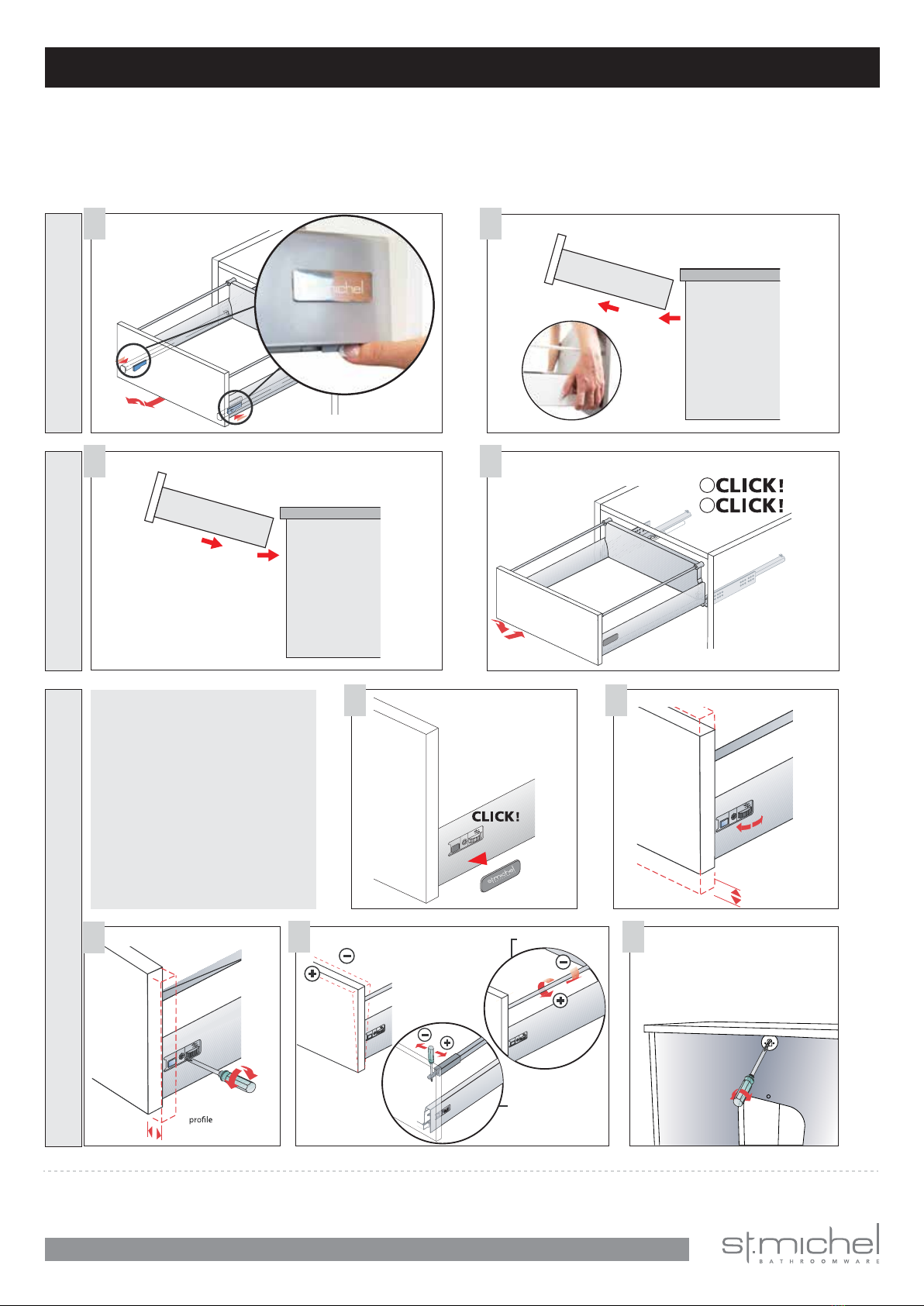

( Find the A-Type Drawer Installation Video www.stmichel.co.nz/downloads/installation-information/videos/ )
Side adjustment on
right-hand drawer
only ± 1,5 mm
Toolless height
adjustment by using
thumb wheel
± 2
mm
± 1,5 mm
1.
2.
3.
Press Grey lever inwards
While Pulling
Drawer Front Height Adjustment
Drawer Front Side Adjustment
turning the gallery rail
Remove Chrome branding
for Drawer Adjustment &
replace when finished
Inserting Drawer Fitting Drawer
Insert Drawer on an angle
Removing Drawer
Lift Drawer out on an angle
1 2
1 2
1 a
b
1
2
Adjustment Inserting Drawer R emoving Drawer
Adjust Drawer
Front as Required
Warning: Avoid pushing
Blue button - this
will cause drawer
front to detach
The Drawer is tted by
positioning it on the
runner and pushing into
place. It is automatically
connected to the runner
by two catches. Listen for
a double click
Use screw supplied
(taped under drawer)
to permanently fix
adjustment in place
2
* Round Rail
* Square Rail
- slide end cap to access
adjustment hole
Drawer Front Tilt Adjustment
c
*Note A-Type drawer box is round or square in style
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
HARDWARE: A - Type Drawer (Softclose)
Page 1/1
St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
HARDWARE SPECIFICATIONS

( Find the A-Type Drawer Installation Video www.stmichel.co.nz/downloads/installation-information/videos/ )
Side adjustment on
right-hand drawer
only ± 1,5 mm
Toolless height
adjustment by using
thumb wheel
± 2
mm
± 1,5 mm
1.
2.
3.
Press Grey lever inwards
While Pulling
Drawer Front Height Adjustment
Drawer Front Side Adjustment
turning the gallery rail
Remove Chrome branding
for Drawer Adjustment &
replace when finished
Inserting Drawer Fitting Drawer
Insert Drawer on an angle
Removing Drawer
Lift Drawer out on an angle
1 2
1 2
1 a
b
1
2
Adjustment Inserting Drawer R emoving Drawer
Adjust Drawer
Front as Required
Warning: Avoid pushing
Blue button - this
will cause drawer
front to detach
The Drawer is tted by
positioning it on the
runner and pushing into
place. It is automatically
connected to the runner
by two catches. Listen for
a double click
Use screw supplied
(taped under drawer)
to permanently fix
adjustment in place
2
* Round Rail
* Square Rail
- slide end cap to access
adjustment hole
Drawer Front Tilt Adjustment
c
*Note A-Type drawer box is round or square in style
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
HARDWARE: A - Type Drawer (Push to Open)
Page 1/2
St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
HARDWARE SPECIFICATIONS

1
Adjustment
Adjust Drawer
Front Gap as
required
( Find the A-Type Drawer Installation Video www.stmichel.co.nz/downloads/installation-information/videos/ )
*Note A-Type drawer box is round or square in style
min. 2.5mm, max. 5mm
Page 2/2
St Michel pursues a policy of continuing improvement in design and manufacturing of its products. The right
is therefore reserved to vary specications without notice | Revised 06/2018
HARDWARE: A - Type Drawer (Push to Open)
St Michel Industries Ltd, PO Box 21 122, Henderson, Auckland | Phone: [phone] | www.stmichel.co.nz
HARDWARE SPECIFICATIONS
Drawer Front gap
adjustment
