Stairville MH-575 S MKII Pro-Spot User manual

MH-575 S MKII
Pro-Spot
moving head
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
10.06.2013

Table of contents
1 General notes............................................................................................................................................... 5
2 Safety notes.................................................................................................................................................. 8
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
5 Setup.............................................................................................................................................................. 21
6 Components and functions................................................................................................................ 24
7 Operation.................................................................................................................................................... 28
7.1 Start the device................................................................................................................................. 28
7.2 Main menu.......................................................................................................................................... 29
7.3 Menu diagram................................................................................................................................... 38
7.4 Gobos................................................................................................................................................... 39
7.5 Functions in 15-channel DMX mode........................................................................................ 40
8 Servicing...................................................................................................................................................... 46
8.1 Exchange the gobo wheel............................................................................................................ 46
8.2 Insert or exchange the lamp........................................................................................................ 50
Table of contents
MH-575 S MKII Pro-Spot
3

8.3 Reset the lamp hours counter..................................................................................................... 55
9 Cleaning....................................................................................................................................................... 56
10 Troubleshooting...................................................................................................................................... 57
11 Technical data........................................................................................................................................... 59
12 Protecting the environment.............................................................................................................. 61
Table of contents
moving head
4

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
MH-575 S MKII Pro-Spot
5

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
WARNING! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in death or serious injury if it is not
avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
General notes
moving head
6

Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General notes
MH-575 S MKII Pro-Spot
7

2 Safety notes
This device is intended to be used as moving-head spotlight. Use the device only as described
in this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety notes
moving head
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Completely disconnect the device from the power supply before you open or
remove covers. Mount all covers and attach them firmly before connecting the
device again.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety notes
MH-575 S MKII Pro-Spot
9

WARNING!
Eye damage caused by high light intensity
The lamp used in this device produces an intense beam of visible and invisible
light radiation.
Do not start the operation of the device without completely fixed covers. Never
look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety notes
moving head
10

WARNING!
Risk of burns at the surface and inside of the device
The surface and the inner parts of the device can become very hot during opera‐
tion.
After switching off the device wait for at least 15 minutes before you start any
maintenance activities.
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce very bright
light. This is also valid immediately after you turn on the device, when the device
operates in automatic mode or under remote control and when you turn off a
DMX controller that is connected to the device. Persons staying near the device
could be injured or frightened.
Before you turn on the device and during the operation, always ensure that
nobody stays close to the device. If work has to be performed in the area of move‐
ment or in the near vicinity of the device, it must remain turned off.
Safety notes
MH-575 S MKII Pro-Spot
11

NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety notes
moving head
12

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety notes
MH-575 S MKII Pro-Spot
13

3 Features
The moving head is very suitable for professional lighting, for example at events, on rock music
stages, in theatres, musical shows or clubs.
Special features of the device:
nControl via DMX (15 channels), foot master / pocket master, or via keys and display at the
device
nBuilt-in automatic show programs
nSound-active mode
nMaster/slave mode
nColour wheel with 9 dichroitic colour filters plus white
nRainbow effect in both directions
nGobo wheel with 7 indexable and rotatable gobos, variable rotation speed and direction
nEffect wheel with rotatable 3-facet prim, variable rotation speed and direction
nAutomatic position correction
Features
moving head
14

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
You can install the device on the wall, ceiling or floor.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
MH-575 S MKII Pro-Spot
15

CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
CAUTION!
Risk of injury due to movements of the device
The head of the device can move quickly (pan, tilt) and can produce very bright
light. This is also valid immediately after you turn on the device, when the device
operates in automatic mode or under remote control and when you turn off a
DMX controller that is connected to the device. Persons staying near the device
could be injured or frightened.
Before you turn on the device and during the operation, always ensure that
nobody stays close to the device. If work has to be performed in the area of move‐
ment or in the near vicinity of the device, it must remain turned off.
Installation
moving head
16

NOTICE!
Risk of overheating
The distance between the light output and the illuminated surface must be more
than 0.5 m (19.7 in).
Always ensure sufficient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Possible damage caused by movements of the device
Always ensure that enough space is free around the device for the movements of
the head (pan, tilt).
Installation
MH-575 S MKII Pro-Spot
17

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.
Installation
moving head
18

Options for mounting
Installation
MH-575 S MKII Pro-Spot
19

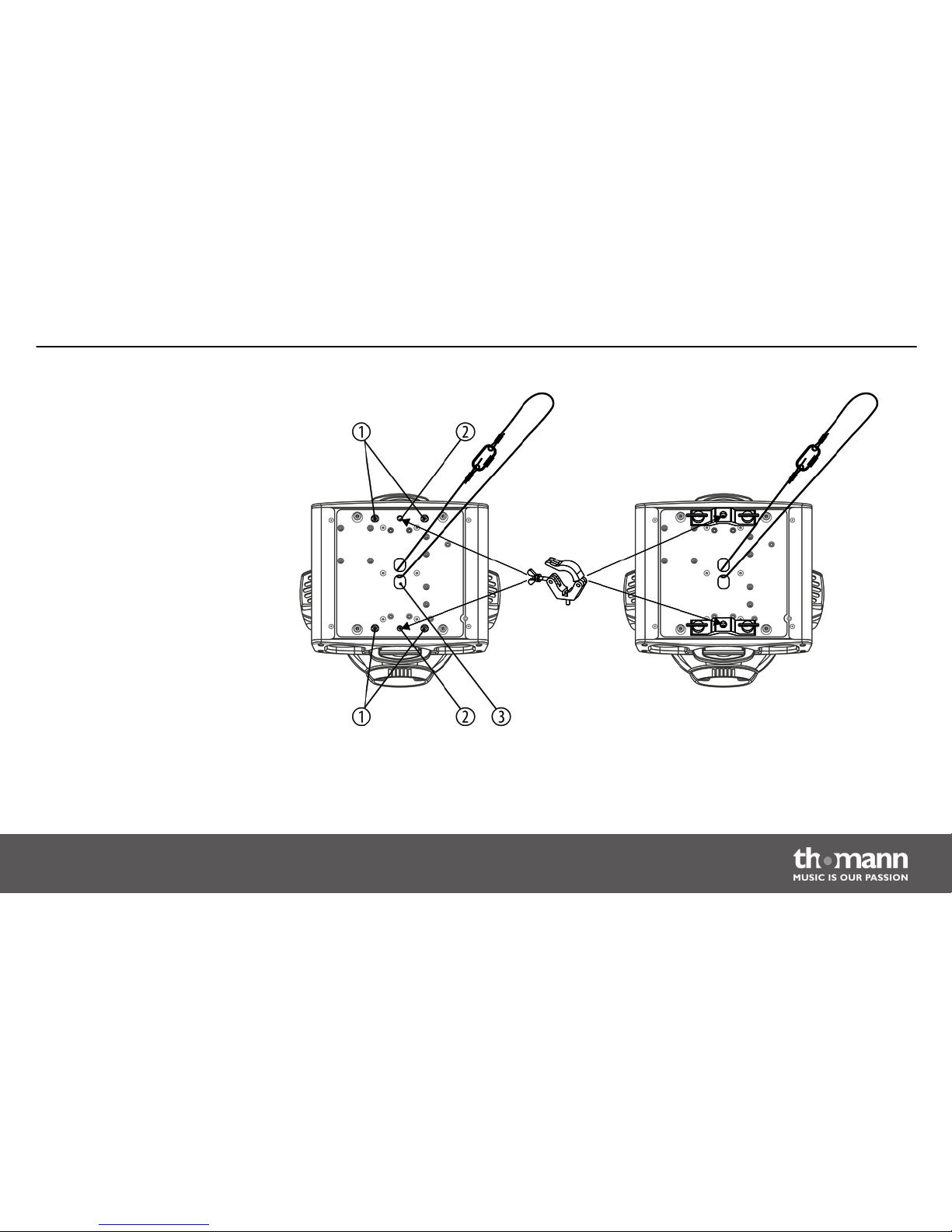

1 Mounting hole for omega brackets
2 Screw thread for clamps
3 Hole for safety cable
The mounting holes and screw threads at the housing underside can be used for secure fixing
of clamps with or without omega brackets. Safety cables can be lead through the holes at the
underside.
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please
refer to the drawing and table below for the pin assignment of a suitable XLR plug.
Pin Configuration
1 Ground, shielding
2 Signal inverted (DMX–, ‘cold signal’)
3 Signal (DMX+, ‘hot signal’)
DMX connections
Installation
moving head
