Stancor LX User manual

Model LX 50HZ
Submersible Sewage Pumps
Instruction Manual
CONTENTS
This operational instruction manual
shall be handed to the user.
Caution
Thank you for selecting the Stancor submersible sewage pumps Model LX. Stancor takes very caution in
manufacturing the product for safe use by the customer. However unsuitable handling may reduce the
performance and result in accident.
Please read this instruction manual before starting operation. We ask for appropriate utilization in
accordance with this manual.
Therefore keep this one in safe place where it can be consulted by pump operator any time.
To installation personnel
Be sure to hand over this manual to the customer’s operation, maintenance and inspection personnel.
(1) Warnings………………………………….
(2) Safety Cautions……………………..…
(3) Delivery Check…………………………
1.The pump and accessories……
2.Nameplate……………………………
(4) Specifications…………………………..
(5) Installation……………………………...
1.Before installation…………………
2.Installation…………………………….
3.Electrical wiring……………………
(6) Operation………………………………..
1.Before starting the pump……..
2.Test operation……………………….
3.Operation……………………………..
(7) Maintenance……………………..……
1.Daily inspections…………………………..
2.Regular inspections………………………
3.Cautions when the pump is out
For long period……………………………..
4.When motor protection activated..
5.Consumable parts…………………………
(8) Trouble shooting.…………………..……….
(9) Construction……………………………….….

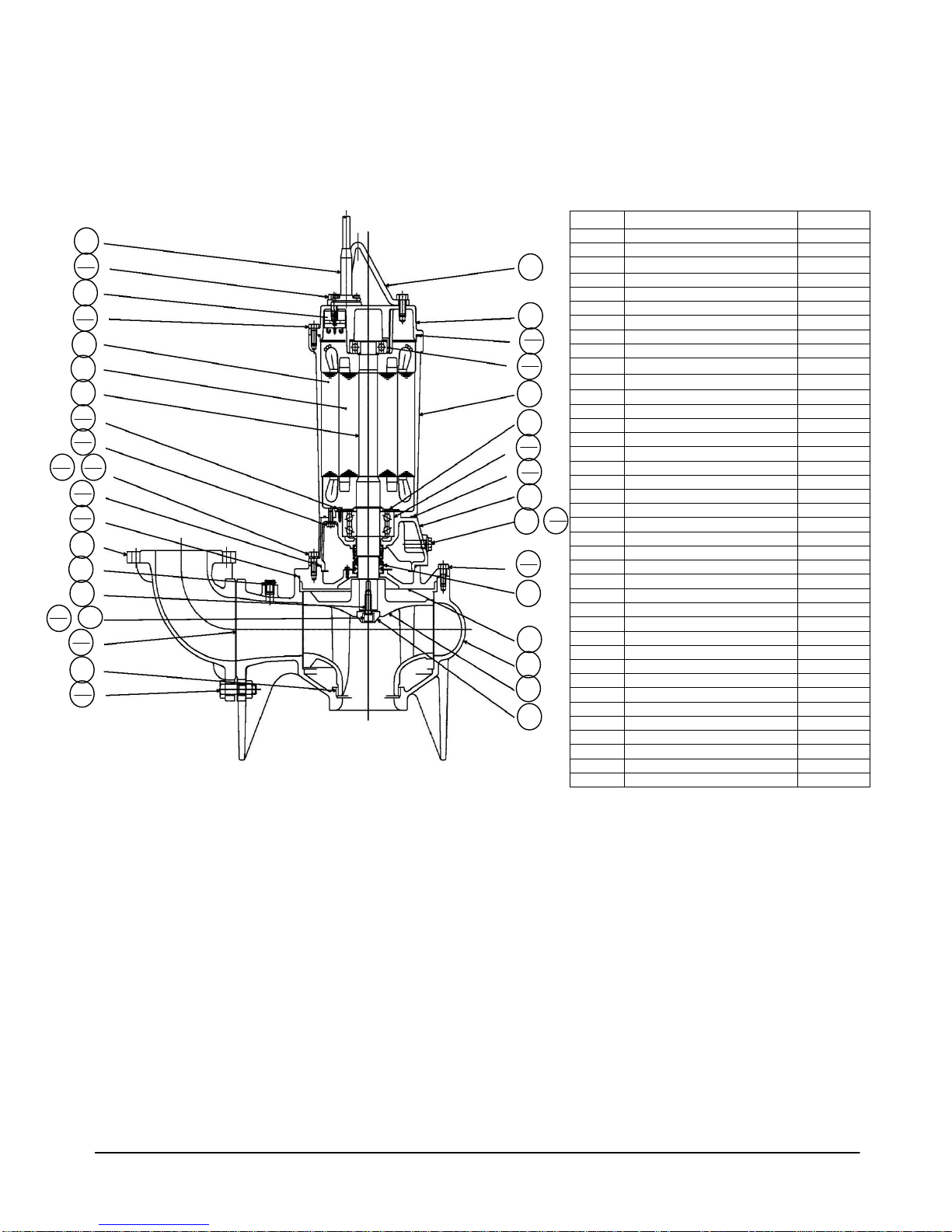

1.Section drawing……………………………
2.Accessory…………………………………..…

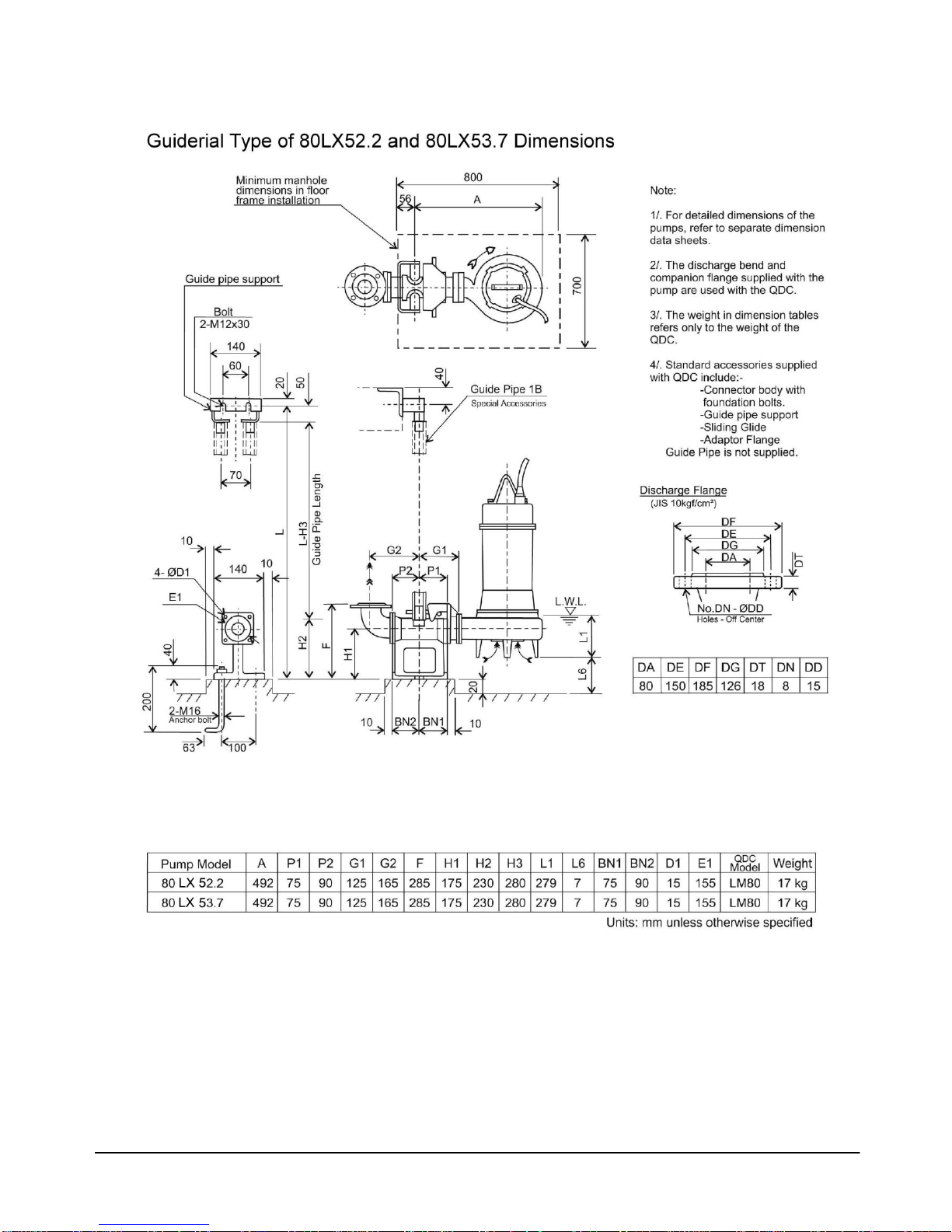

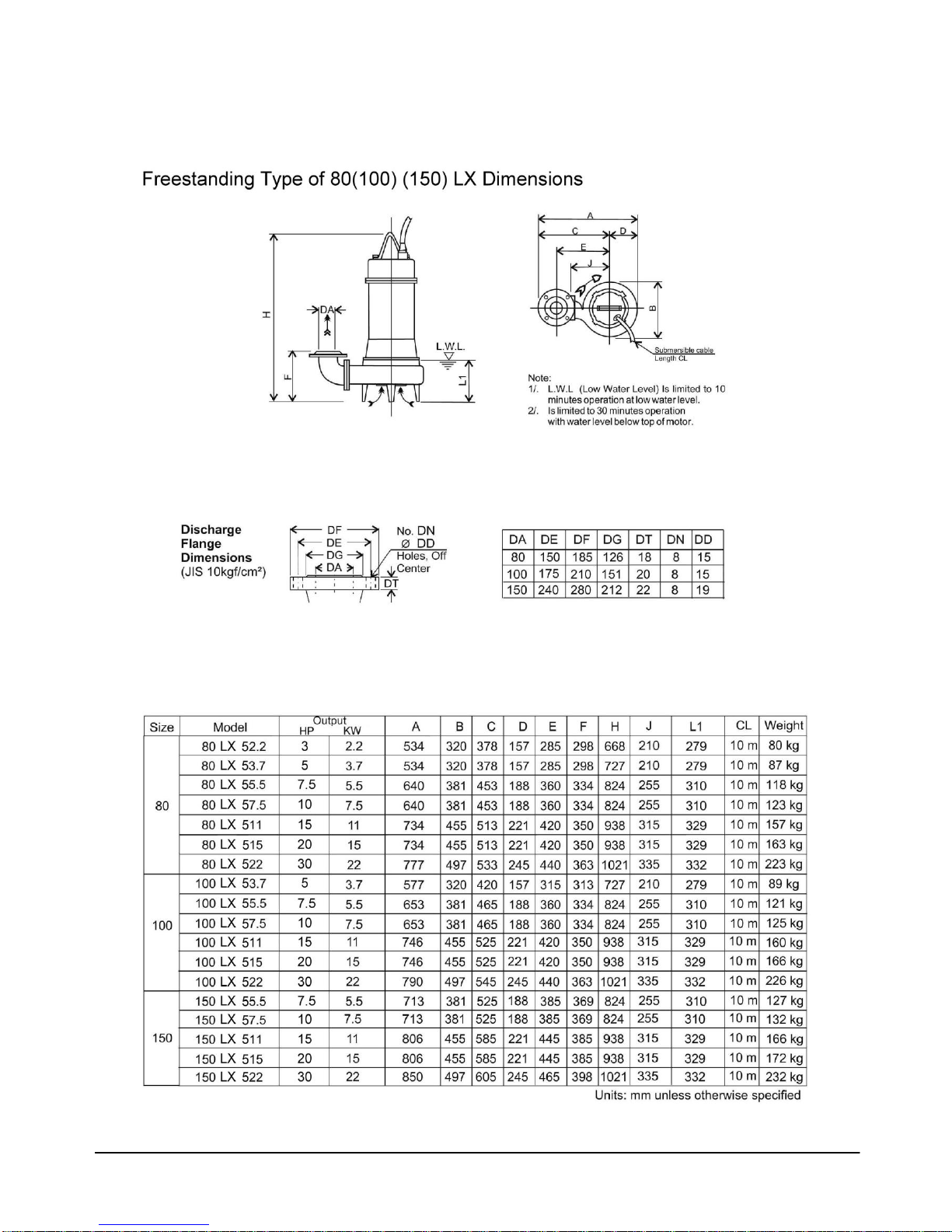

(10) Dimensions………………………..……….....

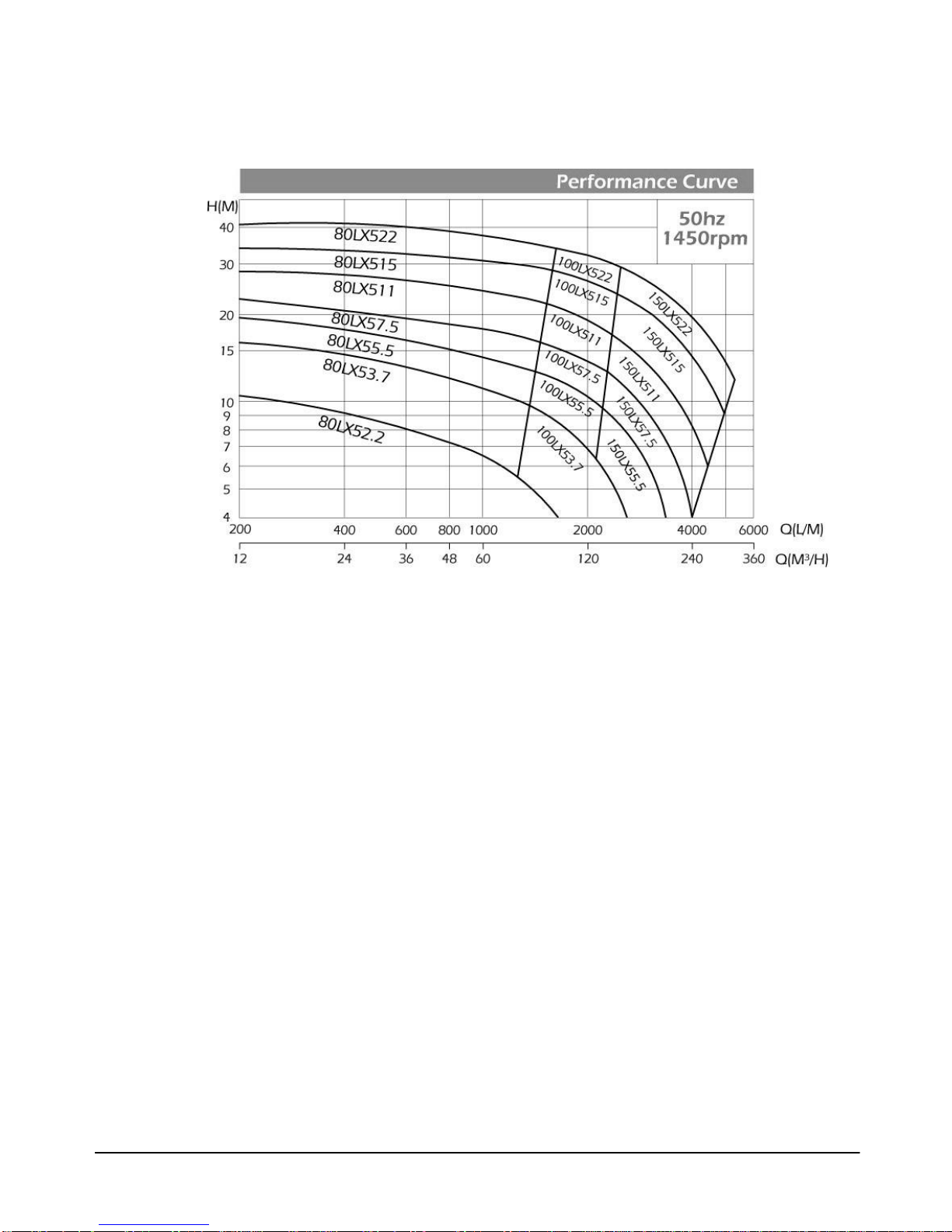

(11) Performance curve……………………….
(12) Disassembly and reassembly………...
(13) Limited Warranty…………………………..
(14) Repairing and after-service……………
2
2
3
3
3
4
5
5
5
6
7
7
7
7
8
8
8
9
9
9
10
11
11
11
12
15
15
16
16
(Page) (Page)

-2-
(1) Warnings
Warnings in this manual provide information required for safe operation of the pump, and
instructions for preventing danger or injury to you or other people. So that you will know
the degree and imminence of danger that warnings signify, they are divided into two
grades, WARNING and CAUTION, according to the seriousness of what will happen if
their instructions are not heeded. Both grades of warning contain important safety
information; carry out all the instructions that they give, without fail.
Warning grade
Meaning
Warning
Potentially hazardous situation. Failure to follow the instructions could result in
death or serious injury.
Caution
Failure to follow the instructions could result in minor injury or damage to the
pump.
Note
Used to emphasize important information.
Meanings of symbols accompanying WARNINGS and CAUTIONS.
Indicates prohibition (that something must NOT be done).
Precisely what must not be done is indicated by pictures or words either inside the
circle of the symbol or close to it.
Indicates an imperative (that something MUST be done).
Precisely what must be done is indicated by pictures or words close to the symbol.
(2) Safety Cautions
Warning
Before lifting the pump, confirm the mass on catalogue or outline drawing. Use
appropriate crane (or hoist) and check position and tightness of lift system so that
mass of the pump is not unbalanced. Failure to observe this precaution can result
in serious accidents.
On the condition of suspended pump, do not attach a part and use. It is very
dangerous.
Do not hurt, break, bend, tug, wrest and bundle power supply cable excessively.
Do not put something weighty on the cable. Otherwise it could result in electric
shock and fires.
All wiring work should be performed correctly by a qualified electrician and all
national and local electrical codes must be observed.
Install and ground an earth cable. Electric shock could occur during accidents of
electric leakage.
To prevent danger of electric shock, use short circuit breakers as exclusive use.
Disassembly and repair of the pump should only be performed by specialist
maintenance technicians. Otherwise, error by personnel could result in electric
shock, and the pump catching fire or operating abnormally and causing injury.
Always turn the power switch OFF before inspecting or repairing the pump.
Otherwise it could result in the pump starting up suddenly in auto operation,
exposing personnel to danger.
Always turn the power switch OFF if the pump is to be out of use for a long time.
If the power is left ON and insulation deteriorates, then electric leakage and
electric shock could occur.

-3-
Caution
Do not operate the pump with 50 Hz specifications at 60 Hz. Otherwise motor
should be burnt out.
Do not operate the pump with 60 Hz specifications at 50 Hz. It will cause the
pump to perform poorly.
If you have purchased a standard pump, refer to Section (4) “Specification”.
The optional specifications pump is made to meet the needs of some customers.
Be sure not to operate your pump outside of the ranges shown in the applicable
specifications.
Do not use this pump for food processing and drinking water applications.
Do not use this pump for living things for example fish farm, crawl, aquarium etc.
When the pump breaks down, the facilities fall into oxygen deficiency.
Do not use this pump for important equipment (computer cooling equipment and
refrigerator cooling equipment etc.)
Do not use this pump in handling oil, seawater, organic solvent, liquid except for
water.
The pump breaks down, then electric leakage and electric shock could occur.
Do not insert hands, foot and so on into the suction inlet during operation.
Otherwise, pump could cause injuries by the rotating parts.
Do not use this pump when anyone is in the water.
Electric shock could occur during electric leakage.
Do not operate in the air. Otherwise, insulation deteriorates. Then electric
leakage and electric shock could occur.
In the insulation resistance under 1MΩ, electric shock could occur. Turn the
power switch OFF as soon as possible. Contact the agency where you
purchased the pump, or to perform an inspection and maintenance on the pump.
To prevent an accident if the pump stops running or an abnormality occurs,
immediately turn off the power switch. Contact the agency where you purchased
the pump, or to perform an inspection and maintenance on the pump.
(3) Delivery Checks
When your pump is delivered, check the followings immediately.
1. The pump and accessories
a) Confirm that no damage has occurred during transportation.
b) Confirm that all accessories have been delivered.
(Refer to section (9) “Construction”)
2. Nameplate
a) The basic specifications of the pump are listed on the nameplate. Read the data on
the nameplate to check that this pump was the product that you ordered.
Caution
Do not operate the pump with 50 Hz specifications at 60 Hz.
It will overload the pump causing the motor to burn out.
Do not operate the pump with 60 Hz specifications at 50 Hz.
It cause the pump to perform poorly.

-4-

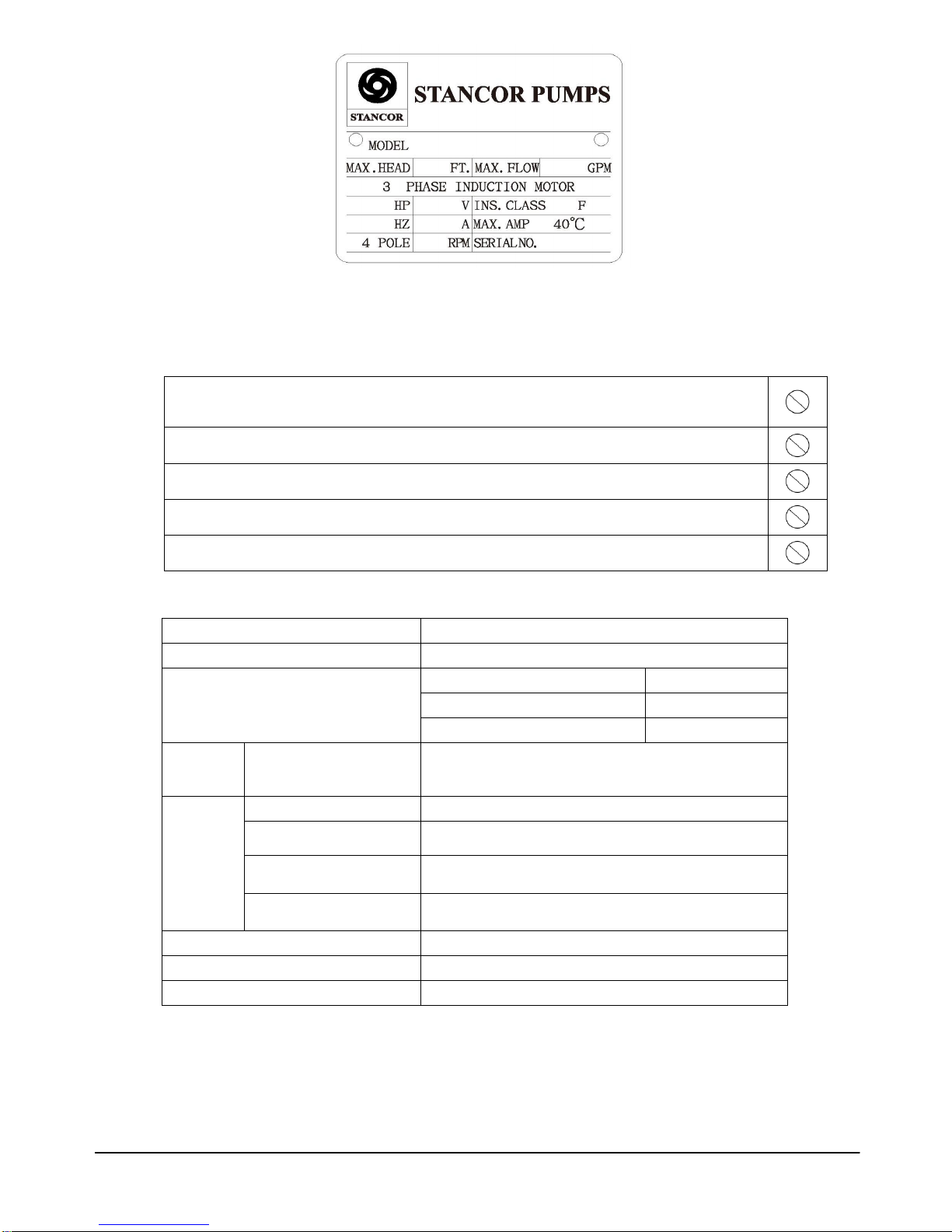

Fig. 1 -Data of pump nameplate
(4) Specifications
For the head, capacity, speed and other major specification of your pump, see the nameplate. The
standard specifications and optional specifications are given in the tables below.
If you have purchased a standard pump, refer to the standard specifications shown below.
The optional specifications pump is made meet the needs of some customers. Be sure not
to operate your pump outside of the ranges shown in the applicable specifications.
Do not use this pump for food processing and drinking water applications.
Do not use this pump for living things for example fish farm, crawl, aquarium etc.
When the pump breaks down, the facilities fall into oxygen deficiency.
Do not use this pump for important equipment (computer cooling equipment and refrigerator
cooling equipment etc.)
Do not use this pump in handling oil, seawater, organic solvent, liquid except for water.
The pump breaks down, then electric leakage and electric shock could occur.
Standard specification
Liquid handled
Sewage, waste water
Temperature
0~40°C
Foreign substance
Discharge size of pump (inch)
3”, 4”, 6”
Diameter of spherical body (inch)
3”
Fibriform length (inch)
20”
Material
Impeller
Cast iron;FC200 (Except for 50 Hz -25HP, 30HP)
Ductile iron; FCD400 (For 50 Hz -25HP, 30HP)
Motor
Phase
3-phase
Voltage(*1)
50Hz:380V, 400V, 415V
60Hz:380V, 440V, 460V, 480V
Starting Method
3~10HP: Direct start
15~30HP: Star-Delta start (Or Direct start)
Protector
3HP: Auto-Cut
5~30HP: Thermal Protector
Lubricants of Mechanical seal
Turbine oil ISO VG32
Maximum water depth
8m
Installation
With Quick Discharge Connector or Floor mounted
(*1): Allowable voltage fluctuation
Motor rating output: 3HP; -10 to 6%
5HP to 30HP; ±10%
Allowable combined fluctuation of voltage and frequency: the sum of each absolute value shall be less
than 10%.

-5-
(5) Installation
Warning
Before lifting the pump, confirm the mass on catalogue or outline
drawing. Use appropriate crane (or hoist) and check position and
tightness of lift system so that mass of the pump is not unbalanced.
Failure to observe this precaution can result in serious accidents.
On the condition of suspended pump, do not attach a part and use. It
is very dangerous.
Do not hurt, break, bend, tug, wrest and bundle power supply cable
excessively.
Do not put something weighty on the cable. Otherwise it could result
in electric shock and fires.
1. Before installation
Insulation resistance measurement: With the motor and cable (disconnecting the power supply)
immersed in water, use a megger to measure the insulation resistance between the ground wire and
each phase of the motor. Keep the power cable off the ground during measurement.
The value should be more than 20 meg-ohms.
2. Installation
Frequency
3HP
5HP
7.5HP
10HP
15HP
20HP
30HP
50Hz
H2(inch)
21.5
24.7
28.5
28.5
30.6
30.6
33.1
H1(inch)
11.0
11.0
12.2
12.2
13.0
13.0
13.5
NOTE
Packing scraps should be processed properly according to the local rules.
i)Installation of the pump with quick discharge connector shall be performed according to the
manual “Quick Discharge Connector”
a) Under no circumstances should the cable be pulled while
the pump is being transported or installed. Attach a chain
or rope to the grip and install the pump.
b) This pump must not be installed horizontally. Ensure that it
is installed upright on a secure base.
c) Install the pump at a location in the tank where there is the
least turbulence.
d) If there is a flow of liquid inside the tank, support the piping
to prevent abnormal vibration. (See Fig.2)
e) Install piping so that air will not stagnate
f) Do not permit end of discharge piping to be submerged, a
backflow will result when the pump is stopped.
g) Manual type pumps do not have an automatic operating
system based on built-in floats. Do not operate the pump
above ten minutes with the water level near the minimum
operating level as the automatic cut-off switch
incorporated inside the motor will be activated. To avoid
dry operation, install an automatic operating system, as
shown in Fig.3. Water levels H1 and H2 are shown in the
following table.
h) When using electrodes for automatic operating system,
incorrect actuation may occur caused by scum and oil
attached on the electrodes.

-6-
3. Electrical Wiring
Warning
All wiring work should be performed correctly by a qualified electrician.
And all national and local electrical codes must be observed.
Install and ground an earth cable. Electric shock could occur during
accidents or electric leakage.
To prevent danger of electric shock, use short circuit breakers as
exclusive use.
Fig.4
3PH/50HZ LX pump Full Load AMP Chart
1).Wiring
Wiring should be performed as indicated for the appropriate start system as shown in Fig.4.
2).Cable
a)Never let the end of the cable contact water.
b)If the cable is extended, do not immerse the splice in water.
c)Fasten the cable to the discharge piping with tape or polyvinyl chloride strips.
d)Install the cable so that it will not overheat. Overheating is caused by coiling the cable
and exposing it to direct sunlight.
e)The signal cable on pumps over 5hp consist of four wires P1(red) and P2(white) are the
thermal protection wires. P3(black) and P4(green) are the seal leak detector wires. All
signal wires should be connected to a relay or contactor, as applicable in the pump
controller in order to properly safeguard the pump. The seal leak detector requires a
normally open contact which closes when water is detected in the seal chamber.
3).Grounding
Install and ground an earth cable. (The earth cable is the green wire that is one of the 4 cores
in power cable) Under no circumstances should the green wire be connected to the power
supply.
4).Motor protection
a)Auto-cut (Built-in in 3HP motor)
Auto-cut will be activated when motor is operated in abnormal conditions such as locked
rotor or single phase that result in excess overheating.
b)Thermal protector (Built-in in 5HP to 30HP motor)
Model
HP
230V
FLA
380V
FLA
80 LX52.2
3
11.0A
5.5A
80/100 LX53.7
5
17.2A
8.6A
80/100/150 LX55.5
7.5
25.4A
12.7A
80/100/150 LX57.5
10
33.8A
16.9A
80/100/150 LX511
15
47.0A
23.5A
80/100/150 LX515
20
63.0A
31.5A
80/100/150 LX522
30
87.0A
43.5A
All electrical wiring work should be performed
correctly by a qualified electrician. And all
national and local electrical codes must be
observed. Incorrect wiring could result in
electric shock and fires.
Install and ground an earth cable. Electric
shock could occur during accidents or electric
leakage.

-7-
When temperature of the winding raises and reaches the thermal protector acting point,
the motor protection circuit is activated to protect motor from over heat.
Connect to the control panel in accordance with the following specifications.
Be sure to install a thermal relay on the control panel, since the thermal protector is not
capable of detecting sudden temperature rises caused by single phase or locked rotor.
Contact rating: AC230V, 13A (Max.)
Contact type: Break contact (Normal close)
Cable: 2 cores polyvinyl chloride cabtyre cable -1.25mm2 (Non-polarity)

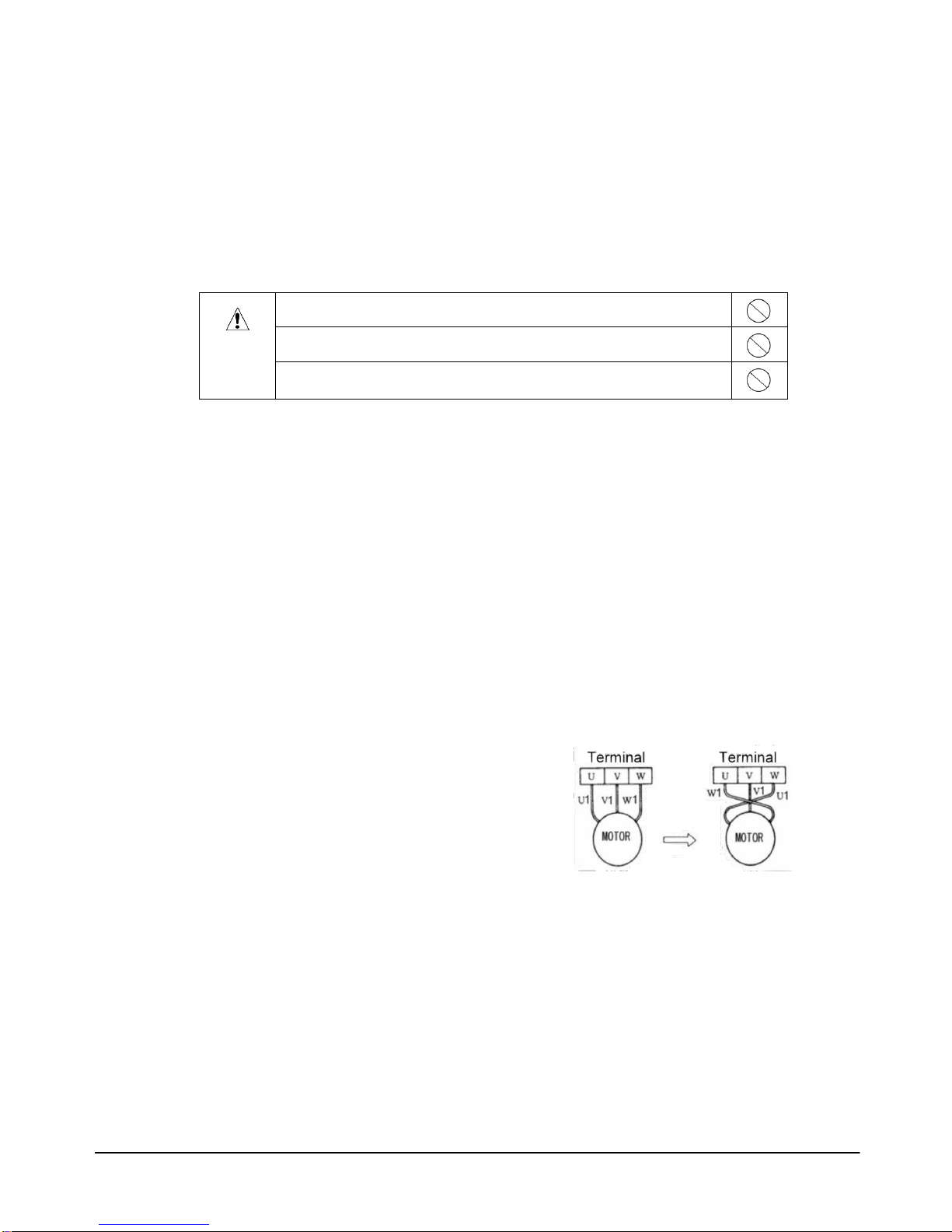

(6) Operation
Caution
Do not insert hands, foot etc. into the suction inlet during operating.
Otherwise, pump could cause injuries by the rotating parts.
Do not operate in the air. Otherwise, insulation deteriorates. Then
electric leakage and electric shock could occur.
Do not use this pump when anyone is in the water.
Electric shock could occur during electric leakage.
1.Before starting the pump
a) After completing installation, measure the insulation resistances again as described
in section (5) “Installation”.
b) Check water level
If the pump is operated continuously for an extended period of time in a dry
condition or at the lowest water level, the motor protector will be activated.
The repetition of this condition will shorten pump service life. Do not start the pump
again in such a situation until after the motor has completely cooled.
2.Test operation
a) Turn the operating switch on and off a couple of times to check for normal pump
start.
b) Check the direction of rotation. If discharge volume is low or unusual sounds are
heard when the pump is operating, rotation has been reversed. When this
happens, reverse two of three wires (see Fig.5).
Fig.5
c) After confirming the direction of rotation, open gradually the discharge valve and let
the pump run in continuous operation. Check current, voltage, and discharge
pressure. (Refer section (8) “Troubleshooting”)
When amperage exceed the rated ampere without discharge valve. The plan
should be reviewed.
3.Operation
a) After test operation, pump could be operated immediately.
b) Do not repeat starting and stop frequently.
The number of starting times per hour is shown in the following table.

-8-
Output
The number of starting times per hour
Up to 10HP
10
From 15 to 30HP
7
c) Do not operate a pump in the outside of the specified range.
NOTE
Run the pump at a discharge capacity that is suitable for the equipment.
(Capacity that is too large or small will cause noise and vibration, and
vibration, and also waste power.)
(7) Maintenance
Warning
Disassembly and repair of the pump should be performed by a maintenance
specialist. Otherwise, error by personnel could result in electric shock, and the
pump catching fire or operating abnormally and causing injury.
Always turn the power switch OFF before inspecting or repairing the pump.
Otherwise it could result in the pump starting up suddenly in auto operation,
exposing personnel to danger.
Always turn the power switch OFF if the pump is to be out of use for a long
time.
If the power is left ON and insulation deteriorates, then electric leakage and
electric shock could occur.
Caution
In the insulation resistance under 1MΩ, electric shock could occur. Turn the
power switch OFF as soon as possible. Contact the shop from where you
ordered the pump to perform an inspection and maintenance on the pump.
To prevent an accident if the pump stops running or an abnormality occurs,
immediately turn off the power switch. Contact the shop from where you
ordered the pump to perform an inspection and maintenance on the pump.
Check for abnormality in pressure, discharge capacity, voltage, current, vibration and noise. If
any of these is different from normal, trouble of some kind is probably going to occur and you
should take prompt corrective action. Refer to section (8) “Troubleshooting”for diagnosis and
corrective action.
You are advised to post a Daily Operation Condition Check Sheet to facilitate such checking.
Note
A standard pump performance curves are available from your nearest sales office or
dealer.
1. Daily inspections
a) Check current value and its fluctuation daily. If ammeter fluctuation is great, even though
within the limits of pump rating, foreign matter may be clogging the pump.
b) If the quantity of liquid discharged falls suddenly, foreign matter may be blocking the
suction inlet.
2. Regular inspections
a) Every month
Measure the insulation resistance. If the insulation resistance is 1MΩ or more, there occurs
no problem on operating the pump. If, however, a sudden drop appeared in the insulation
resistance even if the value is at or above 1MΩ, the phenomenon is abnormal, and repair of
the pump is required.
b) Every 6 months
Replace oil in the mechanical seal chamber at every six months. If water enters the oil to
give significant cloudiness, replace the mechanical seal. As illustrated in Fig. 6 oiling shall
be done at a specified quantity while the oiling plug faces upright and the pump is
positioned horizontally. After the oiling, fully tighten the plug with a seal washer.

-9-
c) Once a year
Replace mechanical seal at an interval of one year or 6000 hours of total operating hours,
either shorter one. By the replacement, the pump life extends.
d) Once every two to five years
Overhaul of the pump assures safe and long period of operation. For the case of high
frequency of operations, early overhaul is requested.
e) Check that there is no leakage from the joint of pump and piping. When there is leakage,
tighten the connection bolts.
f) In order to avoid the fire accident by the contact failure caused by the slack of wiring, check
whether motor connections and panel connections are not loosened.
3. Cautions when the pump is out of use for long period.
a) When you leave the pump submerged and out of use for long period, periodically measure
the insulation resistance. If the resistance values are greater than 1meg-ohms, operate the
pump for a while to prevent rotating parts from fastening by rust. Before starting the
operation again, refer to section (6)”operation”
b) When the pump is pulled up and stored.
Clean up the pump. And keep it at dry place. Before using the pump again, refer to sections
(5)”Installation”and (6)”Operation”.
4. When motor protection is activated
Check causes that motor protection is activated. After removing the causes, start the
operation again.
5. Consumable parts
Replace the parts according to the conditions shown in the following table.
Parts name
Mechanical seal
Seal washer
Lubrication oil
O-ring
Bearing
Replacement
condition
When oil in
mechanical seal
chamber is clouded
When oil is
exchanged or
inspected
When clouded
or dirty
When pump
is overhauled
―
Replacement
interval
Every once a year
or every 6000 hours
on continuous
operation.
―
Every 6
months
―
Every 6000
hours
The above-given replacement time is a standard under normal operation.

-10-
(8) Trouble shooting
Trouble
Cause
Remedy
The pump does not start.
The pump starts, but it
immediately stops.
Obstacle inhibits the float movement.
Power is failed.
Large fluctuation of power voltage.
Large drop in voltage.
Phase is lost.
Insufficient connection of power source
circuit.
Wrong wiring of control circuit.
Fuse is blown.
Defective magnet switch.
Mal-functioning or defects of float switch,
etc.
Actuation of ground fault breaker.
Pump catches foreign matter.
Motor is burnt out.
Break of motor bearing.
Mechanical seal stuck.
Remove the obstacle.
Request the electric power company for
action.
Request the electric power company for
action.
Request the electric power company for
action.
Inspect the connection section and the
magnet switch.
Inspect the power source circuit.
Wire in correct state.
Replace with adequate fuse.
Replace with adequate magnet.
Repair or replace the level switch, etc.
Repair the electric-leak section.
Remove the foreign matter.
Repair or replace the motor.
Repair or replace the bearing.
Repair or replace the mechanical seal.
The pump can be
operated, but it stops
after a while.
Prolonged dry operation induced the
functioning of Auto-cut.
High liquid temperature induced the
functioning of Auto-cut.
Raise the water level.
Lower the water level.
Thermal protector is
actuated.
Reverse rotation.
Broken gate valve.
Large voltage drop.
Operating the 60Hz pump at 50Hz.
High discharge head.
Large piping loss.
Low operating water level causes air
suction.
Liquid leaking from discharge pipe.
Clogging of discharge pipe.
Adhesion of foreign matter in suction
opening.
Foreign matter clogs the pump.
Worn impeller.
Establish correct rotational direction,
(refer to (6)-2-b)
Repair or replace the gate valve.
Request the electric power company for
action.
Check the nameplate.
Review the plan.
Review the plan.
Raise the water level or lower the pump
position.
Inspect and repair the discharge pipe.
Remove the foreign matter.
Remove the foreign matter.
Disassemble the pump to remove the
foreign matter.
Replace the impeller.
Over current
Large fluctuations of power source voltage.
Significant voltage drop.
Phase is lost.
Operating the 50Hz pump at 60H.
Operating the pump in reverse rotation
state.
Low head resulting in excess flow rate.
Pump caches foreign matter.
Motor bearing is broken.
Request the electric power company for
action.
Request the electric power company for
action.
Inspect the connection section and the
magnet switch.
Check the nameplate.
Establish the correct rotational direction,
(refer to (6)-2-b)
Narrow the opening of the gate valve. If
no gate valve is used, replace the pump
with the one having lower head.
Disassemble the pump to remove the
foreign matter.
Repair or replace the bearing.
Pump vibrates,
generating large noise.
Pump is in reverse rotational direction.
Pump catches foreign matter.
Piping is in resonance mode.
Establish the correct rotational direction,
(refer to (6)-2-b)
Disassemble the pump to remove the
foreign matter.
Modify the piping.

-11-
811
904
817
856
802
801
830
174
211
039
107
814
907
816
193
111
016
001
021
080
275
120
5
120
4
120
6
120
3
135
2
120
1
115
2
115
1
135
1
117
1
120
7
120
2
117
2
115
3
849
1
849
2
115
4
(9) Construction
1.Section drawing
Typical Model: 100LX57.5
※1 3HP:1
※2 3HP:0
※3 3HP Auto-Cut:1
2.Accessory
a) Nameplate for ground installation: 1
b) Discharge pipe: 1 set
c) Companion flange: 1 set
Pump might be performed design change for improvement without prior notice.
No.
Name
Quantity
907
BEARING COVER
1
904
LIFTING HANGER
1
856
THERMAL PROTECTOR
2※3
849-2
BALL BEARING
1
849-1
BALL BEARING
1
830
SHAFT
1
817
OPPOSITE SIDE BRACKET
1
816
POWER SIDE BRACKET
1
814
MOTOR FRAME
1
811-2
SUBMERSIBLE CABLE
1※2
811-1
SUBMERSIBLE CABLE
2※1
802
STATOR
1
801
ROTOR
1
275
IMPELLER BOLT
1
211
AIR VENT VALVE
1
193
OIL PLUG
1
174
DISCHARGE PIPE
1
135-2
WASHER
4
135-1
WASHER
1
120-7
BOLT
4
120-6
BOLT
3
120-5
BOLT
2
120-4
BOLT
4 or 6
120-3
BOLT
4
120-2
BOLT
8
120-1
BOLT
4
117-2
SEAL WASHER
1
117-1
FLANGE GASKET
1
115-4
O-RING
1
115-3
O-RING
1
115-2
O-RING
1
115-1
O-RING
1
111
MECHANICAL SEAL
1
107
WEARING RING
1
080
BUSHING
1
039
KEY
1
021
IMPELLER
1
016
MECHANICAL SEAL COVER
1
001
CASING
1

-12-
(10) Dimensions

-13-

-14-

-15-
(11) Performance curve
(12) Disassembly and reassembly
Refer to the cross sectional drawing.
1. Disassembly
a) Unscrew and remove the bolts (120-2), and lift up the motor part. Then lay it down carefully.
b) Unscrew and remove the impeller bolt (275), Pull the impeller (021) out.
c) Unscrew and remove the oil plug (193), Withdraw oil
d) Unscrew and remove the bolts (120-1), and remove the mechanical seal cover (016) carefully.
(Care for flowing out oil remainder.)
e) Detach the mechanical seal with care lest the seal surfaces and shaft should be hurt.
2. Reassembly
Perform reassembly in a reverse order. Then exchange gasket, seal washer, O-ring for new ones.
(Note 1) Screw adhesive (LOCKTITE #638) shall be applied to bolt (120-1) to prevent loosening, after
degreasing a screw hole and screw part of bolts enough.
(Note 2) After reassembly procedure (2), turn the impeller by hand to check that it rotates smoothly.
When the rotating condition is not smooth, do over again according to the procedure (3) to (5).
(Note 3) Apply the adhesive (LOCKTITE #262) to the impeller bolt in the following way for looseness
prevention.
a) Install the motor so that the shaft end serves as facing up from the level a little. After
degreasing a screw hole enough, pour out the adhesive (LOCKTITE #262) until it is full of a
screw hole.
b) An impeller bolt (275) should also degrease enough and should apply the adhesives
(LOCKTITE #262) for screws to the whole screw part.
(Note 4) After reassembly is completed, turn the impeller by hand through suction inlet to check that
it rotates smoothly without rubbing against wearing ring.

-16-
(13) Limited warranty
The warrants to the original retail purchaser (“Customer”) the followings.
1. This warranty valid for a period of twelve months from the date of delivery.
2. During the said period, STANCOR will repair the pump free of charge provided that:
The trouble is due to shortcomings in design, workmanship, etc., that can be attributed to STANCOR,
and that the pump was being operated correctly and in a normal manner in accordance with the
Instruction Manual when the trouble occurred.
Stancor takes full responsibility to repair the pump including parts necessary for replacement, however,
STANCOR do not take any other damages caused by the trouble.
3. Fees will be charged for repair and consumable items in the following circumstances:
(a) If the trouble occurs after the warranty has expired.
(b) If the trouble is caused by mal-operation, and/or caused during storage.
(c) If the trouble is caused by fire, flood, earthquake or other circumstances beyond STANCOR’s
control.
(d) If the trouble is caused by use of parts other than those recommended by STANCOR.
(e) If the trouble is caused by repair or remodeling of the pump carried out by a party other than
STANCOR or agent specified by STANCOR.
(f) “Consumable items” refer to lubrication oil, gasket, seal washer, O-ring, mechanical seal, and other
parts that will eventually require replacement.
4. STANCOR’s liability shall not extend to any other costs beyond the above.
5. The storage period of consumable items is 7 years after manufacturing stop.
(14) Repairing and after-service
If some failures are found, please contact STANCOR Corporation or an authorized Agent/Distributor, starting the data
on the identification nameplate and detail of the trouble. (Refer to section (8) “Troubleshooting”)
Note
Packing scraps, unnecessary components and oil after inspection and repair should be
processed properly according to the local rules.
If you have any enquires about the pump, please contact Stancor.
