Stanton CMP.800 User manual

!"#$%&&!
"'()*+",-*./!012341"505/!67)86((,8!
29,8/".7'.(
/

1
Important/Safety/Instructions
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instruc ti ons.
2. Keep these instruc ti ons.
3. Heed all warnings.
4. Follow all instruc ti ons.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
. Do not block any of the ventilation openings. Install in accordance with the manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized plug. The wide blade is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and point where
they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Serving is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Where a mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
16. Please keep the unit in a good environment.
1 . Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on
the apparatus.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to
the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constute a risk of electric shock.
The exclamaon point within the equilateral triangle is intended to alert the user to the presence of imp-
ortant operaon and maintenance (servicing) instrucons in the literature accompanying this appliance.
CAUTION: To reduce the risk of electric shock, do not remove any cover. No
user-serviceable parts inside. Refer servicing to qualified service personnel
only.
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
To reduce the risk of the fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus
shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed
on the apparatus.
WARNING
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade exposure.
CAUTION

Important/Safety/Instructions
IMPORTANT/SAFETY/INSTRUCTIONS/
!
CAUTION:!#$%! &'($#)')(! *&+,$! -'#$! +)! +../-$%+0! ,123/&! -'#$')! +)! %45'&+#%.+&! #.'+)(&%! ',!
')#%)0%0!#/!+&%.#!#$%!5,%.!#/!#$%!6.%,%)7%!/*!5)8'),5&+#%0!0+)(%./5,!9/&#+(%!-'#$')!#$%!5)'#,!
%)7&/,5.%! #$+#! 2+1! 3%! /*! ,5**'7'%)#! 2+()'#50%! #/! 7/),#'#5#%! +! .',:! /*! %&%7#.'7! ,$/7:! #/!
6%.,/),;!
/
!
WARNING:!#$%!%<7&+2+#'/)!6/')#!-'#$')!+)!%45'&+#%.+&!#.'+)(&%!',!')#%)0%0!#/!+&%.#!#$%!5,%.!#/!
#$%!6.%,%)7%!/*!'26/.#+)#!/6%.+#')(!+)0!2+')#%)+)7%!=,%.9'7')(>!'),#.57#'/),!')!#$%!&'#%.+#5.%!
+77/26+)1')(!#$%!6./057#;!
!
NOTE:!#$%!$+)0!-'#$')!+)!%45'&+#%.+&!#.'+)(&%!',!')#%)0%0!#/!+&%.#!#$%!5,%.!#/!,6%7'*'7!(5'0+)7%!
+)0! ')*/.2+#'/)!.%(+.0')(!#$%!/6%.+#'/)!/*!#$%!5)'#?!+)0!,$/5&0!3%!.%+0!*5&&1!@%*/.%!5,')(!
#$%!5)'#!*/.!#$%!*'.,#!#'2%!
!
!
CAUTION:/TO/REDUCE/THE/RISKS/OF/FIRE/OR/ELECTRIC/SHOCK/DO/NOT/REMOVE/ANY/COVERS,/OR/OPEN/THE/
UNIT./THERE/ARE/NO/USER+SERVICABLE/PARTS/ INSIDE./ALL/SERVICING/SHOULD/BE/REFERRED/TO/ QUALIFIED/
SERVICE/ENGINEERS./
/
!
WARNING:/ READ/ AND/ FOLLOW/ ALL/ THE/ SAFETY/ AND/ OPERATING/ INSTRUCTIONS/ BEFORE/ CONNECTING/ OR/
USING/THIS/UNIT./RETAIN/THIS/USER/MANUAL/FOR/FUTURE/REFERENCE./ALL/WARNINGS/ON/THE/UNIT/AND/
ITS/PACKAGING/SHOULD/BE/READ/AND/FOLLOWED./
!
/
!
WARNING:!#ABC!DEFGHIJ!IFKJLBKC!L!IAMNBILO!PKFQK!JF!JAM!,JLJM!FR!7LOBRFEKBL!JF!ILHCM!ILKIME!LKG!SBEJA!GMRMIJC!
FE!FJAME!EMDEFGHIJBTM!ALEN;/
!
!
CAUTION:!#F!EMGHIM!JAM!EBCPC!FR!RBEM!FE!MOMIJEBI!CAFIP!GF!KFJ!MUDFCM!JABC!DEFGHIJ!JF!ELBK!FE!NFBCJHEM;!0F!KFJ!HCM!
JABC!DEFGHIJ!KMLE!QLJME?!RFE!MULNDOM?!KMLE!L!SLJA!JHS?!QLCASFQO?!PBJIAMK!CBKP?!OLHKGEV!JHS?!BK!L!QMJ!SLCMNMKJ!
FE! KMLE! L! CQBNNBKW! DFFO;! 5KDOHW! JAM! HKBJ! REFN! JAM! QLOO! FHJOMJ! SMRFEM! IOMLKBKW;! )MTME! HCM! JABKKME?! IOMLKBKW!
ROHBGC?!CFOTMKJC!FE!IAMNBILOOV!BNDEMWKLJMG!IOFJAC;!*FE!IOMLKBKW!LOQLVC!HCM!L!CFRJ!GEV!IOFJA;!5KDOHW!JABC!DEFGHIJ!
GHEBKW!OBWAJKBKW!CJFENC!FE!QAMK!HKHCMG!RFE!OFKW!DMEBFGC!FR!JBNM;/
!
!
CAUTION:!#AM! HKBJ! CAFHOG! SM! BKCJLOOMG! CF! JALJ!BJC! OFILJBFK! FE! DFCBJBFK! GFMC! KFJ! BKJMERMEM! QBJA! BJC! DEFDME!
TMKJBOLJBFK;! *FE! MULNDOM?! BJ! CAFHOG! KFJ! SM! CBJHLJMG! FK! L! SMG?! CFRL?! EHW! FE! CBNBOLE! CHERLIM! JALJ! NLV! SOFIP! JAM!
TMKJBOLJBFK!FDMKBKWC?!FE!DOLIMG!BK!L!SHBOJ8BK!BKCJLOOLJBFK?!CHIA!LC!L!SFFPILCM!FE!ILSBKMJ?!JALJ!NLV!BNDMGM!JAM!ROFQ!
FR!LBE!JAEFHWA! BJC!TMKJBOLJBFK! FDMKBKWC;! #AM! HKBJ! CAFHOG! SM! CBJHLJMG! REFN! AMLJ! CFHEIMC! CHIA! LC! ELGBLJFEC?! AMLJ!
EMWBCJMEC?! CJFTMC! FE! FJAME! GMTBIMC! =BKIOHGBKW! LNDOBRBMEC>! JALJ! DEFGHIM! AMLJ;! )F! KLPMG! ROLNM! CFHEIMC?! CHIA! LC!
OBWAJMG!ILKGOMC?!CAFHOG!SM!DOLIMG!FK?!FE!KMLE!JAM!HKBJ;/
!
!
WARNING:!0F!KFJ!DOLIM!JABC!HKBJ!FK!LK!HKCJLSOM!CHERLIM?!ILEJ?!CJLKG!FE!JEBDFG?!SELIPMJ!FE!JLSOM;!#AM!HKBJ!NLV!
RLOO?!ILHCBKW!CMEBFHC!BKXHEV!JF!L!IABOG!FE!LGHOJ!LKG!CMEBFHC!GLNLWM!JF!JAM!HKBJ;!5CM!FKOV!QBJA!L!ILEJ?!CJLKG?!JEBDFG?!
SELIPMJ!FE!JLSOM!EMIFNNMKGMG!SV!JAM!NLKHRLIJHEME!FE!CFOG!QBJA!JAM!HKBJ;!+KV!NFHKJBKW!FR!JAM!GMTBIM!FK!L!QLOO!
FE!IMBOBKW!CAFHOG!RFOOFQ!JAM!NLKHRLIJHEMEYC!BKCJEHIJBFKC!LKG!CAFHOG!HCM!L!NFHKJBKW!LIIMCCFEV!EMIFNNMKGMG!SV!
JAM!NLKHRLIJHEME;!+K!LDDOBLKIM!LKG!ILEJ!IFNSBKLJBFK!CAFHOG!SM!NFTMG!QBJA!ILEM;!4HBIP!CJFDC?!MUIMCCBTM!RFEIM!
LKG!HKMTMK!CHERLIMC!NLV!ILHCM!JAM!LDDOBLKIM!LKG!ILEJ!IFNSBKLJBFK!JF!FTMEJHEK!5CM!FKOV!QBJA!JAM!ILEJ?!COLKG;!
JEBDFG?! SELIPMJ?! FE! JLSOM! CDMIBRBMG! SV! JAM! NLKHRLIJHEME?! FE! CFOG! QBJA! JAM! LDDLELJHC;! -AMK! L! ILEJ! BC! HCMG?! HCM!
ILHJBFK!QAMK!NFTBKW!JAM!ILEJZLDDLELJHC!IFNSBKLJBFK!JF!LTFBG!BKXHEV!REFN!JBD8FTME;!
!
!
NOTE:!,AFHOG! JAM! HKBJ! SMIFNM! GLNLWMG! SMVFKG! EMDLBE?! FE! EMLIAMC! JAM! MKG! FR! 'JC! OBRM?! DOMLCM! IFKCHO[! JAM!
EMWHOLJBFKC!EMWLEGBKW!GBCDFCLO!FR!MOMIJEFKBI!DEFGHIJC!BK!VFHE!EMWBFK!
!
!
NOTE:!,JLKJFK! 2LWKMJBIC! ILKKFJ! SM! AMOG! EMCDFKCBSOM! RFE! GLNLWM?! LKG?! FE! BKIOHGBKW! GLJL! OFCC! ILHCMG! SV!
BNDEFDME!HCM!FR!JAM!HKBJ!LKG!FE!JAM!LDDOBILJBFKC!DEFTBGMG!RFE!HCM!QBJA!JAM!HKBJ;!
2

3
Important/Safety/Instructions
IMPORTANT/SAFETY/INSTRUCTIONS/
CAUTION TO/PREVENT/ELECTRIC/SHOCK,/MATCH/WIDE/BLADE/OF/PLUG/TO/WIDE/SLOT/FULLY/INSERT./
!
!
ENGLISH:!#AM!LDDLELJHC!CALOO!SM!IFKKMIJMG!JF!L!2LBKC!CFIPMJ!FHJOMJ!QBJA!L!DEFJMIJBTM!MLEJABKW!IFKKMIJBFK;!
GERMAN:!0LC!(MELJ!BCJ!MBKM!-LKGCJMIPGFCM!NBJ!MBKMN!%EGHKWCOMBOME!LKWMCIAOFCCMK!QMEGMK;!
FRENCH:!&YLDDLEMBO!GFBJ!MJEM!IFKKMIJC!L!HKM!DEBCM!CMIJMHE!LTMI!IFKKMUBFK!L!OL!JMEEM;!
SPANISH:%'!LDLELJF!MCJLEL!IFKMIJLGF!L!HKL!JFNL!GM!EMG!MOMIJEBIL!IFK!HKL!IFKMUBFK!L!JBMEEL;!
ITALIAN:!&YLDDLEMIIABF!GMTM!MCCMEM!IFOOMWLJF!L!HKL!DEMCL!GB!EMJM!IFK!HKL!IFKKMCCBFKM!L!JMEEL!DEFJMJJBTL;!
!
!
]; #AM!HKBJ!LKG!DFQME!CHDDOV! CAFHOG! FKOV! SM!IFKKMIJMG!JF!L!DFQME!CHDDOV!FHJOMJ!FKOV! FR! JAM!TFOJLWM!LKG!
REM^HMKIV!NLEPMG!FK!BJC!ILCBKW;!
"; 6EFJMIJ!JAM!DFQME!ILSOM!REFN!SMBKW!QLOPMG!FK!FE!DBKIAMG!DLEJBIHOLEOV!LJ!DOHWC?!IFKTMKBMKIM!EMIMDJLIOMC?!
LKG!JAM!DFBKJ!QAMEM!JAMV!MUBJ!REFN!JAM!LDDLELJHC;!
\; 0F!KFJ!GMRMLJ!JAM!CLRMJV!DHEDFCM!FR!JAM!DFOLEB_MG!FE!WEFHKGBKW8JVDM!DOHW;!+!DFOLEB_MG!DOHW!ALC!JQF!SOLGMC!
QBJA!FKM!QBGME!JALK!JAM!FJAME;!+!WEFHKGBKW!JVDM!DOHW!ALC!JQF!SOLGMC!LKG! L!JABEG!WEFHKGBKW!DEFKW!#AM!
QBGM!SOLGM!FE!JAM!JABEG!DEFKW!BC!DEFTBGMG!RFE!VFHE!CLRMJV;!'R!JAM!DEFTBGMG!DOHW!GFMC!KFJ!RBJ!BKJF!VFHE!FHJOMJ?!
IFKCHOJ!L!^HLOBRBMG!MOMIJEBIBLK!RFE!EMDOLIMNMKJ!FR!JAM!FSCFOMJM!FHJOMJ;!
`; 'R!JAM!NLBKC!DOHW!CHDDOVBKW!JABC!DEFGHIJ!BKIFEDFELJMC!L!RHCM!JAMK!BJ!CAFHOG!FKOV!SM!EMDOLIMG!QBJA!L!RHCM!FR!
BGMKJBILO!FE!OFQME!EHDJHEM!TLOHM;!
a; )MTME!HCM!L!GLNLWMG!FE!RELVMG!DFQME!ILSOMb!JABC!ILK!BKJEFGHIM!CMEBFHC!EBCP!FR!MUDFCBKW!OMJALO!TFOJLWMC;!
c; #AM!DFQME!CHDDOV!ILSOM!FR!JAM!HKBJ!CAFHOG!SM!HKDOHWWMG!REFN!JAM!QLOO!FHJOMJ!QAMK!BJ!BC!JF!SM!HKHCMG!RFE!L!
OFKW!DMEBFG!FR!JBNM;!
d; /KOV!HCM!LJJLIANMKJCZLIIMCCFEBMC!CDMIBRBMG!SV!JAM!NLKHRLIJHEME;!
!
!
!
DO/ NOT/ ATTEMPT/ SERVICING/ OF/ THIS/ UNIT/ YOURSELF./ REFER/ SERVICING/ TO/ QUALIFIED/ SERVICE/
PERSONNEL./
!
5DFK!IFNDOMJBFK!FR!LKV!CMETBIBKW!FE!EMDLBEC?!EM^HMCJ!JAM!LCCHELKIM!JALJ!FKOV!*LIJFEV!+HJAFEB_MG!.MDOLIMNMKJ!
6LEJC!QBJA!JAM!CLNM! IALELIJMEBCJBIC!LC! JAM!FEBWBKLO!DLEJC!ALTM!SMMK! HCMG?!LKG!JALJ!JAM!EFHJBKM!CLRMJV! IAMIPC!
ALTM!SMMK!DMERFENMG!JF!WHLELKJMM!JALJ!JAM!M^HBDNMKJ!BC!BK!CLRM!FDMELJBKW!IFKGBJBFK;/
!
!
!
REPLACEMENT/WITH/UNAUTHORIZED/PARTS/MAY/RESULT/IN/FIRE,/ELECTRIC/SHOCK/OR/OTHER/HAZARDS./
/
ATTENTION/POUR/...VITER/LES/CHOC/ELECTRIQUES,/INTRODUIRE/LA/LAME/LA/PLUS/LARGE/DE/LA/FICHE/DANS/
LA/BORNE/
/
CORRESPONDANTE/DE/LA/PRISE/ET/POUSSER/JUSQUiAU/FOND./
!
!
!
This/unit/should/be/serviced/by/qualified/service/personnel/when:/
!
#AM!DFQME!IFEG!FE!JAM!DOHW!ALC!SMMK!GLNLWMG!
/SXMIJC!ALTM!RLOOMK?!FE!OB^HBG!ALC!SMMK!CDBOOMG!BKJF!JAM!HKBJ!
#AM!HKBJ!ALC!SMMK!MUDFCMG!JF!ELBK!FE!OB^HBGC!FR!LKV!PBKG!
#AM!HKBJ!GFMC!KFJ!LDDMLE!JF!FDMELJM!KFENLOOV!FE!MUABSBJC!L!NLEPMG!IALKWM!BK!DMERFENLKIM! !
#AM!GMTBIM!ALC!SMMK!GEFDDMG!FE!JAM!MKIOFCHEM!GLNLWMG;!
/
REGULATORY/CERTIFICATION/
,JLKJFK!2LWKMJBIC!GMIOLEM!HKGME!FHE!CFOM!EMCDFKCBSBOBJV!JALJ!JABC!DEFGHIJ?!JF!QABIA!JABC!GMIOLELJBFK!EMOLJMC?!BC!BK!IFKRFENBJV!
QBJA!JAM!RFOOFQBKW!CJLKGLEGCe!
!
#AM! 0MIOLELJBFKC! FR! 7FKRFENBJV! ILK! SM! FSJLBKMG! REFN! \@"! +TM! GM! OL! 7FHEFKKM?! 38]faf! 3EHCCOMC! +HJAFEB_MG! %HEFDMLK!
EMDEMCMKJLJBTMe!6AFKMe!g\""c`afaff!*LUe!g\"c`afafa!

1.Introduc
ti on

1.1WelcometotheCMP.800!

ThankyouforpurchasingtheCMP.800,anadvancedcross‐mediaplayerandMIDIcontroller.TheCMP.800allowsyoutoplay
fromanumberofmass‐storagedevicesaswellasCDs,andactsasapowerfulMIDIcontrollerforpopularDJsoftware.

Beforestar ti ng,pleasecheckthatyouhavereceivedthefollowingitems:

•CMP.800unit
•PowerCable
•UserManual

Nowthatyouhavecheckedthateverythingwasincludedinthebox,let’stalkaboutthisexci ti ngunit.


1.2Overview

•PlaysMP3/WAV*filesfromUSBorregularCDs
•MP3TrackListings
•Headphonejackw/TrimControl
•FineTuneBPM
•NextTrackSearch
•AutoCue
•Realtimecue(“Cueonthefly”)
•8differentspeedscan(4Forward/4Reverse)
•Pitchdisplay
•RCAcoaxialoutput
•LargebrightVFDdisplay
•FaderStartControl
•SeamlessLoop(uninterruptedloopplayback)
•Sampler(Forward&ReverseSampling)
•Memorybackup,Defaultstolastsetting
•10SeconddigitalAnti‐shock
•Sleepmode
•Relayplayback
•Jogwheelpitchbend+/‐100%
•SelectableSingleorContinuousPlay
•FolderSearchforMp3’s
•2000(500trackx4)programmableCuePointsforCD
•4programmableCue(Bank)buttons
•AdjustablepitchPercentages:+/‐6,10,16or+/‐100
•InstantStartwithin10ms(soundisproducedimmediatelywhenPLAYbuttonispressed)
*WAVFiles:1411kbpsPCM
Introduction
4

Internal/menu
5
Press MENU BUTTON to enter the internal menu, and turn the FOLDER KNOB to search through the different menu
Turn the TRACK KNOB or Jog Wheel to change the submenus; press MENU BUTTON to memorize your settings and exit the
menu
1 JOG MODE - Select JOG LED mode (mode range is 1~8)
2 PLAYLIST - Normal / Title/ Artist / Album/ Genre (for USB)
3 SENSITIVITY - Touch Wheel Sensitivity Adjustment (Adjustment range is -20~+20)
4 PITCH BEND - Pitch range +/-1%~100%
5 LINE SETUP - L1 mode = 1~3 (Line 1 mode)
- L2 mode = 1~3 (Line 2 mode)
- Dis = 0 5~12 0 sec (LINE NAME start/stop time adjustment2 mode)
- Run = 50~2000 (LINE NAME move time adjustment2 mode)
6 SLEEP TIME - No sleep, 5~120 min
7 INTENSITY - VFD Brightness (Brightness Range is 1~4)
8 A CUE LEVEL - Change the AUTO CUE Level (Level Range is -36~-78db)
9 MIDI CC TYPE - Change the send of REL (RELATIVE), ABS (ABSOLUTE), Note for FOLDER /TRACK/ WHEEL under MIDI
mode
A MIDI SETUP
- USB = MIDI/LINK (USB MIDI JACK function)
- CHAN = Player CHAN 1~16 selection
- SHIFT = HOLD/SW
- JOG OUTPUT (0~30 ms) (Control JOG MIDI max send time)
- Pulse = (1024 or 512) (Select sensor to send Pulse)
- I/O DISPLAY/Hide (display/hide MIDI I/O value)
- EDIT = ON/OFF (Set MIDI NOTE and MIDI LED code on/off; ON→default value)
- NAME = MIDI (B~H) (2 more devices connection)
B MIDI NOTE EDIT - Edit the send MIDI NOTE code (Please refer MIDI MAP)
C MIDI LED EDIT - Edit the received MIDI LED code (Please refer MIDI MAP)
D REPEAT MODE - Play FOLDER repeat
E BIT RATE- Display ON
Display OFF
F VERSION - CON: Verxx (Control version)
- SER: VerXX(Servo version)
- BUF: VerXX(Buffer version)
- DSP: VerXX(DSP version)
G LOAD DEFAULT - Press TRACK Knob to enter load defaults
H EXIT & SAVE - Exit & Save setting to next power on (Press the TRACK KNOB to fast exit & save in any operating mode)
Note:
Save: PITCH ON/OFF, PITCH RANGE, SGL/CTN, AUTO CUE, TIME MODE, HOLD, KEY LOCK, EFFECTS ON/OFF, SENITIVITY,
DISPLAY/SCROLL TIME/JOG MODE/ INTENSITY/ A CUE LEVEL/MIDI CC TYPE / MIDI CH/ MIDI SETUP
Defaults: PITCH (ON), PITCH RANGE (10%), (CTN), AUTO CUE(ON), TIME MODE (REMAIN), HOLD(OFF), KEY LOCK(OFF),
EFFECTS(OFF), SENITIVITY(0), PITCH BEND(PITCH RANGE), BIT RATE(Disp ON), JOG MODE (MODE1,1), INTENSITY(4), A CUE
LEVEL(-48db), MIDI CC TYPE(REL ) , MIDI CH(CH 1,2), MIDI SETUP(JOGOUT 0 ms) (PULSE 1024) (I/O HIDE), REPEAT MODE(OFF),
LINE SETUP (LINE 1 DISPLAY=2/LINE 2 DISPLAY=1), (DISPLAY (1 sec)/RUN (150msec) TIME, PLAYLIST (NORMAL), SLEEP
MODE(15min)

Link UP

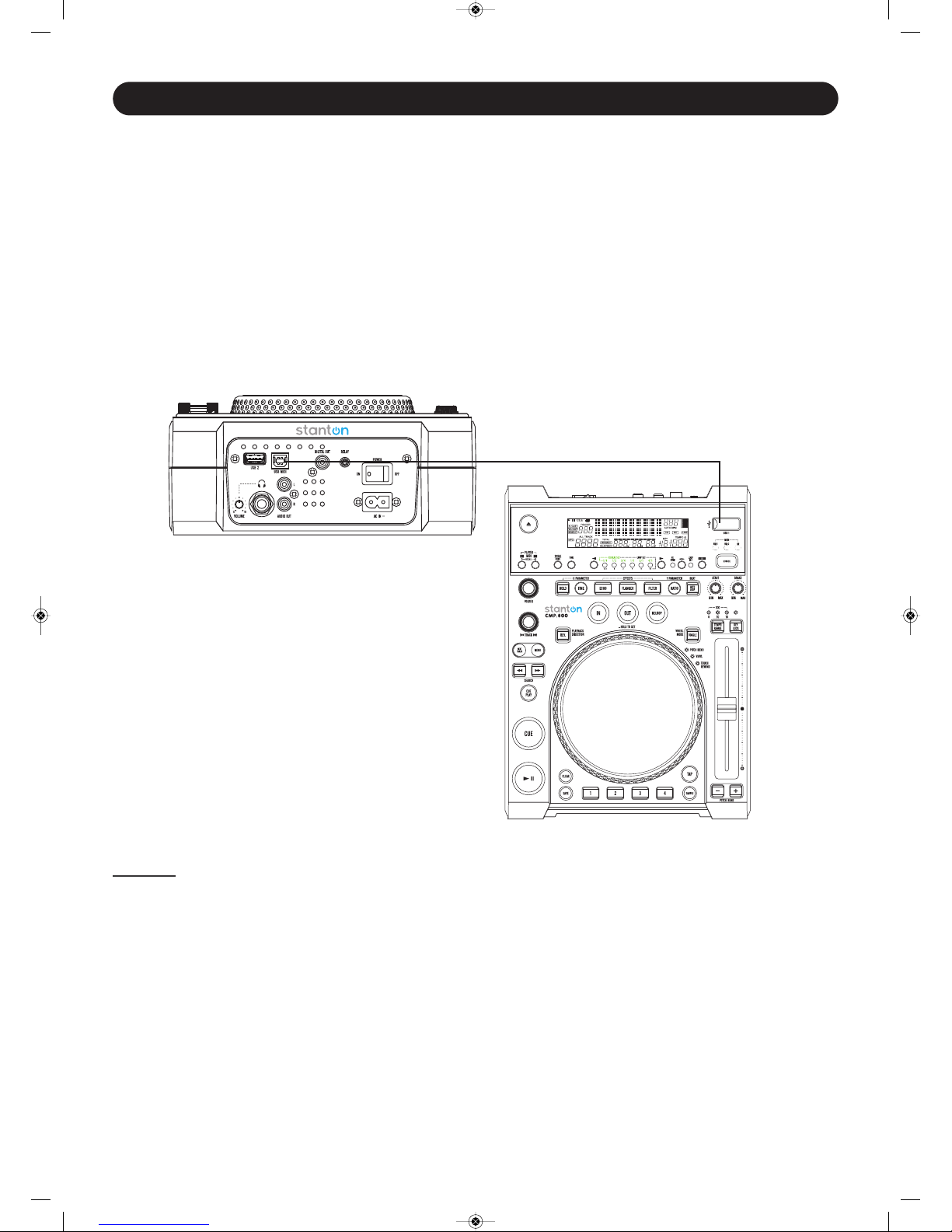

With this function a USB device can be plugged into a single CMP.800, and a second player can access the data from the drive.
Follow the directions below to setup the link function.
MAIN PLAYER:
a. Press the Menu button to enter the internal menu.
b. Once you are in the internal menu, turn the FOL ER knob until MI I SETUP is displayed.
c. Press the SHIFT button and turn TRACK knob until the USB = LINK is displayed, and press the Menu button to memorize
the setting and exit.
d. Now load your USB1 device into the MAIN PLAYER.
e. Connect the MAIN PLAYER using the rear USB MI I port to the second player USB port.
f. You should now be able to access the main player loaded USB1 device using the second player controls.
(The USB1 device must be read first on the main player whenever loaded the device.)
Main Player (with loaded USB Device)
ARNING:
6
It is recommended that the USB Cable be at least 28 gauge or higher and no more than 3 feet long.
Second Player

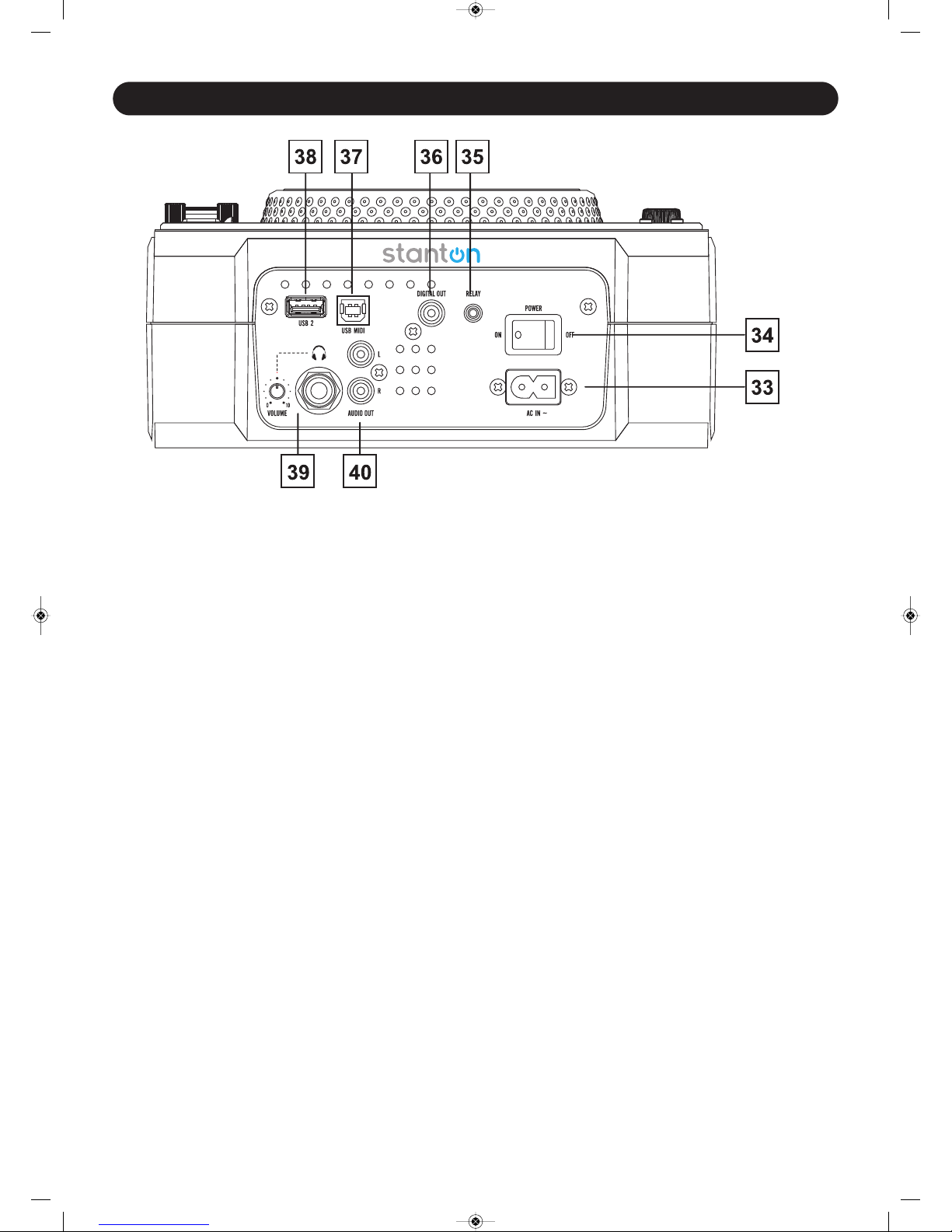

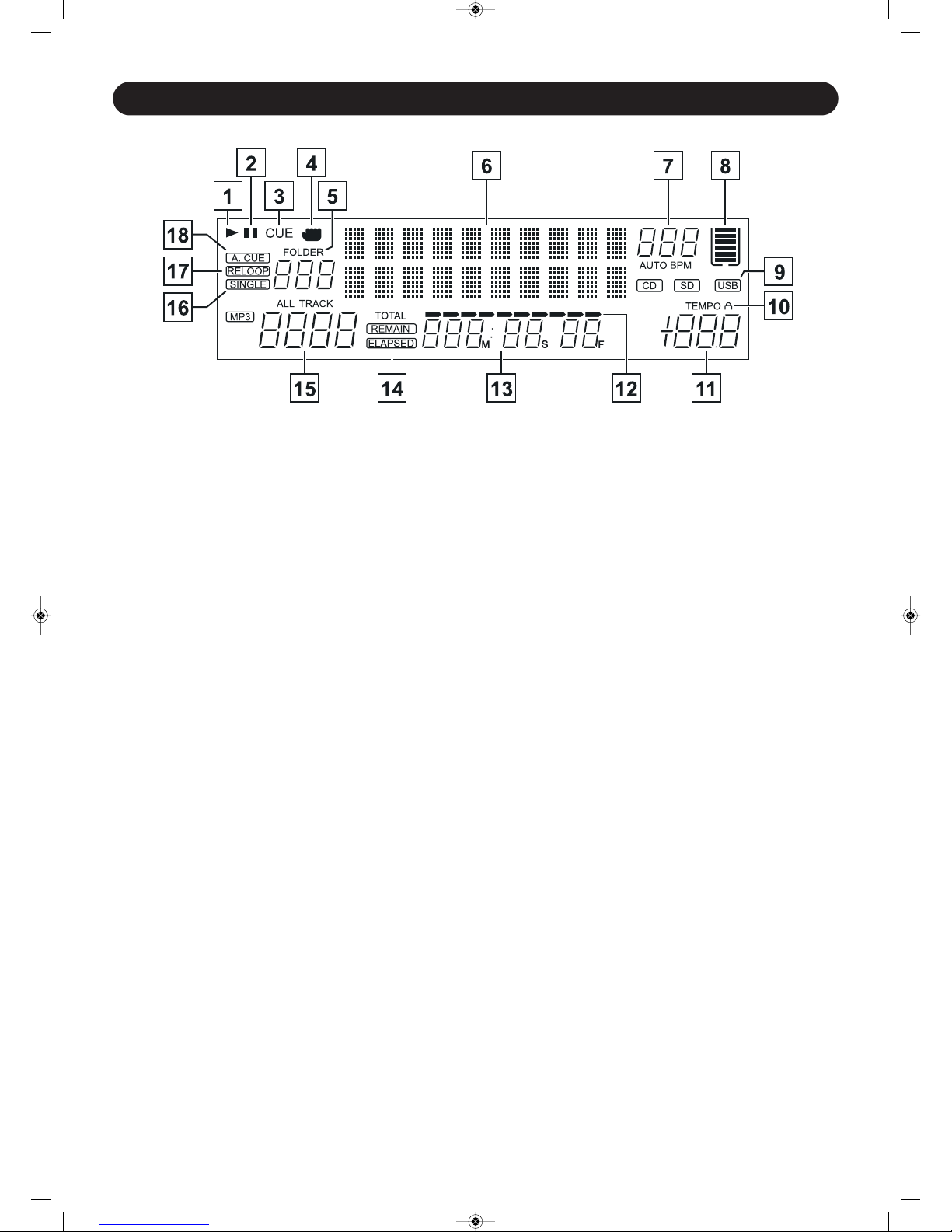

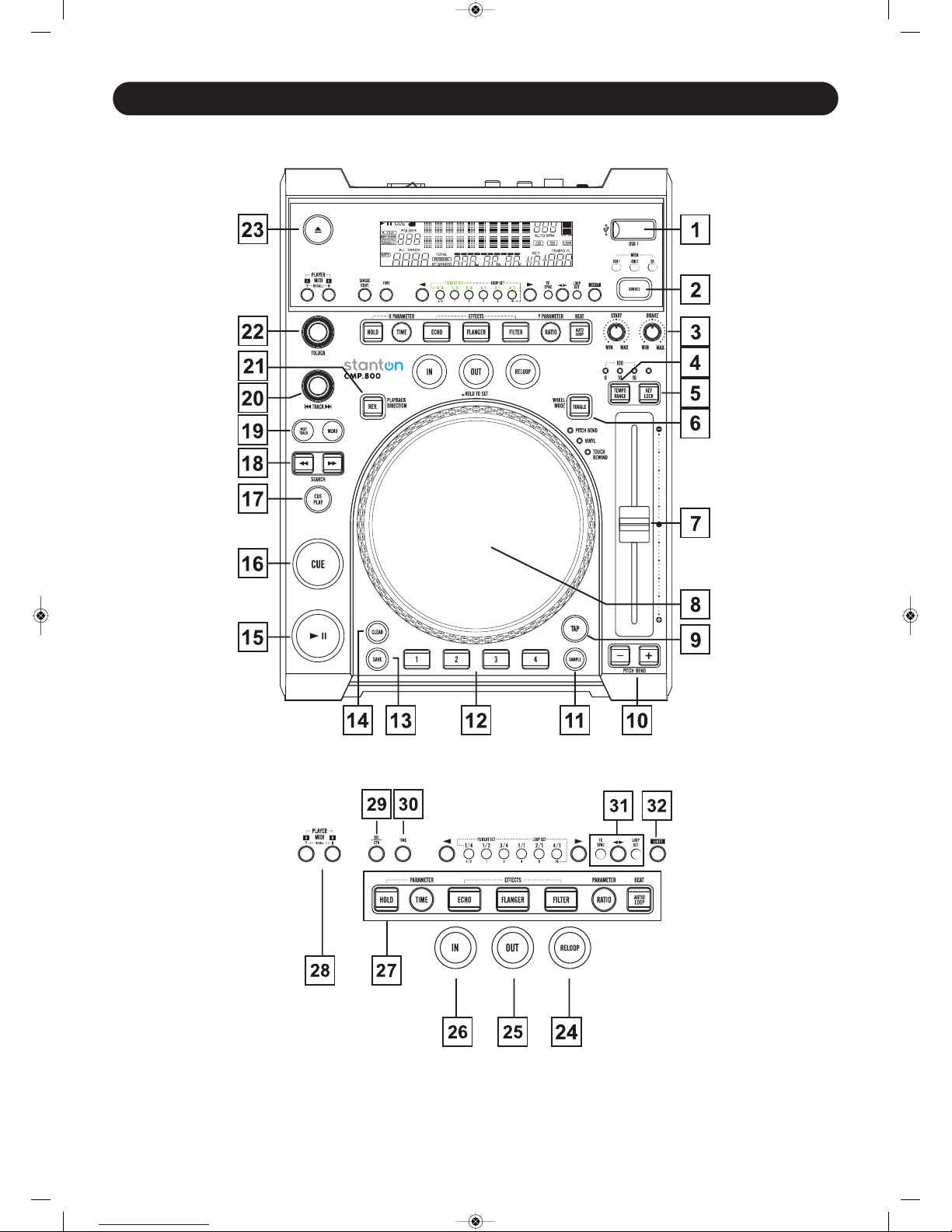

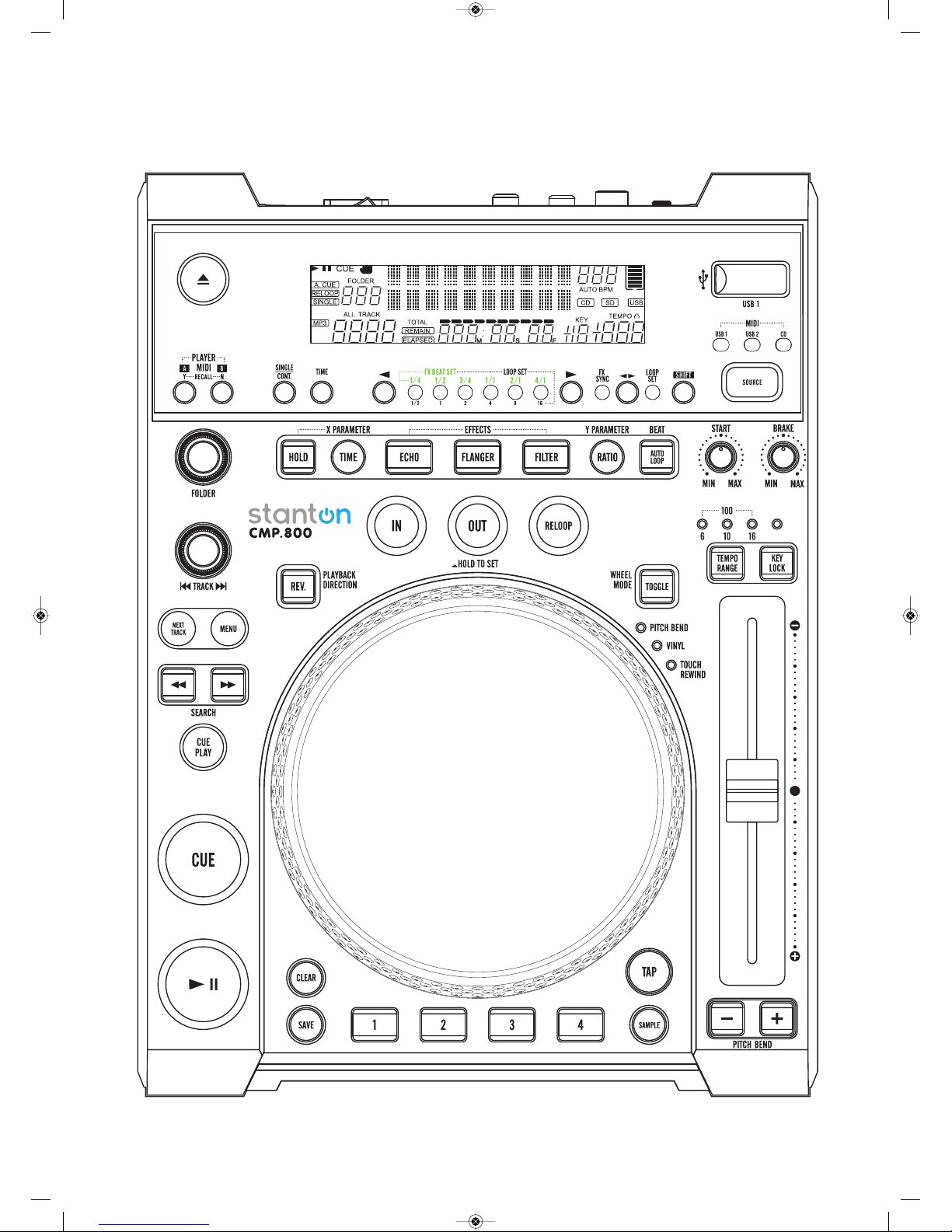

CMP.800/Description
7

1. USB/Port:/This!is!the!USB!port!where!you!insert!your!USB!mass!storage!device.!
2./ Source/ Select:/ Use! this! button! to! select! CD/USB1/USB2/MIDI!music.!Hold!the!SOURCE!SELECT!button!for!2!sec.!enter!
MIDI!mode.!
!
3./Brake,/Start/Dial/
/Brake/Dial/
a.!When!in!the!VINYL!mode,!this!BRAKE!dial!determines!the!deceleration!speed!until!play!stops!when!the!jog!wheel!is!
touched.!
b.!When! in! the! VINYL! or! Touch! Rewind! mode,! this! BRAKE! dial! determines! the! deceleration! speed! until! play! stops!
when!the!PLAY/PAUSE!button!is!touched.!
c.!When!the!BRAKE!dial!is!rotated!to!MIN,!play!stops!quickly;!when!the!dial!is!rotated!to!MAX,!play!stops!more!slowly!
before!coming!to!a!complete!stop.!
/Start/Dial/
a.!When!in!the!VINYL!mode,!this!START!dial!determines!the!acceleration!speed!until!full!playback!speed!is!reached!
when!the!jog!wheel!is!spun!backward.!
b.!When!in!the!VINYL!or!Touch!Rewind!mode,!this!START!dial!determines!the!acceleration!speed!until!full!playback!
speed!is!reached!when!the!PLAY/PAUSE!button!is!pressed.!
c.!When!the!START!dial!is!rotated!to!MIN,!play!starts!quickly;!when!the!dial!is!rotated!to!MAX,!play!starts!more!slowly!
before!full!playback.!
!
4./Tempo/Range/Button:/Press!the!button!to!choose!any!pitch!percentage!of!6%,!10%,!16%,!and!100%.!
With!this!button!you!can!also!switch!Pitch!Slider!on/off,!by!pressing!it!for!at!least!1!sec.!
!
5./KEY/Lock:/This!button!activates!the!KEY!LOCK!function.!This!function!allows!you!to!use!the!PITCH!SLIDER!to!speed!up!or!
slow!down!playback!speed!without!altering!the!tonal!pitch!of!the!track.!
!
6./Toggle/ Button/ (Wheel/ Mode):/ Each!press!the!TOGGLE! button!to!select!the!Wheel!Mode!of!Pitch!Bend/VINYL/Touch!
Rewind.!
a.!Pitch!Bend!8!When!wheel!mode!is!set!to!Pitch!Bend,!scratch!mode!is!exit,!JOG!WHEEL!can!be!used!to!pitch!bend!
and!frame!search.!
b.! VINYL! 8! When! wheel! mode! is! set! to! VINYL,! use! the! JOG! WHEEL!to! activate! the! scratch! effect! by! touching! the!
surface!of!jog!wheel.!
c.!Touch!Rewind.!
i)!In!Playback!mode!
While!in!play!mode!and!when!touch!rewind!mode!is! active,!the!JOG!WHEEL!can!be!used!to!return!the!unit! to!last!IN!
point.!Simply!touch!the!JOG!WHEEL!and!unit!will!immediately!return!to!the!last!set!CUE!point!(BANK!LED!is!not!blinking)!
or!BANK!in!point!(LED!is!blinking)!and!playback!without!music!interruption.!
ii)!In!CUE!mode!
While!in!cue!mode!and!when!touch!rewind!mode!is!active,!tapping!on!the!JOG!WHEEL!can!be!used!to!start!playback.!
The!unit!will!continue!to!playback!until!the!JOG!WHEEL!is!released.!Once!the!JOG!WHEEL!is!released!the!unit!will!return!
to!the!last!IN!point.!
!
7./Pitch/Slider:/ This!slider!is!used!to!adjust!the!playback!pitch!percentage.!The!slider!is!a!set!adjustment!and!will!remain!
set!until!the!pitch!slider!is!moved!or!the!pitch!function!has!been!turned!off.!
!
8./JOG/Wheel:/
a! The!jog!wheel!will!act!as!a!frame!search!control!when!the!track!in!the!pause!or!cue!mode.!Press!the!PLAY!button!to!
pause!the!track!for!frame!search.!
b! The! wheel! also! works! as! a! pitch! bend! during! playback.! Turning! the! wheel! clockwise! will! increase! the! pitch!
percentage!up!to!100%,!and!turning!the!wheel!counterclockwise!will!decrease!the!pitch!percentage!down!to!8100%.!
The!pitch!bend!will!be!determined!on!how!long!you!turn!the!jog!wheel!continuously.!
c! The! jog! wheel! can! be! used! with! the! hold! of! the! TIME! and! RATIO! knob! to! set! effects! and! samples! parameter!
adjustment.!
There!are!several!varied!modes!can!be!adjusted!for!Jog!Wheel!light!ring.!
1.!To!select!light!ring!you!desired;!press!MENU!button!to!enter!internal!menu,!and!turn!FOLDER!knob!to!search!“JOG!
MODE”!menu.!
2.!Turn!the!TRACK!knob!to!select!the!MODEs!you!want!to!adjust.!
3.!Press!SHIFT!button!and!turn!TRACK!knob!to!adjust!the!setting!value.!
0,9>8*;)*67
8

]>!2/0%!]!8!'J!QBOO!CAFQ!JAM!DOLVBKW!DFBKJ!BKGBILJFE!LEFHKG!JAM!EBKW;!1FH!ILK!LGXHCJ!JAM!CMJJBKW!TLOHM!ELKWM!]!FR!
CNLOOMCJ!BKGBILJFE!JF!"\!FR!RHOO!IBEIOM!BKGBILJFE;!
">!2/0%!"!8!'J!QBOO!BKGBILJM!JAM!DOLVBKW!DFBKJ!FDDFCBJM!=FKFRR!Z!FRRFK>!QAMK!JAM!hFW!-AMMO!BC!JFHIAMG;!1FH!
ILK!LGXHCJ!JAM!CMJJBKW!TLOHM!ELKWM!]!FR!CNLOOMCJ!BKGBILJFE!FRR!JF!"\!FR!RHOO!IBEIOM!FRR;!
\>!2/0%!\!8!'J!QBOO!CAFQ!JAM!DOLVBKW!DFBKJ!BKGBILJFE!LEFHKG!JAM!EBKW!LKG!ROLCA!JF!JAM!DOLVBKW!OMTMO!BK!SFJA!CBGMC;!
1FH!ILK!LGXHCJ!JAM!CMJJBKW!TLOHM!ELKWM!]!FR!CNLOOMCJ!DOLVBKW!DFBKJ!BKGBILJFE!JF!"\!FR!RHOO!IBEIOM!BKGBILJFE;!
`>!2/0%!`!8!'J!QBOO!ROLCA!JF!JAM!DOLVBKW!OMTMO!LEFHKG!JAM!EBKW;!
a>!2/0%!a!8!'J!QBOO!LOQLVC!FK;!1FH!ILK!LGXHCJ!JAM!CMJJBKW!SEBWAJKMCC!ELKWM!]!JF!]ff;!
c>! 2/0%!c!8!'J!QBOO!ROLCA!EMOLJMG!JF!JAM!CMJJBKW!CDMMG;!1FH!ILK!LGXHCJ!JAM!CMJJBKW!CDMMG!ELKWM!]!FR!RLCJ!ROLCA!JF!
]ff!FR!COFQ!ROLCA;!
d>! 2/0%!d!8!'J!QBOO!CAFQ!JAM!DOLVBKW!DFBKJ!CBNBOLE!JF!JELBO!MRRMIJ;!
@>!2/0%!@!8!'J!QBOO!OBWAJ!QAMK!JAM!hFW!-AMMO!BC!JFHIAMG;!
c$/AB#/4'))67G/#ABC!SHJJFK!BC!HCMG!RFE!NLKHLO!362;!-AMK!BK!NLKHLO!362!NFGM?!JLD!JABC!SHJJFK!JF!JAM!SMLJ!FR!JAM!IHEEMKJ!
JELIP;!$FOG!JAM!#+6!SHJJFK!RFE!]!CMI;!JF!LIJBTLJM!+HJF!362;!
!
]f;!#*)>R/ 4,7-/ 4'))679G!#AM! GMCBEMG! DBJIA! FR! 70! GMIEMLCMC! FE! BKIEMLCMC! QAMK! JABC! SHJJFK! BC! DEMCCMG!LKG! EMJHEKC!JF! JAM!
FEBWBKLO!DBJIA!QAMK!JAM!SHJJFK!BC!EMOMLCMG;!
!
]];!3B"#LE/4'))67G!
L! 6EMCC!JAM!,+26&%!SHJJFK!LWLBK!JF!CMJ!JAM!CLNDOM!NFGM!=&%0!BC!ROLCA>;!
S! 6EMCC!JABC!SHJJFK?!JAMK!DEMCC!JAM!GMCBEMG!3+):!SHJJFK!JF!CMJ!JAM!CLNDOM!OFFD!NFGM!=&%0!BC!FK>;!
I! 6EMCC!JAM!,+26&%!SHJJFK!LWLBK!JF!ILKIMO!CLNDOM!RHKIJBFK;!
G! -AMK!CLNDOM!NFGM!BC!CMJ?!JAMK!CLNDOME!QBOO!NBU!JAM!NHCBI!JFWMJAME;!
!
WY$/3+):/4'))679/Wd^G/#AMCM!SHJJFKC!LEM!HCMG!JF!CJFEM!MBJAME!RFHE!IHM!DFBKJC!FE!RFHE!CLNDOMC;!%LIA!3LKP!3HJJFK!ILK!CJFEM!
MBJAME!L!CLNDOM!FE!L!IHM!DFBKJ;!#F!DOLV!VFHE!DEFWELNNMG!CLNDOMC?!DEMCC!JAM!,LNDOM!SHJJFK!LKG!JAMK!DEMCC!JAM!3LKP!
6EFWELN!SHJJFK;!
!#AM!CJFEMG!7HM!DFBKJ!QBOO!SMIFNM!CLNDOM!QAMK!VFH!IALKWM!LKFJAME!70!FE!5,3!GMTBIM!JF!DOLV;!
!
W]$/3BME/4'))679G/#ABC!SHJJFK!ILK!SM!HCMG!BK!IFHDOM!FR!QLVCe!
L;! 6EMCC! JABC! SHJJFK! JF! LIJBTLJM! JAM! NMNFEV! NFGM?! JAM! CLTM! SHJJFK! &%0! QBOO! WOFQ! QAMK! LIJBTM;! +RJME! JAM! NMNFEV!
NFGM!BC!LIJBTLJMG?!DEMCC!VFHE!GMCBEMG!SLKP!SHJJFK!JF!CJFEM!VFHE!75%!DFBKJ!FE!DOLVBKW!OFFD;!
S;!#F!CJFEM!VFHE!OFFDC! LKG!IHM!DFBKJC!JALJ!LEM!CLTMG!BK!JAM!3+):,!JF!JAM! CVCJMN!NMNFEV!RFE! KMUJ!JBNM?!DEMCC!JAM!
2%2/.1!SHJJFK!RFE!]!CMI;!
)/#%e!.%7+&&!2%2/.1!t!#AM!726;@ff!ILK!CJFEM!"fff!DEFWELNNMG!IHM!DFBKJC!BK!aff!JELIPC!RFE!70!LKG!`!DEFWELNNMG!
IHM!DFBKJC!DME!JELIP!BK!JAM!5,3!GMTBIM;!#AMCM!CMJJBKW!NLV!SM!EMILOOMG!LJ!LKV!JBNM?!MTMK!QAMK!LK!LHGBF!CFHEIM!ALC!SMMK!
EMNFTMG!LKG!OFLGMG!LJ!L!OLJME!JBNM;!
#F!EMILOO!JAM!SLKP!NMNFEV!QBJA!70Z5,3!GMTBIMe!]>!#HEK!JAM!#.+7:!PKFS!JF!CMOMIJ!JAM!JELIP!QABIA!QBJA!JAM!3+):,!LKG!
l&FLG!7HMCum!QBOO!SM!CAFQK!FK!JAM!9*0?!DEMCC!2'0'!6&+1%.!+!=1>!JF!OFLG!FE!DEMCC!2'0'!6&+1%.!3!=)>!KFJ!JF!OFLG;!/E!">!
DEMCC!JAM!,+9%!SHJJFK?!&%0!FK?!LKG!JHEK!JAM!#.+7:!PKFS!JF!CMOMIJ!JAM!#.+7:!QBJA!3+):,!JALJ!VFH!QFHOG!OBPM!JF!EMILOO;!
!
W^$/ !LEB@/ 4'))67G/ 6EMCC!7&%+.!SHJJFK?!&%0!FK?!FE!AFOG! JAM!7&%+.!SHJJFK!JF! CMOMIJ!JAM!3+):! SHJJFKC! VFH! QFHOG! OBPM! FE!
IOMLE;!
!
W`$/#(.=1#.'9,/4'))67G/%LIA!DEMCC!FR!JAM!SHJJFK!MKWLWMC!DOLVSLIP!FE!DLHCMC!JAM!JELIP;!
!
Wa$/!',/4'))67G!6EMCCBKW!JAM!7HM!SHJJFK!GHEBKW!DOLVSLIP!LKG!EMJHEKC!JAM!JELIPC!JF!JAM!OLCJ!CMJ!IHM!DFBKJ;!-AMK!JAM!CFKW!BC!
DLHCMG?!DEMCC!JAM!7HM!SHJJFK!JF!CMJ!L!KMQ!7HM!DFBKJ;!$FOG!GFQK!JAM!7HM!SHJJFK!JF!MKWLWM!7HM!DOLVSLIP!HKJBO!EMOMLCMG;! !
!
Wb$/ !',/#(.=/4'))67G/6EMCC!JAM!SHJJFK!JF!EMJHEK!DFBKJ!LKG!DOLVBKW!BNNMGBLJMOV;!1FH!ILK!LOCF!JLD!JAM!SHJJFK!JF!IEMLJM!L!75%!
.%#5.)!MRRMIJ;!
!
W%$/3,.8>R/4'))679G/
!!#ABC!CMLEIA!SHJJFK!LOOFQC!VFH!JF!^HBIPOV!CILK!SLIPQLEGC!JAEFHWA!L!JELIP;!
! ! #ABC!CMLEIA!SHJJFK!LOOFQC!VFH!JF!^HBIPOV!CILK!RFEQLEGC!JAEFHWA!L!JELIP;!
Wc$!C,e)/ A8.>Z/ 4'))67G/ -ABOM!MBJAME!DOLVBKW!L!JELIP!FE!BK!DLHCM!NFGM?!DEMCC!JABC!SHJJFK!JF!CMLEIA!RFE!JAM!KMUJ!JELIP!VFH!
QLKJ!JF!DOLV;!)%<#!#.+7:!BKGBILJFEC!QBOO!ROLCA;!)FQ! VFH!ILK!JHEK!JAM!*/&0%.!FE!#.+7:!PKFS!JF!CMLEIA!RFE!JAM!KMUJ!
JELIP;!6EMCC!JAM!2%)5!SHJJFK!VFH!RFHKG!VFHE!GMCBEMG!JELIP;!
!
Y&$/A@B!K/K76SG/#ABC!PKFS!ALC!JAEMM!RHKIJBFKC;!
L;!#AM!PKFS!BC!HCMG!JF!CMOMIJ!L!JELIP;!#HEKBKW!JELIP!PKFS!QBOO!RFEQLEGZSLIPQLEG!CPBD!JF!KMUJ!JELIP;!
S;!$FOGBKW!GFQK!LKG!JHEKBKW!JELIP!PKFS!QBOO!ELDBGOV!RFEQLEGZSLIPQLEG!CPBD!JAEFHWA!JAM!JELIPC!SV!]f!JELIPC!DME!IOBIP;!
I;!6EMCC!JELIP!PKFS!JF!CQBJIA!RBOM!KLNMZJBJOM!='0\>ZLEJBCJ!='0\>Z+OSHN!='0\>Z(MKEM!='0\>!FK!JAM!9*0;!
9
