Star Cooperation FlexMedia 1000BASE-T1 User manual

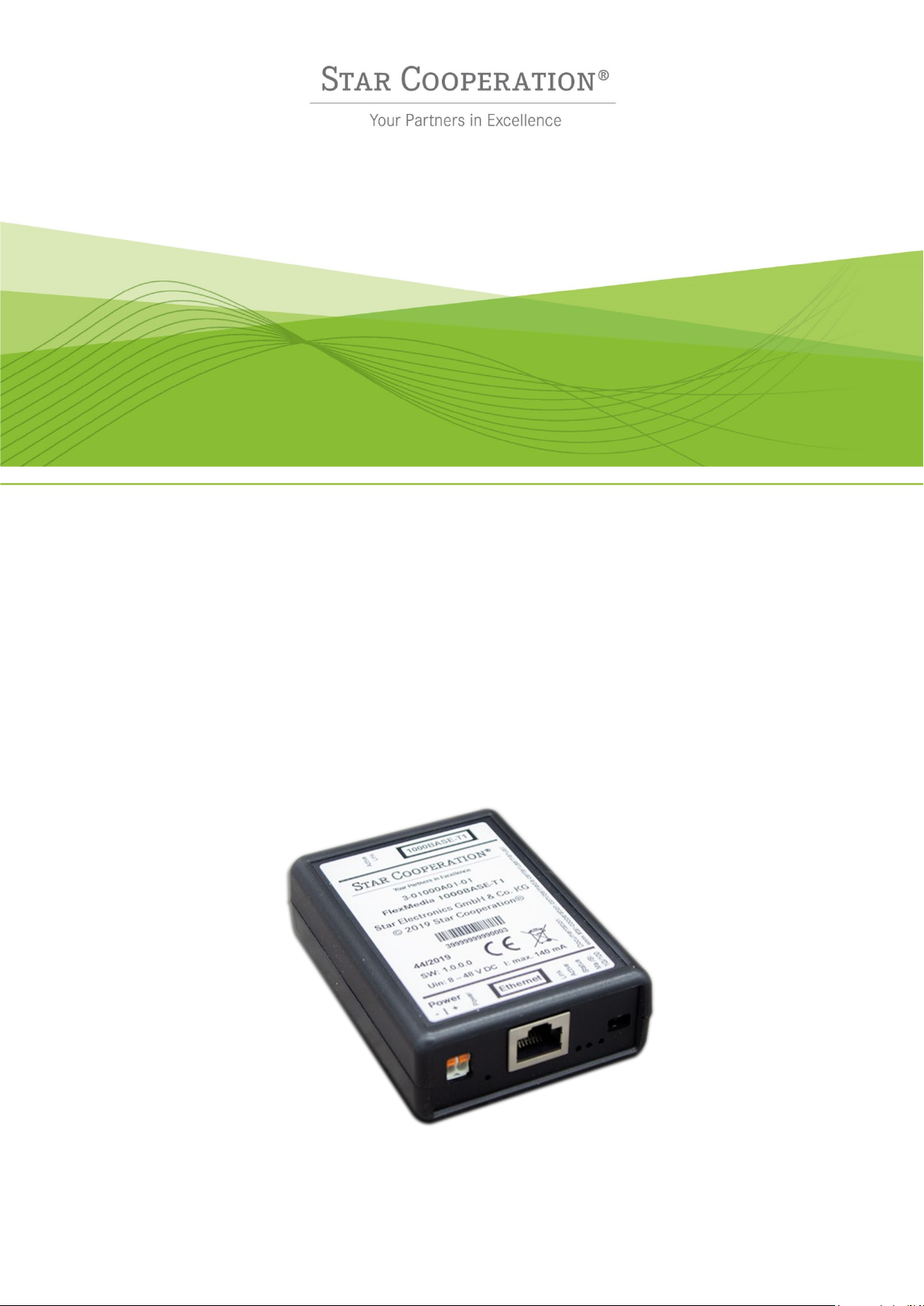

FlexMedia 1000BASE-T1
Instructions for Use

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 2 of 18
37-001-T08_Instruction_for_Use_D1V9-F
Contact Information
STAR ELECTRONICS GmbH & Co. KG
A Company of the STAR COOPERATION Group
Jahnstraße 86
73037 Göppingen
Phone: [phone]
Phone: [phone] (Support)
Fax: [phone]
Sales: [e-mail]
Support: [e-mail]
www.star-cooperation.com/ee-solutions
Company Data
STAR ELECTRONICS GmbH & Co. KG, registered offices: Göppingen, register court Ulm, HRA 721096
Partner liable to unlimited extent: STAR ELECTRONICS Verwaltungs-GmbH, registered offices: Göppingen, register
court Ulm, HRB 722565
Represented by the executive board: Rolf Wittig, Henning Lange
“STAR ELECTRONICS” represents STAR COOPERATION GmbH.
Copyright Notice
2020 STAR COOPERATION GmbH. All Rights Reserved.
No part of this document may be reproduced in any form (photocopy, microfilm or another procedure) without
prior written consent from STAR COOPERATION.
Trademarks
Any trademarks used in this document are the property of their respective owners.
Disclaimer
The information contained in this document does not affect or change General Terms and Conditions of STAR
COOPERATION. STAR COOPERATION does not guarantee the completeness and accuracy of the content of this
document and assumes no responsibility for any errors which may appear in this document or due to this
document. The content of this document or the associated products are subject to change without notice at any
time.
Based on currently state of arts and science it is impossible to develop software that is bug-free in all
applications. Therefore, the product is only allowed to be used in the sense of the product use case described
herein.
STAR COOPERATION makes no warranty express or implied, as to this document or the information content,
materials or products for any particular purpose, nor does STAR COOPERATION assume any liability arising out of
the application or use of this product, and disclaims all liabilities, including without limitation resulting damages,
as permissible by applicable law.
All operating parameters which are provided in this document can vary in different applications or over time. The
herein described product solely is allowed to be used as described in chapter “Intended use”.
Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced
into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), or for any purpose, without the express written consent of STAR COOPERATION.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 3 of 18
37-001-T08_Instruction_for_Use_D1V9-F
STAR COOPERATION may have patents, patent applications, trademarks, copyrights, or other intellectual property
rights covering subject matter in this document. Except as expressly stated in a written license agreement from
STAR COOPERATION, the furnishing of this document does not give you any license to these patents, trademarks,
copyrights, or other intellectual property.
Any semiconductor devices have an inherent chance of failure. You have to protect against injury, damage or loss
from such failures by incorporating safety design measures into your facility and equipment such as redundancy,
fire protection, and prevention of over-current levels and other abnormal operating conditions.
The safety and handling instructions in this document have to be followed strictly.
EC Conformity
The FlexMedia 1000BASE-T1 complies with the essential requirements of the following applicable European
Community Directive(s) including current amendments, and carries the CE marking accordingly:
2014/30/EU EMC Directive
The following standard(s) have been used to assess the product:
EN 61000-6-2 2019-11
EN 61000-6-3 2011-09
EN 61000-4-2 2009-12
EN 61000-4-3 2011-04
EN 61000-4-4 2013-04
EN 61000-4-5 2019-03
EN 61000-4-6 2014-08
EN 61326-1 2013-07
EN 55011 2018-05
This product is compliant with the European Community Directive 2011/65/EC on the restriction of the use of
certain hazardous substances in electrical and electronic equipment (RoHS).
Revision History
Document number: 3-0100-0A01-D11
Version
Date
Description
D1V0-F 04.06.2020 First release
D1V1-F 04.11.2020 Updated chapter technical data
D1V2-F 04.11.2020 Updated chapter ordering information
Related Hardware / Software Versions
Product
Reference No.
Version
Remarks
FlexMedia 1000BASE-T1
3-0100-0A01
01

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 4 of 18
37-001-T08_Instruction_for_Use_D1V9-F
Contents
1General ..................................................................................................................................................... 5
1.1 Intended use........................................................................................................................................5
1.2 Used Pictograms..................................................................................................................................5
1.3 Safety and Handling Instructions.......................................................................................................... 5
1.4 User Group ..........................................................................................................................................6
1.5 Meaning of Text Styles .........................................................................................................................6
2Product Description................................................................................................................................. 7
2.1 FlexMedia 1000BASE-T1 at a glance ....................................................................................................7
2.2 Accessory Parts ................................................................................................................................... 7
3Technical Data.......................................................................................................................................... 8
3.1 Electrical Characteristics .....................................................................................................................8
3.2 Physical Characteristics ....................................................................................................................... 8
3.3 Environmental Conditions ....................................................................................................................8
3.4 Interfaces ............................................................................................................................................ 8
3.4.1 Power .................................................................................................................................................. 9
3.4.2 Ethernet (RJ45) ....................................................................................................................................9
3.4.3 LEDs and DIP-switches....................................................................................................................... 10
3.4.4 1000BASE-T1 (D-Sub) ........................................................................................................................ 11
4Getting Started ......................................................................................................................................12
4.1 Assembly and Line-up ........................................................................................................................12
4.2 Configuration and Operation ..............................................................................................................12
5Shipping, Maintenance and Disposal ...................................................................................................13
6Troubleshooting .....................................................................................................................................14
7Ordering Information.............................................................................................................................15
7.1 FlexMedia 1000BASE-T1 ....................................................................................................................15
7.2 Accessory Parts ................................................................................................................................. 15
7.3 Related Documents............................................................................................................................15
8Appendix.................................................................................................................................................16
8.1 Appendix A: Guideline for handling ESD sensitive Products.................................................................16
8.2 Appendix B: .......................................................................................................................................16
8.2.1 Acronyms and Abbreviations ..............................................................................................................16
8.2.2 List of Tables ..................................................................................................................................... 16
8.2.3 List of Figures .................................................................................................................................... 16

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 5 of 18
37-001-T08_Instruction_for_Use_D1V9-F
1General
1.1 Intended use
The FlexMedia 1000BASE-T1 is solely used to convert “100BASE-TX” into “100BASE-T1” or “1000BASE-TX”
into “1000BASE-T1” and vice versa.
Only the herein described accessory parts are allowed to be used together with the FlexMedia 1000BASE-
T1.
The FlexMedia 1000BASE-T1 is designed, intended, and authorized only for laboratory applications use.
Any other use without the prior written consent of STAR COOPERATION prohibited.
The FlexMedia 1000BASE-T1 is NOT designed, intended, or authorized for
use as part of medical systems,
life support applications,
aviation, space, nuclear, or military applications,
use in areas where combustible or explosive gas mixtures are likely to occur,
other applications in which a mistake or malfunction may result in death, personal injury or
severe physical damage.
The product described in this document is an industrial device, i.e. is designed, intended, or authorized for
professional use. It is not designed, intended, or authorized for home applications or consumers. For this
reason, use by non-professionals is forbidden.
1.2 Used Pictograms
The meaning of used pictograms is shortly described below.
Follow the specific instructions in the document where these pictograms are placed.
NOTICE
Used to indicate a situation which may result in an operating failure.
Damage of the product may occur, but there is no hazard of injury
if not avoided.
Information
Used to indicate information provided only for purposes of clarification, illustration, and
general information.
Reference
References to other documents.
Product marking which shows the compliance of the product with the European Waste
Electrical and Electronic Equipment Directive 2012/19/EU.
1.3 Safety and Handling Instructions
Please read the instructions for use carefully. To protect the device or the application against damage, or
to avoid personal injury the FlexMedia 1000BASE-T1 has to be handled as described herein.
Changes or modifications of the FlexMedia 1000BASE-T1 are not allowed for safety and warranty reasons!
STAR COOPERATION is not liable for any damages arising from non-observance of the product information.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 6 of 18
37-001-T08_Instruction_for_Use_D1V9-F
Follow the
a) specific safety and handling instructions placed at dedicated document positions
b) general safety and handling instructions below:
NOTICE
To prevent damage to the FlexMedia 1000BASE-T1, or consequential damages:
Do not open the FlexMedia 1000BASE-T1.
Do not connect any other signals to the interfaces as described in the chapter
“Interfaces”. Ensure that all signals are within the specified range.
High temperatures can damage the FlexMedia 1000BASE-T1. Keep the FlexMedia
1000BASE-T1 away from heaters, stoves, fireplaces, and other sources of heat.
Do not expose the FlexMedia 1000BASE-T1 to rain or use it near water.
Do not use the FlexMedia 1000BASE-T1 in areas of explosion hazard.
1.4 User Group
This document is written for expert technicians who are familiar with electronic components and systems.
Each person involved with assembly, line-up, operation, maintenance, or disposal of the FlexMedia
1000BASE-T1 has to
be a qualified technician, or electrician, or engineer
strictly adhere to this manual
receive a briefing by an authorized person
1.5 Meaning of Text Styles
In this document filenames, are marked with a different text format.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 7 of 18
37-001-T08_Instruction_for_Use_D1V9-F
2Product Description
2.1 FlexMedia 1000BASE-T1 at a glance
The FlexMedia 1000BASE-T1 is a converter for 100/1000BASE-T1 to 100/1000BASE-TX and vice versa.
With the FlexMedia 1000BASE-T1, it is possible to connect an automotive Ethernet network to a standard
PC for testing or diagnostic purposes. It supports up to 1000 MBit/s in full duplex mode on both sides.
•Master and slave mode selectable via DIP-switch
•100 MBit/s and 1000 MBit/s mode selectable via DIP-switch
•Automatic selection of A0 and A2 mode
•Marvell 88Q2112-A2-NYD2A000 transceiver is used for the 1000BASE-T1 conversion
•Supply voltage: 8-48V DC
•Status LEDs
•RJ45 connector for 1000BASE-TX
•D-Sub 9 pin male connector for 1000BASE-T1
•IP20
•Temperature range -40°C to +70°C
2.2 Accessory Parts
For further information about accessories for the FlexMedia 1000BASE-T1 see chapter 7.2 Accessory
Parts.
NOTICE
Use only accessory parts from STAR COOPERATION listed in chapter 7.2 Accessory
Parts to ensure proper function and for warranty reasons!
Other accessories without prior written consent of STAR COOPERATION must not be
used.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 8 of 18
37-001-T08_Instruction_for_Use_D1V9-F
3Technical Data
3.1 Electrical Characteristics
Supply voltage
Min. Typ. Max.
Operating +8.0 V - +48.0 V
Absolute maximum
(non-operating)
-60.0 V - +60.0 V
Latency between
BASE-T1 and BASE-TX
Up to 3 µs
Supply current - operating typical 140 mA
Table 1: Electrical characteristics
3.2 Physical Characteristics
Connectors
-Power
WAGO picoMAX 2091 (wire size 0,25 … 1,5 mm²)
-Ethernet (BASE-TX)
RJ45
- Ethernet (BASE-T1) D-Sub 9
Weight approx. 145 g
Dimensions approx. L x W x H 92mm * 65mm * 28mm
Table 2: Physical characteristics
3.3 Environmental Conditions
Temperature
Operating: -40°C – +70°C
Non-operating: -40°C – +70°C
Storage: -40°C – +70°C
Relative Humidity 0% – 90% r. H., non-condensing
Table 3: Environmental conditions
3.4 Interfaces
The FlexMedia 1000BASE-T1 has a power connector with clamp contacts, an RJ45 connector for the
xBASE-Tx (Ethernet), an D-Sub 9 pol connector for xBASE-T1, a 2 pin DIP-switch and some LED’s. The
following figures show the position of each interface.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 9 of 18
37-001-T08_Instruction_for_Use_D1V9-F

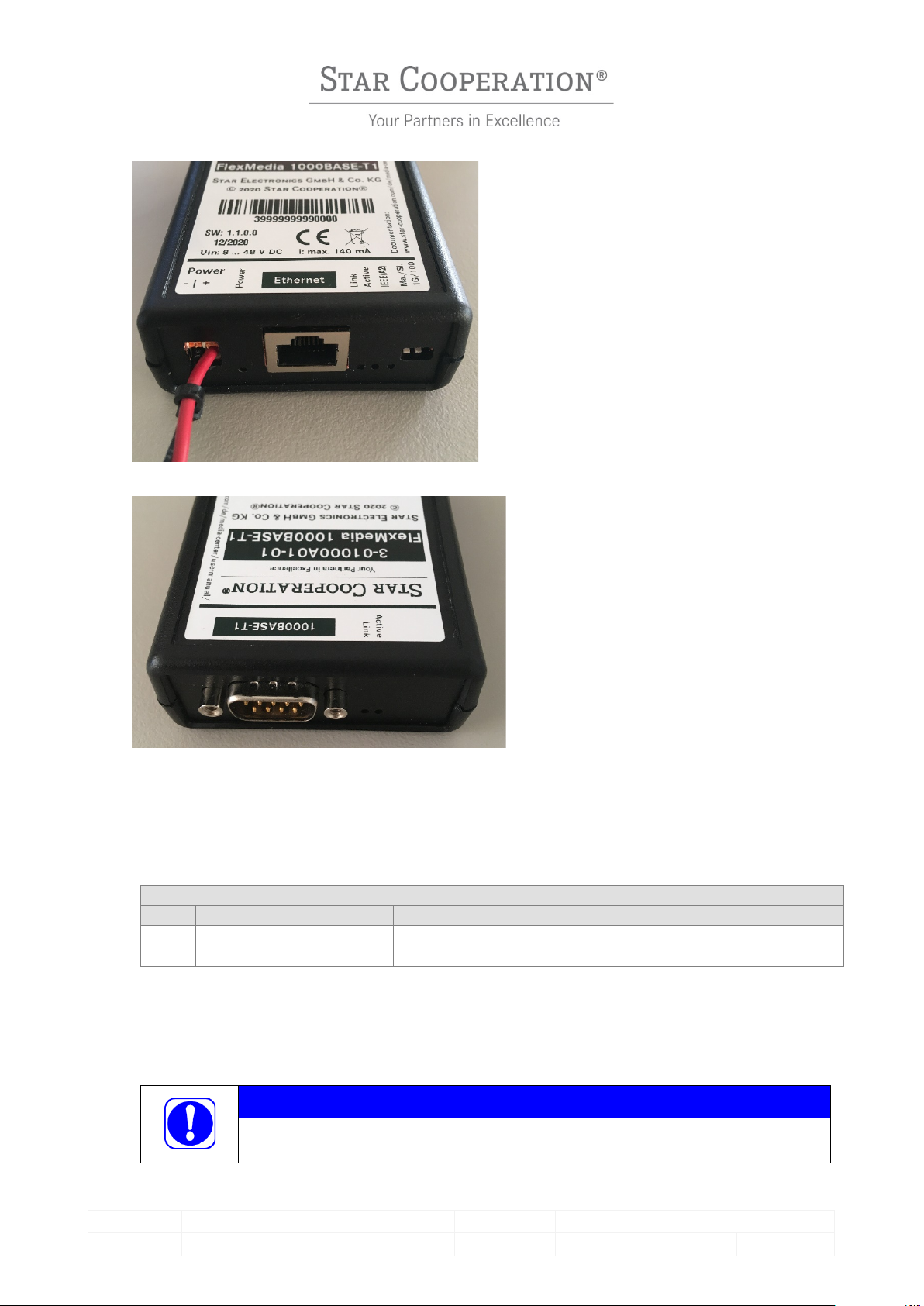

Figure 1: Side with Power and Ethernet (1000BASE-TX)
Figure 2: Side with 1000BASE-T1
3.4.1 Power
The valid range of the power supply for the FlexMedia 1000BASE-T1 is within 8 - 48 V DC. The power
supply input of the FlexMedia 1000BASE-T1 is reverse protected.
The green LED near the power cable shows the power supply status, if the LED is on, the power is OK.
Power cable
Pin
Signal Name
Description
1
GND
Ground signal
2
Uin
Power in allowed in the range from 8 – 48 V
Table 4: Power cable
3.4.2 Ethernet (RJ45)
The FlexMedia 1000BASE-T1 support a 100 or 1000BASE-TX (100 or 1000 MBit/s Ethernet) interface at
the Ethernet connector. This connector supports both 100MBit/s and1000 MBit/s in full-duplex mode. 10
MBit/s mode and half-duplex mode are not supported.
NOTICE
The maximum allowed length of the Ethernet cable is 30m.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 10 of 18
37-001-T08_Instruction_for_Use_D1V9-F

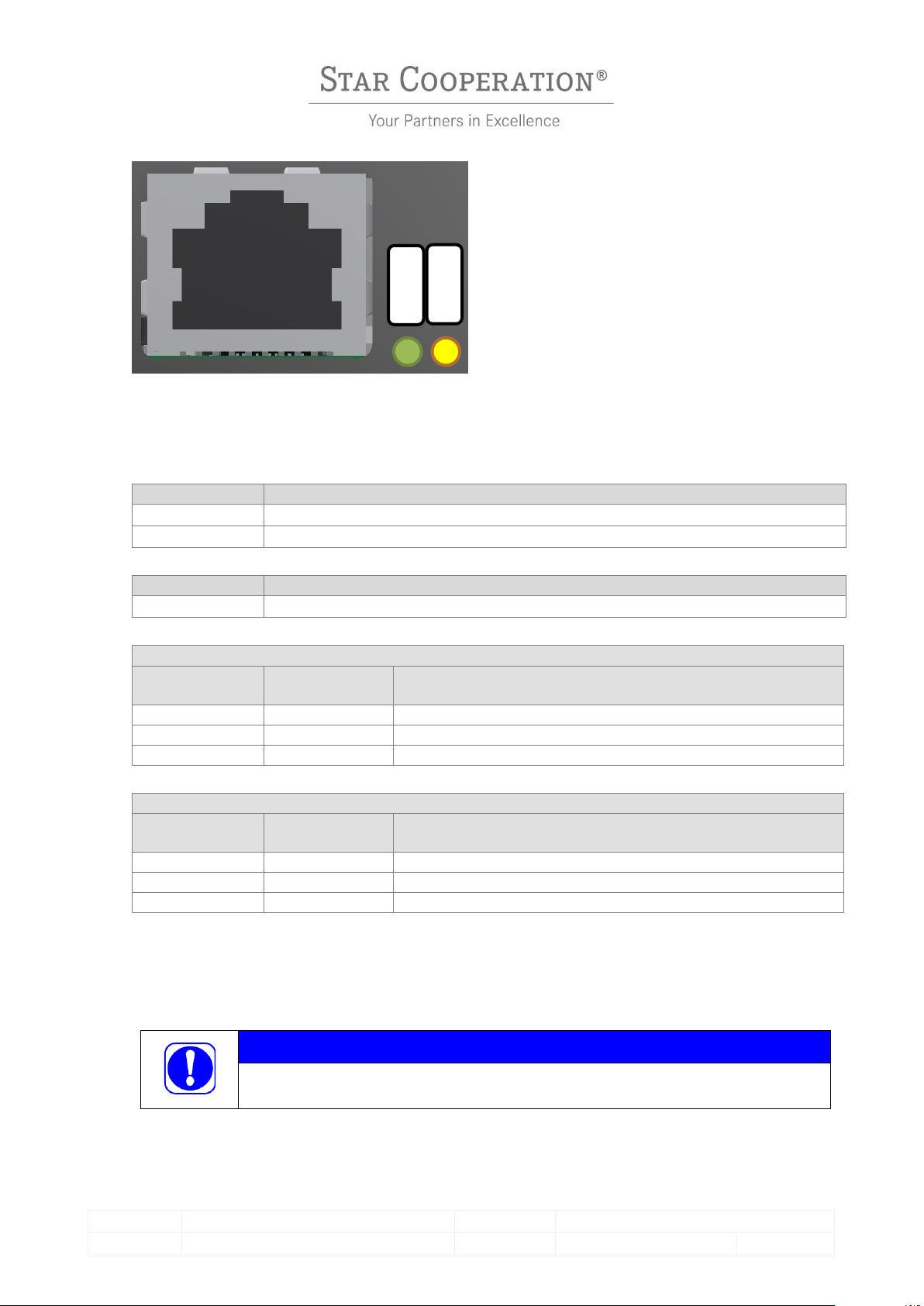

Figure 3: Ethernet connector with yellow and green LED
3.4.3 LEDs and DIP-switches
The FlexMedia 1000BASE-T1 has two additional LEDs at the power connector side: a LED for IEEE(A2)
(yellow) near the DIP switch and a LED for Power status (green) near the Power connector.
IEEE(A2) LED
Description
Off The device operates in Legacy (A0) 1000BASE-T1 Mode
On The device operates in Compliant (A2) 1000BASE-T1 Mode
Power LED
Description
On The device is powered on
Ethernet
Green LED
(Link)
Yellow LED
(Active)
Description
On
Off
The link is established, no data exchange occurring
On
Blinking
Data exchange is in progress
Off
Off
No link is established, the data exchange is not possible
1000BASE-T1
Green LED
(Link)
Yellow LED
(Active)
Description
On
Off
The link is established, no data exchange occurring
On
Blinking
Data exchange is in progress
Blinking
Off
No link is established, the data exchange is not possible
The DIP-Switch ‘1’ configures the 1000BASE-T1 interface – it changes between Master or Slave function. If
the switch is up the transceiver is configured as Slave, if the switch is down it is configured as Master.
The DIP-Switch ‘2’ configures the bitrate of both ethernet interfaces. If the switch is down, the converter is
configured in 1000MBit/s mode (1GBit/s), if the switch is up it is configured in 100MBit/s mode.
NOTICE
It is not possible to convert between 100MBit/s and 1000MBit/s.
Link
Active

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 11 of 18
37-001-T08_Instruction_for_Use_D1V9-F
Figure 4: LED for IEEE(A2) (yellow) and the DIP-switches
3.4.4 1000BASE-T1 (D-Sub)
The FlexMedia 1000BASE-T1 support a 100/1000BASE-T1 interface.
Figure 5: 1000BASE-T1 D-Sub connector with yellow and green LED
Connector DSub (1000BASE-T1 2-wire ethernet)
Pin
Signal Name
Description
1, 2, 6 - 9
NC
Not connected
3
ETH-GND
Ground signal connected over an inductor to internal ground
4
ETH_BP
1000BASE-T1 bus plus signal
5
ETH_BM
1000BASE-T1 bus minus signal
Table 5: Connector for D-Sub (2-wire ethernet)
The 1000BASE-T1 connector supports both A0 (legacy) and A2 (IEEE-compliant) mode.
If no link established, the device changes the mode of operation randomly between A0 (legacy) and A2
(IEEE compliant). The link should be established in 1-2 seconds. The LED IEEE(A2) indicates the current
mode of operation.
NOTICE
The maximum allowed length of the 1000BASE-T1 cable is 30m.
1
2
IEEE(A2)
Ma./Sl.
1G/100
Link
Active

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 12 of 18
37-001-T08_Instruction_for_Use_D1V9-F
4Getting Started
4.1 Assembly and Line-up
Read and follow these instructions when connecting and using the FlexMedia 1000BASE-T1:
NOTICE
Ensure that all signal lines connected to the FlexMedia 1000BASE-T1 are in the
allowed range.
Be sure to connect all cables as described in this manual.
Never insert anything metallic into the openings of the FlexMedia 1000BASE-T1.
Ensure to grasp the plug and not the cable when disconnecting the FlexMedia
1000BASE-T1.
4.2 Configuration and Operation
Use the power connector of the FlexMedia 1000BASE-T1 to connect with a power-supply within the correct
voltage range.
Connect the 1000BASE-T1 and Ethernet (1000BASE-Tx) with their networks. Check the pinouts.
Adjust the Master/Slave-DIP-switch and the Bitrate-DIP-switch if necessary.
Check the state of the LEDs.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 13 of 18
37-001-T08_Instruction_for_Use_D1V9-F
5Shipping, Maintenance and Disposal
Dispose off properly per regulations of the country where end-of-life occurs.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 14 of 18
37-001-T08_Instruction_for_Use_D1V9-F
6Troubleshooting
This chapter contains some frequently asked questions about the FlexMedia 1000BASE-T1.
1
Effect No LINK at the 1000BASE-T1 connector.
Solution
Check the DIP-switch for correct Master/Slave configuration and the DIP-switch for
Bitrate.
A 100/1000BASE-T1 communication is a Point-to-Point- Connection where on
communication partner acts as ‘Master’ and one communication partner acts as
‘Slave’.
2
Effect
No LINK at the Ethernet connector.
Solution Check the “Link Speed & Duplex” settings of the connected network adapter. See
chapter 3.4.2 for supported configurations.

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 15 of 18
37-001-T08_Instruction_for_Use_D1V9-F
7Ordering Information
7.1 FlexMedia 1000BASE-T1
Product
Description
Ordering number
FlexMedia 1000BASE-T1 Media converter between 1000BASE-T1
and -Tx 3-V1000A01
7.2 Accessory Parts
Product
Description
Ordering number
Customer specific parts Please contact
STAR COOPERATION
7.3 Related Documents
Document
Description
Ordering number
[1]
[2]
[3]

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 16 of 18
37-001-T08_Instruction_for_Use_D1V9-F
8Appendix
8.1 Appendix A: Guideline for handling ESD sensitive Products
Any tester, equipment, or tool used at any production step or for any manipulation of semi-
conductor devices must have its shield connected to ground.
The product itself and the carrier system of the product respectively must be placed on a
conductive table top or covered by an antistatic surface (superficial resistivity equal to or higher
than 0.5MΩ/cm2), grounded through a ground cable (conductive cable from protected equipment to
ground isolated through a 1MΩresistor placed in series).
All manipulation of finished goods has to be made at such a grounded worktable.
The worktable must be free of all non-antistatic objects.
An antistatic floor covering grounded through a conductive ground cable (with serial resistor
between 0.9MΩand 1.5MΩ) should be used.
It is recommended that you wear an antistatic wrist or ankle strap, connected to the antistatic floor
covering or to the grounded equipment.
If no antistatic wrist or ankle strap is worn, touch the surface of the grounded worktable before
each manipulation of the ESD sensitive product.
It is recommended that antistatic gloves or finger coats be worn.
It is recommended that nylon clothing be avoided while performing any manipulation of parts.
8.2 Appendix B:
8.2.1 Acronyms and Abbreviations
Item
Definition
BD
Bus driver
BP Bus plus
BM Bus minus
ECU Electronic Control Unit
EMC Electromagnetic Compatibility
ESD Electro Static Discharge
NC Not Connected
PCB Printed Circuit Board
PL Physical Layer
8.2.2 List of Tables
Table 1: Electrical characteristics .........................................................................................................................8
Table 2: Physical characteristics...........................................................................................................................8
Table 3: Environmental conditions ........................................................................................................................8
Table 4: Power cable ............................................................................................................................................9
Table 5: Connector for D-Sub (2-wire ethernet) ...................................................................................................11
8.2.3 List of Figures
Figure 1: Side with Power and Ethernet (1000BASE-TX) ........................................................................................9
Figure 2: Side with 1000BASE-T1 .........................................................................................................................9
Figure 3: Ethernet connector with yellow and green LED.....................................................................................10
Figure 4: LED for IEEE(A2) (yellow) and the DIP-switches ....................................................................................11

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 17 of 18
37-001-T08_Instruction_for_Use_D1V9-F
Figure 5: 1000BASE-T1 D-Sub connector with yellow and green LED...................................................................11

Created by STAR ELECTRONICS GmbH & Co. KG
Date created 2020-11-04 Date modified 2020-11-04 Page 18 of 18
37-001-T08_Instruction_for_Use_D1V9-F
1. Seite 8: 3.2 - Dimensions approx. L x W x H anpassen auf: 92
mm x 65 mm x 28 mm (mm³ gibt es nicht)
2. Seite 9: 3.4.2 - einheitliche Schreibweise MBit/s – am besten
im gesamten Dokument prüfen
3. Seite 15: 7.1 in der Tabelle steht 2 x FlexMedia BASE1000-T1
Release
STAR ELECTRONICS GmbH & Co. KG
A Company of the STAR COOPERATION Group
Jahnstraße 86
73037 Göppingen
Germany
Phone: [phone]
Fax: [phone]
[e-mail]
www.star-cooperation.com/ee-solutions
