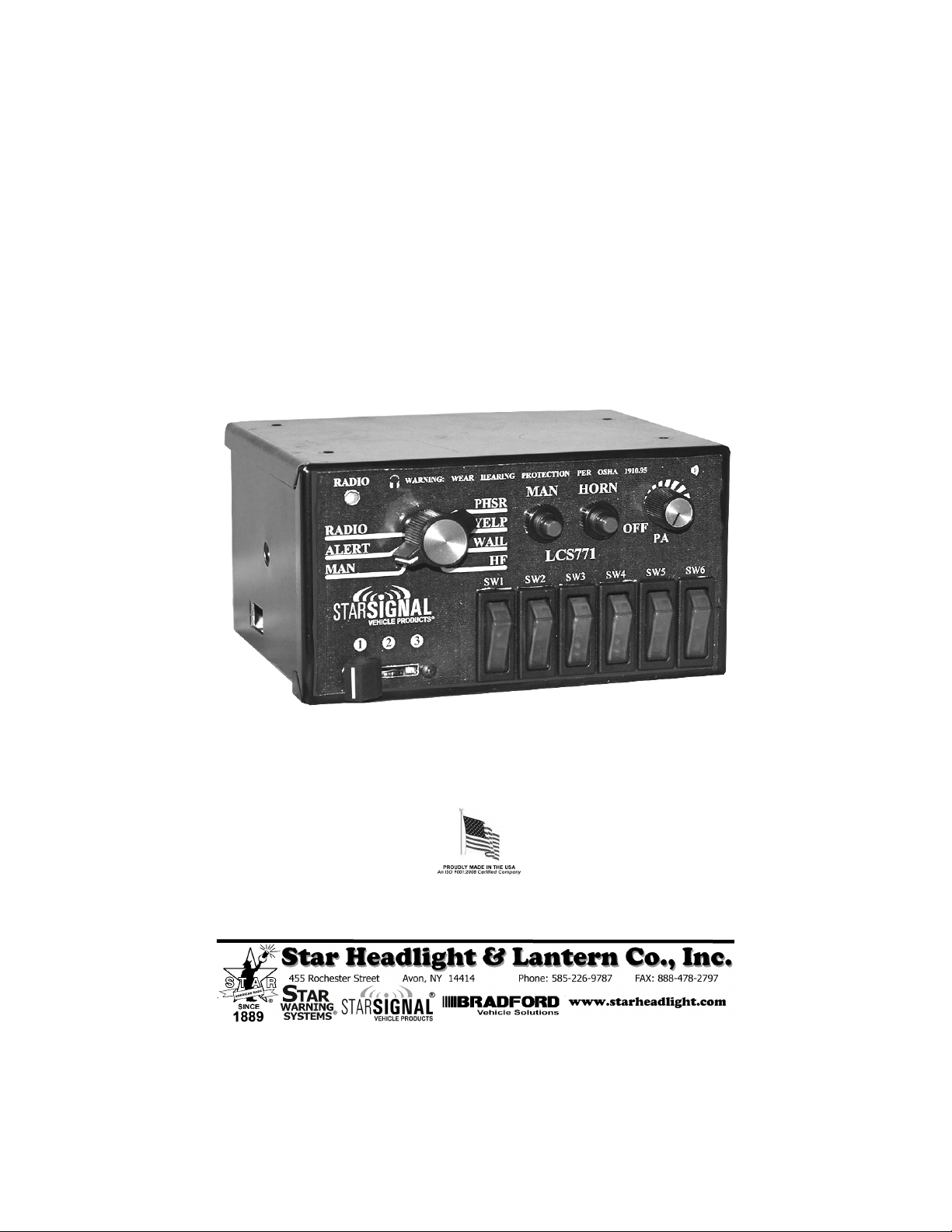

Installation Information
MODEL: LCS771 or LCS771-28 or LCS771-LM Serial #:
P RCHASE DATE:
INSTALLATION DATE:
INSTALLER:
DEALER:
Model and serial number located on bottom of unit
TABLE OF CONTENTS
GENERAL DESCRIPTION 1
INSTALLATION NOTES 1
MOUNTING TIPS 1
ELECTRICAL CONNECTIONS 2-5
Wiring Diagram 2
Wiring Size and Termination 3
Mandatory Connections 4
Optional Connections 4-5
INSTALLER SELECTABLE OPTIONS 6-8
7-DI Switch Settings (Slide Switch Options) 6
7-DI Switch Settings (Siren Backlighting Jumper) 6
2-DI Switch Settings (AUX & /K olarity) 6
Optional Tone rogramming 7
Additional Options 8
OPERATION 9-11
ower/ A 9
Selector Switch 9
MAN Button 10
HORN Button 10
Slide Switch 10
Rocker Switches 11
Radio Volume 11
Auxiliary Input 11
ark-Kill Cutout 11
Microphone 11
TROUBLESHOOTING 12
Speaker Diagnostics 12
Troubleshooting Chart 12
SPECIFICATIONS 13
SERVICE 13-14
arts 13
Warranty 14

-1-
Installation Notes
The LCS771 Siren Amplifier is a premium 200W unit designed for dual 100W speaker
use. It can be utilized with or without an optional hand held microphone (not
included with the LCS771-LM). The primary operating modes are haser, Yelp, Wail,
Hands Free, Manual, Alert, and Radio. A Noise Canceling A Override (when used
with optional microphone) and push-button Horn Override are available in all
modes. A manual push-button is provided for push-on/push-off tone toggle
operation in the haser, Yelp, and Wail modes. It also allows manual siren control in
the Manual or Alert modes. Any siren tone can be re-programmed to a more
desired tone. Another feature allows cycling through Wail, Yelp, haser, and
Standby by providing a signal to the horn ring auxiliary wire when the function switch
is in the Hands Free (HF) position. A ark Kill option is provided for connection to a
door switch, etc. to disable the siren when exiting the vehicle. Radio and A volume
controls are provided on the front panel. The front panel is backlighted with LED's
for night visibility. This compact unit utilizes short circuit, high voltage, low voltage,
and reverse polarity protection systems for maximum service life.
General Description
roper installation of the unit is essential for years of safe, reliable operation. lease
read all instruction be ore installing the unit. Failure to follow these instructions can
cause serious damage to the unit or vehicle and may void warranties.
Quali ications - The installer must have a firm knowledge of basic electricity, vehicle
electrical systems and emergency equipment.
Keep These Instructions - Keep these instructions in the vehicle or other safe place
for future reference. Advise the vehicle operator of the location.
Unpacking - Inspect contents for shipping damage. If found, alert carrier
immediately. Contents should include unit with microphone, mounting bracket w/
hardware, microphone bracket with 2 screws, wiring connector, and these
instructions. Contact your supplier immediately if any components are missing.
Mounting Tips
 Mount in a location with adequate ventilation to prevent overheating.
 Devices should be mounted only in locations listed in SAE standard J1849.
 Controls should be placed within convenient reach of the driver.
 Assure clearances before drilling in vehicle.
 Sound levels produced by attached speakers can cause permanent hearing loss.
 Never operate this unit without adequate hearing protection for you and others
in the area. (OSHA 1910.95)
 Consider wire routing and access to connections.
 Install mounting bracket to vehicle using 1/4" hardware (not supplied).

-2-
Electrical connections to this unit are made at several locations on the back of the
siren:
 Most siren related connections are made through the removable green
12-terminal connector located in the rear of the unit (See below - Part #
CPSS-153).
 Slide Switch power inputs and outputs are made through six metal screw
terminals.
 Rocker Switch power inputs and outputs are made through three groups
of loose wires that exit the rear of the unit.
Electrical Connections
Please note that this is an upside down view of the rear of
the siren.
This allows you to see the wiring diagram located on the
bottom of the siren, as well as giving you easier access to
the screw heads found on the green terminal connector.

-3-

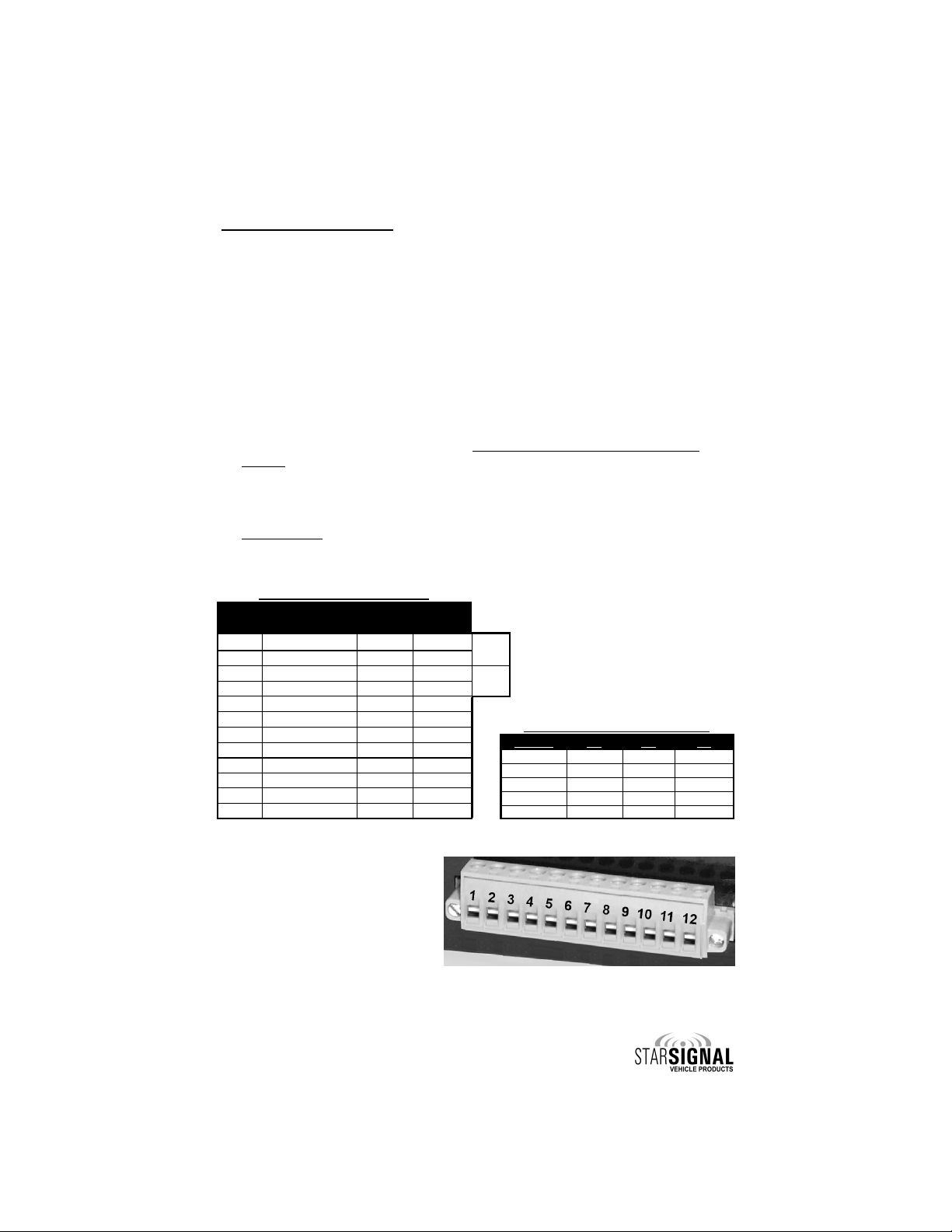

Terminal
Description Typical
Color
Typical
Current
1 Power Red 10A* 20A
Total
2 Power Red 10A*
3 Ground Black 10A*
4 Ground Black 10A*
5 Speaker 1 Brown A
6 Speaker 2 Brown A
7 AUX In Green 3A
8 AUX Out Orange 3A
9 Radio Repeat Blue 0.1A
10 Radio Repeat Blue 0.1A
11 Backlighting Yellow 0.1A
12 Park/Kill Input White 0.1A
20A
Total
CPSS-153 WI ING GUIDE
Current 10' 20' 25'
< 2.0A 22 AWG 18 AWG 18 AWG
2.0-4.0A 18 AWG 16 AWG 16 AWG
4.1-5.5A 18 AWG 16 AWG 14 AWG
5.6-8.0A 16 AWG 14 AWG 14 AWG
8.1-12.0A 16 AWG 12 AWG 12 AWG
ECOMMENDED WI E GAUGE
* 5A for LCS771-28
Wire Size and Termination
Examine the charts below to determine the proper gauge of the wire to use. lease
review the following recommendations when making your electrical connections:
 For safety and reliability we highly recommend that you always use both Ground
terminals (3 & 4 on the green connector) and all of the ower terminals (1 & 2 on
the green connector, the three outer metal terminals, and the two red wires
found in each wire bundle).
 Use only high quality crimp connectors. Make sure all connections are tight.
 Minimize the number of splices to reduce voltage drop.
 Route wiring to prevent wear, overheating, and interference with air bag
deployment.
 Use grommets and sealant when passing through compartment walls.
 Ground connections should be made directly to the negative of the vehicle
battery. Where not possible, only connect to substantial chassis components.
 Install and check all wiring before connection to vehicle battery.
 CAUTION: All wires should be rated or at least 125% o their maximum current
load. All wires connected to the positive terminal o the battery should be used
at the battery or their rated load.
 Review the charts below that indicate the recommended wire gauge, based
upon the length of the wire run and the current that will pass through the wire.
(Electrical Connections CONT’D)
For ease of installation, you can
remove the green connector from
the siren while connecting your
wires. lease note that when
referencing terminal numbers
using the wiring diagram on page
2, the screw heads face UP, as
pictured to the right.
Connections to the terminal block are summarized both in the chart above and in
the wiring diagram on the previous page. For more detailed information, review the
section on the following page.

-4-
Mandatory Electrical Connections
Ground - Connect terminals 3 & 4 of the green connector to the negative
terminal of the battery.
(You MU T connect both of these terminals!!)
iren Power - Connect Terminals 1 & 2 of the green connector to a 10-
16VDC ignition switched power source (19-30V C for the
LCS771-28). Use minimum size #14 AWG wire.
(You MU T connect both of these terminals!!)
lide witch Power - The three outer metal terminals are internally connected
together and supply power to all three of the slide switch
outputs. Connect at least one of these terminals (see chart
below) through a 20 amp fuse to a 10-16VDC ignition
switched power source. Use minimum size #14 AWG wire.
Total Current Draw O # o Connections to Input
All Slide Switch Lights Terminals Required
0A-20A 1
21A-39A 2
41A-60A 3
Rocker witch Power - Connect each red wire (six total) through a separate 20 amp
fuse to a 10-16VDC ignition switched power source. Use
minimum size #14 AWG wire.
(You MU T connect all 6 of these!!)
peaker - Connect terminals 5 and 6 of the green connector to your siren speaker.
(You MU T connect both of these terminals!!)
Optional Electrical Connections
AUX IN/OUT - Terminals 7 & 8 of the green connector are typically connected to
the steering wheel horn relay. They allow for several functions
including siren operation in HF mode (see page 9), Air Horn
activation, or Manual “step up” function (see page 8).
If you will be using any of these features, cut the wire that connects
the horn relay to the horn. Connect the side from the relay to
terminal 7. Connect the side from the horn to terminal 8. Review
the wiring diagram on page 2 and ensure that you have the AUX
Polarity DI switch set for the correct polarity (see page 6).
(You MU T connect both of these terminals as described
above for proper operation of your vehicle horn!!)
Radio Repeat - If you would like the ability to re-broadcast your two-way radio over
your siren speaker, connect terminals 9 & 10 of the green connector
to the two-way radio speaker or output connector of the two-way
radio.
(Electrical Connections CONT’D)

-5-
Backlighting - Connect terminal 11 of the
green connector to the
dash lights, ignition switched
power, or other switched 10-
16VDC (19-30V C for the
LCS771-28) power source.
This controls the backlighting
for the face of the siren.
Park/Kill Feature - If you would like the siren to automatically disengage when the
vehicle door is opened or when the vehicle is placed into park,
connect terminal 12 of the green connector to the dome light,
added door switch, or added park switch. Review the wiring
diagram on the page 2 and ensure that you have the PK Polarity
DI switch set for the correct polarity (see next page).
Slide Switch - (Metal Terminal Block) Connect the lights that you wish to
activate with each corresponding slide switch position to the
three metal terminals located towards the center of the siren
(20A max each).
(Note: the second slide switch position activates both 1 and 2
and the third slide switch position activates 1, 2, and 3).
(Optional Electrical Connections CONT’D)
SW1 - SW6 - (Bundled Wires) Connect the lights that you wish to activate with
each switch (S1-S6) to the corresponding wire color indicated in
the wiring diagram on page 2 (20A max each).
1 2 3
Microphone - (Connector With Red, Yellow, and White Wires) If you ordered a
model with the optional microphone (30232-2AM ), attach it to
this connector (see page 11).

-6-

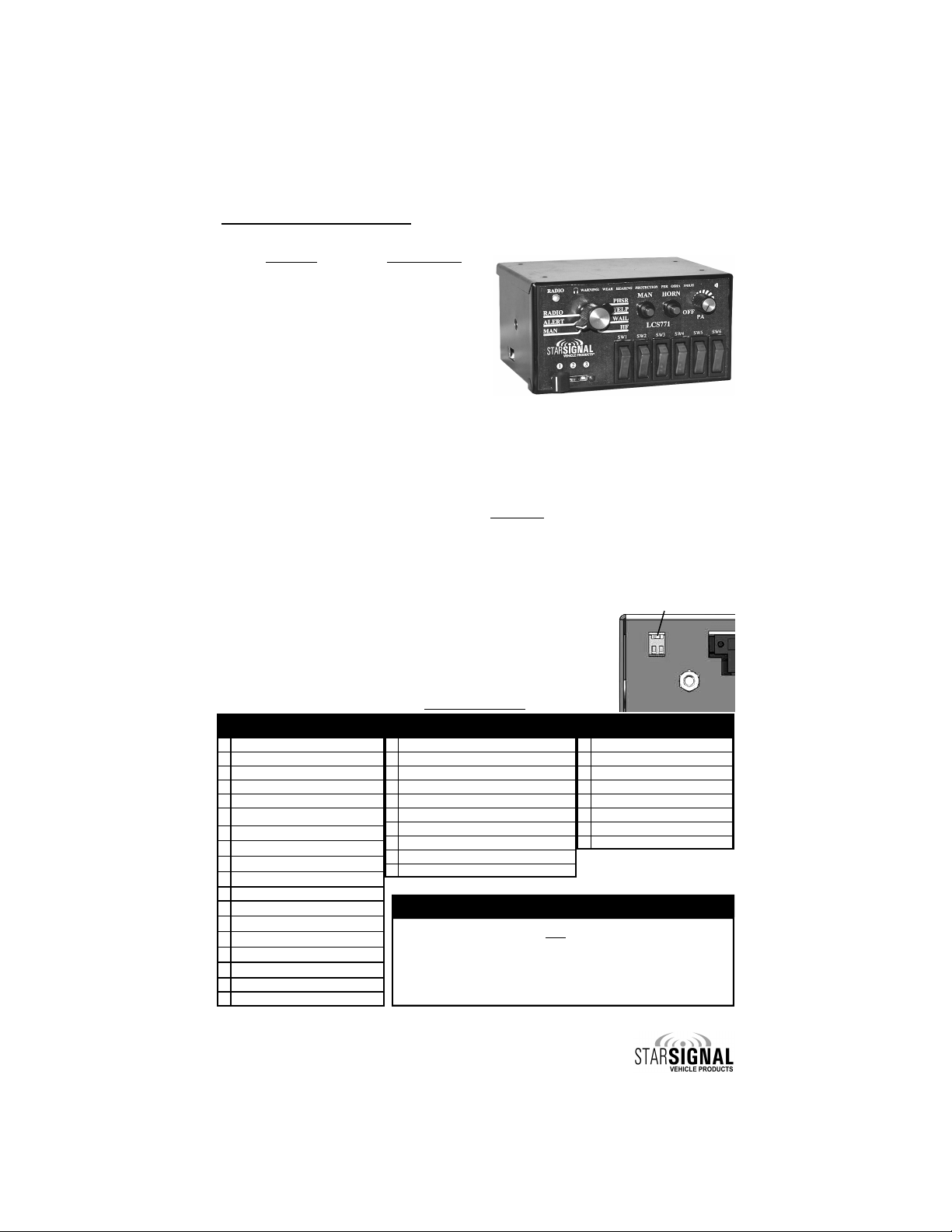

2 DIP witch Bank
(Auxiliary AN Park-Kill Input Polarity)
On the back of the siren, in the upper left
hand corner, you will find an opening that
allows you access to 2 DI switches that allow
you to change whether your Auxiliary and
ark Kill inputs are positive or negative.
The Auxiliary input (terminal #7) and ark Kill input (terminal
#12) are normally activated by applying a positive voltage
to the appropriate terminal. If you would like to activate
either function by connecting it to ground (negative) instead,
use the DI switches located on the back of the siren.
The default setting for both switches ( ositive Switching) is
such that the DI switches are flipped AWAY from the closest
edge of the siren (i.e. OWN in the picture to the right). To
have either function activated when the input is grounded,
flip the corresponding switch in the opposite direction
(TOWARDS the edge of the siren).
NEG
POS
P/K
POLARITY
AUX
POLARITY
Installer Selectable Options
DIP Switch Settings:
There are two banks of DI switches that control various options on this siren, a bank
of 7 switches and a bank of 2 switches.
7 DIP witch Bank
While facing the siren, on the left side of the
box you will find an opening that allows you
access to 7 DI switches.
lease review the functions of each below:
1 Slide Switch  also activates . (default=ON)
2 Slide Switch  also activates . (default=ON)
3 Slide Switch  also activates . (default=ON)
4 Slide Switch  activates Wail tone. (default=OFF)
5 Slide Switch  activates Wail tone. (default=OFF)
6 Slide Switch  activates Wail tone. (default=ON)
7 Siren Backlighting only comes on with
On/Off A volume knob. (default=OFF)
Flip the DI switch accordingly to change any of the options. Towards the number
ENABLES the option, away from the numbers DISABLES the option. The default
switch positions are shown in the picture above.
(Picture shown upside down.)

-7-
Optional Tone Programming
The LCS771 will produce 7 different tones/sounds by activating its various functions:
Function De ault Tone
Phaser Step Up (PHSR+MAN) Two-Tone
PHSR haser
YELP Yelp
WAIL Wail
MAN Ramp Up
HORN Air Horn
AUX Air Horn
roceed below if you wish to reprogram
any of these functions for a different tone.
1. ower up the unit.
2. Activate the function you wish to change.
 For HSR, WAIL, and YEL functions, rotate the selector knob into the
corresponding position.
 For the MAN, HORN, or AUX functions, rotate the selector knob into the
MANUAL or ALERT position, then press and hold the MAN button, HORN
button, or steering wheel horn, respectively.
 For the Phaser Step Up function, rotate the knob into the PHSR position, then
press and release the MAN button.
The tone currently programmed for that function will sound.
Tone Program Button
3. The Tone Program button can be found above the DI
switches on the rear of the siren. Using a paper clip, press and
release it to cycle through the list of optional tones. Review
the chart below for the list of optional tones.
4. De-activate the function to save the new tone.
1 WAIL (Wail default) §, *, †
2 YELP (Yelp default) §, *
3 PHASER (PHSR default)
4 TWO-TONE
(PHSR Step Up default)
5 MECHANICAL WAIL
(FIRE ENGINE) †
7 HOOT
8 RAPID HOOT
9 AIR HORN & YELP
10 GHOST
11 RAPID GHOST
12 SINGLE AIR HORN
13 SINGLE QUICK
14 DOUBLE POST POP AIR HORN
15 TWO TONE AIR HORN
16 STANDARD AIR HORN
Tones For WAIL, YELP, and PHSR,
and Phaser Step- p Function
6 MAX YELP §, *
17 CONTINUOUS TONE
18 CONTINUOUS BEEP
Tones For MAN Button and A X Wire
1 STANDARD AIR HORN (AUX default)
2 LOW FREQUENCY AIR HORN
3 RAPID AIR HORN
4 AIR HORN II
5 DOUBLE POST POP AIR HORN
6 SINGLE AIR HORN
7 SINGLE QUICK AIR HORN
8 TWO TONE AIR HORN
9 MANUAL (MAN default) *
10 MECHANICAL MANUAL
(FIRE ENGINE)
Tones for Horn Button
1 STANDARD AIR HORN (default)
2 LOW FREQUENCY AIR HORN
3 RAPID AIR HORN
4 AIR HORN II
5 DOUBLE POST POP AIR HORN
6 SINGLE AIR HORN
7 SINGLE QUICK AIR HORN
8 TWO TONE AIR HORN
►►►► System Reset ◄◄◄◄
If you would like to reset ALL of the siren programming
options to their defaults, activate any tone and press
the Program button for nine (9) seconds. The LED will
flash once, then twice, then three times, and all siren
tones will stop.
Optional Tones
§ = SAE approved
* = California Title 13 approved when configured properly
† = See next page
(Installer Selectable Options CONT’D)

-8-
Wind Down or Hard Stop Option †
By default, the Wail tones indicated by the “†” in the Optional Tone list on the
previous page will “wind down” when they are de-activated. If you prefer to have
them immediately stop (i.e. hard stop), hold the rogram Button for 3 seconds (until
the LED flashes once). This will change it to a hard stop. Repeat to change back to
the wind down option.
(Installer Selectable Options CONT’D)
Tone Disable Option
Some municipalities may ban the use of specific tones, such as the Phaser tone.
Review the Optional Tone Programming feature described on the previous page to
reprogram the PHSR default tone from Phaser to any of the other tones listed.
Auxiliary-Manual Function Option
By default, when the siren is in PHSR, YELP, or WAIL modes, and the AUX function is
activated (typically by the steering wheel horn relay), the siren will produce the
standard Air Horn Tone (#1 in the Optional Tones list) and temporarily override the
siren tone. If you would rather have the AUX function (i.e. steering wheel horn)
mimic the MAN button (see MAN button functions on page 9), then you should
program the AUX function for tone #9 (Manual) or #10 (Mechanical Manual). To do
this, follow the procedure outlined on the previous page.
Specifications
Input Voltage 10 - 16 VDC (LCS771) or 19-30VDC (LCS771-28) - egative ground
Input Current
(LCS771)
8.0 Amps @ 13.6 VDC (single 100W speaker)
16 Amps @ 13.6 VDC (dual 100W speakers)
Standby Current Switch Off/Backlighting Off - Less than 4 mA
Switch On/Backlighting Off - Less than 7 mA
Switch Off/Backlighting On - Less than 18 mA
Switch On/Backlighting On - ≈ 22 mA
Audio Frequency 200Hz - 10 kHz + 3db
Output Power 105 WATTS RMS MAX. (15.0 VDC - single 100W speaker)
200 WATTS RMS MAX. (15.0 VDC - dual 100W speakers)
Siren Frequency 675Hz - 1633Hz
High Voltage Protection >16VDC will cause siren output to cease, resumes at normal voltage
(>30VDC for the LCS771-28)
Short Circuit Current 50 AMPS (supply circuit must be capable of supplying this)
Operating Temperature -22° F to +140°F
Diagnostic Indicator LED indicator provides diagnostic feedback
Connections Detachable 12-terminal connector, attached 6-terminal block, 12 loose wires
Size 6" Wide, 5.8" Deep, 2-1/2" High
Shipping Weight 6 lbs.
Input Current
(LCS771-28)
4.0 Amps @ 28 VDC (single 100W speaker)
8 Amps @ 28 VDC (dual 100W speakers)

-9-
Operation
General
This unit is designed for easy
operation under the stress
associated with high-speed
pursuit. Most siren functions
are accessible with one
simple motion without
repetitive activation of
switches or automatic timed
switching that can interfere
with desired operation.
Power/PA Knob
The PA knob is located in the upper right hand corner of the
front face. It has two functions:
ON/OFF - This knob turns the siren on and off. While in
the OFF position none of the siren functions
will work. Also, the vehicle horn will function
normally, if connected properly.
PA Volume Control - This knob also provides you the ability to
adjust the public address volume. It should
be set when the vehicle is parked. Typically
you should set the A volume to the
maximum possible level with no feedback
(squeal).
Selector Switch
The rotary selector switch controls the primary operating function of the siren.
PHSR - Ultra-fast changing tone used for maximum attention.
YELP - A rapidly changing tone used in congested areas.
WAIL - A slower changing tone used on highways.
HF - Hands Free - A silent standby mode also known as Horn Ring Cycler.
Allows the user to cycle through the tones programmed for the WAIL,
YEL , HSR, and OFF by repeatedly pressing the horn or other switch
connected to the AUX input. Changing the rotary knob to any other
mode will resume normal siren operation.
MAN - A silent standby mode that allows push-button Manual, push-button Horn,
and ublic Address operation. The siren output winds down when the
MAN button is released.
ALERT - A silent standby mode that allows push-button Manual, push-button Horn
and ublic Address operation. The siren output terminates immediately
when the MAN button is released.
RADIO - Also known as Radio Repeat, this function amplifies a two-way radio
speaker input for re-broadcast outside the vehicle. The A remains
functional, but no siren tones are available in this position.

-10-
(Operation CONT’D)
MAN Button
Rotary Switch
Position Function When MAN Pressed
MAN or HF roduces a rising siren tone while being pressed. The siren
output “winds down” when the MAN button is released.
(Note: The MAN button has no effect when in HF mode and a
tone is active.)
ALERT Also produces a rising tone, but the siren output immediately
stops when the button is released.
PHSR/YELP/WAIL The MAN button will “step” the siren up to the tone programmed
for the next function:
(WAILYELPPHSRPhaser Step Up)
These quicker tones are used to momentarily alert motorists at
intersections and very highly congested areas. ressing the
MAN button once changes to the next faster tone. ressing the
MAN button again, reverts the siren back to the original tone.
HORN Button
ressing the HORN button provides a simulated air-horn tone while pressed. This can
be used to either replace or to supplement the normal vehicle horn and is useful at
intersections. This tone will override all other siren tones. See page 7 for
programming optional Air Horn tones.

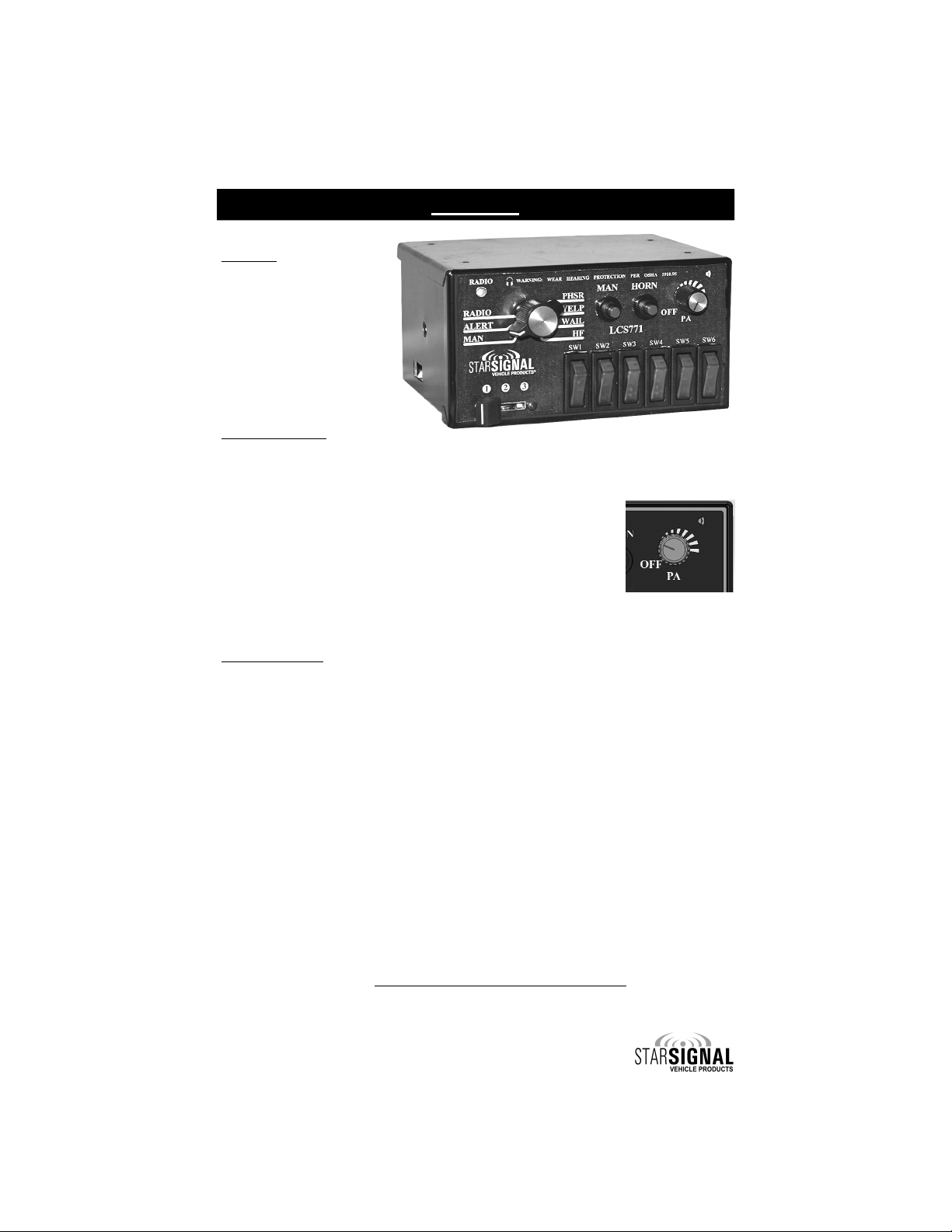

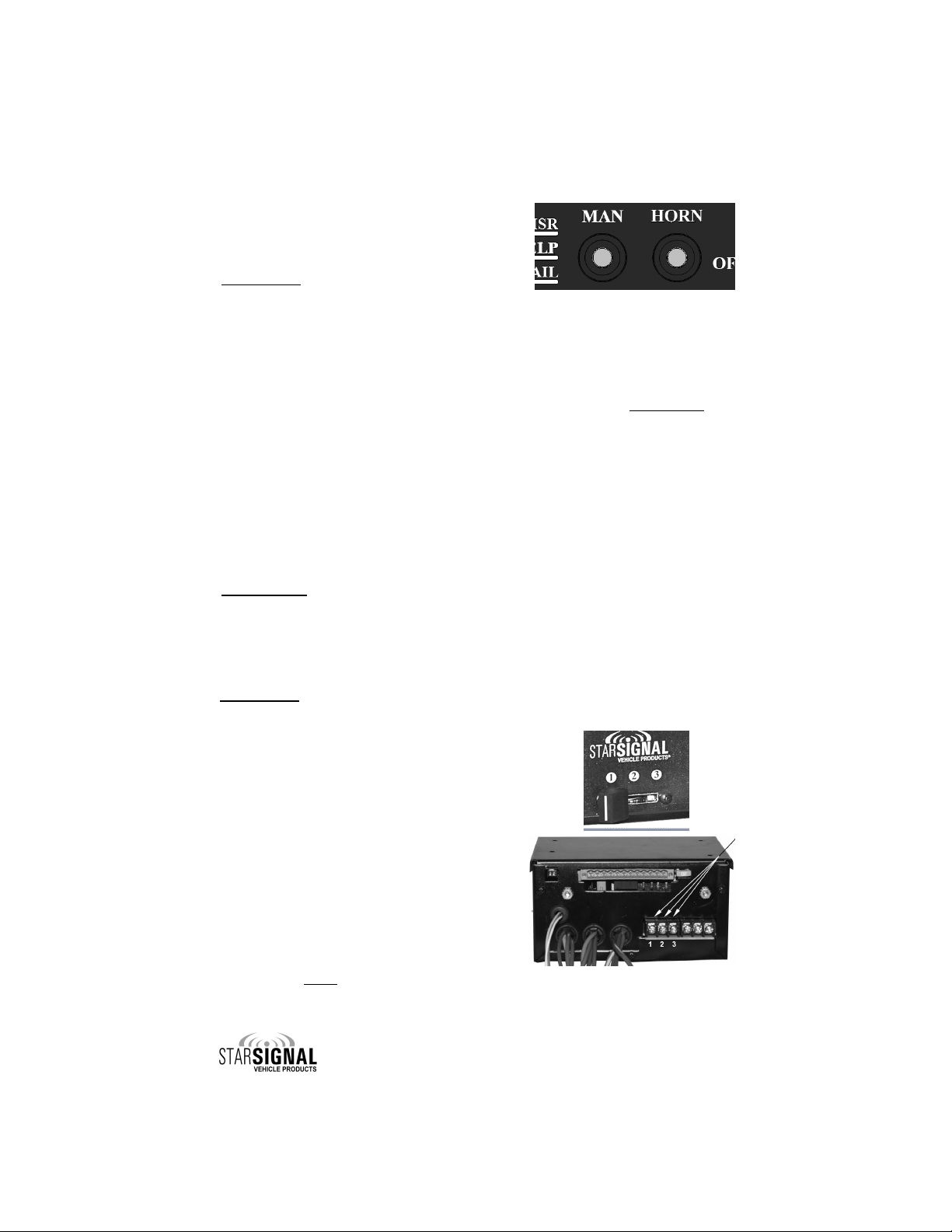

The front panel of the LCS771 contains two
momentary push-button switches for the Manual
function and the Air Horn.
Slide Switch
The slide switch is designed for quick pursuit mode operation. The far left position
(OFF) will not activate any outputs.
Position  : Activates the first set of lights (connected to
Terminal 1 shown to the right).
Position  : Activates both the 1st and 2nd set
of lights (connected to Terminal 2
shown to the right).
Position  : Generally used for the FULL PUR UIT
MODE. It allows for quick activation
of both the lights and the siren in
one motion. When the slide switch
is moved to Position  , all three sets
of lights (connected to all 3
terminals) will activate and the siren
will go into WAIL mode.
Note: The auto-activation of the siren may be disabled or enabled for
other slide switch positions, if desired. (Refer to the DIP witch ettings
section on page 6).

-11-
Rocker Switches
6 lighted rocker switches
control the devices
connected to the
corresponding colored
wires described on
pages 2-5.
Radio Volume
The radio repeat volume (Radio) control is recessed in the
upper left hand corner of the front face. This should be set
when the vehicle is parked. First set the volume level of the
vehicle's two-way radio to its normal operating volume. Adjust
the siren's rotary selector switch into the RADIO position. Insert a
small, flat blade screwdriver into the RADIO volume adjustment
port. Turn in a clockwise direction to increase the sound level.
Auxiliary Input
The auxiliary input may be connected to the vehicle horn ring or other switching
device (see pages 2-4). It provides the same operation as pressing the HORN button
or can be programmed to function like the MAN button.
Park-Kill Cutout
During installation, the ark-Kill input may be connected to a door switch (see page
2). It will automatically turn off any siren tone when the door is opened. The siren
tone will continue to be cut off even when the door is closed. Changing any switch
or input will restore normal function.
Detachable Microphone (Included with LC 771 / Optional for the LC 771-LM) )
The microphone ( /N 30232-2) can be used
for public address operation. It will override
any siren tone when its push-to-talk (button on
the side) is pressed.
Connect the microphone to the adapter
harness (SWH-40). Review the diagram below
for proper pin layout. Note the ridge in the
connector.
The white amp connector can then be
attached to the corresponding
connector on the amp.
(Operation CONT’D)
IDGE

-12-
Speaker Diagnostics
There is a diagnostic LED shaped like a speaker located in the upper right hand
corner of the front panel. This LED will only turn on while a tone is trying to be
generated. It can be used to help identify the siren/speaker status.
Steady - Speaker is connected and operating properly.
Single Flash - Standby Mode
ouble Flash - Short/Over Current
Triple Flash - ark-Kill Activated
Quad Flash - Improper Voltage (too high or low)
Off - No speaker is connected, or
- The siren is Off, or
- The speaker or wire connection has come loose or is electrically
open
Troubleshooting
Symptom Possible Cause Check
o power Connector loose
Siren 20A fuse blown
Loose connection at power source
Check connector
Is power hooked up backwards? Positive ground vehicle?
Is an external fuse or circuit breaker used?
Are the negative leads connected to a good ground?
o siren tone - PA
works
o siren tone - o
sound
High voltage protection
Low voltage protection
Microphone button stuck
Park Kill polarity option set wrong
Park Kill activated
Bad speaker or speaker wiring
The input voltage must be less than 16 volts for LCS771 or less
that 34 volts for LCS771-28.
The input must be greater than 10V (LCS771) or
19V (LCS771-28) with the siren turned on.
Does microphone button release properly?
Is the PK jumper option properly configured?
Does the siren work when Park Kill input is disconnected?
Check for a short.
Check for an open.
o PA PA volume not set properly Have you tried turning the PA volume control?
Distorted siren sound Speaker assembly loose
Intermittent Aux. Input connection
Low or high vehicle voltage
Is the speaker bell or tip loose?
Is the Aux. Input connected properly to horn relay?
Input voltage must be between 10-16 volts (LCS771) or
19-30volts (LCS771-28) while siren is on and drawing full
current.
Intermittent siren tone High voltage protection
Low voltage protection
Microphone button activation
Circuit breaker in supply connection
Shorted speaker or speaker wire
Is the vehicle voltage regulator working properly?
Is the connector tight on the back of the unit? Is there a loose
connection on a power lead? The input must be greater than
10V (LCS771) or 19V (LCS771-28) with the siren on and
drawing full current.
Is something lying on the microphone?
Is a circuit breaker used with at least a 50A rating?
Does the speaker have water damage, or is a wire pinched?
Horn function or
Manual or Phaser stuck
on
Manual or Horn push buttons stuck
Aux. Input improperly connected
Aux. Input Polarity Option set wrong
Does the switch return fully when released?
Is the Aux. Input used and wired properly?
Is the AUX polarity jumper option properly configured?
o Radio Unit not connected to radio
Radio volume too low
Is the radio connected properly to the unit?
Can you hear the radio in the vehicle?
Adjust the Radio volume control
Wrong siren tone Siren tones programmed incorrectly? Re-program tones/Use System Reset (page 7-8)
Rocker Switch not
functioning
o power through switches Check the wiring connections and verify voltage on the rocker
switch input and output wires (bundled)
Slide Switch not
functioning
o power through switch Check the wire connections and verify voltage at the slide switch
input and output terminals
This unit is designed to provide years of reliable service under even the worst
conditions. Many times there may appear to be a problem with the unit when the
true problem is in the speaker(s) or improper installation. The following chart shows
typical symptoms and possible causes.

-13-
Parts
Service
Part Description
S30234-37 Siren Top Cover
S30235-37 Siren Bottom Mounting Plate
P30069-38 Microphone Bracket with Screws
P30056-16 1/4-20 x 3/8" Hex Locking Bolt
P30028-23 20 Amp Automotive Fuse
30232-2AMP Optional oise Cancelling Microphone With Adapter Cable
P30208-10 Microphone Strain Relief
P30032-8 TIP36CPowerTransistor
P30239-1 Rotary Selector Switch Knob
P30147-44P Mounting Bracket
P30052-30 Case Screws
P30232-2 Optional oise Cancelling Microphone
SWH-40 Adapter Cable (Mic to Amp)
Fuse
This audio and logic circuitry in this unit is protected by a 20A automotive type fuse
located on the back of the siren. If it blows, be sure to identify the cause of the
blown fuse prior to replacing it.
Please note: There should also be separate user supplied fuses on all of your power
input wires.

-14-
ONE YEAR LIMITED WARRANTY
The manufacturer warrants each new product against factory defects in material
and workmanship for one year after the date of purchase. The owner will be
responsible for returning to the Service Center any defective item(s) with the
transportation costs prepaid. The manufacturer will, without charge, repair or
replace at its option, products, or part(s), which its inspection determines to be
defective. Repaired or replacement item(s) will be returned to the purchaser with
transportation costs prepaid from the service point. A copy of the purchaser's
receipt must be returned with the defective item(s) in order to qualify for the
warranty coverage. Exclusions from this warranty include, but are not limited to,
bulbs, strobe tubes, domes, and/or the finish. This warranty shall not apply to any
light, which has been altered, such that in the manufacturer's judgment, the
performance or reliability has been affected, or if any damage has resulted from
abnormal use or service.
There are no warranties expressed or implied (including any warranty of
merchantability or fitness), which extend this warranty period. The loss o use o the
product, loss o time, inconvenience, commercial loss or consequential damages,
including costs o any labor, are not covered. The manufacturer reserves the right to
change the design of the product without assuming any obligation to modify any
product previously manufactured.
This warranty gives you specific legal rights. You might also have additional rights
that may vary from state to state. Some states do not allow limitations on how long
an implied warranty lasts. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Therefore, the above limitation(s) or
exclusion(s) may not apply to you.
If you have any questions concerning this or any other product, please contact
our Customer Service Department at [phone].
If a product must be returned for any reason, please contact our
Customer Service Department to obtain a Returned Materials Authorization
number (RMA #) before you ship the product back.
lease write the RMA # clearly on the package near the mailing label.
NOTICE
Due to continuous product improvements, we must reserve the right to change any specifications
and information, contained in this manual at any time without notice. Signal Vehicle roducts and/or
the manufacturer make no warranty of any kind with regard to this manual, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose. Signal Vehicle
roducts and/or the manufacturer shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this manual.
