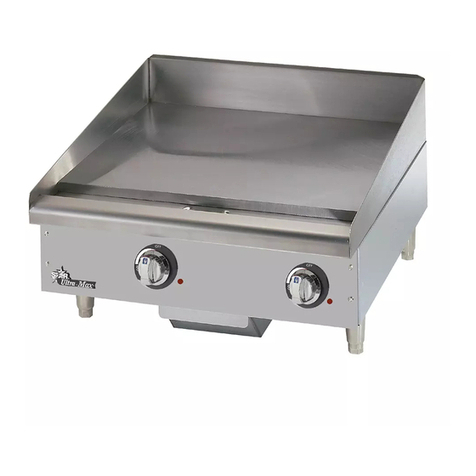

Star 724T User manual

Phone: [phone] - FAX: [phone] - www.star-mfg.com
Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800
S t a r M a n u f a c t u ri n g I n t e r n a t i o n a l, I n c .
Features/Benefits:
★Ultra-Max griddles are designed for the highest volume food
service operations and provide maximum performance and
reliability.
★Snap Action Thermostatic control adjusts from 150° to 450°F
and provides accurate temperature control. Internal plate sensor
accurately measures the temperature of the griddle plate 3/16”
from the cooking surface for instant response to surface
temperature change and fast recovery.
★Available in 24”, 36”, 48”, 60” and 72” widths to meet your
space and volume requirements.
★Highly polished 1” thick steel plate for superior heat distribution,
fast recovery and energy efficient operation.
★Custom designed 4350 watt heating element every 12” of
cooking surface provides superior cooking performance.
★Heavy-duty all-weld body construction with stainless steel front,
side panels, bull nose and splash guard.
★“Euro-style” design with stylishly curved, ergonomically
advanced front panel providing easy access and viewing of
controls.
★Spatula wide 3-1/2” front grease trough and grease chute for
easier cleaning.
★Large 6 quart stainless steel grease drawer.
★Extra-heavy-duty 4” adjustable legs to fit your countertop needs.
★Floor model stands available for free standing unit. Optional
casters available.
A p p l i c a t i o n s :
For breakfast, lunch or dinner, the Ultra-Max electric snap action
griddles provide flexibility for a variety of menu items. Perfect for
high volume operations.
C o n s t r u c t i o n :
Ultra-Max griddles feature 1” thick highly polished steel griddle plate,
5” tapered stainless steel splash guard, 3-1/2” wide front access
stainless steel grease trough, stainless steel 6 quart capacity grease
drawer, and stainless steel front panels, side panels, and bull nose.
Models 760T and 772T house two 6 quart grease drawers. Includes
a 4350 watt element every 12” of width controlled by snap action
electric thermostat. Griddles are equipped with a junction box at the
rear for making electrical connections. Models 760T and 772T are
equipped with 2 junction boxes. Heavy-duty 4’’legs are included.
Wa r r a n t y :
Ultra-Max electric griddles are covered by Star’s one year parts and
labor warranty.
S252/0107
Model 736T
Shown with Optional Floor Stand
ULTRA-MAX ELECTRIC GRIDDLES
Models 724T, 736T, 748T, 760T & 772T
Model 748T
®

Phone: [phone] - FAX: [phone] - www.star-mfg.com
Star Manufacturing International Inc. - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800
S t a r M a n u f a c t u ri n g I n t e r n a t i o n a l , I n c .
Dimensions
Model (A) (B) (C) No. Plate Approximate Weight
No. Width Depth Height Controls Watts Grid Area Thickness Installed Shipping
Inches Inches Inches
724T 24" 33-11/16" 18" 2 8,700 573 sq. in. 1" 220 lbs. 290 lbs.
(61 cm) (85.5 cm) (45.7 cm) (3,697sq cm) (2.54 cm) (99.7 kg) (130.5kg)
736T 36" 33-11/16" 18" 3 13,050 860 sq. in. 1" 330 lbs. 389 lbs.
(91.4 cm) (85.5 cm) (45.7 cm) (5,545 sq cm) (2.54 cm) (149.5 kg) (175.1 kg)
748T 48" 33-11/16" 18" 4 17,400 1146 sq. in. 1" 440 lbs. 520 lbs.
(121.9cm) (85.5 cm) (45.7 cm) (7,394 sq cm) (2.54 cm) (199.4 kg) (234 kg)
760T 60" 33-11/16" 18" 5 21,750 1433 sq. in. 1" 550 lbs. 656 lbs.
(152.4 cm) (85.5 cm) (45.7 cm) (9,242 sq cm) (2.54 cm) (249.2 kg) (295.2 kg)
772T 72" 33-11/16" 18" 6 26,100 1719 sq. in. 1" 660 lbs. 780 lbs.
(182.9 cm) (85.5 cm) (45.7 cm) (11,091 sq cm) (2.54 cm) (299.0 kg) (351 kg)
Specifications
Typical Specifications
Gas griddles are constructed of stainless steel. Control knobs are protected by a stainless steel bull nose front. Griddle plate is a 1” (2.54 cm)
thick highly polished steel plate with 5” (12.7 cm) high tapered wrap-around stainless steel splash guard. Unit has 3-1/2” (8.3 cm) wide front
grease trough with grease chute and a 6 qt. (5.68 L) capacity stainless steel grease drawer. Models 760T and 772T house two each 6 quart
(5.68 L) grease drawers. Units are equipped with a 4350 watt incoloy sheath element every 12” (330.48 cm) of griddle width and are controlled
by a snap action thermostat. Aterminal block is provided for making electrical connections. Models 760T and 772T are equipped with two elec-
tric connection boxes. Griddles are supplied with 4” (10.2 cm) high stainless steel legs that have a 1-5/8” (1.5 cm) adjustment. Units are
approved for installation within 1” (2.54 cm) of side and rear wall combustible surfaces and are cULus Classified and UL classified to NSF
Standard 4 Sanitation. Printed in the U.S.A.
ULTRA-MAX ELECTRIC GRIDDLES
Models 724T, 736T, 748T, 760T & 772T
Model Total KW. Voltage AMPS-1 Phase KW.-Load Phase AMPS Per Phase
X-Y X-Z Y-Z X Y Z
724T 8.7 208 41.8 4.35 - 4.35 20.9 36.2 20.9
8.7 240 36.3 4.35 - 4.35 18.1 31.3 18.1
736T 13.05 208 62.7 4.35 4.35 4.35 36.2 36.2 36.2
13.05 240 54.4 4.35 4.35 4.35 31.4 31.4 31.4
748T 17.4 208 83.6 8.7 4.35 4.35 55.3 55.3 36.2
17.4 240 72.5 8.7 4.35 4.35 48 48 31.4
760T** 21.8 208 Dual Supply: 62.7 A. One Circuit & 4.35 4.35 4.35 36.2 36.2 36.2
41.8 A. Other Circuit 4.35 - 4.35 20.9 36.2 20.9
21.8 240 Dual Supply: 54.4 A. One Circuit & 4.35 4.35 4.35 31.4 31.4 31.4
36.3 A. Other Circuit 4.35 - 4.35 18.1 31.3 18.1
772T** 26.1 208 Dual Supply 62.7 EA. Circuit 4.35 ea. 4.35ea. 4.35 ea. 36.2 ea. 36.2 ea. 36.2 ea.
26.1 240 Dual Supply 54.4 EA. Circuit 4.35 ea. 4.35ea. 4.35 ea. 31.4 ea. 31.4 ea. 31.4 ea.
**INDICATES DUAL SUPPLY CIRCUITS
Electrical Data
®
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star
Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached
as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.
