FLUID MOTION 37-90”
Swivel Tilt Extend TV Mount
SB-3790ART-FM
WHY STARBURST?
Company Info:
Founded in 1985, Starburst Technologies (Starburst), a division of PDI Communications Inc, is a full- service design, engineering & manufacturing
operation. All Starburst Mounts are formally UL Listed, easy and safe to install. Our Starburst mounts can be found in major hotels, resorts,
convention centers, airports, cruise ships, arenas, stadiums, theme parks, and residential homes.
Starburst Technologies (Starburst) TV-DISPLAY Wall Mounts oer an unbeatable combination of quality and a cost eective price point. Each
mount has been designed to work not only in the home, but also in a more demanding Commercial environment.
Contact Us:
For more information about the about the warranty, installation, assembly or use of this product please contact Customer Service at 1-800-242-
1606 Monday- Friday 9am-5pm EST or EST or [email protected]

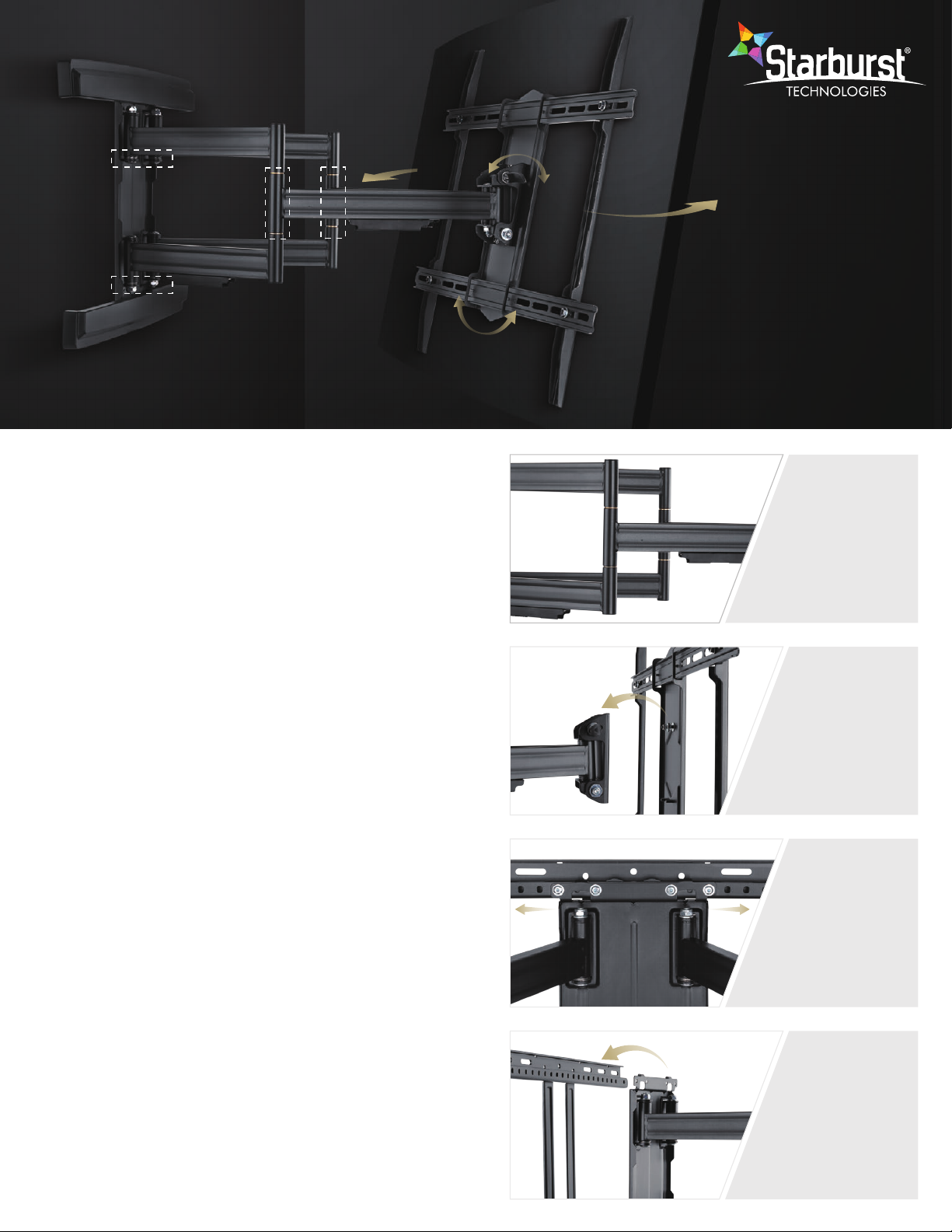

Tilt Adjustment Knob
Contemporary Wall Plate
Level
Adjustment
Swivel
Lateral
Shift Dials
for Off-Center
Studs
Detachable
VESA Plate
for Quick Assembly
Detachable
Wall Plate
Ensures Easy
Assembly
Fluid Motion
with Finger Touch
Ball bearings
Copper washer joints
•Fits most 37-90" TV’s
•Swivel, Tilt & Extend your TV
•Up to 132lbs
•Install on Solid Concrete or 16" Wood Stud Walls (24" optional)
•Max extension 31.5" which allows true 90-degree swivel range
•Effortless FINGER TOUCH - FLUID MOTION
•Detachable VESA & Wall Plates for easy assembly
•Lateral Shift for off center studs
•Toolless Tilt & Lock adjustment knob
•Eco-Friendly EGG SHELL internal packaging
EFFORTLESS FLUID MOTION –
SWIVEL TILT EXTEND TV WALL MOUNT
The Starburst SB-3790ART-FM (FLUID MOTION) SWIVEL
TILT EXTEND TV WALL MOUNT fits most flat panel & curved
TVs 37"to 90"up to 132 pounds. This new contemporary
design, made with reinforced steel and specially designed
copper washer joints, offers a wide range of EASY FLUID
MOTION. Dual articulating arms allow you to tilt, swivel and
extend your TV to ensure the optimal viewing angle no
matter where you are in the room. Finger Touch tilting
technology allows effortless tilt with just a touch of a finger.
Other Special features include Detachable VESA & Wall Plate
for quick easy assembly, LATERAL SHIFT for off-center
studs, Toolless Tilt & lock adjustment knob, post install level
and shift adjustments, cable management and 31.5"max
extension which allows a true 90-degree swivel range.
Includes a 5-year limited warranty. UL Certified.
Features:

+3°
-3°
+2°
-15°
±90°
min7.9in-max23.6in
min1.3in-max15.9in
min2.8in-max31.5in
15.4in
13.5in
19in
18.5in
UNIT DIMENSIONS:
SPECIFICATIONS:
850003493190 37-90" 2.8" 31.5"
132 lbs
4 Times Strength Tested
200x100, 200x200, 300x200
300x300, 400x200, 400x300
400x400, 600x400
UPC CODE TV Size Range MAX Weight Capacity Mounting Pattern
(Universal VESA) Mounting Profile Extension Range
+2 / -15 degrees +90 / -90 degrees +3 / -3 degrees Included UL LISTED Solid Concrete Wall or 16" Wood
Stud Spacing (24" optional)
TILT RANGE
25.6" 19" 2.8"
Product Width
Left to Right
Product Height
Top to Bottom
Product
Depth Min
31.5"
Product
Depth Max
DIMENSIONS OF
CARTON BOX
1 PC/CTN 38.25x23.5x4.5"
QTY/CARTON
42 lbs
Carton Weight
Swivel Range Post Install Screen
Level Adjustment Hardware Kit UL LISTED Stud Spacing
FLUID MOTION 37-90”
Swivel Tilt Extend TV Mount
SB-3790ART-FM
5 Years
Warranty

FLUID MOTION 37-90”
Swivel Tilt Extend TV Mount
SB-3790ART-FM
EASY INSTALLATION
• Locate the studs using a stud finder.*
• Use HOLE TEMPLATE for positioning of the holes.
• Confirm the exact location, drill and secure the wall plate.
STEP 1
STEP 2
STEP 3
• Attach mount arms to the TV.
• Adjust TV mount arms to line up with the TV’s mounting holes.
• Use the appropriate screws from included screw kit.
• Hang the TV onto the wall plate.
• Use included level to insure perfect position.
