CODE REQUIREMENTS: Most states and local codes regulate the construction, installation, and
operation of pools and spas. It is important to comply with these codes, many of which may directly
regulate the installation and use of this product, if used with a pool or spa. Consult your local building
and health codes for more information.
NOTE TO INSTALLER: Owner’s Manual must be left with the consumer for future reference.
NOTE TO CONSUMER: Owner’s Manual must be saved for future reference.
- 1 -
COPYRIGHT © 2017, STARFIRE DIRECT, ALL RIGHTS RESERVED.
PROPOSITION 65 WARNING
ATTN CALIFORNIA RESIDENTS:
This product includes parts that may contain materials known to the state of California to
cause cancer, birth defects, or reproductive defects. For more information please v
isit www.
starredirect.com/prop-65.
IMPORTANT SAFETY INFORMATION
Read and understand all warnings on this product prior to use.
Improper assembly, installation, adjustment, alteration or maintenance can cause injury
or property damage. Read the installation and operating instructions thoroughly before
installing or operating this product.
• Keep bystanders and children away from the product you are assembling at all times
• If replacement parts are necessary, use only genuine Starre Direct replacement parts and
hardware. Failure to use genuine replacement parts can cause a risk to users, keep the product
from operating correctly and void the warranty.
• Do not use until the product has been fully assembled and inspected for correct performance in
accordance with the Manual.
• Read and understand the complete Manual supplied with this product before rst use. Keep the
Manual for future reference.
• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect
function.
By Starre Direct, Inc.
OWNER’S MANUAL
M o r e n o
Water Bowls
This owner’s manual is valid for model numbers:
MORENO-TAZA-WB-3111-CLR, MORENO-CONO-WB-3110,
MORENO-PLZ-WB-2929
Rev A, April 2017

- 2 -
COPYRIGHT © 2017, STARFIRE DIRECT, ALL RIGHTS RESERVED.
Cover - Important Safety Information ....................................................................................... 1
Table of Contents ........................................................................................................................ 2
Installation Instructions ................................................................................................................ 2
Piping Diagram ............................................................................................................................ 3
Maintenance and Care .............................................................................................................. 4
Warranty ........................................................................................................................................ 4
TABLE OF CONTENTS
INSTALLATION INSTRUCTIONS
FIG. 2-1
PRE-INSTALLATION NOTES:
Consult your pool, spa, or pond professional for line and pump sizing.
The bowl must be installed level or water will not ow out evenly from the spout.
Minimum water ow is 10 GPM. Actual ow will vary with individual preference, typical
ow is around 15-20 GPM. Water may start to overow the bowl if ow exceeds 25 GPM.
1. Select location of water feature and install
water line from water source as illustrated in
Fig 3-1.
Water supply line should be installed with a
check valve so the bowl doesn’t drain off
water when not in use.
It is recommended to install an adjustable
control valve in the water line so you can
adjust the water ow to the bowl for desired
effect.
2. Cut water line stub to desired height.
3. Place mounting bracket over water line stub
and mark where the holes are.
NOTE: Be sure that the bowl is in the correct
orientation so that the water owing out of
the bowl is owing in the desired direction
(eg. into the pool, spa or fountain).
4. Remove the bracket and prepare to drill into
mounting surface.
NOTE: Starre Direct incurs no liability for
damage to deck and/or mounting surface.
a. For concrete decks: Using a Hammer
Drill and 3/8” Masonry bit, tap the holes
that were marked earlier.
b. For wood decks: Using a Drill and 1/4”
wood bit, tap the holes that were
marked earlier.

- 3 -
COPYRIGHT © 2017, STARFIRE DIRECT, ALL RIGHTS RESERVED.
INSTALLATION INSTRUCTIONS (CONTINUED)
5. Replace the mounting bracket over the water line and align the holes.
6. Lineup and set the rst mounting collar on top of the mounting bracket.
7. Gently set the bowl over the water line and align with the mounting bracket and mounting
collars. Add silicone between bowl and mounting collar, on the inside face. If desired,
water bowls can also be siliconed underneath between top of mounting collar and bottom
of bowl.
8. Line up and set the second mounting collar inside the bottom of the bowl. These mounting
collars “sandwich” the base of the bowl, adding strength and rigidity.
9. Using the appropriate mounting hardware, secure the bowl to the surface.
10. Drill out water-line collar (plastic) to t your selected line size and slide over top of water line
stub.
11. Silicone all around collar to nish the water-tight seal. Leak test as required.
12. Add “T” tting to water line as illustrated in Fig. 3-1.
Should water start to drip from the underside of the spout, or run down the side of the
bowl, you may need to adjust the ow rate to eliminate or minimize the drips. Some water
dripping may be unavoidable due to water ow, surface conditions, or irregularities on the
spout.

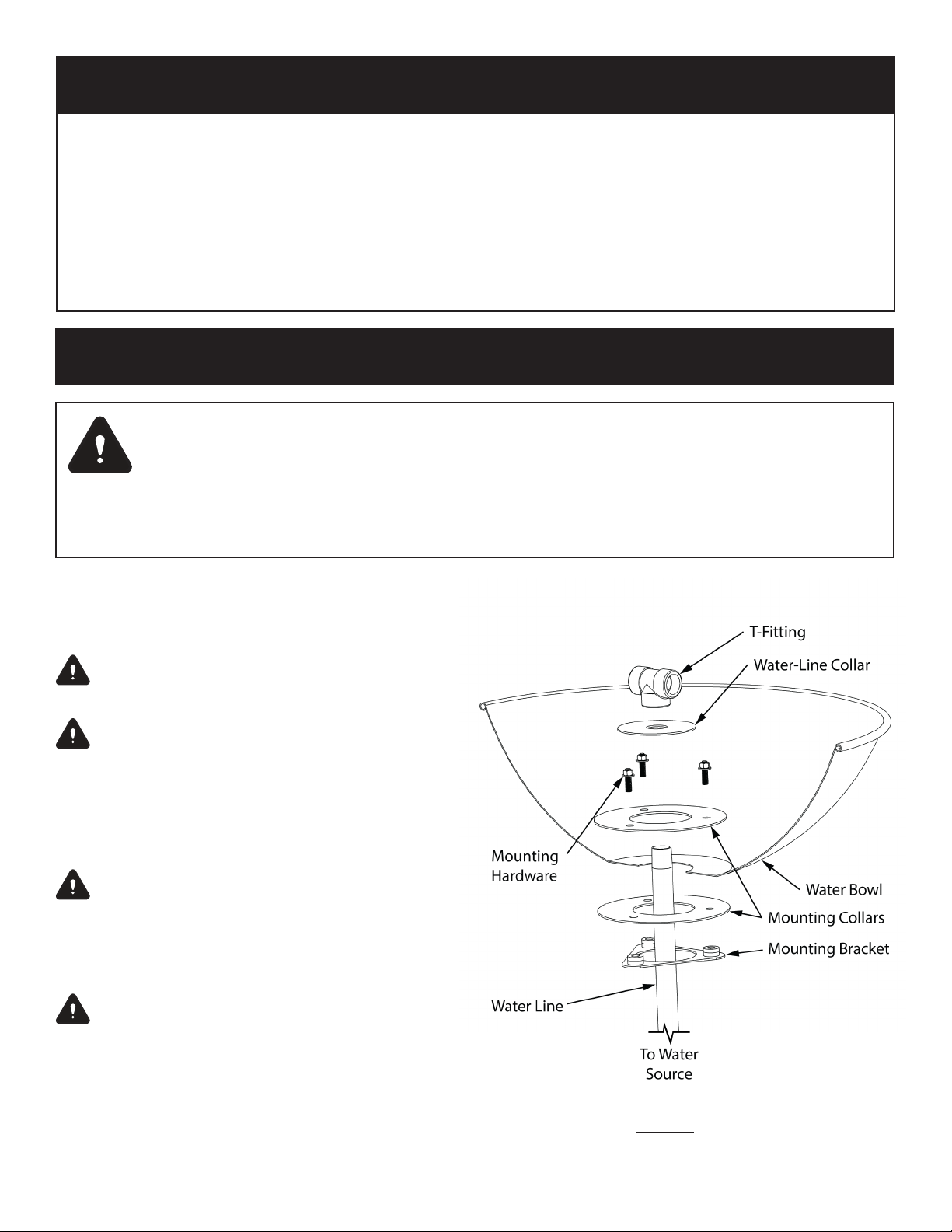

FIG. 3-1

MAINTENANCE AND CARE
- 4 -
COPYRIGHT © 2017, STARFIRE DIRECT, ALL RIGHTS RESERVED.
WARRANTY
Clean Monthly. Starre Direct recommends using the included multi surface wax protectant as a
spot cleaner and use regularly to maintain the lustrous nish on the metal. You can contact Starre
Direct’s sales team at 866-578-8538 to place an order.
Note: This water bowl is made of natural copper and will age/patina over time. No warranty is
expressed or implied for natural aging of copper.
Service and Repair. Should your water feature require maintenance, always use a qualied pool,
spa, or pond professional for any repairs or service. If replacement parts are necessary, use only
genuine Starre Direct replacement parts and hardware. Failure to use genuine replacement parts
can cause a risk to users, keep the product from operating correctly and void the warranty.
Starre Direct warrants this water bowl against manufacturing defects that prevent safe and
correct operation of the product for a period of one year from the date of delivery.
The defective product must be shipped back with an RMA (Return Merchandise Authorization)
issued by Starre Direct for that specic product which states the nature of the defect or warranty
claim. Product to be returned should be packed carefully-Starre Direct is not responsible for
damage on returned items. The original purchase information will be required. RMAs are only valid
for 30 days from the date of issue and will not be processed if re ceived after the expiration date.
The RMA number must be indicated on the outside of the return package and a copy of the RMA
in the package with product.
Our warranty does not cover items that have been damaged by modication, abuse, improper
stor age, installation, or maintenance. This warranty excludes claims for incidental or consequential
damage and indirect-collateral expenses arising from product defects or warranty recovery.
Starre Direct is not responsible for the actions including negligence of the installer. Should the
buyer decide to return a water bowl, Starre Direct is not responsible for the cost of shipping.
Starre Direct is NOT responsible for local codes and/or if any of our products are not approved for
installa tion. Please check with your local building department or governing agencies for proper
approvals before purchasing.
