BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics,
packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They
contain important information.
Notes:
1.Flush the water supply pipes throughly to remove debris.
2.Do not remove the plaster guard from the valve body
until instructed to.
3.Install valve 880X according to the rough-in
dimensions of 10880T-4. Install valve 882X according
to the rough-in dimensions of 10879T-4.
ROUGH-IN DIMENSIONS
กอนเริ่มการติดตั้ง
ระยะการติดตั้ง




ขอสังเกต:
  


 
10879T-4 เฉพาะฝาครอบวาลวผสมฝงกําแพงลงอางและยืนอาบ
10880T-4 เฉพาะฝาครอบวาลวผสมฝงกําแพงยืนอาบ
INSTALLATION INSTRUCTIONS
ขอแนะนําการติดตั้ง
*Dimensions are approximate.
*
*Unit: mm
*
Finished Wall

38-55 15 38-55 15
65 85 85
170
115
10879T-4 10880T-4
170
115
Finished Wall

เฉพาะฝาครอบวาลวผสมฝงกำแพง
รุน ซิงกูลิเยร
Singulier Recessed Valve Trim
©2016 Kohler Co. 1071632-X2-A

3007136
(K-10880T-4)
Cover Kit

3006902
Ring

3007084**
(K-10879T-4)
Escutcheon

3006927**
Bonnet

880002**
Plug Button Kit

833730
2.5 mm Hex Wrench

3010384**
Handle

3007085**
(K-10880T-4)
Escutcheon

3010602
Screw

3006903
(K-10879T-4)
Ring

3006902
Ring

3007134
(K-10879T-4)
Cover Kit

1
11
10
9
5
5
2
4
14 13 12
3
7
6
8
Note: Install valve 880X according to the
rough-in dimensions of 10880T-4, Install
valve 882X according to the rough-in
dimensions of 10879T-4.

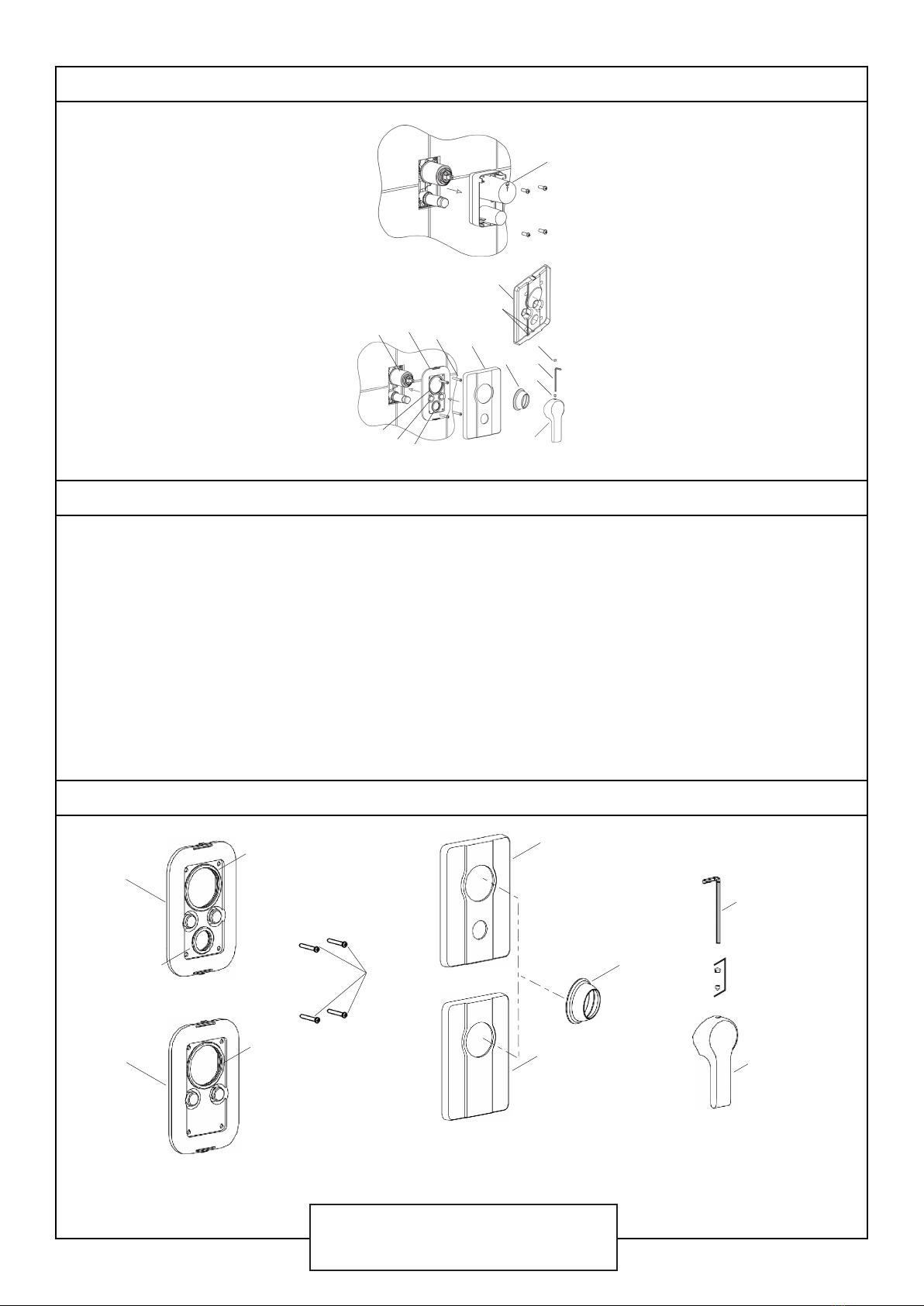

Remove the plastic guard (1) after
completed the finished wall.
Slide the cover kit (4) onto the valve (3)
with the plugs (13) facing outside.
Note: Don't squeeze out the rings (12,14).
Push it against the wall. Secure it with
the screws (2, length 50 mm). Slide the
faceplate (5) onto the valve with slots (6)
downwards. Push it against the wall.
Screw the bonnet (7) on the valve.
Install handle(8): Tighten the setscrew
(9) with hex wrench (10). Press plug button
(11) to the hole.
INSTALLATION
CARE AND CLEANING
SERVICE PARTS
For best results, keep the following in mind when
caring for your product:
 Always test your cleaning solution on an inconspicuous
area before applying to the entire surface.
Wipe surfaces clean and rinse completely with water
immediately after applying cleaner. Rinse and dry any
overspray that lands on nearby surfaces.
 Do not allow cleaners to soak on surfaces.
 Use a soft, dampened sponge or cloth. Never use
an abrasive material such as a brush or scouring
pad to clean surfaces.
 The ideal cleaning technique is to rinse thoroughly
and blot dry any water from the surface after each use.
ขั้นตอนการติดตั้ง
การดูแลรักษาและการทําความสะอาด
อุปกรณประกอบและอะไหล
ขอสังเกต: 






ขอสังเกต: 










 
 
 
 
 
 
 
 
 
1071632-X2-A ©2016 Kohler Co.
Call Center: +(66) 2204 6222
e-mail: [email protected]

**Color code must be specified when ordering.
หมายเหตุ:
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
