Starline CDe240 User manual

CDe240
RACK CONVEYOR
OPERATOR MANUAL

2/19/2020 Starline CDe240 Operator Manual 2
Warnings
Before installation and commissioning, you must read the safety instructions and
warnings carefully and all the warning labels attached to the equipment.
Equipment contains dangerous voltages and can be hazardous if installed or
operated incorrectly. Non-compliance with warnings or failure to follow the
instructions contained in this manual can result in loss of life, severe personal
injury or serious damage to property.
Before installation or repair, you must read the instructions and warnings
carefully and all the warning labels attached to the equipment.
All service/repair work must be carried out by qualified personnel only and
ensure compliance with all local codes and standards including AS/NZS 3500.1.
Important Information
Failure to comply (even partially) with the instructions given in this manual will
invalidate the product warranty and relieves the manufacturer of any
responsibility.
The alteration of machine operation, design or the replacement of parts not
approved by the manufacturer may void warranties and approvals.
This machine is intended for commercial use only.
This machine is designed for the cleaning of fresh food waste from crockery,
cutlery, containers and food preparation and manufacturing equipment. Consult
the manufacturer regarding suitability of the machine for other applications. It is
not a waste disposal unit, and it is essential that significant loose soil or waste is
removed from washware by pre-rinsing or scraping, before it is placed in the
machine.
The information contained in this document is checked, reviewed and updated regularly to
ensure that it is accurate and relevant to the model described. However discrepancies and
errors can occur. We welcome your feedback.
Document subject to change without prior notice.
Information supplied in this manual is copyright. No part of this work may be reproduced or
copied in any form or by any means, electronic or mechanical without the express permission of
Washtech.

2/19/2020 Starline CDe240 Operator Manual 3
Contents
2. Warning
3. Contents
4. Safety Instructions
5. Installation Diagram
6. Installation Instructions
8. Installation Checklist
9. Installation Troubleshooting

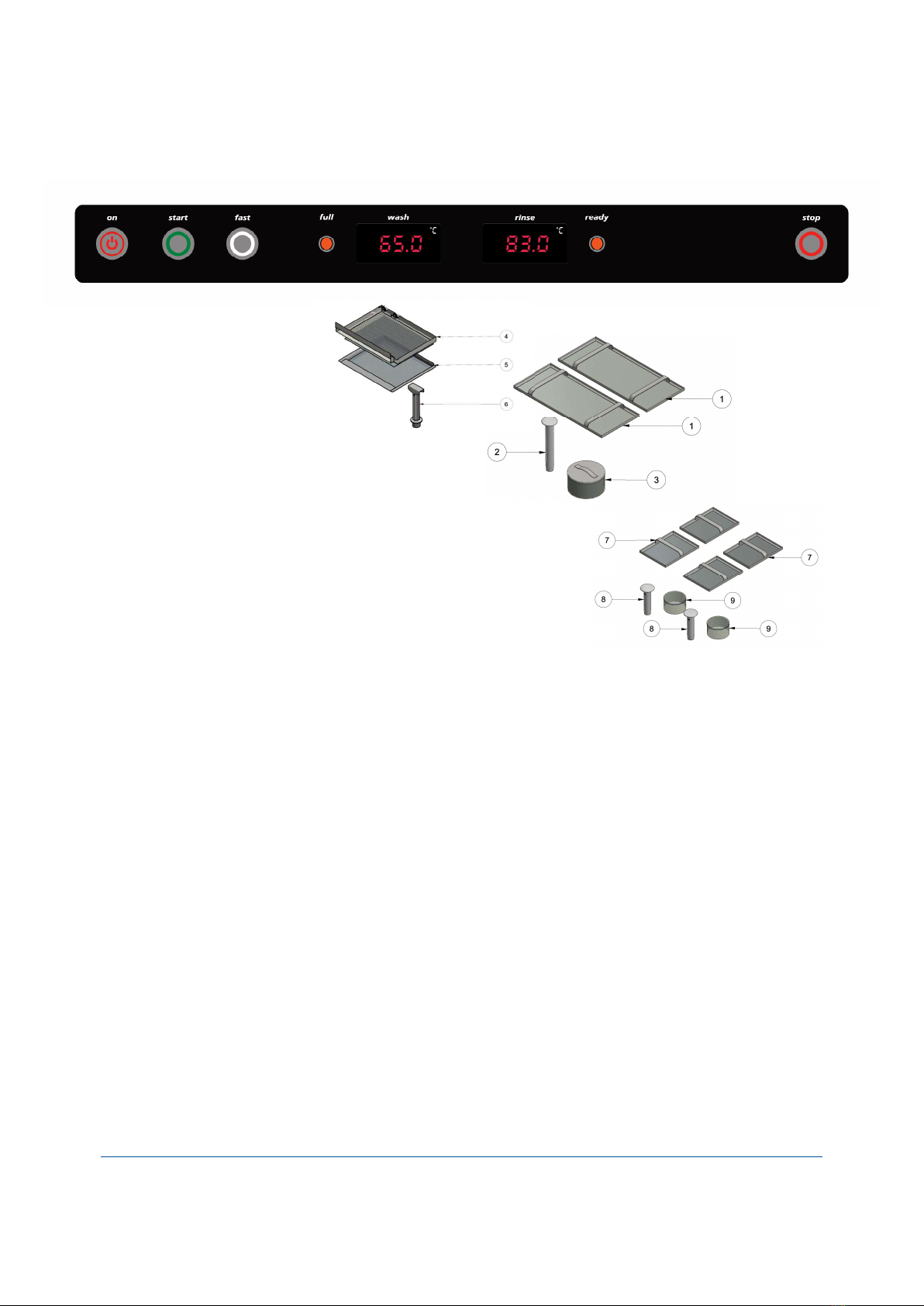

10. Operator Use Guide

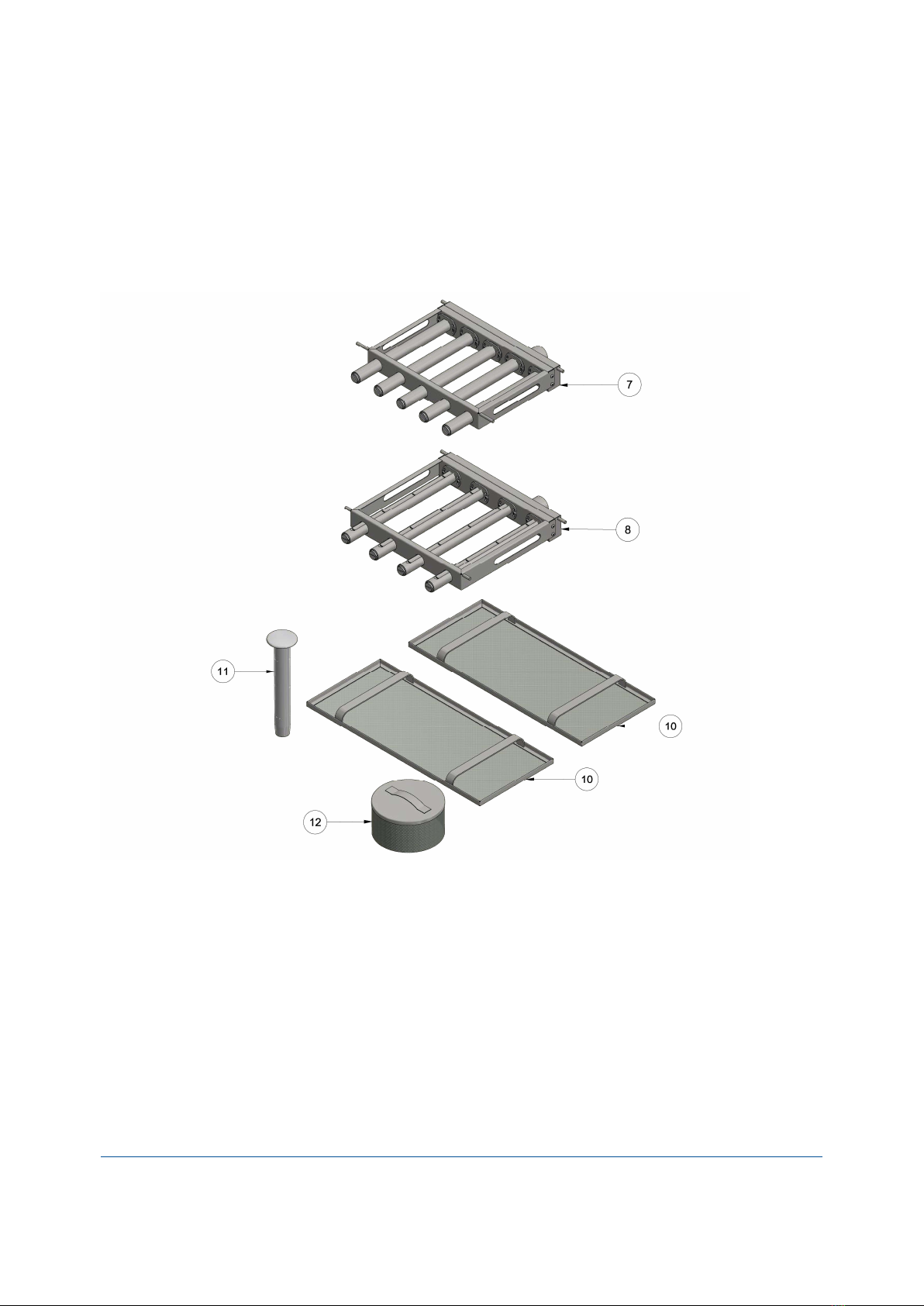

11. Operator Care – Wash Zone
12. Operator Care – Rinse Zone

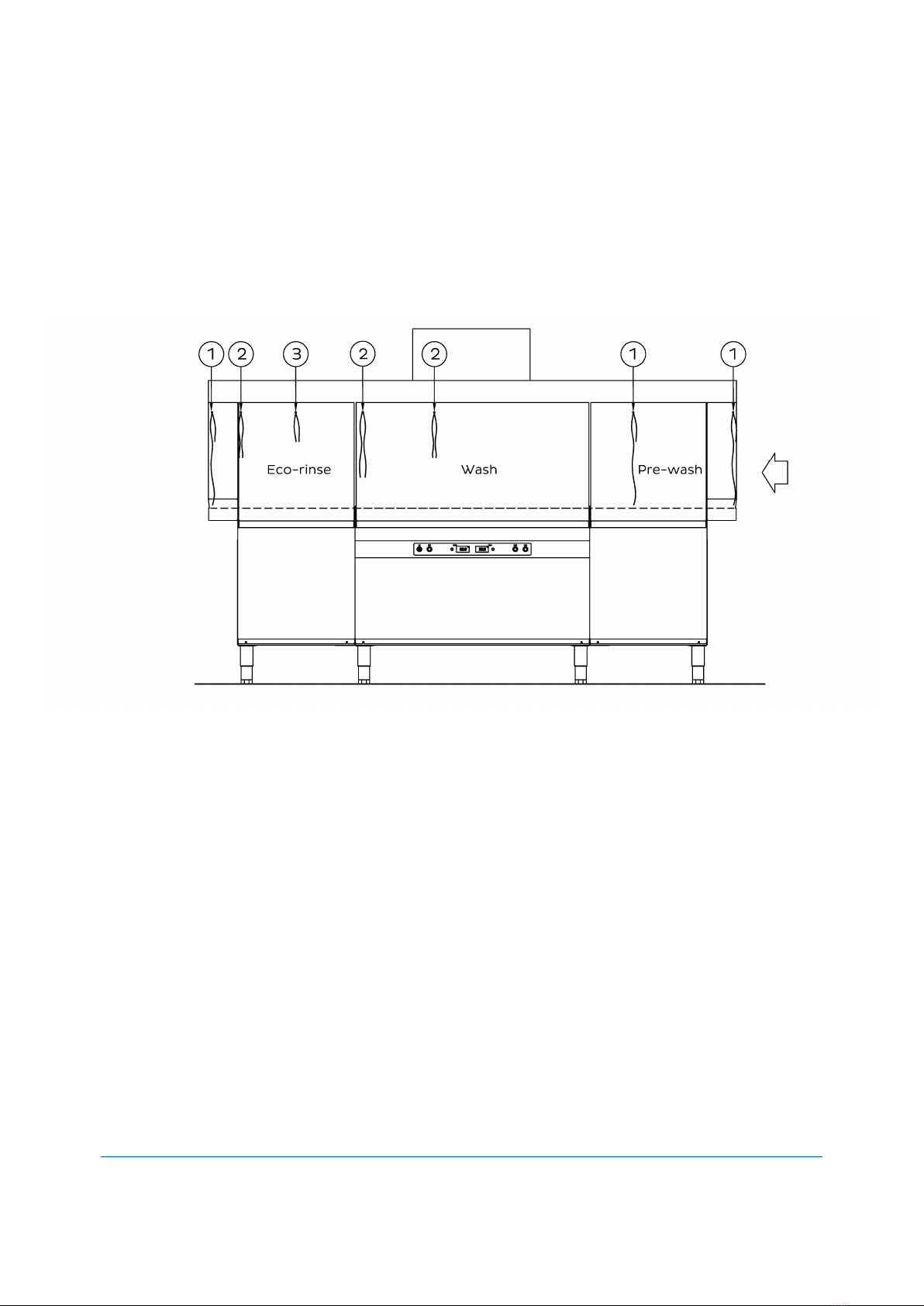

13. Operator Care - Curtains
14. Operator Troubleshooting

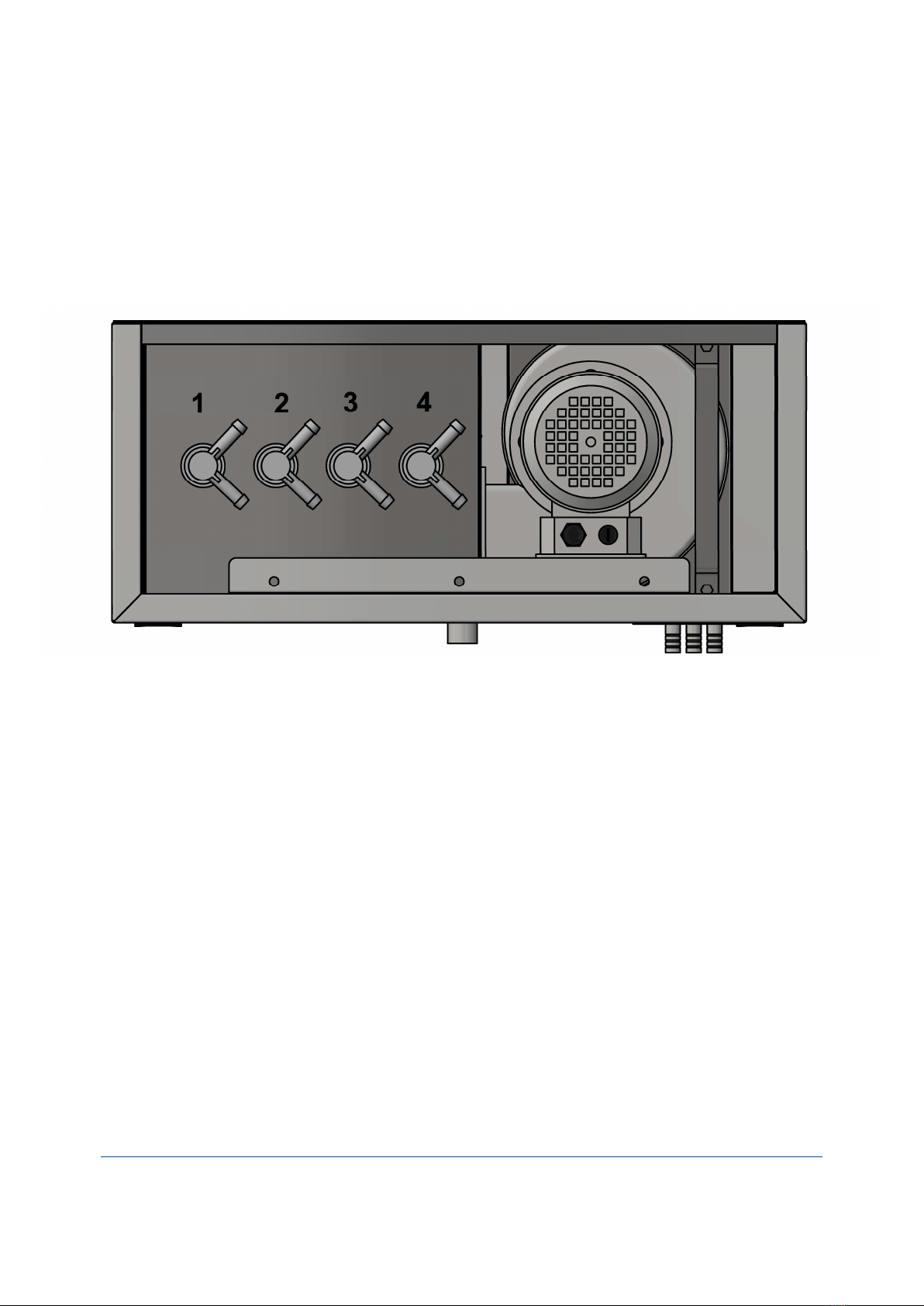

15. AVB Connections

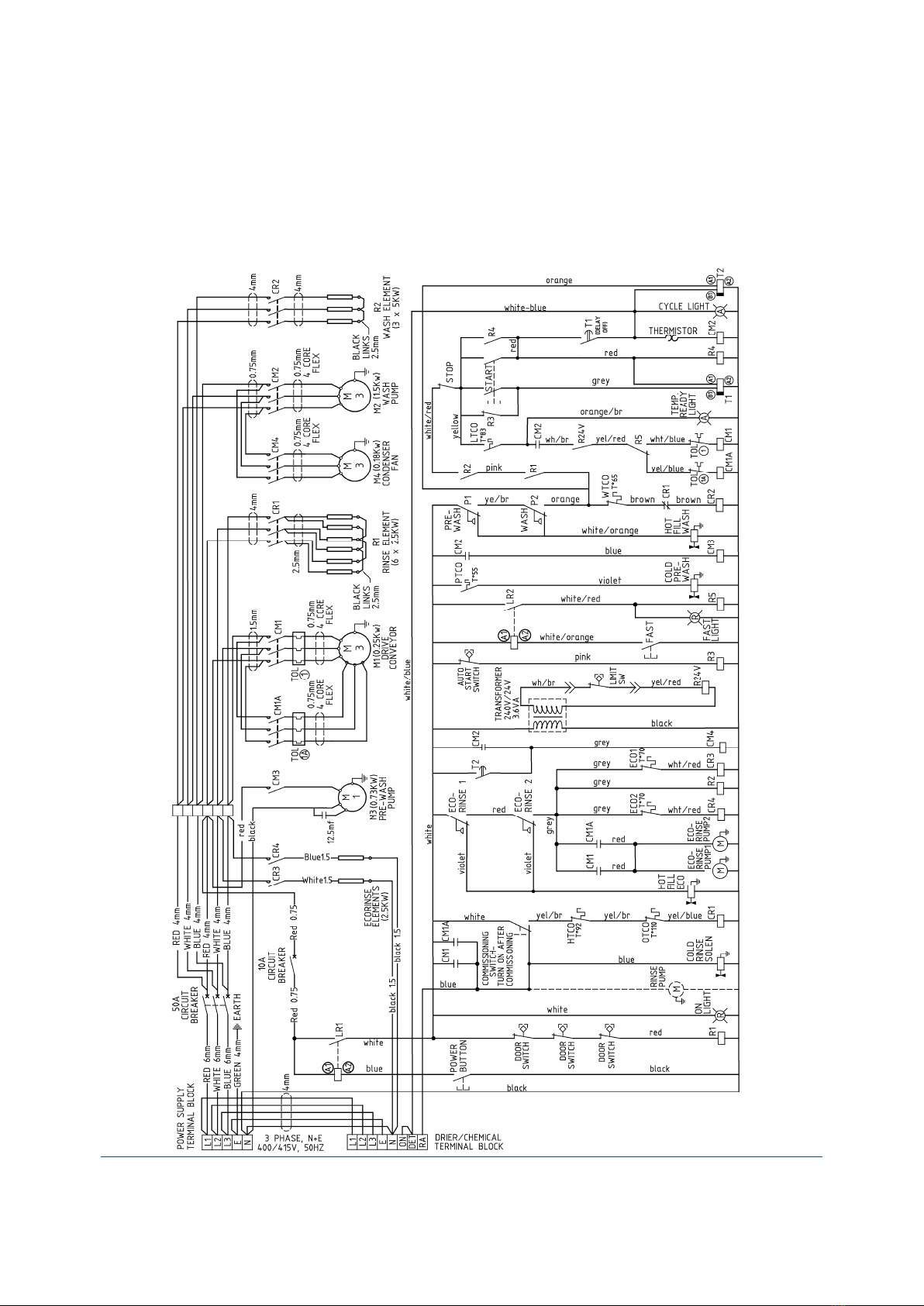

16. Schematic Diagram

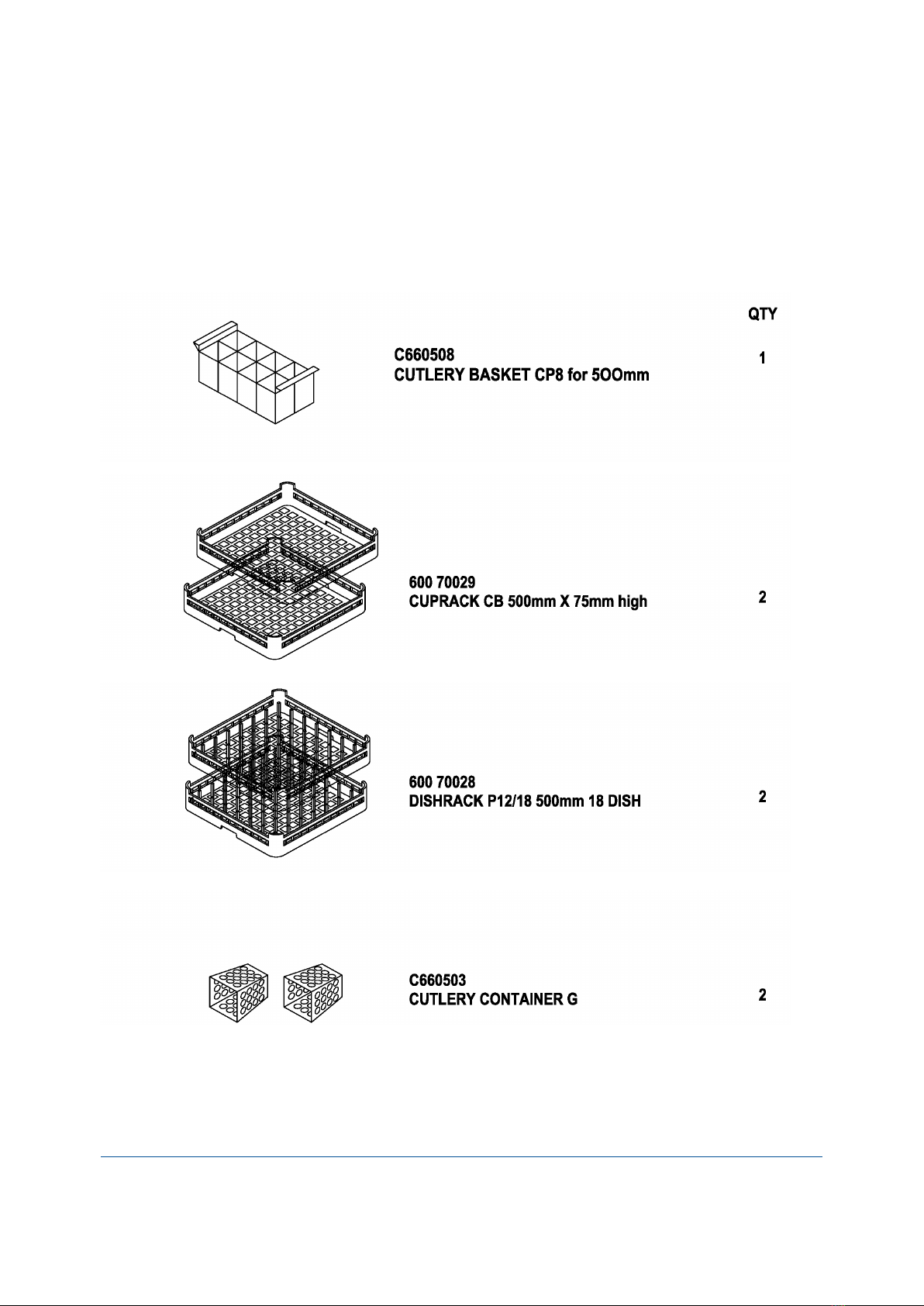

17. Accessories
Contents

2/19/2020 Starline CDe240 Operator Manual 4
Safety Instructions
Installation
•Use qualified, skilled personnel.
•Follow installation instructions.
•Connect to correct voltage and supply current, and check that the phase rotation is correct.
•Provide fully accessible Electrical Isolation Switch & water supply valves.
Training and Supervision
•Read and Understand the Operating instructions and train all staff.
•This appliance must not be operated by children or infirm persons.
•Machine panels must only be removed by suitably qualified and trained personnel – internal
hazards include live electrics and very hot surfaces.
•No part of this appliance is intended for use as a stepladder
Hot Surfaces
•Some surfaces may be hot or very hot.
Chemicals
•Commercial dishwashing detergents are hazardous – handle with care.
•Read and follow the safety information found on the labels of detergent containers and
Material Safety Data Sheets.
•Use protective eyewear and clothing if decanting containers.
Hot Water
•Do not put hands in wash water which may be over 60°C and contain hazardous caustic
detergent.
•Rinse water can be over 90°C.
•Door safety switches are designed for emergency use only.
Cleaning
•Do not hose down the machine or splash water over the exterior.
•Watch for broken glass etc. when cleaning the inside of the machine.
Warnings
Equipment contains dangerous voltages and can be hazardous if installed or
operated incorrectly. Non-compliance with Warnings or failure to follow the
instructions contained in this manual can result in loss of life, severe personal
injury or serious damage to property.
Installation and servicing must be carried out by a suitably qualified person in
compliance with all local codes and standards including AS/NZS 3500.1.

2/19/2020 Starline CDe240 Operator Manual 5

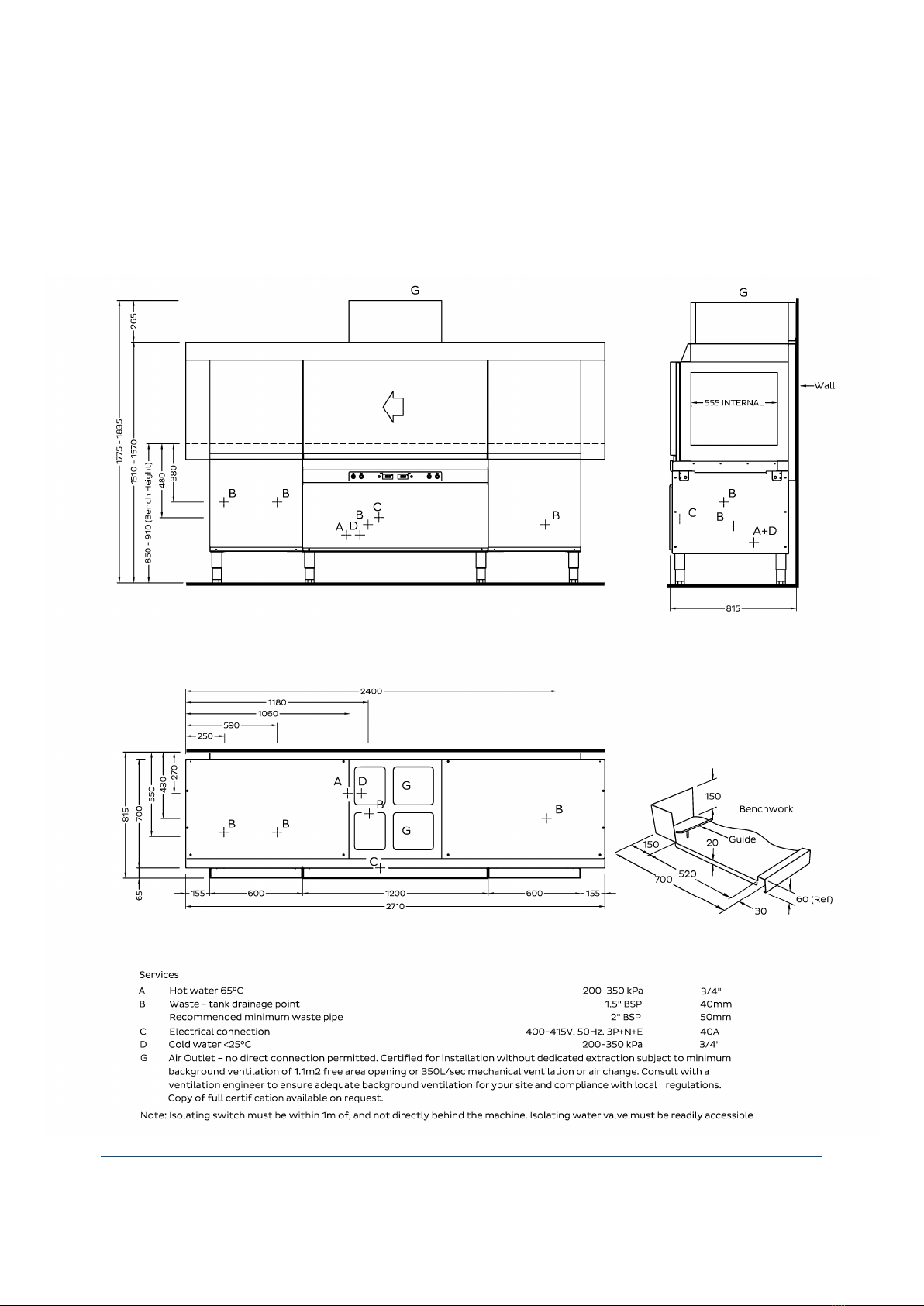

Installation Diagram
CDe240 Installation
•Part #: CDe240R Installation
•Date: 16/02/2020
•Version: 1-A

Machine Positioning
•Unpack machine, check for damage and complete delivery.
•Install machine on sound waterproof self-draining floor and use adjustable feet to level.
NOTE: Failure to level the machine correctly may result in leaking during the cycle,
overflowing from the door sill, poor hygiene through the wash tank not being able to
drain correctly, and/or visibly uneven door.
•Allow room for detergent to one side of machine or in adjacent cupboard. 20 litre container
requires approximately 450H x 250W x 350D, but smaller containers are available from many
suppliers.
Ventilation
•The CDe includes an integrated heat recovery unit in the top of the machine which captures
and removes sufficient steam to enable it to be installed without a kitchen exhaust hood,
subject to the area having minimum background ventilation of 1.1m2 free area opening
and/or 350L/s mechanical ventilation or air change.
NOTE: The heat recovery system also requires the vents on the hood of the machine to
be kept well clear of obstructions – do not to use the top of the machine for storage,
and do not close the doors to the washroom if this is required as part of the minimum
background ventilation. Staff must also be trained around the correct fitting of curtains.
Inlet Water Operation - Cold
Incoming water should be within the following standard requirements:
•Recommended temperature: 20°C.
NOTE: Inlet water temperatures above 25°C may necessitate a recalibration of other
settings e.g. wash and pre-wash temperatures, and the airflow of a dryer if fitted.
•Connection: 20 mm (3/4” BSP) male.
NOTE: Flush supply line before connection. Poor quality supply or excessive water
hardness may affect performance or damage machine – filtration and/or softening is
recommended.
•Flow rate: minimum 20 litres per minute.
•Water consumption: 2 litres per minute.
•Pressure: between 200 and 350 kPa.
NOTE: This machine is not equipped with a rinse booster pump as standard and relies on
incoming water pressure to drive the rinse cycle.
NOTE: Above this range fit pressure limiter. Below this range fit a rinse booster pump. Do
not use small diameter plastic supply lines
•Backflow prevention: Atmospheric Vacuum Breaker (AVB) fitted standard.
Inlet Water Fill - Hot
Incoming water should be within the following standard requirements:
•Recommended temperature: 65°C.
NOTE: Excessively high temperatures may damage the solenoid which can result in
flooding should this component fail. High temperature solenoids are available and can be
retrofitted if necessary.
•Connection: 20 mm (3/4” BSP) male.
NOTE: Flush supply line before connection. Poor quality supply or excessive water
hardness may affect performance or damage machine – filtration and/or softening is
recommended.
•Flow rate: minimum 20 litres per minute
•Pressure: between 200 and 350 kPa.
NOTE: Above this range fit and approved pressure limiter. Do not use small diameter
plastic supply lines.
•Backflow prevention: Atmospheric Vacuum Breaker (AVB) fitted standard.
2/19/2020 Starline CDe240 Operator Manual 6
Installation Instructions

2/19/2020 Starline CDe240 Operator Manual 7
Water Quality Requirements
The incoming water should also be within the following parameters:
Hardness ppm pH
min 20 7
max 100 8
Ions Cl- SO4Fe Mn Cu Cl2
Max mg/L 100 400 0.1 0.5 0.05 0.1
NOTE: Levels above or below the stated requirements can be expected to increase
component wear and reduce the expected useful life of the dishwasher. If in doubt, it is
best to consult a water specialist and have the incoming water professionally tested and
treated if necessary.
Power
•Electrical supply required is 3p+N+E, 415V 50Hz 40A per phase via switched outlet adjacent to
machine.
NOTE: Equipment contains dangerous voltages and can be hazardous if installed or
operated incorrectly. Non –compliance with warnings or failure to follow the
instructions contained in this manual can result in loss of life, severe personal injury or
serious damage to property.
Chemical
•Detergent and rinse aid pumps are not supplied with the CDe240. We recommend you
consult your chemical supplier and/or a local chemical expert for their recommended
detergent and Rinse Fluid injector pumps.
NOTE: Commercial detergents can be hazardous – read instructions, store safely and
handle with care. Care needs to be taken when changing chemicals, ensuring that the
detergent is not accidentally connected to the rinse fluid inlet line.
NOTE: If uncertain, please consult a chemical specialist for assistance in selecting the
right chemicals and calibrating machine settings to suit this along with your unique site
conditions and requirements.
Waste
•40mm connection required to point B as specified on install diagram. An S-trap must be fitted
on each of these points.
NOTE: Either copper or P.V.C. may be used for the waste connection – P.V.C. is more
resistant to some harsh detergents. Some authorities however suggest that copper is
required because the machine rinses at up to 90°C. It is important to note that rinse
water mixes with the 65°C wash water before discharge and then flows into the sink
trap where the water is further cooled before entering the drainage plumbing. We
recommend consulting your local authority to ensure your site remains compliant.
Installation Checklist
•Complete attached Installation Checklist to ensure machine is installed and running correctly,
and operator is familiar with operating procedures.
Installation Instructions

Check Notes
DELIVERY
SUPPLIED COMPLETE? CHECK THERE HAS NOT BEEN ANY TRANSIT DAMAGE
POSITION
LEVEL AND STABLE? ON SOUND, WATERPROOF, SELF-DRAINING FLOOR
WATER
ISOLATOR VALVE FITTED? ACCESSIBLE, ALL FITTINGS SOUND, AND NO LEAKS
TEMPERATURE CORRECT COLD WATER INLET 20˚C, HOT WATER INLET 65˚C
PRESSURE CORRECT (200 – 350 kPa)? LIMITER FITTED IF ABOVE RANGE, RINSE PUMP IF BELOW
FLOW RATE CORRECT (> 20L per min)? RINSE PUMP FITTED IF BELOW REQUIREMENT
QUALITY WITHIN REQUIREMENTS? FILTER OR SOFTENER IN PLACE IF OUTSIDE REQUIREMENTS
POWER
ISOLATING SWITCH (3p/45A 415V 50Hz)? FITTED, FUNCTIONAL AND ACCESSIBLE
CORRECT SUPPLY VOLTAGE, CURRENT, CIRCUIT BREAKER ALL CORRECT
WASTE
CONNECTION TO 50mm PIPE? CORRECT CONNECTION TO PLUMBING.
SUITABLE AIR GAP? REFER OPERATOR MANUAL.
CHEMICALS
CHEMICAL NAME CONTAINER NO LEAKS PRIMED CALIBRATED
DETERGENT
RINSE FLUID
MACHINE OPERATION
MACHINE RUNNING CORRECTLY? MULTIPLE CYCLES RUN, NO ISSUES
CHEMICAL DOSAGE CORRECT? CORRECTLY FLOWING INTO MACHINE, NO FOAMING
ALL OPERATIONS CORRECT? FILL LEVEL CORRECT, NO DRAINAGE ISSUES
OPERATOR TRAINING
ENSURE THAT THE CUSTOMER HAS BEEN GIVEN THE OPERATION MANUAL AND WALL CHART, AND IS AWARE OF THE
IMPORTANCE OF BOTH USING AND CLEANING THE MACHINE CORRECTLY.
START UP
PRE-RINSE AND RACKING BETTER TO RINSE PLATES THAN REMOVE WASTE FROM MACHINE
MACHINE USE AND CYCLE SELECTION USE LONG CYCLE WHERE POSSIBLE
DRAINING THE MACHINE DRAIN THE MACHINE DAILY
SHUT-DOWN AND DAILY CLEANING CHECK WASH ELEMENTS HAVE COOLED BEFORE CLEANING
WEEKLY MAINTENANCE FULL MACHINE CLEAN INCLUDING WASH/RINSE ARMS
PLANNED SERVICNG IMPORTANCE OF SERVICING MACHINE REGULARLY
2/19/2020 Starline CDe240 Operator Manual 8
Installation Checklist

2/19/2020 Starline CDe240 Operator Manual 9
Installation Troubleshooting
Machine not starting or filling
•Ensure water supply to machine is turned on.
•Ensure power supply to machine is turned on.
•Check that the water inlet hose isn’t twisted or kinked.
Poor wash results
•Check that there are adequate pre-rinse processes in place.
•Ensure high quality non-foaming commercial dishwasher detergent has been connected at the correct dosage
for your site, water quality and application. If uncertain, consult a chemical specialist.
•Ensure that the wash temperature is between 60°C and 65°C.
Chemical residue on items after the cycle
•Check water pressure, this is likely too low and below the minimum 200kPa required.
•Check that nothing is obstructing the wash & rinse arms.
•Check the rinse fluid dosage is not too high. If uncertain, please consult a chemical specialist.
Dishwasher is foaming
•Ensure high quality non-foaming commercial dishwasher detergent has been connected at the correct dosage
for your site and application. If uncertain, please consult a chemical specialist.
•Allow wash water to heat to at least 60°C prior to starting the first cycle as some commercial dishwasher
chemical will foam at low temperatures.
•Low water pressure can result in above average detergent concentrations. As low water pressure also impacts
rinse results, we recommended this is solved by installing a rinse pump rather than compensating by reducing
chemical dosages.
Other equipment in the kitchen has needed filters or has scale
•Due to the high temperatures in dishwashers, scale will build up in the wash tank, on the arms and in the rinse
tank. The incoming water should be treated. If uncertain, please consult a water specialist.
•As with the Combi-Oven, high chloride levels will do irreversible damage to a number of the components inside
a commercial dishwasher. The incoming water should be appropriately treated. If uncertain, please consult a
water specialist.
Pawl drive not operating
•Clear the area around the limit switch on the roller table.
•Adjust the clutch tension of the Pawl Drive motor, the Pawl drive clutch tension can be tightened by turning the
2 nuts at the bottom of the pawl drive shaft clockwise or loosened by turning the 2 nuts anticlockwise. (Note:
the tension must be at a level where a person can grab the pawl drive with both hands and stop the pawl drive
motion).
Too much steam escaping the machine
•Ensure all curtains are in place and positioned correctly.
•By default the wash thermostat is set to 65°C, reduce temperature to 60°C if required.
•Check the hot/cold water solenoids connections are connected to the correct water mains outlet.
•Check vents on top of the machine are clear of any obstructions - DO NOT USE THE TOP OF THE MACHINE FOR
STORAGE.
•Check that nothing has changed in relation to allowing adequate airflow through the washroom.
•Ensure that the condenser inlet baffles are fully open.
•If a dryer is fitted, ensure that this is not creating a backflow through the machine.
Grinding noise from the machine
•Phase rotation from the main power supply must be checked after installation to ensure correct direction.
(excessive noise and damage to the wash pump can occur due to incorrect direction). Indicator on drive.
Machine stops and refills during the commissioning stage
•Fit the curtains according to the Operator Care – curtain diagram (page 14).
•Ensure the Scrap Trays are fitted in the Wash and Rinse Zones.

2/19/2020 Starline CDe240 Operator Manual 10
Operator Use Guide
START
•Turn on at wall.
•Pre Wash Zone:
Fit Drain Upstand (6).
Fit Scrap Trays (4) and (5).
•Wash Zone:
Fit Wash Pump Inlet Filter (3).
Fit Drain Upstand (2) .
Fit Scrap Trays (1).
•Rinse Zone:
Fit Rinse Pump Filter (9) .
Fit Drain Upstand (8).
Fit Scrap Trays (7).
•Shut all doors and turn wall and Machine Power on.
•Machine begins filling. Full light amber when tanks are full.
•Ready light glows amber when the machine is up to required temperature.
OPERATION
•Press Start button to operate machine.
•Cycle light glows green while machine operates.
•Stack one rack with items. Push the rack fully onto the sideload table of the machine.
Ensure that the rack remains parallel to the back of the sideload table.
•Repeat for all consecutive racks
•For quicker washing, press Fast button to toggle faster washing speed.
NOTE: Pumps and conveyor will stop operating if the machine is left idle for 2 minutes. To
restart the pump and conveyor simply feed a new rack into the inlet of the machine.
SHUT DOWN – END OF EACH DAY
•Press Stop button
•Take out Drain Upstands (2, 6 & 8) to gravity drain the machine.
•When tanks are visibly empty switch Power button off.
•Proceed with Operator Care Wash Zone and Rinse Zone cleaning instructions.
SUGGESTED BEST PRACTICE
Pre-rinse Scrape and/or rinse trays, plates & glasses in cool water
Chemical Use a good quality non foaming commercial detergent and drying agent – do
not use domestic detergents which will cause the wash tank to foam

2/19/2020 Starline CDe240 Operator Manual 11
Operator Care – Wash Zone
CDe240 Wash Zone
•Part #: CDe240 Wash Zone
•Date: 08/03/2019
•Version: 1-A
Daily Cleaning
•Remove Scrap Trays (10) and clean with a brush and water to clear grid.
•Remove Wash Pump Inlet Filter (12) and clean with a brush and water to clear grid.
•Return Drain Upstand (11), Wash Pump Inlet Filter (12) and Scrap Trays (10) to the machine.
Weekly Cleaning
•To be done in conjunction with Daily cleaning.
•Remove Lower Wash Arms (8) – lift up to unhook the arm and then withdraw.
•Remove Upper Wash Arms (7) – push the clip up and then withdraw.
•Check to ensure arms are clear of obstructions. Remove end caps to clear if not.
•Flush Arms (7 & 8) with water. Use a toothpick or paper clip if necessary to clear jets.
•Return the Wash Pump Inlet Filter (12), the Drain Plug (11), Scrap Trays (10),
Lower Wash Arms (8) and Upper Wash Arms (7) to the machine.

2/19/2020 Starline CDe240 Operator Manual 12

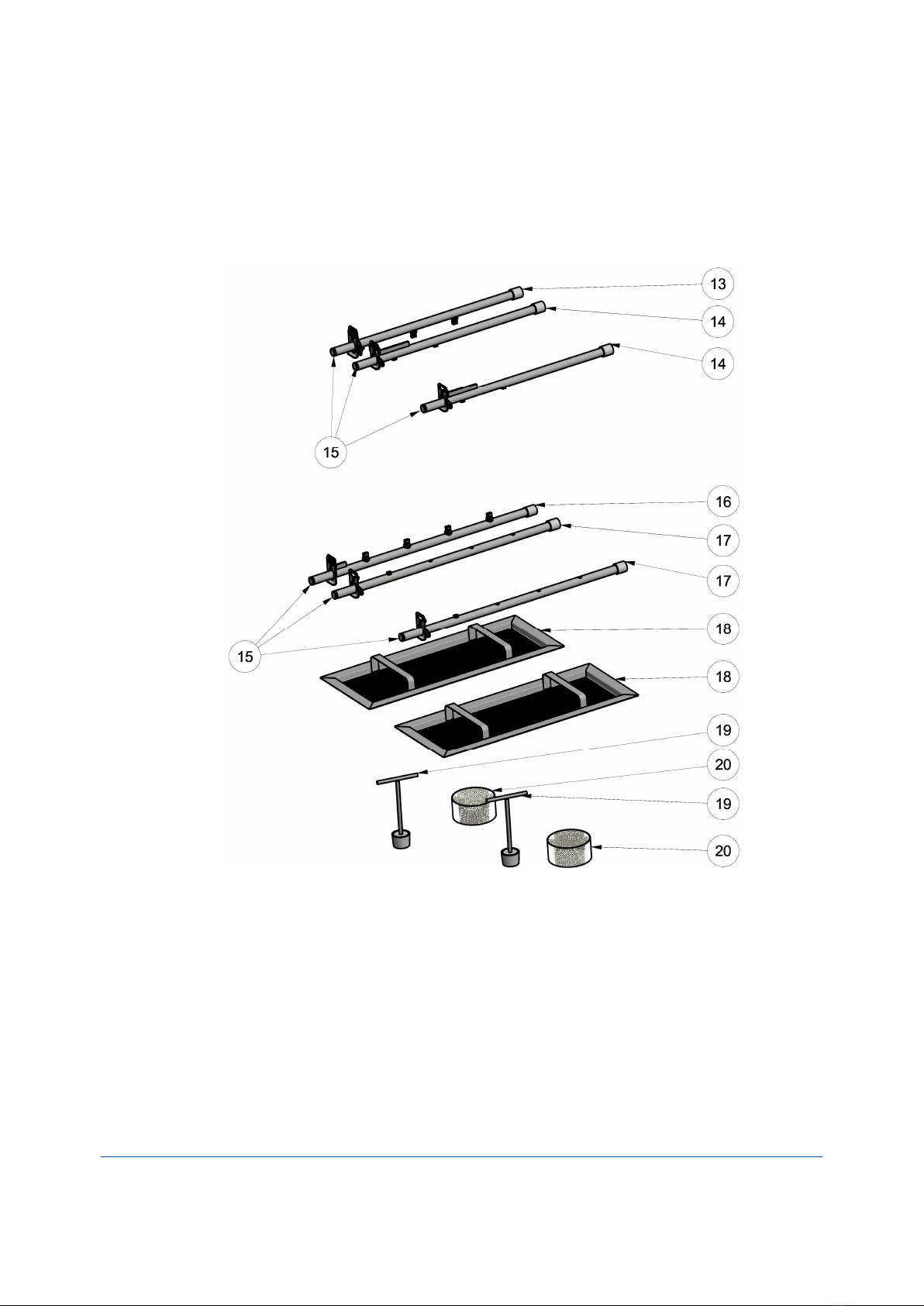

Operator Care – Rinse Zone
CDe240 Rinse Zone
•Part #: CDe240 Rinse Zone
•Date: 12/03/2019
•Version: 1-A
Daily Cleaning
•Remove Scrap Trays (18) and clean with a brush and water to clear grid.
•Remove Drain Plug (19) , Rinse Pump Filter (20) and clean with a brush and water to clear grid.
•Return Scrap Trays (18) and Pump Inlet Filter (20) to the machine.
Weekly Cleaning
•To be done in conjunction with Daily cleaning.
•Remove Lower Rinse Arms (16 & 17) – lift up to unhook the arm and then withdraw.
•Remove Upper Rinse Arms (13 & 14) – push the clip up and then withdraw.
•Check to ensure arms are clear of obstructions. Remove end caps (15) to clear if not.
•Flush Arms (13, 14, 16, 17) with water. Use a toothpick or paper clip if necessary to clear jets.
•Return the Drain Plug (19), Pump Inlet Filter (20), Scrap Trays (18), Lower Rinse Arms (16 & 17) and
Upper Rinse Arms (13 & 14) to the machine.

2/19/2020 Starline CDe240 Operator Manual 13
Operator Care - Curtains
CDe240 Curtains
•Part #: CDe240 Curtains
•Date: 18-02-2020
•Version: 1-A
Types Of Curtains
1. Long anti splash curtain 600 x 475 (Part number: 840 90011)
2. Medium anti splash curtain 600 x 230 (Part number: 840 90012)
3. Short anti splash curtain 600 x 150 (Part number: 840 90013)
The Purpose of Curtains:
•To keep the heat inside the zones of the machine
•To stop water splashing from one zone to another. This prevents wash and rinse water
mixing. If this happens the water quality will be reduced.
•Curtains must be placed in their correct positions to work properly. They must also be the
correct way around.
•Broken curtains need to be replaced promptly.
Weekly Cleaning
•Remove curtains from hooks
•Place each curtain into a dishrack and wash through the machine

2/19/2020 Starline CDe240 Operator Manual 14
Operator Troubleshooting
Issue Cause
POOR PRE-SCRAPING CARRY OVER OF SOAP FROM SINK OVERLOADING RACKS POOR MACHINE CARE JETS BLOCKED OR ARMS OBSTRUCTED CURTAINS NOT FITTED CORRECTLY WATER SUPPLY PRESSURE LOW POOR WATER QUALITY** RINSE TEMPERATURE LOW <75˚C PAWL DRIVE NOT OPERATING CRASHING SOUND AGAINST DOOR
DISHES NOT CLEAN       
STAINING     
FOAMING 
PROTEIN BLOOM     
DIRTY MACHINE      
FOOD RESIDUE ON WARE    
FILM/SPOTS ON WARE      
DETERGENT RESIDUE 
GREASY FILM/NO FIZZ 
WET WASHWARE  
SCALE BUILD UP IN MACHINE  
FILTERS ON OTHER EQUIPMENT 
LIMIT SWITCH ACTIVATED 
WASH ARM NOT FITTED PROPERLY 
MACHINE STOPS & REFILLS CONSTANTLY 
Likely cause Possible cause
* For issues most likely due to incorrect chemical dosages or other chemical issues, we
recommend you consult your chemical supplier and/or a local chemical expert prior to calling
in a dishwasher technician.
** For issues that are likely due to poor water quality (scale building up, filters being required
on other kitchen equipment etc.), we recommend you consult a local water specialist prior to
calling in a dishwasher technician.
IF PROBLEMS PERSIST CONTACT STARLINE SERVICE ON 0800 STARLINE

17/12/2018 15
AVB Connections
CDE 240 AVB Connections
•Part #: CDE 240 AVB Connections
•Date: 16/02/2020
•Version: 1-A
The CDe180 are supplied with Atmospheric Vacuum Breaker as the source of backflow
prevention to prevent contamination of supply water as required. These AVBs and associated
systems within the CDe180 have been tested and confirmed as compliant with latest WMTS
101:2016 – Appliances (low hazard rating).
No additional backflow prevention devices are required to be installed with Starline
dishwashers.
Purpose of each AVB
AVB 1
Water Source: Hot Water Supply.
Water Output: Eco Rinse Tank.
AVB 2:
Water Source: Hot Water Supply.
Water Output: Wash Tank.
AVB 3:
Water Source: Cold Water Supply.
Water Output: Condenser Unit.
AVB 4:
Water Source: Condenser Unit.
Water Output: Rinse Tank.
Starline CDe180 Service Manual

2/19/2020 Starline CDe240 Operator Manual 16
Schematic Diagram
CDe240 Schematic Diagram
•Part #: 250326
•Date: 14-02-2020
•Version: 1-A

2/19/2020 Starline CDe240 Operator Manual 17
Accessories
CDe240 Accessories
•Part #: CDe240 ACW
•Date: 28/08/2018
•Version: 1-A

Information supplied in this manual is copyright. No
part of this work may be reproduced or copied in any
form or by any means, electronic or
mechanical without the express permission of the
author/publisher
Manufactured in New Zealand by Washtech Ltd.
414 Rosebank Road
Avondale
Auckland 1026
New Zealand
PO Box 90548, Auckland
24HR Service 0800 Starline
Tel [phone]
Fax [phone]
E-mail [email protected]
web www.starline.co.nz
ISO9001
All Washtech products are designed and
manufactured by Washtech using the
internationally recognised ISO9001 quality
management system, covering design,
manufacture and final inspection, ensuring
consistent high quality at all times.
In line with policy to continually develop and
improve its products, Washtech Ltd reserves the
right to change specifications and design without
prior notice.
