Owner‘s Manual

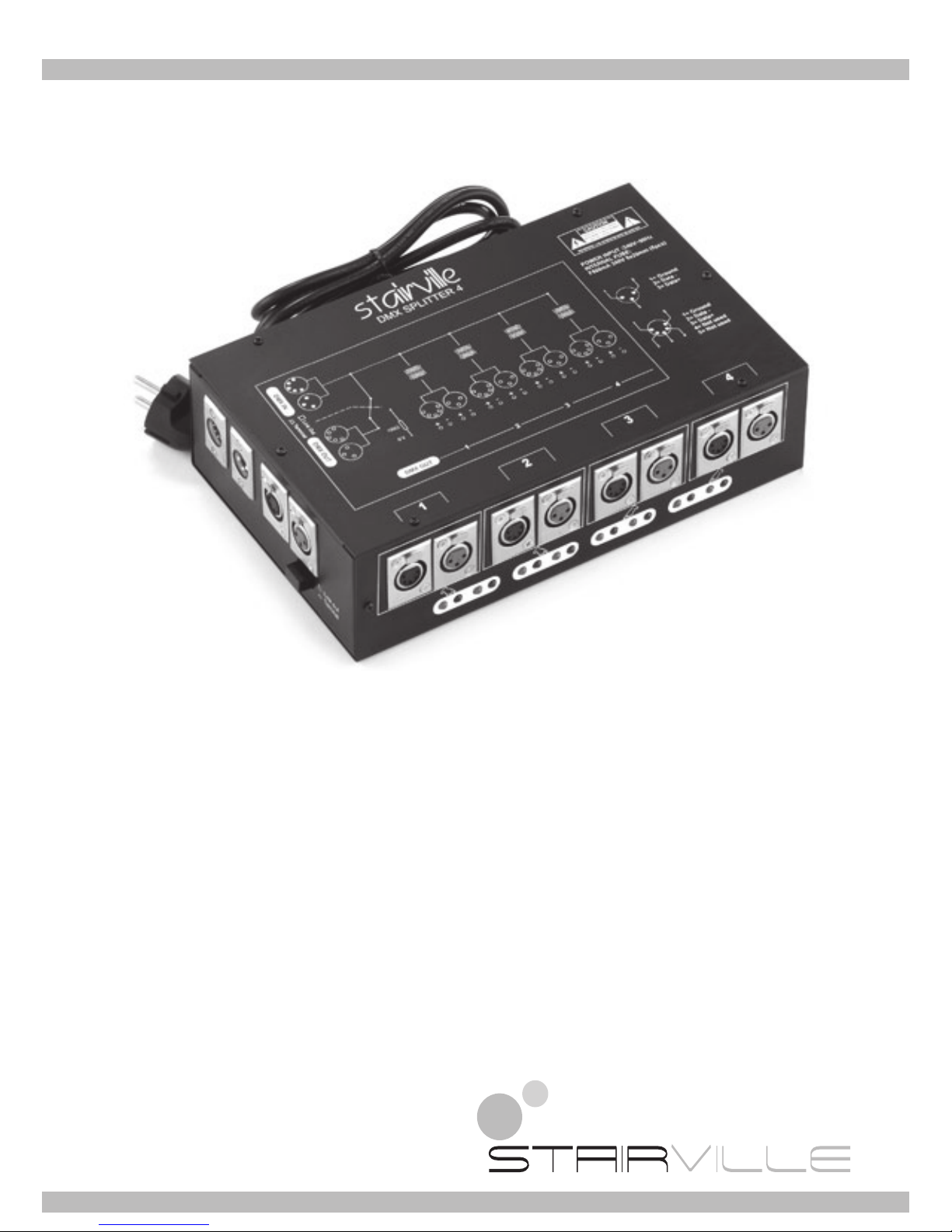

DMX SPLITTER 4

STAIRVILLE • DMX SPLITTER 4
2
www.thomann.de
Thank you for choosing one of our DMX splitters. Please read this user
manual carefully and follow the instructions to avoid danger or damage to the
unit due to mishandling. Keep this user guide for future reference. If you give
the unit to another user, be sure that he also receives this instruction booklet.
Safety instruction
You have to carefully read the instruction, which includes important
information about the installation, usage and maintenance, BEFORE
operating this device.
XThis device is exclusively meant to be used as a splitter for DMX signals
within the limits given in this manual. Using it in any other way you risk
electric shock and warranty will become void.
XNever sever or manipulate the power cord or the plug. If a power cord is
provided with an earth lead, this is mandatory to ensure safe operation!
Otherwise a LIFE THREATENING situation exists!
XUnpack and check carefully there is no transportation damage before
using the unit. Never put a damaged device into operation.
XBefore operating, ensure that the voltage and frequency of power supply
match the power requirements of the unit as stated in this manual.
XThe unit is for indoor use only. Use it only in a dry location. Exposing the
device to rain or moisture would cause the risk of electrical shock or re.
XDO NOT let any liquids or objects enter the unit. Should any liquid
be spilled on the unit, DISCONNECT the power supply to the unit
immediately and contact the service company.
XThe unit must only be installed in a location with adequate ventilation.
Be sure that no ventilation slots are blocked. In order to guarantee
adequate ventilation, allow a free air space of at least 20 cm around the
sides and top of the unit.
XDisconnect the device from the mains power before any servicing or
maintenance.
XNotice regarding power disconnection:
To disconnect the device from the power source the power plug must
be removed from the power socket. For this reason the device must
be placed in a position where a constant unobstructed access to the
power socket is assured, thus in an emergency situation you are able
to immediately pull out the power plug. To eliminate the risk of re you
must completely disconnect the power plug from the power socket after
the device has been used.

STAIRVILLE • DMX SPLITTER 4
www.thomann.de 3
XAlways grasp the power cord by the plug. Do not pull on the cord itself
and never touch the power cord with wet hands as this could result in
a short circuit or an electrical shock. Do not place the device, speaker
cabinets or anything else on the power cord and make sure that it does
not become clamped. Place the power cord in a position where it can
not be trod on. A damaged power cord can cause a re or an electrical
shock. Check the power cord from time to time. Should it become
damaged contact our customer service centre to have it replaced.
XYou have to ensure, that the power cord never becomes wet during
operation.
XBefore a storm and/or a thunderstorm with a risk of lightning, disconnect
the device from the mains power supply.
XUnder no circumstances may you open the device housing. Should you
do so your safety would not be assured and the warranty will become
void. There are no operational components whatsoever inside, only
dangerous voltages that can give you a deadly shock!
XNEVER use the unit under the following conditions:
> In places subject to vibrations or bumps.
> In places with a temperature of over 45 °C or less than 2 °C.
> In places subject to excessive dryness or humidity (ideal conditions
are between 35% and 80%).
XNever submerse the device in water or any other liquid. Only wipe it
with a slightly damp cloth.
XNever operate the device near ames, ammable, explosive materials,
or hot surfaces. Otherwise you run the risk of causing a re.
XNever leave this device running unattended.
XThis appliance must not be used by individuals (including children) with
restricted physical, physiological or intellectual abilities or deciencies in
experience and/or knowledge unless they are supervised by a person
responsible for their safety or receive from this person instruction in how
the appliance is to be used.
XKeep children away from the device and power cord! Children
frequently underestimate the dangers of electrical devices. Also keep
the plastic packaging well away from small children. There is a risk of
suffocation!
XIn the event of serious operating problems, stop using the unit
immediately. Never try to dismantle, repair or modify the unit by
yourself. Otherwise warranty becomes void. Repairs carried out by
unskilled people can lead to damage or malfunction. Please contact the
nearest authorized technical assistance centre.

STAIRVILLE • DMX SPLITTER 4
4
www.thomann.de
Introduction
The DMX distributor offers one input and four outputs. Both input and
outputs as well as outputs among each other are completely eclectically
isolated. Two types of DMX connectors (3-pin & 5-pin) are available for
each individual channel. Each DMX output features an independent driver
and DATA+ & DATA- indicator. Using the built-in switch you can easily
terminate the LINK OUT, when you don’t want to transmit the DMX signal
to other units.
Technical specifications
Power supply voltage AC 230 V~, 50 Hz
Fuse (internal) F 500 mA, 250 V, 5 x 20 mm (5 pcs)
Dimension 277 x 172 x 72 mm
Weight 2.8 kg
As we continuously strive to improve our products, all specications and
appearance are subject to change without prior notice.
Operating instruction and connection
DMX OUT: connect the DMX receiving device(s) here
DMX IN: connect the DMX transmitting device here

STAIRVILLE • DMX SPLITTER 4
www.thomann.de 5

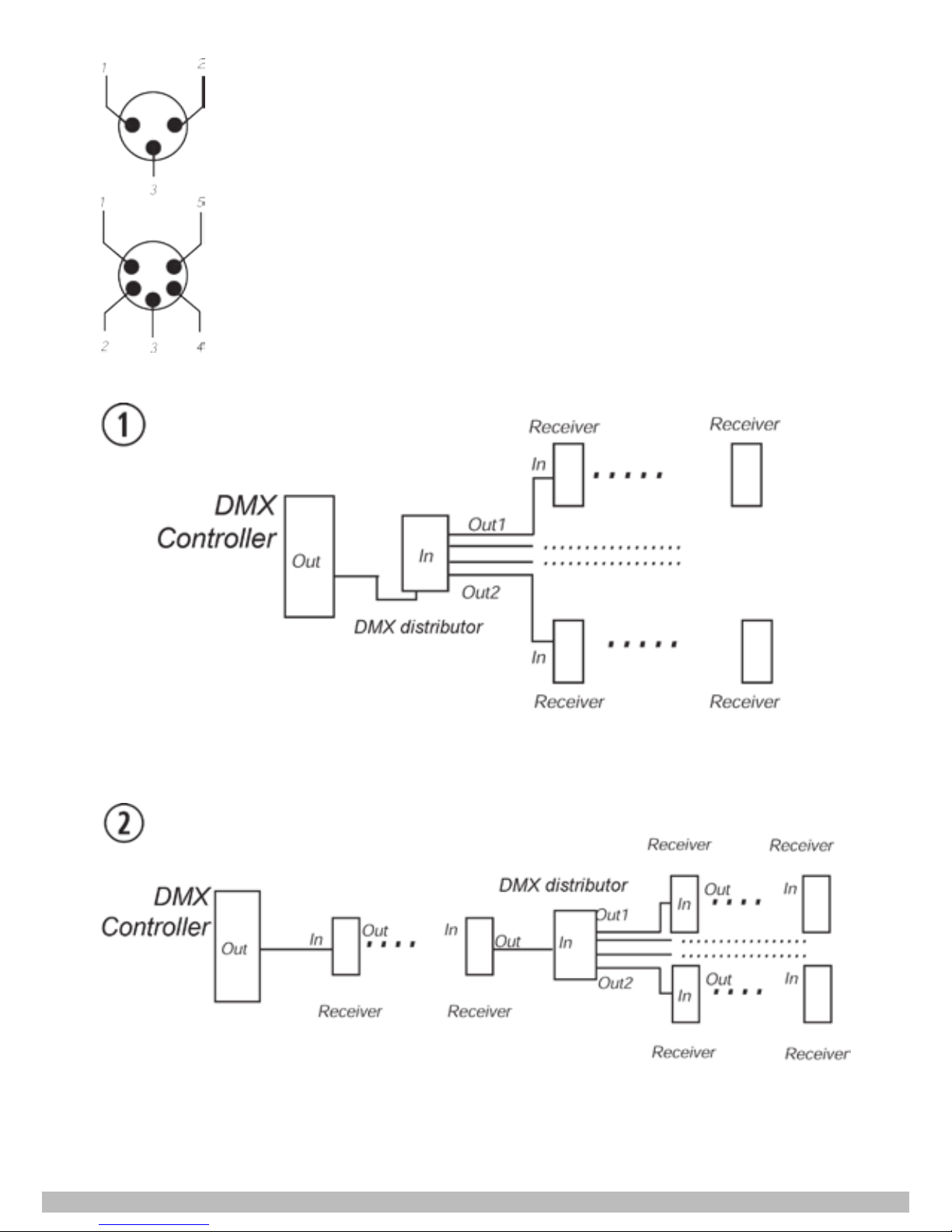

Connection diagrams:
You can run a maximum of 32 units (receiver) per output channel.
Use a terminator on the last receiver.
You can run a maximum of 32 units (receiver) per output channel.
Use a terminator on the last receiver.
This is the unit’s pin assignment:
Pin 1: Ground/Shielding
Pin 2: Data –
Pin 3: Data +
Pin 4: not used
Pin 5: not used
1= Shield
2= Data –
3= Data +
1= Shield
2= Data –
3= Data +
4= not used
5= not used

STAIRVILLE • DMX SPLITTER 4
6
www.thomann.de
If you don’t connect other units to the DMX LINK OUT socket, you have to
press the switch underneath the socket, to terminate this output.
You may only connect the device to a properly wired and earthed
mains power wall outlet, after all DMX connections have been
established. The wall outlet must provide the correct mains voltage
as stated in this manual.
Disposal
Do not dispose of the device at the end of his operating life in your
normal domestic waste. This device is subject to the European
Guidelines 2002/96/EC.
XHave the product disposed of by a professional disposal company of by
your communal disposal facility.
XObserve the currently applicable regulations. In case of doubt contact
your disposal facility.
XDispose of packaging materials in an environmentally responsible
manner.
