STARVILLE GF-3000 User manual

GF-3000
Ground Fog Machine
user manual

Musikhaus Thomann
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
20.04.2015, ID: 358342

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 15
4 Installation.................................................................................................................................................. 16
5 Connections and operating elements........................................................................................... 17
6 Operating.................................................................................................................................................... 19
7 Technical specifications....................................................................................................................... 22
8 Troubleshooting...................................................................................................................................... 23
9 Cleaning....................................................................................................................................................... 24
10 Protecting the environment.............................................................................................................. 27
Table of contents
GF-3000
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
Ground Fog Machine
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General information
GF-3000
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch off the device.
Letterings
Instructions
General information
Ground Fog Machine
6

1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
GF-3000
7

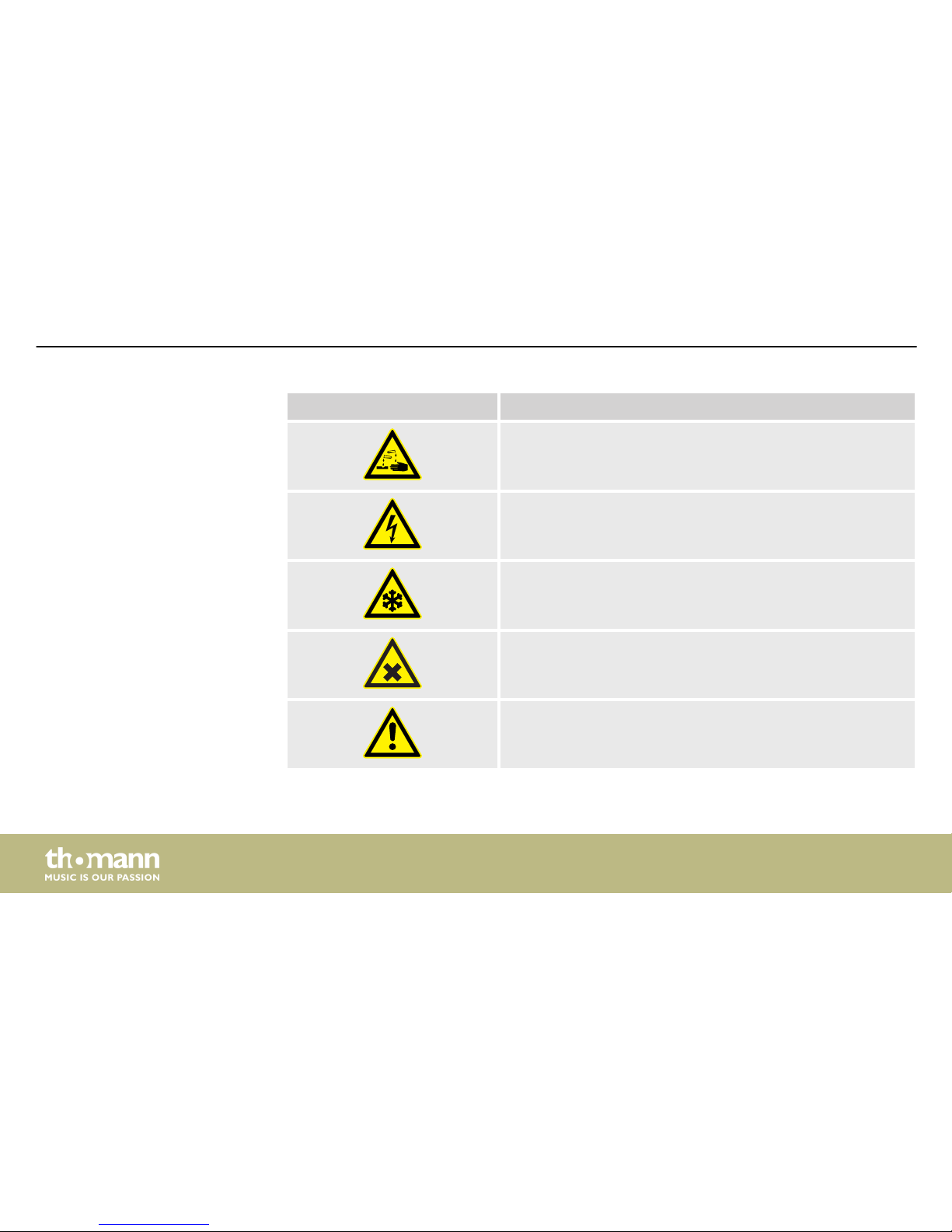

Warning signs Type of danger
Warning – corrosive substances.
Warning – high-voltage.
Warning – extreme cold.
Warning – harmful or irritating substances.
Warning – danger zone.
General information
Ground Fog Machine
8

2 Safety instructions
This device is intended for generating artificial fog by evaporation of dry ice in hot water. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
GF-3000
9

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
Ground Fog Machine
10

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Danger of frostbite when handling dry ice
Dry ice is frozen carbon dioxide (CO2) at a temperature of –87,5 °C . Direct contact
of dry ice with the skin causes severe frostbite.
Never touch dry ice with bare hands. When handling dry ice, wear suitable pro‐
tective gloves and ensure appropriate eye protection.
If you break up large blocks of dry ice, cover them first with a towel or a cloth bag.
Safety instructions
GF-3000
11

WARNING!
Danger of suffocation on storage of dry ice
Gaseous carbon dioxide in high concentrations causes suffocation. Even low con‐
centrations can lead to circulatory insufficiency, headache, unconsciousness,
nausea or vomiting.
Keep dry ice containers in a well ventilated area where children can not gain
access.
WARNING!
Danger of slipping from condensed water
Dripping condensation may cause the area around the device to be slippery.
Check regularly that all floors can be accessed without slipping and remove the
condensed water, if necessary.
Safety instructions
Ground Fog Machine
12

NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
GF-3000
13

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
Safety instructions
Ground Fog Machine
14

3 Features
This fog machine is suitable for use in clubs, bars, discotheques and on stages
Special features of the device:
nHigh efficiency heating element
nLarge water tank
nRobust housing
Features
GF-3000
15

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Place the unit on a flat, non-flammable, solid surface in a well ventilated area.
Installation
Ground Fog Machine
16

5 Connections and operating elements
Connections and operating elements
GF-3000
17

1 Carrying handles.
2 Lid fastening.
3[READY]
Green indicator light. Indicates that the filled in water has the required operating temperature.
4[HEATING]
Red indicator light. Lights when the unit is heating up.
5 Mains cable for power supply.
6 Connecting cable to the heating element.
7 Fog nozzle.
8 Heating element.
9 Lever for raising and lowering the ice bin.
Connections and operating elements
Ground Fog Machine
18

6 Operating
WARNING!
Danger of frostbite when handling dry ice
Dry ice is frozen carbon dioxide (CO2) at a temperature of –87,5 °C . Direct contact
of dry ice with the skin causes severe frostbite.
Never touch dry ice with bare hands. When handling dry ice, wear suitable pro‐
tective gloves and ensure appropriate eye protection.
If you break up large blocks of dry ice, cover them first with a towel or a cloth bag.
NOTICE!
Fire hazard
Do not operate the machine unattended.
1. Make sure the unit is disconnected from the mains.
Open the lid fastening (2) and open the lid.
Turn on the device
Operating
GF-3000
19

2. Lift the ice bin with the lever (8) and lock the lever in the highest position (marked with
[0] ).
3. Fill the tank with 5 litres of cold water. The water level must be below the ice bin when
the lever (8) is in the highest position ([0]).
4. Connect the device to the power grid.
ðThe red indicator light (4) comes on to indicate that the unit is heating up. When the
red indicator light is not lit check the water level and top up water if necessary.
5. Carefully fill the ice bin with dry ice. It holds 2.2 kg.
If ice particles lie on the edge of the supply tank, wipe the edge clean with a cloth.
6. Fold down the lid and close the lid fastening.
7. Wait until the green indicator light (3) comes on. Now the water has reached the
required temperature for fog generation. When the water cools down too much during
operation, the heating is switched back on and the red indicator light (4) comes on.
Lower the ice bin slowly with the lever (8) down to the middle position ([1]) so that the
dry ice gets in contact with the hot water. As a result, the solid carbon dioxide evapo‐
rates immediately and releases clouds of steam emerging from the fog nozzle (7). When
the fog output decreases, you can lower the ice bin cautiously.
8. When water and dry ice are used up, you can refill the unit.
