State Water Heaters SRGSS02207 User manual

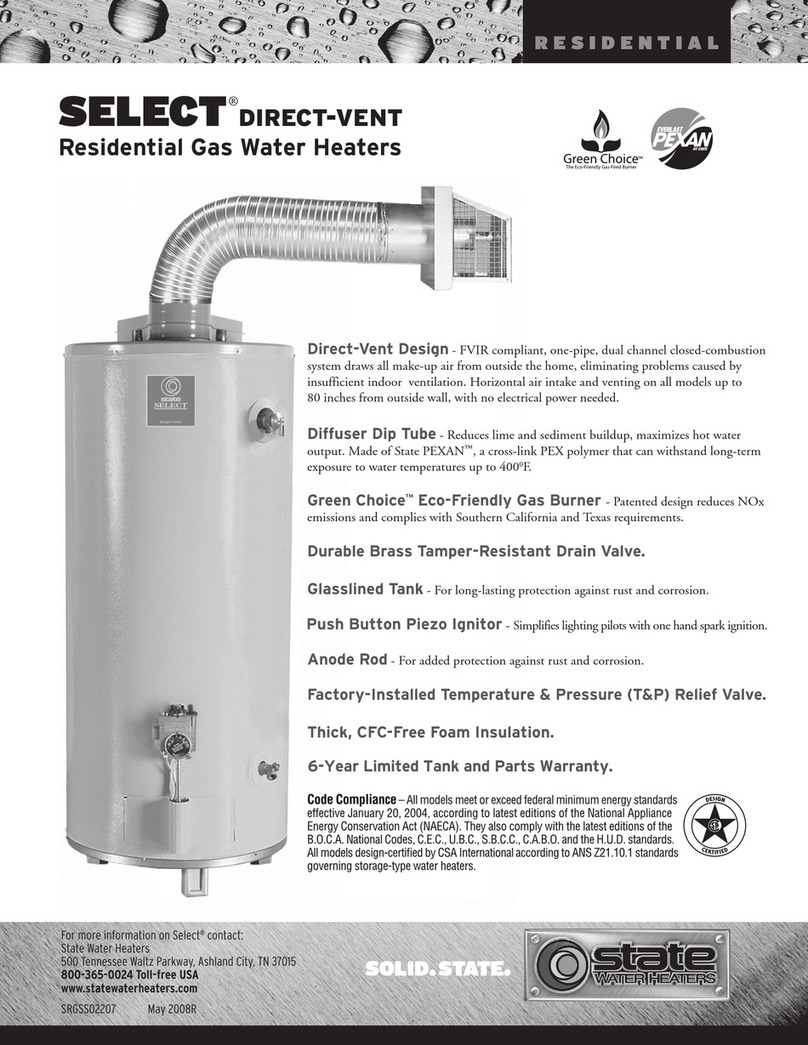

RESIDENTIAL
SELECT DIRECT-VENT
Residential Gas Water Heaters
For more information on Select
®
contact:
State Water Heaters
500 Tennessee Waltz Parkway, Ashland City, TN 37015
800-365-0024 Toll-free USA
www.statewaterheaters.com
SRGSS02207 June 2011R
Direct-Vent Design - FVIR compliant, one-pipe, dual channel closed-combustion
system draws all make-up air from outside the home, eliminating problems caused by
insufficient indoor ventilation. Horizontal air intake and venting on all models up to
80 inches from outside wall, with no electrical power needed.
Diffuser Dip Tube - Reduces lime and sediment buildup, maximizes hot water
output. Made of State PEXAN
™
, a cross-link PEX polymer that can withstand long-term
exposure to water temperatures up to 400
0
F.
Green Choice
™
Eco-Friendly Gas Burner - Patented design reduces NOx
emissions and complies with Southern California and Texas requirements.
Durable Brass Tamper-Resistant Drain Valve.
Glasslined Tank
- For long-lasting protection against rust and corrosion.
Anode Rod - For added protection against rust and corrosion.
Factory-Installed Temperature & Pressure (T&P) Relief Valve.
Thick, CFC-Free Foam Insulation.
6-Year Limited Tank and Parts Warranty.
Push Button Piezo Ignitor - Simplifies lighting pilots with one hand spark ignition.
237691_SRGSS02207.indd 1237691_SRGSS02207.indd 1 6/28/11 10:04 AM6/28/11 10:04 AM

RESIDENTIAL
SELECT DIRECT-VENT
Residential Gas Water Heaters
For more information on Select
®
contact:
State Water Heaters
500 Tennessee Waltz Parkway, Ashland City, TN 37015
800-365-0024 Toll-free USA
www.statewaterheaters.com
SRGSS02207 June 2011R
For complete information on limited warranties,
consult written warranty, or contact the State
Customer Care Center, 1-800-365-0024.
Recoveries are rounded to nearest gallon
Water Connections - 3/4” on all models
**Dual-channel system has 3” vent pipe inside 6” air intake pipe for the 40 & 50-gallon. The 75-gallon models uses a 4” x 7” Co-Axial pipe.
***A dimension is to center line of flue (recommended vent height)
When ordering Propane, change “Y” to “H” in model number (GS6 40 HBDS)
All models have 2” foam cavity
75-gallon water connections are 12” on center.
MODEL
NUMBER
FIRST
HOUR
RATING
ENERGY
FACTOR
GALLON
CAP
BTU
INPUT
RECOVERY
90 DEGREE
RISE A*** CB D E F
DIMENSIONS VENT
PIPE**
SHIPPING
WEIGHT
GS6 40 YBDS
GS6 50 YBDS
GS6 50 YRDS
73
87
88
0.62
0.60
0.59
40
50
50
38,000
42,000
50,000
41
45
55
Co-Axial
Co-Axial
Co-Axial
167
185
187
68
76
76
54-3/4
63-3/4
64-3/4
22-1/4
22-1/4
22-1/4
16
16
16-1/4
12-1/4
12-1/4
12-1/2
45-1/4
54
55-1/2
E
F
B
A
D
FRONT
MAX VENT
80
C
EXTERIOR
WALL
6“ DIA. ON 40 & 50-GALLON MODELS
7” DIA. ON 75-GALLON MODELS
MIN VENT
17
42°
47°
25-1/4 for
40 & 50-gallon
29-1/2 for
75-gallon
TOP
NIA
R
D
P
&T
Important! Vent Installation and Termination Requirements
• Maximum horizontal vent distance is 80” to outside of exterior wall.
• Minimum horizontal vent distance is 17” to outside of exterior wall.
• Vent pipes may be trimmed (cut) for short vent installations.
• For vent installation less than 30” the vent restrictor is required. Place
restrictor over the flue outlet on heater before installing the outlet vent
pipe to the heater.
• Recommended installation height for the heater and vent pipe should be
68” for 40-gallon models and 76” for the 50 and 75-gallon models (vent
height).
• Offset Vent Arrangement
1. When replacing an existing direct vent model, the new vent pipe may drop
from the minimum vent height as much as 7 1/4” to exit through the
existing vent opening in the exterior wall.
2. Vent may have one horizontal 90 degree turn before exiting through
exterior wall (Do not combine both offset vent arrangements in one
installation) (See examples in the installation manual)
• High Rise Vent Arrangement
3. When vent termination is more than 80” above the base of the heater.
The horizontal vent run must be a minimum of 22” from the center of the
heater to the outside exterior wall surface. (See example in the
installation manual)
• Vent termination clearance hole through the exterior wall should be
approximately 7” diameter.
• Snow accumulation and drifting should be considered when locating the
termination.
• An optional wire grill vent cap protector is available through the parts
department. Request part number 9006627.
• See the installation manual for complete installation and venting
requirements.
55,000
GS6 75 YRDS 131 0.59 75 60 76 65-3/4 26-1/4 16-1/4
12-1/2 55-1/2 310
Co-Axial
75-GALLON VENT
TERMINATION CAP
IS NOT
INTERCHANGEABLE
WITH THE VENT
CAP ON THE
40 & 50-GALLON
MODELS.
