STATESMAN CHF102 User manual

Instruction Manual
CHEST FREEZER
CHF102 / CHF151 / CHF200
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have
been caused in transit.

2
CONTENTS
Safety Instructions...............................................2 - 5
Appliance Overview.................................................. 6
Installation ...........................................................7 - 8
Operating Instructions.......................................8 - 10
Cleaning & Maintenance ........................................ 11
Troubleshooting...................................................... 12
Fuse Replacement ................................................. 13
Disposal Information .............................................. 13
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel
you are familiar with the product, and nd a place to
keep this manual handy for future reference.
Important: This product is intended for domestic use
only; to store and freeze food products only. When using
electrical appliances, basic safety precautions should
always be followed:
• Do not operate the appliance with a damaged cord
or plug, after it malfunctions or has been dropped
or damaged in any way. All electrical repairs must
becarriedoutbyaqualiedelectrician.Inadequate
repairs may result in a major source of danger for the
user and invalidate the warranty.
• Check the voltage of the appliance matches the
household voltage, which is located on the rating label.
• Use of an extension cord is not recommended with
this product.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a

3
person responsible for their safety. Children should
be supervised to ensure that they don’t play with the
appliance.
• Cleaning and user maintenance shall not be made by
children
• Keep the appliance and its cord out of reach of
children.
• Keep all packaging well away from children. There is a
riskofsuocation
• Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
• Always unplug the appliance before attempting to
move. When disconnecting from the electricity supply,
pull the plug and not the cord.
• This product is for indoor use only.
• Do not store explosive substances such as aerosol
canswithaammablepropellantinthisappliance.
• Always keep the ventilation openings clear of
obstruction. Should they become blocked, clear them
straight away.
• The refrigerant of this product is R600a which is
ammable.Ensurewhenmovingtheapplianceor
during installation that the cooling system does not get
damaged.
• Do not use mechanical devices or other means to
accelerate the defrosting process.
• Do not touch the light bulb if it has been on for a long
period of time because it could be very hot.
• During transportation and installation of the appliance,
be certain that none of the components of the

4
refrigerant circuit become damaged.
• Make sure that the power plug is not squashed or
damaged by the back of the appliance. A squashed or
damagedpowerplugmayoverheatandcauseare.
• Do not remove or touch items from the freezer
compartment if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
WARNING: The appliance is heavy and care is
needed when unpacking and moving it. Get extra
help and only hold the appliance by the casing –
never hold by the door or the trim.
WARNING: Risk of child entrapment.
Before disposal of the old appliance, make sure
thatanylockingmechanismshavebeenbrokeno,
doors have been removed but shelves have been left
in so that children cannot easily climb inside.
Also remove the plug so the appliance is unusable.
WARNING:Riskofre/ammablematerials.

5
APPLIANCE OVERVIEW
Recessed handle
Wheel
(or adjustable foot)
Basket
Control panel
Drain hole
Note: this refrigerating appliance is not intended for use as a built-in appliance. Above picture is for
reference only.

6
INSTALLATION
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate
class indicated on the rating plate of the appliance:
For refrigerating appliances with climate class:
—extended temperate: this refrigerating appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C (SN);
—temperate: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C (N);
—subtropical: this refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 38 °C (ST);
—tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging
from 16 °C to 43 °C (T);
IMPORTANT NOTE: The appliance can operate at temperatures down to -15°C and is
therefore suitable for use in garages and out buildings. However it is not recommended to keep
theappliancerunningatalowambienttemperatureforlongperiodsoftime,asitcouldaect
the life expectancy of the appliance.

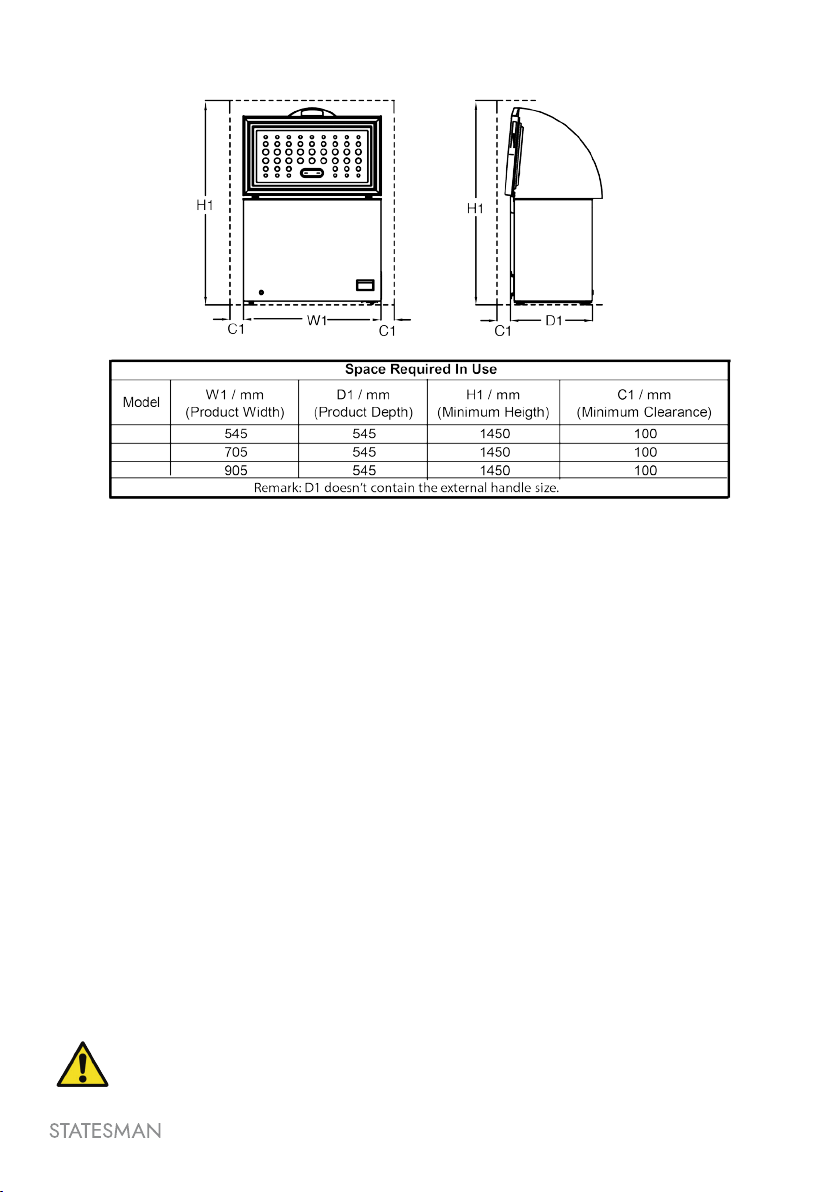

Location
The appliance should be installed well away from sources of heat such as radiators, boilers,
directsunlightetc.Ensurethataircancirculatefreelyaroundthebackofthecabinet.Toensure
best performance, if the appliance is positioned below an overhanging wall unit, the minimum
distance between the top of the cabinet and the wall unit must be at least 100mm. Ideally,
however, the appliance should not be positioned below overhanging wall units. Accurate
levelling is ensured by one or more adjustable feet at the base of the cabinet.
Warning! It must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
CHF102
CHF151
CHF200

7
Electrical Connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate
corresponds to your domestic power supply. The appliance must be earthed. The power supply
cable plug is provided with a contact for this purpose. If the domestic power supply socket is
not earthed, connect the appliance to a separate earth in compliance with current regulations,
consultingaqualiedelectrician.Themanufacturerdeclinesallresponsibilityiftheabovesafety
precautionsarenotobserved.ThisappliancecomplieswiththeE.E.CDirectives.
OPERATING INSTRUCTIONS
First Use - Cleaning the Interior
Beforeusingtheapplianceforthersttime,washtheinteriorandallinternalaccessorieswith
luke warm water and some neutral soap so as to remove the typical smell of a brand new
product, then dry thoroughly.
Important!Donotusedetergentsorabrasivepowders,asthesewilldamagethenish.
Temperature Setting
Set
button
O
button
Running
indicator
light
Temperature indicator light Fast freezing indicator light
1.0 Electrical Connection
Whentheapplianceispluggedin,allLEDindicatorlightswillashonce.Theappliancewill
resume whichever setting had been previously set.
2.0 Temperature Setting
To set the temperature, press the ‘Set’ button until the temperature bar indicator reaches the
desired level, where MIN is the warmest and MAX is the coldest. The temperature setting is
conrmedvesecondsafterthelastbuttonpress.
TIP: Normally, it’s recommended to set the temperature to ‘NORMAL’ or colder for optimum
food preservation. The longest storage time in this situation is no more than 1 month, Not using
the recommended setting may reduce the storage time.
Super Freezing
• Press‘SET’buttonconsecutivelyfromthe‘MAX’settingtoenter‘SUPER’freezingmode.
Theindicatorbaronthetheleftwillturndarkandthe“SUPER”lightwillturnon.This
mode is activated 5 seconds after the last button press.
• Thecompressorkeepsworkingin‘SUPER’freezingmode.
• Ifthe‘SUPER’modekeepsrunningfor52hoursandisnotstoppedmanually,thesystem
will automatically return to ‘MAX’ setting.

8
2.1 Power On & Power O
Iftheapplianceisworking,press‘ON/OFF’for3secondstoturno
Iftheapplianceiso,press‘ON/OFF’for3secondstoturnon.
3.0 Indicator Lights
• Temperature Indicator Light (bright blue): To adjust the temperature from Scale MIN to
Scale MAX. MAX is the coldest.
• SuperFreezingIndicatorLight(brightblue):Lighton=in‘SUPER’mode;lighto=exit
‘SUPER’mode.
• RunningIndicatorLight(brightgreen):Lighton=compressorisoperating;lighto=
compressor stops.
• 30 minutes after the last operation, the indicator light will be half illuminated.
4.0 Resumption Function
Ifturnedoforanyreason,theappliancewillautomaticallyresumewhenturnedbackonusing
the same settings as selected before.
5.0 Temperature Sensor Fault Alarm
When there is a disconnection or short out of the temperature sensor, as a fault alarm, the
temperatureindicatorbarwillashfromlefttorightevery0.5seconds.
Freezing Fresh Food
• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-
frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• Themaximumamountoffoodthatcanbefrozenin12hoursisspeciedontherating
plate.
• The freezing process lasts 12 hours: during this period do not add other food to be frozen.
Storing Frozen Food
Whenrstturningtheapplianceonorafteraperiodofnouse,lettheappliancerunonahigh
setting for at least 2 hours before putting products in the compartment.
Important! In the event of accidental defrosting, the defrosted food must be consumed quickly
or cooked immediately and then re-frozen (after cooking.)
Thawing
Deep-frozen or frozen food, prior to use, can be thawed at room temperature, depending on
the time available for this operation.

9
Hints for Freezing
To help you make the most of the freezing process, here are some important hints:
• The maximum quantity of food that can be frozen in 12 hours is shown on the rating plate.
• The freezing process takes 12 hours. No further food to be frozen should be added during
this period.
• Only freeze top quality, fresh and thoroughly cleaned food.
• Prepare food in small portions to enable it to be rapidly and completely frozen, and to
make it possible subsuquently to thaw only the quantity required.
• Wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight.
• Do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise
in the temperature of the latter.
• Lean foods store better and longer than fatty ones; salt reduces the storage life of food.
• Ice consumed immediately after removal from the freezer compartment can cause freeze
burns.
• Including the date of freezing when adding products to the compartment is recommended
to help track storage times.
Hints for Storage of Frozen Food
To obtain the best performance from this appliance, you should:
• Makesurethatthecommerciallyfrozenfoodstuswereadequatelystoredbytheretailer.
• Besurethatfrozenfoodstusaretransferredfromthefoodstoretothefreezerinthe
shortest possible time.
• Not open the door frequently or leave it open any longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

10
CLEANING & MAINTENANCE
For hygenic reasons the appliance interior, including interior accessories, should be cleaned
regularly.
Caution! The appliance must not be connected to the mains during cleaning. Danger of
electricalshock!Beforecleaningswitchtheapplianceoandremovetheplugfromthe
mains. Never clean the appliance with a steam cleaner. Moisture could accumulate in
electrical components, danger of electrical shock! Hot vapors can lead to the damage of
plastic parts. The appliance must be dry before it is put back into operation.
Important! Etherealoilsandorganicsolventscanattackplasticparts,e.glemonjuiceorthe
juice from orange peel, butyric acid, cleanser that contain acetic acid.
• Do not allow such substances to come into contact with the appliance parts.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switchtheapplianceoandremovetheplugfromthemains.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After
cleaning, wipe with fresh water and rub dry.
• Accumulation of dust on the condenser increases energy consumption. For this reason
carefully clean the condenser at the back of the appliance once a year with a soft brush or
a vacuum cleaner.
• After everything is dry the chest freezer can be put back into operation.

11
TROUBLESHOOTING
Caution! Beforetroubleshooting,disconnectthepowersupply.Onlyaqualied
electrician or competent person must carry out any troubleshooting not stated in
the table below.
Important! There are some sounds during normal use (compressor, refrigerant,
circulation).
If you are having problems with your appliance, please use our troubleshooting guide below.
If you are unable to resolve the issue using this guide please ring our Customer Service
Department on 0844 848 5861. Please have the model code and purchase information
available.
Fault Possible Cause Solution
Appliance does not work
Mains plug is not plugged in or
is loose Insert mains plug
Fuse has blown or is defective Check fuse, replace if
necessary
Socket is defective Mains malfunctions are to be
corrected by an electrician
Appliance freezes too much
Temperature is set too cold
or the appliance is running at
‘SUPER’mode
Turn the temperature regulator
to a warmer setting temporarily
The food is not frozen enough
Temperature is not properly
adjusted
Please look in the initial
Temperature Setting section
Door was open for an extended
period
Open the door only as long as
necessary
A large quantity of warm food
was placed in the appliance
within the last 24 hours
Turn the temperature regulator
to a colder setting temporarily
The appliance is near a heat
source
Please look in the Installation
Location section
Heavy build-up of frost on the
door seal Door seal is not air-tight
Carefully warm the leaking
sections of the door seal with
a hair dryer (on a cool setting).
At the same time shape the
warmed door seal by hand so
that it sits correctly
Unusual noises
Appliance is not level Check the appliance and level
it if necessary
The appliance is touching the
wall or other objects Move the appliance slightly
A component, e.g. a pipe, in
the side of the appliance is
touching another part of the
appliance or wall
If necessary, carefully bend the
component out of the way

12
Fuse Replacement (Class I)
This appliance must be earthed. Remove the fuse cover with a
smallatheadscrewdriver.Takeoutthefuseandreplacewith
a new fuse of the same Amp. Replace the fuse cover and push
back into place.
DISPOSAL
TheEuropeanDirective2012/19/EUonWasteElectricalandElectronic
Equipment(WEEE),requiresthatoldhouseholdelectricalappliancesmustnotbe
disposed of in normal unsorted municipal waste.
Old appliances must be collected separately in order to optimise the recovery
and recycling of the materials they contain and reduce the impact on human
health and the environment.
Thecrossedout“wheeledbin”symbolontheproductremindsyouofyour
obligation, that when you dispose of the appliance it must be separately
collected. Consumers should contact their local authority or retailer for
information concerning the correct disposal of their old appliance.
Fuse Cover
FUSE REPLACEMENT

13

14

15

38 Bluestem Road,
Ransomes Europark
Ipswich, IP3 9RR
