STEELE PRODUCTS SP-PB101 User manual

OWIleF'S Manual
MustRead And UnderstandInstructionManual
230181
S_PB 1O1 ........... ton8Enwc_CALL:_ _== _._,
PAnAS£RV_(CXeLLAME:_,_U--_U--_ &
Owner's Manual
Table of Contents
Technical data ............................................. 2
General safety rules ......................................... 3
Specific safety rules for the table saw ........................... 5
Electrical information ....................................... 7
Know your table saw ....................................... 9
Assembly and adjustments .................................. 10
Operation ............................................... 20
Maintenance .............................................. 26
Troubleshooting ........................................... 28
Replacement parts ......................................... 29
Push stick pattern ......................................... 30
Warranty ................................................ 32
Push stick pattern ......................................... 34
Technicaldata
Motor : 120V, 15A, 6OHz
Motor speed : 5OOORPM(no load)
Overloadprotection: Yes
Table size : 16" x 26" (406 x 660mm)
Blade : 10" (254mm) carbide-tipped;
5/8" (15.9mm) arbor
Maximum depth of cut at 90° : 3" (76,2mm)
Maximum depth of cut at 45° : 2-1/2" (63.5mm)
Maximum width of dado : 1/2" (12.7mm)
Netweight : 501b(23kg)
Owner's Manual
General safety rules
Safety is a combination of common sense, staying alert and knowing how your table saw works.
SAVE THE SESAFETYINSTRUCTIONS.
WARNING:To avoid mistakes that could cause serious injury, do not plug in the table saw
until the following steps have been read and understood.
1 .READand become familiar with this entire instruction manual. LEARN the tool's applications,
limitations, and possible hazards.
2.AVOID DANGEROUSCONDITIONS. Do not use power tools in wet or damp areas or expose them
to rain. Keep work areas weIMit.
3.DO NOT use power tools in the presence of flammable liquids or gases.
4.ALWAYS keep your work area clean, uncluttered, and weIMit. DO NOT work on floor surfaces that
are slippery with sawdust or wax.
5.KEEP BYSTANDERS AT A SAFE DISTANCEfrom the work area, especially when the tool is
operating.NEVER allow children or pets nearthe tool.
6.DO NOT FORCETHETOOL to do a job for which it was not designed.
7.DRESS FOR SAFETY. Do not wear loose clothing, gloves, neckties, or jewelry (rings,watches, etc.)
when operating the tool. Inappropriate clothing and items can get caught in moving parts and draw
you in. ALWAYS wear non-slip footwear and tie back long hair.
8.WEAR A FACEMASK OR DUST MASK as the sawing operation produces dust.
WARNING: Dust generated from certain materials can be hazardous to your health. Always
_i_ operate the saw in a well-ventilated area and provide for proper dust removal. Use dust
collection systems whenever possible.
9.ALWAYS remove the power cord plug from the electrical outlet when making adjustments, changing
parts, cleaning or working on the tool.
IO.KEEP GUARDS IN PLACEAND IN WORKING ORDER.
11.AVOID ACCIDENTAL START-UPS. Make sure the power switch is in the OFFposition before plugging
in the power cord.
12.REMOVE ADJUSTMENT TOOLS. Always make sure all adjustment tools are removed from the saw
before turning it on.
1&NEVER LEAVEARUNNING TOOL UNATTENDED. Turn the power switch to OFF.Do not leave the
tool until it has come to a complete stop.

OWRGF'S MaNual

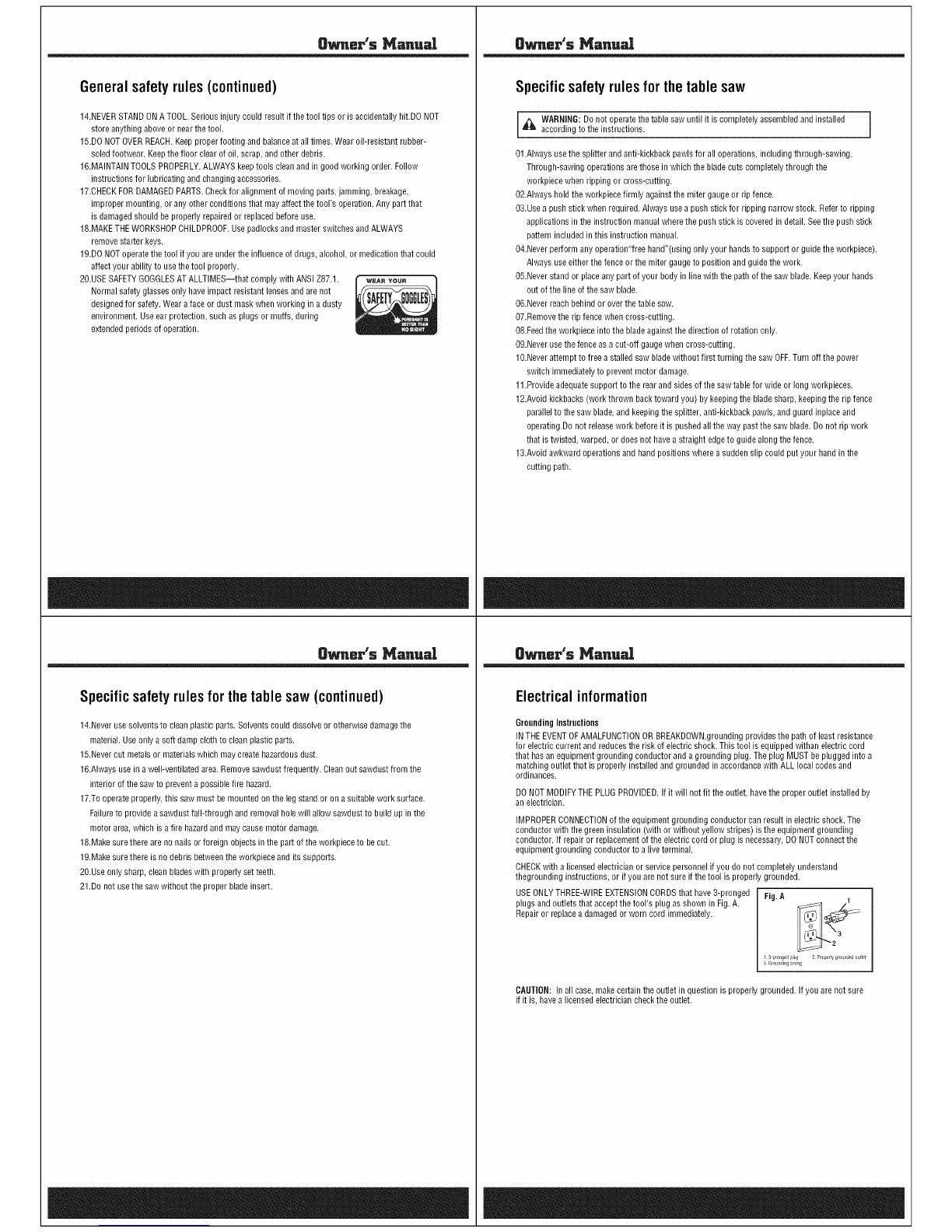

General safety rules(continued)
14.NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit.DO NOT
store anything above or nearthe tool.
15.D0 NOT OVER REACH.Keep proper footing and balance at all times. Wear oil-resistant rubber-
soled footwear. Keep the floor clear of oil, scrap, and other debris.
1&MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow
instructions for lubricating and changing accessories.
17.CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming, breakage,
improper mounting, or any other conditions that may affect the tool's operation. Any part that
is damaged should be properly repaired or replaced before use.
18MAKE THEWORKSHOP CHILDPROOF. Use padlocks and master switches and ALWAYS
remove starter keys.
19.D0 NOT operate the tool if you are under the influence of drugs, alcohol, or medication that could
affect your ability to use the tool properly.
20.USE SAFETYGOGGLES AT ALLTIMES--that comply with ANSI Z87.1.
Normal safety glasses only have impact resistant lenses and are not
designed for safety. Wear a face or dust mask when working in a dusty
environment. Use ear protection, such as plugs or muffs, during
extended periods of operation.
O_er's Manual
Specificsafety rulesfor the table saw (continued)
14.Never use solvents to clean plastic parts. Solvents could dissolve or otherwise damage the
material. Use only a soft damp cloth to clean plastic parts.
15.Never cut metals or materials which may create hazardous dust.
16.Always use in a well-ventilated area. Remove sawdust frequently. Clean out sawdust from the
interior of the saw to prevent a possible fire hazard.
17.To operate properly, this saw must be mounted on the leg stand or on a suitable work surface.
Failure to provide a sawdust fall-through and removal hole will allow sawdust to build up in the
motor area, which is a fire hazard and may cause motor damage.
18.Make sure there are no nails or foreign objects in the part of the workpiece to be cut.
19.Make sure there is no debris between the workpiece and its supports.
20.Use only sharp, clean blades with properly set teeth.
21.Do not use the saw without the proper blade insert.
O_ler's MaNua]
Specificsafety rulesfor the table saw
,_ WARNING: Do not operate the table saw until it is completely assembled and installed 1
according to the instructions. /
01.Always usethe splitter and anti-kickback pawls for all operations, including through-sawing.
Through-sawing operations are those in which the blade cuts completely through the
workpiece when ripping or cross-cutting.
02.Always hold the workpiece firmly against the miter gauge or rip fence.
03.Use a push stick when required. Always usea push stick for ripping narrow stock. Refer to ripping
applications in the instruction manual where the push stick is covered in detail. Seethe push stick
pattern included in this instruction manual.
04.Never perform any operation"free hand"(using only your hands to support or guide the workpiece).
Always useeither the fence or the miter gauge to position and guide the work.
05.Never stand or place any part of your body in line with the path of the saw blade. Keep your hands
out of the line of the saw blade.
O&Never reach behind or over the table saw.
07.Remove the rip fence when cross-cutting.
08.Feed the workpiece into the blade against the direction of rotation only.
09.Never use the fence as acut-off gauge when cross-cutting.
1&Never attempt to free a stalled saw blade without first turning the saw OFF.Turn off the power
switch immediately to prevent motor damage.
11.Provide adequate support to the rear and sides of the saw table for wide or long workpieces.
12.Avoid kickbacks (work thrown back toward you) by keeping the blade sharp, keeping the rip fence
parallel to the saw blade, and keeping the splitter, anti-kickback pawls, and guard inplace and
operating.Do not release work before it is pushed all the way past the saw blade. Do not rip work
that is twisted, warped, or does not have a straight edge to guide along the fence.
1&Avoid awkward operations and hand positions where a sudden slip could put you r hand in the
cutting path.
O_mer's Manual
Electricalinformation
Grounding Instructions
IN THE EVENT OFAMALFUNCTION OR BREAKDOWN,grounding provides the path of least resistance
for electric current and reduces the risk of electric shock. This tool is equipped withan electric cord
that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a
matching outlet that is properly installed and grounded in accordance with ALL local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed by
an electrician.
IMPROPER CONNECTIONof the equipment grounding conductor can result in electric shock. The
conductor with the green insulation (with or without yellow stripes) is the equipment grounding
conductor. If repair or replacement of the electric cord or plug is necessary, DO NOTconnect the
equipment grounding conductor to a live terminal.
CHECK with a licensed electrician or service personnel if you do not completely understand
thegrounding instructions, or if you are not sure if the tool is properly grounded.
USE ONLY THREE-WIRE EXTENSION CORDSthat have 3-pronged Fig. A
plugs and outlets that accept the tool's plug as shown in Fig. A.
Repair or replace a damaged or worn cord immediately.
1 3-pronge(I _lLIg 2 Properly grounded outlet
3 Grounding prong
CAUTION: In all case, make certain the outlet inquestion is properly grounded. If you are not sure
if it is, have a licensed electrician check the outlet.

OWRGF'S MaNual
Electricalinformation(continued)
[_JL ARNING: This table saw isfor indoor use only. Do not expose to rain or use indamp Ilocations. J
Guidelinesforusingextensioncords
Makesureyourextensioncordis in goodcondition.Whenusingan extensioncord, besuretouse
oneheavyenoughto carrythecurrentyour productwill draw.Anundersizedcordwill causea drop
in linevoltageresultingin loseof powerandoverheating.Thetablebelowshowsthecorrectsizeto
be usedaccordingtocord lengthandnameplateampererating.If indoubt, usethe nextheavier
gauge.Thesmallerthe gaugenumber,the heavierthecord.
MoreThan
o
6
lO
12
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
AmpereRating TotalLengthefCordin feet!meters)
NetMoreThan 25(7.6) 50(15) 100(30.4) 150(45.7)
6 18 16 16 14
10 18 16 14 12
12 16 16 14 12
16 14 12 NotRecommended
Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and
should be protected with a 15 Atime-delayed fuse. Before connecting the motor to the power line,
make sure the switch is in the OFFposition and the electric current is rated the same as the current
stamped on the motor nameplate. Running at a lower voltage will damage the motor.
WARNING: This tool must be grounded while in use to protect the operator from J
1
electricshock. J
O_er's Manual
O_ler's MaNua|
Knowyourtable saw
Assemblyand adjustments
Unpacking (Fig. 1)
Carefully unpack the table saw and all its parts, and compare against the list below. Do not discard
the carton or any packaging until the miter saw is completely assembled.
Fig. 1
A _ 0
E
0
./o
/J
A Table saw assembly G Blade wrenches M Long support plates (2)
B Miter gauge H Table insert N Short support plates (2)
C Rip fence and handle I Dado table insert 0 Legs (4)
D Bladeelevation wheel handle J Push stick P Rubber feet (4)
E Blade guard assembly KLong top plates (2) QHardware kit (not shown)
FAllen wrench (2) L Short top plates (2)
A\ \
A Sliding miter gauge
B Blade guard
C Blade
D Table insert
E Rip fence
F Table
G Blade elevation/tilting control
wheel
H Base
I Overload reset switch
J ON/OFF switch with safety key
KBlade bevel scale
L Blade bevel lock knob
M Anti-kickback pawl
N Splitter bracket
0 Sawdust port
PSplitter
QLeg stand
Mounting the table saw to the leg stand (Fig.3)
Note: Mount the table saw to the leg stand using the
hardware supplied in the hardware kit.
1 .Place the table saw onto the assembled leg stand so
that the four mounting holes (1) in the base of the
saw are over the four mounting slots in the two long
top plates (2).
2.Secure the table saw to the leg stand using the four
internal screws (3) washers (4), and lock nuts (5)
supplied in the hardware kit.
IMPORTANT! When mounting the table saw to the leg
stand, DO NOT overtighten the mounting hardware.
Assembly
Assembling the leg stand (Fig. 2)
Note: Use the screws (1), washers (2), and lock nuts (3)
supplied in the hardware kit to attach the pieces of
the leg stand together. Do not tighten the hardware
completely until the leg stand is assembled.
1.Attach the short top plates (4) to the legs (B)
2.Attach the short support plates (7) to the legs (6)
3.Place the long top plates (5) over the short top plates
(4), Attach the long top plates (5) to the legs (6),
4.Attach the long support plates (8) to the legs (B).
5.Tap the four rubber feet (9) onto the bottom of
the legs (B). Fig. 3
Fig. 2
/2
WARNING: To avoid injury from an accidental start, make sure the power switch is in the
OFFposition and the plug is not connected to the power source outlet.
Assemblyand adjustments(continued)
Owner's Manual

OWIIeF'S MaNual
Assemblyand adjustments(continued)
,_, surfacesWARNING:thatAIwaySareslippery.keepthe work area clean, uncluttered, and well lit. Do not work on floor
Fig. 4
Keeping the area clean (Fig. 4)
Sawdust and wood chips that fall under the saw
will accumulate on the floor. Make it a practice to
pick up and discard this dust when you have
completed cutting.
Sawdust port (Fig. 5)
The sawdust port (1) is located at the rear of the
saw. A dust collection system can be attached to
this port to aid in the removal of sawdust from the
work area.
Fig. 5
O_ler's MaNua|
Assemblyand adjustments(continued)
Front and rear locking rip fence (Fig.6)
1.Thread the fence handle (1) into the cam hole (2)
until tight.
2.Lift upward on the rip fence handle (1) so that the
holding clamp (3) is fully extended.
&Place the rip fence on the saw table and engage the
holding clamp (3) to the rear of the table. Lower the
front end onto the front rail (4).
4.Push down on the fence handle (1) to lock.
Rip fence adjustment (Fig. 7)
1.To move the fence, pull the handle (2) up and slide
the fence (1) to the desired location. Push down on
the handle (2) to lock the fence in position.
2.Position the fence on the right side of the table and
along one edge of the miter gauge grooves.
&Lock the fence handle (2). The fence should be parallel
to the miter gauge groove.
Fig. 6
24
Fig. 7
If adjustment is needed to make the fence parallel to the
groove, do thefollowing:
4.Loosen the two screws (3) and lift up on the
handle (2).
&Hold the fence bracket (4) firmly against the front of
the saw table. Move the far end of the fence until it is
parallel with the miter gauge groove.
&Tighten both screws (3) and push the handle (2) down to lock.
7df thefence is loose when the handle is in the locked (downward) position,move the handle (2)
upward and turn the adjusting screw (s) clockwise until the rear clamp is snug.Do not turn the
adjusting screw (s) more than 1/4 turn at a time.
Note: Over-tightening the adjusting screw (5) will cause the fence to come out of alignment.
{}wner's Manual 8wner's Manual
Assemblyand adjustments(continued)
Bladeguardassembly(Fig.8-11)
1.Setthebladetomaximumheightandthetilt to
zerodegreesonthe bladebevelscale.Lockthe
bladebevellockknob.
2.Placetheexternaltoothlockwasher(2) followed
by aflatwasher(3) ontothelongbolt (1).
3.Insertthis boltthroughthesplitterbracket(4).
4.Insertthesplitter bracketontothepivot rod(5) and
tighten.
5.Makesurethehex screws(6)that holdthe blade
guardassembly(7) tothesplitterbracket(4)are
tight.
&Positionthebladeguardarm(8) totherear.
7.Usinga straightedge,checkto seethatthe
splitter (9)is alignedwiththe sawblade.
8.If straighteningadjustmentis necessary,loosen
bolt (1) andshift thesplitter (9)tothe leftor to
theright,or rotateasneeded.
9.Whenyou arecertainthe splitter(9) isproperly
alignedwith thesawblade,tightenthebolt (1).
Note:Thesplitter(9) mustalwaysbecorrectly
alignedsothatthecutworkpiecewill pass
oneithersideofthesplitterwithoutbinding
ortwistingto theside.
Fig. 9
Fig. 10
7
Fig. 8
Fig. 11
8X
//
//
Assemblyand adjustments(continued)
I
,_, WARNING: To avoid injury from an accidental start, make sure the power switch is in the I
OFFposition and the plug is not connected to the power source outlet. !
Changing the blade (Fig. 12-14)
1,Remove the table insert (1) by unscrewing the two r ....._ Fig. 12
'i
ecrews(2). J!,\
2.Raise the blade arbor (3) to the maximum height I i ..._-_ I _I,
3 2
by turning the blade elevation control wheel counter- ;; _ / _,,_ 2
clockwise. I I Ii I/
3 Renrove the arbor nut (4) and f ange (5) , ;;! _ ,_
4.Install the saw blade onto the arbor with the blade ,J i J
teeth pointing toward the front ofthe saw. i !
I i
5.Install the flange (5) against the blade and thread
the arbor nut (4) asfar as possible byhand.Ensure Fig. 13
that the blade is flush against the inner blade flange.
6.To tighten the arbor nut (4), use the open-end
wrench (6) and align the wrench jaws onthe flats
of the flange to keep the arbor from turning.
7.Place the box-end wrench (7) on the arbor nut (4)
and turn clockwise (to the rear of thesaw table).
8.Replace the table insert (1) in the table recess.
Insert the screws (2) through the holes and
tighten.
i
WARNING: To avoid injury from a thrown workpiece, blade part, or blade contact, never
operate the saw without the proper insert in place. Use the table insert when sawing. Use the
dado insert when using a dado blade.

OWIIeF'S MaNual
Assemblyand adjustments(continued)
Adjestngthe90°and45°pos vesops(Fg 15-17) I. _m
...... Hg. 1_
The saw has positive stops that will quickly position the saw J9o_ 4so J
blade at 90°or 45° to the table. Make ad ustments only if ,_,_, ¢;_
necessary J......................,;_,_//!._ ¢*_,: _ J
I I
Note: 90° and 45° blade adjustment screws require a 5mnr 17_
Allen wrench (supplied) and lOmm wrench or socket _ _
(not supplied) for adjustment. Toaccessthe10mm J} :_) "X," \\ J
nut attached to the 90°and 45°blade adjustment J! i' "\ \ J
scre_vs,turn the saw on its left side. Makesurethe J_, i '\"_ J
saw ISsecure. [ _/
Adjust the go°Stop
1.Disconnect the saw from the power source.
2.Turn the blade elevation/tilting control wheel and
raise the blade to the maximum elevation.
&Loosen the blade lock knob. Push inthe blade
elevation/tilting control wheel and rotate
counterclockwise asfar as possible.
4.Place a combination square on the table and
against the blade (1) to determine if the blade is at
a 90°angle to the table.
5.If the blade is not at a 90 ° angle to the table, turn
the 90 °adjusting socket head screw (2) left to reduce
the angle or right to increase the angle.
® ®
2
Fig. 17
Adjust the 45°Stop
1.Disconnect the saw from the power source.
2.Turn the blade elevation/tilting control wheel and
raise the blade to the maximum elevation.
&Loosen the blade lock knob. Push inthe blade
elevation/tilting control wheel and rotate clockwise asfar as possible.
4.Place a combination square on the table and against the blade (1} to
determine if the blade is ata 45°angle to the table.
5.If the blade is not at a 45 ° angle to the table, turn the 45 °adjusting socket
head screw (3) left to reduce the angle or right to increase the angle.
Owner's Manua!
O_ler's MaNua|
Assemblyand adjustments(continued)
Assemblyand adjustments(continued)
Adjusting the blade so it is parallel to the miter gauge groove (Fig. 19)
1.Remove the combination square
(used on page 17) and stand the saw
on its left side so that you can access
the eight adjustment nuts (1,2, 3)
that secure the axis rodto the table.
Make sure the tableis secure.
Note: Place folded pieces of
cardboard over the blade to
protect your hands.
2.Use a 10 mm wrench to loosen all
eight adjustment nuts about a half
turn each.
&Place the saw in the upright position.
4Move the blade carefully to the left or
right until it is aligned.
&Check the alignment with the
combination square (see steps 4-8 on page 17).
Fig. 19
&Tighten the two front (1} and two rear (2) adjustment nuts. Reach under
the front and rearof the table with awrench to access these nuts.
7.Re-check the alignment. If additional adjustment is needed, loosen only
the two front adjustment nuts (1} and repeat steps 4 and 5 until the blade
is parallel to the miter slot.
&Tighten the two front adjustment nuts (1)
&Stand the saw on its left side and tighten the four center adjustment
nuts (3).
1&Place the saw upright on the table and re-check the alignment to make
sure the blade isparallel to the miter slot.
Blade tilt indicator
1 .When the blade is positioned at 90°, adjust the blade tilt pointer to read O°on the scale.
2.Loosen the holding screw, position the pointer over 0° and tighten the screw.
Note: Always make a trial cut on scrap wood when making critical cuts. Measure for cut precision.
Blade parallel to the miter gauge groove (Fig. 18)
j_ ARNING: This adjustment must be correct or kickback could result, and accurate cuts willnot be made.
1 .Remove the safety key and unplug the saw.
2Move the blade guard out of the way. Fig. 18
&Raise the blade to the highest position and set it
to the 0° angle (90° straight up).
4.Select a tooth with a "right set" on the end of the
blade closest to you. Mark it with a marker.
5.Place the combination square base (1} against
the left side of the right miter gauge groove (2).
6.Adjust the rule so it touches the front marked
tooth. Lock the ruler so it holds its position in the
square assembly.
7.Rotate the blade bringing the marked tooth to the
rear and about 1/2" (13 mm) above the table.
8.Slide the combination square carefully to the rear
until the ruler touches the marked tooth.
9.If the ruler touches the marked tooth at the front
and rear positions, no adjustment is needed at this time. If the front and
rear measurements are not the same, the blade is not parallel to the miter
slot and must be adjusted. See page 18, "Adjusting the blade so it is
parallel to the miter gauge groove."
Tilting the blade (Fig. 20)
To tilt the saw blade for bevel cutting, loosen the
blade bevel lock knob (2) and push in the blade
elevation/tilting control wheel (1). Turn the wheel
counterclockwise to increase the angle; turn the
wheel clockwise to lower the angle. Tighten the
blade bevel lock knob (2) to secure.
iFig. 20
Miter gauge adjustment (Fig. 21)
1.Make sure that the miter gauge will slide freely.
2.Loosen the lock knob (1). Set the pointer (2) to the
90° mark on the scale.
3Make a 90 ° cut in a piece of scrap wood. Check cut
piece to see if it was cut at 90°. If it is not, continue
to adjust the miter gauge body (3) until the wood
piece is cut at 90° .
4.When a 90°cut has been made, loosen the
pointerscrew (4) and set on the 90°scale mark.
Tighten screw.
Raisingtheblade (Fig.20)
Toraiseor lowerthe blade,turn theblade
elevation/tiltingcontrolwheel(1)tothe desired
bladeheight.
Assemblyand adjustments(continued)
Owner's Manual

Operation
ON/OFF switch (Fig. 22)
The ON/OFF switch has a removable safety key to
protect against unauthorized use.
1.To turn the saw ON, insert the safety key (1) into
the switch (2), if needed. Move the switch
upward to the ON position.
2.To turn the saw OFF,move the switch downward
to the OFF position.
3.To lock the switch in the OFF position, grasp the
safety key (1), and pull it out of the switch. With
the safety key removed, the switch will not
operate.
Note: If the safety key is removed while the saw
is running, the saw can be turned OFFbut
cannot be restarted without inserting the
safety key (1).
OWlleF'S MaNual
Fig. 22
__¢
Overload protection (Fig. 22)
l WARNING: To prevent an accidental startup if the overload reset switch is pushed, the on/off
switch should be in the OFFposition, and the plug should be removed from the power source
Ai_ wh e coo -down takes p ace. Overheat ng may be caused by m sa gned parts or a dub ade.
Inspect your saw for proper setup before using it again.
This saw has an overload reset switch (3) that will restart the motor after it shuts off due to
overloading or low voltage. If the motor stops during operation:
1.Turn the ON/OFFswitch (2) to the OFFposition.
2.Wait about five minutes for the motor to cool.
3.Push in on the overload reset switch (3).
4.Turn the switch to the ON position.
OWller's MsNua|
Operation(continued)
WARNING: To prevent careless mistakes, always pay close attention when using the table
_, saw. A careless fraction of a second is enough to cause severe injury.
Cutting Operations (Fig. 23)
There are two basic types of cuts: ripping and cross
cutting. Ripping is cutting along the length and the
grail] of the workpiece. Cross-cutting is cutting across
the grail] of the workpiece. Neither ripping nor cross-
cutting is safe to do freehand. Ripping requires the
use of a rip fence, and cross-cutting requires a miter
gauge.
CAUTION! Eachtime, before you use the saw,
makesure:
• Blade is tight on the arbor. 1
• Blade bevel lock knob is tight.
• If ripping, fence knob is tight and fence is parallel
to the miter gauge grooves.
• Blade guard is in place and working properly.
• Saw operator is wearing safety glasses.
Failure to adhere to these safety rules, and those printed in the front of this
manual, can greatly increase the likelihood of injury.
A WARNING: To avoid kickback, push forward on the section of the workpiece that will pass
between the blade and the fence.
Ripping (Fig. 24)
1.Remove the miter gauge. Secure the rip fence to the table.
2.Raise the blade so it is about 1/8" (3 mm) higher than the top of the workpiece (1).
3.Place the workpiece flat on the table and against the fence. Keep the workpiece about
1"(25mm) away from the blade.
CAUTION! The workpiece must lay straight against the fence. It must not be warped, twisted,
or bowed.
4.Turn the saw ONand wait for the blade to reach full speed.
5.Feed the workpiece slowly into the blade by pushing forward mrly on the section of
workpiece (1)that will pass between the blade and the fence.
Owner's Manna!
Operation(continued)
6.Keep you r thumbs off the table top. When both of
your thumbs touch the front edge of the table (2),
finish the cut with a push stick (3).
7.The push stick (3) should always be used when
the ripped workpiece (1) is less than 6" (152 mm)
wide.
8. Continue pushing the workpiece with the push
stick (3) until it passes the blade guard and clears
the rear of the table.
9.Do not pull the workpiece back when the blade is
turning. Turn the switch OFF.When the blade
stops completely, slide the workpiece out.
Note: If the blade is jammed, raise the anti-
kickback pawls on each side of the splitter
and slide the workpiece out.
Fig. 24
1
Bevel ripping
_ WARNING: Cut only with the workpiece and the fence on the right side of the blade.
This cut is the same as ripping, but the bevel angle of the blade is set to an angle other than 0 °.
Ripping small pieces
WARNING: Avoid injury front blade contact.Do not make through-saw cuts narrower than
'_ 1/2" (13 mm) wide.
1.It is NOT SAFEto rip small pieces. Instead, rip a larger piece to obtain the size of the
desired piece.
2.When you need to rip, a small width and your hand cannot safely be put between the blade
and the rip fence, useone or more push sticks to move the workpiece.
1
Owner's Manual
Operation(continued)
WARNING: To prevent careless mistakes, always pay close attention when using your tablesaw. a careless fractimr of a secmrd is enough to case severe injury.
Cress-cutting (Fig. 25)
1.Remove the rip fence and place the miter gauge in the right side groove (1).
2.Adjust the blade height so it is 1/8" (3 mm) higher than thetop of the workpiece (2).
3.Hold the workpiece firmly against the miter gauge with the blade path in line with the
desired cut location. Move the workpiece to a distance of 1" (25 mm) from the blade.
d_, WARNING: Keep both hands away from the blade and the path of the blade.
4.Start the saw and wait for the blade to reach
full speed. Fig. 25
5.Keep the workpiece against the face of the
miter gauge and flat against the table. Slowly
push the workpiece through the blade.
8.Do not pull the workpiece back with the blade
turning. Turn the switch OFF,and carefully
slide the workpiece out when the blade is
completely stopped.
Bevel cross-cutting (Fig. 26)
This cutting operation is the same as cross-
cutting except the blade is at a bevel angle
other than O°.
1.Adjust the blade to the desired angle, and
tighten the blade bevel lock knob.
2.Always work to the right side of the blade.
The miter gauge must be in the right side
groove (1). The miter gauge must be used in
the right side groove or it will interfere with
the blade guard.
Fig. 26

0peration(continued)
OWIIeF'S MaNual
Compound miter cross-cutting (Fig. 27)
This sawing operation combines a miter angle with a
bevel angle.
1.Set the miter gauge to the desired angle (1).
2.Set the blade bevel to the desired angle.
3.Carefully push the miter gauge to begin the cutting
operation.
Miter cuts (Fig. 28)
This sawing operation is the same as cross-cutting, but
the miter gauge is locked at an angle other than 90 °.
1.Hold the workpiece (1) firmly against the miter
gauge (2).
2.Feed the workpiece slowly into the blade to prevent the
workpiece from moving.
Using wood facing onthe rip fence (Fig. 29)
When performing some special cutting operations, add
a wood facing (1) to either side of the rip fence (2):
1.Use a smooth, straight 3/4" (19 mm) thick wood
board (1) that is as long as the rip fence.
2.Attach the wood facing to the fence with wood
screws (3) through holes drilled through the fence.
Note:The holes inthe fence are not pre-drilled.
A wood fence should be used when ripping
material such as thin paneling to prevent the
material from catching between the bottom of
the fence and the table.
Fig. 27
°_i I :
Fig. 28
Fig. 2g
Qwner's Manual
Maintenance
,_ WARNING: For your own safety, turn the switch off and remove the safety key. Unplug thepower cord from the outlet before maintaining or lubricating the saw.
General
1.Clean out all sawdust that hasaccumulated inside the saw cabinet and the motor.
2.Polish the saw table with an automotive wax to keep it clean and to make it easier to move
the workpiece.
3.Clean blades with pitch and gum remover.
4.Aworn, cut, or damaged power cord should be replaced immediately.
5.Use liquid dish washing detergent and water to clean all plastic parts.
Note: Certain cleaning chemicals can damage plastic parts.
6.Do not usethe following cleaning chemicals or solvents: gasoline, carbon tetrachloride,
chlorinated solvents, ammonia, or any household detergents containing ammonia.
J,_ ARNING: All electrical and mechanical repairs should be attempted only by a qualified
service technician. Use only identical replacement parts. Any other parts may create
a hazard.
Blade elevation and tilting mechanism (Fig. 31)
After every five hours of operation, the blade elevation
and tilting mechanism should be checked for
looseness, binding, or other abnormalities. Disconnect
the saw from the power source, turn the saw upside
down and pull up and down on the motor unit. Observe
any movement in the motor mounting mechanism.
Looseness or play in the blade raising screw (1) should
be adjusted as follows:
1.Loosen the nut (2).
2.Adjust the nut (3) until it is finger-tight against the
bracket(4), then back off the nut (3) 1/6 turn.
3.Tighten nut (2). The maximum allowable play of
the screw rod (1) is 5/32" (4 mm). Place a small
amount of dry lubricant (such as graphite or silicon)
on the screw rod (1) at the thrust washer (5). Do
not oil the threads of screw rod (1). The screw
rod (1) must be kept clean and free of saw dust,
gum, pitch, and other contaminants for smooth
operation.
Fig. 31
OWNer'S MaNna|
0peration(continued)
Dado cuts (Fig. 30)
1.A dado table insert is included with this saw.
Remove the saw blade and blade guard, hrstall a
dado blade and dado table insert.
2dnstructions for operating the dado are packed with
the separately purchased dado set.
3.The arbor (1) on this saw restricts the maximum
width of the cut to 1/2" (13 mm).
4.It is not necessary to install the outside flange (2)
before installing the arbor nut (3). Make sure that
the arbor nut (3) is tight, and that at least one
thread of the arbor sticks out past the nut.
5.You must remove the blade guard and splitter
when using the dado. Exercise caution while the
dado is operating.
6.Check the saw to make sure the dado will not
strike the housing, insert, or motor while in
operation.
Fig. 30
/2
/
-4-1
\,3
Lubrication
All motor bearings are permanently lubricated at the factory and require ireadditional lubrication.
Lubricate all mechanical parts where a pivot or threaded rod is present, lubricate with graphite or
silicone. These dry lubricants will not hold sawdust.
Maintenance(continued)
Note: If excessive looseness is observed in airy other part of the blade elevation mechanism or
tilting mechanism, take the complete unit to an authorized service center.
Owner's Manual
,_ WARNING: For your own safety, always replace the blade, blade guard assembly, and blade
insert when you are finislred with the dado operation.

OWIIeP'S MaNual
Troubleshooting
,_ WARNING: For your safety, turn the switch OFF and remove the safety key. Unplug the
power cord from the outlet before maintainingor lubricatingthe saw.
PROBLEM PROBABLE CAUSE REMEDY
Saw will notstud. t. Sawnot pluggedk_. 1.PNg in thesaw.
2. Fuseblow_or circuit breakertripped 2. Replacefuse or resetcircuBbreaker.
3 Corddamaged. 3.Havecord replacedby a_/authorizedservice
center.
4. Overloador low voltage. 4. TurnB_esaw switch to OFF,wait 5 minutes,
p_shthe resetswBch,a_/dturn the saw ON.
Doesnot makeaccmate450 t. Positivestop notadjusted correcdp. 1 Checkbladewithsquarea_/dadjustpositive
and 90° Bpcuts stop.
2. Tilt angle pointeri_otset correcBy. 2. Check bladewith squarea_d adjustpointer
to zero.
Material pk_chesbladewhen t. Rip fencenot aligt_edwith blade. 1. Checkand adjustrip france.
ripping. 2. Warped wood, edgeagainstfenceis 2. Selectanotherpieceof wood.
not sBaigkt.
Materialbk_dson spMter. SpIBternotalig nedcorrecBywith blade. Checkandalign splitterwBh blade.
Saw makesunsatisfactory t. Dull blade. 1.Replaceblade.
cuts. 2. BDdemom_tedbackwards. 2.Turnbladearound.
3 Gumor pitcho1_blade. 3.Removebladem_dcleanwith turpentineand
coarsesteelwook
4. Incorrectbladefor work. 4.Changetheblade.
5. Gumor pitcho1_taNecausingerratic 5.Cleantune wBhturpentinea_d steelwook
feed
Material kickedbackfrom t. Rip fenceoutof alignment. 1. Align ripfencewith miter gauge.
blade. 2. SpIBternot alignedwBhblade. 2.Align spIBterwBhblade.
3. Feedingstockwithout rip fence. 3.Installand useribre+ice.
4. SpIBternot in place. 4.Install and use splitter (wBhguard).
5. Dull blade. 5.Replaceblade.
6. Theopmator lettinggo of material B.Push materialall the way pastbladebefore
beforeit is past thesaw blade, releasingwork.
7 Miter angleDek h_obis not tight. 7 Tightenknob
Bladedoesnot raiseorflit Sawdust anddirt k_elevationandtilting Brushor Now outloosedust a_ddirt.
freely, mechanisms.
Bladedoesnot reachfull t. Extensioncord too tightor too long. 1.Replacewith adequatesizecord.
speed. 2. Lowhousevoltage. 2.Contactyour electdccompany.
Maeldnevibratesexcessively, t. Sawnot mountedsecurelytost,}nd or 1 Tightenall mountk_ghardware.
workbench.
2. St,;ndor bencho1_unevenfloor. 2.ReposBionon flatlevels_dace.Fastento
floor if necessary.
3 Damagedsaw blade. 3. Replaceblade.
Doesnot make45°a_dgo°Mitergauge outof adiustment. Adiust miter gauge.
cross cuts.
Owner's Manua!
Replacementparts ... continued
QTY APA Parts He, No. Description QTY
3PB101-46-SD 46 Fingel board 1
"1 PB101-47-SD 47 Wave washer(GB955+87 10)
1 PB10148-SD 48 Spring
2 PB101-49-SD 49 AdNstment bolt 1
2 PB101-50-SD 50 Pin(GB879_6 25x22) 1
"_ PB101-51-SD _ Control wheel _"
1 PB101-52-SD 52 Nut (GB6170-n6 Me) 2
PB1OI-OB-SD 08 Screw(GBB18-BBM5xBO) 6 PB101-53-SD 53 Wheellabel
PB1OI-O9-SD 09 Spgng washel(GBg3-87 5) 11 PB101-54-SD 54 Wheel handle
APA Parts No. No. Description
PB1OI-OI-SD 01 Screw(GB6562-86 STx16)
PB1OI-O2-SD 02 Rearcover
PB1OI-OB-SD 03 Strain relief
PB101-0g-SD 04 Brush holder
PB101-05-SD 05 Carbon brush
PB101-06-SD 06 Wire connector
PB1OI-OT-SD 07 Motor housing
8 PB101-55-SD 55 Screw 1
PB101-56-SD 56 Gear washer(GB8622-87 4) 1
PB101-57-SD 57 Flat washer(GB95-85 4) -4
PB101-58-SD 58 Screw(GB818-85 M4xl0) 1
PB101-59-SD 59 Lockwasher(GB62 247 6) 12
PB101-60-SD 60 Bolt (GB5781-86 M6x16) 3
PB101-61-SD 61 Shut[ bube 3
PB101-62-SD 62 Screw
PB101-63-SD 63 Bignut (GB6170-86 M6)
PB101-64-SD 64 Washel plate
PB101-65-SD 65 Lockknob
PB101-66-SD 66 Screw 4
PB101-68-SD 67 Spring washer(GB93-87 6) 16
PB101-68-SD 68 Support boald e 1
PB101-69-SD 69 Fiat washer(GB95-85 6) 5
PB101-70-SD 70 Spring pin(GB879_6 4x8) 3
PB101-71-SD 71 Nut "3
PB101-72-SD 72 Spring
PB101-73-SD 73 Flat washel (GB848-85 10)
PB101-74-SD 74 Nut (GB6170-86 M5)
PB101-75-SD 75 Pivot Iod
PB101-76-SD 76 Underlay
PB101-77-SD 77 SCreW{GB70_85 M5x22)
PB101-78-SD 78 Rearaxis
PB101-79-SD 79 Plate
PB1OI-10-SD 10 Flatwasher (GB95-85 5)
PB101-11-SD 11 Stator
PelOlq 2-SD 12 Screw (GB818-85 MBx78)
Pel01q 3-SD 13 Beaung(GBeT276-94 629z)
PB101q4-SD 14 Rotor
PelOlq 5-SD 15 Beaung(GBeT276-94 6201)
PB101q6-SD 16 Wind washer
PB101-17-SD 17 Gearbox
PB101-18-SD 18 C-ring(GB894 1-86 14)
Pel01q 9-SD 19 Beaung(GBeT276-94 607z)
PB101-20-SD 20 Gear
PB101-21-SD 21 Spindle
PB101-22-SD 22 Key(GB61095-79 ABx12)
PB101-23-SD 23 C-ring (GB894 3-86 35)
PB101-24-SD 24 Beaung(GBeT276-94 6003)
PB101-25-SD 25 Bushing
PB101-26-SD 26 Gearbox cover
PB101-27-SD 27 Innange
PB101-28-SD 28 Blade
PB101-29-SD 29 Outnange 1
PB1OI-BO-SD 30 Bladenut 1
PB101-B1-SD 31 Pin "1
PB101-B2-SD 32 Screw {GB5781-86 M6x85) 1
PB101-BB-SD 33 Pin 1
PB101-B4-SD 34 Link plate 1
PB101-B5-SD 35 Locknut(GB_TBB91-2OOOM6) 14 PB1OI-BO-SD 80 Screw(GB819-n5M6x25)
PB101-B6-SD 36 Adjustments@port 1 PB101-B1-SD 81 Screw(GB70-nSMBx12) 2
PB101-B7-SD 37 Nut _ PB101-B2-SD 8"2 Table insert "T
PB101-BB-SD 38 Adjustment pin 1 PB101-BB-SD 83 Washer (GB8622-n7 5) 1
PB101-B9-SD 39 _GB5781-B6MBx18) 2 PB101-B4-SD 84 Screw 1
PB101-g0-SD 40 Support board A 1 PB101-B5-SD 85 Screw{GB70-nSMBxB5)
PB101-41-SD 41 Scaleboard 1 PB101-B6-SD 86 Worktable
PB101-g2-SD 42 Screw(GBB18-85MBx10) 2 PB101-B7-SD 87 BoJt(GBB781-nBMBxB5)
PB101-gB-SD 43 Nut(GB_TBB91-2000M8) 2 PB101-BB-SD 88 Gearwasher(GBBBB 2-87 5) 1
PB101-44-SD 44 indicator 1 PB101-BB-SD 89 HexscreW(_GB7O_5M5x8) 1
PB101-45-SD 45 Block plate 1 PB101-90-SD 90 Press plate 6
i)wneP'S Mslm1_a|
Replacementparts
When servicing your STEELE® 10" Bench Saw, use identical STEELE® replacement parts only
Use of any other parts may cause product damage Any and all servicing of the
bench saw should be performed by a qualified service technician
WARNING: ANY ATTEMPT TO REPAIR OR REPLACE ELECTRICALPARTS ON THIS TOOL
MAY CREATEAHAZARD UNLESS REPAIR IS DONE BY QUALIFIED SERVICE TECHNICIANS.
/
_J
2 PB101-134-SD 134 Front nip boald
2 PB101-135-SD 135 Screw(GB818-86M4x6)
PB101-136-SD 136 indicator
PB101-137-SD 137 Pin
1 PB101-138-SD 138 Guide ruler
-9 PB101-139-SD 139 Gauge pointer
1 PB101-140-SD 140 Spring washer
8 PB101-141-SD 141 Screw(GB818_6M4X6)
PB101-142-SD 142 Mitre gauge
12 PB101-143-SD 143 Angle bolt
3PB101-144-SD 144 Lockknob
-3 PB101q45-SD 145 Knob cover
1 PB101-146-SD 146 Blade guard
PB101-147-SD 147 Block pin 2
PB101-148-SD 148 Spring washer _"
PB101-149-SD 149 Guard arm 1
PelOlq 50-SD 150 Bush 2
PB101-151-SD 151 Spring _"
PB101-152-SD 152 FoJDwblade board 1
PB101-153-SD 153 Ang¢ickbackpawl 2
PB101-154-SD 154 BoJt(GB5781+86M6x22)
PB101-lBS-SD 155 Bolt (GB5781 86 Mex4O) 2
PB101-lBB-SD 156 Fiatwashel(GB95-85 6) 6
PB101-157-SD 157 Blockbushing-R
PB101-158-SD 158 Spdng pin(GB879-86 3x10) 1
PB101-159-SD 159 Block bushing-L
PB101-160-SD 160 Hex boJt(GB70-85 M6x12) 6
PB101-161-SD 161 Press plate
PB101-162-SD 162 Hex boJt(GB70-85 MSx20)
PB101-163-SD 163 Flatwasher (B95 B6-5)
PB101-164-SD 164 Support base
PB101-165-SD 165 Dado inser
PB101-166-SD 166 Wrench
PB101-167-SD 167 Open ended wrench
PB101-168-SD 168 Push stick 4
PB101-169-SD 169 Power cord 1
QTY
PB101-94-SD 94 Spring plate
PB101-95-SD 95 Fence base
PB101-96-SD 96 Base
PB101-97-SD 97 DataJabeJ
PB101-PB-SD 98 Inner plate
PB101-99-SD 99 Screw(GB81945 M4x8)
PB101q00-SD 100 Gear plate
PB101q01-SD 101 Screw(GB84845 ST4x16)
PB101q02-SD 102 Switch base
PB101q0B-SD 103 Switch
PB101q04-SD 104 Circun breaker
PB101-10B-SD 105 Deaker nut
PB101q06-SD 106 Switch box
PB101q07-SD 107 nustproof ring
PB101q08-SD 108 Wire holder
PB101q09-SD 109 Screw (GB848-85 ST4x16) 2
PB1OldlO-SD 110 Strain relief 1
PB101-111-SD 111 Spindle _"
PelOlq 12-SD 112 Dust port cover 1
PB101q13-SD 113 Screw (GB848+85 ST4x16)
PB101-114-SD 114 Nut(GB6170-86M4)
PelOld 15-SD 5 Mgre gauge storage 1
PB101-116-SD 6 Spring plate _"
Pel01q 17-SD 117 Spdng washer(GB93-87 4) 2
PB101-118-SD 118 Screw(GB818-85 M4xlO)
PB101qlB-SD 119 Rubbelfoot
PB1Olq20-SD 120 Rearphte
PelOlq 21-SD 121 Spring
PB101q22-SD 122 Spfingdefenceboald
PB101q23-SD 123 Fence
PB101q24-SD 124 Bolt
PelOlq 25-SD 125 Hex boJt(GB5871 86 MexlO) 2
PB101q26-SD 126 Washelphte 1
PB101q27-SD 127 Fence support 1
PB101q28-SD 128 Long nut
Pel01q 29-SD 129 Spring pin (GB878-86 3x22)
PB101-130+SD 130 Bias wheel
Replacement parts
APA Parts No. No. Description QTY APA Parts No. No. Description
PB101-91-SD 91 Scalelabe] 1 PB101-131-SD 131 Pin
PB101-92-SD 92 Rivet(GB827-n62x6) "3 PB101-132-SD 132 Fence handle
PB101-PB-SD 93 Screw(GB848_5 ST4xt2) 11 PB101-133-SD 133 Pin
Owner's _anua],

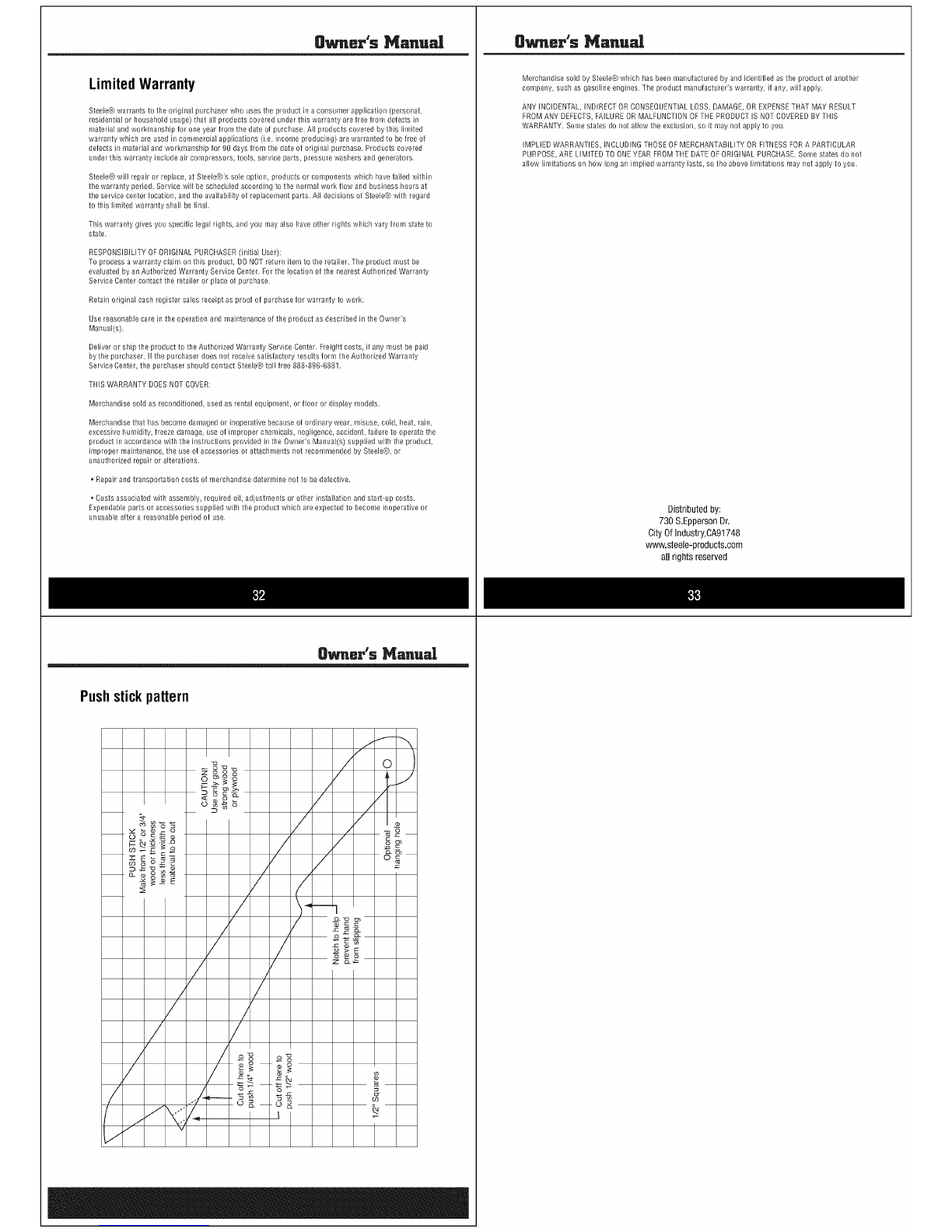

LimitedWarranty
Owner's Manual
Steele@ warrants to the original purchaser who uses the product in a consumer application (personal,
residential or household usage) that all products covered under this warranty are free from defects in
material and workmanship for one year from the date of purchase. All products covered by this limited
warranty which are used in commercial appbcations (i.e. income producing) are warranted to be free of
defects in material and workmanship for 90 days from the date of original purchase. Products covered
under this warranty include air compressors, tools, service parts, pressure washers and generators.
Steele® will repair or replace, at Steele®'s sole option, products or components which have failed within
the warranty period. Service will be scheduled according to the normal work Bow and business hours at
the service center location, and the availability of replacement parts. All decisions of Steele® with regard
to this limited warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
RESPONSIBILITY OF ORIGINAL PURCHASER (initial User):
To process a warranty claim on this product, DO NOT return item to the retailer. The product must be
evaluated by an Authorized Warranty Service Center. For the }ocation of the nearest Authorized Warranty
Service Center contact the retailer or p}ace of purchase.
Retain original cash register sales receipt as proof of purchase for warranty to work.
Use reasonable care in the operation and maintenance of the product as described in the Owner's
Manual(s).
Deliver or ship the product to the Authorized Warranty Service Center. Freight costs, if any must be paid
by the purchaser. If the purchaser does not receive satisfactory results form the Authorized Warranty
Service Center, the purchaser should contact Steele® toll free 888-896-6881,
THIS WARRANTY DOES NOT COVER:
Merchandise sold as reconditioned, used as rental equipment, or floor or display models.
Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain,
excessive humidity, freeze damage, use of improper chemicals, negligence, accident, failure to operate the
product in accordance with the instructions provided in the Owner's Manual(s) supplied with the product,
improper maintenance, the use of accessories or attachments not recommended by Steele®, or
unauthorized repair or alterations.
o Repair and transportation costs of merchandise determine not to be defective.
• Costs associated with assembly, required oil, adjustments or other installation and start-up costs.
Expendable parts or accessories supplied with the product which are expected to become inoperative or
unusable after a reasonable period of use.
Owner's Manual
Pushstickpattern
/
/
J
_ °
/
/
OWTWF'5 ]_JJ[azl,ua'J
Merchandise sold by Steele® which has been manufactured by and identified as the product of another
company, such as gasoline engines. The product manufacturer's warranty, if any, wiB apply,
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT
FROM ANY DEFECTS, FAILURE OR MALFUNCTION OF THE PRODUCT IS NOT COVERED BY THIS
WARRANTY. Some states do not allow the exc}usion, so it may not app}y to you.
iMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LiMiTED TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. Some states do not
allow _imitations on how _ong an impbed warranty _asts, so the above _imitations may not apply to you.
Distributedby:
730S.EppersonDr.
CityOfIndustry,CA91748
www.steele-products.eom
allrights reserved
