Steg SDSP68II User manual

SDSP68II
Ower s Manual
,
DSP Car Power Amplifiers
ItaIy
D04-MEN114-01

USB
16
16
10-15
9
8

REM
IN
REM
OUT
39 mm
120mm
197mm
1+IN
1- I N
2+IN
2- I N
3+IN
3- I N
4+IN
4- I N
5+IN
5- I N
6+IN
6- I N
1.2.3.4.5.6. COAX IN
6 5 4 3 2 1
REMOTE
CONTROL

4.2
6 5 4 3 2 1
REMOTE
CONTROL
REM
IN
REM
OUT
REM
IN
REM
OUT

6 5 4 3 2 1
REMOTE
CONTROL
6 5 4 3 2 1
REMOTE
CONTROL
6 5 4 3 2 1
REMOTE
CONTROL
REM
IN
REM
OUT

2
2.Click NEXT 3.Click NEXT
4.Click NEXT 5. Click NEXT

PRODUCT BRIEF INTRODUCTION
[ 11 ]
PRODUCT BRIEF INTRODUCTION
[ 12 ]
1.DSP interface guidance
7.2 Interface introduction
1. Connect(connect to the DSP)
1
2. FILE MAIN MENU
5. Save as(To save another file setting to PC)
3. Open(To load preset file in PC folder)
4. Save(To save setting to PC)
6. Restore Factory(To save preset file in DSP)
7.Modify Password
9. Read From Device
11. Exit
3. INPUT MODE.
To select different input devices.
10. About
2. Language(choose you need language)
CH mode(2CH 4CH 6CH ).
1
4. CHANNAL SETING.
21.2.3.4.5.6
1
2

PRODUCT BRIEF INTRODUCTION
[ 13 ]
PRODUCT BRIEF INTRODUCTION
[ 14 ]
M1=FL+FR. M2=FL+FL. M3=FR+FR. M4=FL+RL+SUBL. M4=FR+RR+SUBR.
Options on the Link are for combine setting for Left CH and Right CH .
Options on the Left CH/right CH allow you tone each selected channel respectively.
5. CROSSOVER X-TPE.
To choose different crossover type, for example select CH selection on 3RD
spot .that would locate CH you want to choose for crossover configuration .
6. CROSSOVER FREQUENCY.
Set frequency of LP/HP individually .
7. GAIN.
0--40dB is optional range for gain control kf every CH.
8. DELAY.
1.Auto configuration(base on 1.5 setting).
2.Manual configuration, change specifications in selected CH manually.
9. LP/SLOPE.
1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct
36dB/oct. 42dB/oct 48dB/oct are available.
10. HP/SLOPE.
1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct
36dB/oct.42dB/oct 48dB/oct are available.
3Output channel:FL FullRange.FR FullRange.
When you click the drop-down button, you can choose the state of the channel input.
There is : Null.Front.Rear.Center.Subwoofer and Full.Tweeter.Mid-T.Midrange.M-WF. Woofer.

PRODUCT BRIEF INTRODUCTION
[ 15 ]
PRODUCT BRIEF INTRODUCTION
[ 16 ]
14. X-OVER AND EQ CHARTS.
15. EQ SETTING.
1.Red lines and slopes will change accordingly when
2.EQ all frequency points can be move left or right.For 20Hz-20KHz can be any Regulation.
Q volue=1-12.
HP/LP of crossover and EQ are modified.
12. WRITE.
To Write To Device(POS1-POS8).
11. Filter Model.
To choose different Filter type Linkwitz Bessel Butterworth.
13. READ.
To Read From Device(POS1-POS8).
[ 17 ]

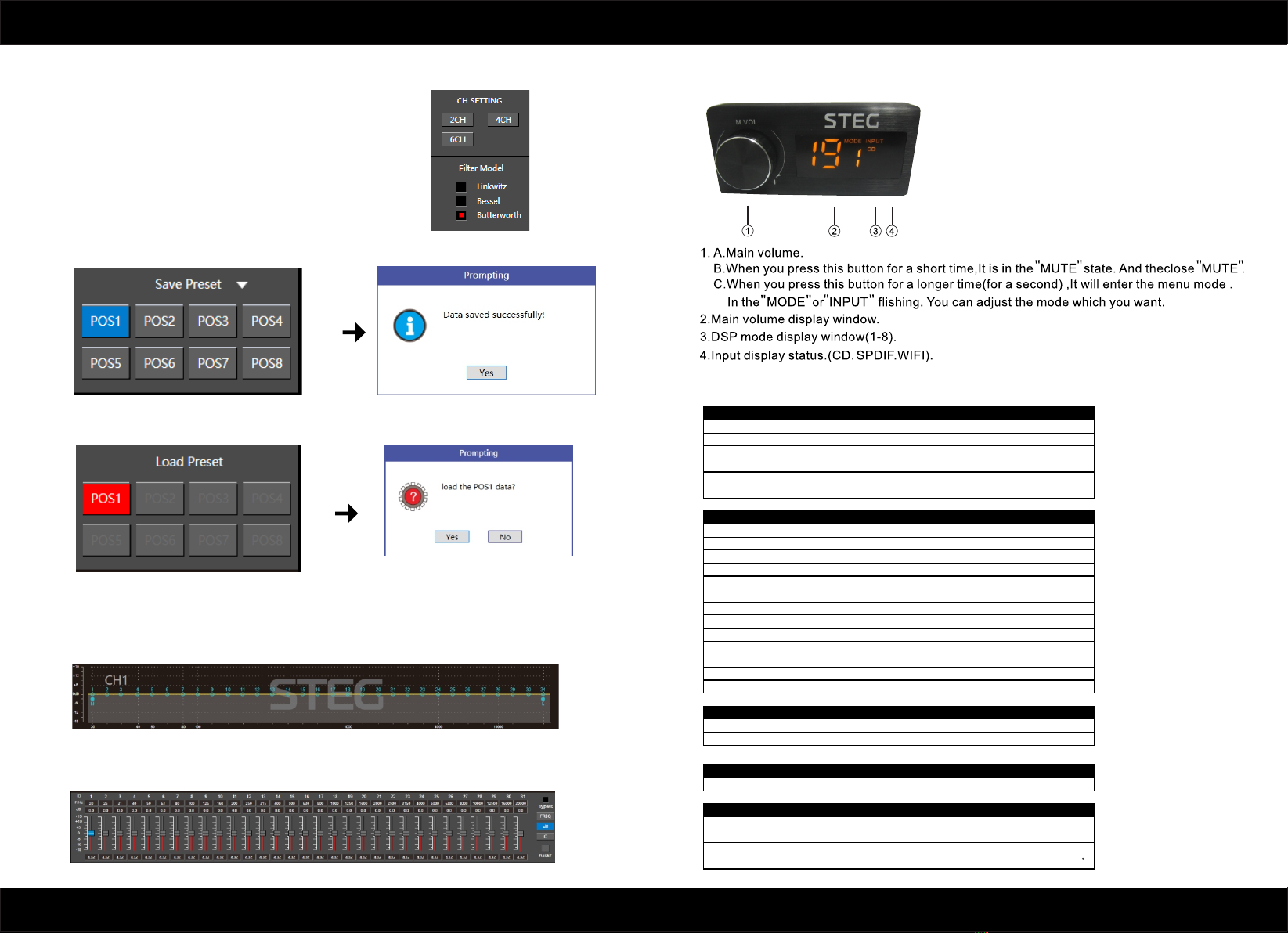

8.REMOTE INTRODUCTION
9.TECHNICAL FEATURES
POWER SUPPLY
Voltange 9.0-15VDC
Idling current 0,5A
5mm
Switched off with DRC 4mA
Remote IN voltage 6-15 VDC
Remote OUT voltage 12 VDC(130mA)
Switched off without DRC
SIGNAL STAGE
Distortion - THD @ 1kHz, 1V RMS Output 0,0004%
Bandwith @-3 dB 20-22kHz
Master Input 98 dBA
Auxinput 96dBA
Channel Separation @ 1 kHz 95 dB
S/N ratio @ A weighted
Input Sensitivity(Speaker In) 2-15 V RMS
Input Sensitivity(Aux In) 0,2-5 V RMS
Input Sensitivity(Phone)
Input Sensitivity(Speaker In) 10k
Input Sensitivity(Aux) 22k
Input Sensitivity(Phone)
Max OUTPUT Level(RMS) @ 0.1% THD 4 V RMS
INPUT STAGE
High Level(Speaker)
Low level(Pre)
CONNECTION
From/To Personal Computer 1 x USB/B(1.1/2.0) 5M
CROSSOVER N.5(one each output channel)
Filter Type Full/High/Low Pass /Band Pass
Slope Setting 6/12/18/24/30/42/48 dB
68 steps @ 20- 20kHz
Phase control indepent setting for each channel 0 - 180
Crossover frequency
1.2.3.4.5.6.7.8
1.2.3.4.5.6
