Stella PRO reflex User manual

User Manual
stellaprolights.com

Table of Contents
Section 1
Reflex Light
Section 2
Battery Handle
Section 3
Connecting the light to battery
handle and powering on
Section 5
OLED display
Section 6
Menu overview
Section 7
Light settings for operation with
wireless transmitters
Section 8
Firmware Updates
Section 9
Notes on use
Section 10
Additional Information

Umbrella Mount
Speedring Mount

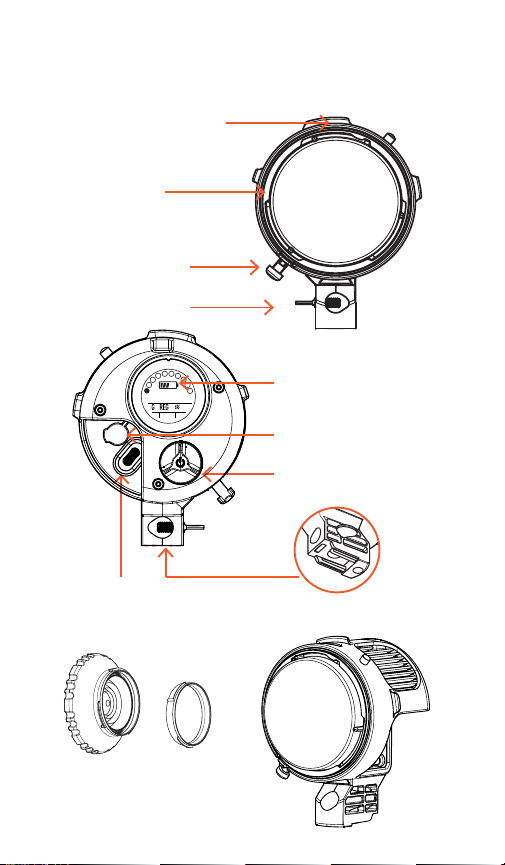

REFLEX LIGHT
Direct mount
Section 1
DIRECT MOUNT
Medium
Spot Optic
Flat Port
Cover*
USB-C Port
3.5 mm port
External Trigger
OLED Display
Control Dial
Mounting Point
GR
Lm
4CH 20
4000
1/4”-20 Mounting Point
*Always install a cover or optic over the
exposed LED to protect against dust or
moisture

USB-C Port Cover
Section 2
Professional Light Stand Sold
Seperately

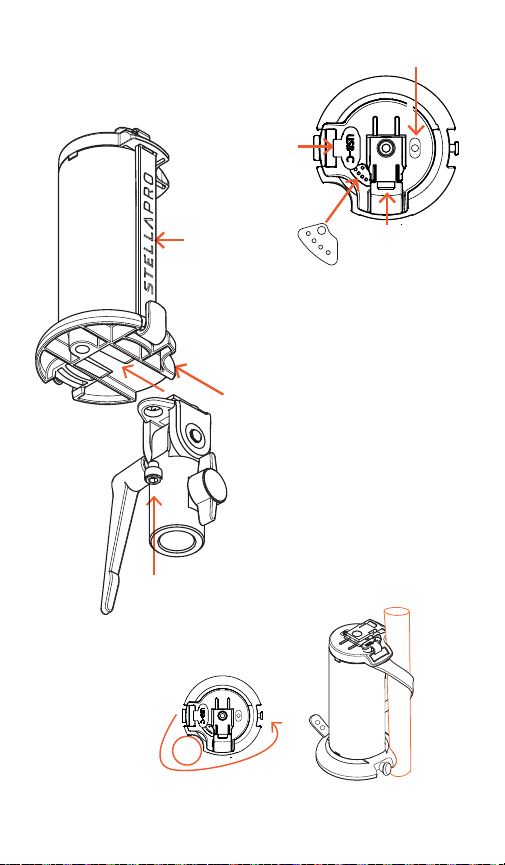

BATTERY HANDLE
MOUNTING BATTERY
HANDLE TO LIGHT STAND
Handstrap /
Pole Strap
Pole Mounting Feature
MOUNTING ON POLE
Power Button
Mounting Latch
State of Charge
(SOC) LEDs
(25%, 50%, 75%, 100%)
BATTERY INDICATOR LED
to indicate battery state
Charging (Green)
Discharging (Red)
Allen bolt
secures
connection

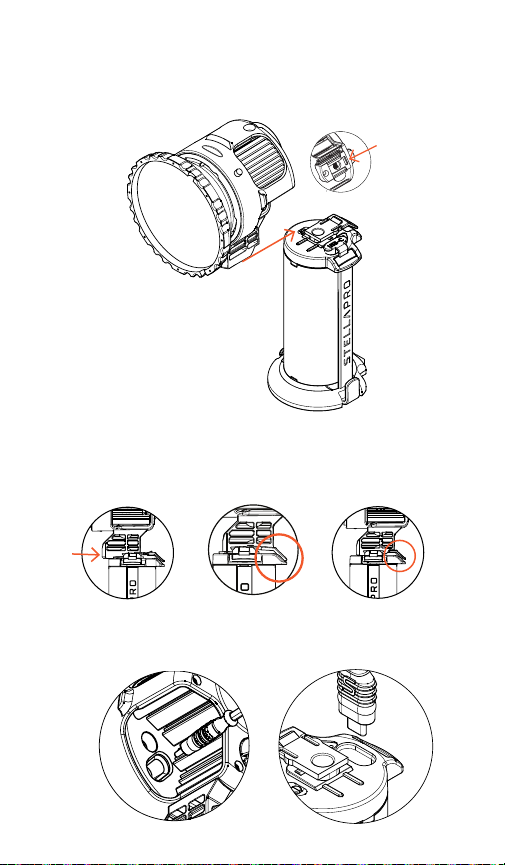

Section 3
Unlatched Secured
Connect USB-C cord to Reflex light and battery USB-C ports
CONNECTING LIGHT TO BATTERY
Push light onto battery until
it “clicks”
Tip: Push from the front top
of the optic
Connector tab
should no longer
be compressed

Section 4

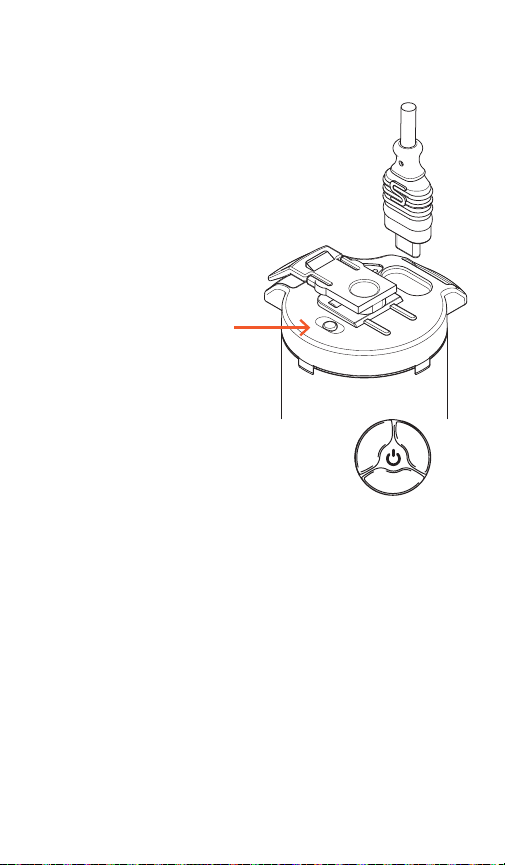

OPERATION BASICS
Connect short USB-C to the light and
battery. Press the white power button
on the battery. Battery Indicator will turn
red. Check connection and charge if in-
dicator light does not turn red. THe OLED
display will turn on if connections are ok.
•
•
•
•
•
A Short press (1 sec) switches between
Continuous and Digital Burst*(When in settings
menu advances through sub-menu)
A Medium press (2 sec) enters and exits the the
Reflex menu
Long press (4 sec) to enter sleep mode (Unplug
to turn o power)
Rotate Clockwise to increase output (Or change
menu setting)
Rotate Counter-clockwise to decrease output
(Or change menu setting)

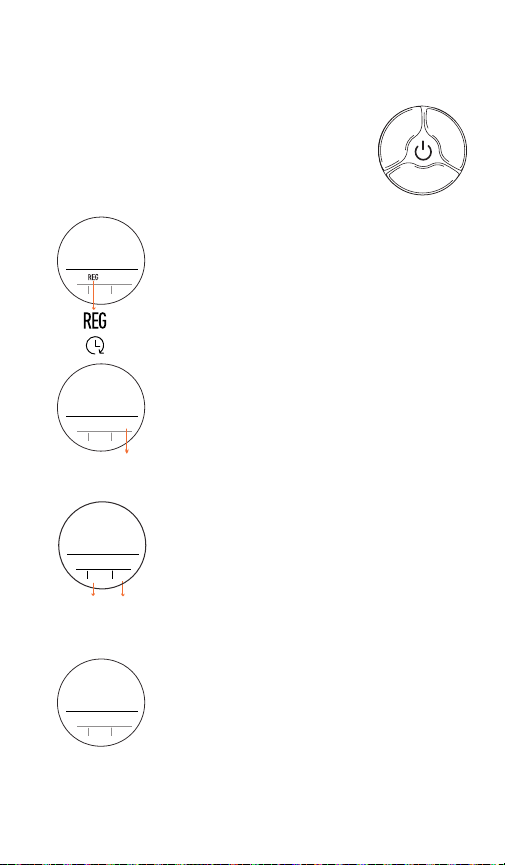

USING THE CONTROL DIAL
*Transmitter is required for burst operation
White Power Button

Section 5

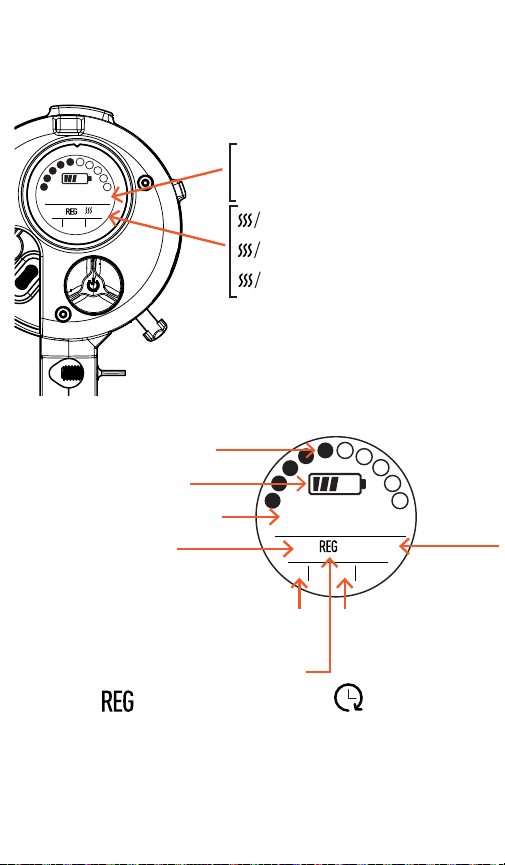

OLED DISPLAY
Section 6
MENU OVERVIEW
L
B
Lm
Stops
S
LED Overheating
(Turn o to cool down)
Battery Overheating
(Turn o to cool down)
Sensor Fault
(Return for service)
100-6000 Lumens
1.0-4.4 Stops*
1/160-1/2500 Second
!
P
GR
Lm
4
HSS
CH 20
!
4000
Group Channel
Burst Modes
GR CH
!
P
GR
Lm
4
HSS
8000
CH 20
Wireless Modes
Godox,
Elinchrom,
Bluetooth,
-Radio O
Battery Level
Continuous/Burst Power
To navigate the menu, short press
dial to advance the sub-menu.
Rotate dial to change the setting.
REGULAR DURATION
3.0Stops
E
E
Control the lumen
output with a set
burst duration of 5
milliseconds
Control the burst
duration with a set
lumen output of 12000
lumens
Power Level Indicators
* With 100W Power Supply lumens to 9000 and Digital Burst to 5-stops
∝2

Burst Modes
5ms Burst
Adjustable Power
Adjustable Duration (0.4ms - 6ms)
12000 Lumens***
REGULAR
DURATION **
Use this mode to:
• Shoot at any shutter speed (including HSS)
• Freeze action with the shutter
• Maximize amount of light on subject
**Duration Mode only available on the Reflex S
***18000 Lumens when using 100W USB-C PD
Use this mode to:
• Shoot at the camera’s X-Sync shutter speed or
longer (no HSS)
• Freeze action with light
• In low light situations
∝1Burst power matches continuous power
Optimize your settings in constant mode and, with Link
set to ∝1, Digital Burst will duplicate Continuous Power
level.
∝2Burst power delivers one stop more light
than set continuous power setting
Preset your camera to anticipate one more stop of light
by underexposing one stop of light.
∝Link Mode
Only exact at shutter speeds faster than 1/200

Section 7
CHANGING LIGHT SETTINGS
Enter and exit the menu by pressing
the control dial for 2 sec
Menu selection: Short press to ad-
vance through sub-menus
G
H
2
0
MENU
Burst Mode - Rotate dial to select
Burst Mode: Reg or Duration
(Duration mode only available
on Reflex S)
G
R
mode
CH 20
G
GR A
C
H
2
0
MENU
Group & Channel - Rotate dial to
select group and channel
E(1-4)
G(A-F)
(1-20)
(1-32)
group
G
C
H
2
0
MENU
G
R
rotation Rotation - Rotate dial to change
display orientation
(4 directions) - for mounting
Reflex horizontal or upside
down.
C
H
2
0
MENU
Proportional (∝)Link - Rotate dial
to cycle through link modes. When
active Reflex will strobe n times
brighter than current continuous
light.
G
R
∝link
∝2
-
∝1
∝2

G
MENU
Wireless - Rotate dial to select
transmitter type (Elinchrom,
Godox, Bluetooth, Wireless OFF)
Set Wireless mode to Bluetooth
to perform firmware updates.
Elinchrom
Godox
Bluetooth
- wireless off
wireless
Section 8
UPDATING REFLEX FIRMWARE
1. Download the StellaPro Imaging Control
Application
2. Set Reflex Wireless Mode to Bluetooth
3. Exit Reflex Menu
4. Scan for devices in App
5. Connect To Device
6. Enter Serial Number
7. Initiate Firmware Update

Section 9
HOW TO USE REFLEX
There are 3 distinct mode; Continuous, Burst, and Con-
tinuous interrupted by Burst upon triggering.
1. Continuous
• Rotate dial to desired power output in lumens.
• Your trigger may also allow remote adjustment of
continuous power.
• Maximum power from the battery handle is 6000
lumens.
• Maximum power from a 100W USB-C source is 9000
lumens.
2. Digital Burst
• When set to REG, rotate the dial to set burst power.
Maximum burst power is 1 stop more light than maxi-
mum continuous mode.
• In Duration mode , rotate the dial to set duration
from 0.4ms (1/2500 sec) to 6ms (1/160th sec).
3. Continuous light that Bursts upon triggering
• Sync Reflex with trigger (same as Digital Burst Mode)
• Set Constantlight (using dial or trigger)
• Set Burst power with trigger. Trigger signal will
cause the light to deliver Burst power.
• Set your exposure to -1 when link is set to ∝2. When
shutter opens Reflex will deliver extra stop of light.

Battery Runtime
Continuous
Full Power: 30 minutes
Low Power: 600 minutes
Digital Burst
15,000 full power Digital Bursts
Charge Time: 2 hours*
* With a minimum 45W USB-C
Charger
Fully charge battery before first use
Charge your battery for 6 hours before first use. Period-
ically, check the charge of the battery during storage.
Fully charge your battery before use. The battery has
internal protections that ensure the battery is safely
maintained regardless of charge state.
Temperature Warning:
While in full power continuous mode use the battery
may get noticably warm. This is normal. Should the
temperature increase beyond safe levels the overheat
symbol will appear and operation will pause until bat-
tery cools down.
Reflex Battery Handle 60W
Continuous: 100-6000 lumens
Digital Burst: 1125-12000 lumens
External USB-C PD 100W**
Continuous: 100-9000 lumens
Digital Burst: 1125-18000 lumens
** Not Included
For Travel
To turn off Battery, unplug from
light.
Have at least 30% Battery when in
storage.

Direct Mount Accessories
Spot Optic 12º 805-0372
Medium Optic 24º 805-0373
Medium Wide Optic 36º 805-0406
Flat Port Cover 800-0340
Dome Diffuser 800-0335
50º Optic 800-0337
Speedrings
Chimera 800-0382
Profoto 800-0400
Bowens 800-0371
Mounts
Pro Light Stand Mount 800-0381
Bar Mount 800-0401
Other Accessories
Barn Door/Gel holder 800-0383
3 CTO Set (Full, 1/2, 1/4) 800-0385
-82mm Glass
Remote Control 800-0325
1/4-20 Mount Base Reciever 800-0402
Cold Shoe Mount Kit 800-0403
Power Supplies
100W USB-C AC Power Supply 552-9614

Elinchrom Godox
Burst Power Control Yes Yes
Continuous Power Control Yes No
Continuous (on/o) Yes Yes
Camera Trigger Yes Yes
Wireless Connectivity
Menu options allow you to choose between Godox and
Elinchrom wireless protocols. Transmitters supported
with limited capabilities.
Plug in any 3.5mm receiver to the sync port to operate
with external receivers
OPERATIONS SPECIFICATIONS
Reex auto fan operation
Integrated variable speed fan automatically
turns on when light output exceeds 4000
lumens.
Low Speed (4100-6000), High Speed (6100-
9000).
Operating from external power
Reflex will deliver 9000 lumens (18,000 lumens
in burst) when connected to 100W or greater
external power source.

Warranty
StellaPro products are covered against defects in
workmanship and materials under normal use and
service for 2 years from the date of purchase. Please
register your device (Reflex only) to activate warranty
coverage. Batteries, by nature of their use, are covered
for 180 days.
Warranty is non-transferable and does not cover
failures from misuse. We will repair or replace, at our
discretion, any product that is found to be defective
under our warranty policy. Verification of purchase date
must be provided with any claim.
Storage & Travel
Never store the batteries fully discharged as this may
cause permanent damage. Unplug from battery
when traveling.
Regulatory Information
Registering for a StellaPro Account
Register for a StellaPro account to get access to the
latest firmware updates along with tips and tricks from
our Ambassadors and community members.
Firmware update
Please make sure to update your Reflex to the latest
firmware to ensure the Reflex is operating to it’s full
capabilities. Update performed from the StellaPro
Imaging Control app (iOS) Make sure to exit menu to
discover Reflex device.
Download StellaPro Imaging Control
(iOS & Android)
Light & Motion Industries,
711 Neeson Road, Marina, CA, USA
IP65
.

USB-C Power Supply
<= 15W 25W 45W 65W 100W
Reflex Lighthead
Not Recom- mended
Not Recom- mended
4,000 Lumens, Burst 8000 Lumens
6,000 Lumens, Burst 12,000 Lumens
9,000 Lumens, Burst 18,000 Lumens
Reflex 38Wh Bat- tery
6-10Hr charge time
4Hr charege time
2Hr charge time
2Hr charge time
2Hr charge time
General Performance with given
USB-C Supply Power Rating
Find our Recommended Power Supplies at lightandmotion.com/pages/reflex-recommended-power-supplies

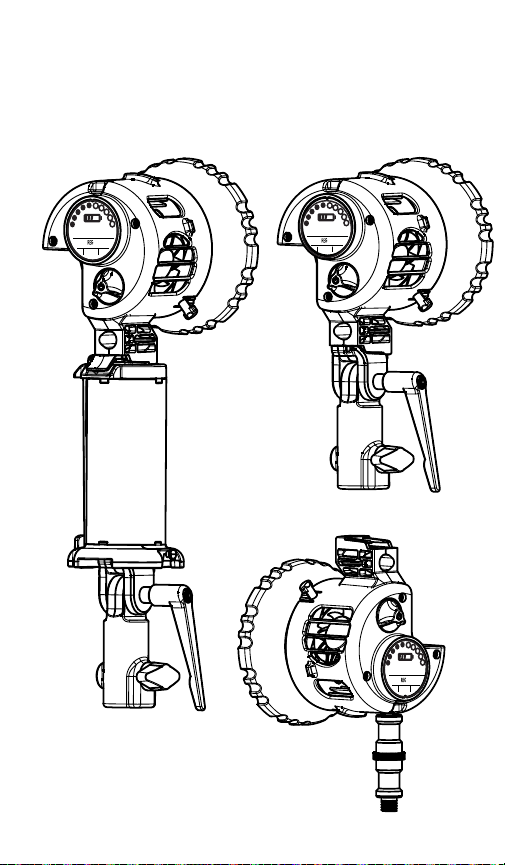

Reex Mounting Options
Professional Light Stand
800-0381
1/4”-20 Mounting
(Screen Rotated)
!
P
GR
Lm
4
HSS
8000
CH
20
3.0Stops
!
P
GR
Lm
4
HSS
8000
CH
20
3.0Stops
!
P
GR
Lm
4
HSS
8000
CH
20
3.0Stops

Reflex Bar
(Mount 1 to 5 lights)
800-0401
Speedring Mount
Direct Mount
Mount softboxes for
Chimera, Profoto,
Bowens using a
StellaPro Speedring
Direct Mount modifiers
require a press-in and clock-
wise turn to lock. Always op-
erate the Reflex with a Direct
Mount modifier installed.

#FlexYourReex
@stellaprolights
905-0487-A-02
Contact [email protected] for support.
