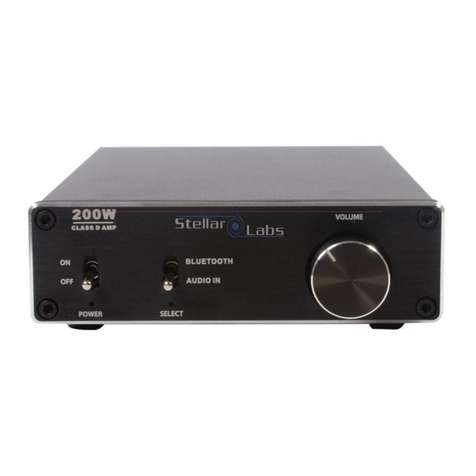

stellar labs 50-20810 User manual

stellar labs

stellar labs 50-20810 User manual

stellar labs SLA150 User manual

stellar labs

stellar labs SLA150 User manual

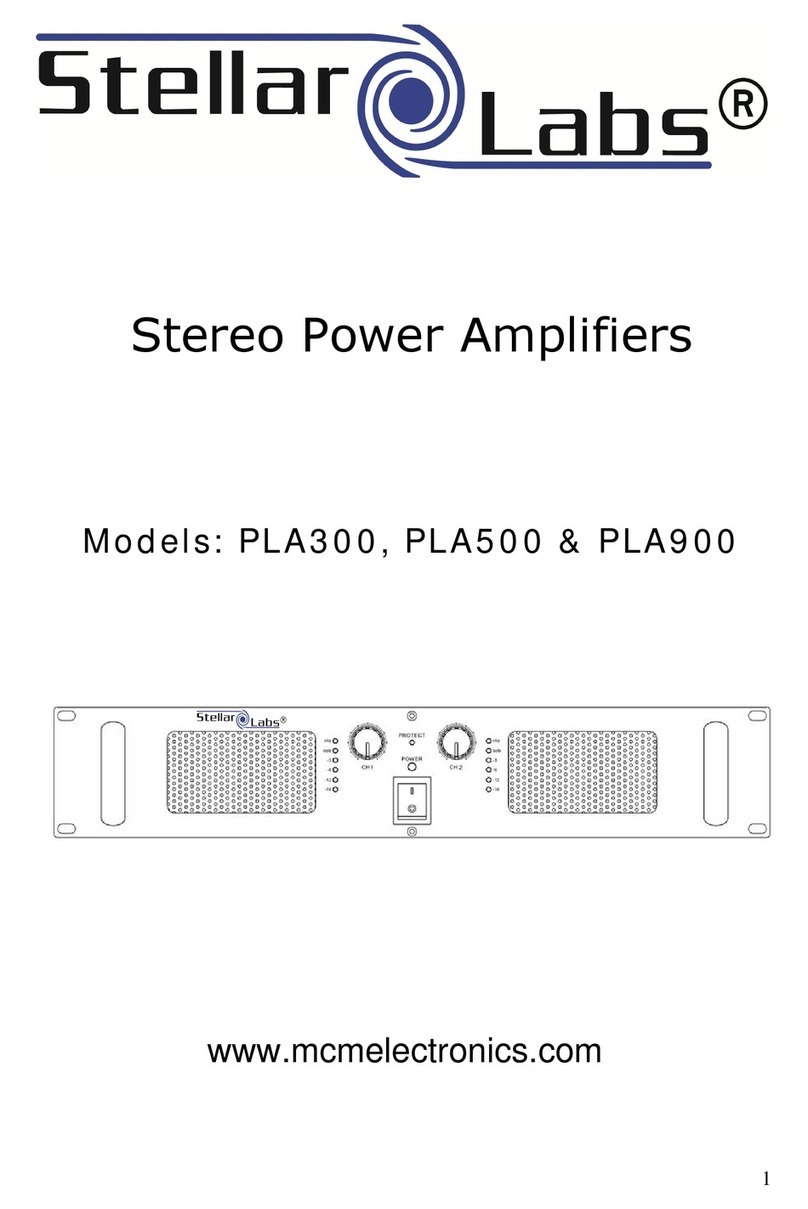

stellar labs PLA300 User manual

stellar labs

stellar labs PLA300 User manual

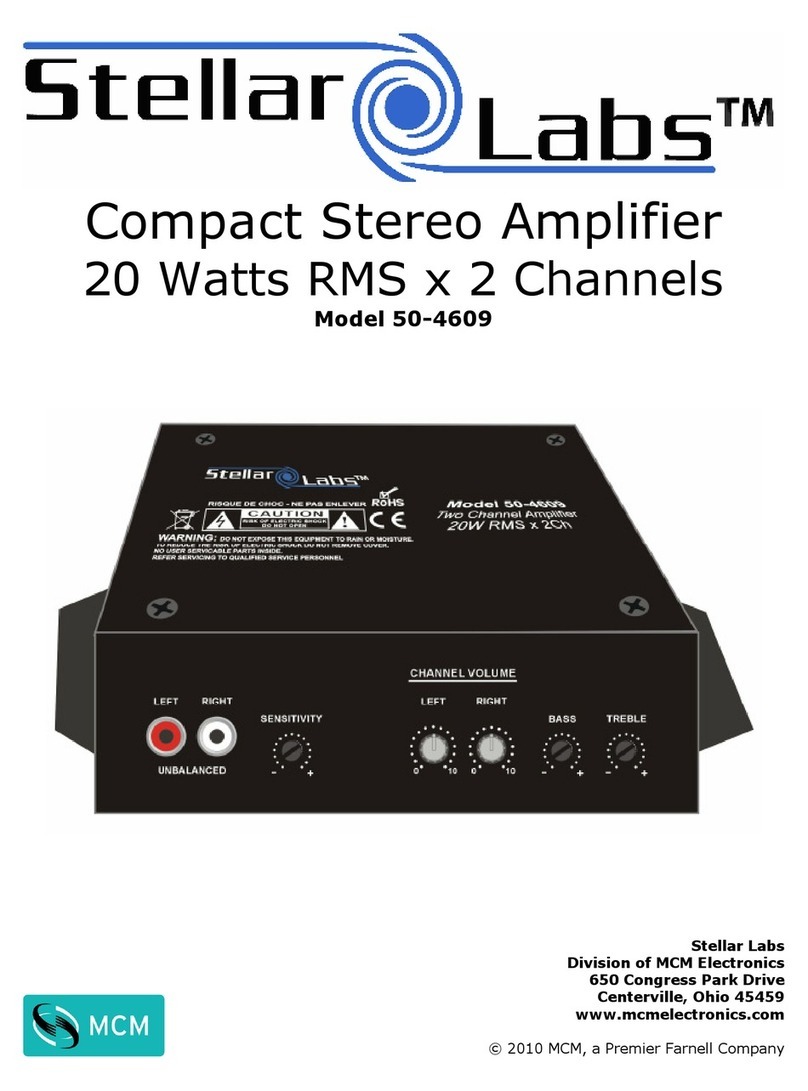

stellar labs 50-4609 User manual

stellar labs

stellar labs 50-4609 User manual

stellar labs STA2000 Series User manual

stellar labs

stellar labs STA2000 Series User manual

stellar labs DA-250 User manual

stellar labs

stellar labs DA-250 User manual

Popular Amplifier manuals by other brands

Magnat Audio EDITION FOUR Owner's manual/warranty document

Magnat Audio

Magnat Audio EDITION FOUR Owner's manual/warranty document

Inter-m PA-2000A Operation manual

Inter-m

Inter-m PA-2000A Operation manual

Yamaha TX6n owner's manual

Yamaha

Yamaha TX6n owner's manual

Peavey TNT 150 user guide

Peavey

Peavey TNT 150 user guide

Bosch LBB 1903/10 Installation and user instructions

Bosch

Bosch LBB 1903/10 Installation and user instructions

Avocent Emerge DA1200D Installer/user guide

Avocent

Avocent Emerge DA1200D Installer/user guide

Redgum RGi35 operating instructions

Redgum

Redgum RGi35 operating instructions

Cambridge Audio AXA25 user manual

Cambridge Audio

Cambridge Audio AXA25 user manual

Alpine MRP-M200 owner's manual

Alpine

Alpine MRP-M200 owner's manual

Technical Pro H1502UrBT user manual

Technical Pro

Technical Pro H1502UrBT user manual

FMS EMGZ307 operating manual

FMS

FMS EMGZ307 operating manual

Racal Instruments 5601 user manual

Racal Instruments

Racal Instruments 5601 user manual

Valcom V-1094A Technical specifications

Valcom

Valcom V-1094A Technical specifications

Cambridge Audio 851D user manual

Cambridge Audio

Cambridge Audio 851D user manual

QSC 3800 Specifications

QSC

QSC 3800 Specifications

NAD C300 owner's manual

NAD

NAD C300 owner's manual

Rotel RMB-1077 owner's manual

Rotel

Rotel RMB-1077 owner's manual

Peavey Monitor 300 Series operating guide

Peavey

Peavey Monitor 300 Series operating guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Page <1> V1.009/01/19
User Manual
CATV / Antenna Drop Amplier 1×4 Splitter with Passive Return
Part Number: 30-2471
Model #30-2471
CATV Drop Amplifier
Overview:
Connections/Indicators:
Specifications:
11 2
34
5
6
5
This cable drop amplifier is designed for sending
CATV signals to up to four television sets, and has
an internal 15dB signal amplifier to compensate
for losses caused by the split as well as the
additional cable length.
It also provides a passive return path, ensuring
compatibility with current digital and interactive
and broadband cable systems.
Power is supplied either directly through the
power port (#1), via the supplied AC adapter or
may be inserted into the existing signal cable
connected to one of the output ports (#3) as
shown.
While designed for CATV use, this device is
perfectly suitable for use with standard TV
antennas. The housing and "F" ports are all sealed
for permanent installation outdoors.
Note the included AC adaptor must be located
inside.
Installation note:
#1 Power input - Accepts 15VDC from supplied
AC adapter. An "F" jumper is provided for short
distances, the maximum distance for this cable
is 200'
#2 RF input - Accepts signal from cable company
or external antenna.
#3 RF output - Output to be sent to the first television
set. This also acts as a power input if a remote
power inserter is used to supply power.
#4 RF output - Output to be sent to up to four
television sets.
#5 Ground lugs - This provides necessary ground
connection should the unit be located outside of
the structure.
#6 Power indicator - this will light when 15VDC power
is properly supplied to the unit.
Power may be supplied to this unit directly into
port #1. This port and the supplied AC adaptor
are both equipped with standard "F" female
connectors, allowing standard CATV cables to
be used to provide power.
Power may also be supplied over the existing
signal cable being fed from port #3. This allows
the supplied AC adaptor to be easily located at
one of the television sets. This requires separate
purchase of a Power Inserter, such as Item
#30-2405, available from MCM Electronics and .
similar sources of CATV installation products.
+15dB forward, -8dB return
54MHz ~ 1,000MHz (forward path)
5MHz~42MHz (return path)
15VDC, 150mA
120VAC, 60Hz input
15VDC, 200mA output
4.50" (H) x 4.63" (W) x 1.13" (D)
75ohm all inputs/outputs
Female "F" type
Maximum signal gain:
Effective bandwidth:
Power requirements:
Included power supply:
Dimensions (incl. ports):
Impedance:
Connections:
4
4
