Stern Engineering PERFECT TIME SH Series Product manual

1
INSTALLATION AND MAINTENANCE GUIDE
PERFECT TIME SH
PERFECT TIME SH 1011 PERFECT TIME SH 1032 PERFECT TIME SH 1032E

INDEX
1 TECHNICAL DATA
2 OPERATION & PRE-INSTALLATION INFORMATION
3-5 PACK CONTENTS
Perfect Time SH1011
Perfect Time SH1032
Perfect Time SH1032 E
6-7 INSTALLATION
8-10 FLOW TIME ADJUSTMENT
11 HOW TO ENABLE THE 24 HS DUTY FLUSH OPTION
12-13 LOW BATTERY INDICATOR AND BATTERY REPLACEMENT
INSTRUCTIONS
14 MAINTENANCE
Filter cleaning instructions
Care and cleaning of chrome and special finishes
15 SPARE PARTS LIST
16 SERVICE CHECK LIST
17 LIMITED WARRANTY

1
TECHNICAL DATA
PERFECT TIME SH 1011 PERFECT TIME SH 1032 PERFECT TIME SH 1032 E
Product control: Touch using Piezo technology
Operating water pressure: 0.5-8.0 bar (7-116 PSI)
With water pressure of more than
8 Bars, use a pressure reducing
valve
Hot water supply: Max 70° C
Power specification: 9V low voltage system
Power source for Perfect Time SH 1032 9V battery or 9V transformer
Power source for Perfect Time SH 1011 9V battery
Default flow time: 2 minutes
Programmable flow time: 5 to 2600 seconds
24 hs. hygiene / anti freeze flush: Optional. Programmable on site

2

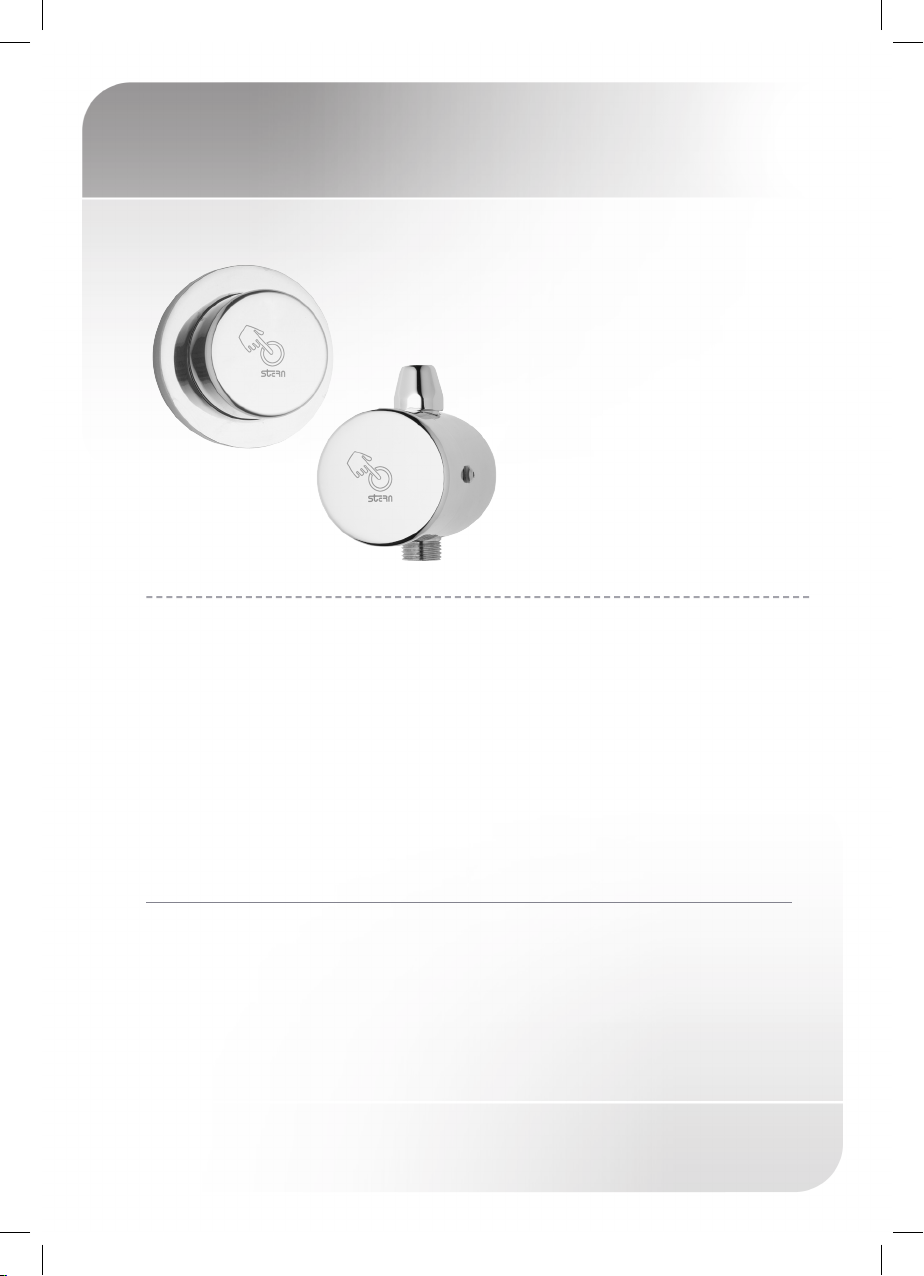

OPERATION
PRE–INSTALLATION INFORMATION
Check contents
Separate all parts from packaging and check each part with the Pack
contents section.
Make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not attempt to install your Perfect
Time shower control until you obtain the missing parts.
Preparation for Installation:
Flush water supply lines thoroughly before installing the flush valve.
Do not allow dirt, Teflon tape or metal particles to enter it.
Shut off water supply.
Important:
All plumbing is to be installed in accordance with applicable codes
and regulations.
To operate the Perfect Time
Shower controls, simply touch
the designated area at the Piezo
shower control cap. Default flow
time is 2 minutes.
If you do not need more water,
just touch the designated area
again to stop the shower water
flow before the default time has
passed.

3
PACK CONTENTS
Perfect Time SH 1011

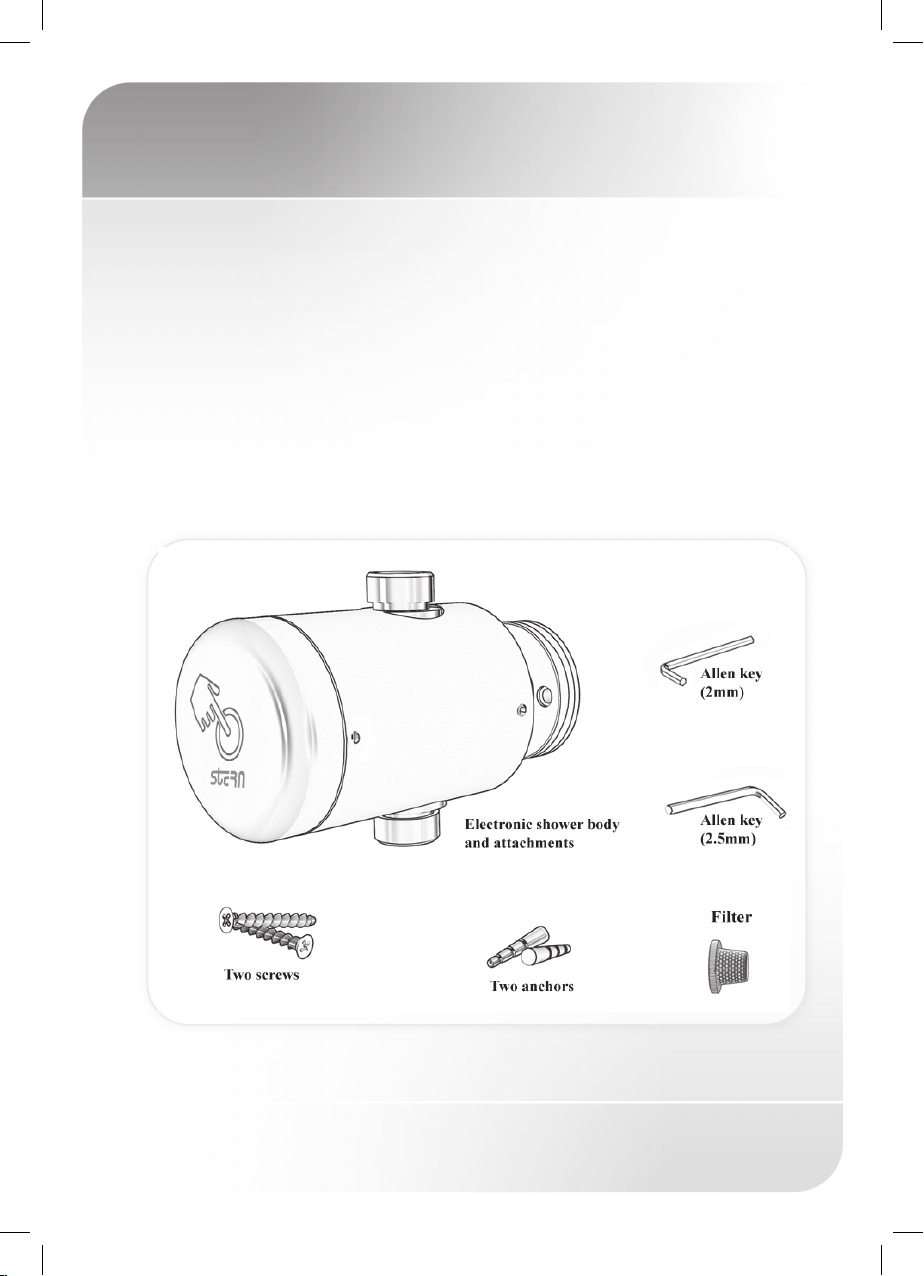

1. 1x Piezo shower control body and attachments
2. 2x Allen keys 2 mm and 2.5 mm
3. 2 x Screws
4. 2 x Anchors
5. 1 x Filter
Familiarize yourself with the part names and confirm that the parts are
included.

4
PACK CONTENTS
Perfect Time SH 1032
1. 1x Cover plate
2. 1x Piezo shower control body and attachments
3. 2x Allen keys 2 mm and 4 mm

5
PACK CONTENTS
Perfect Time SH 1032 E

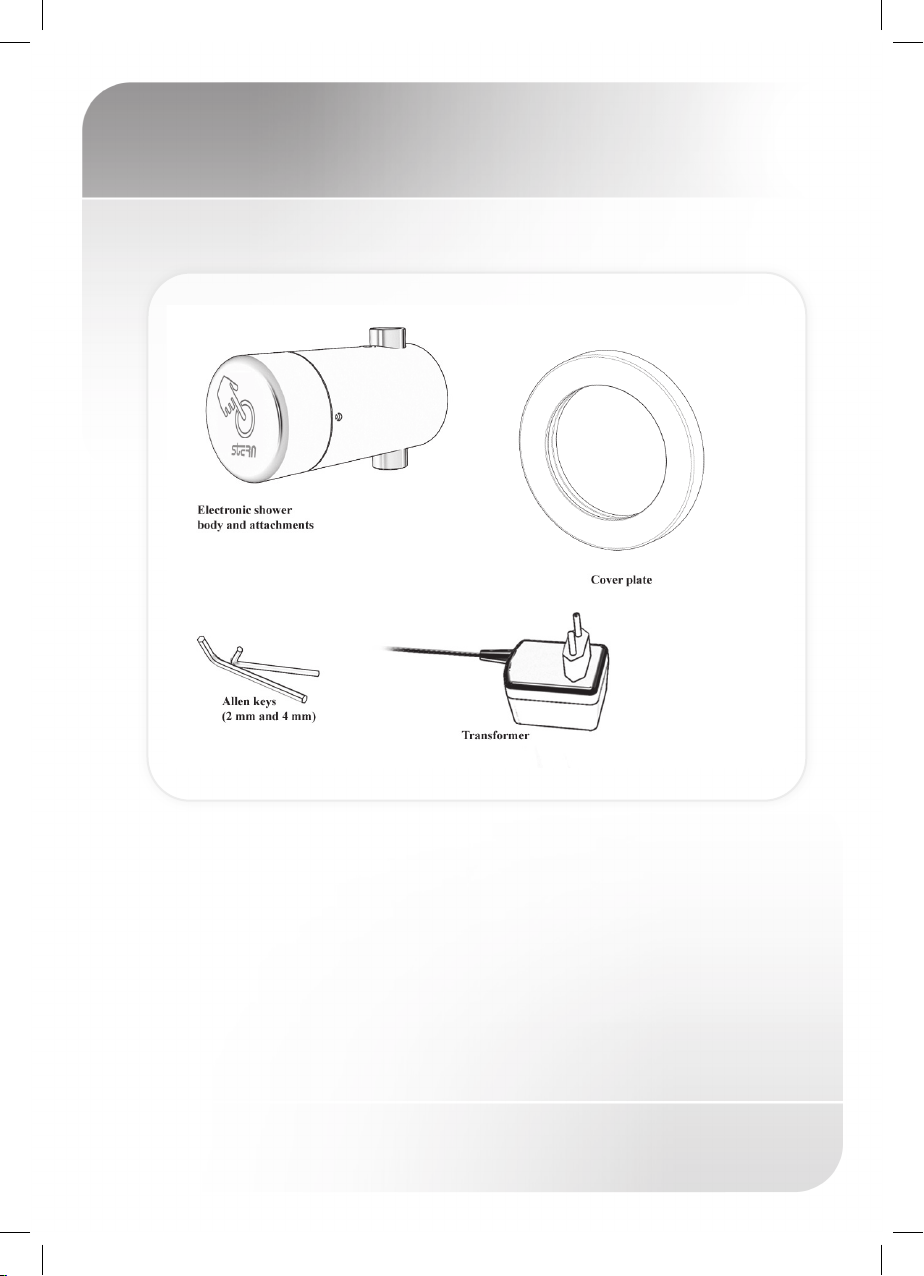

1.1x Cover plate
2. 1x Piezo shower control body and attachments
3. 1x Transformer
4. 2x Allen keys 2 mm and 4 mm

6
INSTALLATION
INSTALLATION INSTRUCTIONS FOR PERFECT TIME 1011:
1) Shut off the water supply.

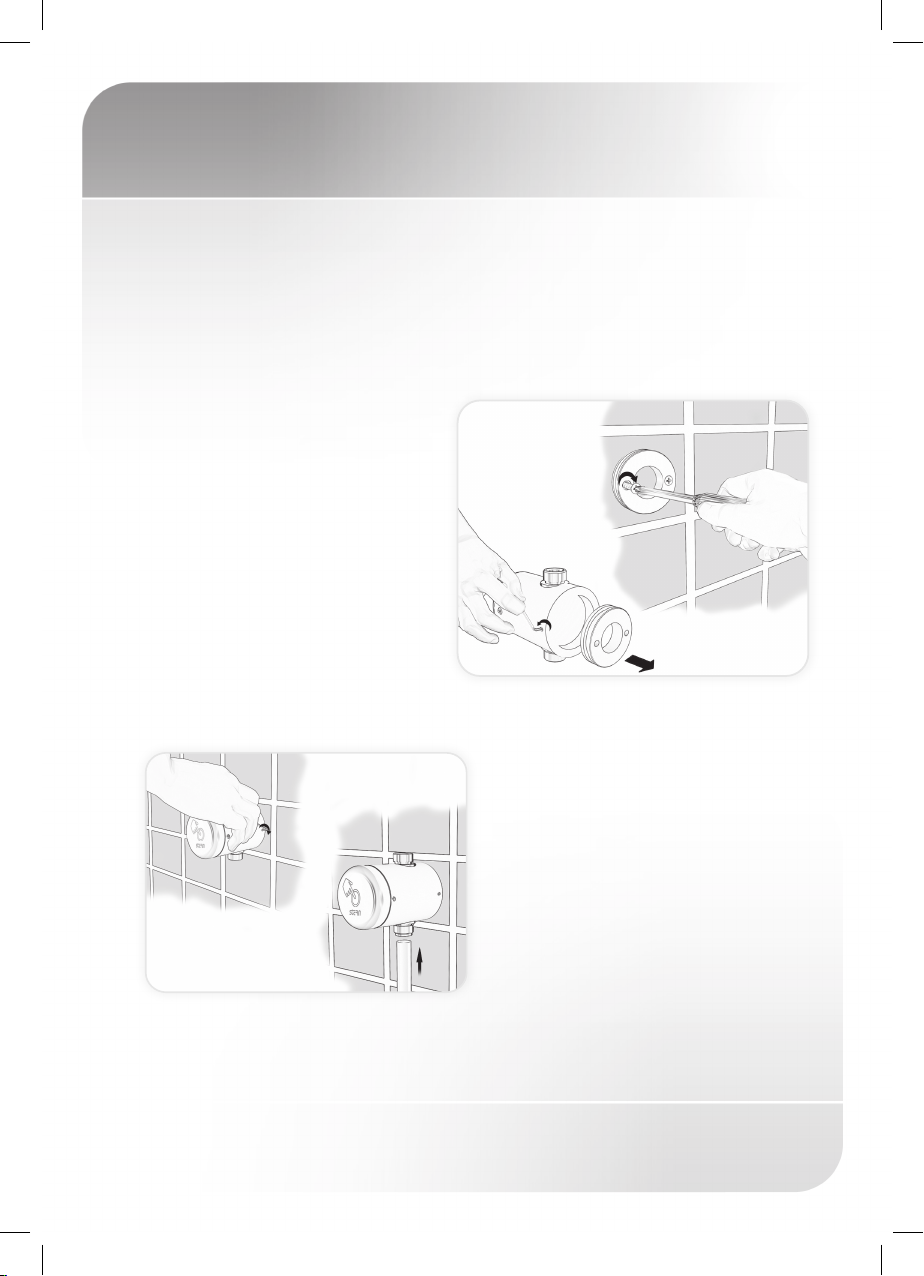

2) Drill two holes in the wall and drive the anchors in. The distance between the
centers is 44 mm.
3) Release the screw using the 2mm.
Allen key. Pull out the mounting disk.
4) Secure the mounting disk to the
wall anchors using the two screws
(supplied).
5) Mount the shower control body to
the mounting disk by tightening the
screw. Make sure to install it with the
inlet connection downwards.
6) Assemble the inlet to the water
supply pipe. Confirm that the filter is
installed between the water supply
pipe and the inlet on the shower body.
7) Connect the outlet to the pipe leading
to the shower head.
8) Turn on the water supply and check for
leaks.

7
INSTALLATION
INSTALLATION INSTRUCTIONS FOR PERFECT TIME SH 1032 AND 1032E:
1) Shut off the water supply.
2) Cut an adequate opening in the wall for the dimensions of the product
and if your model is Perfect Time SH 1032 E for the electricity wires.
3) Insert the product through the wall opening and assemble the inlet
to the water supply pipe in the wall.
4) Connect the outlet to the pipe leading to the shower head.
5) Mount the shower control body to the wall so it will protrude from
the wall as shown in the drawing.
6) If your model is Perfect Time SH 1032 E place the transformer near
the electricity plug (up to
3 meters from the shower
control body) and connect
the transformer wire to the
shower control body through
the hole.
IMPORTANT: In order to avoid
entering the adjusting mode,
wait 10 seconds after the
connection of the transformer
before you will operate the
system.
7) Turn on the water supply and check for leaks.
8) After the ceramic tiles are installed, assemble the cover plate over
the shower body at the wall.

8
FLOW TIME ADJUSTMENT
Adjustment levels
The flow time is programmable on site. If necessary, the default flow time
of 30 seconds can be adjusted to any value between 5 to 2600 seconds. The
Perfect Time adjustment mechanism is composed by 3 adjustment levels for
changing the flow time. An indicator light (LED) will guide you from one level
to the other.
The following table shows the number of steps in each level, the duration at
each step and how to recognize in what adjusting level you are.
Level 1 Level 2 Level 3 Level 4
No. of steps
Seconds to be increased by
touching once
Adjustment level indicator
100 steps 100 steps 100 steps
1 second 5 seconds 20 seconds
After
entering
into
adjusting
mode
level 1 is
reached
Indicator
light
blinks
twice
Indicator
light
blinks 3
times
The following examples show how to manage the adjustment levels:
Example 1: You wish to adjust the flow time to 28 seconds.
At level 1 perform 3 steps of 1 second (you will get 3 seconds). Total: 3 seconds
Go to level 2 and perform 1 step of 5 seconds (you will get 5 seconds). Total: 8
seconds)
Go to level 3 and perform 1 step of 20 seconds (you will get 20 seconds). Total: 28
seconds.
Out of
adjusting
mode
enables the
hygiene flush
option when
available
Indicator
light
blinks 4
times
Indicator
light
blinks 5
times

9
FLOW TIME ADJUSTMENT
How to adjust the flow time
1) Disconnect the power supply (batteries or transformer).
2) To disconnect the power supply at battery models, open the piezo cup at the
shower control body using the provided 2.5 mm Allen key.
3) Wait ten seconds.
4) Reconnect the power supply.
5) The indicator light (LED) on the back of the piezo cap will start blinking. After
a few blinks the LED will give a steady red light. Touch the designated area at
the Piezo cap when the steady red light is still on to enter into adjusting mode.
When done correctly, the light will stop blinking.
Note: If you will not press at the indicated area, the previous adjustment will
remain.
6) By touching the Piezo cap the new flow time will be programmed. In adjusting
mode level 1, each touch increases the flow time by 1 second with a maximum
of 100 seconds. You will see the LED blinking every time that a new step is
performed.
Example 2: You wish to adjust the flow time to 45 seconds.
At level 1 do not perform any step and wait until you reach level 2 (you will get 0
seconds). Total: 0 seconds
At level 2 perform 1 step of 5 seconds (you will get 5 seconds). Total: 5
seconds)
Go to level 3 and perform 2 steps of 20 seconds (you will get 40 seconds). Total:
45 seconds.
Example 3: You wish to adjust the flow time to 60 seconds.
Do not perform any step at levels 1 and 2 and wait until you reach level 3 (you
will get 0 seconds). Total: 0 seconds
At level 3 and perform 3 steps of 20 seconds (you will get 60 seconds). Total: 60
seconds.

10
FLOW TIME ADJUSTMENT
7) If you have reached your desired flow time at this level, stop pressing the
Piezo button. The LED will blink 2 times, 3 times , 4 times and after the 5th
time you will leave the adjusting mode. The Perfect Time is now adjusted to the
desired flow time.
8) If you need to perform steps at the adjusting level 2, wait after you see the
indicator light blinking twice and then, perform the needed quantity of steps
(with a maximum of 100 steps of 5 seconds)
9) If you do not need more levels, stop pressing. The indicator light will blink 3
times, 4 times and after 5 times you will leave the adjusting mode. The Perfect
Time is now adjusted to the desired flow time.
10) If you need to perform steps at the adjusting level 3, wait after you see
the indicator light blinking 3 times and then, perform the needed quantity of
steps.(with a maximum of 2 steps of 15 seconds)
11) To leave the adjusting mode wait until the LED blinks 4 times and then 5
times. The Perfect Time is now adjusted to the desired flow time.
Warning: In order to avoid enabling the 24 hs. hygiene flush option without
intention, do not touch the piezo cap after the LED blinks 4 times.

11
24 HOURS DUTY FLUSH OPTION
24 HS ANTI-LEGIONELLA / ANTI FREEZE DUTY FLUSH CYCLE OPTION
This anti-Legionella / anti freeze feature provides an automatic duty flush cycle
for 30 seconds if the shower has not been used in the previous 24 hours.
This feature is optional and is ideal for buildings such as schools where the
shower installations are often vacant for long periods. The duty flush cycle
maximizes hygiene, and prevents frozen pipes during the cold Winter months.
In order to activate this option proceed as follows:
1) Disconnect the power supply (batteries or transformer).
2) To disconnect the power supply at battery models, open the piezo cup at the
shower control body using the provided 2.5 mm Allen key.
3) Wait ten seconds.
4) Reconnect the power supply.
5) The indicator light (LED) on the back of the piezo cap will start blinking. After
a few blinks the LED will give a steady red light. Touch the designated area at
the Piezo cap when the steady red light is still on to enter into adjusting mode.
When done correctly, the light will stop blinking.
Note: If you will not press at the indicated area, the previous settings will remain.
6) To enable the automatic duty flush option you need to arrive directly to the
adjustment level 4 (please see the adjustment levels table at page 9).
Once you have entered the adjusting mode following the steps 1 to 5, wait until
the LED blinks 2 times, then 3 times and 4 times. Immediately after the LED blinks
4 times touch the piezo cup once. This will enable the hygiene flush option.
To leave the adjusting mode wait until the LED blinks 5 times. Now this option
is activated. If the shower controls will not be used for 24 hours, a single 30
seconds hygiene flush will take place.
WARNING! A safe hot water temperature control is needed
This anti-Legionella / anti freeze feature is automatic and is intended to be used
with cold or premixed water only. A thermostatic mixing valve (TMV) must be
used to provide safe hot water temperatures and prevent scalding.

12
BATTERY REPLACEMENT
LOW BATTERY INDICATOR
The Perfect Time shower controls have an advanced battery level management
system consisting of 2 steps. At the first step, the battery still has enough power to
open and close the solenoid valve. The battery level management system allows the
solenoid valve to be open, but will activate the LED warning indicator at the back
of the Perfect Time SH Piezo cap. The LED will blink twice when the battery level
management system has activated step 1. At this point the battery might not have
enough power to open and close the solenoid valve. The battery level management
system does not allow the solenoid valve to open. Instead of providing an opening
and closing pulse, the systems provides two closing pulses. The LED warning
indicator will blink three times when the battery level management system has
activated step 2.
Battery replacement instructions for Perfect Time SH 1011

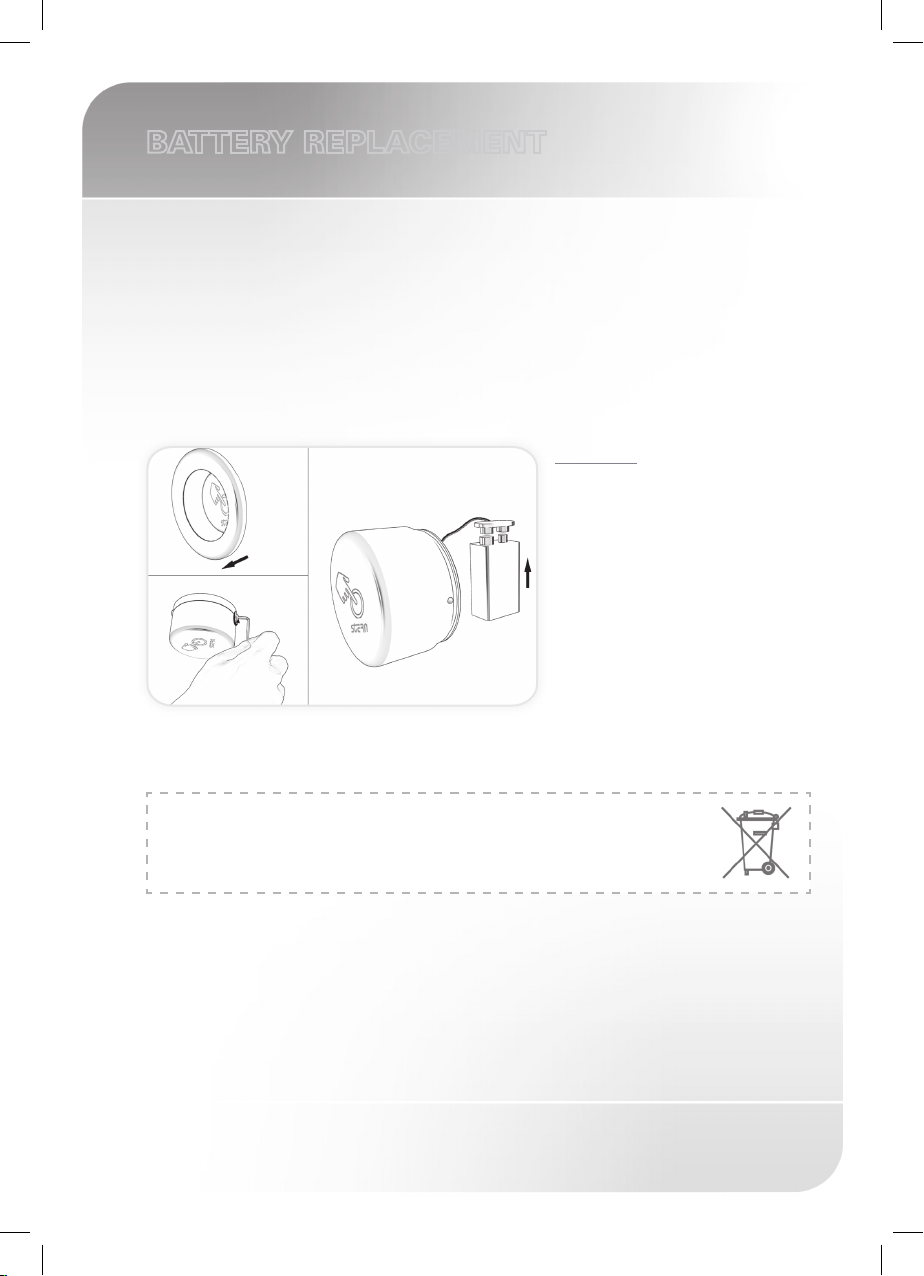

1. Open the Piezo cup by
releasing the screws at
both sides of the shower
control body.
2. Replace the used
battery with a new 9V
battery (Lithium battery is
recommended).
3. Before reassembling the
electronic cap, make sure
that the external O-ring is
not damaged. Replace it if
necessary.
Attention: The interior of the shower control body and the cover plate must be
fully dry before reassembling the parts. If it is not fully dry, carefully dry it.
IMPORTANT: In order to avoid entering the adjusting mode, wait 10 seconds
after the connection of new battery before you will operate the system.

13
BATTERY REPLACEMENT
Battery replacement instruction for Perfect Time SH 1032
1) Pull out the cover plate. Release the screw and carefully pull it out.
2) Replace the used battery with a new 9V battery (Lithium battery is
recommended).
3) Before reassembling the cap, make sure that the external O-ring is not
damaged. Replace it if necessary.
4) Reassemble the piezo cover plate.
Attention: The interior of the
shower control body and the
cover plate must be fully dry
before reassembling the parts.
If it is not fully dry, carefully
dry it.
5) Connect the solenoid valve
connector to the electronic
unit connector.
6) Assemble the cap.
7) Tighten the screw.
NOTE: In order to avoid entering the adjusting mode, wait 10 seconds after the
connection of new battery before you will operate the system.
Important: Spent batteries should not be disposed of with
normal household waste. Contact your local authority for
information on waste disposal and recycling.

14
MAINTENANCE
This Perfect Time shower controls are provided with a stainless steel filter
preventing foreign particles to enter the lines. If the water flow has decreased,
this may be because the filter is clogged. The filter can be cleaned as follows:
Filter cleaning instructions for Perfect Time SH 1011:
1. Shut off the water supply.
2. Disassemble the shower faucet inlet from the water supply pipe.
3. Remove the filter and wash it under running water.
4. Reassemble the filter.
5. Reassemble the shower faucet inlet to the water supply pipe.
6. Turn on the water supply. Make sure that there is no water leakage.
Filter cleaning instructions for Perfect Time SH 1032 and 1032E:
1. Pull out the cover plate. Release the piezo cap’s screw and carefully pull it out.
2. Shut off the valve using the 4 mm Allen key.
3. Unscrew the filter’s cover and remove the filter.
4. Wash it under running water.
5. Reassemble the filter into the filter’s cover.
6. Reassemble the filter’s cover.
7. Open the valve and make sure that there is no water leakage.
8. Reassemble the piezo cap.
9. Reassemble the cover plate.
Care and cleaning of chrome and special finishes
DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives,
or the like. Use of any prohibited cleaning or maintenance products or substances
could damage the surface of the shower control. For surface cleaning use ONLY
soap and water, then wipe dry with clean cloth or towel.
When cleaning bathroom tiles, the shower controls should be protected from any
splattering of harsh cleansers.

15
SPARE PARTS LIST
Seals and Screws Kit for Perfect Time SH1011
Seals and Screws Kit for Perfect Time SH1032/E
Cover Kit for Perfect Time SH1011
Cover Kit for Perfect Time SH1032/E
Filter Stop Valve Kit for Perfect Time SH1032/E
Solenoid Valve Kit
Cover plate kit for Perfect Time SH1032/E
Mounting Kit for Perfect Time SH1011
Transformer for Perfect Time SH1032E
07210104
07210097
07270146
07270022
07212002
07230002
07260010
07280001
06522042

16
SERVICE CHECK LIST
No water is coming
out of the shower control
Water flow does not stop
Check the flow time. If it needed adjust it
following the instructions at page 9.
Check the solenoid valve. If debris or scale is
present, unscrew the solenoid valve, pull out
the plunger and the spring and clean them.
Use scale remover if needed. When replacing
the spring, make sure that it is in vertical
position.
Water flow diminished
Check the batteries. Low or used up batteries.
Replace the batteries. See page 12.
Check the flow time. See page 8.
Check the connection between the piezo cup
connector and the solenoid connector.
Check that the battery box is correctly connected.
Check the solenoid valve. If debris or scale is
present, unscrew the solenoid valve, pull out the
plunger and the spring and clean them.
Use scale remover if needed. When replacing the
spring, make sure that it is in vertical position.
Check the diaphragm. If needed, clean the orifice
or replace it.
Check the water supply pressure. It must be
0.5-8.0 bar (7-116 PSI). With water pressure of
more than 8 Bars, use a pressure reducing valve.
Check the filter. If needed, remove it clean it and
reinstall it. See page 14.

17
LIMITED WARRANTY
Y. Stern Engineering Ltd. warrants that its electronic faucets, flush valves and controls
will be free of defects in material and workmanship during normal use for two years
from the date the product is purchased.
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair,
provide a replacement part or product, or make appropriate adjustments. Damage
caused by accident, misuse, or abuse is not covered by this warranty. Improper care
and cleaning will void the warranty. Proof of purchase (original sales receipt) must be
provided to Stern Engineering Ltd. with all warranty claims.
Stern Engineering Ltd is not responsible for labor charges, installation, or other
incidental or consequential costs other than those noted above. In no event shall the
liability of Stern Engineering Ltd. exceed the purchase price of the faucet, valve or
control.
If you believe that you have a warranty claim, contact your Stern Distributor, Dealer or
Plumbing Contractor. Please be sure to provide all pertinent information regarding your
claim, including a complete description of the problem, the product, model number,
the date the product was purchased, from whom the product was purchased and the
installation date. Also include your original invoice.
Y. STERN ENGINEERING AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty excludes product
damage due to installation error, incorrect maintenance, wear and tear, battery, water
composition, product abuse, or product misuse, whether performed by a contractor,
service company, or the consumer. This warranty does not cover product damage
caused by the following:
- Incorrect installation, inversions of supply pipes.
- Pressures or temperatures exceeding recommended limits.
- Improper manipulation, tampering, bad or lapsed maintenance.
- Foreign bodies, dirt or scale introduced by the water supply.

18
15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel
Tel: [phone], Fax: [phone], [email protected]
www.sternfaucets.com
015610600-B 02.12
