Stiebel eltron Wpl 07 acs classic Instruction Manual

OPERATION AND INSTALLATION

Air | water heat pump

» WPL 07 ACS classic

» WPL 09 ACS classic

» WPL 17 ACS classic

2| WPL ACS classic www.stiebel-eltron.com

CONTENTS

SPECIAL INFORMATION

OPERATION

1. General information ��3

1.1 Other relevant documents �� 3

1.2 Safety instructions�� 3

1.3 Other symbols in this documentation �� 4

1.4 Units of measurement �� 4

1.5 Standardised output data�� 4

2. Safety��4

2.1 Intended use�� 4

2.2 Safety instructions�� 4

3. Appliance description ��5

3.1 Minimum software versions�� 5

3.2 Operational characteristics �� 5

3.3 Function �� 5

4. Settings ��6

5. Maintenance and care ��6

6. Troubleshooting ��6

INSTALLATION

7. Safety��7

7.1 General safety instructions �� 7

7.2 Instructions, standards and regulations �� 7

8. Appliance description ��7

8.1 Standard delivery�� 7

8.2 Accessories�� 7

9. Preparations ��7

9.1 Sound emissions�� 7

9.2 Minimum clearances�� 8

9.3 Preparation of the installation location �� 8

9.4 Installing the supply lines�� 10

9.5 WPM heat pump manager �� 10

9.6 Buffer cylinder �� 10

9.7 Preparing the electrical installation �� 11

10. Installation�� 11

10.1 Transport �� 11

10.2 Siting �� 11

10.3 Flow and return connection �� 12

10.4 Fitting the push-ﬁt connectors�� 12

10.5 Heating water connection�� 12

10.6 Oxygen diffusion�� 13

10.7 Filling the heating system �� 13

10.8 Minimum ﬂow rate �� 13

10.9 Setting the ﬂow rate on the heating side �� 13

10.10 External second heat source �� 14

10.11 High limit safety cut-out for underﬂoor heating

systems �� 14

11. Electrical connection�� 15

11.1 Terminal area�� 15

12. Commissioning �� 16

12.1 Checks before commissioning�� 16

12.2 Operation with an external second heat source�� 16

12.3 Initial start-up�� 16

13. Shutdown �� 17

13.1 Standby mode �� 17

13.2 Power interruption �� 17

14. Maintenance �� 17

15. Troubleshooting �� 18

15.1 Checking the IWS DIP switch settings �� 18

15.2 LEDs (IWS)�� 19

15.3 Reset button �� 19

15.4 Fan noise �� 20

16. Speciﬁcation �� 21

16.1 Dimensions and connections�� 21

16.2 Wiring diagram �� 22

16.3 Connection diagram�� 24

16.4 Application limit �� 26

16.5 Output diagrams WPL 07 ACS classic �� 27

16.6 Output diagrams WPL 09 ACS classic �� 28

16.7 Output diagrams WPL 17 ACS classic �� 29

16.8 Data table �� 30

GUARANTEE

ENVIRONMENT AND RECYCLING

www.stiebel-eltron.com WPL ACS classic | 3

SPECIAL INFORMATION | OPERATION

General information

SPECIAL INFORMATION

- The appliance may be used by children aged8

and older and persons with reduced physical,

sensory or mental capabilities or a lack of ex-

perience and know-how, provided that they are

supervised or they have been instructed on how

to use the appliance safely and have understood

the resulting risks. Children must never play with

the appliance. Children must never clean the ap-

pliance or perform user maintenance unless they

are supervised.

- The connection to the power supply must be in

the form of a permanent connection. Ensure the

appliance can be separated from the power sup-

ply by an isolator that disconnects all poles with

at least 3mm contact separation.

- Maintain the minimum clearances to ensure trou-

ble-free operation of the appliance and facilitate

maintenance work.

- Maintenance work, such as checking the electri-

cal safety, must only be carried out by a qualiﬁed

contractor.

- We recommend an annual inspection (to establish

the current condition of the system), and main-

tenance by a qualiﬁed contractor if required (to

return the system to its original condition).

- Following disconnection from the power supply,

parts of the appliance may remain energised

for 2 minutes until the inverter capacitors have

discharged.

- Never interrupt the heat pump power supply,

even outside the heating season. Otherwise, sys-

tem frost protection is not guaranteed.

- If the heat pump and frost protection are

completely switched off, drain the system on the

water side.

OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended

for both the user and qualiﬁed contractors.

The chapter "Installation" is intended for qualiﬁed contractors.

Note

Read these instructions carefully before using the appli-

ance and retain them for future reference.

Pass these instructions on to a new user if required.

1.1 Other relevant documents

Operating and installation instructions for the WPM heat

pump manager

Operating and installation instructions for connected

indoor unit

Operating and installation instructions for mounting

bracket used

Operating and installation instructions for system

components

Commissioning checklist for heat pump

1.2 Safety instructions

1.2.1 Structure of safety instructions

!

KEYWORD Type of risk

Here, possible consequences are listed that may result

from failure to observe the safety instructions.

 Steps to prevent the risk are listed.

1.2.2 Symbols, type of risk

Symbol Type of risk

Injury

Electrocution

1.2.3 Keywords

KEYWORD Meaning

DANGER Failure to observe this information will result in serious

injury or death.

WARNING Failure to observe this information may result in serious

injury or death.

CAUTION Failure to observe this information may result in non-seri-

ous or minor injury.

!

OPERATION

Safety

4| WPL ACS classic www.stiebel-eltron.com

1.3 Other symbols in this documentation

Note

General information is identiﬁed by the adjacent symbol.

 Read these texts carefully.

Symbol Meaning

Material losses

(appliance damage, consequential losses and environmen-

tal pollution)

Appliance disposal

 This symbol indicates that you have to do something. The ac-

tion you need to take is described step by step.

1.4 Units of measurement

Note

All measurements are given in mm unless stated oth-

erwise.

1.5 Standardised output data

Explanations to determine and interpret the speciﬁed standardised

output data.

1.5.1 EN 14511

The output data speciﬁcally mentioned in text, diagrams and

technical datasheets has been calculated according to the test

conditions of the standard shown in the heading of this section.

However, there is a deviation from this norm in the output data for

air/water inverter heat pumps at source temperatures of > -7°C

as this concerns partial load values. The associated percentage

weighting in the partial load range can be found in EN14825 and

EHPA quality label regulations.

Generally, the test conditions stated above will not fully meet the

conditions found at the installation site of the system user.

Depending on the chosen test method and the extent to which

this method deviates from the test conditions deﬁned in the ﬁrst

paragraph of this section, any deviations can have a considerable

impact.

Further factors that have an inﬂuence on the test values are the

measuring equipment, the system conﬁguration, the age of the

system and the ﬂow rates.

A conﬁrmation of the speciﬁed output data can only be obtained

if the test conducted for this purpose is also performed in ac-

cordance with the test conditions deﬁned in the ﬁrst paragraph

of this section.

2. Safety

2.1 Intended use

The appliance is designed for room heating and cooling within

the application limits given in the speciﬁcation.

This appliance is intended for domestic use. It can be used safely

by untrained persons. The appliance can also be used in non-do-

mestic environments, e.g. in small businesses, as long as it is

used in the same way.

Any other use beyond that described shall be deemed inappropri-

ate. Observation of these instructions and of instructions for any

accessories used is also part of the correct use of this appliance.

2.2 Safety instructions

Observe the following safety instructions and regulations.

- Only qualiﬁed contractors may carry out the electrical work

and installation of this appliance.

- The qualiﬁed contractor is responsible for adherence to

all currently applicable regulations during installation and

commissioning.

- Operate the appliance only when fully installed and with all

safety equipment ﬁtted.

- Protect the appliance from dust and dirt ingress during

building work.

!

WARNING Injury

The appliance may be used by children over 8 years of

age and persons with reduced physical, sensory or men-

tal capabilities or a lack of experience and expertise,

provided that they are supervised or they have been

instructed on how to use the appliance safely and have

understood the potential risks. Children must never play

with the appliance. Children must never clean the ap-

pliance or perform user maintenance unless they are

supervised.

!

WARNING Injury

 For safety reasons, only operate the appliance with

the casing closed.

!

OPERATION

Appliance description

www.stiebel-eltron.com WPL ACS classic | 5

3. Appliance description

3.1 Minimum software versions

The following minimum software versions are required for oper-

ating the heat pump:

- WPM: 390.09

- MFG: V.14

- FES: 417.05

3.2 Operational characteristics

The appliance is an air | water heat pump that operates as a heat-

ing heat pump for outdoor installation. Heat is extracted from the

outdoor air at a low temperature level, and is then transferred to

the heating water at a higher temperature. The heating water can

be heated up to a ﬂow temperature of 60°C.

This appliance has further operational characteristics:

- Suitable for underﬂoor heating systems.

- Preferred for low temperature heating systems.

- Extracts heat from the outdoor air even at outside tempera-

tures of -20°C.

- Corrosion-protected, external casing made from hot-dipped

galvanised sheet steel plus stove-enamelled ﬁnish.

- Filled with non-combustible safety refrigerant.

Note

The appliance may only be used in conjunction with the

following products:

- Hydraulic module HM(S) (Trend) (BE)

- Cylinder and hydraulic module HSBB200(S)clas-

sic(BE)

- Integral cylinder HSBC 200 (S) (BE)

3.3 Function

3.3.1 Heating

Heat is extracted from the outdoor air via the heat exchanger

(evaporator) on the air side. The evaporated refrigerant is com-

pressed by a compressor. This process requires electrical ener-

gy. At this point, the refrigerant is at a higher temperature level.

A further heat exchanger (condenser) transfers the heat to the

heating circuit. The refrigerant then expands again and the cycle

restarts from the beginning.

At air temperatures below approx. 7°C, the humidity in the air

condenses as hoarfrost on the evaporator ﬁns. Any hoarfrost is

automatically defrosted. The resulting water ﬂows out of the ap-

pliance via the free condensate drain and seeps away into the

gravel bed.

!

Material losses

In the defrost cycle, the fan is switched off and the heat

pump circuit is reversed. The heat required for defrosting

is drawn from the buffer cylinder. For operation without a

buffer cylinder, observe chapter "Operation/ Menu struc-

ture/ Menu SETTINGS/ STANDARD SETTING/ BUFFER

OPERATION" in the operating and installation instructions

of the WPM. Otherwise the heating water freezes under

unfavourable conditions.

Note

In winter, icicles can form on the bottom of the conden-

sate drain. This does not interfere with the operation

of the appliance, provided the condensate can drain off

unimpeded.

The heat pump automatically reverts to heating mode at the end

of the defrost cycle.

!

Material losses

In dual mode operation, return water from the second

heat source may ﬂow through the heat pump. Please note

that the return temperature must be no higher than 60°C.

3.3.2 Cooling

!

Material losses

The heat pump is not suitable for continuous, year-round

cooling.

 Observe the application limits (see chapter "Speciﬁ-

cation/ Data table").

Note

The HM(S) (Trend) (BE) is equipped for both area and

fan cooling.

The HSBB 200 (S) classic (BE) and HSBC 200 (S) (BE) can

provide area cooling.

Rooms are cooled by reversing the heat pump circuit. Heat is

extracted from the heating water. The evaporator transfers this

heat to the outdoor air.

Area cooling requires the installation of the FEK remote control

unit in a reference room to capture the relative humidity and the

room temperature as part of dew point monitoring.

Fan cooling requires the installation of the FE7 remote control

unit in a reference room to capture the relative humidity and the

room temperature as part of dew point monitoring. Similarly, it

is necessary to install a buffer cylinder.

Heat pump application limit

The heat pump is switched off if the outside temperature falls

below the selected lower application limit for cooling (LIMITCOOL-

ING parameter).

OPERATION

Settings

6| WPL ACS classic www.stiebel-eltron.com

4. Settings

The system is operated exclusively with the WPM heat pump man-

ager. The heat pump manager is installed in the products required

as accessories (see chapter “Installation/ Appliance description/

Accessories”).

 Observe the heat pump manager operating and installation

instructions.

5. Maintenance and care

!

Material losses

Maintenance work, such as checking the electrical safety,

may only be carried out by a qualiﬁed contractor.

A damp cloth is sufﬁcient for cleaning all plastic and sheet metal

parts. Never use abrasive or corrosive cleaning agents.

 Protect the appliance from dust and dirt ingress during

building work.

!

Material losses

Keep the air discharge and intake apertures free from

snow and leaves.

We recommend regular inspection (to establish the current con-

dition of the system), and maintenance by a qualiﬁed contractor

if required (to return the system to its original condition).

6. Troubleshooting

Fault Cause Remedy

There is no hot

water or the

heating system

stays cold.

No power at the appli-

ance.

Check the fuses/MCBs in your

fuse box/distribution panel. Re-

place the fuses/reset the MCBs

if required. Notify your qualified

contractor if the fuses/MCBs

blow/trip again.

Condensate

collects on the

outside of the

appliance and on

the air grille.

The heat pump is extract-

ing heat from the outdoor

air to heat the building.

This can cause the hu-

midity in the outdoor air

to accumulate as dew or

frost on the cooled heat

pump casing. This is not

a defect.

The fan runs

when the

compressor is

switched off.

At outside temperatures

below 10°C, the fan is

regularly started at the

lowest speed when the

compressor is idle. This

prevents the evaporator

and fan from freezing

or icing up due to water

draining off. At tempera-

tures above the freezing

point, the time between

two defrost cycles is in-

creased, thereby improv-

ing overall efficiency.

The appliance

produces rhyth-

mic scraping or

grinding noises.

Ice has formed on the air

grille, on the fan blades

or in the air routing.

Call your qualified contractor

(see chapter “Installation/ Trou-

bleshooting/ Fan noises”).

If you cannot remedy the fault, notify your qualiﬁed contractor. To

facilitate and speed up your request, provide the number from the

type plate. The type plate is located at the front top, on the right

or left hand side of the casing.

Sample type plate

Montageanweisung beachten! Dichtheit geprüft! Made in Germany

*xxxxxxxxxxxxxxxxxx*

26�03�01�1736

1

1 Number on the type plate

INSTALLATION

Safety

www.stiebel-eltron.com WPL ACS classic | 7

INSTALLATION

7. Safety

Only a qualiﬁed contractor should carry out installation, commis-

sioning, maintenance and repair of the appliance.

7.1 General safety instructions

We guarantee trouble-free function and operational reliability only

if original accessories and spare parts intended for the appliance

are used.

7.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations

and instructions.

WPL07ACSclassic| WPL09ACSclassic

The tested appliance conforms to IEC 61000-3-3.

WPL17ACSclassic

The tested appliance conforms to IEC 61000-3-12.

8. Appliance description

The appliance offers frost protection for the connection lines. The

integral frost protection circuit starts the circulation pump in the

heat pump circuit automatically at a condenser temperature of

8°C, and thereby ensures circulation in all water-carrying sec-

tions. When the temperature in the buffer cylinder falls to below

+5°C, the heat pump is automatically started subject to the out-

side temperature.

8.1 Standard delivery

The following are delivered with the appliance:

- Wiring diagram

8.2 Accessories

8.2.1 Required accessories

- T-support SK 2 or wall mounting support WK 1

With integral emergency/booster heater

- Hydraulic module HM(S) (Trend), cylinder and hydraulic

module HSBB 200 (S) classic or integral cylinder HSBC 200 (S)

Without integral emergency/booster heater

- Hydraulic module HMSTrendBE, cylinder and hydrau-

lic module HSBB200SclassicBE or integral cylinder

HSBC200SBE

8.2.2 Further accessories

- Remote control for heating systems FEK

- Remote control for heating systems FE7

- High limit safety cut-out for underﬂoor heating systems

STB-FB

9. Preparations

!

D0000060163

The appliance is designed for installation on a T-support or wall

mounting support. Observe the minimum clearances. If the appli-

ance is installed in an open space, protect the air intake side. Do

this by erecting a wall to shield it against the wind. A gravel bed

is an essential requirement for both installation versions.

9.1 Sound emissions

The appliance is louder on the air intake and air discharge sides

than on the two enclosed sides. Observe the following information

when selecting the installation location.

Note

For details regarding the sound power level, see chapter

"Speciﬁcation / Data table".

- Lawn areas and shrubs help reduce the spread of noise.

- Sound propagation can also be reduced by installing closely

spaced palisade fencing around the appliance.

 Ensure that the air intake direction is the same as the domi-

nant wind direction. Air should not be blown out against the

wind.

 Ensure that the air intake and air discharge are never direct-

ed towards noise-sensitive rooms of the house, e.g. bed-

rooms, or neighbouring houses.

 Avoid installation between reﬂective building walls. Reﬂect-

ing building walls can increase the noise level.

INSTALLATION

Preparations

8| WPL ACS classic www.stiebel-eltron.com

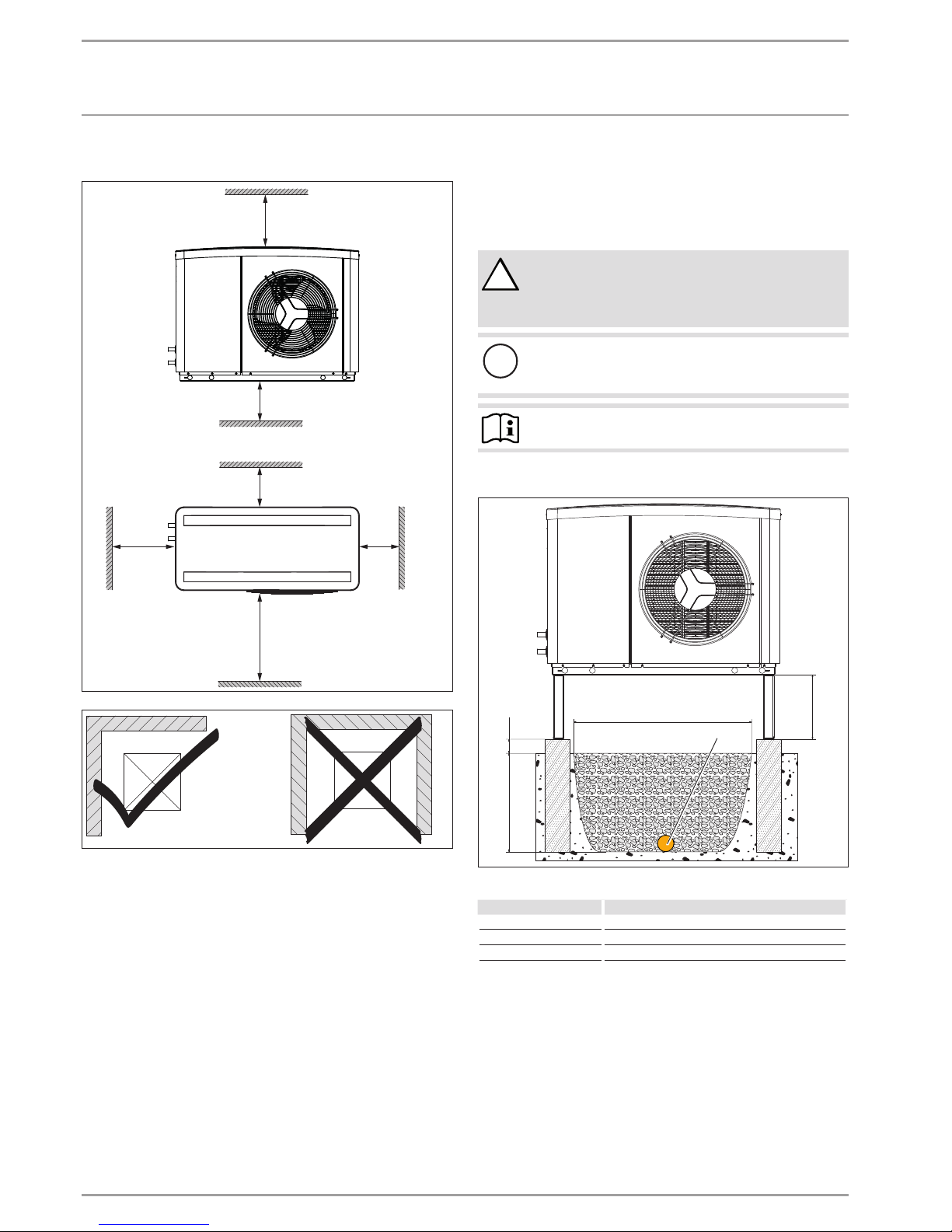

9.2 Minimum clearances

≥2000

≥500

≥200 ≥300

≥1000

≥800

D000005758191�00�00�0036

 Never install the appliance in a recess. Two sides of the ap-

pliance must remain exposed.

 Maintain the minimum clearances to ensure trouble-free op-

eration of the appliance and facilitate maintenance work.

9.3 Preparation of the installation location

 Observe chapter "Sound emissions".

 Ensure that the appliance is accessible from all sides.

9.3.1 Condensate drain

!

WARNING Injury

At temperatures below freezing point, ice may form.

 Do not allow the gravel bed or surrounding area to

slope downwards towards paths.

!

Material losses

The foundations of the building must have a damp proof

membrane.

Note

 Never use grit for the gravel bed.

Example: Gravel bed under T-support SK 2

>800 100

300

a

D0000063484

1

1 Drainage pipe

Heat pump a

WPL 07 ACS classic 700

WPL 09 ACS classic 700

WPL 17 ACS classic 830

 Lay a drainage pipe under the appliance to drain moisture

away from the building.

 Create a gravel bed below the condensate drain of the

appliance.

INSTALLATION

Preparations

www.stiebel-eltron.com WPL ACS classic | 9

Example: Gravel bed under wall mounting support WK 1

>800

≥300

a

b

D0000065666

1

1 Drainage pipe

Heat pump a b

WPL 07 ACS classic 900 865

WPL 09 ACS classic 900 865

WPL 17 ACS classic 1000 995

 Lay a drainage pipe under the appliance to drain moisture

away from the building.

 Create a gravel bed below the condensate drain of the

appliance.

9.3.2 Siting

Example: T-support SK 2

B

A

1

3

2150150

D0000063486

1 Air intake side

2 Air discharge side

3 Main wind direction

Heat pump A B

WPL 07 ACS classic 865 500

WPL 09 ACS classic 865 500

WPL 17 ACS classic 995 500

418

D0000065624

INSTALLATION

Preparations

10 | WPL ACS classic www.stiebel-eltron.com

!

Material losses

The T-support may bend if the heat pump is subject to

any lateral load.

 Do not exert any pressure on the sides of the heat

pump.

 Observe the static limits of the T-support used.

Example: Wall mounting support WK 1

Note

To prevent disturbance due to structure-borne noise

transmission, never install the wall mounting support

on the external walls of living areas or bedrooms.

 Install the wall mounting support on a garage wall,

for example.

Note

Condensate drips from the appliance onto the ﬂoor.

 Observe the minimum clearance below the appli-

ance (see chapter "Preparations/ Minimum clear-

ances").

≥200

2

31

D0000057582

1 Heating ﬂow

2 Heating return

3 Wall mounting support

 Observe the static limits of the wall mounting support used.

9.4 Installing the supply lines

The supply lines are all electric cables plus the heating ﬂow and

return lines.

 Use only weatherproof cables, e.g. NYY.

 Protect the ﬂow and return lines against frost with sufﬁcient

thermal insulation. Provide thermal insulation in accordance

with applicable regulations.

 Also protect all supply lines/cables against humidity, damage

and UV radiation by means of a conduit.

 Protect all pipe ﬁxings and external wall ducts with anti-vi-

bration insulation.

9.5 WPM heat pump manager

A WPM heat pump manager is required to operate the appliance.

This controls the entire heating system. The heat pump manager

is installed in the products deﬁned as required accessories (see

chapter "Installation/ Appliance description/ Accessories").

9.6 Buffer cylinder

!

Material losses

A buffer cylinder with diffusion-proof insulation is es-

sential for fan cooling.

A buffer cylinder is recommended to ensure trouble-free appliance

operation.

The buffer cylinder provides hydraulic separation of the volume

ﬂows in the heat pump circuit and heating circuit, and also serves

as an energy source for defrosting.

 When operating without a buffer cylinder, observe the details

speciﬁed in chapter "Minimum ﬂow rate with individual room

control by means of FEK/ FE7 in systems without buffer

cylinder".

Note

For operation without a buffer cylinder, we recommend

installing an electric emergency/booster heater (DHC).

An emergency/booster heater is installed in some of the

products required as accessories (see chapter “Installa-

tion/ Appliance description/ Accessories”).

 If you do not install an emergency/booster heater,

for fault-free operation activate the WW LEARNING

FUNCTION parameter in the WPM heat pump man-

ager.

INSTALLATION

Installation

www.stiebel-eltron.com WPL ACS classic | 11

9.7 Preparing the electrical installation

WARNING Electrocution

Carry out all electrical connection and installation work

in accordance with national and regional regulations.

WARNING Electrocution

The connection to the power supply must be in the form

of a permanent connection. Ensure the appliance can be

separated from the power supply by an isolator that dis-

connects all poles with at least 3mm contact separation.

This requirement can be met by contactors, isolators,

fuses, etc.

!

Material losses

The speciﬁed voltage must match the mains voltage.

 Observe the type plate.

!

Material losses

 Provide separate fuses for the two power circuits

(for the appliance and the control unit).

 Lay the relevant pipe cross-sections. Observe the applicable

national and regional regulations.

WPL 07 ACS classic | WPL 09 ACS classic

MCB/fuse

rating

Assignment Cable cross-section

1x B 16 A

Compressor

(single phase)

2.5 mm² for routing through a wall

1.5 mm² when routing on a wall or in an

electrical conduit on a wall

1x B 16 A Control unit 1.5 mm²

WPL 17 ACS classic

MCB/fuse

rating

Assignment Cable cross-section

1x B 25 A Compressor

(single phase)

4.0 mm² for routing through a wall

2.5 mm² for routing above the surface

1x B 16 A Control unit 1.5 mm²

The electrical data is provided in chapter "Speciﬁcation". You re-

quire a J-Y (St) 2x2x0.8mm² cable as a BUS cable.

Note

The appliance includes an inverter for the variable speed

compressor. In case of a fault, inverters can cause DC

residual currents. If RCDs are provided, they have to be

type B AC/DC-sensitive.

A DC residual current can block type A RCDs.

 Make sure that the appliance power supply is dis-

connected from the fuse board/distribution panel.

10. Installation

10.1 Transport

!

Material losses

Protect the appliance against heavy impact during

transport.

You can transport the appliance in various ways:

 When carrying, hold on to the narrow sides (transverse

sides) under the base plate.

 Slide a robust pipe through the holes at the bottom of the

appliance frame to create a handle.

D0000071298

If the appliance needs to be tilted during transport only do so

for a short time on one of its longitudinal sides. The longer the

appliance is tilted, the greater the distribution of refrigerant oil

in the system.

 Wait approx. 30minutes before starting the appliance after it

has been tilted.

10.2 Siting

 When siting the appliance, observe the air discharge direc-

tion (see chapter "Preparations/ Sound emissions").

 Mount the appliance on the T-support or wall mounting sup-

port. Observe the installation instructions for the mounting

bracket used.

INSTALLATION

Installation

12 | WPL ACS classic www.stiebel-eltron.com

10.3 Flow and return connection

!

Material losses

For cooling with fan convectors, the heating ﬂow and

heating return lines must be provided with vapour dif-

fusion-proof insulation.

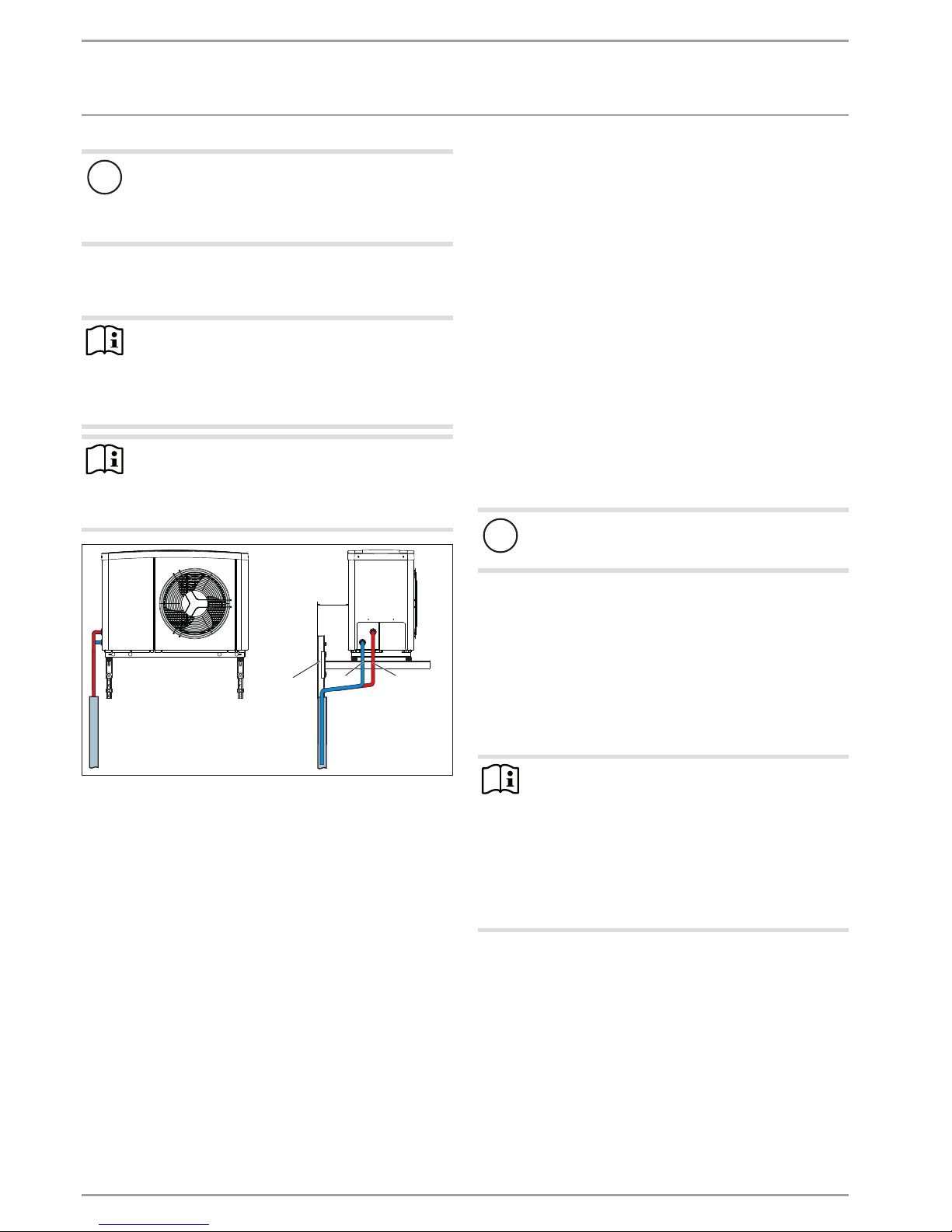

 Take the position of the heating ﬂow and return from the fol-

lowing diagram:

D0000058375

1

2

1 Heating ﬂow

2 Heating return

 Connect the heat pump to the heating circuit. Check for

tightness.

10.4 Fitting the push-ﬁt connectors

Note

The plastic push-ﬁt connectors are not suitable for instal-

lation in the DHW line or the solar circuit.

 Install the push-ﬁt connectors only in the heating

circuit.

!Material losses

Tighten the screw cap of the push-ﬁt connector by hand.

Never use a tool.

!Material losses

Support sleeves are required when using plastic pipes.

How the push-ﬁt connectors work

The push-ﬁt connectors are equipped with a retainer with stain-

less steel serrations and an O-ring for sealing. The push-ﬁt con-

nectors also have a “twist and secure” function. Simply turning

the screw cap by hand will secure the pipe in the connector and

push the O-ring against the pipe to seal it.

Making the push-ﬁt connection

The connector must be in its relaxed position before the pipe is

inserted. In this position, there is a small gap between the screw

cap and main body.

26�03�01�0693

3

1

24

1 Retainer

2 Screw cap

3 Gap between screw cap and main body

4 Main body

26�03�01�0693

Pipe Ø 28 mm

Depth of insertion A 44 mm

!Material losses

Pipe ends must be deburred.

 Always use a pipe cutter to trim pipes.

 Push the pipe through the O-ring into the push-ﬁt connector

until it reaches the prescribed insertion depth.

 Tighten the screw cap by hand against main body as far as it

will go. This locks the push-ﬁt connection.

Undoing the push-ﬁt connection

If the push-ﬁt connectors later need to be undone, proceed as

follows:

 Turn the screw cap anti-clockwise until a there is a narrow

gap of approx. 2mm. Press the retainer back with your ﬁn-

gers and hold on to it.

 Pull out the inserted pipe.

26�03�01�0693

10.5 Heating water connection

The heat pump heating system must be connected by a qualiﬁed

contractor in accordance with the water installation diagrams,

which are part of the technical guides.

 Before connecting the heat pump, ﬂush the pipework thor-

oughly with suitable water. Foreign bodies (e.g. welding

pearls, rust, sand, sealant, etc.) can impair the operational

reliability of the heat pump.

 Connect the heat pump on the heating water side. Check for

tightness.

INSTALLATION

Installation

www.stiebel-eltron.com WPL ACS classic | 13

 Ensure that the heating ﬂow and return are connected

correctly.

 Provide thermal insulation in accordance with applicable

regulations.

 When sizing the heating circuit, observe the internal pressure

differential (see chapter “Speciﬁcation / Data table”).

10.6 Oxygen diffusion

!

Material losses

Avoid open vented heating systems and plastic pipes in

underﬂoor heating systems which are permeable to ox-

ygen.

In underﬂoor heating systems with plastic pipes that are per-

meable to oxygen and in open vented heating systems, oxygen

diffusion may lead to corrosion on the steel components of the

heating system (e.g.on the indirect coil of the DHW cylinder, on

buffer cylinders, steel heating elements or steel pipes).

 In the event of oxygenation, separate the heating system be-

tween the heating circuit and the buffer cylinder.

!

Material losses

The products of corrosion (e.g.rusty sludge) can settle

in the heating system components and result in a lower

output or fault shutdowns due to reduced cross-sections.

10.7 Filling the heating system

10.7.1 Water quality

Carry out a ﬁll water analysis before the system is ﬁlled. This

analysis may, for example, be requested from the relevant water

supply utility.

To avoid damage as a result of scaling, it may be necessary to

soften or desalinate the ﬁll water. The ﬁll water limits speciﬁed

in chapter "Speciﬁcation/ Data table" must always be observed.

 Recheck these limits 8-12 weeks after commissioning, after

every reﬁll and as part of the annual system service.

Note

 Never add inhibitors or other additives (e.g. glycol)

to the ﬁll water.

Note

With a conductivity >1000μS/cm, desalination treatment

is recommended in order to prevent corrosion.

Note

Suitable appliances for water softening, as well as for

ﬁlling and ﬂushing heating systems, can be obtained via

trade suppliers.

10.7.2 Filling the heating system

 Fill the heating system on the heating side.

10.7.3 Venting the heating system

The appliance has an automatic air vent valve.

D0000063489

1

1 Automatic air vent valve

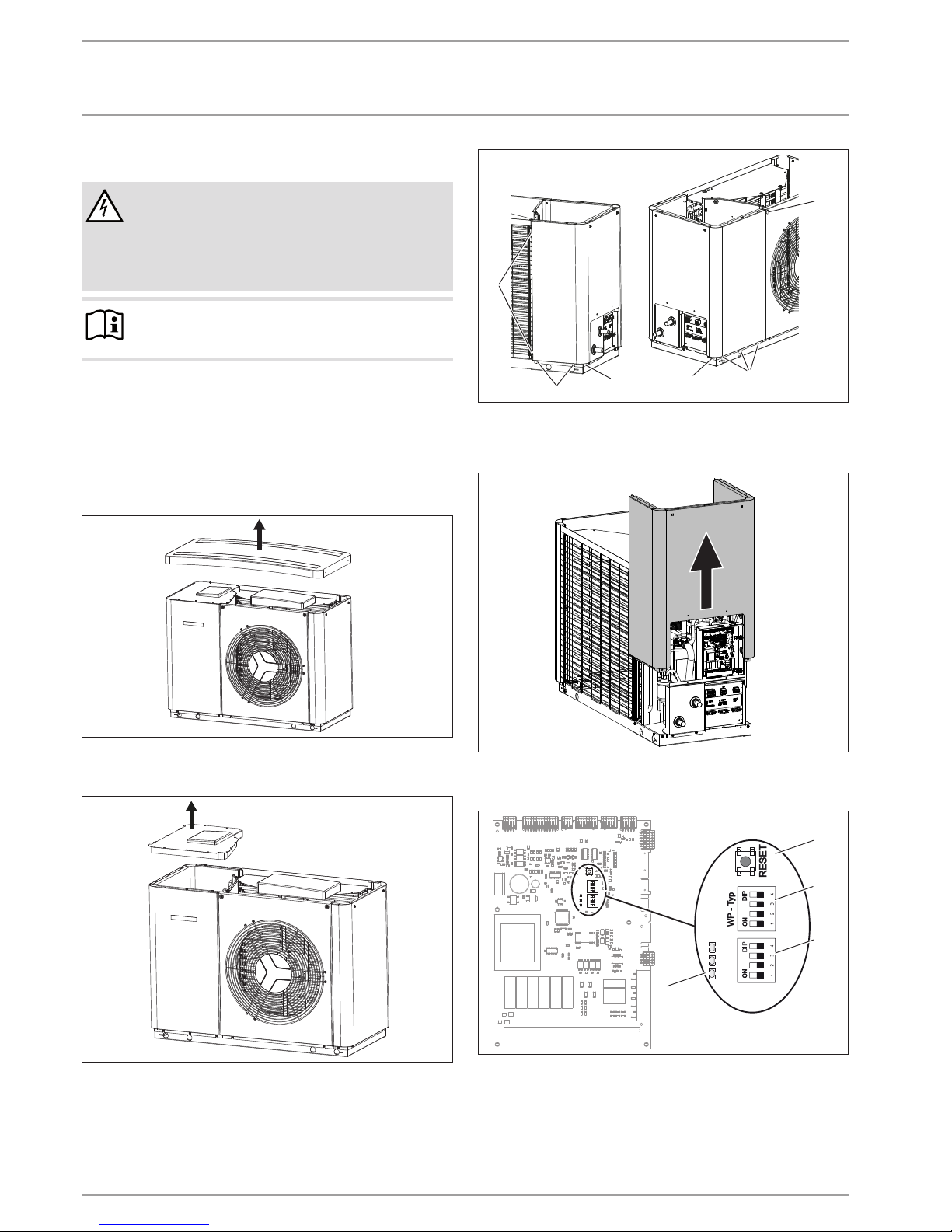

 Remove the hood and the EPS cover (see chapter "Trouble-

shooting/ Checking the IWS DIP switch settings").

 Vent the pipework by turning the grey cap on the automatic

air vent valve.

 Close the automatic air vent valve after the venting process.

 Reattach the EPS cover and hood on the appliance.

10.8 Minimum ﬂow rate

For heating operation without a buffer cylinder, always ensure the

minimum ﬂow rate and the availability of energy for defrosting.

10.9 Setting the ﬂow rate on the heating side

!

Note

We recommend installing an electric emergency/booster

heater.

An emergency/booster heater is installed in some of the

products required as accessories (see chapter “Installa-

tion/ Appliance description/ Accessories”).

The ﬂow rate is set automatically via the self-regulating system

(see menu “COMMISSIONING/ HEATING/ SPREAD CONTROL/

STANDBY PUMP RATE” in the heat pump manager).

In heat pump mode a ﬁxed spread between the heat pump ﬂow

and return is set (see menu “COMMISSIONING/ HEATING/ SPREAD

CONTROL” in the heat pump manager).

The current ﬂow rate can be called up in the menu “INFO/ HEAT

PUMP INFO/ PROCESS DATA” under “WP WATER FLOW RATE”.

The appliance is designed in such a way that no buffer cylinder

is required in conjunction with appropriately sized area heating

systems.

A buffer cylinder is required on installations with several heating

circuits.

INSTALLATION

Installation

14 | WPL ACS classic www.stiebel-eltron.com

10.9.1 Minimum ﬂow rate with individual room control by

means of FEK/ FE7 in systems without buffer cylinder

In the case of systems without buffer cylinder, in the menu “SET-

TINGS/ HEATING/ STANDARD SETTING”, set parameter “BUFFER

OPERATION” to “OFF”.

In such cases, one or more heating circuits in the heating system

must be left open. Ensure the minimum ﬂow rate (see “Speci-

ﬁcation/ Data table”) by means of the correspondingly opened

heating circuits (see table “Design recommendation for underﬂoor

heating system in the lead room”).

Note

The table applies if individual room control is installed.

Sizing recommendation for the underﬂoor heating system in the

lead room:

Minimum flow

rate

Minimum water content of the

buffer cylinder or the open cir-

cuits

Composite pipework 16 x 2mm

/ clearance 10cm

Composite pipework 20 x 2.25mm

/ clearance 15cm

Lead room

floor area

Number of cir-

cuits

Lead room

floor area

Number of cir-

cuits

l/h lm² nxm m² nxm

WPL 07 ACS classic

400 16 21 3x70 21 2x70

WPL 09 ACS classic

400 16 21 3x70 21 2x70

WPL 17 ACS classic

600 19 21 3x70 21 2x70

Buffer cylinder always

required

Recommended buffer cylinder

volume, underfloor heating

system

Recommended buffer cylinder

volume, radiators

Activate the integral

emergency/booster

heater

WPL 07 ACS classic

No 100 100 yes

WPL 09 ACS classic

No 100 100 yes

WPL 17 ACS classic

No 100 100 yes

 Install the open heating circuit(s) in the lead room (room

where the external programming unit of the heat pump con-

trol unit is installed, such as in the living room). The individ-

ual room can then be controlled either with the external pro-

gramming unit or indirectly by adjusting the heating curve or

the room inﬂuence.

10.9.2 Minimum ﬂow rate for systems with a buffer cylinder

When using a buffer cylinder, in the menu “SETTINGS/ HEAT-

ING/ STANDARD SETTING”, set parameter “BUFFER OPERATION”

to “ON”.

10.10 External second heat source

With dual mode systems, connect the heat pump into the return

of the second heat source.

10.11 High limit safety cut-out for underﬂoor heating

systems

!

Material losses

In order to prevent excessively high ﬂow temperatures

in the underﬂoor heating system causing damage in the

event of a fault, we always recommend using a high limit

safety cut-out to limit the system temperature.

INSTALLATION

Electrical connection

www.stiebel-eltron.com WPL ACS classic | 15

11. Electrical connection

Note

Observe the operating and installation instructions of the

WPM heat pump manager.

Connection work must only be carried out by a qualiﬁed contractor

and in accordance with these instructions.

Permission to connect the appliance may need to be obtained from

the local power supply utility.

11.1 Terminal area

WARNING Electrocution

Before working on the appliance, isolate it from the

power supply at the terminal area.

The terminals are located in the terminal area of the appliance.

Observe chapter "Preparing the electrical installation".

 For all connections, use appropriate cables in accordance

with local regulations.

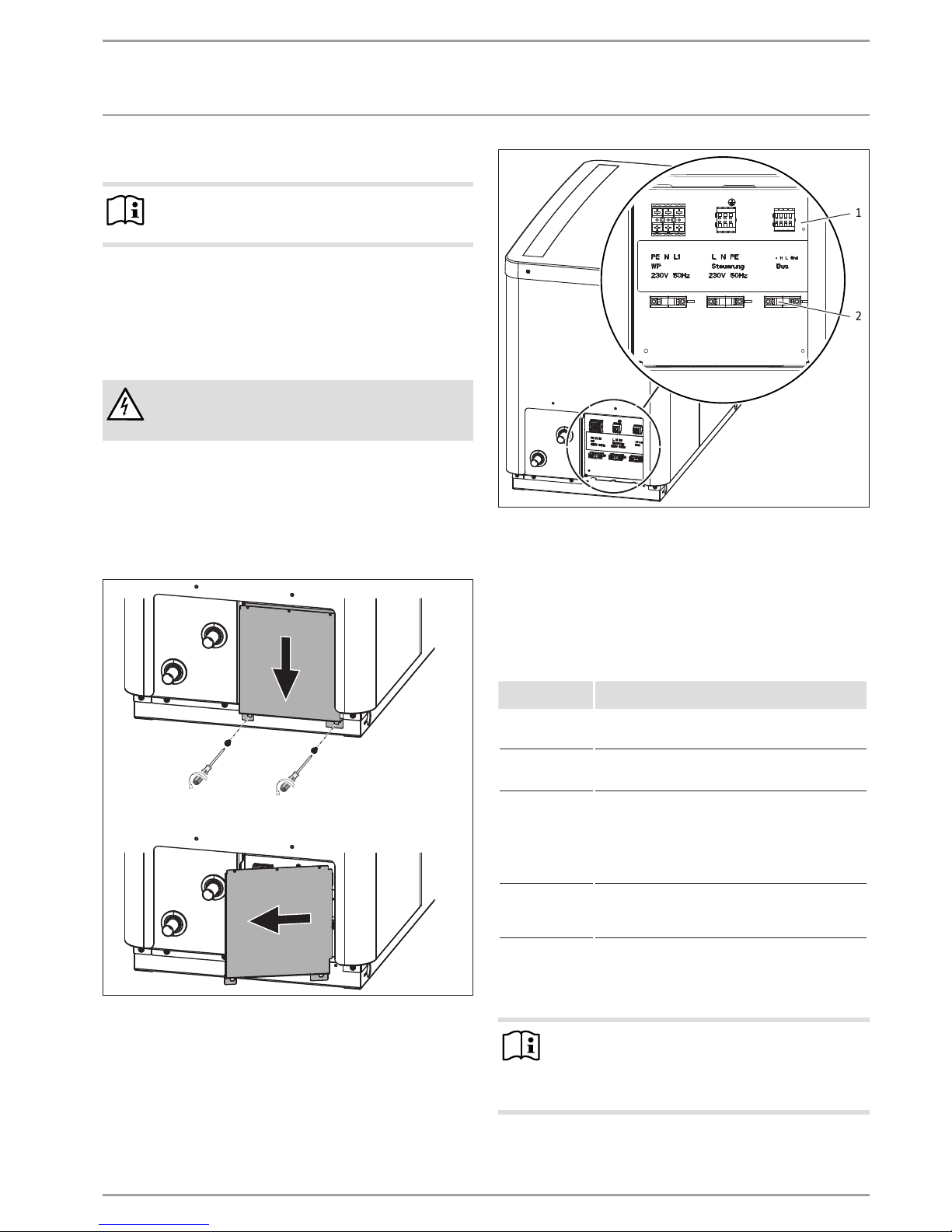

Access to the terminal area

D0000058263

 Unscrew and remove the two screws.

 Slide the cover down.

 Remove the cover by pivoting it open to the right.

D0000058264

1

2

1 Terminal area

2 Strain relief

 Route cables and leads through the strain relief ﬁttings.

 Terminate the screen at both ends of the bus cable.

 If you wish to use the following appliance functions, install

an electric emergency/booster heater. An emergency/booster

heater is installed in some of the products required as ac-

cessories (see chapter “Installation/ Appliance description/

Accessories”).

Appliance func-

tion

Effect of the electric emergency/booster

heater

Mono energetic

operation

If the dual mode point is undershot, the electric emer-

gency/booster heater safeguards both the heating opera-

tion and the delivery of high DHW temperatures.

Emergency mode

Should the heat pump suffer a fault that prevents its con-

tinued operation, the heating output will be covered by

the electric emergency/booster heater.

Heat-up program

(only for underfloor

heating systems)

Where return temperatures are <25°C, the electric emer-

gency/booster heater must provide the necessary heat for

screed drying.

With these low system temperatures, the drying heat

must not be provided by the heat pump, otherwise the

frost protection of the appliance can no longer be guar-

anteed during the defrost cycle.

Pasteurisation

control

To heat up the water regularly to a temperature of 60°C

to protect against the growth of legionella bacteria, the

electric emergency/booster heater is started automatical-

ly when pasteurisation control is enabled.

 Connect the cables according to the following diagram.

 Earth the LV lead by inverting the screen over the external

sheath and clamping it under the earth terminal.

Note

 Earth the LV lead either at the outdoor unit or at one

of the products deﬁned as required accessories (see

chapter "Installation/ Appliance description/ Acces-

sories").

 Then check the function of the strain relief ﬁttings.

INSTALLATION

Commissioning

16 | WPL ACS classic www.stiebel-eltron.com

!

Material losses

Strain relief ﬁttings that are too tight may lead to a short

circuit.

 Never tighten them completely.

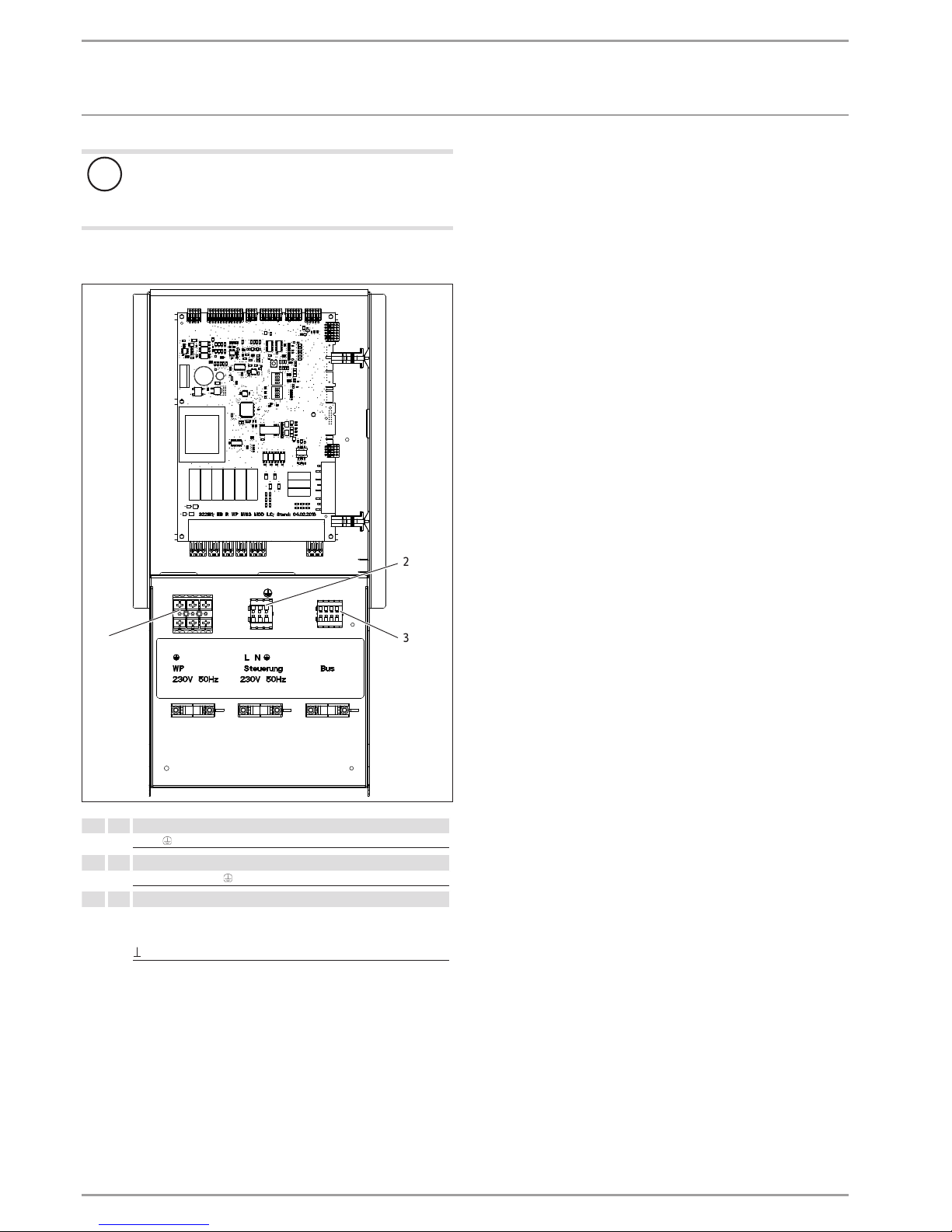

Connection

nc H L

N L1

X2X4X3

T

D0000058265

1

2

3

1X3 Compressor (inverter)

L1, N,

2X4 Control voltage

Power supply: L, N

3X2 Low voltage (BUS cable)

nc (not assigned)

High H

Low L

12. Commissioning

A WPM heat pump manager is required to operate the appliance.

All necessary adjustments prior to and during operation are made

on this device.

Only qualiﬁed contractors may make the settings in the heat pump

manager commissioning report, commission the appliance and

instruct the owner in its use.

Carry out commissioning in accordance with these installation

instructions and the operating and installation instructions of the

heat pump manager. Our service department can assist with com-

missioning, which is a chargeable service.

Where this appliance is intended for commercial use, the rules of

the relevant Operational Safety Ordinance must be observed at

commissioning. For further details, check with your local author-

ising body (e.g. TÜV).

12.1 Checks before commissioning

Before commissioning, check the following points (note the com-

missioning checklist):

12.1.1 Heating system

- Have you ﬁlled the heating system to the correct pressure

and closed the automatic air vent valve?

12.1.2 Temperature sensor

- Have you correctly positioned and connected the outside

temperature sensor and return temperature sensor (in con-

nection with a buffer cylinder)?

12.1.3 Power supply

- Have you correctly connected the power supply?

12.2 Operation with an external second heat source

The appliance is factory set for compressor operation with an elec-

tric emergency/booster heater. If the appliance is operated in dual

mode with an external second heat source, set the DIP switch to

"Compressor mode with external second heat source" (see chapter

"Troubleshooting/ Checking the IWS DIP switch settings").

12.3 Initial start-up

12.3.1 Heating curve adjustment

The efﬁciency of a heat pump decreases as the ﬂow temperature

rises. Adjust the heating curve carefully. Heating curves that are

set too high result in the zone and thermostatic valves closing,

which may prevent the minimum ﬂow rate required in the heating

circuit from being achieved.

 Observe the WPM operating and installation instructions.

INSTALLATION

Shutdown

www.stiebel-eltron.com WPL ACS classic | 17

The following steps will help you to adjust the heating curve cor-

rectly:

- Fully open thermostatic or zone valves in a lead room (e.g.

living room and bathroom).

We do not recommend installing thermostatic or zone valves

in the lead room. Control the temperature for these rooms

via remote control.

- At different outside temperatures (e.g. –10°C and +10°C),

adjust the heating curve so that the required temperature is

set in the lead room.

Standard values to begin with:

Parameters Underfloor heating

system

Radiator heating

system

Heating curve 0.4 0.8

Controller dynamics 10 10

Comfort temperature 20°C 20°C

If the room temperature is not high enough in spring and autumn

(approx. 10°C outside temperature), go to the heat pump manager

menu under "SETTINGS / HEATING / HEATING CIRCUIT" and raise

the "COMFORT TEMPERATURE" parameter.

Note

If no remote control is installed, raising the "COMFORT

TEMPERATURE" parameter leads to a parallel offset of

the heating curve.

If the room temperature is not high enough when outside temper-

atures are low, increase the "HEATING CURVE" parameter.

If you raise the "HEATING CURVE" parameter, adjust the zone valve

or thermostatic valve in the lead room to the required temperature

when outside temperatures are high.

!

Material losses

Never reduce the temperature in the entire building by

closing all zone or thermostatic valves, but by using the

setback programs.

When everything has been implemented correctly, the system

can be heated to its maximum operating temperature and vented

once again.

!

Material losses

With underﬂoor heating systems, observe the maximum

permissible temperature for the system.

12.3.2 Other settings

 For operation with and without buffer cylinder, observe

chapter "Operation/ Menu structure/ Menu SETTINGS/

STANDARD SETTING/ BUFFER OPERATION" in the operating

and installation instructions of the WPM.

If using the heat-up program

If you use the heat-up program, make the following settings on

the WPM:

 Initially set the "DUAL MODE TEMP HZG" parameter to 30°C.

 Set the "LOWER APP LIMIT HZG" parameter to 30°C.

Note

Following the heat-up process, return the "DUAL MODE

TEMP HZG" and "LOWER APP LIMIT HZG" parameters to

their default values or to the system values.

13. Shutdown

!

Material losses

Never interrupt the heat pump power supply, even out-

side the heating season. Otherwise, system frost protec-

tion is not guaranteed.

The heat pump manager automatically switches the heat

pump to summer or winter mode.

13.1 Standby mode

To shut down the appliance, simply set the heat pump manager

to "Standby mode". This way the safety functions that protect the

system remain enabled, e.g. frost protection.

13.2 Power interruption

If the system is to be isolated from the power supply permanently,

please observe the following:

!

Material losses

 If the heat pump and frost protection are completely

switched off, drain the system on the water side.

14. Maintenance

!

Material losses

Keep the air discharge and intake apertures free from

snow and ice.

 Remove any leaves or other foreign bodies from the evapora-

tor ﬁns periodically.

We recommend a regular inspection (to establish the current con-

dition of the system), and maintenance if required (to return the

system to its original condition).

INSTALLATION

Troubleshooting

18 | WPL ACS classic www.stiebel-eltron.com

15. Troubleshooting

WARNING Electrocution

Before working on the appliance, isolate it from the

power supply at the control panel.

Following disconnection from the power supply, parts of

the appliance may remain energised for 2 minutes until

the inverter capacitors have discharged.

Note

Observe the heat pump manager operating and instal-

lation instructions.

If you cannot locate the fault using the heat pump manager, use

the controls on the IWS.

 Read the following sections on troubleshooting and carry out

the instructions.

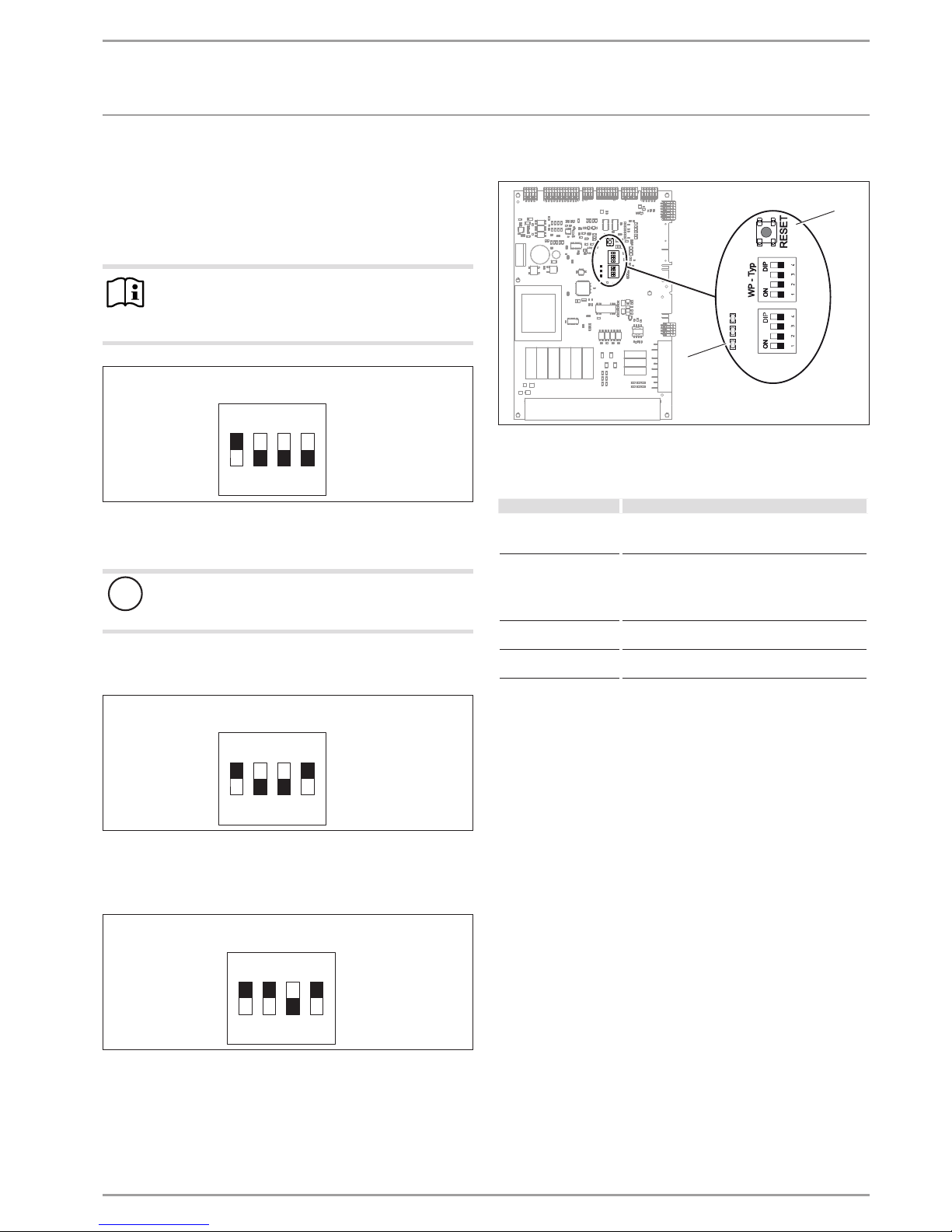

15.1 Checking the IWS DIP switch settings

 Carry out the following steps to make the IWS accessible.

D0000063487

 Undo and remove the four screws on the sides of the hood.

 Remove the hood.

D0000063488

 Unscrew and remove the four screws on the top panel.

 Remove the top panel.

D0000063490

1

2

1

2

1 Screws to be unscrewed

2 Screws to be removed

 Unscrew and remove the screws.

D0000063530

 Completely remove the side panel by sliding it upwards.

 The IWS is located above the terminal area.

BA

D0000063997

1

2

3

4

1 Reset button

2 DIP switch (WP-Typ)

3 DIP switch (BA)

4 LEDs

INSTALLATION

Troubleshooting

www.stiebel-eltron.com WPL ACS classic | 19

15.1.1 DIP switch (WP-Typ)

With the DIP switch (WP-Typ), you can set the IWS to suit the

relevant heat pump type.

Factory setting

Compressor mode with electric emergency/booster heater

Note

An emergency/booster heater is installed in some of the

products required as accessories (see chapter “Installa-

tion/ Appliance description/ Accessories”).

WP - Typ

ON

1 2 3 4

D0000057054

 Check whether the DIP switch is set correctly.

Compressor mode with external second heat source

!

Material losses

In this case, do not connect the electric emergency/boost-

er heater.

If the appliance is operated in dual mode with an external second

heat source, set the DIP switch as follows.

WP - Typ

ON

1 2 3 4

D0000057055

15.1.2 DIP switch (BA)

Factory setting

BA

ON

1 2 3 4

D0000051579

15.2 LEDs (IWS)

BA

D0000063997

1

2

1 Reset button

2 LEDs

The following table shows the meaning of the LEDs on the IWS.

LED indicator Meaning

Red LED flashes

Single fault. The appliance shuts down. The appli-

ance restarts after 10 minutes. The LED extinguish-

es.

Red LED illuminates

Multiple faults occurred. The appliance shuts down.

The appliance only restarts following a reset on the

IWS. The internal fault counter will then be reset.

The appliance can be restarted after 10minutes.

The LED extinguishes.

Green LED (centre)

flashes

The heat pump is initialising.

Green LED (centre) illu-

minates

The heat pump was initialised successfully and the

connection with the WPM is active.

Faults indicated by the red LED:

- High pressure fault

- Low pressure fault

- Central fault

- Hardware fault on the IWS (see fault list)

15.3 Reset button

If the IWS was incorrectly initialised, you can reset the settings

with this button.

 For this, also observe chapter "Reinitialising the IWS" in the

heat pump manager operating and installation instructions.

INSTALLATION

Troubleshooting

20 | WPL ACS classic www.stiebel-eltron.com

15.4 Fan noise

The heat pump extracts heat from the outdoor air. This causes

the outdoor air to cool down. At outside temperatures of 0°C to

8°C, the air may be cooled to below freezing point. If, under these

conditions, precipitation occurs in the form of rain or fog, ice may

form on the air grille, the fan blades or the air routing pipes. If the

fan comes into contact with this ice, noise develops.

How to remedy rhythmic scratching or grinding noises:

 Check whether condensate can drain freely from the

appliance.

 Check whether the design output and temperature are set

correctly. Ice formation is particularly pronounced when

a high heating output is called for at moderate outside

temperatures.

 Carry out a manual defrost, repeatedly if required, until the

fan runs free again. Observe the information in the operating

and installation instructions for the heat pump manager and

the "START DEFROST" parameter in the "COMMISSIONING/

COMPRESSOR" menu.

 At outside temperatures above + 1°C, switch the appliance

off for around 1hour or switch it over to emergency mode.

After this, the ice should have melted.

 Check whether the appliance is installed in line with the in-

stallation conditions.

 If noise occurs frequently, notify the service department.

STIEBEL ELTRON WPL 07 ACS classic Instruction Manual

Popular Heat Pump manuals by other brands
