Park Royal
13-6114-14
PARK
PARK ROYAL
• Two cylinders Honda GCV 530 V-Twin engine, 16 hp.
• Front mounted cutting deck gives better overview and easier
availability.
• Electric cutting height adjustment handled from the right side of
the driver’s seat.
• Cutting deck is easily raised into the cleaning position using the
patented quick-release coupling.
• Handles all Stiga Park cutting decks.
• All controls are ergonomically placed by the driver’s seat.
• Easy filling of petrol on the outside, with fuel gauge.
• Patented height adjustable steering wheel.
• Adjustable comfort seat with comfort spring system.
• Patented foot controlled deck lift.
• Cruise control for increased comfort.
• Hour meter to help you to remember to give service in right
time.
• Headlight is standard.
• All year round machine with many possibilities thanks to many
high quality accessories.
• Accessories are easily exchanged.

Park Royal (13-6114-14)
MOTOR
Brand Honda
Power 16 hp GCV 530 V-Twin
Cylinders 2 - cyl.
Battery 12 V / 18 Ah
FUEL
Type of fuel Petrol
Tank volume 12 l
Fuel gauge Yes
SPEED CONTROL
Type of transmission Hydrostatic Tuff Torque K46
Number of gears Speed gear 0 - 10 km/h + R
STEERING
Type of steering Genuine articulated steering
Adjustable steering wheel Yes
Articulated steering through chain/wire Yes
WHEELS
Type of wheels Stiga special lawn tyre tread, 16 inches
Bearings Plain
Tyre pressure Front 0,6 bar Rear 0,4 bar
Driving Rear wheel drive
Snow chains Accessory
CUTTING SYSTEM
Type of cutting system Front cutting deck
Cutting heights 30 - 85 mm in 14 steps
Cutting width From 92 - 121 cm

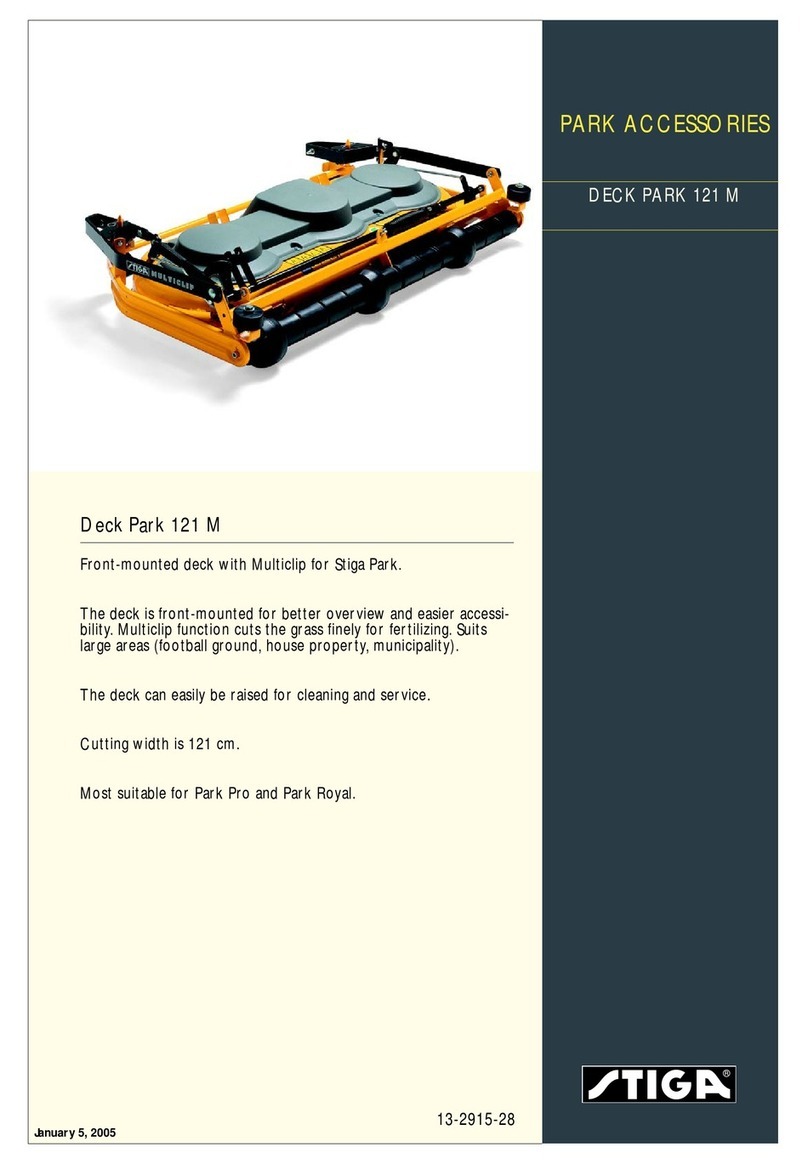

Cutting height adjustment Electric with 107 / 121 M El
CONTROLS
Cruise control Yes
Deck connection Quick coupling
Foot controlled deck lift Yes
Electric starter Yes
Head light Yes
Hour meter Yes
Gear lever Foot pedal
COLOUR & MATERIAL
Colour of chassis Yellow / Black
Material of chassis Steel
MEASURES & WEIGHT
Weight 198 kg without cutting deck
Gross weight 239 kg
Package size W*H*L 91 x 109 x 199 cm
Type of package Wood crate
Largest measures W*H*L 113/133 x 117 x 244/233 cm
SEAT
Type of seat Comfort seat
Seat adjustable horizontally Yes
OTHER FACTS
CE-mark Yes
Instructions for use 8211-0276-04
EAN bar code 731 332 130 170 5
Other Carries the Swan label (340 008). Meets the Carlifornia en-
vironmental laws (CARB).
