Stingray STINGRAY 318LIPW V Series User manual

1A - General information
Transmitter Solutions - Stingray 318LIPWxV is a visor transmitter
operating at 318 MHz in ASK modulation.
It has been designed for use with programmable telephone entry,
security, and access control systems operating with a 318 MHz
frequency receiver. The code sent by the transmitter includes a 16 bit
security code which allows up to 65,536 code combinations and 4 bits
1B - Technical specifications
Number of keys: 1 / 2
Battery life: 12 - 18 months
Current consumption : 25 mA
Operating frequency : 318 MHz
Code combinations :
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
Supply : 1 Alkaline Battery 12V type 23A
65,536
Facility codes 16
of facility code which allows up to 16 facility codes.
Each transmitter is individually numbered, can be used with any receiver
capable of receiving a 26 bit input and can operate any type of access
control system equipped with the same protocol.
The 23A alkaline battery has a life of about 12-18 months.
The product fully complies Part 15 of FCC Regulations.
1C - Main features

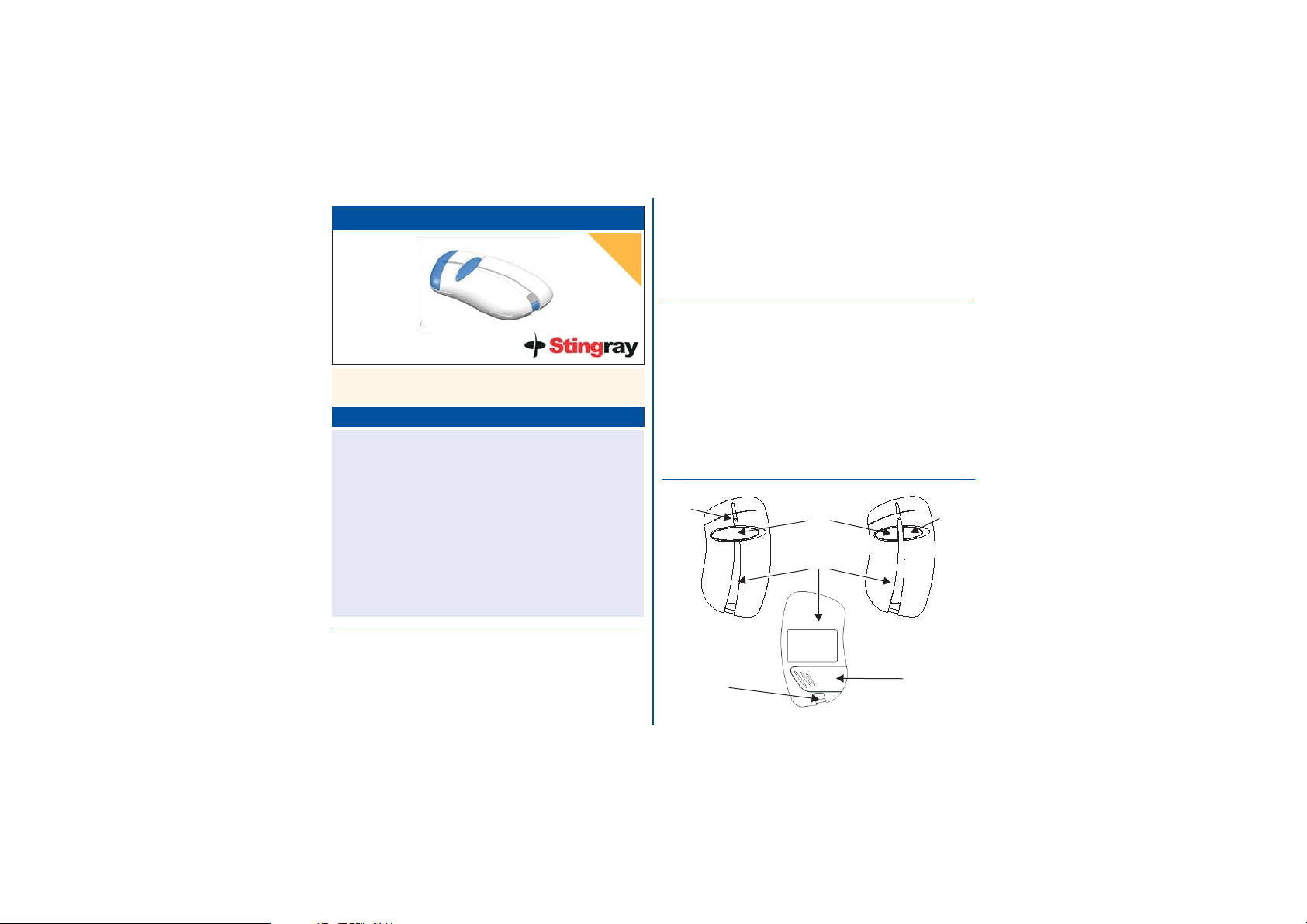

TRANSMITTER STINGRAY 318LIPWxV
Manual
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
1 - TRANSMITTER INTRODUCTION
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
CONTENTS
6 - TROUBLESHOOTING
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
318LIPW1V 318LIPW2V
Push-button
A
blue
Push-
button
B
blue
Key holder
ring
Battery
door
Red
LED
Enclosure
light-grey

2 - NUMBERING

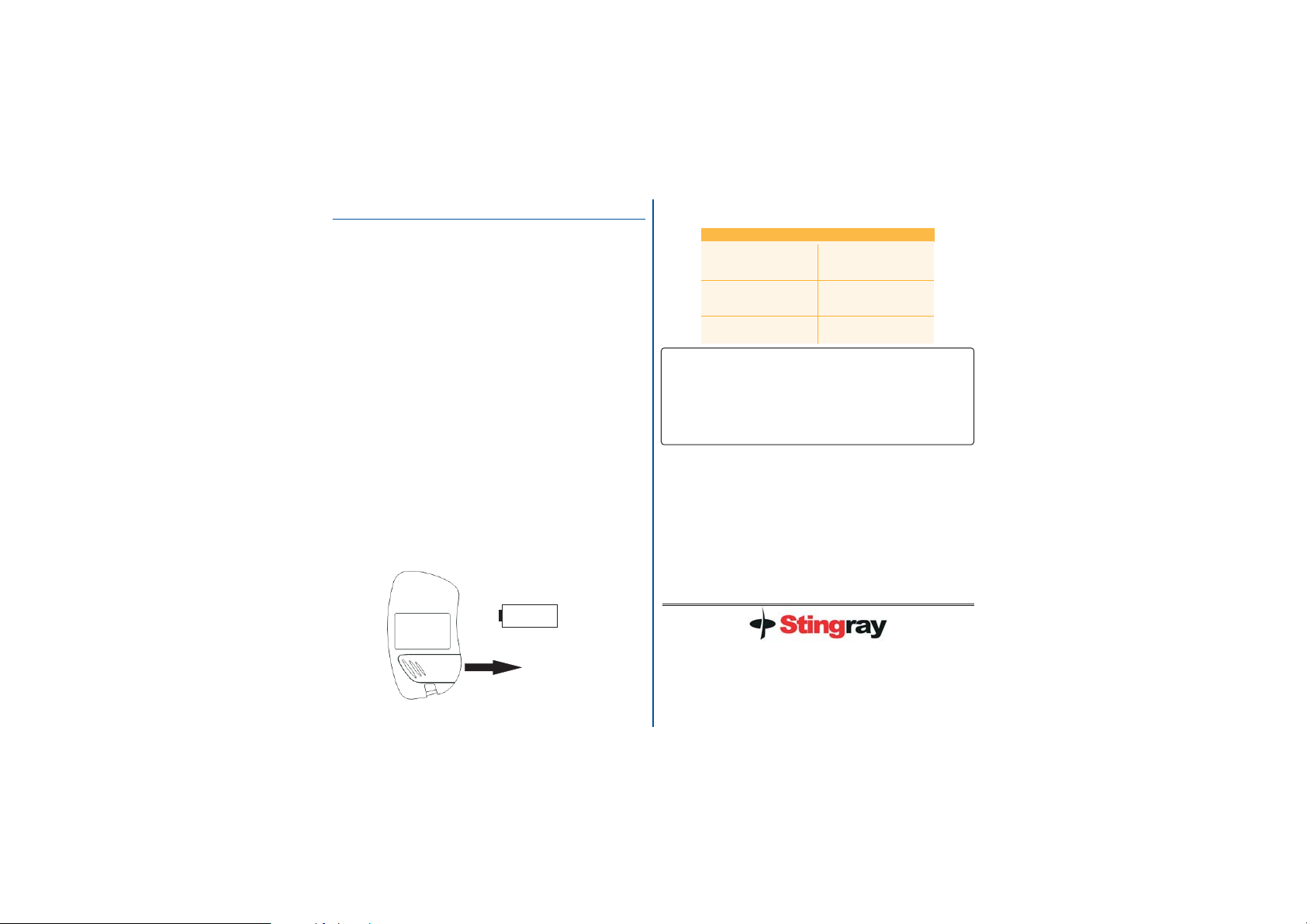

5 - BATTERY ACCESS
6 - TROUBLESHOOTING
To access the battery slide out the battery door
Place the alkaline battery between the 2 contacts.
Respect the right polarity as indicated on the bottom of the box.
23A
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Each transmitter is manufactured and sold with a different factory set sequence
number and facility code.
+_
23A
Battery
Polarity
OPEN
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for your system.
4 - OPERATION
a. Firmly depress either button until the small red LED illuminates.
b. After the LED has illuminated, release the button. If the device you are attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting) of this manual.
IS-T11318LCCUK Rev. 0 del 27.06.06
The warranty period of 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
WARRANTY
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
[phone] - [phone] Fax
[email protected]
1D - Types
STINGRAY 318LIPW1V : 1 button transmitter
STINGRAY 318LIPW2V : 2 button transmitter
FCC ID : SU7318LIPWV
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authority to operate this product.
Transmitter Solutions
Transmitter Solutions
FAULT SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light

1A - General information
Transmitter Solutions - Stingray 318DOPWxV is a visor transmitter
operating at 318 MHz in ASK modulation. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 318 MHz frequency receiver. The protocol is
MicroCLIK® compatible and the code sent by the transmitter includes a
14 bit security code which allows up to 16384 code combinations and
1B - Technical specifications
Number of keys: 1 / 2
Battery life: 12 - 18 months
Current consumption : 20 mA
Operating frequency : 318 MHz
Code combinations : 16,384
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
Supply : 1 Alkaline Battery 12V type 23A
Facility codes 64
6 bits of facility code, which allows up to 64 facility codes.
Each transmitter is individually numbered, can be used with any receiver
capable of receiving a 26 bit input and can operate any type of access
control system equipped with the same protocol.
The 23A alkaline battery has a life of about 12-18 months.
The product fully complies Part 15 of FCC Regulations.
1C - Main features
TRANSMITTER STINGRAY 318DOPWxV
Manual
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
1 - TRANSMITTER INTRODUCTION
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
CONTENTS
6 - TROUBLESHOOTING
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
318DOPW1V 318DOPW2V
Push-button
A
red
Push-button
B
red
Key holder
ring
Battery
door
Red
LED
Enclosure
light grey

2 - NUMBERING
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
To access the battery slide out the battery door
Place the alkaline battery between the 2 contacts.
Respect the right polarity as indicated on the bottom of the box.
23A
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Each transmitter is manufactured and sold with a different factory set sequence
number and facility code.
+_
23A
Battery
Polarity
OPEN
FAULT SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for your system.
4 - OPERATION
a. Firmly depress either button until the small red LED illuminates.
b. After the LED has illuminated, release the button. If the device you are attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting) of this manual.
IS-T11318DCCUK Rev. 0 del 27.06.06
The warranty period of 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
WARRANTY
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
[phone] - [phone] Fax
[email protected]
1D - Types
STINGRAY 318DOPW1V : 1 button transmitter
STINGRAY 318DOPW2V : 2 button transmitter
FCC ID : SU7318LIPWV
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authority to operate this product.
Transmitter Solutions
Transmitter Solutions
