Sennheiser BT T100 User manual

Bluetooth® Audio
Instruction Manual
Transmitter
Model: BT T100

2 | Bluetooth® Audio Transmitter

Bluetooth® Audio Transmitter | 1
Inhalt
Inhalt
Important safety instructions ..................................................................... 2
The Bluetooth® Audio Transmitter.............................................................. 4
Features.........................................................................................................4
Package includes.......................................................................................... 6
Product overview...........................................................................................7
Overview of the transmitter (Model: BT T100) .......................................... 7
Getting started ............................................................................................. 8
Setting up the Bluetooth® Audio Transmitter ...........................................8
Connecting the Bluetooth® Audio Transmitter to an audio source ........9
Powering the transmitter........................................................................... 12
Pairing the transmitter to the headphones ............................................. 13
Using the transmitter..................................................................................14
Switching the transmitter on .................................................................... 14
Switching the transmitter off.................................................................... 14
Selecting an audio input............................................................................ 15
Connecting the transmitter to the headphones ..................................... 16
Connecting the transmitter to a second pair of headphones ............... 16
Playing music/videos..................................................................................17
Care and maintenance ................................................................................18
Troubleshooting...........................................................................................19
Clearing the pairing settings.....................................................................20
Specifications ..............................................................................................21
Trademarks ................................................................................................. 22

2 | Bluetooth® Audio Transmitter
Important safety instructions
Important safety instructions
XRead the instruction manual, safety instructions, quick guide (depending
on the scope of delivery) carefully and completely before using the
product.
XAlways include the safety instructions when passing the product on to
third parties.
XDo not use an obviously defective product.
XOnly use the product in environments where Bluetooth® wireless
transmission is permitted.
Preventing damage to health and accidents
XDo not use the product near water and do not expose it to rain or mois-
ture to reduce the risk of fire or electric shock.
XKeep the product, accessories and packaging parts out of reach of
children and pets to prevent accidents. Swallowing and choking hazard.
Preventing damage to the product and malfunctions
XAlways keep the product dry and do not expose it to extreme
temperatures to avoid corrosion or deformation.
XOnly use attachments/accessories/spare parts supplied or recom-
mended by Sennheiser.
XClean the product only with a soft, dry cloth.
XUse the product with care and store it in a clean, dust-free environment.

Bluetooth® Audio Transmitter | 3
Important safety instructions
Intended use/Liability
The Bluetooth® Audio Transmitter is suitable for use with hi-fi systems,
TV sets, PCs, and home cinema systems and supports both analog and
digital signals. With this product you can enable a non-Bluetooth-enabled
device to playback audio through Bluetooth wireless headphones.
It is considered improper use when this product is used for any application
not named in the associated instruction manuals and product guides.
Sennheiser does not accept liability for damage arising from abuse or
misuse of this product and its attachments/accessories.
Before putting the product into operation please observe the respective
country-specific regulations!

4 | Bluetooth® Audio Transmitter
The Bluetooth® Audio Transmitter
The Bluetooth® Audio Transmitter
The Bluetooth® Audio Transmitter delivers precise sound reproduction
through Qualcomm® aptX™ audio technology.
Expect an even better audio-video experience at home through your
favorite headphones.
Features
• Supports Qualcomm® aptX™ for true Hi-Fi sound
• Supports Qualcomm® aptX™ Low Latency for optimized audio-visual
experience
• Supports analog and digital audio inputs and allows easy toggling
between the inputs

Bluetooth® Audio Transmitter | 5
The Bluetooth® Audio Transmitter
Bluetooth
The Bluetooth® Audio Transmitter complies with the Bluetooth 4.2 standard
and is compatible with all Bluetooth 1.1, 1.2, 2.0, 2.1, and 3.0 headphones
with Advanced Audio Distribution Profile (A2DP) for audio playback.
aptXTM
With aptXTM audio coding, you can be assured of crisp, pure and full stereo
sound. It allows you to not only hear, but experience and feel the audio
as it was intended. Utilizing aptXTM, Bluetooth technology can now offer
wireless audio quality that is indistinguishable from the highest quality
wired connection.
aptXTM Low Latency
Qualcomm® aptX™ Low Latency audio ensures your Bluetooth® wireless
enabled device can deliver sound in sync with visual media. It reduces
delay and improves end-to-end speed of the audio transmission, resulting
in a high quality, synchronized audio-visual experience. With aptX™ Low
Latency you can enjoy the freedom of wireless for applications such as
gaming and watching videos.

6 | Bluetooth® Audio Transmitter
Package includes
Package includes
Bluetooth transmitter
USB power cable
Digital optical cable
Analog audio cable
Quick
Guide Quick guide
Safety
Guide Safety guide
A list of accessories can be found at www.sennheiser.com. For
information on suppliers, contact your local Sennheiser partner:
www.sennheiser.com/service-support.

Bluetooth® Audio Transmitter | 7
Product overview
Product overview
Overview of the transmitter (Model: BT T100)
1 Multifunction button 4 Input Selection switch
2 LED 5 Digital Optical IN input
3 Analog 3.5 mm IN input 6 USB micro-B input socket (power)
USB-B
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
USB
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
2
3
1
4 65
USB-B
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
USB
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN

8 | Bluetooth® Audio Transmitter
Getting started
Getting started
Setting up the Bluetooth® Audio Transmitter
XChoose a suitable place near your audio source.
XAvoid placing the transmitter and other wireless devices too close to
one another to prevent interference.
XDo not place the transmitter close to metal objects such as shelf bars,
reinforced concrete walls, etc. as this can decrease the transmitter’s
range.

Bluetooth® Audio Transmitter | 9
Getting started
Connecting the Bluetooth® Audio Transmitter to an
audio source
You can simultaneously connect 2 different audio sources (e.g. a TV or
PC and a stereo hi-fi system) to the transmitter. The transmitter features
a digital as well as an analog audio input. If you connect 2 audio sources,
you can toggle between them using the Input Selection switch (see
page 15).
XSwitch your audio source off before connecting the transmitter.
XCheck the connection options available on your audio source (for analog
audio connection, the audio output is usually marked “OUT”).
XSelect the corresponding connection cable and, if necessary, a suitable
adapter.
XOnce the cable is selected, slide the Input Selection switch toward the
correct input.

10 | Bluetooth® Audio Transmitter
Getting started
Connection to an audio source using the digital optical cable
To achieve the best possible listening experience, we recommend that
you connect the Bluetooth® Audio Transmitter to your home cinema or
hi-fi system using the supplied digital optical cable.
Your Bluetooth® Audio Transmitter allows digital audio streaming using
only PCM audio output from devices connected through the digital optical
input. Refer to the sound menu or the instruction manual of your TV to
change from another audio stream (e.g. Bitstream) to PCM.
Digital - no sound?
TV sound menu*
Digital sound output
PCM
Bitstream
* The appearance of the Sound menu can vary depending on the device used.
Pull off the clear protective caps from both plugs of the digital optical
cable before connecting to the TV and transmitter.
XSwitch your audio source off before connecting the transmitter.
XSlide the Input Selection switch toward the Digital Optical IN input.
XConnect one end of the digital optical cable to the Digital Optical IN
input of the transmitter and the other end to the optical output of your
TV.
USB
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
TV
Optical Out

Bluetooth® Audio Transmitter | 11
Getting started

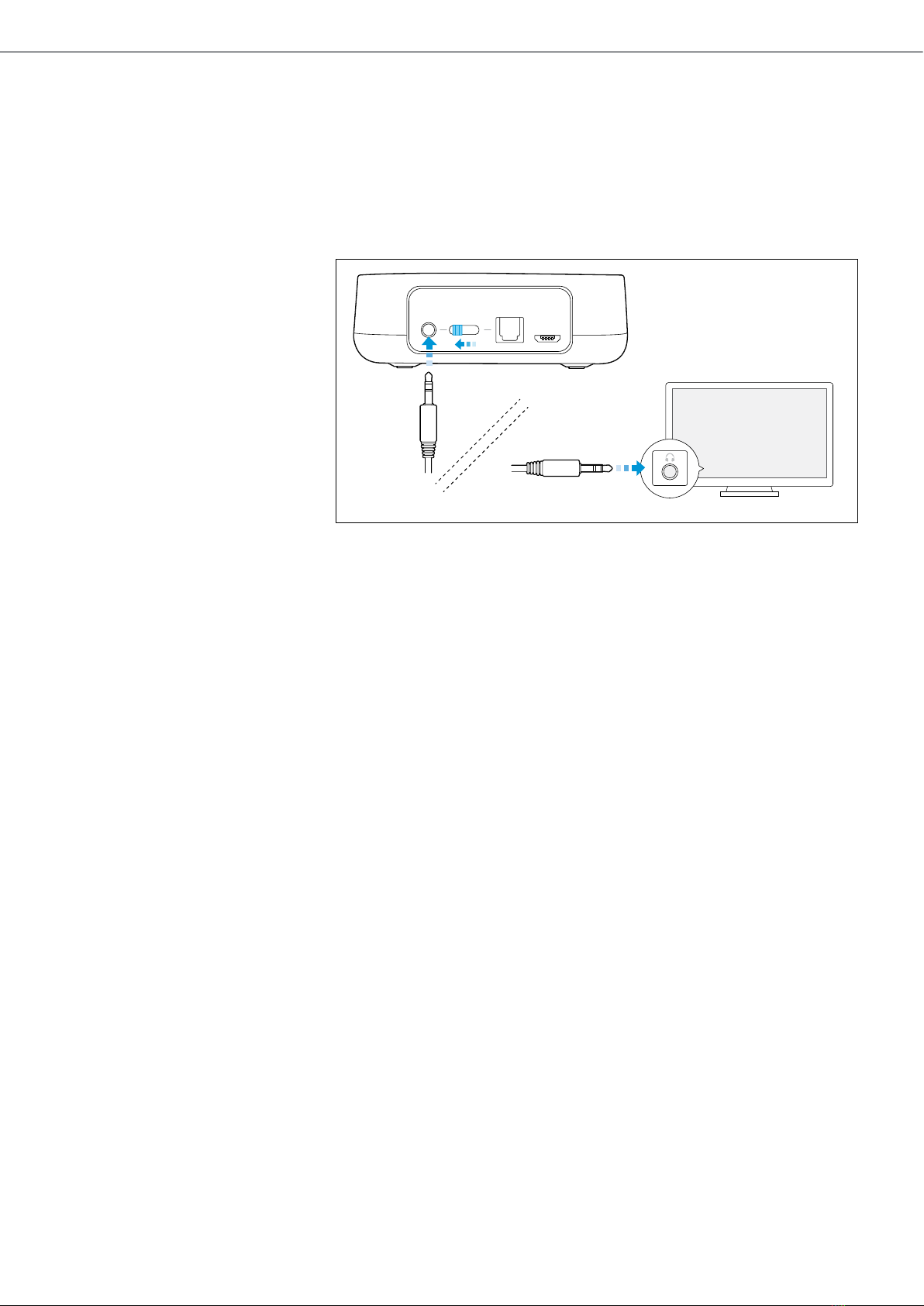

Connection to an audio source using the 3.5 mm analog audio cable
Some TV models mute the loudspeakers when you connect the transmitter
to the headphone socket. Check in the menu of your TV to see if the muting
function can be deactivated.
XConnect the 3.5 mm plug of the analog audio cable to the Analog input
of the transmitter.
XConnect the other end of the analog audio cable to the 3.5 mm
headphone socket of the TV or PC.
TV/PC
Phones
USB
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN

12 | Bluetooth® Audio Transmitter
Getting started

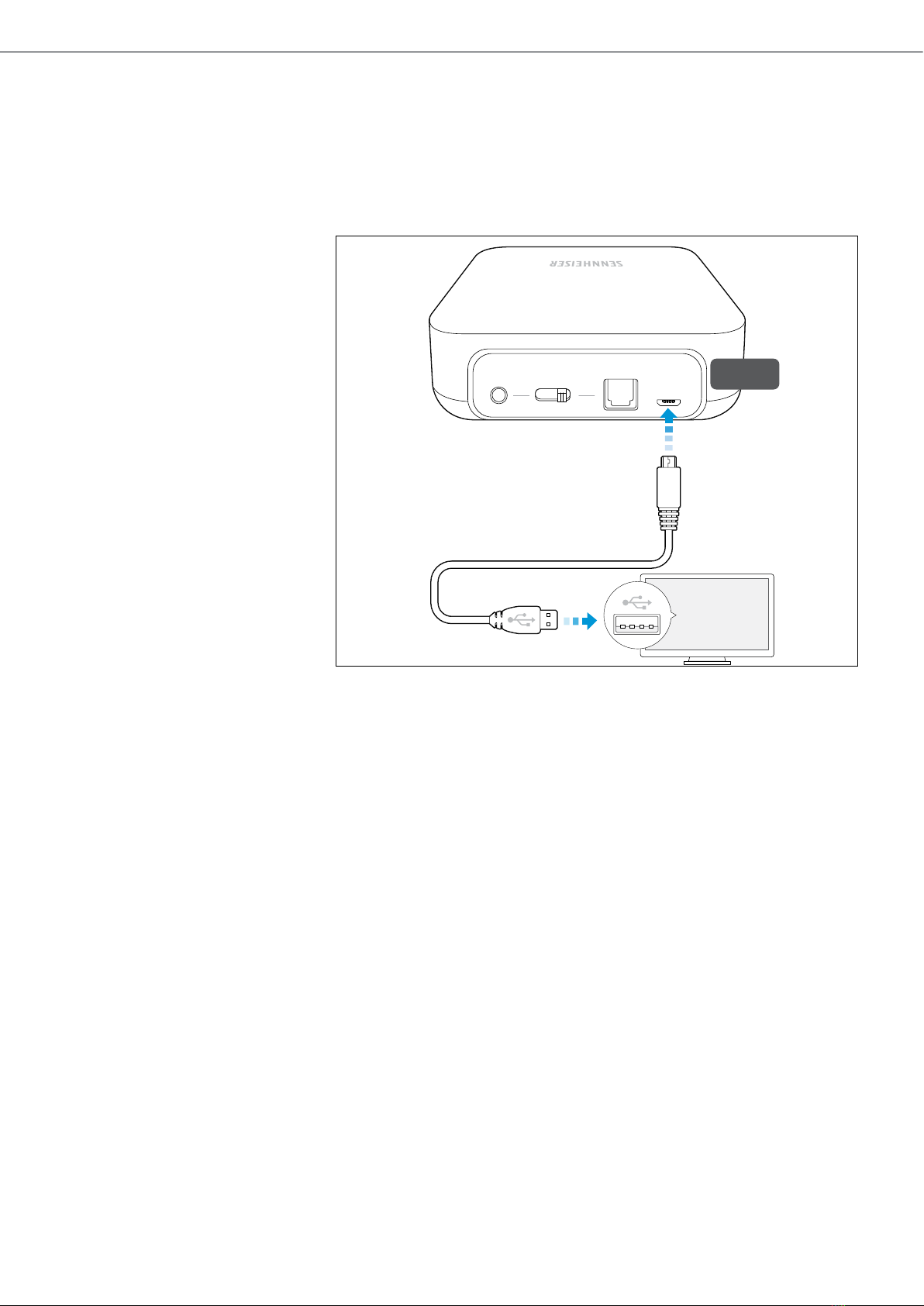

Powering the transmitter
1. Connect the USB micro B plug of the supplied USB power cable to the
USB-B port of the transmitter.
2. Connect the USB plug to the USB port of your TV or PC. For older TV
models without built-in USB port, connect the USB plug to an external
USB power adapter and connect to the power source.
The transmitter automatically switches on.
USB-B
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
USB
Power
Digital Optical
IN
Input
Selection
Analog
3.5 mm
IN
TVTV/PC
Auto-ON

Bluetooth® Audio Transmitter | 13
Getting started
Pairing the transmitter to the headphones
CAUTION
Danger of malfunction!
The transmitted radio waves of Bluetooth devices can impair
the operation of sensitive and unprotected devices.
XOnly use Bluetooth devices in locations where wireless
transmission is permitted.
The transmitter can save the connection profiles of up to eight Bluetooth
headphones. If you pair the transmitter to the ninth headphones, the saved
connection profile of the least used headphones will be overwritten.
If you are watching/listening from your home entertainment system, the
transmitter can connect to up to 2 headphones simultaneously.
Pairing the transmitter to the headphones
1. Set your headphones to pairing mode.
If you are using Sennheiser headphones, the headphones’ LED usually
flashes blue and red during pairing.
2. Press the the Multifunction button on the transmitter for 4 seconds.
The transmitter goes into pairing mode and the LED flashes blue and
red. If pairing is successful, the LED flashes and then lights up blue for
approximately 3 minutes.
21
OFF
Set to pairing mode
4s
Hold
Pairing
Connected
... 3min
If no connection is established within 5 minutes, pairing mode is
terminated and the transmitter goes into standby mode. If necessary,
repeat the pairing procedure.

14 | Bluetooth® Audio Transmitter
Using the transmitter
Using the transmitter
Switching the transmitter on
The transmitter goes into pairing mode when switched on for the
first time.
1. Press the Multifunction button for 2 seconds.
The LED lights up red.
ON
2s
Hold
Switching the transmitter off
1. Press the Multifunction button for 3 seconds.
The LED switches off.
OFF
3s
Hold

Bluetooth® Audio Transmitter | 15
Using the transmitter
Selecting an audio input
If both the analog and the digital audio input are connected to an audio
source, the transmitter allows you to toggle between the two inputs.
WARNING
Danger due to high volume levels!
Listening at high volume levels can lead to permanent hearing
defects.
XBefore putting the headphones on and before toggling
between your audio inputs, adjust the volume on the
headphones to a low level. Toggling between inputs may
cause enormous volume jumps that can damage your
hearing.
XDo not continuously expose yourself to high volume levels.
XSlide the Input Selection switch toward the Digital Optical IN input to
listen to an audio source connected using the digital optical cable (see
page 10).
XSlide the Input Selection switch toward the Analog 3.5 mm IN input to
listen to an audio source connected using the analog audio cable (see
page 11).

16 | Bluetooth® Audio Transmitter
Using the transmitter
Connecting the transmitter to the headphones
Connect the headphones to the transmitter to watch a movie or listen to
music from your TV, PC, or home entertainment system.
1. Switch the paired headphones on.
2. Switch the transmitter on.
The LED lights up red. Once the connection is established, the LED
lights up blue.
ON
2s
Hold
1 2
Connecting the transmitter to a second pair of
headphones
The aptX Low Latency codec is not supported when 2 headphones
are connected to the transmitter. With this configuration and
depending on other factors, such as the models of the headphones
used, the synchronization of audio to the TV picture may not be
completely guaranteed.
You can quickly connect another pair of headphones while the first pair
of headphones is streaming audio. While the second pair of headphones
is connecting to the transmitter, or is leaving the transmission range or
re-entering it, the first headphones may experience an audio interruption
until both pairs are connected to the transmitter.
1. Set the second pair of headphones to pairing mode.
2. Press the Multifunction button of the transmitter for 1 second.
The LED lights up red. Once the transmitter detects that 2 pairs of
headphones are connected, the LED lights up purple for 3 minutes.
ON
1s
Hold
1 2
*1
*1 Set to pairing mode.

Bluetooth® Audio Transmitter | 17
Using the transmitter
Playing music/videos
If your audio source and headphones support the aptX or aptX LL codec,
the Bluetooth® Audio Transmitter plays your music wirelessly in stunning
audio quality. If the audio source and headphones do not support any of
these audio codecs, the audio is played in standard quality.
When watching videos from a TV/PC that supports aptX Low Latency
codec, the synchronization of sound to the visual media is automatically
optimized. This means that the audio remains in sync with the video all
the time.
When the transmitter is connected to 2 pairs of headphones, the audio on
both headphones will be played in either aptX or standard quality. With
this configuration and depending on other factors, such as the models of
the headphones used, the synchronization of audio to the TV picture may
not be completely guaranteed. 2-headphone configuration is best utilized
especially for home audio listening.
XPair and connect your headphones to the transmitter, and then connect
the transmitter to the TV/PC, see page 13.
XPlay music/videos from your TV/PC.

18 | Bluetooth® Audio Transmitter
Care and maintenance
Care and maintenance
CAUTION
Liquids can damage the electronics of the product!
Liquids entering the housing of the product can cause a short-
circuit and damage the electronics.
XKeep all liquids away from this product.
XDo not use any solvents or cleaning agents.
To clean the Bluetooth® Audio Transmitter:
XSwitch the transmitter off and disconnect it from the power source
before cleaning.
XClean the product only with a soft, dry cloth.
